3-D Printed Adaptive Foot Pedal Compatible With Adaptive X-box Controller

This 3-D printed adaptive foot pedal is designed to work with an Adaptive X-box Controller and help users with limited motor control play games more easily. It is a simple and affordable assistive device for individuals with cerebral palsy or other motor disabilities who may benefit from using a larger, easier-to-activate input. A foot pedal can be especially helpful for users who want to move some controls away from the hands or use stronger leg and foot movement to activate a switch.

This device uses a button mechanism inside a 3-D printed pedal. When the pedal is pressed, it sends an input to the Adaptive X-box Controller. Because it requires only a simple pressing motion, it can provide a more accessible way to interact with games and other devices.

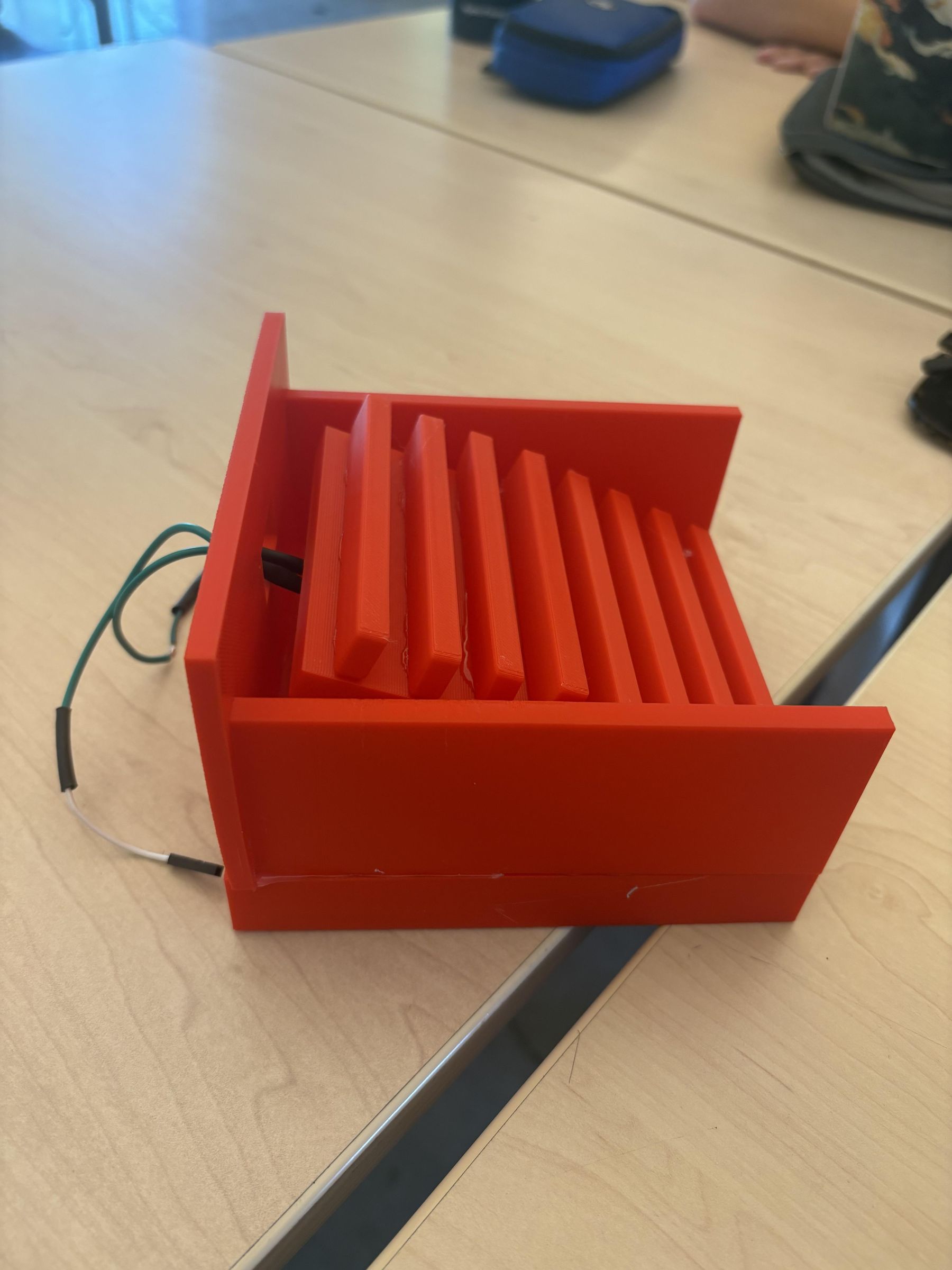

You will build a 3-D printed foot pedal that connects to the Adaptive X-box Controller. The pedal contains a button and wiring system inside the printed housing. When the pedal is pressed, the button is activated and sends a signal to the controller.

1. 1 Adaptive X-box Controller
2. 1 3-D printed foot pedal STL file
3. 2 alligator clips
4. 1 mother cable
5. 1 father cable
6. 1 cable that plugs into the Adaptive X-box Controller
7. 1 button
8. heat seal tubing
9. heat gun
10. soldering materials
11. hot glue

Print the foot pedal STL on a 3-D printer. After printing, remove any supports and check that all parts fit together correctly.

Before moving on, test the pedal pieces to make sure the pressing surface moves properly and lines up with the base. Since this device will be used with the foot, it is important that the printed parts feel sturdy and stable.

Solder one side of the alligator cable to the button and the other side to the mother cable. After soldering, cover the exposed fused ends with heat seal tubing.

This step is important because the button is what actually sends the signal when the pedal is pressed. Make sure the soldered connections are secure so the pedal works consistently during use.

Solder the father cable to one side of the alligator cord. Then solder the cord that plugs into the Adaptive X-box Controller to the other side of the alligator cord.

Once all connections are complete, cover the exposed fused wires with heat seal tubing. This helps protect the wiring, makes the connection safer, and improves the durability of the device.

Hot glue the button system to the block underneath the pedal. Make sure the wire ends are routed out through the hole so they do not get trapped inside the moving parts.

Then hot glue the side piece to the bottom base. Check that the pedal can still move correctly after assembly and that the button is positioned where the pedal will press it down.

Plug the mother cable into the father cable. Then plug the completed port into the Adaptive X-box Controller.

Test the pedal by pressing it down gently with your foot or hand to make sure it activates the intended controller input. If it does not work, check the soldered connections, the cable fit, and the button placement inside the pedal.

To help keep the pedal from sliding during use, add lines of hot glue to the bottom of the base for extra grip.

After the pedal is fully assembled, test it several times in a game or menu. Make sure:

1. the pedal presses smoothly
2. the button activates every time
3. the wiring stays secure
4. the base does not slip too much during use

If needed, adjust the button placement, reinforce the glue, or improve the traction on the bottom so the pedal is easier and safer to use.
