3D Printed RC Plane (T-71 "Dream")

Introduction: The T-71 “Dream”

When I started this project, I had almost zero experience building RC aircraft. I had never designed a plane, never built one, and definitely never trusted something I made to fly through the air at high speed. The only knowledge I had came from the many videos I watched online, trying to understand how wings create lift, how motors spin propellers, and how people somehow make all of that work together without the entire thing immediately crashing.

So naturally, I decided to design my own.

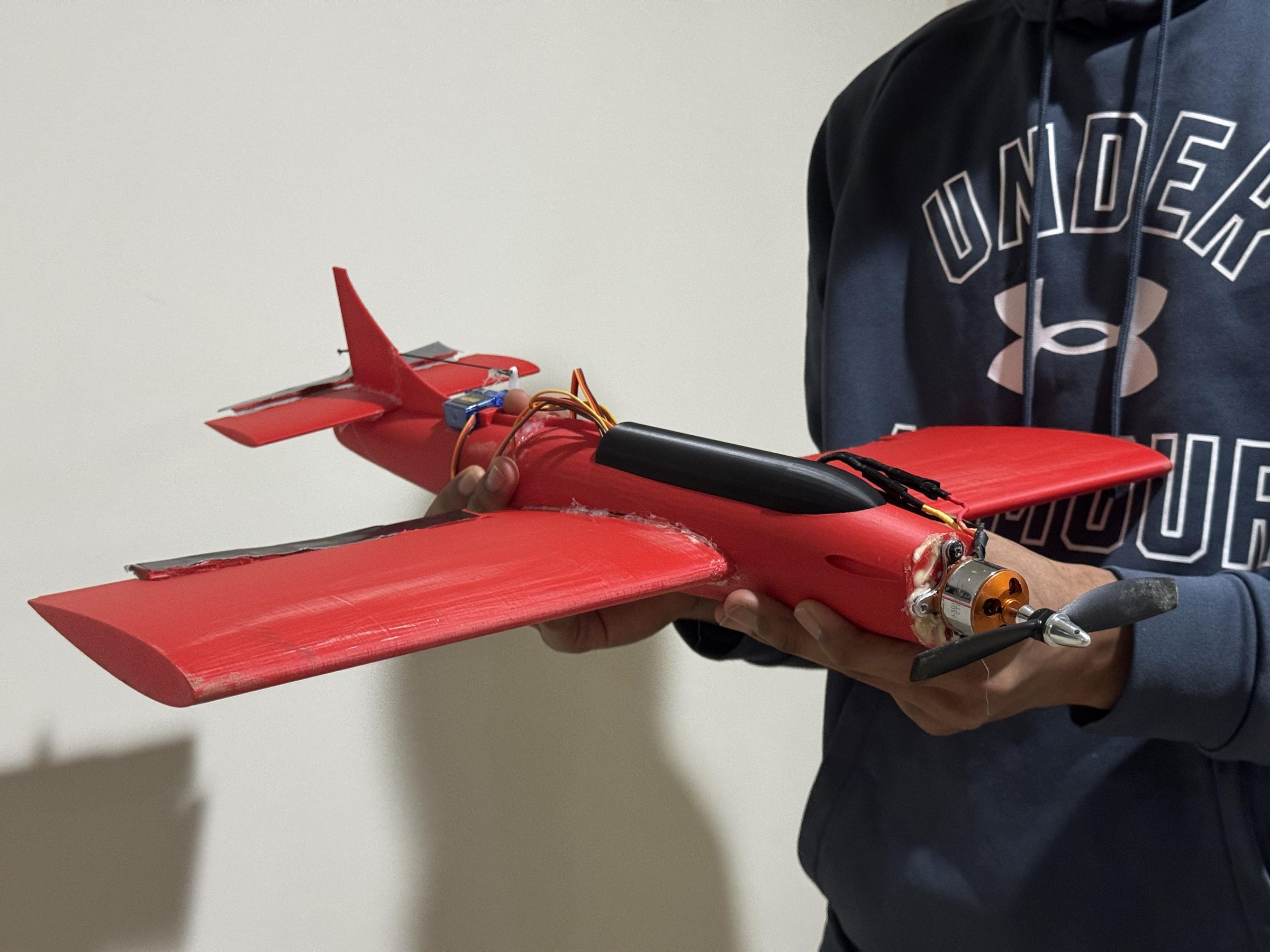

The result is the T-71 “Dream.” It’s called the “Dream” not because it flies like a dream, but because at certain points the entire project felt like it was held together by hopes, dreams, and a slightly worrying amount of optimism.

When I started, I thought the hardest part would be making the plane fast. I wanted speed. I wanted it to look cool. I wanted it to work perfectly the first time.

None of that happened.

What I actually learned during this project was something much simpler: I needed to slow down. I had to slow down and actually learn how wings work. I had to slow down and understand weight balance, motor power, and why small design mistakes can turn an airplane into a very fast lawn dart.

Once I slowed down and focused on learning instead of rushing, things started to make sense. Designs improved, parts fit better, and the project slowly began turning from a scary idea into something real.

This project became more than just building an RC airplane. It became a lesson in patience, persistence, and learning by doing.

In this guide, I’ll walk through the process of designing and building the T-71 “Dream,” from the early design stages to the final assembly. If you’ve ever wanted to build something complicated but felt like you didn’t have enough experience yet, this project is proof that sometimes the best way to start is to try — and remember that in order to speed up, sometimes you need to slow down.

Physical parts:

Servos

Prop

Carbon Fiber Rods

Battery

Brushless Motor

Flysky Transmitter and Receiver

ESC (Electronic Speed Controller)

3 Cell battery Charger

Tools:

Hot Gue Gun

3d Printer (At least 256mmx256mmx256mm)

Craft Blade

Bed Scrapper (I used the Bambu Labs Scrapper)

Sand Papper

Drill and Drill Bits

Miscellaneous:

Fire Hydrant (You never know when you might need it ;)

TRUST Certification

Tape

Zip Ties (Optional)

Safety Glasses

Hammer

3x Papper Clips

Wire Cutters

Step 1: Planning the Aircraft

Before printing any parts or assembling electronics, I had to plan what the aircraft would actually look like and how it would function. Since I had no previous experience designing RC planes, most of my understanding came from watching many videos and studying how other RC aircraft were built.

At first, my instinct was to rush straight into designing something fast and complicated. However, I quickly realized something important: in order to speed up, sometimes you need to slow down. Instead of rushing the design, I needed to understand the basic structure of an airplane.

I started by identifying the core parts every RC plane needs:

1. Fuselage – the main body that holds the electronics and battery
2. Wings – the part that generates lift and keeps the plane in the air
3. Tail section – used for stability and control
4. Motor mount – holds the brushless motor and propeller
5. Electronics compartment – space for the receiver, ESC, and battery

Next, I thought about the materials and structure. Since the plane would be 3D printed, weight was a major concern. Heavy aircraft are harder to fly and require much more power. To keep the structure lightweight but strong, I planned to reinforce the wings using carbon fiber rods while printing the body with thin walls.

Another important factor was balance, also known as the center of gravity. If the battery and electronics are placed too far forward or too far back, the plane becomes unstable and difficult to control. Because of this, I planned space inside the fuselage so the battery position could be adjusted to fine-tune the balance.

Finally, I sketched the overall layout of the plane and began modeling the parts in CAD before moving on to printing. Taking time during this stage helped prevent mistakes later and made the rest of the build process much smoother.

Planning may not be the most exciting part of building a plane, but it’s one of the most important. The more time you spend thinking through the design, the better your chances are that the aircraft will actually fly.

Step 2: Printing the Parts

To design the aircraft, I used TinkerCAD, a browser-based modeling tool, because I didn’t have access to professional CAD software like Fusion 360 or SolidWorks. TinkerCAD allowed me to create and modify the parts of the plane using simple shapes, making it easier to experiment and learn as I went.

For inspiration, I referenced a model created by MrFuzzypants948 and received permission to use their design as a starting point. While some of the fuselage retained the original structure, I heavily modified nearly every other part. I redesigned the wings to include carbon fiber reinforcement, adjusted the internal space to fit all electronics, and created custom mounts for the motor, ESC, battery, and receiver. I also made structural tweaks to improve printability, reduce weight, and make assembly easier.

Even though TinkerCAD is simpler than professional software, it was powerful enough for this project. It forced me to think carefully about dimensions, alignment, and overall design — all essential skills when building a functional RC aircraft from scratch.

Step 3: Printing the Parts`

After finalizing the CAD model, it was time to bring the T-71 “Dream” into the real world using 3D printing. I used my Bambu Labs A1 Combo, which handled all the parts of the plane beautifully. Printing everything took around 13 hours, so patience was key. I also used this file for the control horns, which I printed 3 of.

Material Choice

I used PLA filament because it’s strong enough for small RC planes, easy to print, and lightweight — which is critical for flight. Thin walls were used for the fuselage and wings to reduce weight, while still keeping the structure sturdy. Carbon fiber rods were planned for reinforcement after printing.

Printing Process

Even though hitting “print” seems simple, this stage is where you really learn patience. Watching layers build up slowly for hours can feel like a test of endurance. During the print, I monitored the process occasionally to make sure nothing warped or detached from the bed, but mostly I had to wait and let the printer do its job.

Key Lesson:

Printing a complex model takes time, and rushing it isn’t an option. Sitting back, letting the machine work, and resisting the urge to poke at it constantly is part of the learning process. Sometimes, just like in engineering, the hardest part isn’t designing or assembling—it’s waiting.

Here is the link for the files and the 3mfs

Step 4: Removing Supports and Preparing the Control Surfaces

After printing all the components, the next step was to remove supports and prepare the parts for assembly, especially the control surfaces like the ailerons and elevator.

Removing Supports

I carefully removed all the support material using a craft knife, which I heated over the stove to make cutting easier. A hot blade slices through plastic cleanly and reduces the risk of cracking delicate parts. Safety is important here — be careful handling a heated knife.

Preparing the Control Surfaces

Once the supports were removed, I cut off the aileron and elevator tabs from the main wing and tail pieces. These tabs are what allow the surfaces to move. After trimming, I gently tapped the control surfaces into place and used tape as hinges, creating movable surfaces that can respond to the servos later. This simple method is lightweight, reliable, and perfect for a 3D-printed plane where tiny, fragile parts need to move freely.

Sanding for Electronics and Servos

I also lightly sanded areas where the electronics, battery, and servos would be installed. Smoothing these spots ensures the components fit securely and reduces stress points that could crack during assembly or flight.

Key Tip:

Take your time when cutting and hinging the control surfaces. Properly prepared ailerons and elevator make a huge difference in flight performance and control precision. Even small mistakes here can make assembly frustrating or affect how well the plane flies.

With the supports removed, control surfaces prepped, and mounting areas sanded, the parts were ready for fitting, electronics installation, and final assembly.

Step 5: Building the Plane Body

With all parts printed, supports removed, control surfaces prepared, and critical areas sanded, it was time to assemble the T-71 “Dream.”

Fitting and Cleaning

Before gluing, I test-fitted the major components — fuselage, wings, tail, and control surfaces — to make sure everything aligned properly. I used a craft blade to carefully cut away any extra plastic from the edges or surfaces that might interfere with assembly. This ensured clean joints and proper fit for all parts.

Gluing the Parts

Once the pieces fit correctly, I used a hot glue gun to weld the components together. Small amounts of hot glue were applied at joints to strengthen the connection without adding unnecessary weight. This included the wings to the fuselage, the tail surfaces, and any additional reinforcement areas.

Key Tips:

1. Work slowly and carefully — the glue sets quickly, and misaligned parts can be tricky to adjust afterward.
2. Apply glue sparingly; too much can add weight or spill onto moving surfaces.
3. Make sure the control surfaces (ailerons and elevator) remain free to move and are not glued in place.

Using the hot glue gun allowed me to assemble the plane quickly while keeping it lightweight and strong. After this step, the T-71 “Dream” started to really take shape and was ready for electronics installation and final adjustments.

Step 6: Installing the Electronics

After the plane was assembled, the next step was to add all the electronics that make the T-71 “Dream” fly. This included the brushless motor, ESC, servos, receiver, and battery.

Fitting the Components

Some compartments were tight, so I used a craft blade to slightly trim the plastic where needed for a better fit. For parts that needed a snug fit, I carefully used a small hammer to gently tap them into place, creating tension that held the components securely without additional glue.

Placing Electronics

1. The motor was mounted at the front of the fuselage in its reinforced slot.
2. The ESC was placed nearby to keep wiring short and organized.
3. Servos were installed in their designated slots, connected to the ailerons and elevator using pushrods.
4. The receiver and battery were slid into their compartments, held in place by the snug tension fit.

Key Tips:

1. Work slowly and carefully when tapping components into place; too much force can crack the 3D-printed plastic.
2. Make sure all wires are clear of moving parts, especially the control surfaces.
3. Double-check that the ailerons and elevator can move freely before finishing.

This tension-based method allowed the electronics to sit firmly without adding extra adhesives, keeping the plane lightweight and functional. Once all components were installed, the T-71 “Dream” was ready for final testing and pre-flight adjustments.

Step 7: Adding Flight Control Features

With the electronics in place, the next step was to connect the servos to the control surfaces and hook everything up to the receiver, so the plane could actually respond to the transmitter.

Making the Linkages

I used paper clips as control rods. With a wire cutter, I bent the paper clips to the correct shape and length so they could connect the servos to the control horns on the ailerons and elevator. The bends ensured the linkages fit snugly without binding, allowing smooth movement of the control surfaces.

Connecting the Electronics to the Receiver

Once the linkages were in place, I connected each component to the Flysky receiver with the following channel assignments:

1. CH3: Throttle (ESC)
2. CH4: Master aileron
3. CH5: Slave aileron
4. CH2: Elevator (servo controlling elevator surfaces)

This setup allowed full control over the plane: throttle, ailerons, and elevator, all responding correctly to the transmitter.

Key Tips:

1. Test the motor without the propeller before your first flight. This prevents accidents and ensures the ESC and motor are working properly.
2. Calibrate your throttle before connecting everything. I learned the hard way that skipping this step can lead to unexpected full-power motor spins! ;)
3. Double-check that the control surfaces move in the correct direction when operating the transmitter. Reverse channels if needed.
4. Make small adjustments to the paper clip linkages if the movement is too tight or too loose.
5. Ensure all wires are secure and won’t interfere with moving parts.

With the linkages connected, the electronics assigned, and safety checks done, the T-71 “Dream” was now a fully controllable RC plane, ready for balancing, pre-flight checks, and test flights.

Step 8: Installing the Propeller and Flying

After all the electronics, linkages, and control surfaces were set up and tested, it was time for the final step: putting the propeller on and taking the T-71 “Dream” for its first flight.

Installing the Propeller

Carefully screw the propeller onto the brushless motor. Make sure it’s tight and oriented correctly — props spinning the wrong way won’t produce lift and could damage your plane. Double-check that nothing around the motor or ESC will get caught when it spins.

Pre-Flight Checks

1. Confirm all control surfaces move in the correct direction with the transmitter.
2. Verify the battery is secure and wires are clear of moving parts.
3. Make sure the flight area is open and safe.

Flying!

Once everything is set, power up the transmitter and the plane. Slowly increase the throttle to lift off and control your plane in the air. Remember the lessons learned during the build: patience and careful setup pay off, so take it slow at first and get a feel for how it handles.

Key Tips:

1. Start with low throttle to get a feel for the plane’s balance and responsiveness.
2. Gradually increase speed as you gain confidence.
3. Keep a fire hydrant or safe landing area nearby just in case things go sideways. ;)

With the prop installed and your checks complete, the T-71 “Dream” was ready to soar — held together with hopes, dreams, and a lot of trial-and-error. Now it’s flying (hopefully), and all the hard work paid off!

Step 9: Lessons Learned (and Epic Bloopers)

Building and flying the T-71 “Dream” wasn’t just about making a fast RC plane — it was a rollercoaster of learning, mistakes, and tiny victories.

What I Learned

1. Slow down to speed up: Rushing any step, from trimming supports to installing electronics, only leads to mistakes. Taking your time actually makes the plane fly better.
2. Patience with assembly: Small details, like sanding and properly hinging the control surfaces, make a huge difference.
3. Test before full power: Testing the motor without the propeller and calibrating the throttle are lifesavers. I learned this the hard way. ;)
4. Flexible thinking: Not everything goes as planned. You have to improvise sometimes — like using paper clips for linkages or tape for hinges.

Bloopers and Crashes

1. The plane broke in half at the glued joint during one of the early test flights.
2. A gust of wind shot it into the ground, creating a very dramatic crash that left me staring at a pile of PLA and carbon fiber.
3. Despite the disasters, every crash taught me more about balance, structure, and careful flying.

Key Takeaway:

Even if the plane falls apart or the first flight is a mess, every failure is part of the process. The T-71 “Dream” was built with hopes, dreams, and a lot of mistakes, and that’s what made it a learning experience I’ll never forget.

This step is all about embracing the chaos, celebrating progress, and remembering that building and flying RC planes is as much about the journey as the destination.

Looking Ahead

While the T-71 “Dream” was all about speed, chaos, and learning the hard way, the next plane I build will focus on ease of flight and simplicity of construction. I’ve learned what makes a plane controllable and fun to fly, and I’m excited to take those lessons into the next project — fewer crashes, more smooth flights, and maybe even less hot-glue panic.

Credits and Reflection

I’m a student, and this was my very first serious RC plane project — so yes, I made a lot of mistakes along the way. Every crash, every misaligned part, and every “oops” moment taught me something new about building, electronics, and flight dynamics.

This amazing platform, Instructables, has been incredibly helpful for learning and sharing projects. The tips, inspiration, and step-by-step guides from others made it possible for me to attempt something I never thought I could do.

Looking Ahead

While the T-71 “Dream” was all about speed, chaos, and learning the hard way, the next plane I build will focus on ease of flight and simplicity of construction. I’ve learned what makes a plane controllable and fun to fly, and I’m excited to take those lessons into the next project — fewer crashes, more smooth flights, and maybe even less hot-glue panic.

Special Thanks

1. My parents- Thank you for not only your funding, but also your constant help and support. Thank you my dad for recording, and thanks to my mom for giving feedback.
2. Thank you to my brother for launching the planes, and the hilarious footage!
3. MrFuzzypants948, for the inspiration and permission to heavily modify your model.
4. The Instructables community, for being an amazing resource for beginners like me.
5. Everyone who’s watched the videos — your laughs and feedback make the hard work worth it!

The T-71 “Dream” may have been held together with hopes, dreams, and a lot of mistakes, but it taught me lessons I’ll carry into every future build.
