A/C Refrigerant Recharge_R134a Compatible

A major problem that occurs each summer is that the vehicles tend to use the refrigerant in the a/c system too fast and recharge is needed. Few know how to complete a refrigerant recharge and find the need to visit an A/C shop that is often closed or too expensive to utilize. This guide will provide step by step on how to complete the recharge at home with the necessary tools. All that you need is to confirm usually with the auto parts clerk the type of refrigerant that your vehicle utilizes. We will be discussing the R-134a (most common) and the compatible gauge. With an easy 20 steps from beginning to end.

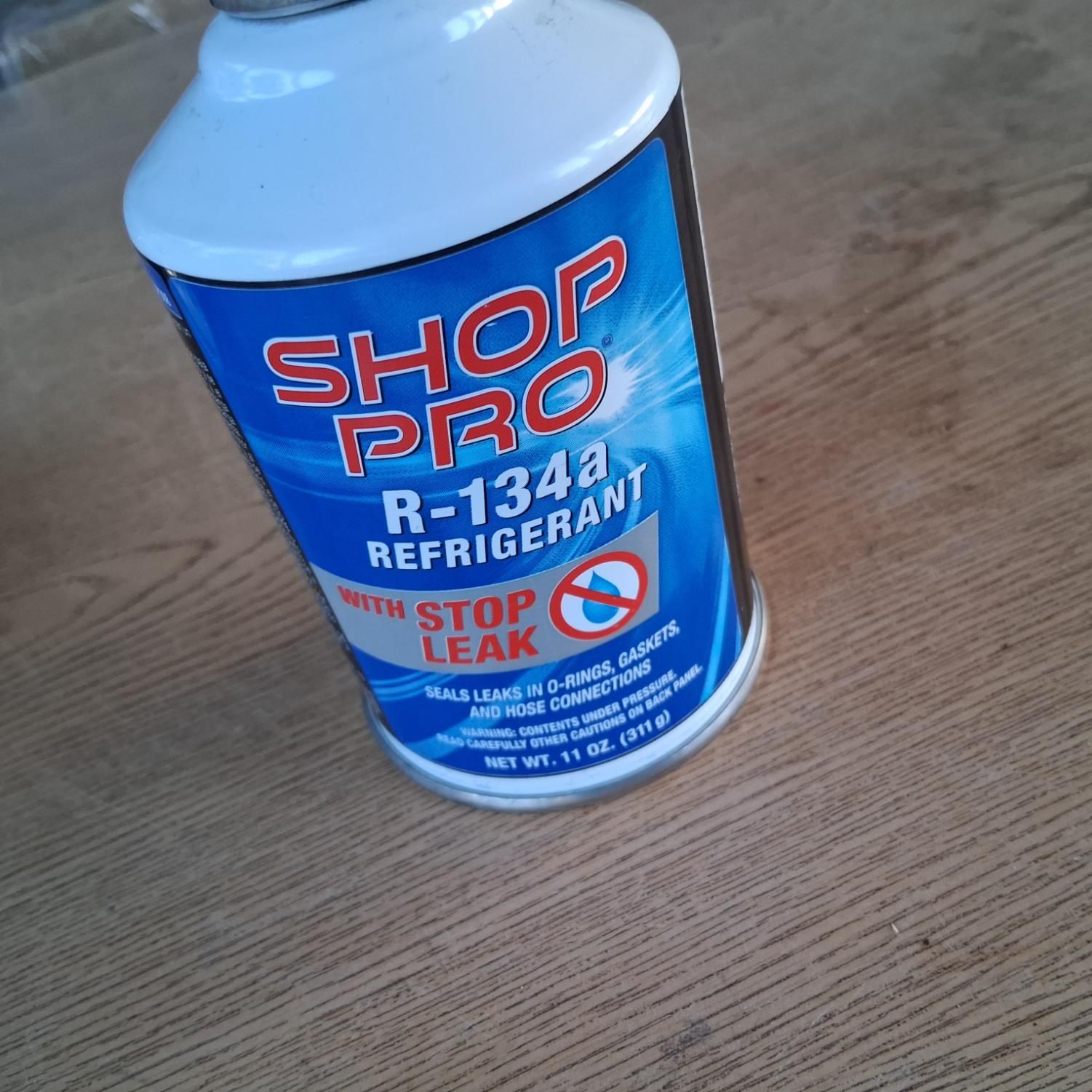

Readers will purchase materials from auto parts store

Open packaging and place materials on the work bench

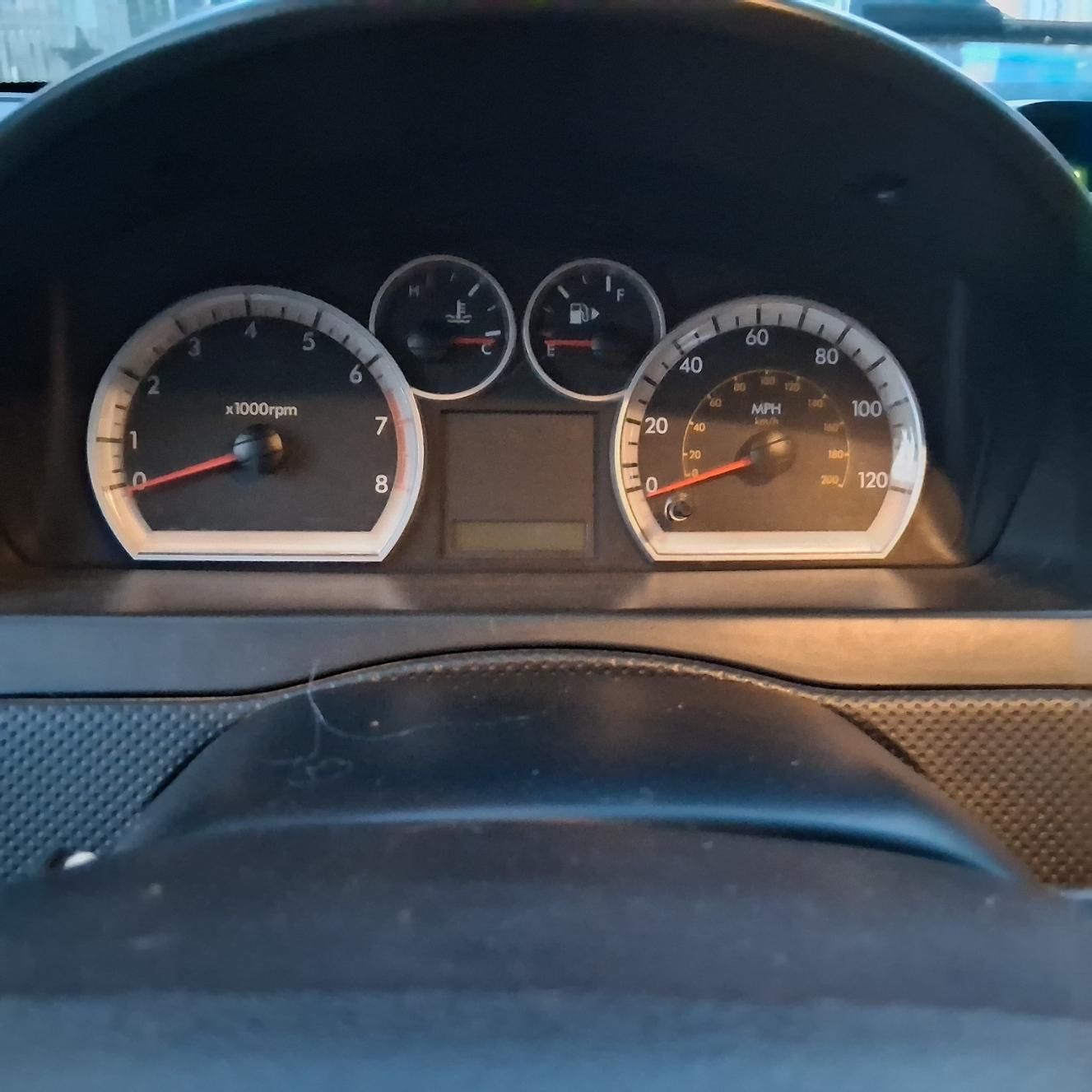

Insert key in ignition

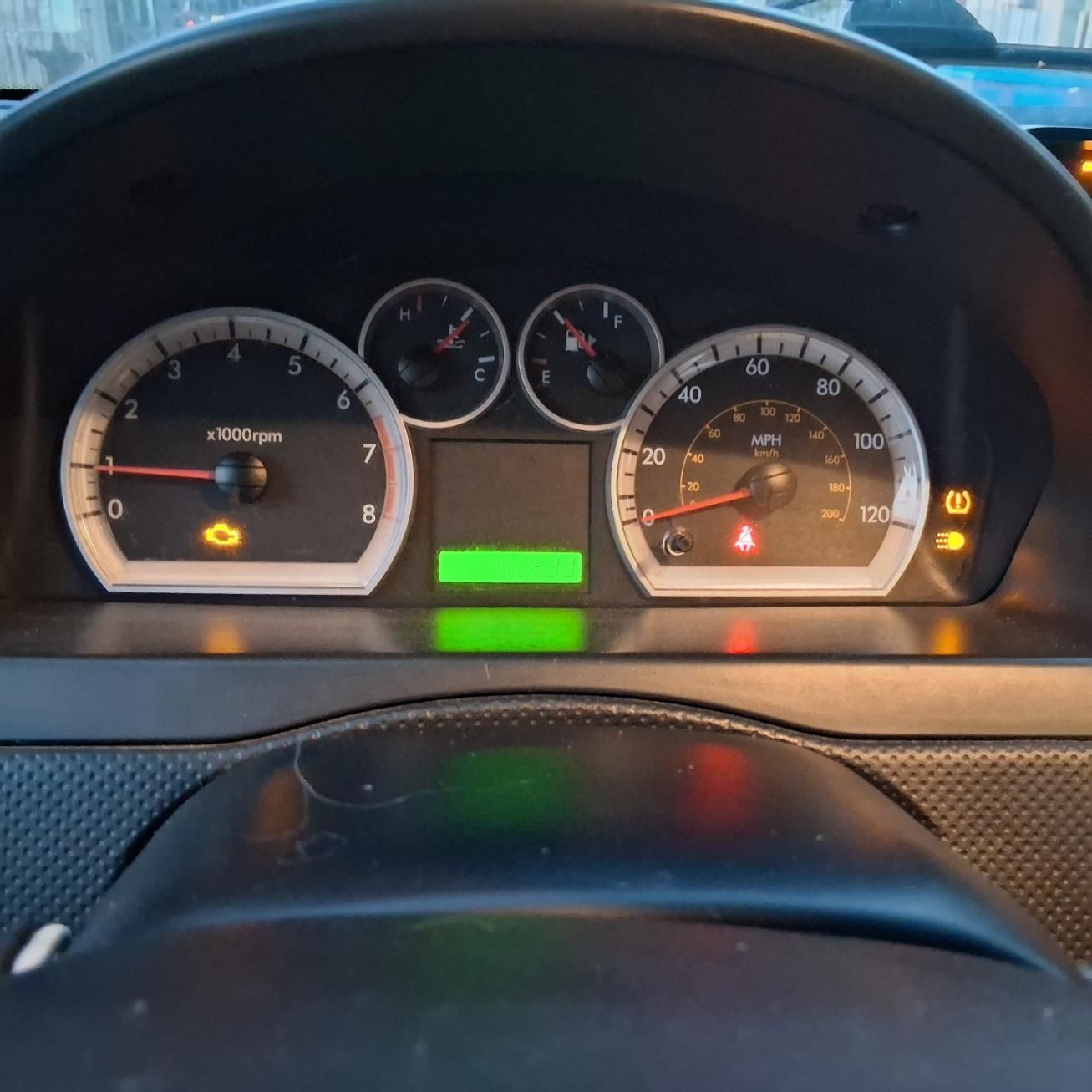

Turn the key to ON mode

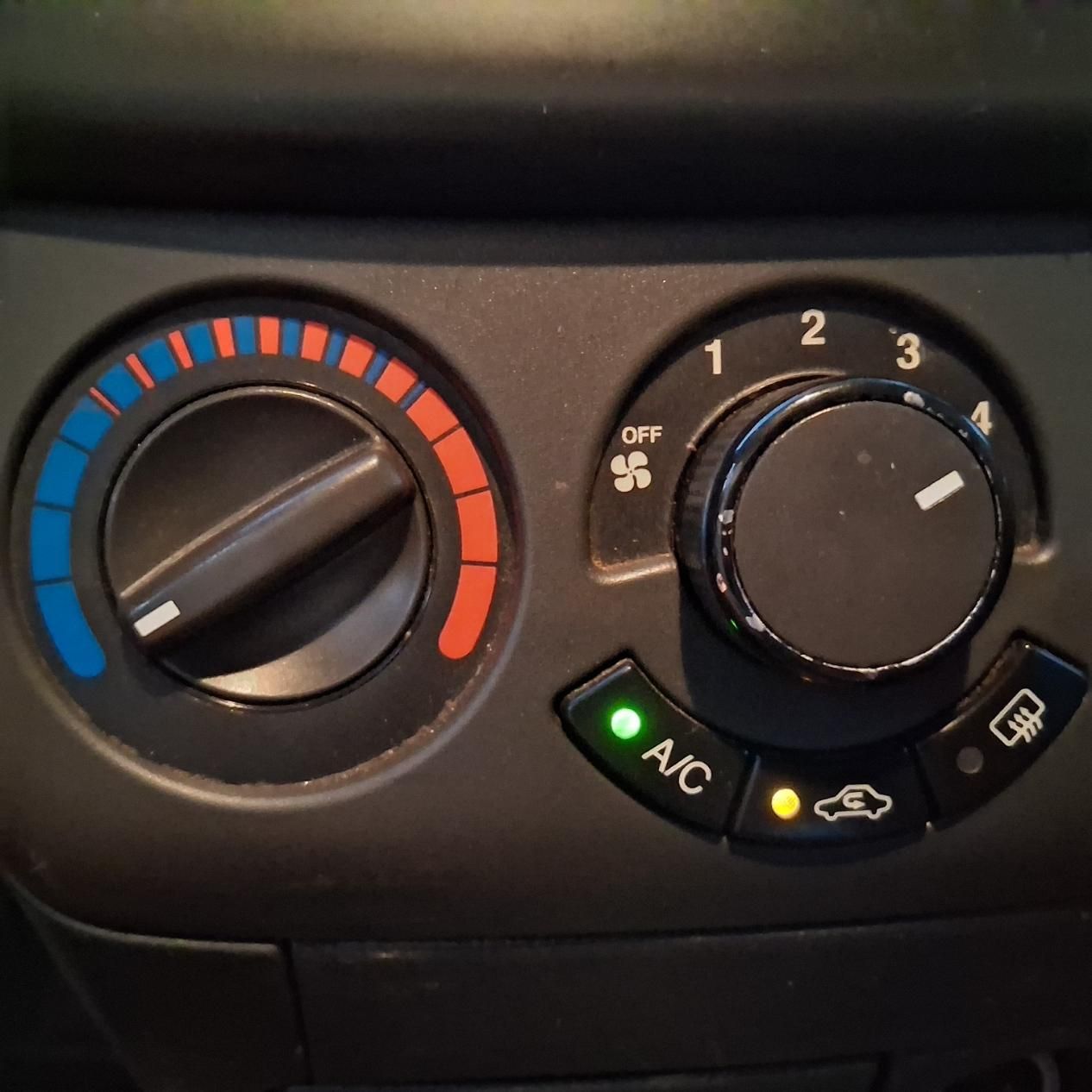

Turned the A/C On

Readers will need to turn the A/C dial to speed of Max or 4

Readers will need to turn the temperature to coldest level

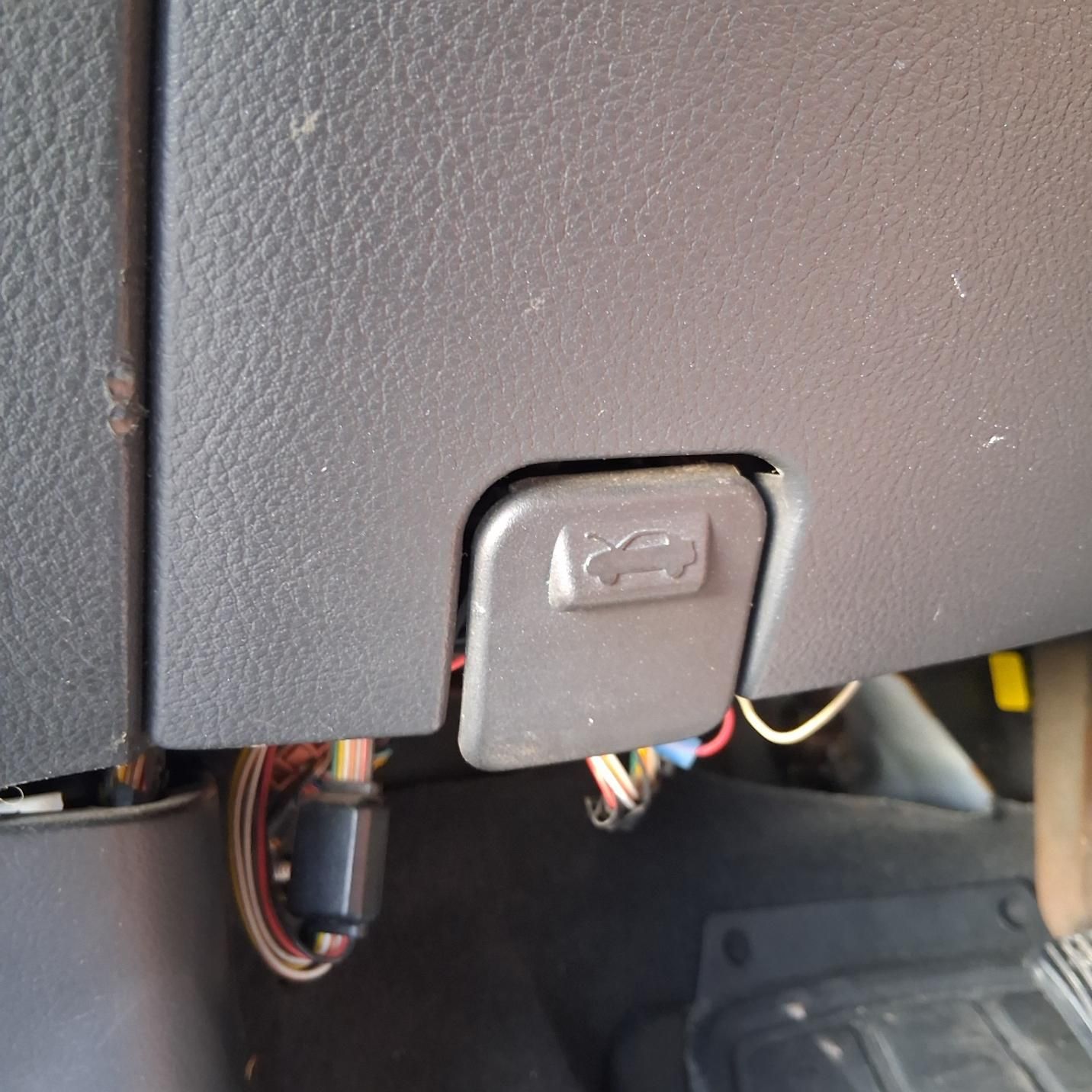

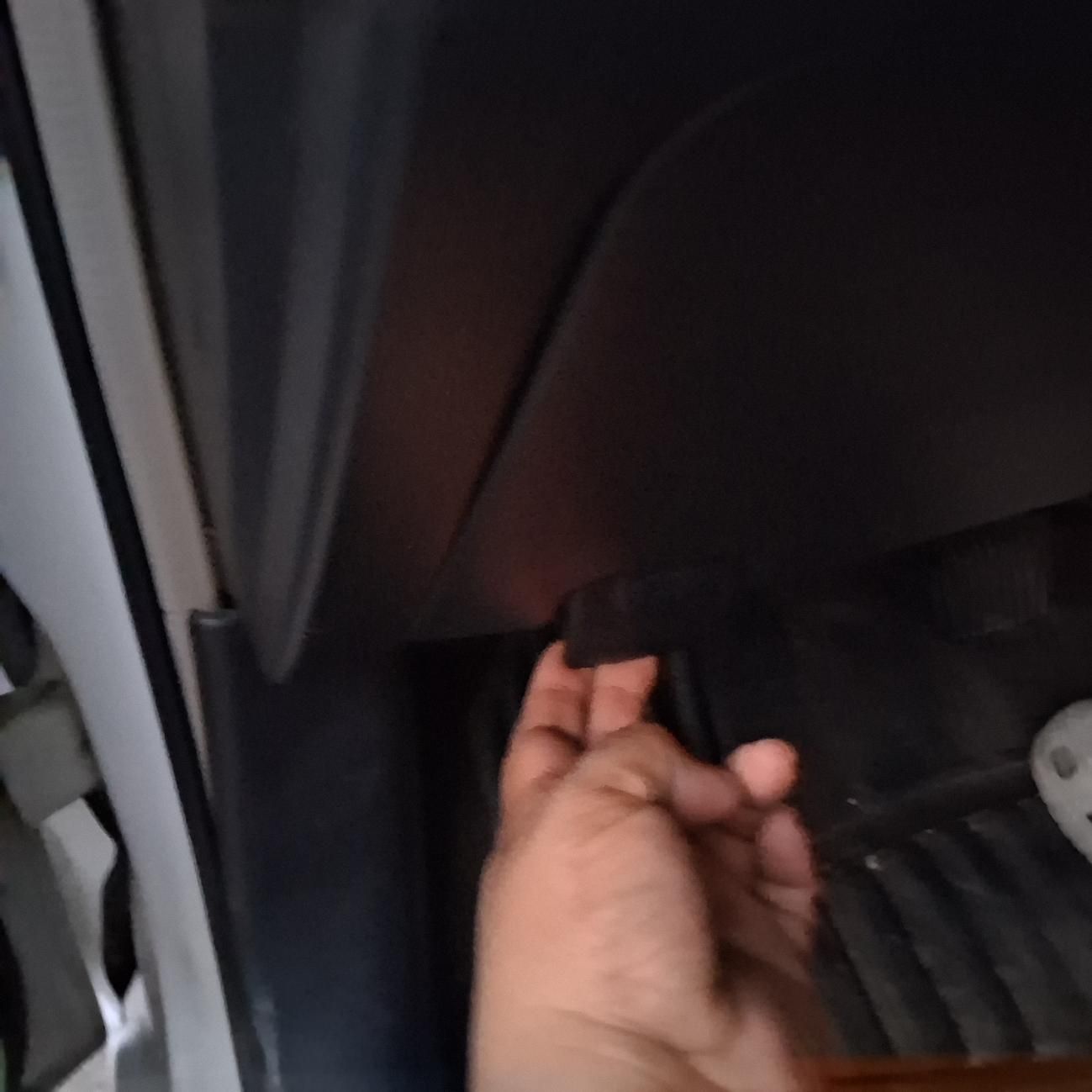

Locate the hood handle and pull up.

Handle is usually located at the bottom left-hand side of the dashboard

When the handle is pulled up all the ay it allows you will hear a “pop” sound on the front of the vehicle

Locate the lock that is in front of the vehicle.

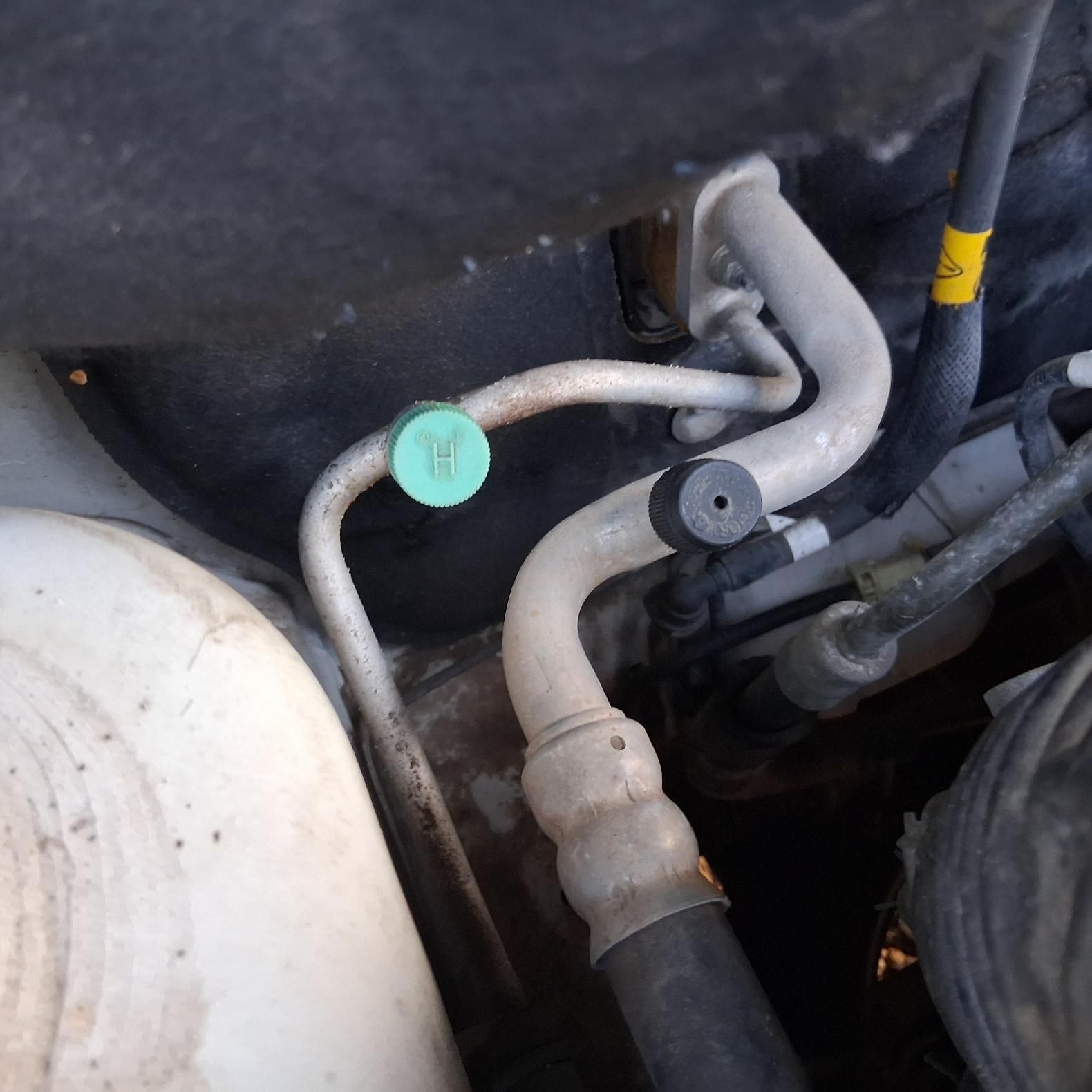

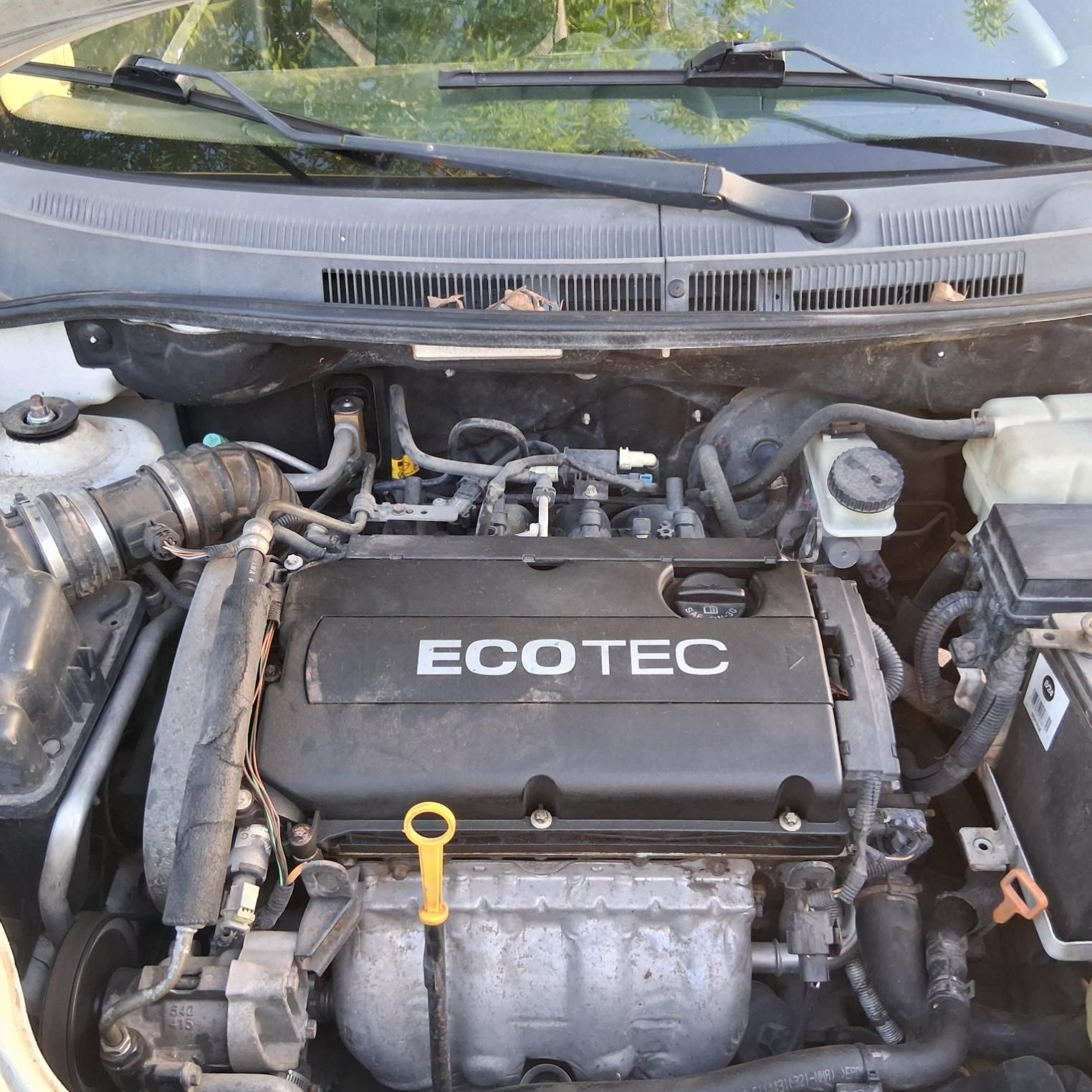

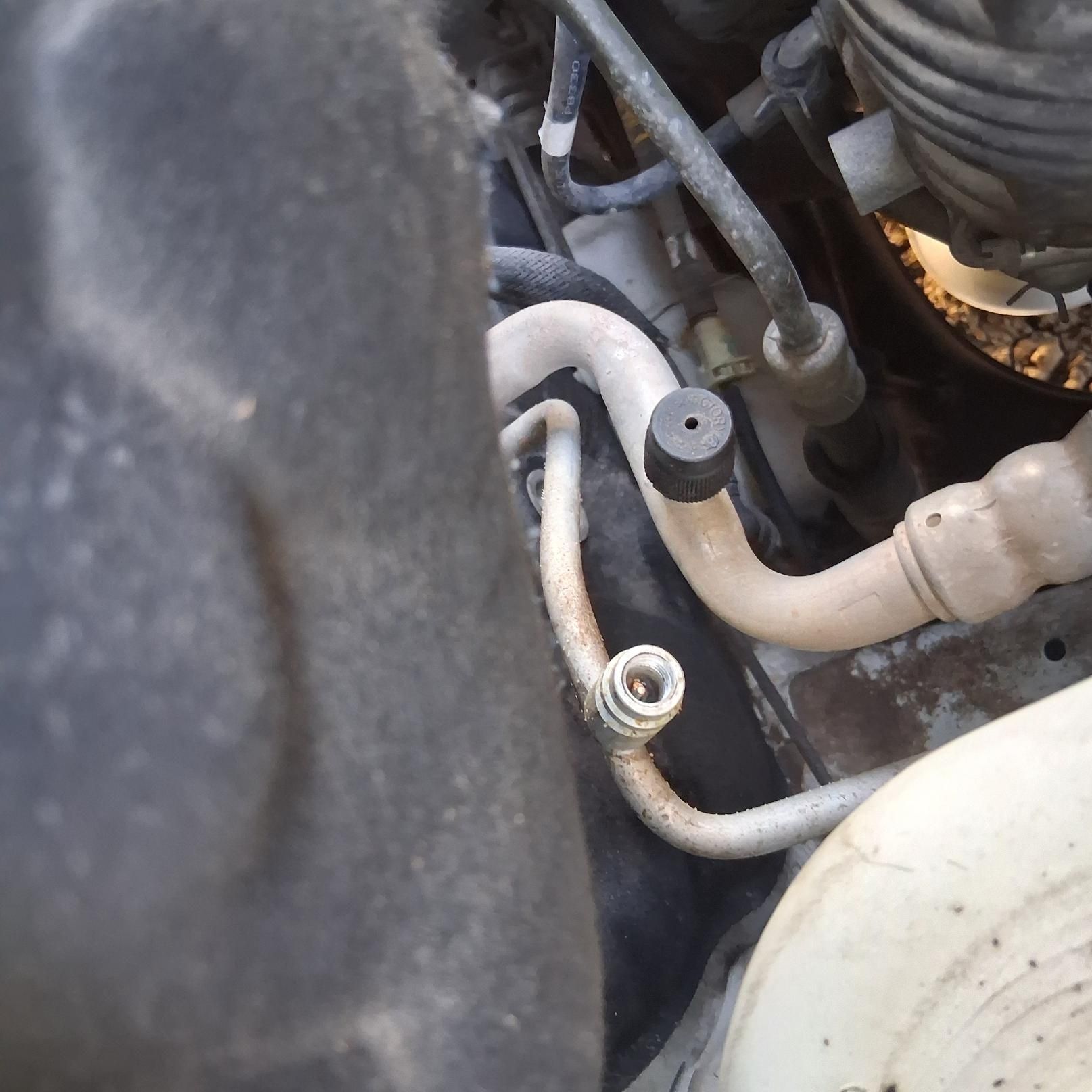

Locate the green and black tops at the far-left hand side of the motor

Unscrew the black top

Keeping it secure will need to be re-screwed when done

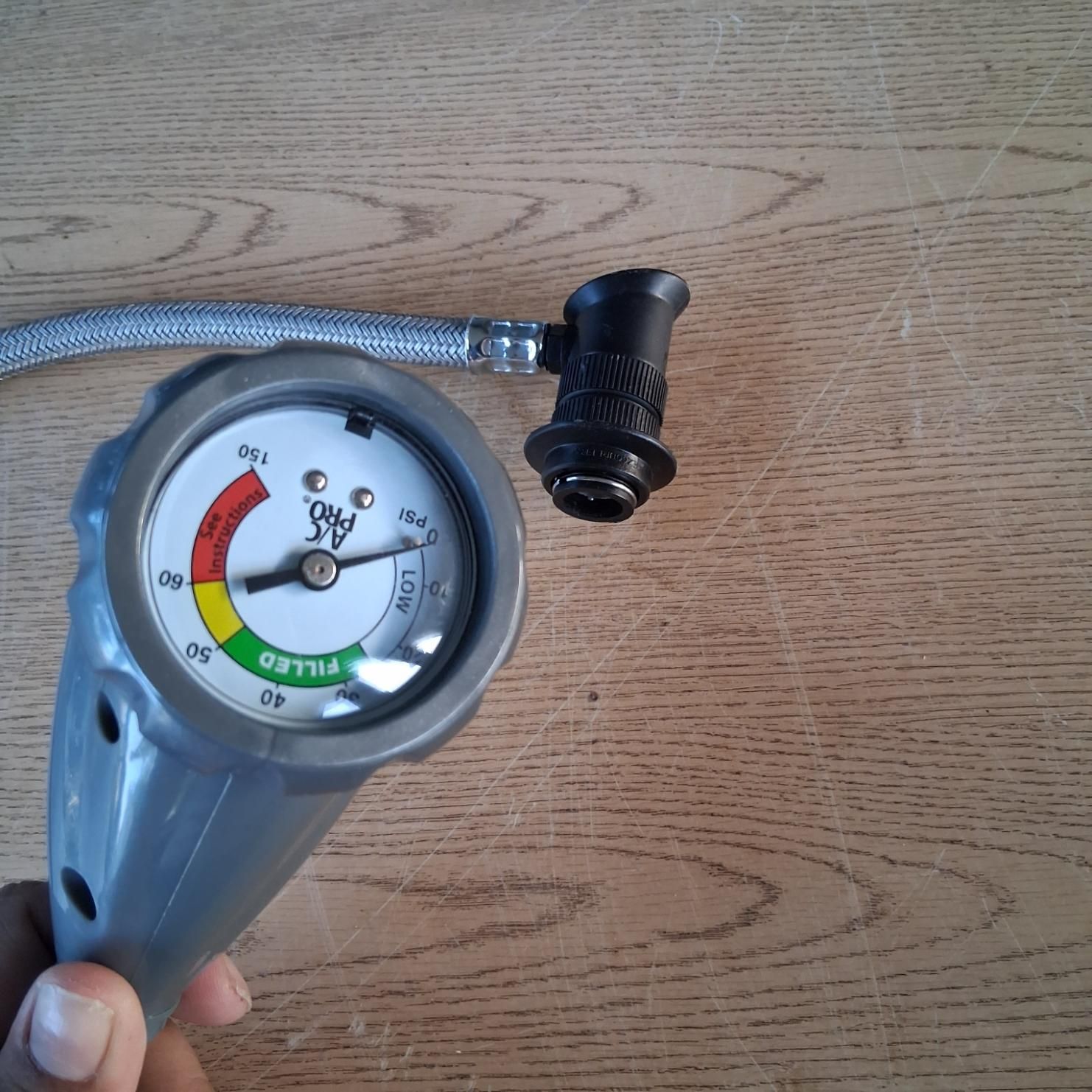

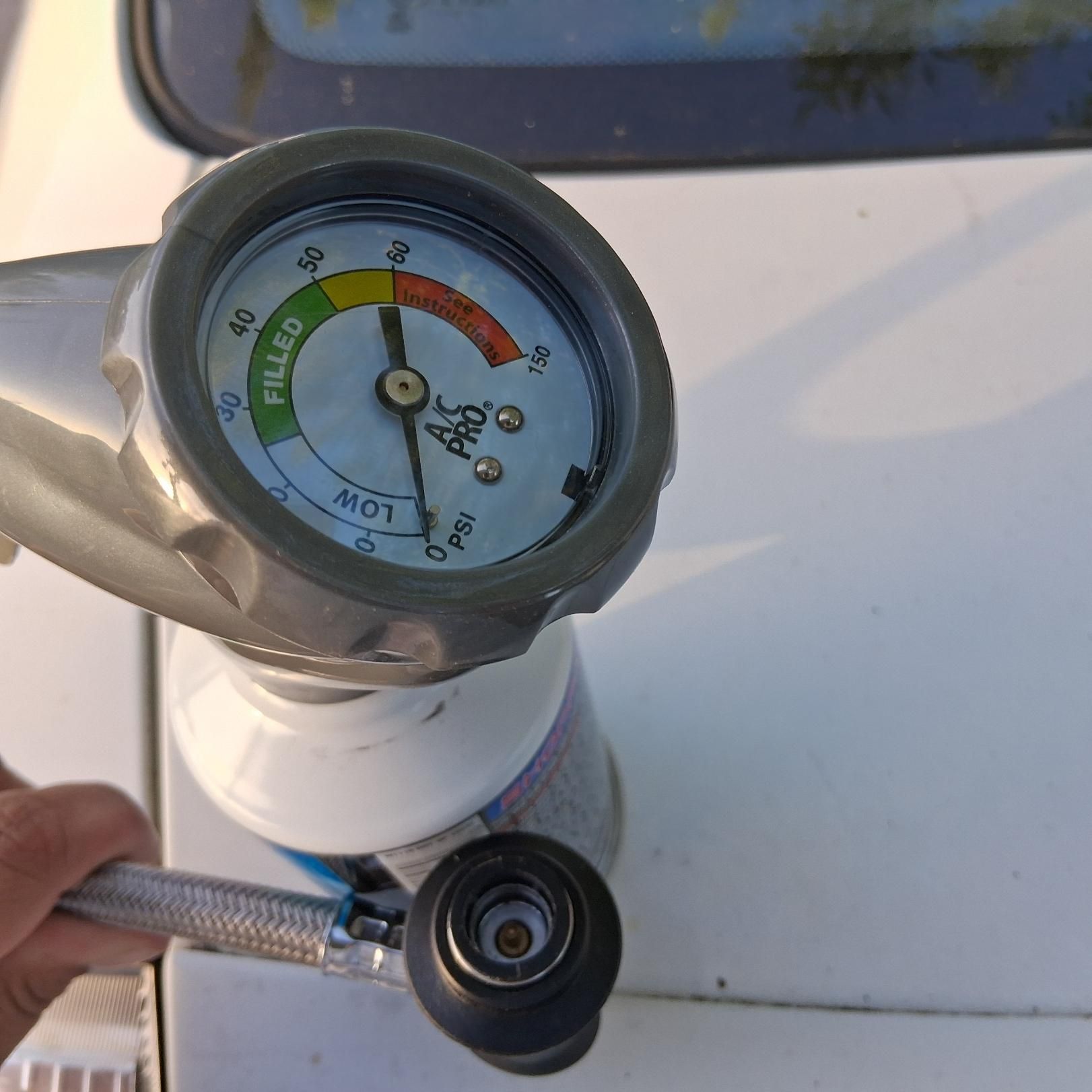

The meter gauge can be preset to 0 by pressing the trigger on the gauge.

Secure the refrigerant to the gauge

Refrigerant is attached to the thick part of the gauge system

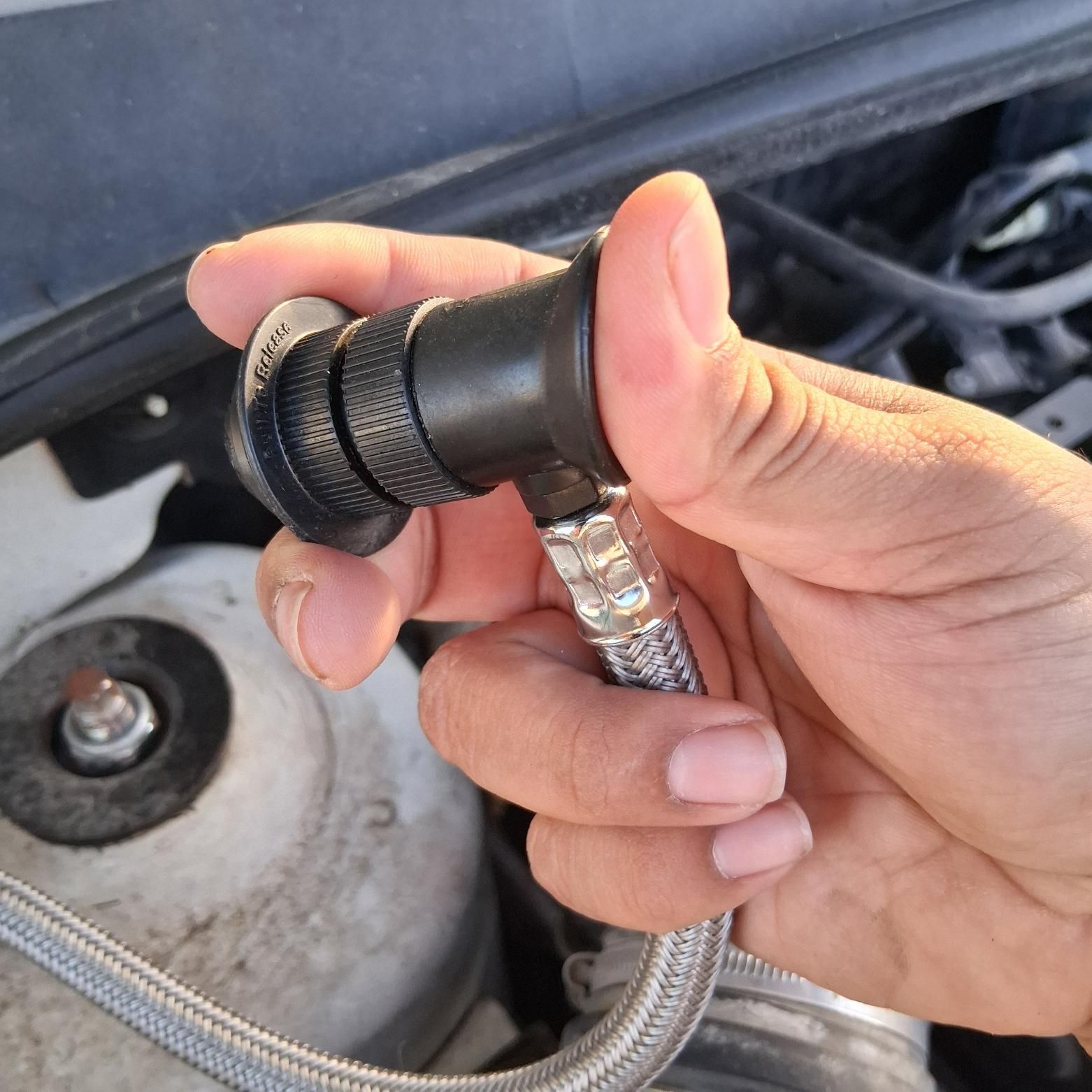

Place the black bottom part of the gauge hose in between your index and middle finger

Use your thumb to apply light pressure against the index and middle finger

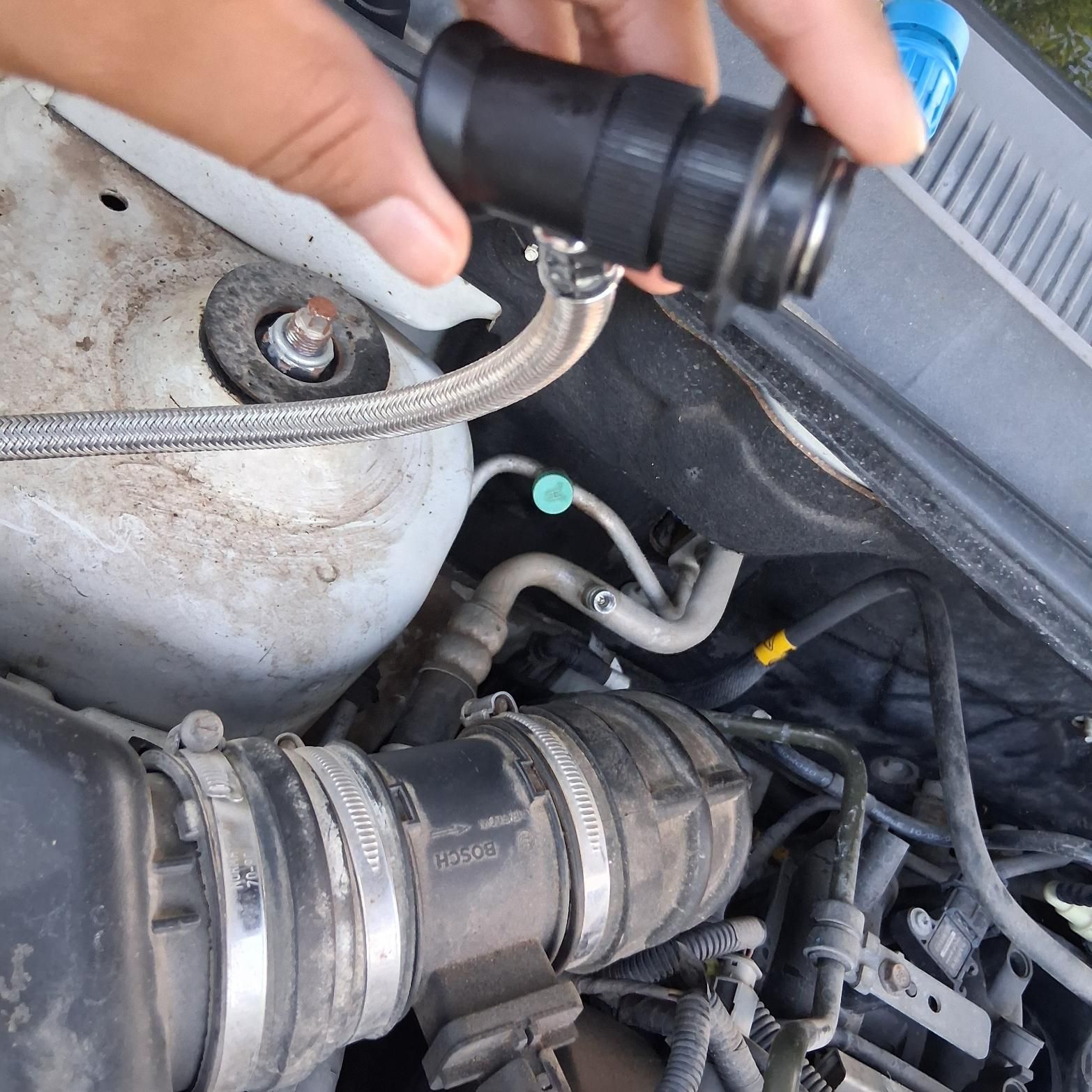

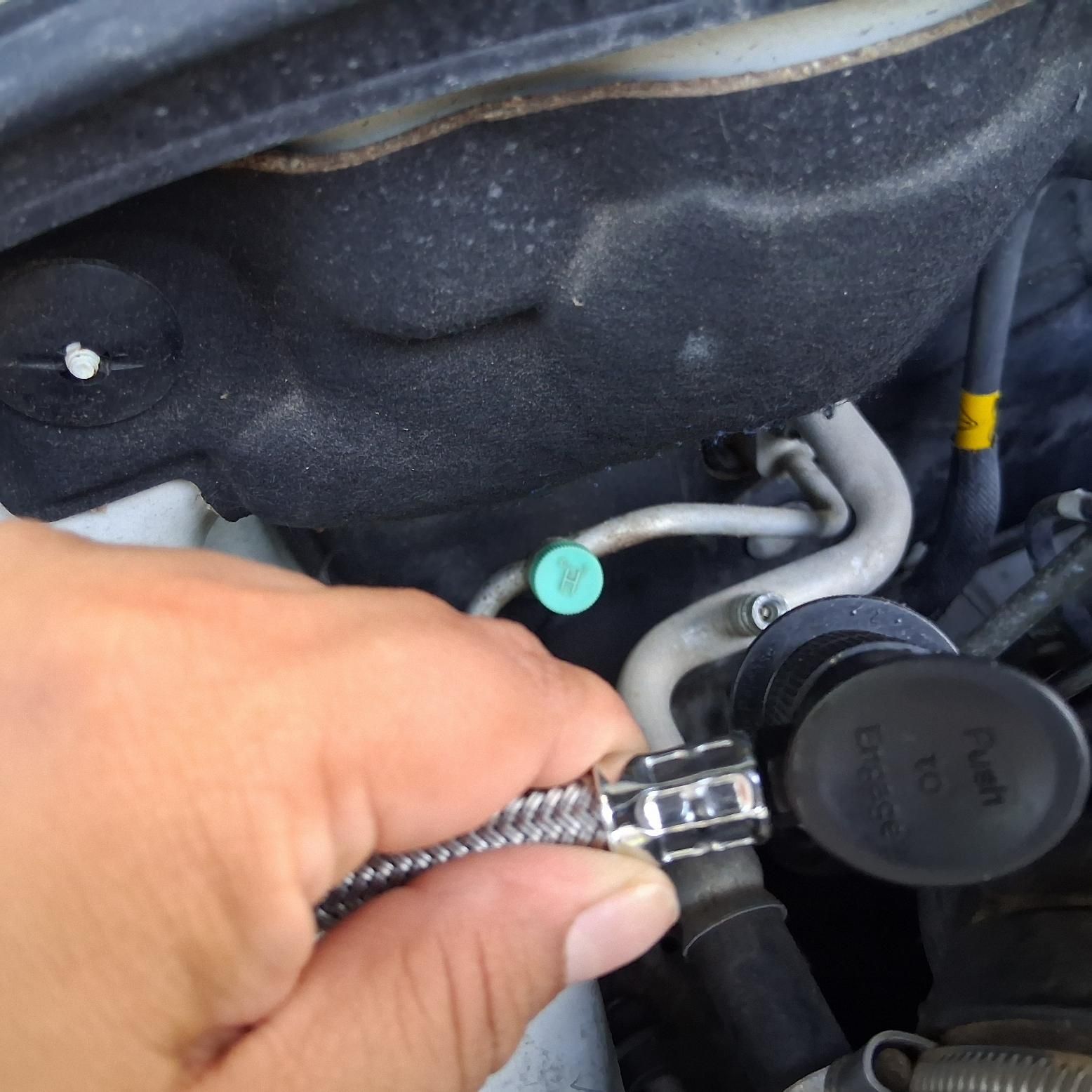

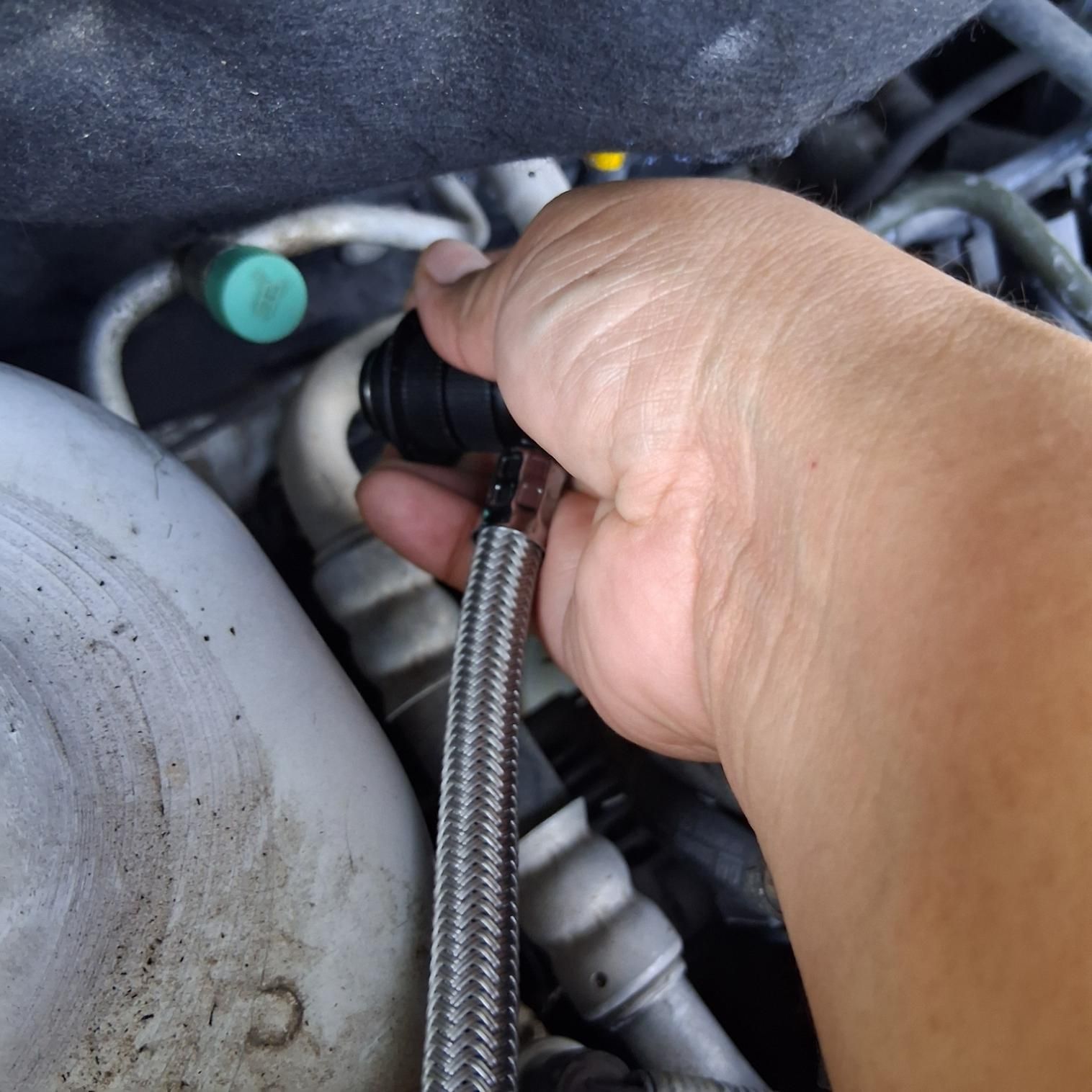

When the gauge is inserted into the A/C Valve release the black gauge part of the hose

Lightly wiggle the black part to ensure it is secured.

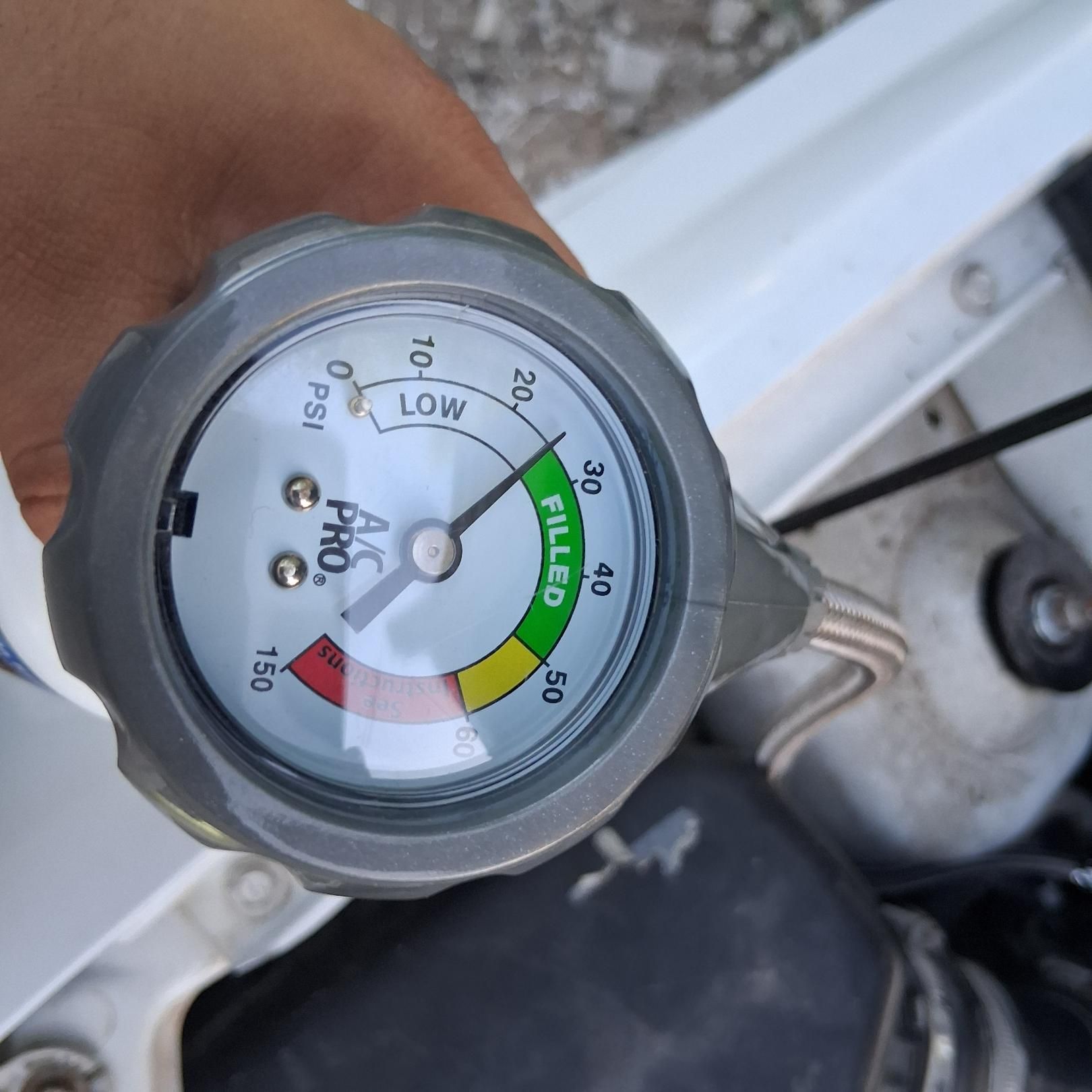

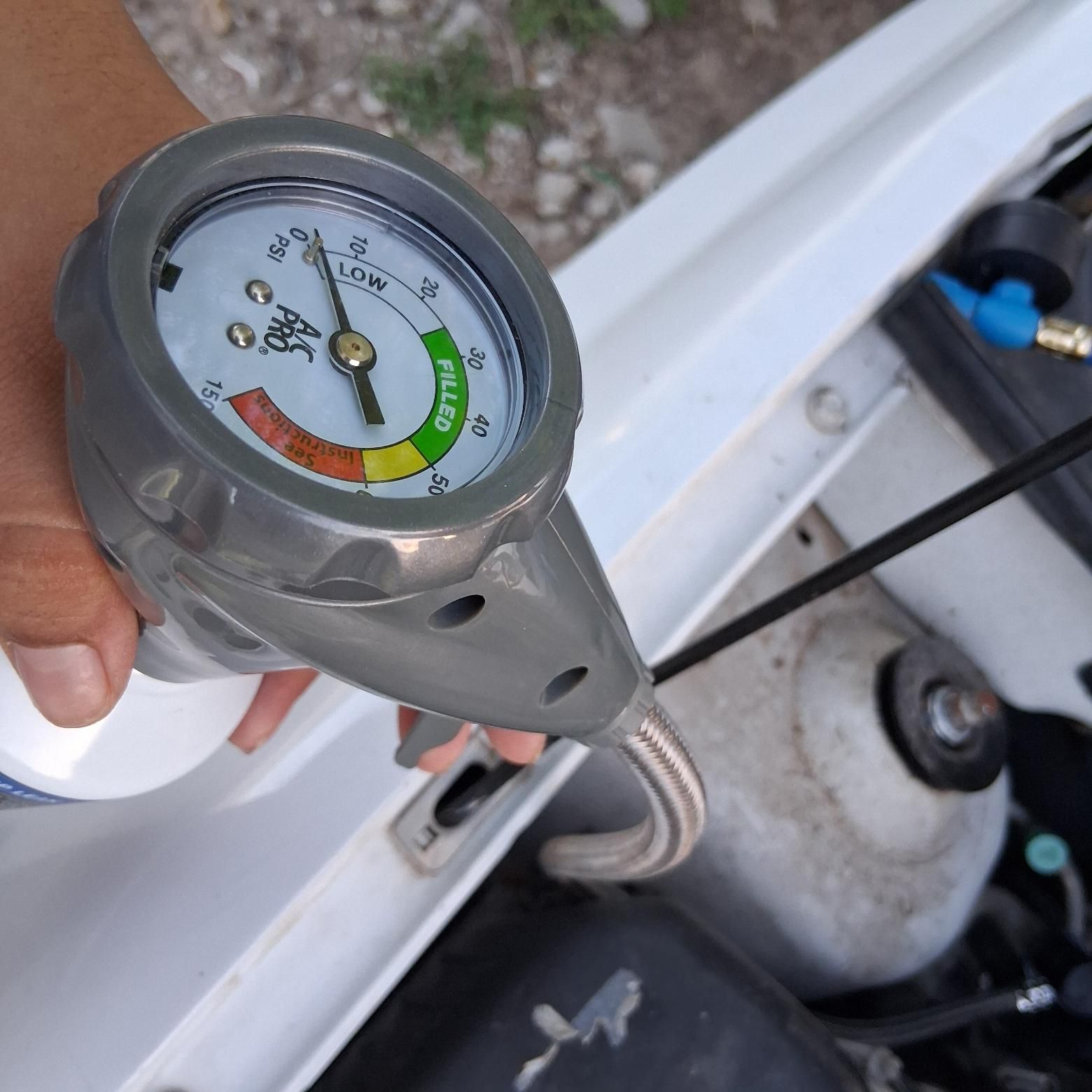

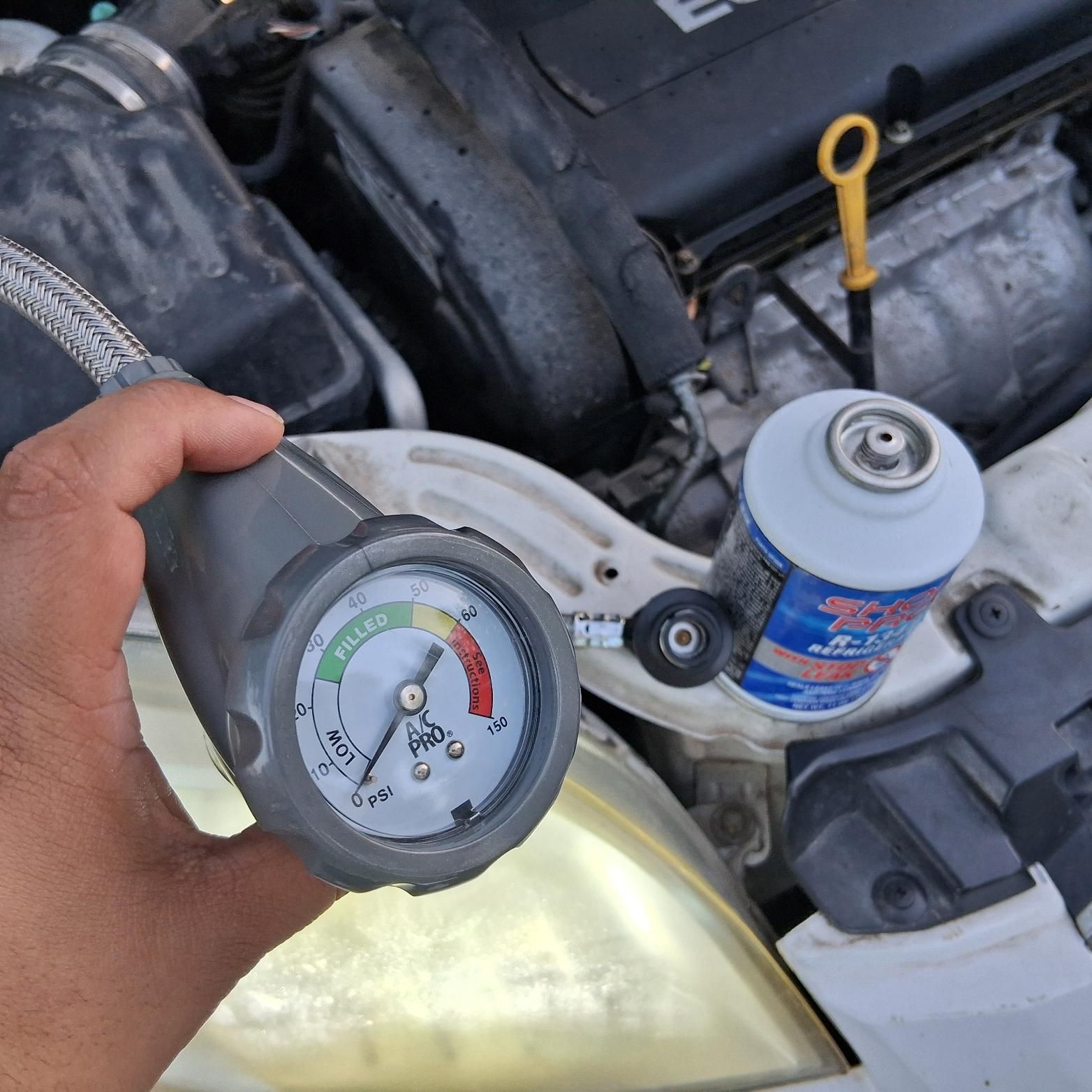

Press on the trigger once and wait for the reading

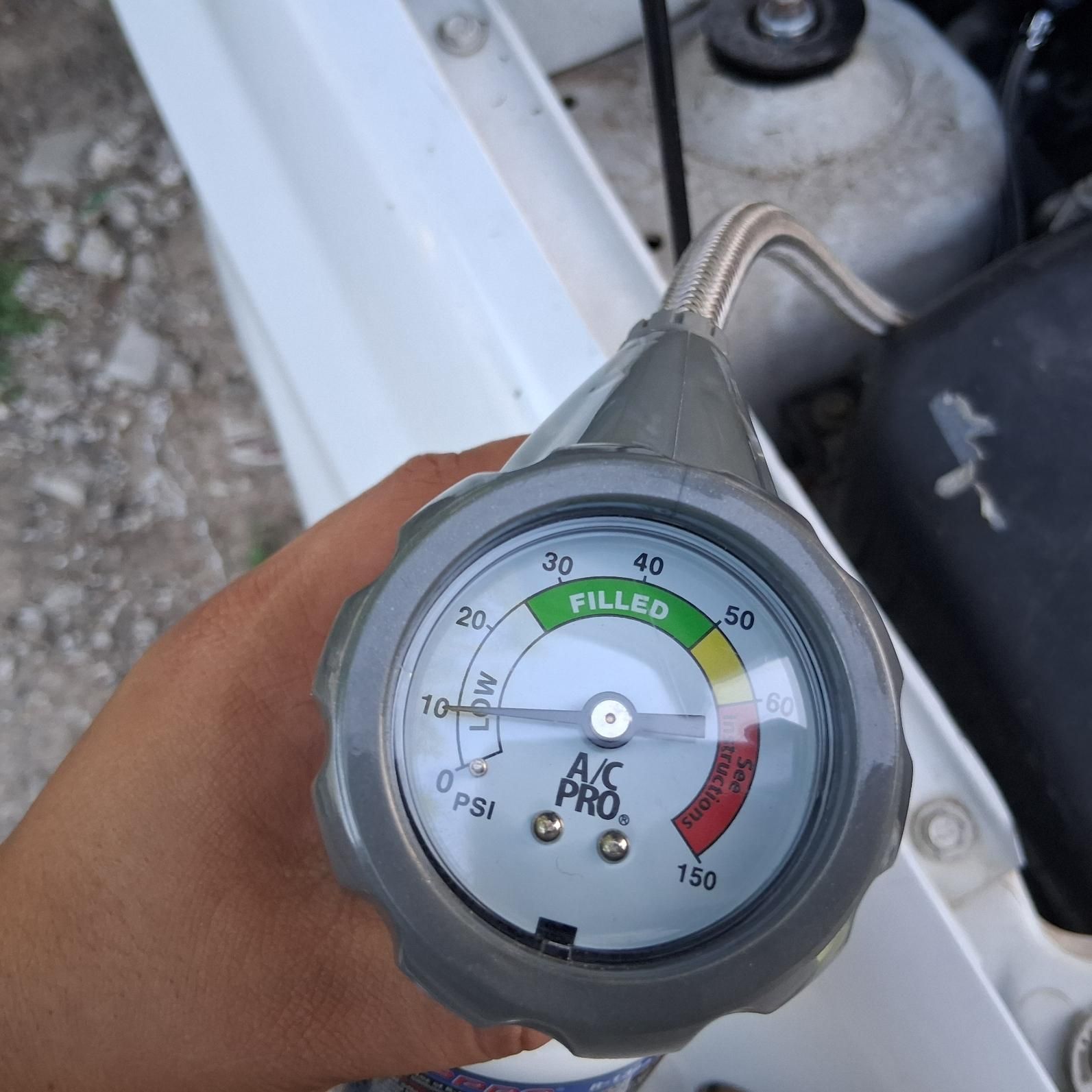

If reading is between white and low green (continue)

If reading is between yellow and red (stop now)

Press and hold the trigger on the gauge reader.

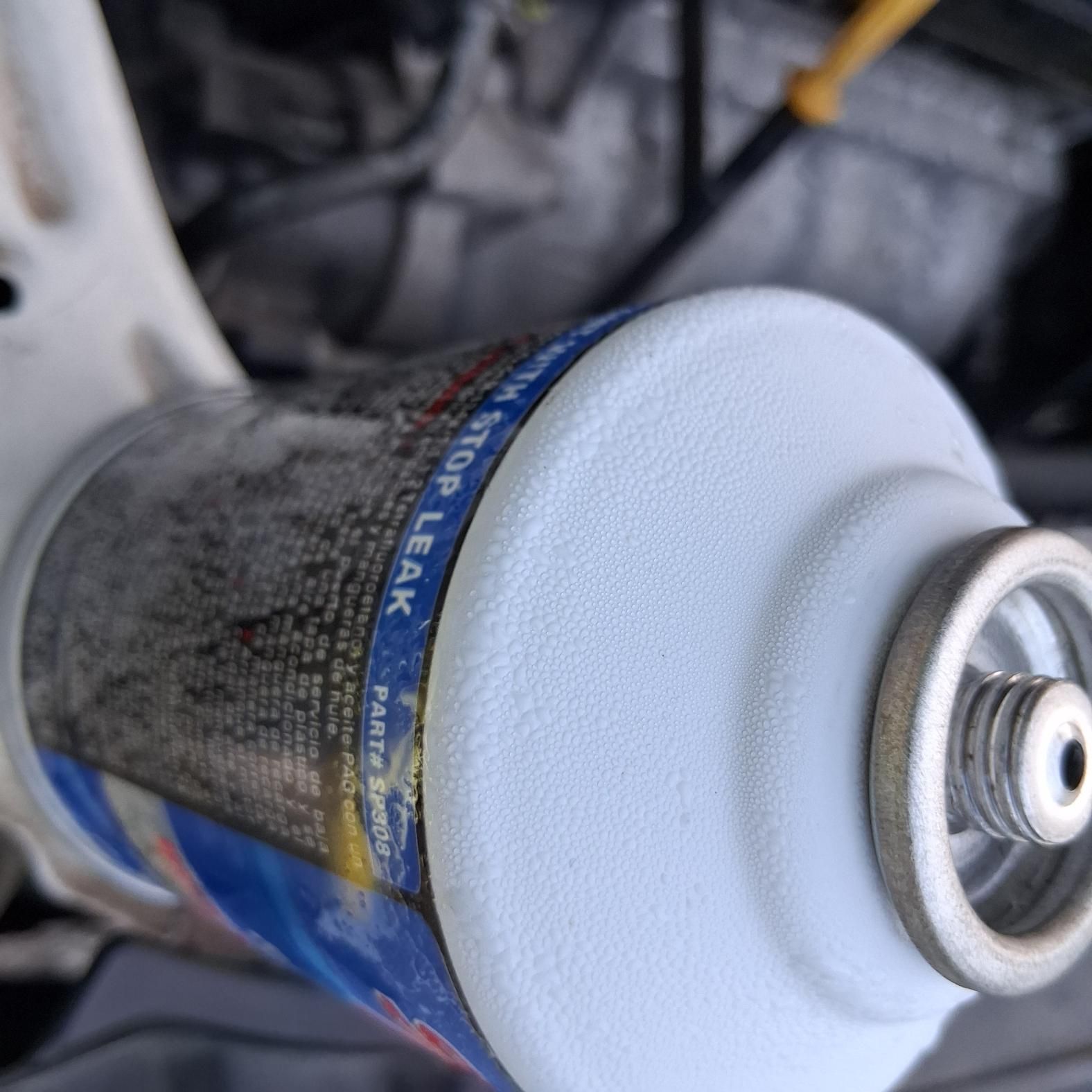

Slightly shake the coolant up and down.

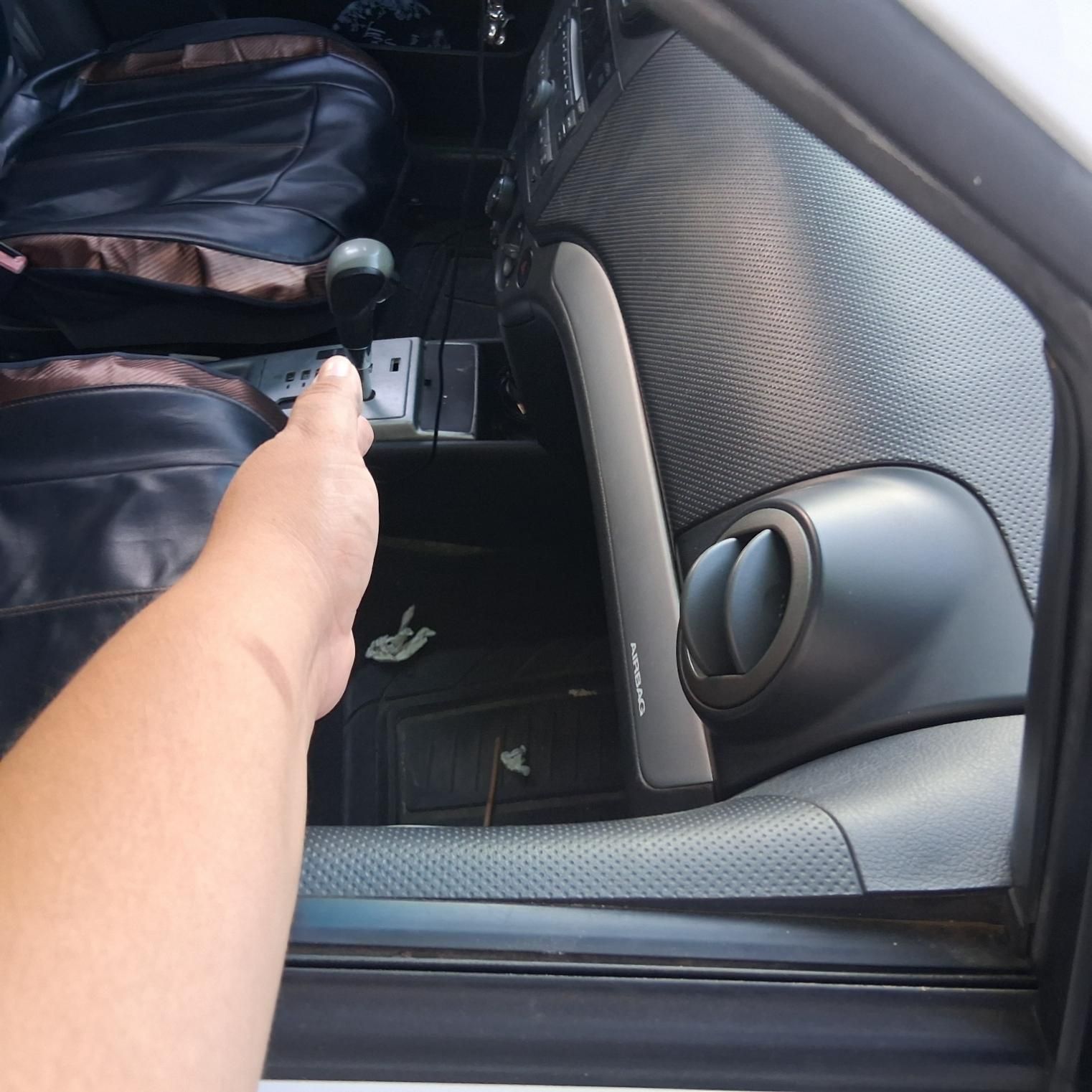

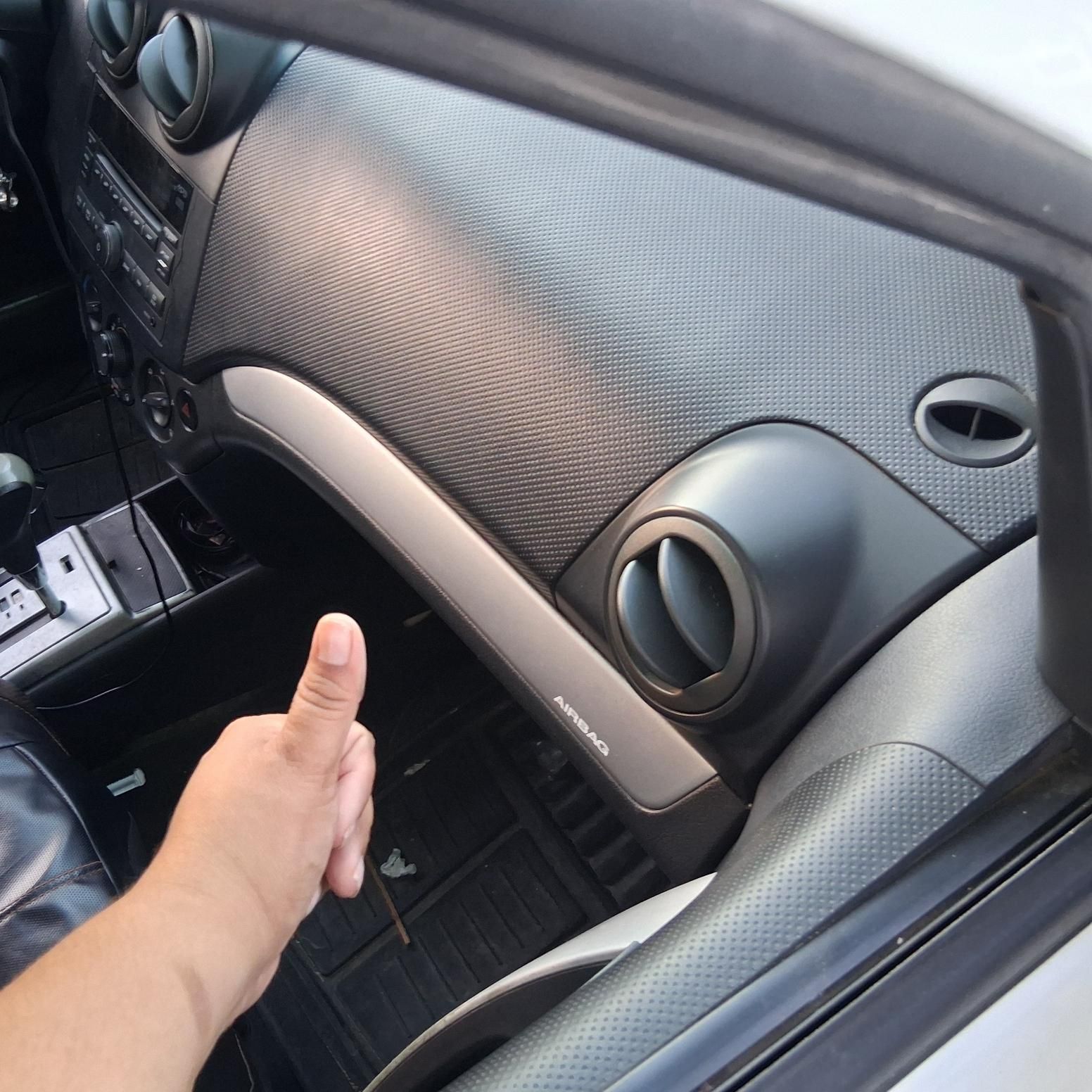

Readers can use the sense of touch

Use your hand to confirm the air is cool

Remove the gauge from the A/C Valve

With the black top that was securely kept use it to seal the A/C Valve

Remove the tools from the motor

Close the car hood

Allow air to circulate in the cabin for at least 3 minutes

You may open the windows if you wish to allow the free-on to move out of the vehicle and maintain only cool air in the cabin

Remove the refrigerant from gauge and set the meter to 0

Turn vehicle off

Store your A/C gauge

Dispose of the refrigerant can if empty
