AI-Ready Motorized Camera Focus Controller

This project is a manual Arduino motorized camera focus controller. It uses a joystick/knob module, Cytron MD10C motor driver, DC motor, external power supply, and 3D-printed case parts.

The goal is to control a camera lens focus ring without touching the lens directly. This reduces camera shake and makes focus movement smoother during video recording.

The current version is manually controlled with a joystick. The project is also designed to be expandable into an AI-assisted focus system in the future, where software could help detect focus quality, save focus positions, and move the motor automatically.

Arduino Uno R4 or Arduino-compatible board

Cytron MD10C motor driver

DC motor

HW-504 joystick/knob module

External power supply

Jumper wires

3D-printed motor case

3D-printed pocket/electronics case

Screws and mounting hardware

Camera and lens for testing

Computer with Arduino IDE

USB cable for uploading code

Step 1 Title: Project Idea

Step 1 Description:

My project is a manual Arduino motorized camera focus controller. The goal is to control a camera lens focus ring using a motor instead of turning the lens directly by hand. This can reduce camera shake and make focus movement smoother during video recording. The current version is controlled manually using a joystick/knob module, but the project is designed so it can be expanded into an AI-assisted focus system in the future.

Step 2 Title: Original Zoom Ring Idea

Step 2 Description:

My first idea was to motorize the zoom ring of the camera lens. The plan was to create a system that could control zoom while recording. After researching and testing the idea, I realized the zoom ring was risky because it required more force. If the motor pushed too hard, it could damage the lens or put too much stress on the camera. Because of that, I changed the project to focus-ring control instead.

Step 3 Title: Switching to the Focus Ring

Step 3 Description:

I switched to the focus ring because it was safer and more realistic with the parts I had. The focus ring requires less force than the zoom ring and still solves a useful camera problem. This design change made the project more practical and reduced the risk of damaging the lens. It also allowed me to focus more on motor control, wiring, 3D design, and testing.

Step 4 Title: Researching Components

Step 4 Description:

I researched different motors, motor drivers, and power options before choosing the final setup. I looked at motor specifications online and compared different drivers. I considered other batteries and motor drivers, but some options were not powerful enough or were not the best match for the project. The final setup uses a Cytron MD10C motor driver, DC motor, joystick module, and external power supply.

Step 5 Title: Measuring the Camera and Lens

Step 5 Description:

Before designing the case and mount, I measured the camera and lens to understand how long the design needed to be. The motor had to be positioned correctly so it could line up with the focus ring. This step was important because even if the electronics worked, the project would fail if the motor was not physically aligned with the lens.

Step 6 Title: 3D Design and Prototype Changes

Step 6 Description:

I created and tested multiple 3D-printed prototype designs. Some early designs looked good but did not fit the motor correctly. I had to re-engineer the case and motor holder so the parts could fit better. This showed me that 3D design is not only about making something look good. The part also has to fit the real hardware, leave space for wires, and be strong enough for testing.

Step 7 Title: Organizing Tools and Hardware

Step 7 Description:

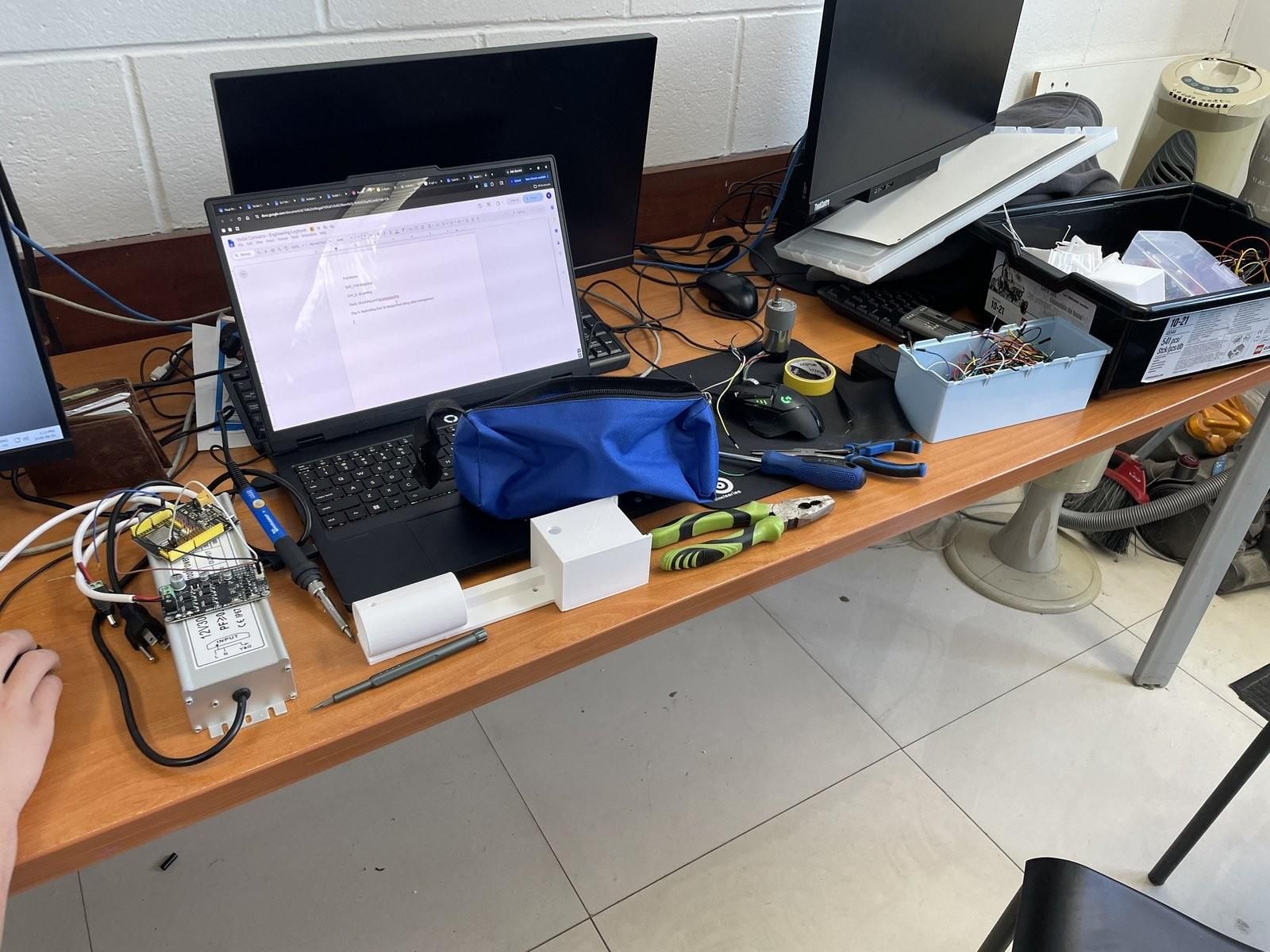

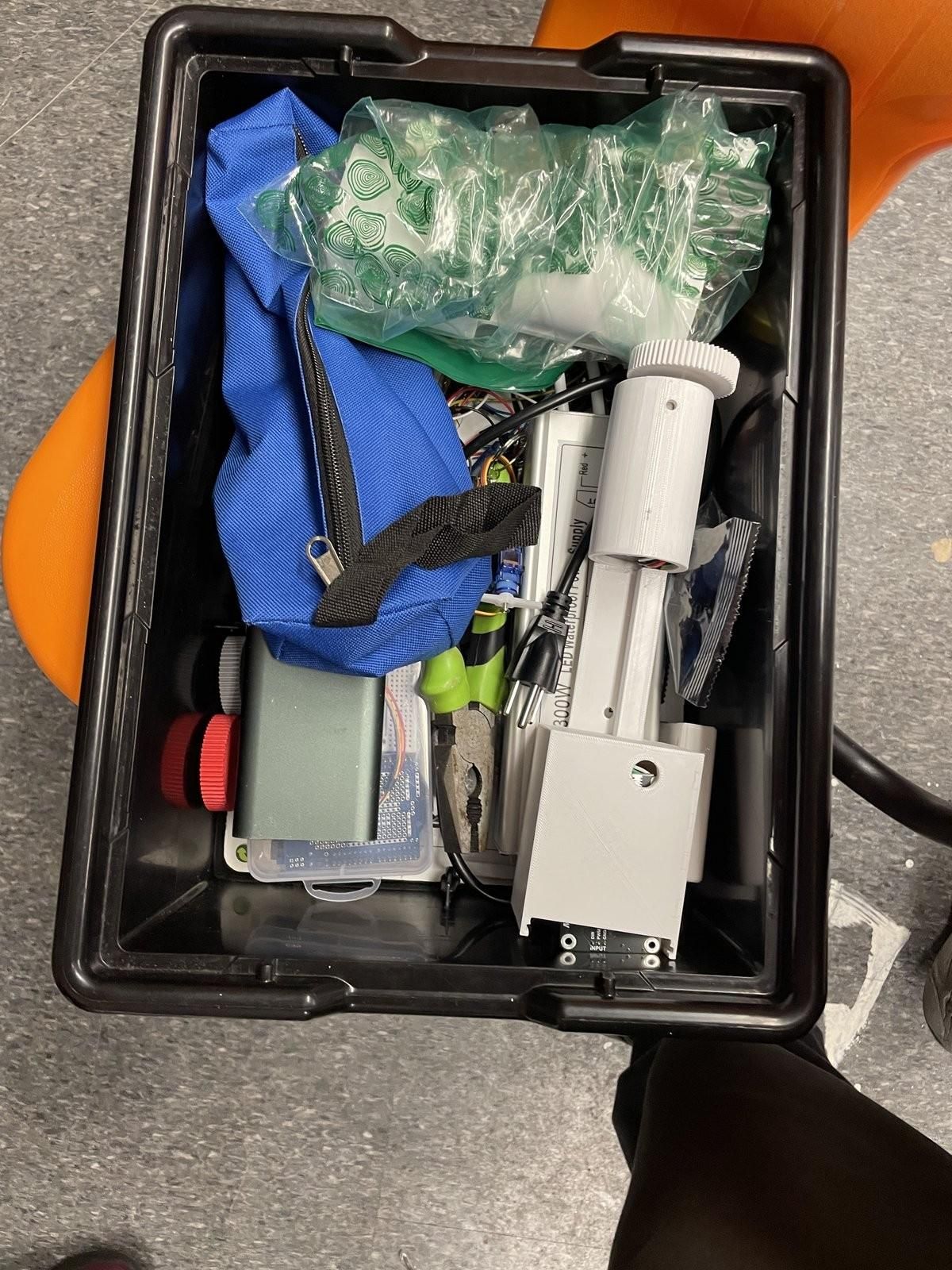

One part of the project was organizing all the tools and hardware. I separated the Arduino, drivers, wires, screws, motor parts, and 3D-printed pieces into organized boxes. This made the final assembly easier because I could quickly find the parts I needed. It also helped me avoid mixing up old parts with the parts used in the final design.

Step 8 Title: Wiring the Motor Driver and Joystick

Step 8 Description:

The Cytron MD10C motor driver controls the DC motor. The Arduino sends direction and speed signals to the driver. The joystick module gives manual input to the Arduino.

Cytron MD10C to Arduino:

DIR goes to D4

PWM goes to D5

GND goes to GND

Joystick to Arduino:

VRx goes to A0

VRy goes to A1

SW goes to D10

VCC goes to 3.3V

GND goes to GND

The power supply connects to the motor driver power input, and the motor wires connect to the motor output on the driver.

Step 9 Title: Manual Control Code

Step 9 Description:

The code reads the joystick values and uses them to control the motor. Left and right movement controls the motor direction. Up and down movement controls the motor speed. Pressing the joystick button acts as a stop button. I uploaded the code to GitHub so the project files are organized and version-controlled.

GitHub Repository:

PASTE YOUR GITHUB LINK HERE

Step 10 Title: Testing and Troubleshooting

Step 10 Description:

During testing, I had to troubleshoot wiring, soldering, motor movement, and cable management. Some wiring attempts failed at first, and I had to fix them before continuing. I also checked which cable went where on the motor driver so the system would be easier to understand and repair. The project was not only about making the motor spin. It was about making the wiring, power, code, and physical case work together.

Step 11 Title: Current Result

Step 11 Description:

The current result is a manual motorized focus controller. The joystick controls the motor direction and speed, and the system can be used as the base for moving a camera lens focus ring. The final product is not fully AI-controlled yet, but the manual version proves the important hardware foundation: input control, motor driver output, external power, wiring, and physical mounting.

Step 12 Title: Future AI Expansion

Step 12 Description:

The AI part of this project is planned as a future expansion. It would count as an embedded assistive control system, not a chatbot or generative AI. The AI would use camera feedback, calibration data, or focus-position learning to help control the motor automatically.

Future AI features could include learning safe focus-ring limits, preventing the motor from forcing the lens too far, saving focus positions, moving between focus presets, using image sharpness feedback, and improving movement smoothness based on testing data. This means the current manual controller is the hardware foundation for a future AI-assisted focus system.

Step 13 Title: Conclusion

Step 13 Description:

This project taught me about Arduino motor control, motor drivers, wiring, soldering, power supplies, 3D design, prototyping, and troubleshooting. The biggest lesson was that engineering projects change during testing. My original zoom-ring idea was not safe enough, so I redesigned the project around the focus ring. Even though the current version is manual, it shows the full process from idea to research, prototype, redesign, wiring, testing, and future AI expansion.
