ARDUINO OLED ELEVATOR SYSTEM

The objective of this project is to create a simple elevator simulation using an Arduino, OLED display, push buttons, motor driver, and buzzer. The system allows the user to move between four floors using UP and DOWN buttons.

1. Deshbot shield
2. Arduino Nano

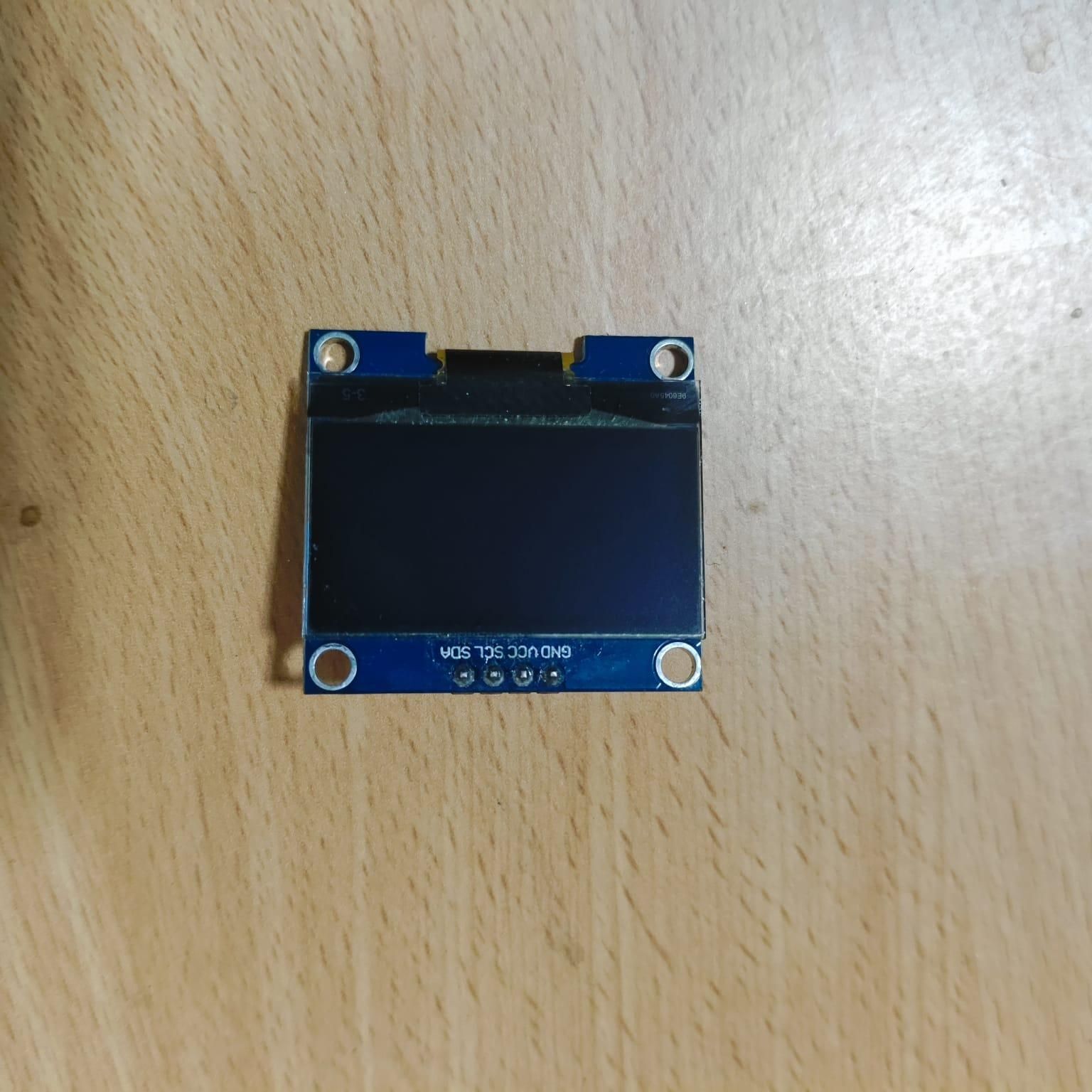

3. 0.96-inch OLED Display (128×64, I2C)
4. 2 Push Buttons

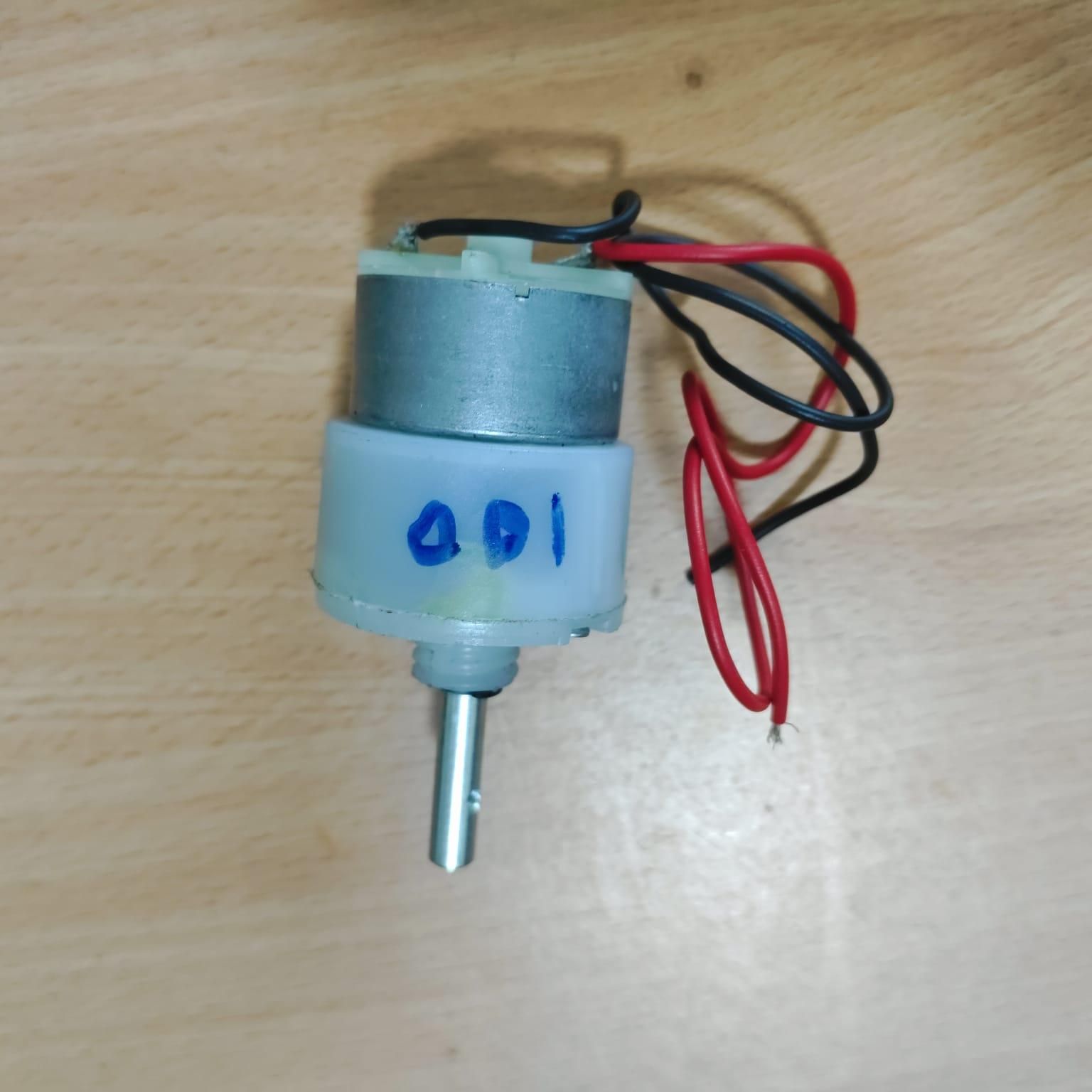

5. DC Motor
6. Buzzer

ComponentArduino Pin

UP Button - D10

DOWN Button - D12

Motor Driver IN1 - D6

Motor Driver IN2 - D7

Buzzer - D11

OLED SDA - A4

OLED SCL - A5

OLED VCC - 5V

OLED GND - GND

The system starts at Floor 1. Two push buttons are used to control the elevator:

1. UP button: Moves the elevator to the next floor.
2. DOWN button: Moves the elevator to the previous floor.

The elevator can operate between Floor 1 and Floor 4.

When the UP button is pressed, the Arduino increases the floor number, rotates the motor in the upward direction, displays "GOING UP", and produces a buzzer sound.

When the DOWN button is pressed, the Arduino decreases the floor number, rotates the motor in the opposite direction, displays "GOING DOWN", and produces a different buzzer sound.

After approximately one second, the motor stops and the OLED displays the current floor and "READY".

Motor Control

The motor driver uses two digital pins to control the motor direction:

MOTOR_AMOTOR_BOperation

HIGH

LOW

Motor moves UP

LOW

HIGH

Motor moves DOWN

LOW

LOW

Motor STOP

Floor System

The elevator has four floors:

Floor 1 → Floor 2 → Floor 3 → Floor 4

The program prevents the elevator from going above Floor 4 or below Floor 1.

OLED Display

The OLED provides information about the elevator's current operation.

When Ready:

ELEVATOR

FLOOR 1

READY

When Moving Up:

GOING UP

F2

When Moving Down:

GOING DOWN

F1

Buzzer Operation

The buzzer provides an audio indication when the elevator starts moving.

1. Moving UP → Higher tone
2. Moving DOWN → Lower tone

Program Operation

1. The Arduino initializes the buttons, motor driver, buzzer, and OLED.
2. The starting floor is set to Floor 1.
3. The motor is initially stopped.
4. The OLED displays the current floor and READY.
5. When UP is pressed, the elevator moves up by one floor.
6. When DOWN is pressed, the elevator moves down by one floor.
7. The motor runs for approximately one second.
8. The motor stops automatically.
9. The OLED updates the current floor.
10. The process continues until another button is pressed.

The Arduino OLED Elevator System demonstrates basic motor control, button input, OLED display programming, and buzzer feedback. The system simulates a four-floor elevator where the user can control the elevator's movement using UP and DOWN buttons. It provides a simple foundation for developing a more advanced automatic elevator system.
