Accelerometer Die

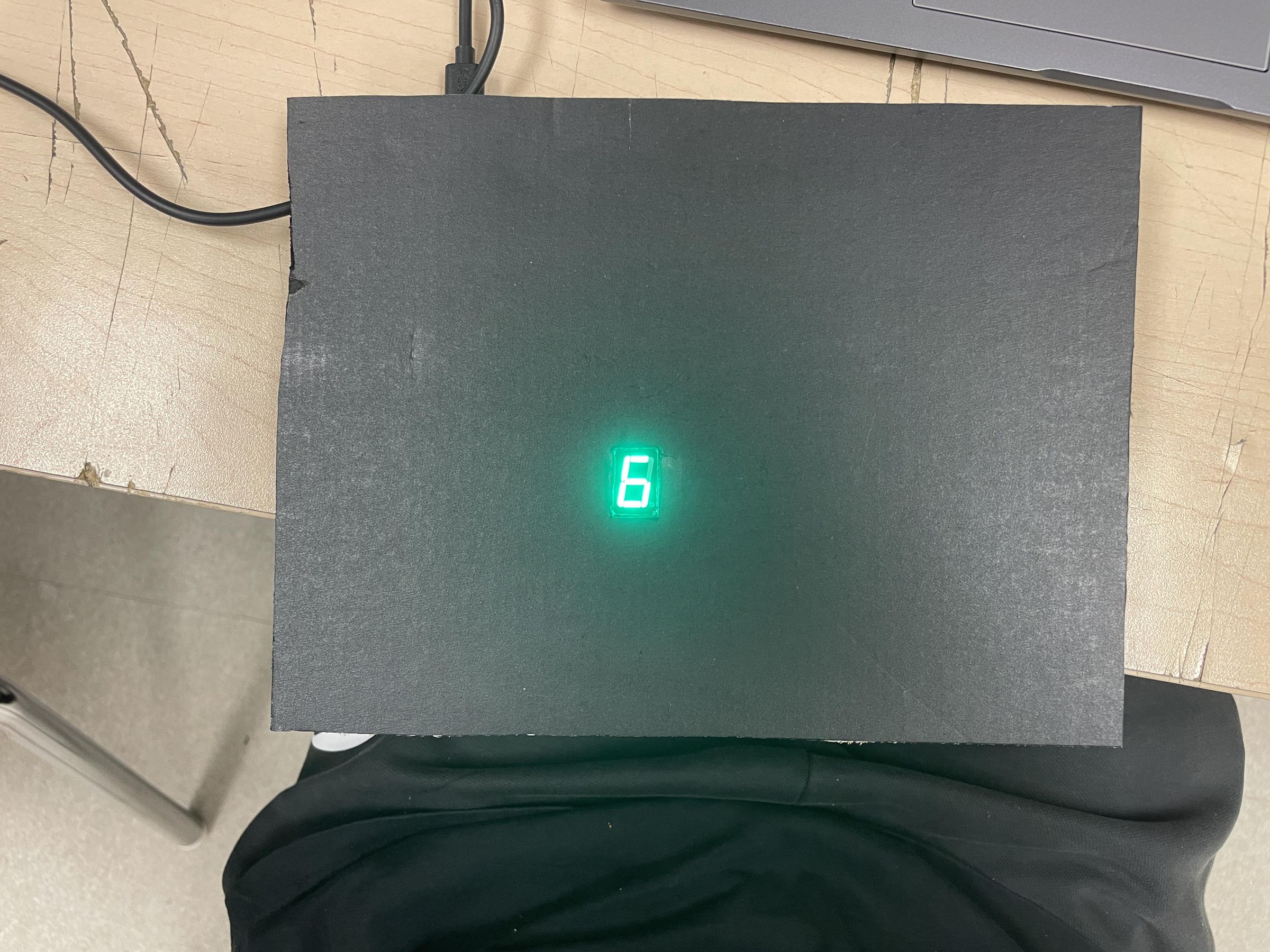

Random number from 1-6 when shaken.
Supplies
330 Resistor, breadboard (2), accelerometer micro bit, 7 segment display, Arduino.
Gather Components
Gather the base components, 330 Resistor, breadboard (2), accelerometer micro bit.
Wire Components

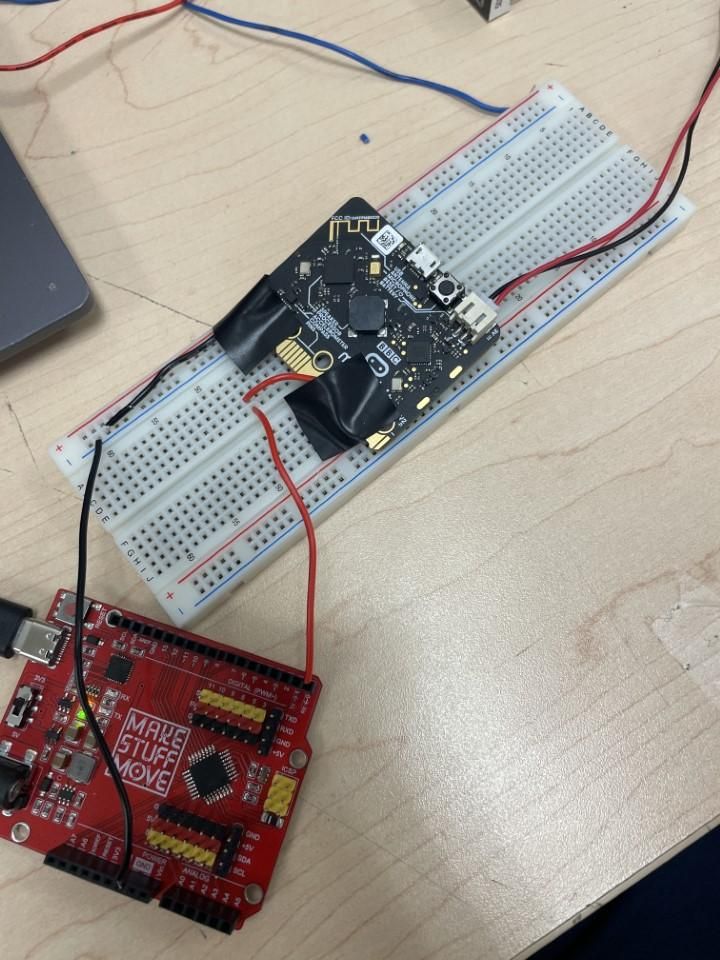

Wire all the base components to the breadboard and Arduino.
Code Micro Bit

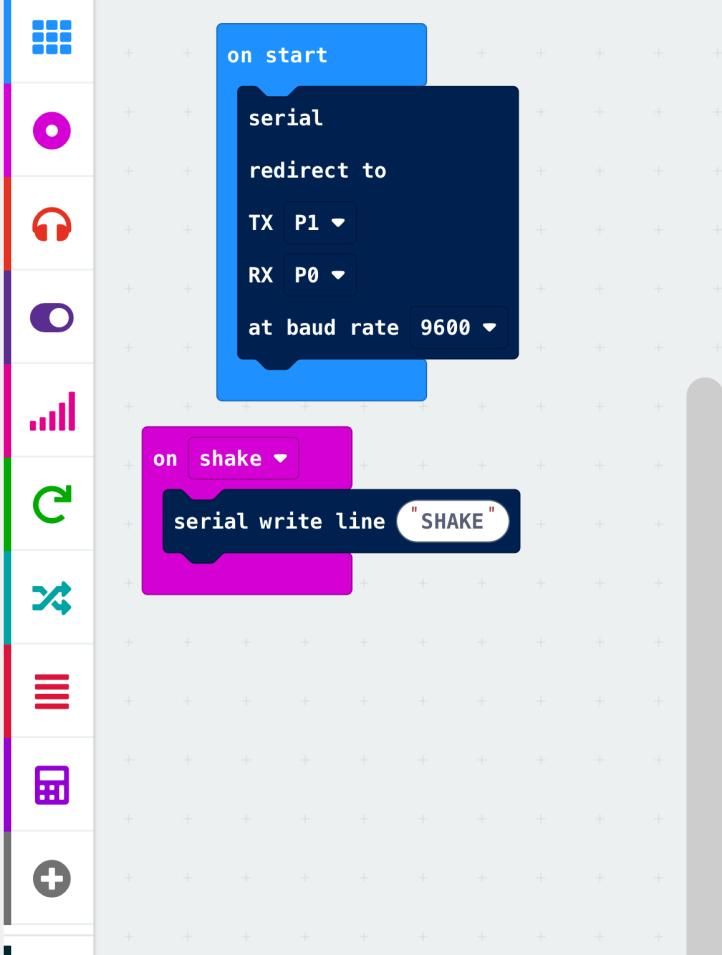

Code the micro bit in the micro bit's app through a Bluetooth or wired connection.
Attach the 7 Segment Display.

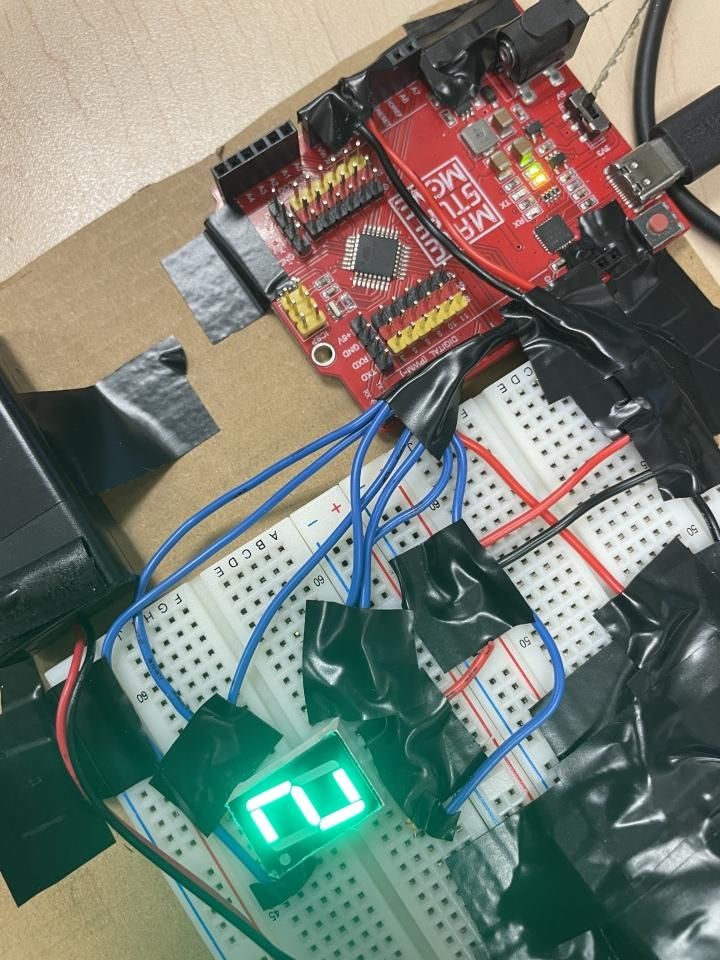

Attach the 7 segment display and wire the segment A to Ard. pin 2, seg B to Ard. pin 3, C to 4, D to 5 , E to 6, F to 7, G to 8.
Final Step- Code the Arduino.

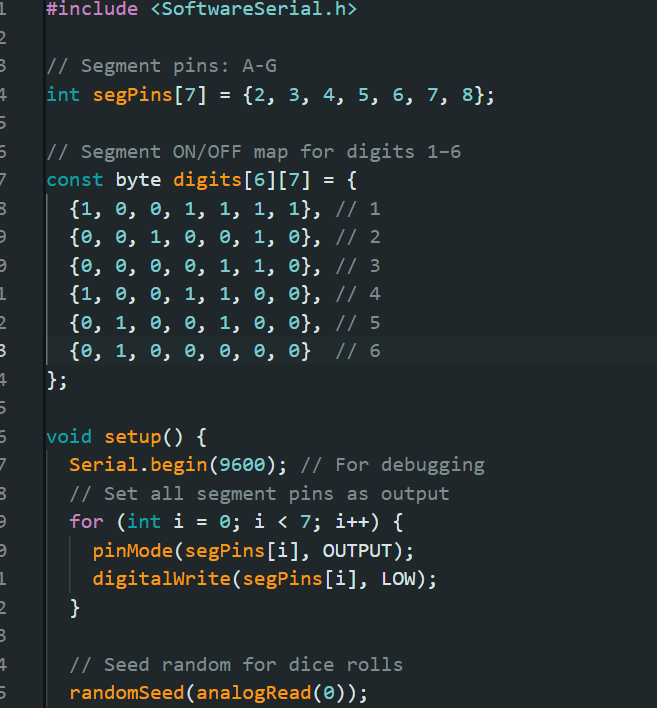

Put the following sketch into Arduino IDE:
#include <SoftwareSerial.h>
// Segment pins: A-G
int segPins[7] = {2, 3, 4, 5, 6, 7, 8};
// Segment ON/OFF map for digits 1–6
const byte digits[6][7] = {
{1, 0, 0, 1, 1, 1, 1}, // 1
{0, 0, 1, 0, 0, 1, 0}, // 2
{0, 0, 0, 0, 1, 1, 0}, // 3
{1, 0, 0, 1, 1, 0, 0}, // 4
{0, 1, 0, 0, 1, 0, 0}, // 5
{0, 1, 0, 0, 0, 0, 0} // 6
};
void setup() {
Serial.begin(9600); // For debugging
// Set all segment pins as output
for (int i = 0; i < 7; i++) {
pinMode(segPins[i], OUTPUT);
digitalWrite(segPins[i], LOW);
}
// Seed random for dice rolls
randomSeed(analogRead(0));
}
void loop() {
if (Serial.available()) {
String input = Serial.readStringUntil('\n');
input.trim(); // Remove newline or spaces
if (input == "SHAKE") {
int roll = random(1, 7); // Get number 1–6
Serial.print("You rolled: ");
Serial.println(roll);
showDigit(roll);
}
}
}
void showDigit(int num) {
if (num < 1 || num > 6) return;
for (int i = 0; i < 7; i++) {
digitalWrite(segPins[i], digits[num - 1][i] ? HIGH : LOW);
}
}
