Accessible Foot Pedal Switch for the Xbox Adaptive Controller

This project shows how to build an accessible foot pedal switch designed for the Xbox Adaptive Controller. The goal of this design is to provide a large, easy-to-press input that can be activated using a foot instead of requiring precise finger movement.

Many traditional controllers rely on small buttons that can be difficult for individuals with limited muscle control or motor impairments. This foot pedal solves that problem by allowing users to trigger inputs using larger movements and more accessible body mechanics.

The pedal uses a simple push-button mechanism inside a 3D printed housing, making it reliable, durable, and easy to recreate.

Materials

1. Momentary push button switch
2. 3.5mm aux cable
3. Heat shrink tubing
4. Wires
5. 3D printed pedal base + top plate
6. Rubber/textured top surface

Tools

1. Soldering iron
2. Solder
3. Wire strippers
4. Heat gun

Instructions:

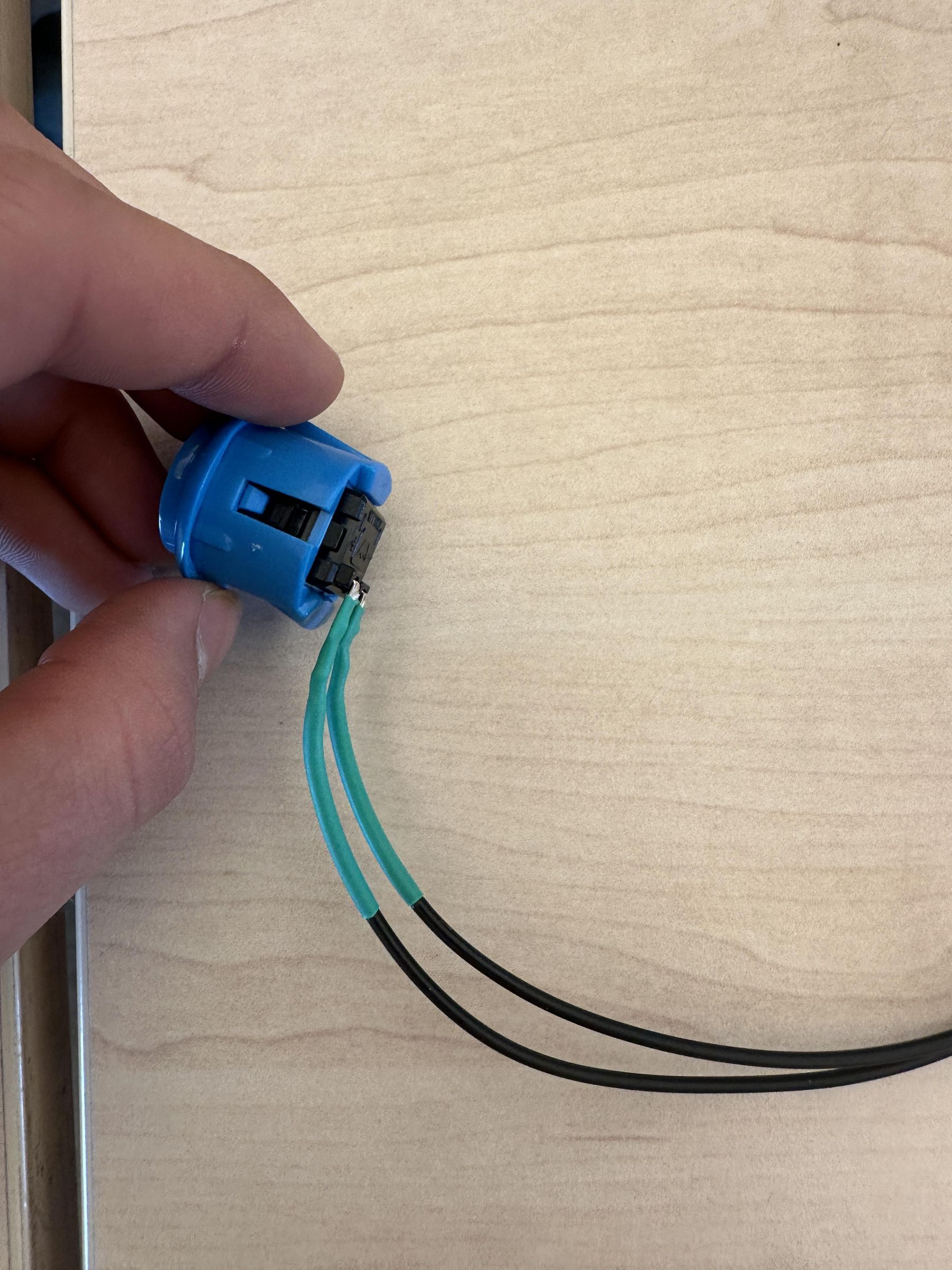

1. Strip the ends of your wires
2. Solder one wire to each terminal of the push button
3. Cover connections with heat shrink tubing

Why:

This creates a reliable electrical connection that will act as the input trigger.

Instructions:

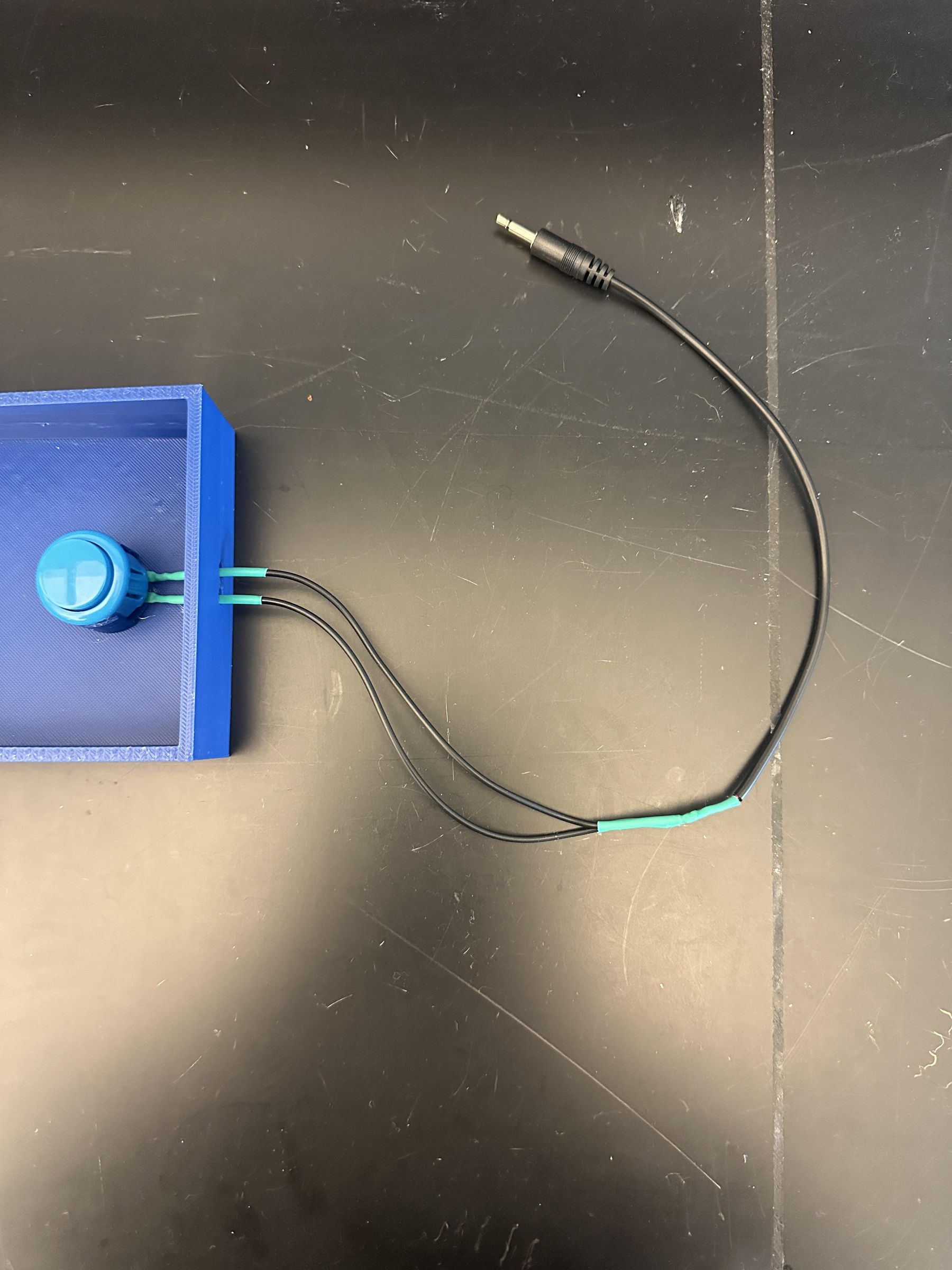

1. Cut and strip the aux cable
2. Identify two wires (signal + ground)
3. Solder them to the button wires
4. Cover with heat shrink

Why:

This allows the switch to plug directly into the Xbox Adaptive Controller.

Instructions:

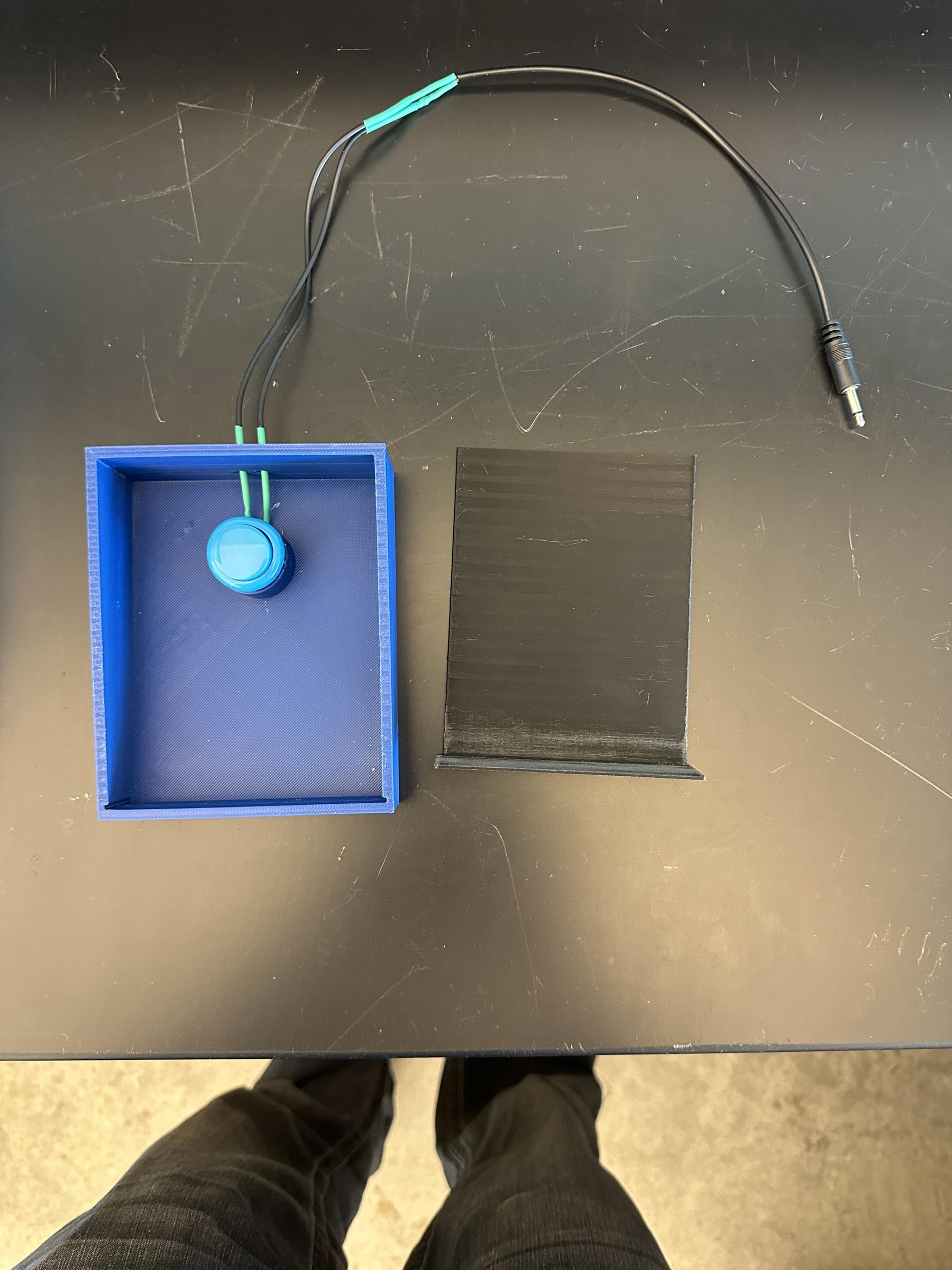

1. Insert the button into the center hole and glue down
2. Route wires through the side opening
3. Make sure the button fits snugly in the notch

Why:

The notch keeps the button from shifting when pressed.

Instructions:

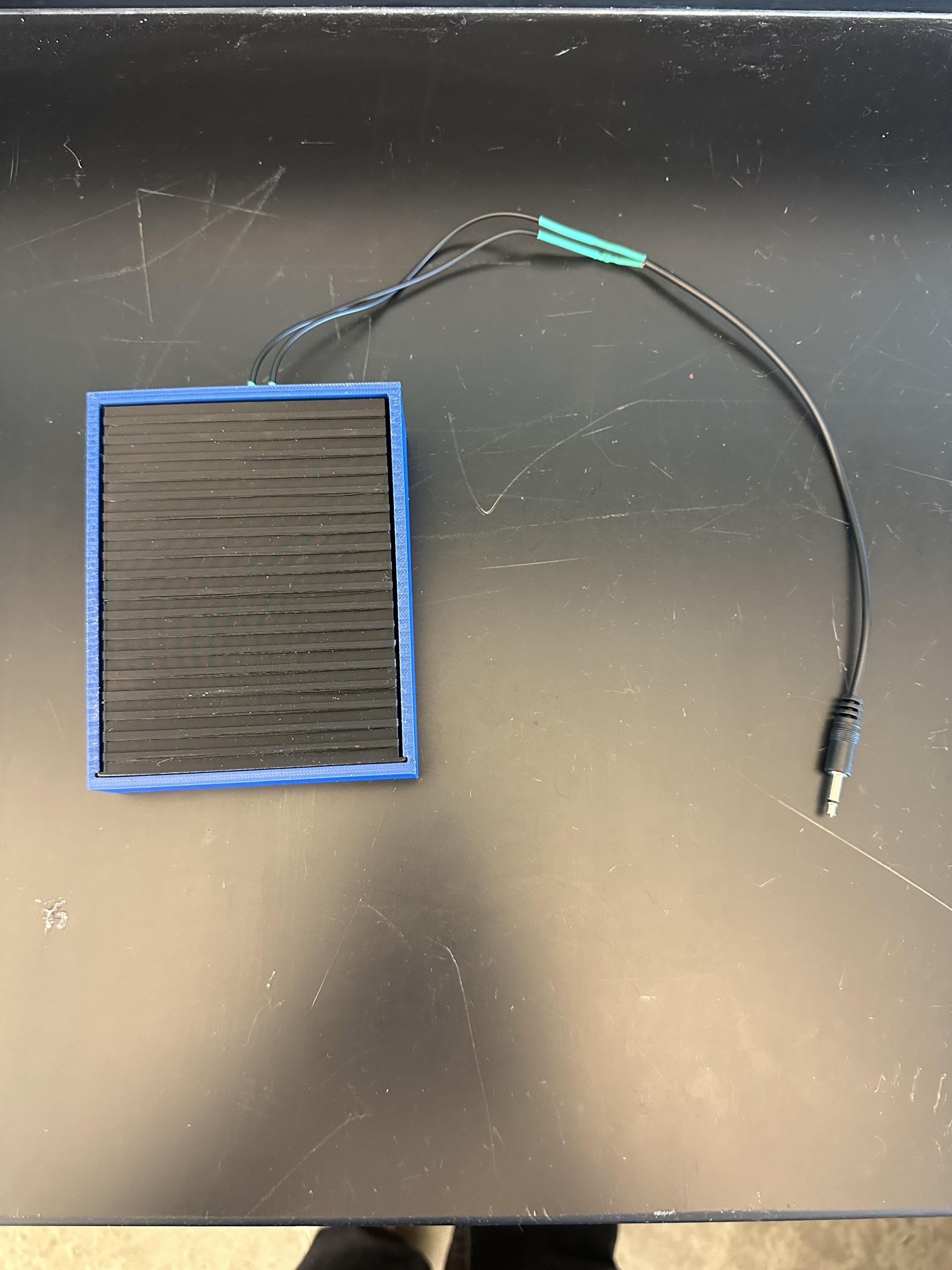

1. Confirm everything is aligned
2. Check that pressing the top activates the button
3. Make sure wires are not pinched

Instructions:

1. Plug into Xbox Adaptive Controller
2. Press pedal
3. Confirm input registers

Video demonstration below
