Acid-Free Zinc Plating: Professional Galvanic Coating at Home

Introduction: Learn how to create a durable, professional-grade galvanic zinc coating using a safe, acid-free electroplating process. This method is highly effective for rust prevention, tool restoration, and garage workshop projects. By using accessible chemicals and simple electrolysis, you can achieve excellent metal protection and a quality semi-shiny finish on steel or copper workpieces.

Safety Warning: Even though this process is acid-free, it involves handling strong alkaline substances (sodium hydroxide) which cause severe chemical burns. Always use reliable personal protective equipment, including heavy-duty gloves, safety goggles, and protective clothing. Work in a well-ventilated garage or workshop area.

Watch the full demonstration here:

- Distilled water [1]

- Sodium hydroxide (Sewer pipe cleaner) - 100 grams per liter [1]

- Pure zinc pieces or scrap metal [1]

- Granulated sugar (Glucose source) - 50 grams per liter [1]

- Liquid soap (Anti-pitting agent) [1]

- Citric acid (For surface activation) - 20 grams per liter [1]

- Adjustable DC power supply [1]

- Graphite or zinc anode plates [1]

- Air pump system for solution agitation [1]

Step 1: Workplace & Safety Setup

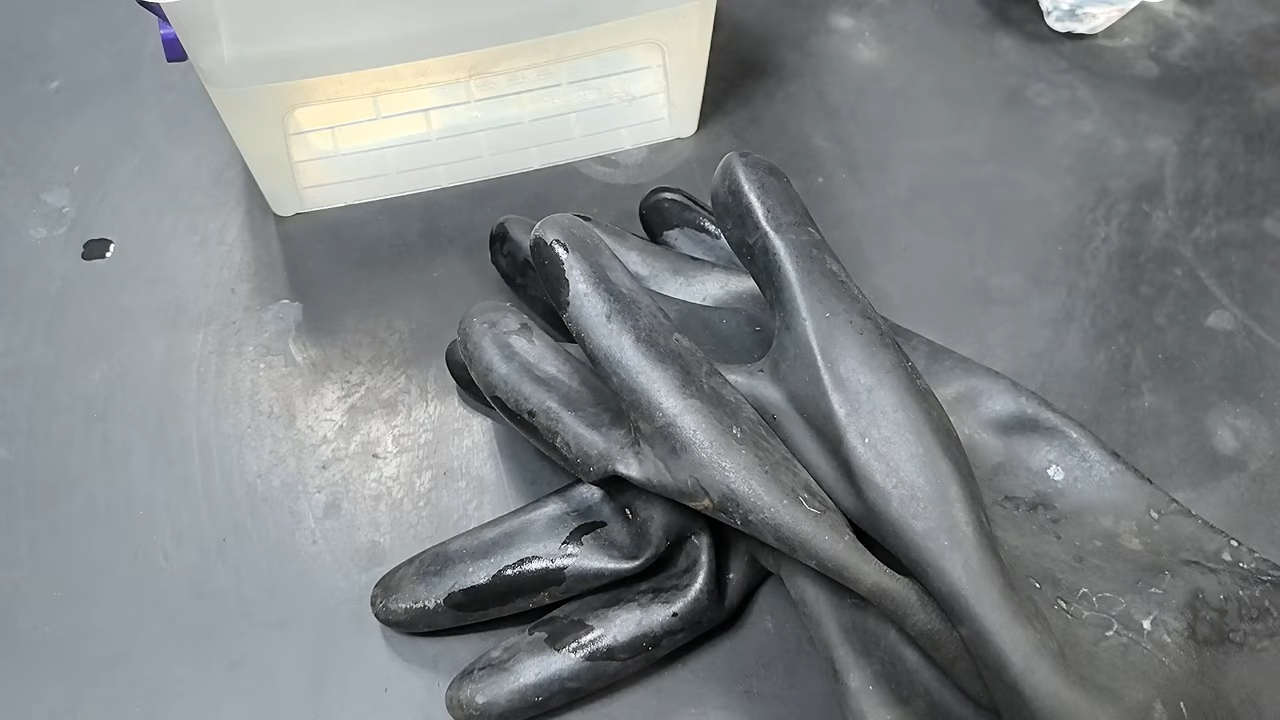

Before creating the chemical bath, ensure your workspace is prepared and safe. Put on thick, heavy-duty protective gloves, safety goggles, and a protective apron. Prepare your mixing container and have distilled water ready. Always prioritize safety, as the alkaline components used can cause severe chemical burns.

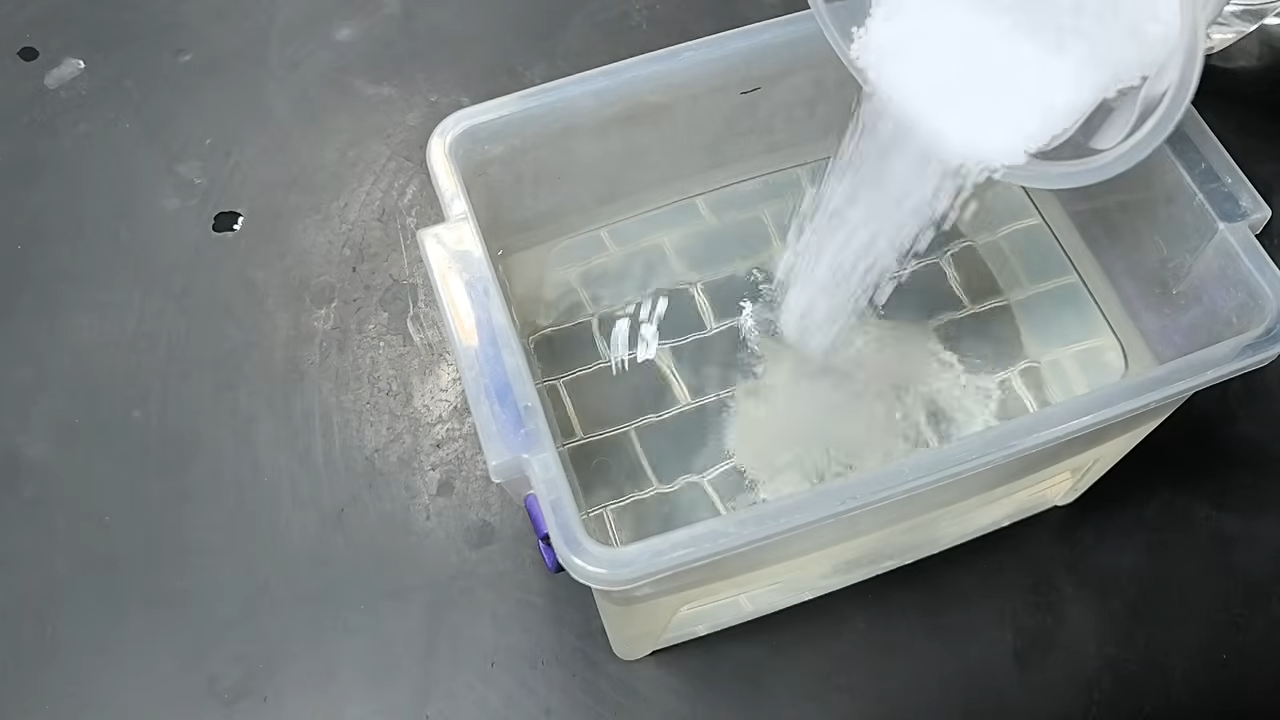

Step 2: Preparing the Alkaline Electrolyte Base

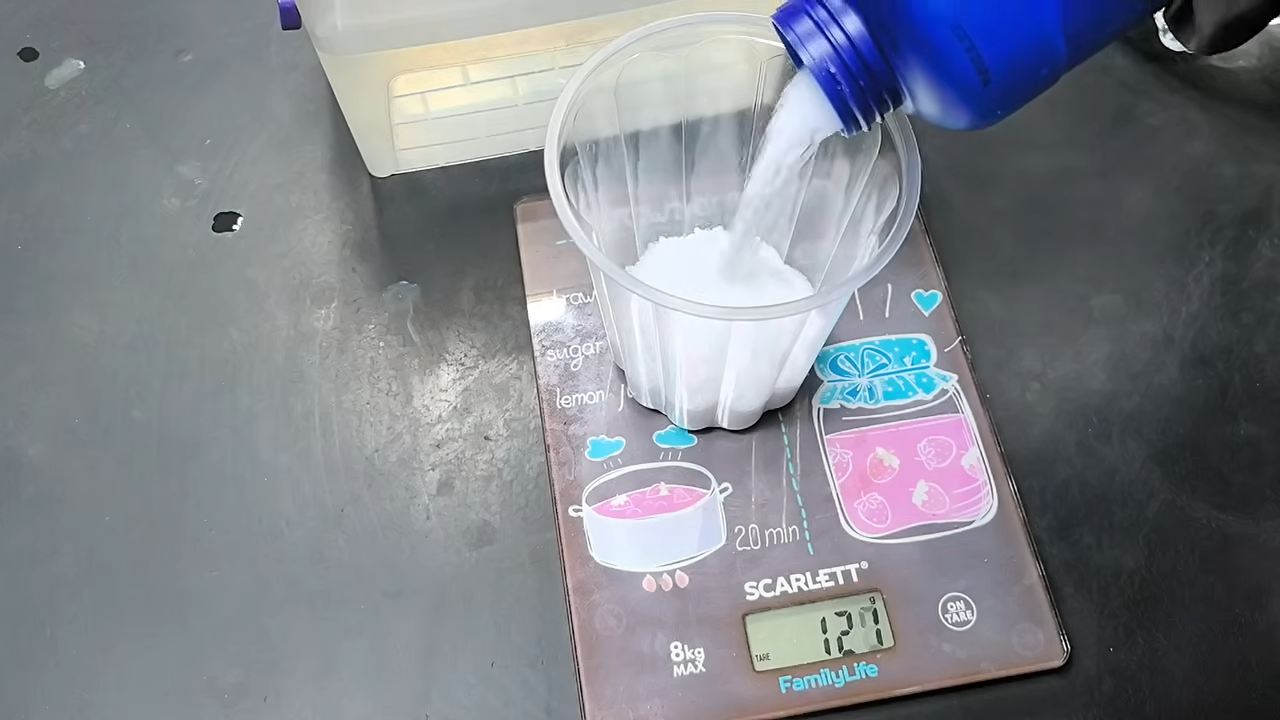

Pour two-thirds (2/3) of the total required distilled water into your container. Carefully and gradually dissolve sodium hydroxide (sewer pipe cleaner flakes) at a ratio of 100 grams per liter of water. Mix slowly, as the dissolution process is highly exothermic and will cause the water to heat up significantly.

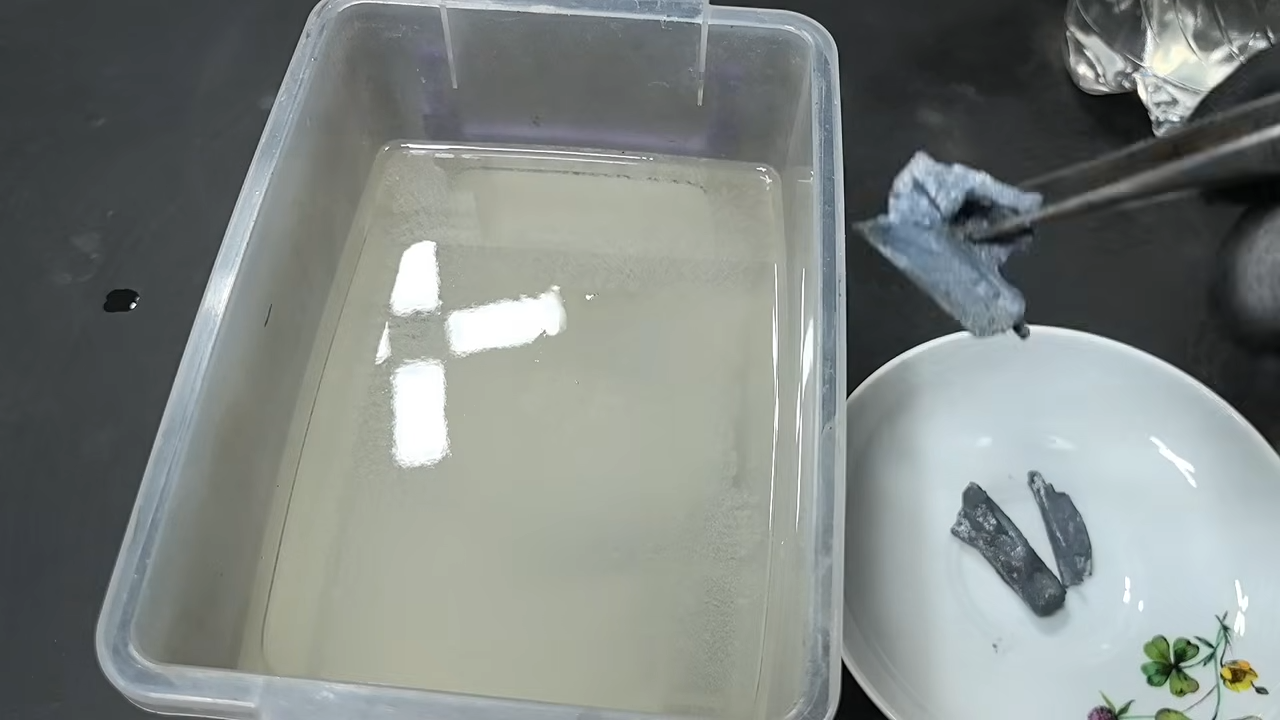

Step 3: Zinc Saturation & Solution Agitation

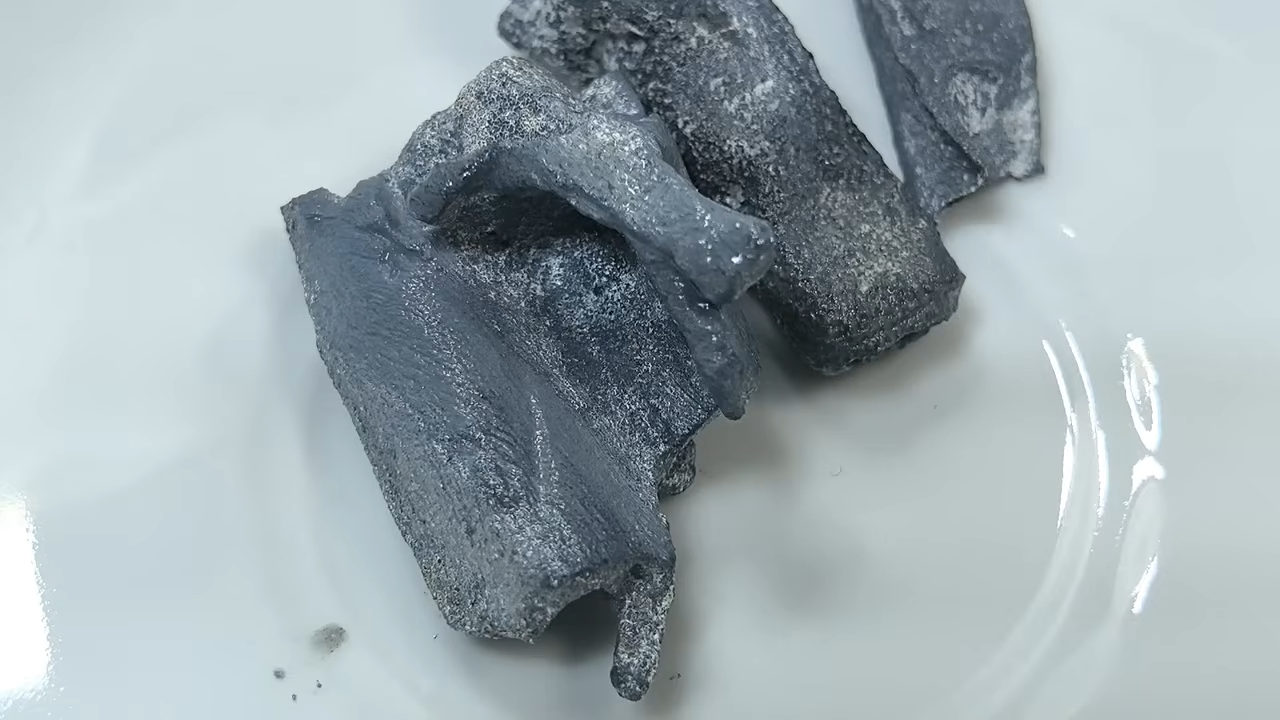

Submerge clean pieces of metallic zinc directly into the hot sodium hydroxide solution to start the chemical reaction. Wait until the reaction completely stops and stabilizes. Add granulated sugar at a ratio of 50 grams per liter, using a little lye to break down the glucose. Top up the remaining volume with distilled water.

Step 4: Solution Agitation & Anti-Pitting Conditioning

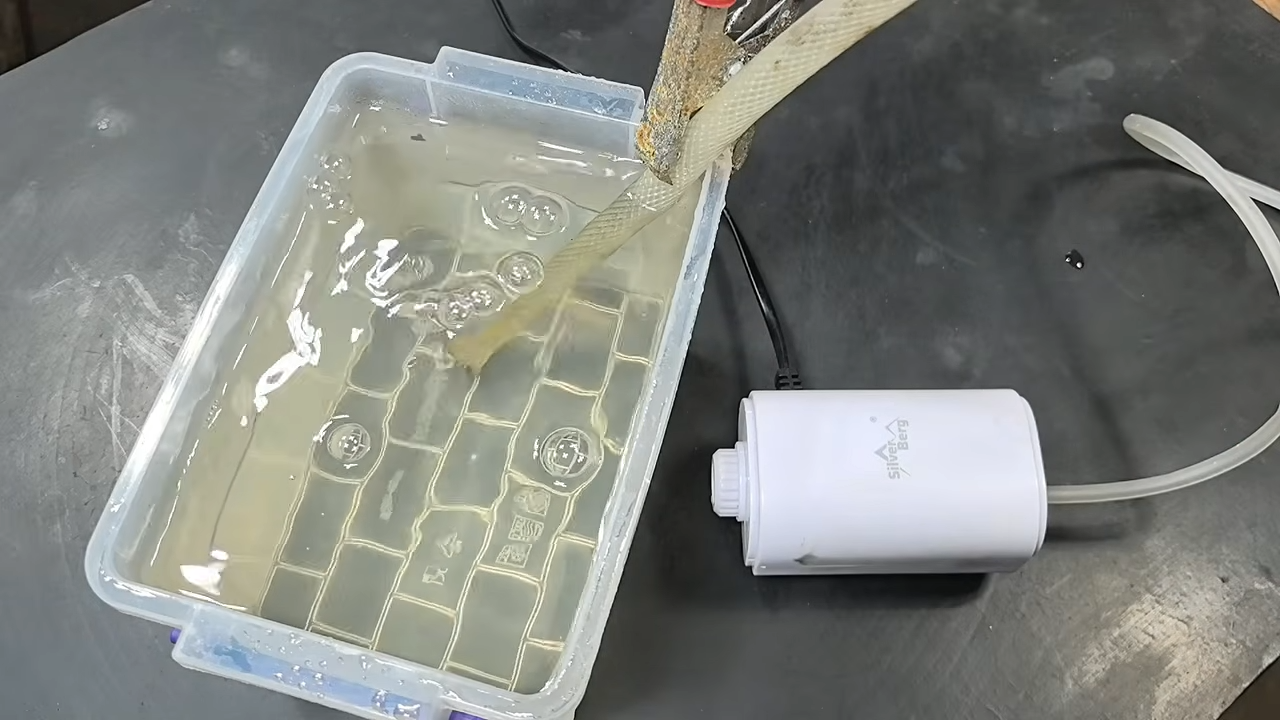

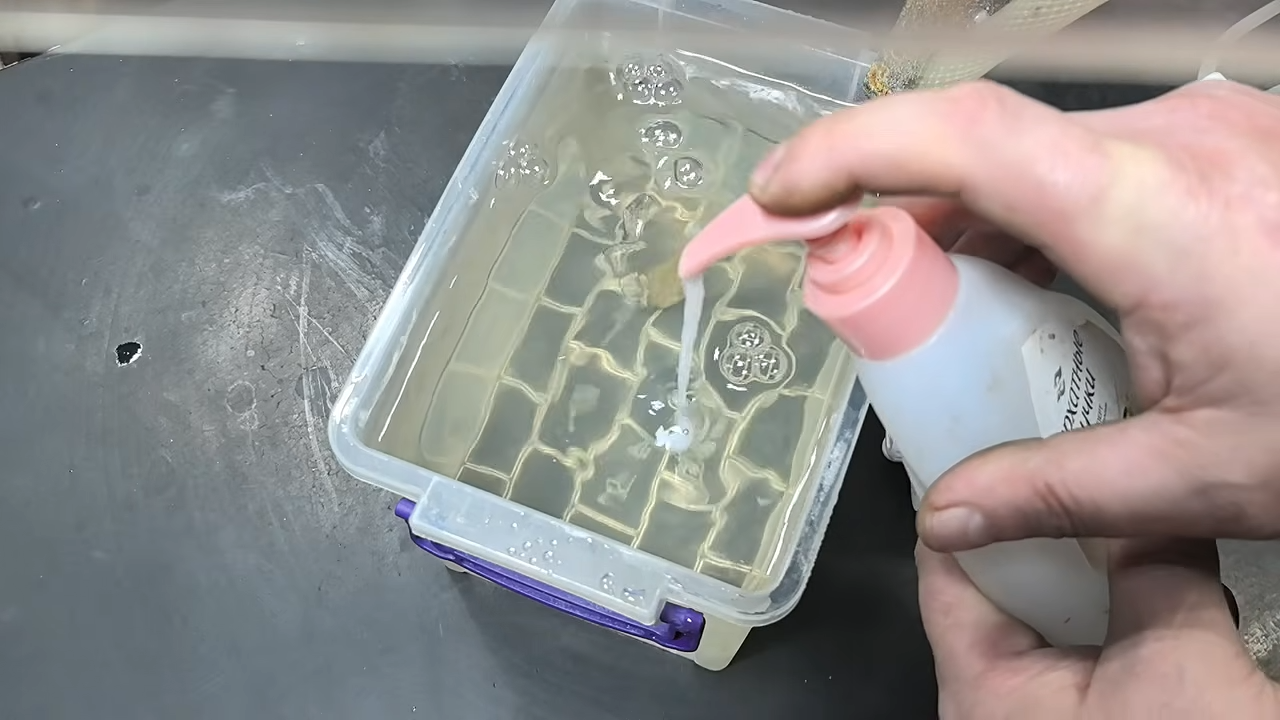

Place an air mixing tube into the tank connected to your air pump. Run the air agitation system for 15 minutes to fully homogenize the solution. Right after mixing, add a few drops of liquid soap to the bath; this lowers the surface tension and strictly prevents pitting defects, pores, or sinks from forming on your parts.

Step 5: Electroplating & Final Results

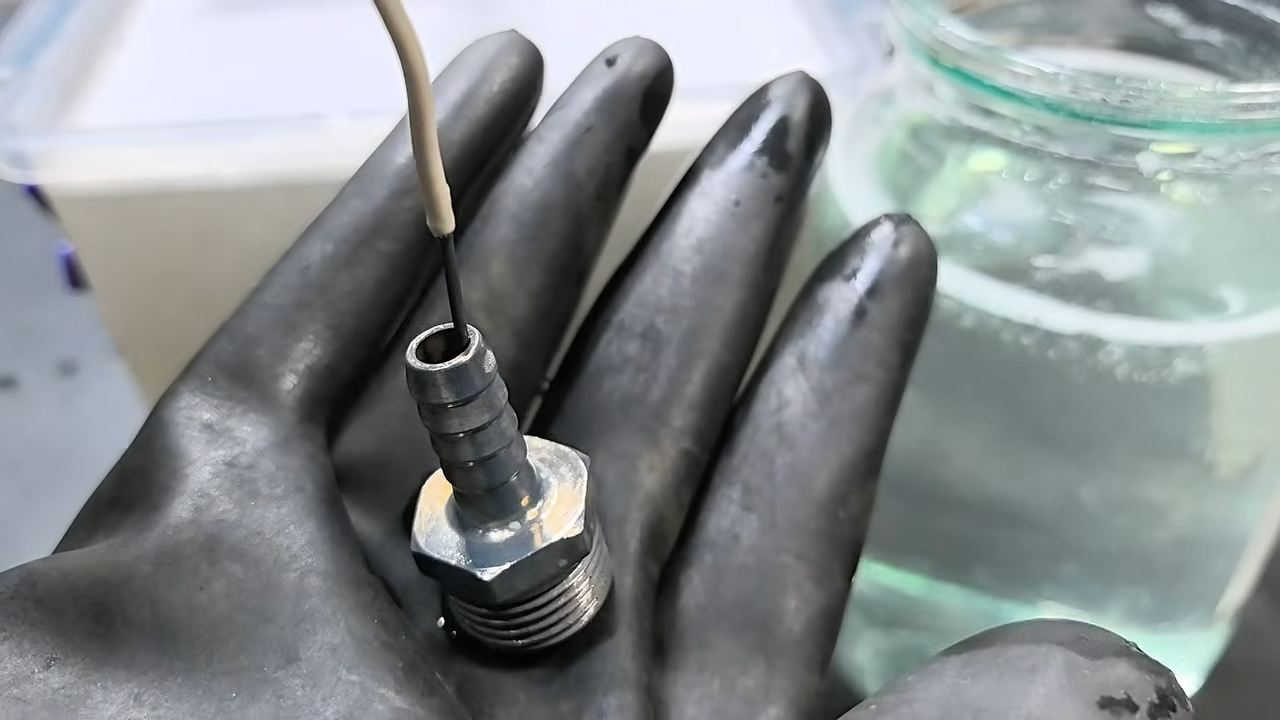

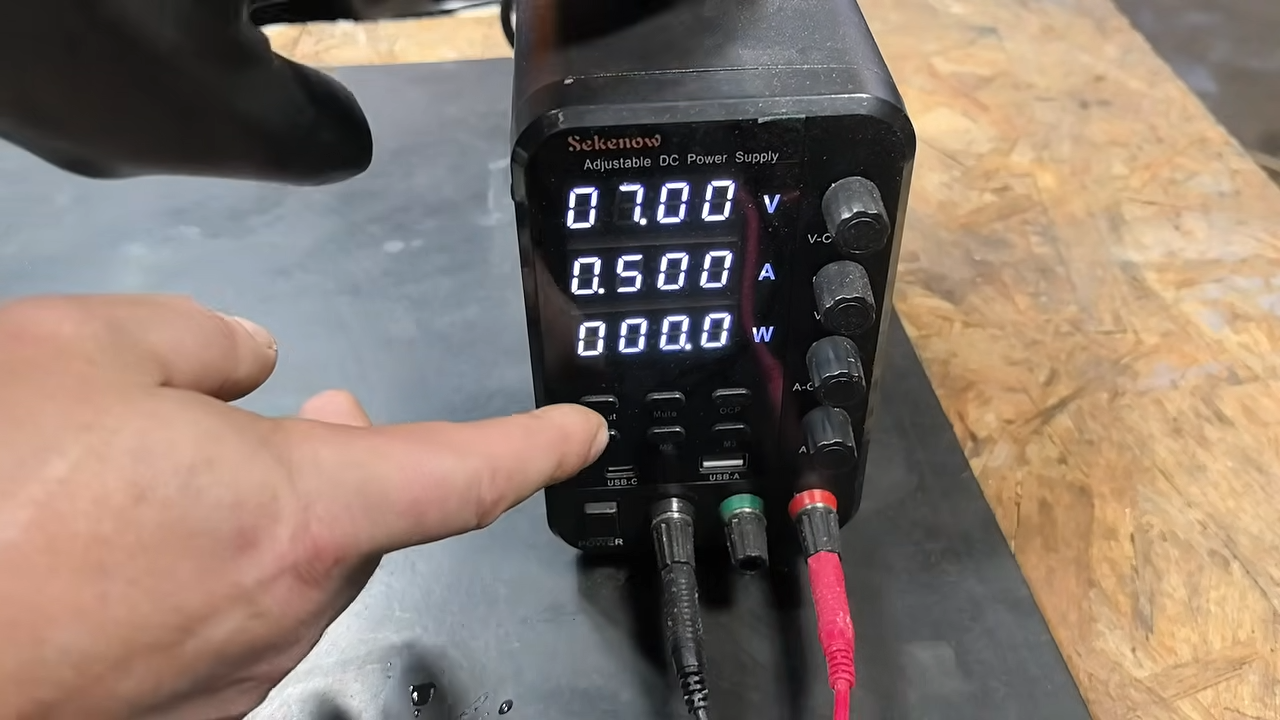

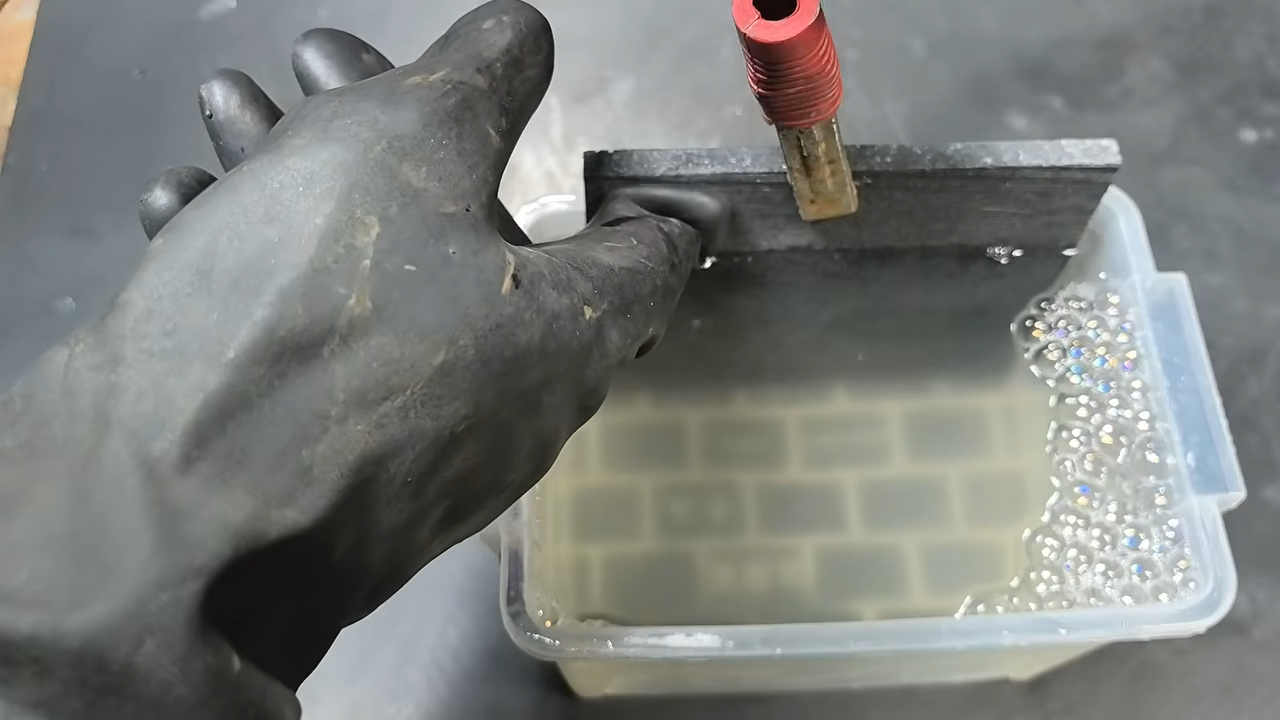

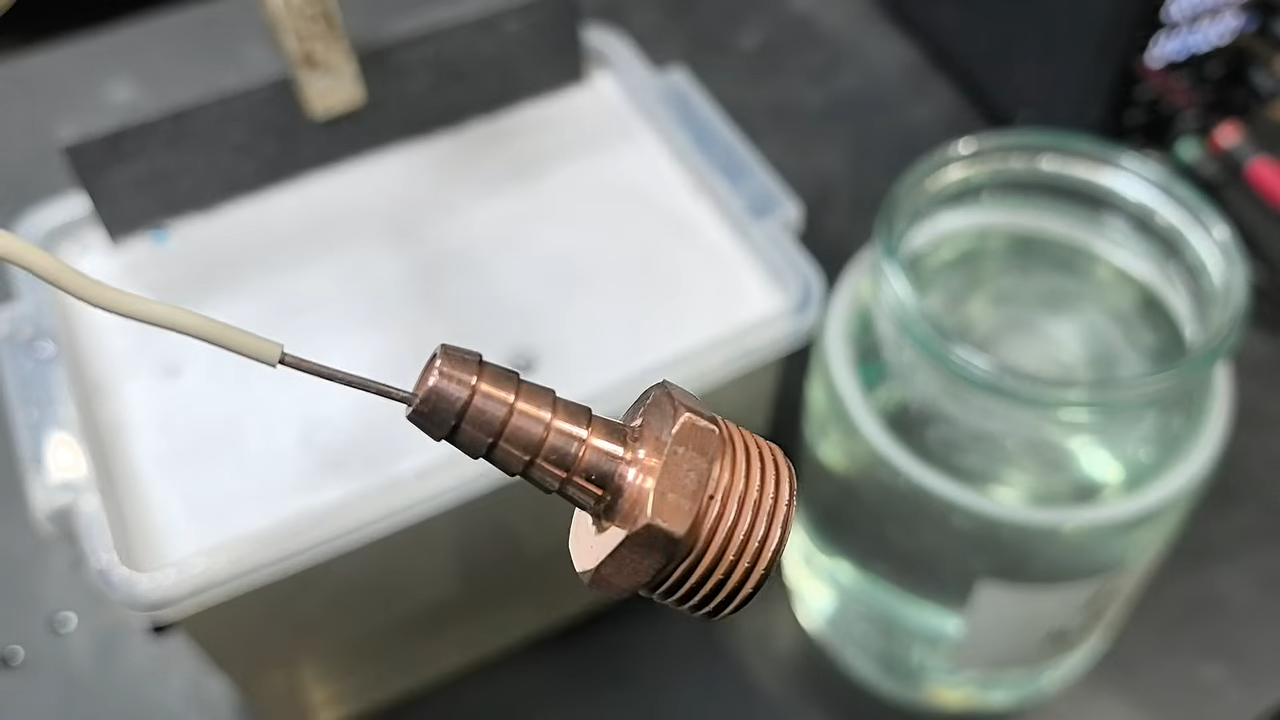

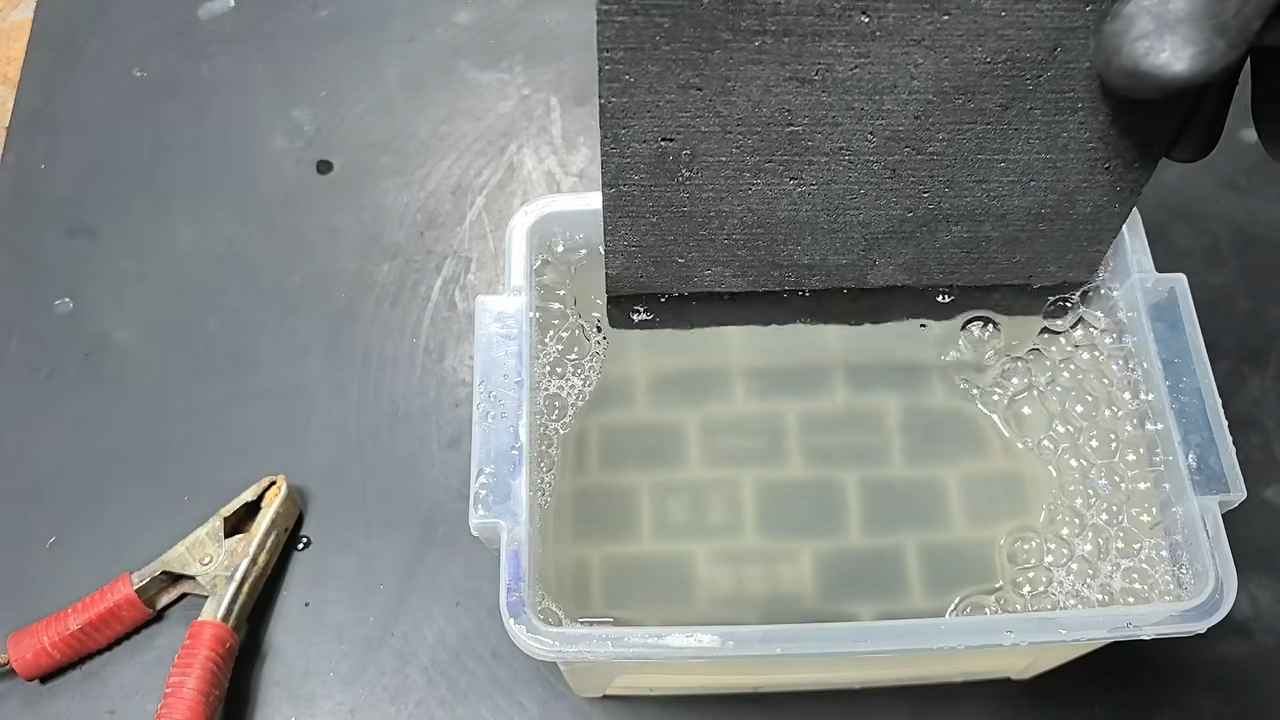

Connect the negative terminal (cathode) of your adjustable DC power supply to your clean metal workpiece, and the positive terminal (anode) to your graphite or zinc plate. Set your parameters to approximately 7.00V and 0.500A. Submerge the part to begin electroplating.

Step 6: Brightening Process & Final Result

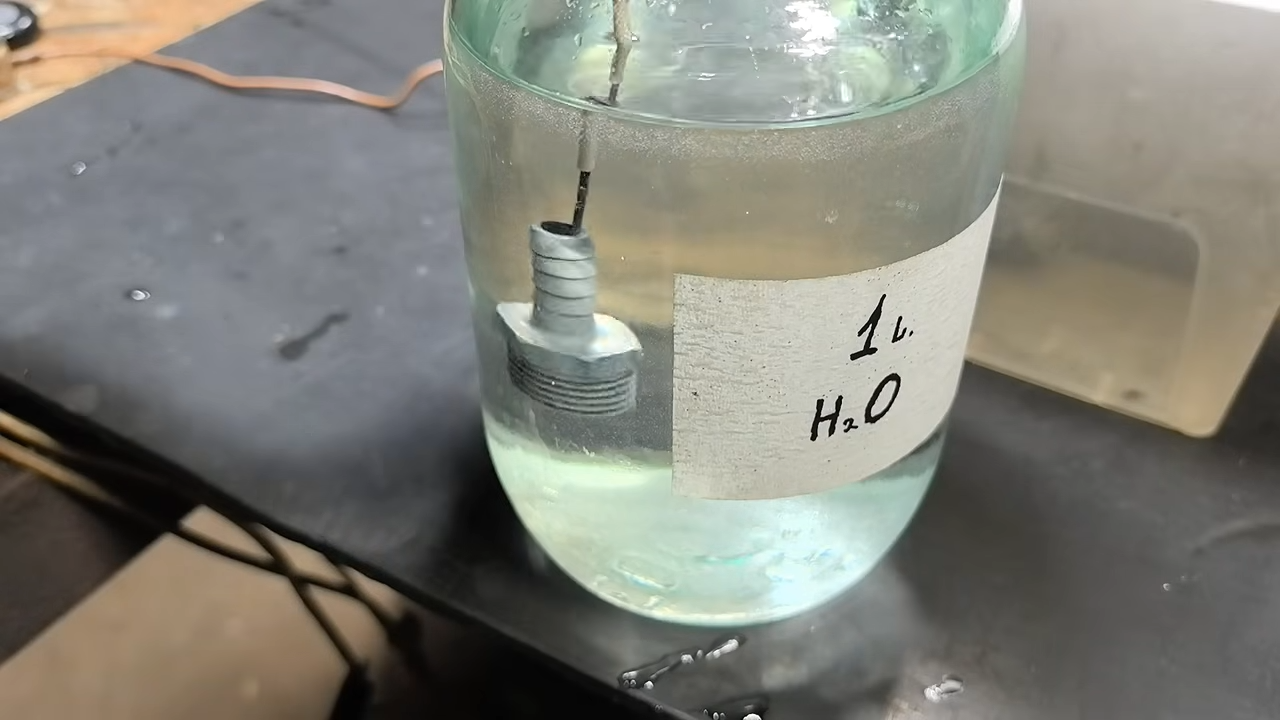

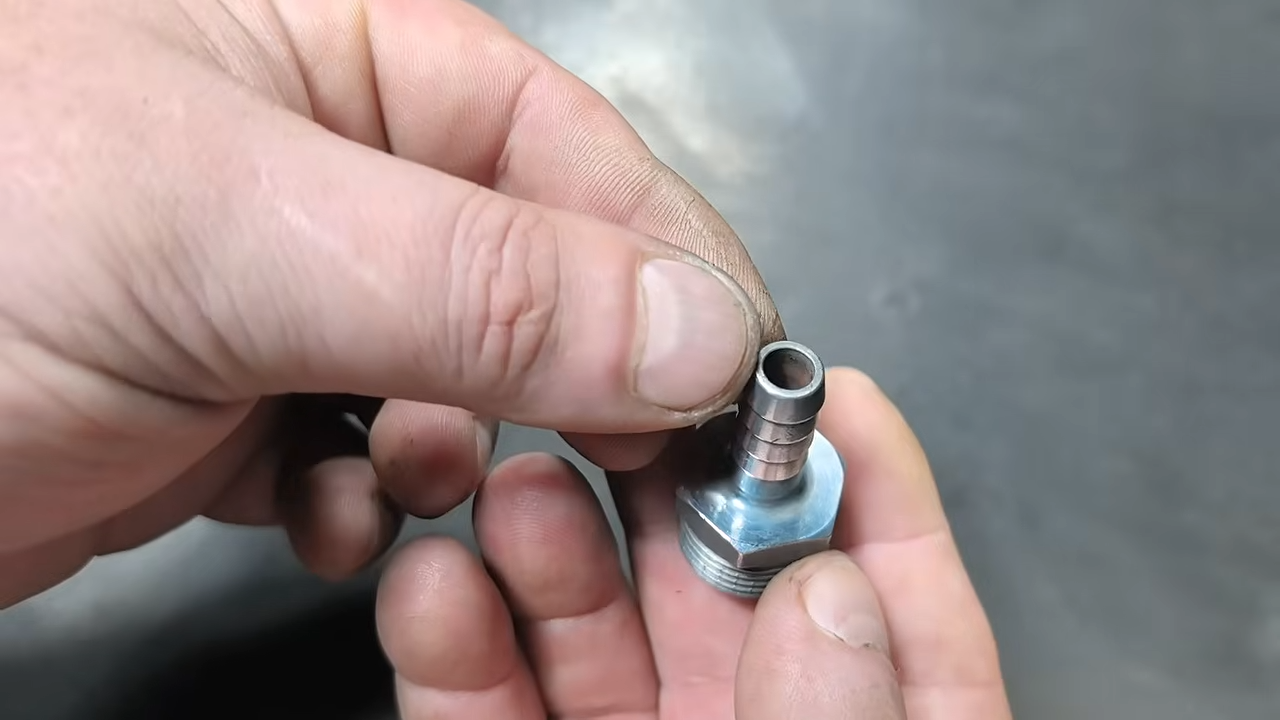

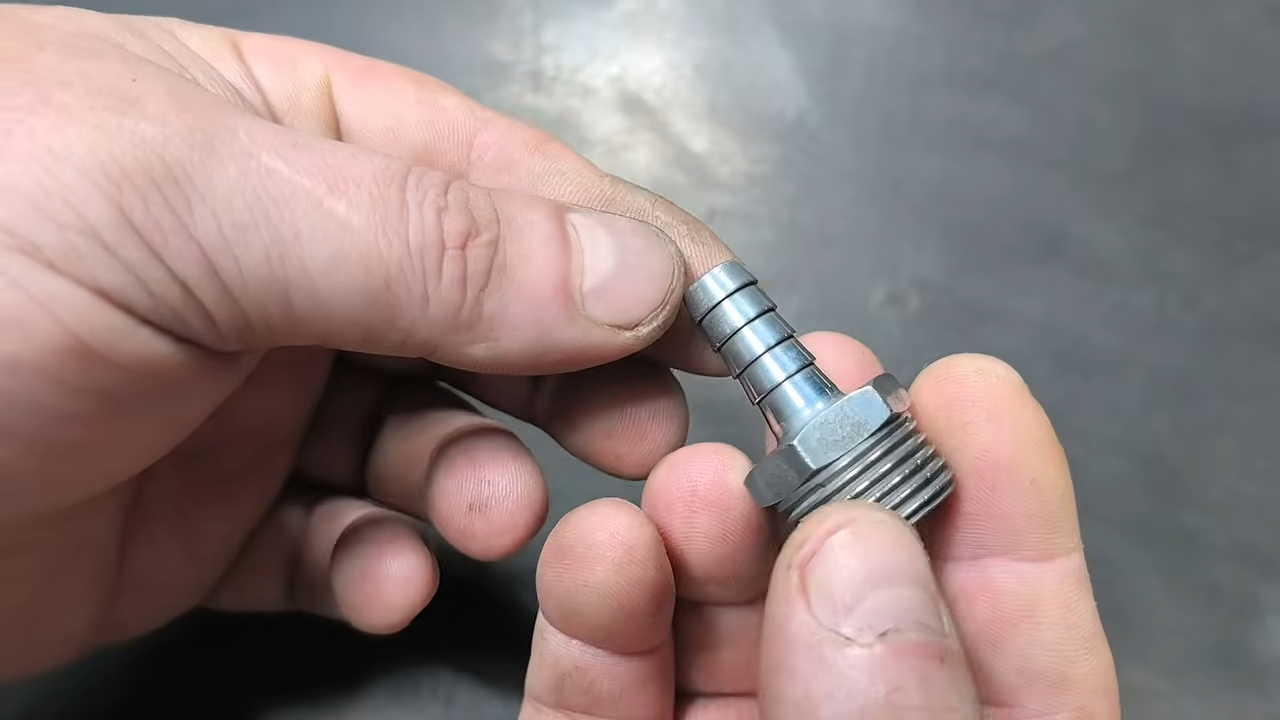

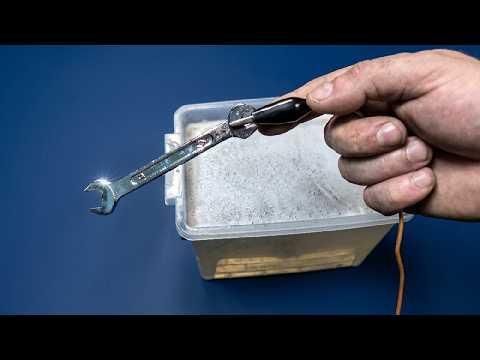

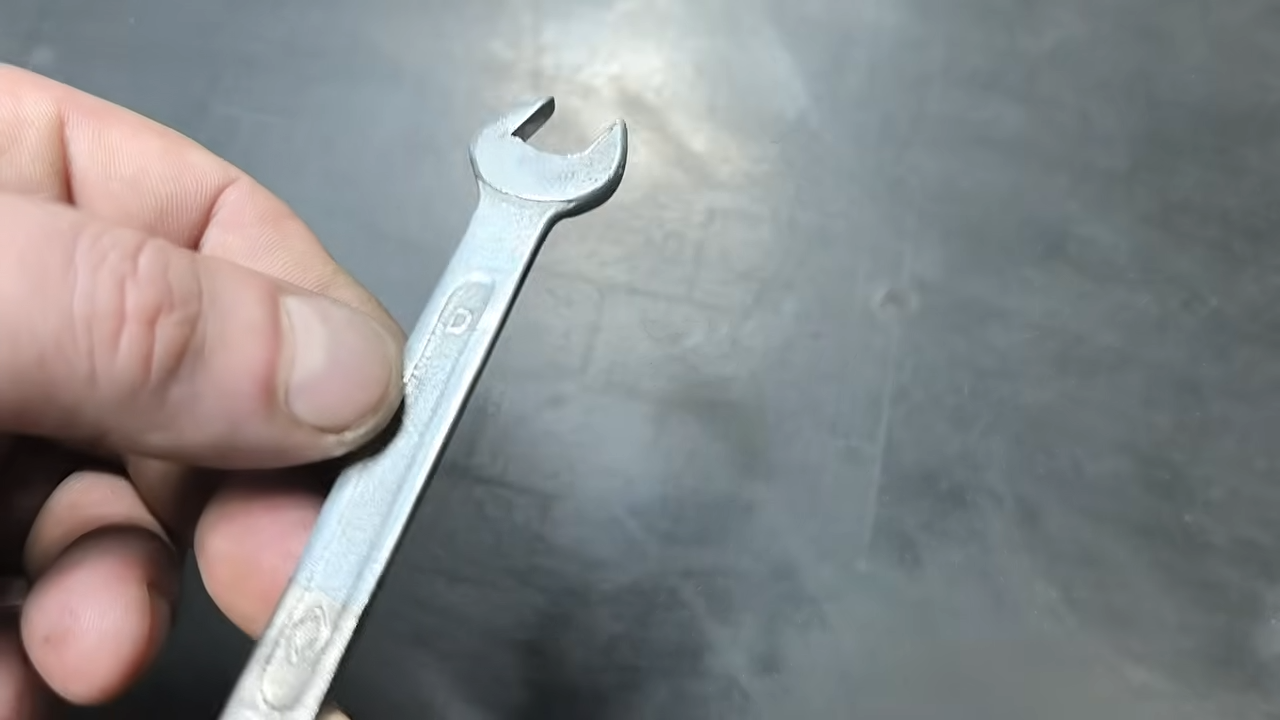

After completing the electrolysis, remove the dark or dull coated part from the tank and rinse it. To transform the layer into a brilliant finish, submerge the piece into a chemical brightening solution prepared with citric acid at a ratio of 20 grams per liter. This mild acid bath instantly activates the surface and converts the layer into a stunning, semi-shiny protective zinc shield. For an exact, step-by-step visual demonstration of the entire reaction, watch the full project video with subtitles enabled:

Tips for Success:

1. Rinsing: Thoroughly rinse the workpiece with distilled water between every single step to avoid cross-contamination of your electrolyte tanks.

2. Current Control: Maintain strict control over your power supply amperage; pushing too much current will burn the corners of your workpiece, while too little will result in incomplete coverage.

3. Clean Contacts: Ensure all wire hooks and busbars are completely free of corrosion before hanging your parts.
