Arduino Tamagotchi Pet
Want to teach your kid how the idea of taking care of a pet without actually buying one ( does not actually help your kid learn how to take care of a pet) or maybe you want a pet without the hassle
Supplies

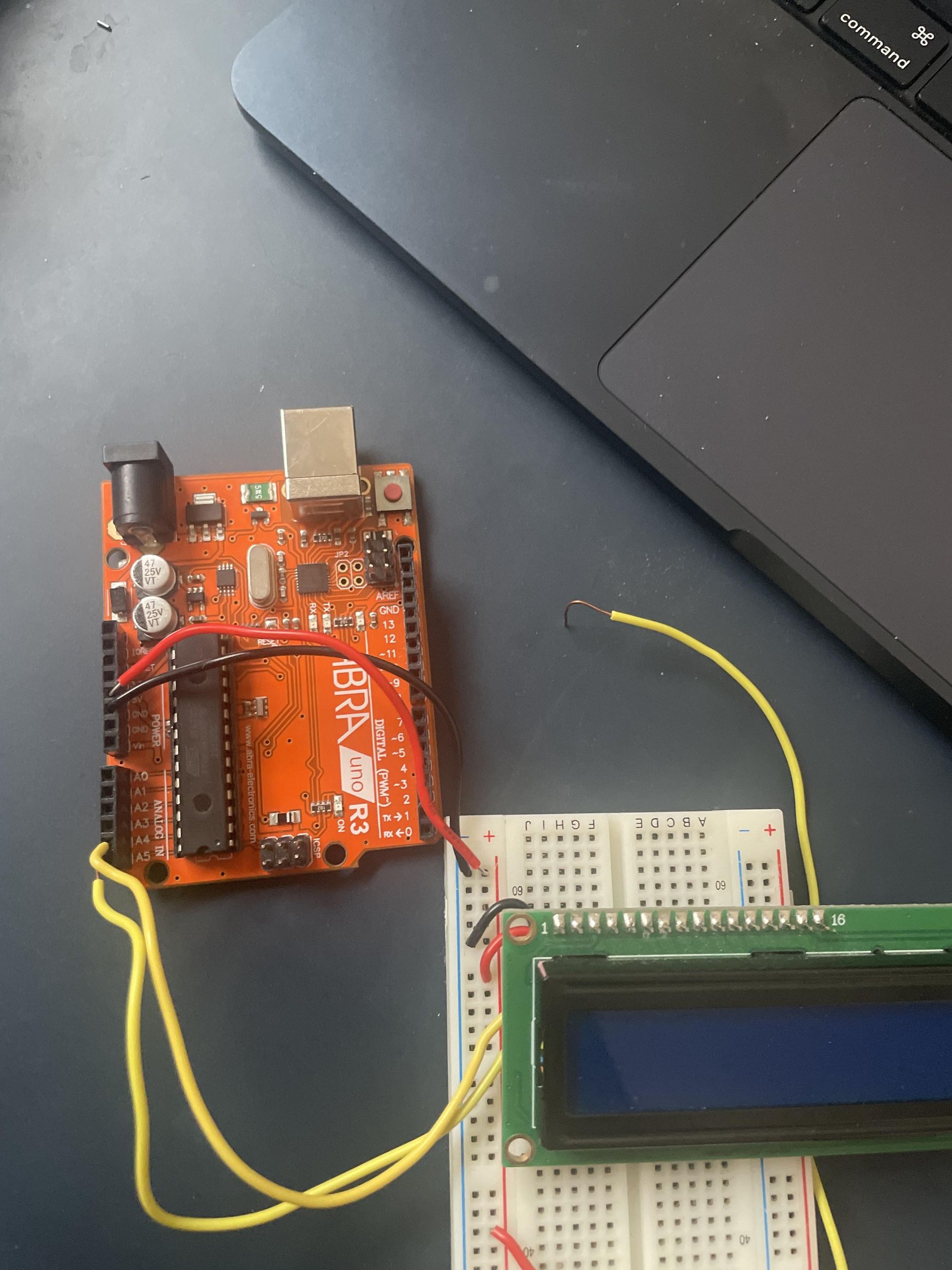

Wiring and Coding Your LCD I2C
Your LCD I2C screen is where your going to see your Creature, and their stats so you need to make sure everything is plugged in correctly.
Your Lcd I2C screen has 4 inputs that need to be aligned : Gnd,Vcc,Sda,Scl
Your gnd pin has to be connected to ground and the vcc pin needs to be connected to power. both of these pins cannot be placed anywhere else you sda and scl pins location depend on what type of microcontroller you use.
If your using the same microcontroller as me(arduino uno) the sda pin has to go to A4 and the scl pin needs to connect to A5.
the sda controls the data that goes through its what sends your code to the lcd and the scl controls how fast bytes of data travel through
before adding the code you will need libraries for which i will link a video too here
the code needed for this part is
#include <Wire.h>
#include <LiquidCrystal_I2C.h>
LiquidCrystal_I2C lcd(0x27,16,2); // set the LCD address to 0x27
this code is needed before your setup to ensure that you have the libraries for the screen
Pre Setup and Loop Code
Once you've added your lcd screen the next important part is add code to your project without it you wont be able to view your tamagotchi. The code that we are going to adding will add our tamagotchi character, its cleanliness,food and enjoyment bars
the first part of the code is create what our character looks like i based my tamagotchi off pochita from chainsaw man:
(i do not claim pochita as my own creaton it belongs to mappa and tatsuki fujimoto, The code to create his design was created through ai (because i suck at 8 bit art) everything else was my own making)
This code works by telling each square on your lcd screen whether to be on or off. if we look at byte top left its telling the top left of lcd follow the binary code written out for it following. the 0's mean that part of the display is off and the 1's are signalling a display the top left would look like this
B00111 --> ■■■
B01000 --> ■
B11111 --> ■■■■■
B11101 --> ■■■ ■
B11111 --> ■■■■■
B11111 --> ■■■■■
B11111 --> ■■■■■
B11111 --> ■■■■■
The reason some of them say f1 and f2 is because those parts have two frames which we will code to alternate every so often
the next part of code you will need is your tamagotchis stats; the stats control how big your bars are and their max values ( you can change these values to however you want them to be but remember that they are going to change the size of your bars).:
The next piece of coded added to ensure that your creature is alive theres no point in creating your tamagotchi if you have nothing to lose:
This piece of code is for your arduino to understand what is connected to each of its pins:
Now were just telling giving starting values for each of our input receivers:
Timers so that when you give an input it stops you from spamming the input, creating a timer to measure if it has been long enough for something to drain or if your animation can switch:
these values control how what your timer baselines have to reach before restarting; the amount of time it will take for something to drain or change:
the boolean controls that the frames will switch and the statcycle controls which stat is showing:
void drawbar is what creates the bars that will be showing :
Incase you plan to add a buzzer your also going to need sounds for said buzzer. The way the code works is by controlling the tone and timing in order to create a sound that represents what your going for, this code is mainly designed for dogs so if you want a different type of animal for your tamagotchi i suggest messing around with the frequency. you will need to find the wiring yourself as i was unable to get a buzzer for my tamgotchi
Tone(variable name, frequency in hertz);
Right here im going to post all of the pre setup code so you dont have to individually paste them
//pre setup
Void Setup
void setup is the part of your code that only runs once at the start were going to use this code in order to setup our lcd screen positions and telling the arduino whether it should output or input from, were also telling our arduino to start recording the serial values that are being inputted
after this all of the code that we add will be put in void loop
Void Loop
this is the part of the code that when added will continuously go on forever unless either the arduino loses power or the code tells it to stop
Tamagotchi Death Checker
this code ensures that when the values of cleanliness,hunger or enjoyment have a value of 0 pochita dies. this works by having all the code run underneath the previously mentioned boolean isAlive, when the C,H,E values equal 0 the boolean gets a value of false which stops all code in the void loop
this is also how one would make a death screen for their tamagotchi. mine says "pochita died cuz of themes n such" in order to reference the book he comes from but you change it to be anything you want,
Pushbutton
by far the easiest to add input out of all of them. the push button works by the Arduino uno receiving an electrical input when the button is pressed down. In our code i use the button in order to feed our tamagotchi.
PIR Sensor
The Pir sensor/ motion sensor, When creating your tamagotchi you have to ensure that it has ways to input code so you can interact with your pet. I made it so that whenever you wave your hand in front of the pir sensor it increases your tamagotchi's enjoyment. The way this code works is by checking whether the pir sensor has a reading of movement and then when it reads high it add's to the enjoyment bar.
make sure your pir signal receiver is plugged into a digital pin, in our code we plugged it into pin 13.\
the pir sensor works by checking whether something is moving infront of it, when something does it sends a high input to the arduino it also compares it to the last second to see if your hand is moving to make sure that something is not just placed infront of it.
Ldr Code
The pir sensor works by checking to see the light in your room. because you have to put your ldr into a pwm the arduino can actively read what light the ldr is receiving in this scenario my classroom only emmitted a max light of 500 so i set the ldr to check whether the light 1 second ago was greater than 200 (to indicate that their was an original light) and that the light currently was less than 200( so the arduino can verify that it is receiving less light)
Animation and Stats Loop
this code controls the animation of your tamagotchi by making the bottom part of the character switch from frame 1 and frame 2 from the presetup code
The stat ui cycle also works in a very similar way but instead of switching between two frames the code uses a modulus equation. statcycle is a constantly increasing number and what the %3 does at the end of the equation is that it finds the remainder of the equation when the statcycle number is put into 3 groups and depending on the remainder/output it switches the bar being shown
full code here:
Drains and Buzzer
this part of the code makes it so that the values of the tamagotchi's stats drain over the set time by subtracting a timer from the amount of seconds you set the drain too and when it is equal it removes a value of 1 from the stat.
the buzzer works in the same way as the light where you select it to turn on depending on whatever reasoning you want (in this scenario we have set it so that whenever the hunger,cleanliness or enjoyment stat has a value of less than 3 the buzzer makes a noise until all stats are above 3).
Full Code
Creating the Tamagotchi
these are the steps i took in order to wire my tamagotchi
Lcd I2c
Your Lcd I2C screen has 4 inputs that need to be aligned : Gnd,Vcc,Sda,Scl
Your gnd pin has to be connected to ground and the vcc pin needs to be connected to power. both of these pins cannot be placed anywhere else you sda and scl pins location depend on what type of microcontroller you use.
If your using the same microcontroller as me(arduino uno) the sda pin has to go to A4 and the scl pin needs to connect to A5.
PIR Sensor Wiring
when wiring the pir sensor make sure the pin furthest to the left goes to ground , the middle pin connects to a digital pin on your arduino and the pin furthest to the right connects to power
in our schematic and code we put it in pin 13 but it can go into any digital pin
LDR Wiring
when wiring the ldr make sure that whatever side receiving ground is also connected with the signal to the arduino, you also need to ensure that there is a resistor (preferably 10k ohms) in between ground and the ldr. you also need to confirm that the wire is connected to a pwm pin in our case we used A3
Push Button Wiring
when wiring the push button make sure that whatever side is across the button from ground is connected to a digital, just like the ldr ensure that ground is not directly connected to the button and instead there is a resistor (preferably 10k ohms)
Buzzer Wiring
when wiring the buzzer ensure that that the positive pin is connected to a digital pin and that the negative pin is connected to ground
End Product
in the end your product should look like this (for the exception of the led being swapped with a buzzer) if you have followed all the steps directly
