Astrolabe: Recreating an Ancient Astronomical Instrument

The astrolabe is one of the oldest and most important scientific instruments developed in human history. Before modern telescopes, clocks, satellites, and GPS systems were invented, people used the astrolabe to observe the sky and perform astronomical calculations. It helped astronomers, travelers, sailors, and scholars understand the position of celestial bodies and determine time and direction.

An astrolabe is a handheld astronomical instrument that works as an analog calculator for solving problems related to astronomy and navigation. It represents the sky on a flat surface using mathematical and geometric principles. By measuring the altitude of the Sun or stars, users could determine local time, latitude, and the position of celestial objects.

This project focuses on the construction and study of a functional astrolabe using pre-printed components. The aim of the project is to understand the working principle, historical significance, and practical applications of this ancient instrument while recreating it through a hands-on engineering process.

1. Printed Astrolabe
2. Cardboard
3. Glue
4. Blade & Scissor
5. Golden Color
6. Brush
7. Split Pin or Bolt/Nut
8. Key Chain
9. Scale
10. Carbon Paper

NOTE: Before building the astrolabe, it is important to download or print an astrolabe template designed specifically for your geographical location or latitude. This is necessary because the visible positions of stars, the horizon line, and celestial coordinates change depending on the observer’s location on Earth. The tympan (climate plate) of the astrolabe is specially designed for a particular latitude, and using the wrong template may result in inaccurate astronomical readings and calculations.

The astrolabe originated in ancient Greece around the 2nd century BCE. Early Greek astronomers such as Hipparchus developed the mathematical concepts that later formed the basis of the astrolabe. These ideas were further improved by Claudius Ptolemy, whose studies in astronomy and geometry contributed significantly to its design.

During the Islamic Golden Age, the astrolabe was greatly refined and became one of the most advanced scientific instruments of its time. Muslim scholars and astronomers such as Al-Battani and Al-Zarqali improved its accuracy and expanded its applications in astronomy, navigation, mathematics, and religious observations.

Later, the astrolabe spread to Europe during the medieval and Renaissance periods. It became an important tool for sailors and explorers before the invention of modern navigational instruments such as the sextant and compass systems.

The astrolabe remained in use for centuries and played a major role in the advancement of astronomy, navigation, and scientific learning across different civilizations.

The astrolabe was one of the most important scientific tools in ancient and medieval times because it allowed people to perform astronomical calculations without modern technology. It helped astronomers observe the movement of celestial bodies and understand the structure of the sky.

Its importance can be understood through its various applications:

1. Determining local time using the Sun or stars
2. Measuring the altitude of celestial bodies
3. Finding latitude for navigation during sea travel
4. Identifying the position of stars and planets
5. Assisting travelers in determining directions
6. Helping scholars study astronomy and mathematics
7. Determining prayer times and Qibla direction in Islamic civilizations

The astrolabe also represents the scientific achievements of ancient civilizations. It combined astronomy, mathematics, engineering, and craftsmanship into a single instrument. Even today, the astrolabe is important as an educational and historical model that demonstrates how early scientists understood the universe.

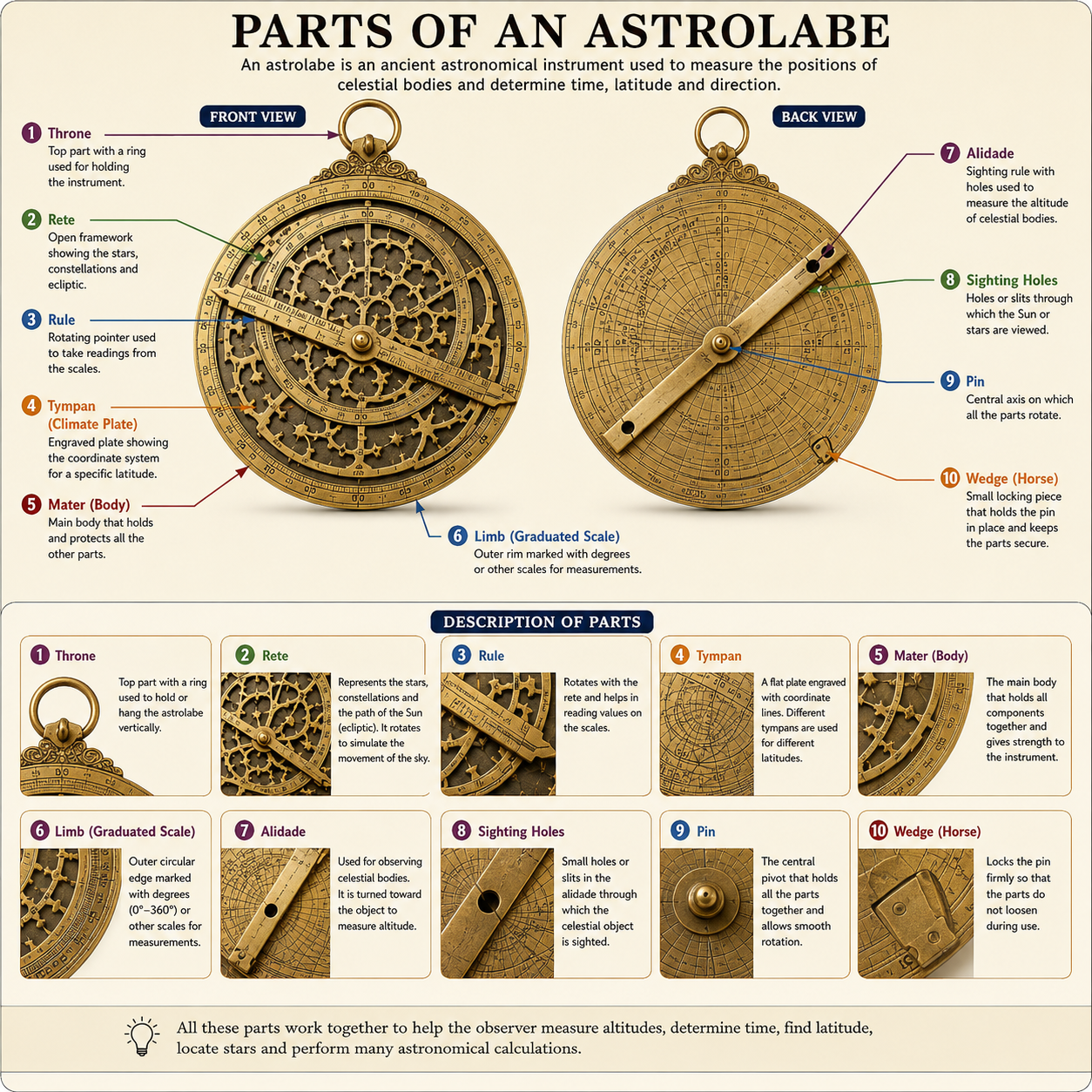

1. Mater: The main body of the astrolabe that holds all other parts together.

2. Tympan (Climate Plate): A removable plate marked with coordinate lines for a specific latitude.

3. Rete: A rotating framework showing stars and the Sun’s path in the sky.

4. Rule: A rotating pointer used to read measurements and calculate time.

5. Alidade: A sighting device on the back used to measure the altitude of celestial bodies.

6. Pin: The central rod that connects all parts and allows rotation.

7. Wedge (Horse): A small piece that locks the pin and keeps the astrolabe secure.

8. Limb: The outer edge marked with degree scales for measurements.

9. Throne: The top part with a ring used to hold the astrolabe vertically during observations.

1. The rete, which is the rotating star map of the astrolabe, was first designed and printed according to the required dimensions of the instrument.
2. The printed rete template containing the star pointers, circular framework, and ecliptic markings was placed over a cardboard sheet to provide structural support. Using a precision cutter, the outer boundary and inner open sections of the rete were carefully cut while preserving the delicate framework structure.
3. After completing the cutout, the printed rete design was pasted neatly over the cardboard using glue, ensuring proper alignment of all markings and star indicators.
4. As an alternative, the rete can also be printed on a transparent acrylic sheet to achieve a more professional appearance, improved durability, and a realistic transparent effect similar to historical astrolabes.
5. The rete was positioned above the tympan in such a way that it could rotate freely, allowing it to simulate the apparent motion of stars and celestial bodies across the sky.

1. After completing the rete, the next step was to prepare the remaining components of the astrolabe, including the alidade, rule, tympan, and the back plate of the tympan.
2. The printed templates of these parts were carefully cut out along their boundaries using scissors and a precision cutter to maintain accuracy and clean edges.
3. Once the components were separated, each printed part was pasted onto sturdy cardboard to provide strength and durability to the instrument.
4. After pasting, the components were trimmed again carefully to achieve precise shapes and smooth edges, preparing them for final assembly into the astrolabe structure.

Now, the astrolabe parts are painted with a metallic golden color to recreate the appearance of traditional ancient brass astrolabes. A light black shading effect was added along the edges and engraved sections to give the instrument an aged and antique look.

1. In the final step, all the completed components of the astrolabe, including the mater, tympan, rete, rule, and alidade, were carefully aligned and assembled together.
2. A central hole made in each component allowed them to be connected using a small nut-bolt assembly or a split pin, which acted as the pivot point for rotation.

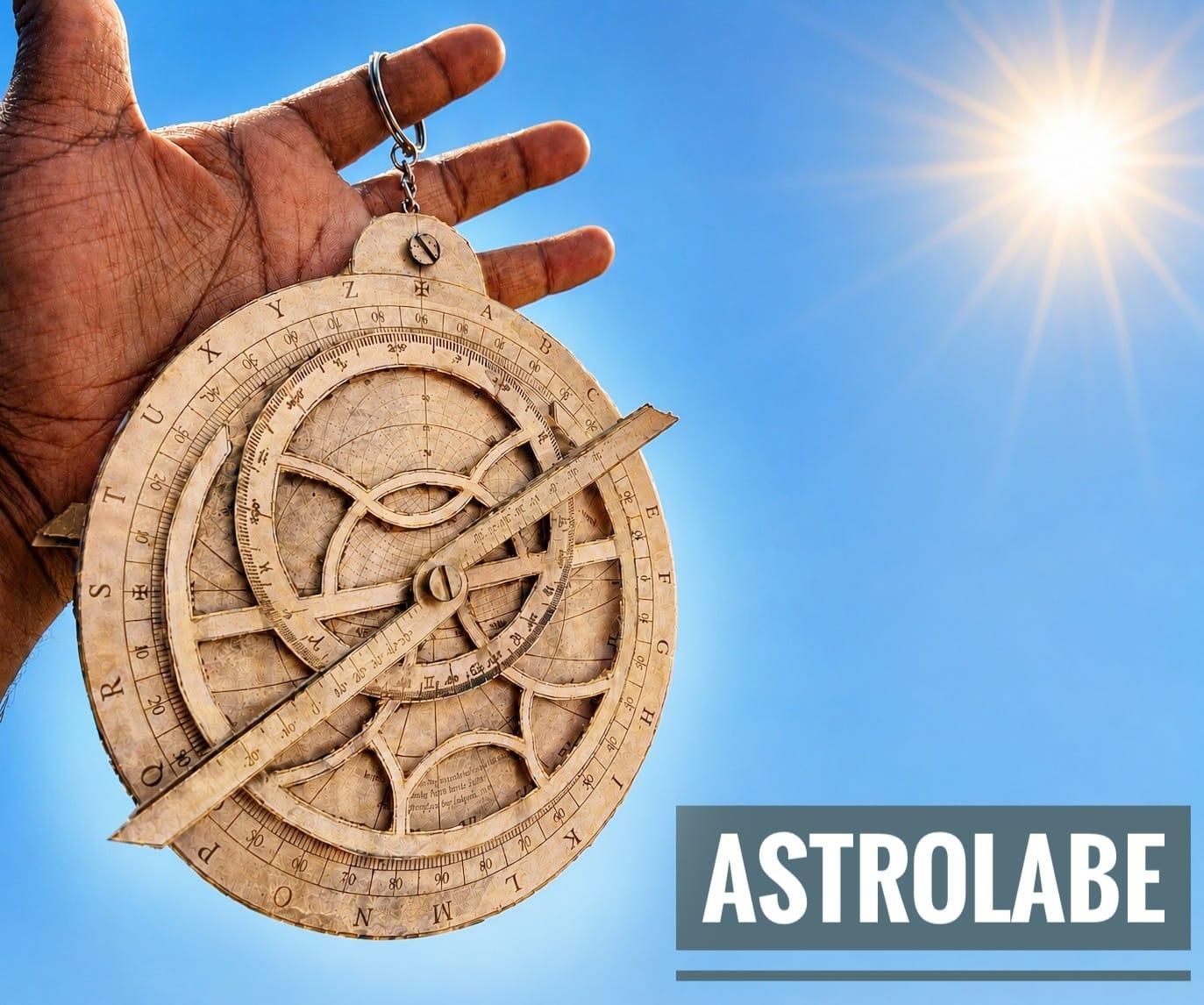

3. After securing the rotating mechanism, a small keyring chain was attached to the top throne section of the astrolabe so that the instrument could be held or suspended vertically during observations.

1. Holding the Astrolabe Properly: The astrolabe is suspended vertically using the ring attached to the throne. Gravity helps keep the instrument aligned correctly. Holding the instrument vertically is important because it ensures accurate altitude measurement, maintains proper alignment with the horizon, and reduces observational error.
2. Measuring the Altitude of a Celestial Body: The first step in using the astrolabe is measuring the altitude of the Sun or a star. The observer rotates the alidade located on the back side of the astrolabe until the celestial object is visible through its sighting holes. The angle formed between the celestial object and the horizon is called the altitude angle. h=Altitude Above Horizon Where: h = altitude angle. The measured value is read from the degree markings engraved on the limb.
3. Example: If the Sun is measured at 45° above the horizon, then the altitude angle is h=45. This measurement becomes the basis for further calculations.
4. Using the Tympan: The tympan contains engraved coordinate lines based on the observer’s latitude. It includes horizon lines, altitude circles, azimuth lines, and celestial coordinate markings. Different locations on Earth require different tympans because the visible sky changes with latitude. The tympan acts as the reference map for celestial calculations.
5. Rotating the Rete: The rete is a rotating star map placed above the tympan. It contains star pointers, zodiac markings, and the ecliptic path of the Sun. The rete rotates around the central pin to simulate the apparent motion of the sky caused by Earth’s rotation. The observer rotates the rete until the measured altitude, date, and celestial positions match the observed sky. This process aligns the instrument with the actual celestial sphere.
6. Determining Time: One of the main uses of the astrolabe is determining local solar time. After measuring the Sun’s altitude: The rete is adjusted according to the date, the rule is rotated to match the Sun’s position, the corresponding time is read from the outer scale. The calculation depends on Earth’s rotational speed. 360∘=24 hours Therefore: 15∘=1 hour. This means every 15° of Earth’s rotation corresponds to one hour of time.
7. Determining Latitude: The astrolabe can estimate latitude using the altitude of Polaris (Pole Star). Since Polaris is nearly aligned with Earth’s rotational axis, its altitude approximately equals the observer’s latitude. ϕ≈h, Where: ϕ = latitude, h=altitude of Polaris. Example: If Polaris is measured at: 28° above the horizon, then the observer’s latitude is approximately: 28° North. This method was widely used by sailors for navigation.
8. Locating Stars and Constellations: The rete contains pointers for important stars. By rotating the rete according to: date, time, and observation, the user can identify constellations, star positions,and celestial movement. This helped ancient astronomers study seasonal sky changes.
9. Determining Direction: The astrolabe can also help determine directions. Using the position of the Sun or stars, observers could identify: North, East, West, and South. This made the astrolabe useful in sea navigation, desert travel, and religious orientation.
10. Astronomical Calculations: The astrolabe can perform several astronomical calculations such as: sunrise and sunset timing, star rise and set times, angular separations, seasonal sky positions, and celestial coordinates.

It acted as an analog astronomical computer centuries before electronic devices existed.

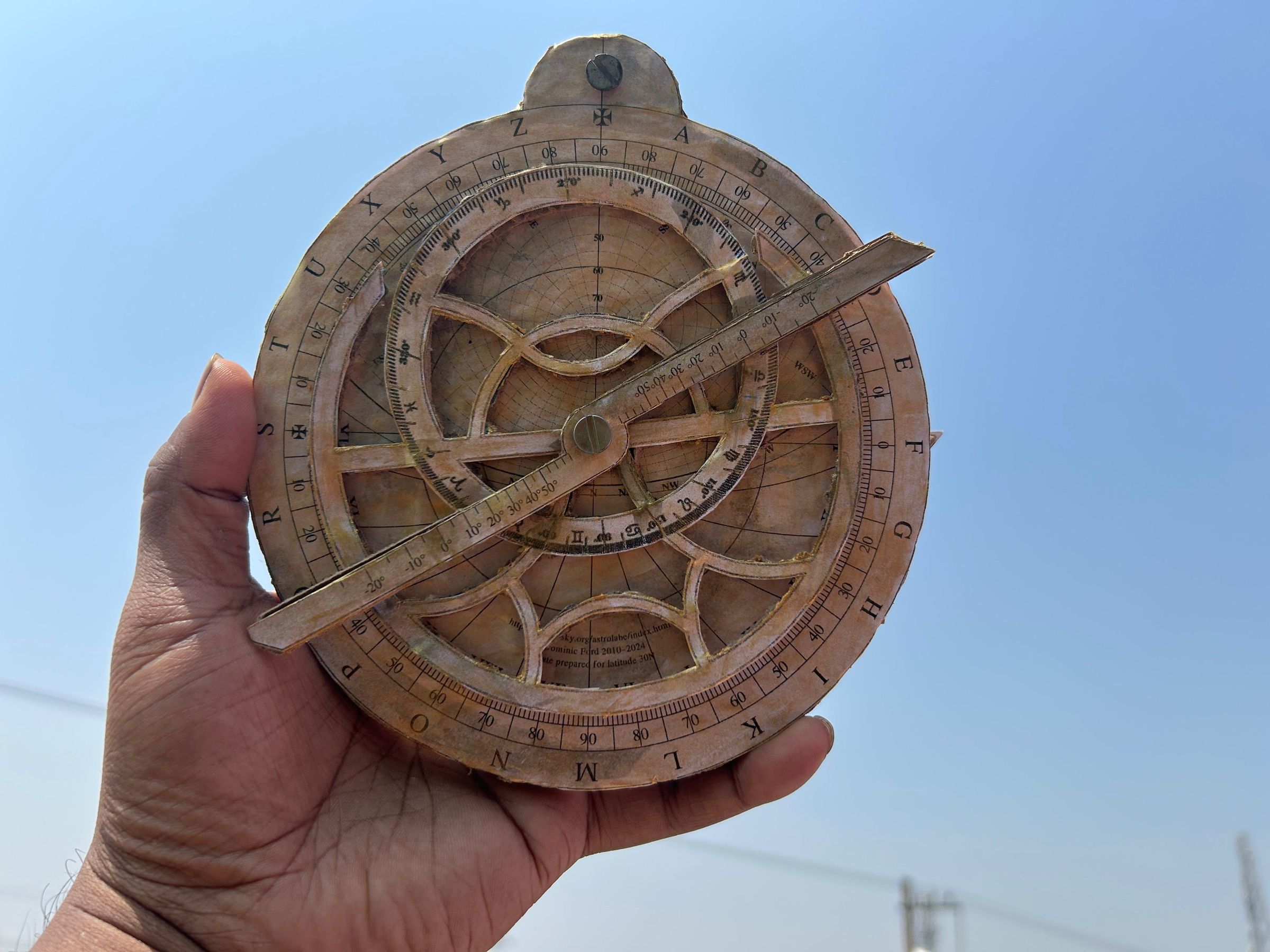

The astrolabe project successfully demonstrated the construction and working of one of the most important astronomical instruments in human history. By designing, cutting, painting, and assembling the various components such as the rete, tympan, rule, and alidade, a functional model of the astrolabe was created using simple materials like printed templates, cardboard, and basic hardware. The project provided a practical understanding of ancient astronomy, navigation, geometry, and engineering techniques used by early civilizations. Through this model, it was possible to study how astronomers and navigators measured celestial positions, determined time, and observed the movement of stars long before modern technology existed. The antique finishing and rotating mechanism further enhanced the realism and educational value of the instrument.
