Build a DIY Infrared Security Alarm With the NE555 Timer IC

How to Build an Invisible Optical Security Barrier: Complete Soldering and Assembly Guide

Hardware components

Utsource NE555 1pcs

BC547 1pcs

2N4401 1pcs

2N4403 1pcs

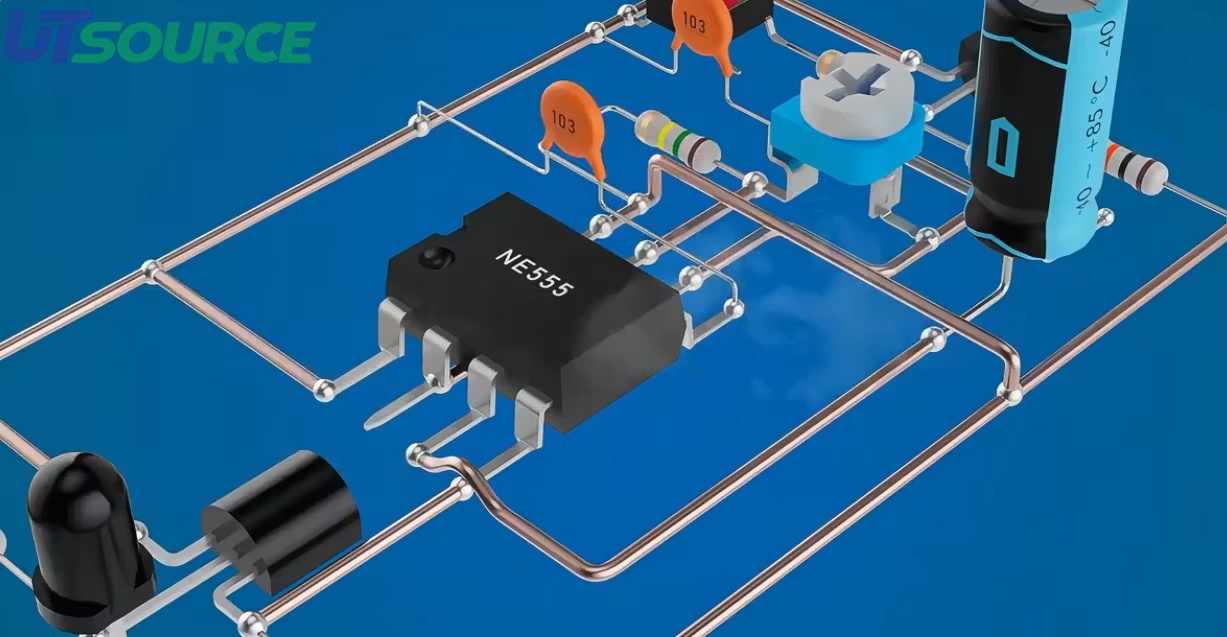

The NE555 timer serves as the core component of this infrared alarm circuit. Start by placing the 8-pin IC socket onto the PCB (or install the NE555 directly if you prefer). Make sure the notch on the socket or IC matches the orientation mark printed on the board before soldering. Once correctly aligned, solder each pin carefully, ensuring clean joints and avoiding any solder bridges between neighboring pins.

Visual Tip: Verify that the notch on the IC socket is aligned with the PCB's orientation indicator before soldering.

Installing the First Signal Amplifier (BC547 NPN Transistor)Next, insert and solder the BC547 NPN transistor. This transistor operates as the primary pre-amplifier. Its purpose is to boost the micro-amp level signal generated by the photodiode when infrared light changes. Solder a 1 kΩ current-limiting resistor immediately adjacent to its collector to limit current flow and protect the semiconductor junction from thermal runaway.

Visual Note: Solder a 3-pin TO-92 plastic transistor (BC547) into position with its flat face aligned as marked, and a neighboring 1 kΩ pull-up resistor.

Insert the photodiode (the infrared receiver, identifiable by its dark-tinted lens) into the PCB. The photodiode is connected in reverse bias, allowing it to generate a tiny photocurrent when exposed to infrared light. Next, solder a 1 kΩ resistor in series with the sensor. Together, they convert the photocurrent into a measurable voltage signal that can be amplified and processed by the following circuit stage.

Install the 5mm Infrared Emitter LED. This LED continuously projects the invisible barrier beam. Since infrared LEDs operate at high current to maximize detection distance, you must solder a 220 Ω current-limiting resistor in series with the LED to prevent damage. A secondary 330 Ω resistor is soldered as part of the transmitter power verification indicator.Visual Note: The emitter (IR LED) and detector (photodiode) must form a closed, directly aligned optical loop

Solder the 10 kΩ trimmer potentiometer onto the board. This component acts as the user-adjustable sensitivity control. By rotating the wiper, you alter the reference comparator threshold voltage, allowing calibration across different physical distances. Immediately follow this by soldering a 0.01 µF ceramic capacitor. This capacitor filters out stray high-frequency ambient noise, ensuring that only physical blocking of the light triggers the alarm.

The timing constant of a monostable NE555 circuit is calculated via the mathematical RC formula: T = 1.1 × R × C. Solder the 150 kΩ resistor and a secondary 0.01 µF capacitor which stabilizes the Pin 5 Control Voltage of the NE555. These components dictate how long the active alarm state remains on after a single trigger event.

Solder the blue 12V DC Relay. This device isolates the low-voltage control circuit from heavy output loads. To drive the relay coil, solder the 2N4403 PNP transistor which works in a complementary configuration with the preceding stage. Finally, solder a 1N4007 silicon diode in reverse-parallel directly across the relay's coil terminals. This diode serves as a vital flyback suppression element, absorbing high-voltage inductive kickback spikes during coil de-energization.Visual Note: Ensure the protective flyback diode (1N4007) is aligned correctly across the coil terminals of the 12V SPDT Relay block to prevent damage.

1. Connect a stable 12V DC power supply to the positive and negative power rails of the board.

2. Align the infrared LED and photodiode so they face each other directly in a straight line. Under aligned conditions, the alarm should remain silent.

3. If the buzzer triggers immediately, adjust the 10 kΩ potentiometer slowly using a small screwdriver until the alarm turns off. This establishes the standby threshold.

4. Test the security barrier by passing your hand or finger between the transmitter and receiver. The buzzer should ring instantly, and the 12V light bulb should illuminate brightly.

5. Press the tactile reset switch to verify that the alarm state can be disarmed manually once the path is clear again.
