Build a Professional Laser Angle Meter (DIY Digital Inclinometer) Without a 3D Printer

Full Video:

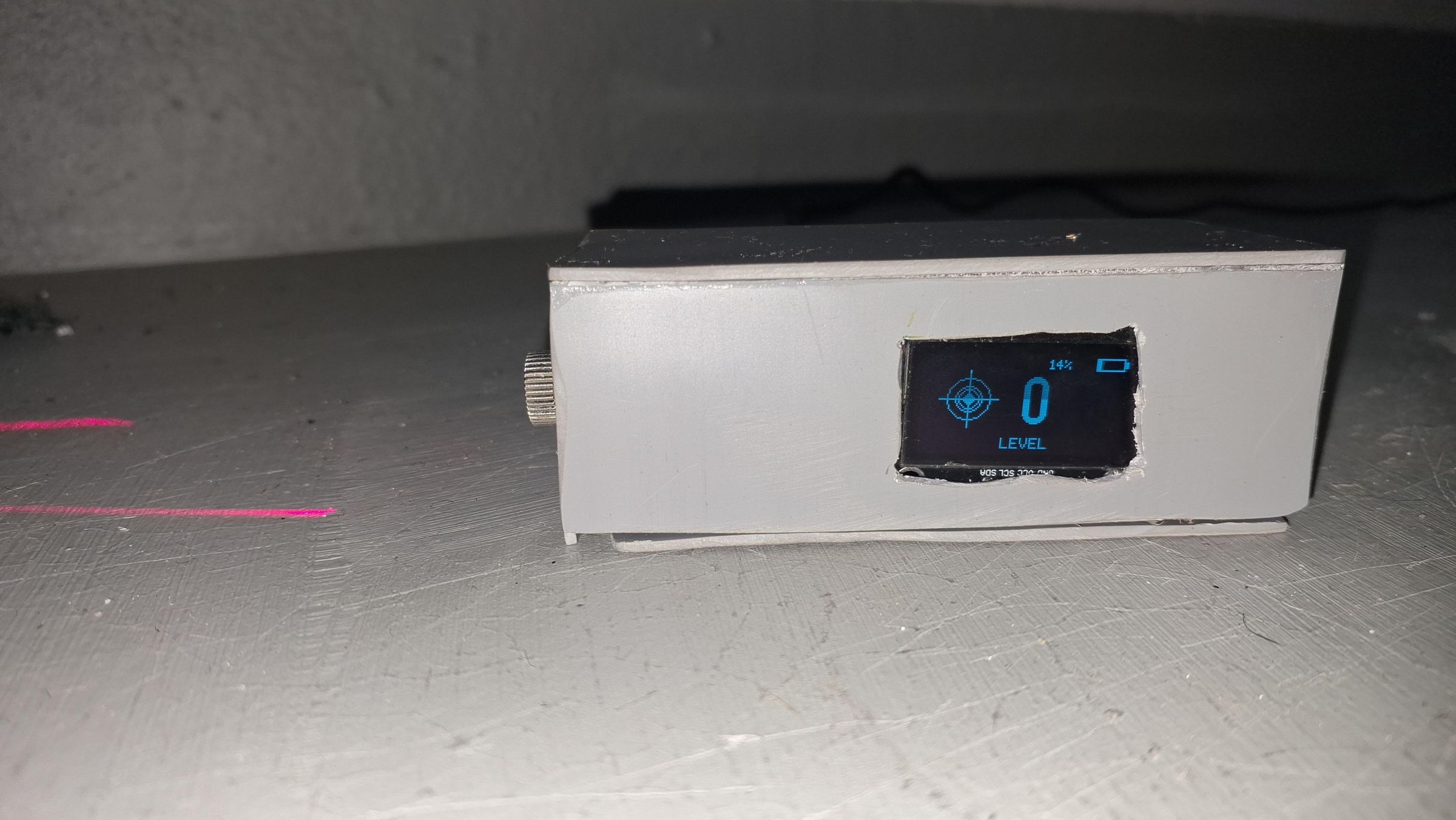

The Humanix LA100 is a handheld digital laser angle meter — a real-time digital inclinometer (MPU6050) paired with a cross-shaped laser reference, shown on a 1.3" OLED with battery % and temperature. Built entirely from off-the-shelf parts — no PCB fab, no 3D printer — but finished to feel like a real instrument, not a breadboard project.

Most angle tools force a choice between a cheap bubble level (no digital readout) or an expensive commercial unit (laser + precise angle together). The LA100 puts both in one low-cost handheld tool, built for makers, students, and hobbyists who need a fast way to check or transfer an angle — alignment, leveling, workshop or field use.

Most open-source angle-meter projects stop at "it works on my breadboard" — good sensing, no enclosure, a pile of buttons, and calibration you redo by hand every build. This one started from a different question: how close can a maker without a 3D printer get to a device that feels like a real product — not by spending more, but by deciding better on calibration, persistence, UI, and finish.

What you'll learn: turning a noisy sensor into a trustworthy readout with real calibration, why persisting that calibration (EEPROM) beats "recalibrate every boot," designing a multi-behavior single-button UI, fitting real features into a small chip's memory budget, and finishing an enclosure without a 3D printer.

What you'll build: a pocketable, battery-powered instrument that projects a laser cross while showing live angle, battery %, and temperature — controlled with one button.

Key features:

1. Laser-cross + digital angle readout together — most tools offer only one at this price
2. Split calibration/firmware architecture — no re-doing hardware bring-up on every build
3. 13-point calibration wizard — averages 150–200 samples per point instead of trusting one noisy reading
4. EEPROM-persisted calibration — fixes a real bug where calibration silently drifted because it wasn't saved
5. Single-button, three-behavior UI — one enclosure hole instead of five
6. Vinyl-skinned PVC enclosure — a real finishing technique for builders without a 3D printer
7. Dual I2C address probing — tells a dead OLED apart from a dead MPU6050 instantly
8. Adaptive three-tier angle smoothing — fast response on big tilts, no jitter when nearly still
9. Graceful "NO SENSOR" degradation — clear status instead of a frozen or garbled screen

1. Arduino Nano (ATmega328P) × 1 — main controller. Alt: an Uno works but is bulkier; ESP32 is unnecessary here.
2. MPU6050 IMU module × 1 — measures tilt; internal temp sensor doubles as the temperature readout. Alt: a dedicated tilt-sensor IC (higher cost, not needed here).
3. 1.3" I2C OLED display × 1 — shows angle, icons, battery %, temperature. Alt: smaller/larger OLEDs work but change enclosure size.
4. Grid-type (cross) laser module × 1 — projects the alignment reference; the project's core differentiator. Alt: single-dot laser (loses the alignment-line use case).
5. TP4056 Type-C charging module × 1 — safely charges the 18650 cell. Alt: Micro-USB version.
6. 18650 2500mAh LiPo cell × 1 — rechargeable power source. Alt: any similarly-rated protected 18650 cell.
7. Boost/step-up module (5.5V out) × 1 — steps ~3.7V battery voltage up to a stable 5.5V rail. Alt: any adjustable boost module set to 5.5V.
8. Pushbutton switch × 1 — single multi-behavior control (single/double/long press).
9. On/off switch × 1 — physical power control.
10. 100kΩ resistors × 2 — voltage-divider for battery percentage sensing.
11. PVC sheet — enclosure panels. Alt: acrylic sheet, if you prefer a different cutting method.
12. Vinyl eco-print skin (printed + applied) × 1 set — enclosure finish for a manufactured look. Alt: spray paint (tried first by the builder, judged not to give a premium look).
13. Super glue — for assembling PVC panels into a box. Alt: epoxy or PVC cement.

Approximate total cost: ₹1,000–1,100 depending on local pricing — see the Engineering Decisions step for why this stayed low.

Tools needed:

1. Hand drill (button hole, laser aperture, port holes)
2. A clamp or fixture to hold the PVC box while drilling — the original build skipped this and the box spun under drill torque; treat this as required, not optional
3. Soldering iron and solder
4. Wire strippers
5. Utility knife or scissors (cutting PVC panels and trimming the vinyl skin)
6. Multimeter (checking wiring and battery voltage before first power-on)
7. USB cable (Arduino Nano programming)
8. Computer with Arduino IDE installed
9. Squeegee or card (optional, for applying the vinyl skin without air bubbles)

Read through this whole guide before cutting anything. Decide your enclosure's final external dimensions now (this build used roughly 100×50×50mm) so your panel cuts and the vinyl skin design match.

Why it matters: the LA100 deliberately ships two Arduino sketches — a factory calibration wizard and a separate production firmware. A single combined sketch would force you to redo full hardware bring-up (I2C addresses, axis orientation, noise behavior) every time you wanted to recalibrate. Splitting them lets the calibration tool focus purely on producing a good reference, and the firmware focus purely on being a fast, simple instrument.

Common mistake: skipping straight to wiring without deciding on final enclosure dimensions, then discovering components don't fit.

Tip: dry-fit all modules inside your PVC panels before gluing anything permanently.

Power each module individually (Arduino Nano, MPU6050, OLED, laser module, TP4056 + battery, boost module) and confirm basic function — MPU6050 responds on I2C, OLED lights up, laser projects a clean cross, TP4056 shows charge status correctly.

Why it matters: both sketches probe the MPU6050 at both possible I2C addresses (0x68 and 0x69) and the OLED at both 0x3C and 0x3D, reporting each result independently over Serial. That means you can tell a dead OLED apart from a dead MPU6050 before wiring the rest of the circuit.

Common mistake: assuming the MPU6050 is always at 0x68 and coding around only that address.

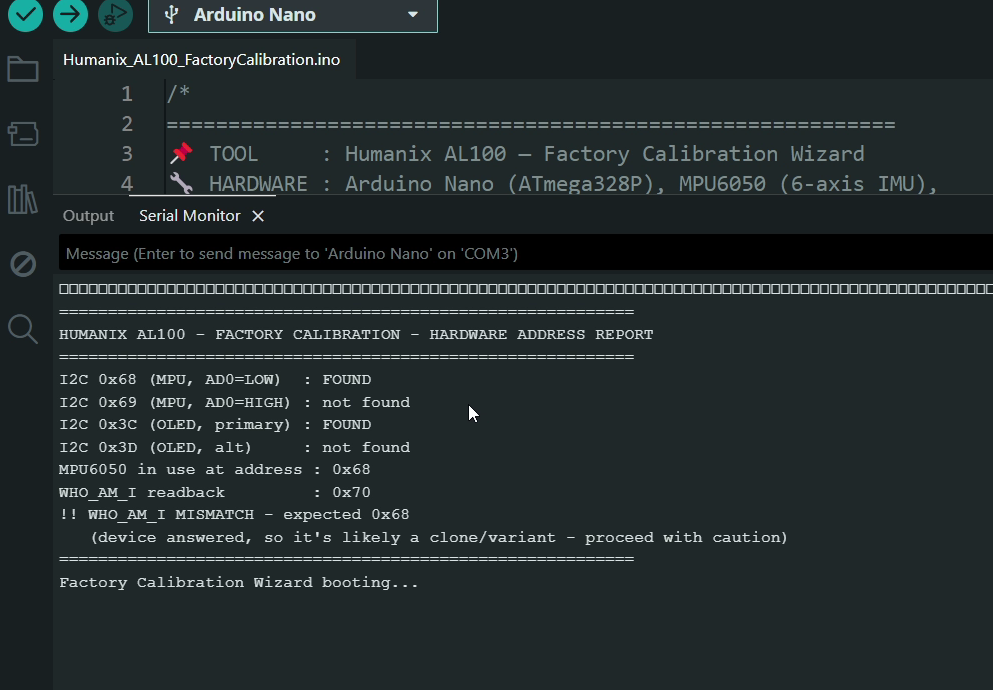

Tip: test with the calibration sketch's Serial output open — it reports exactly which addresses responded.

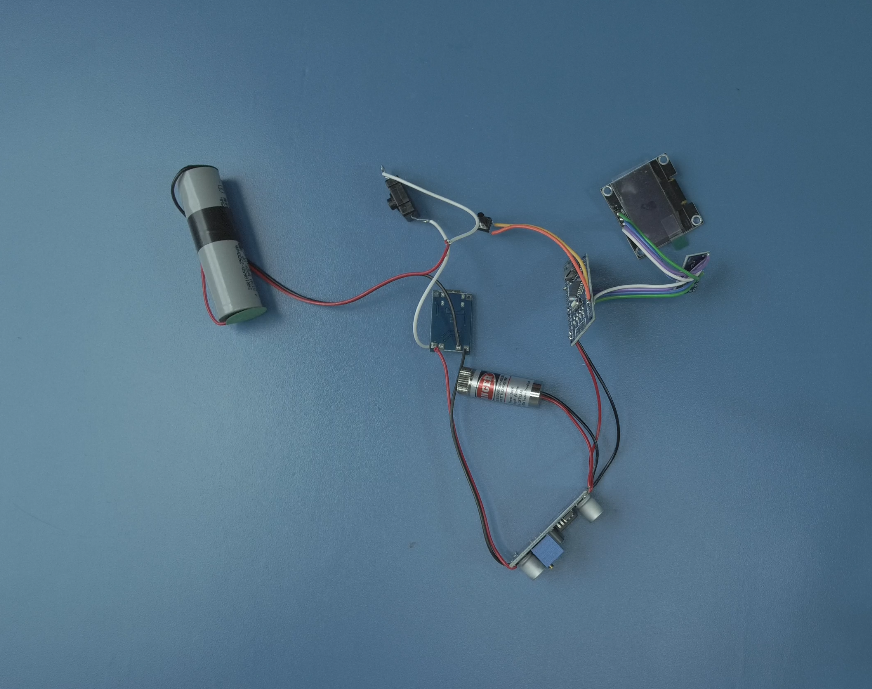

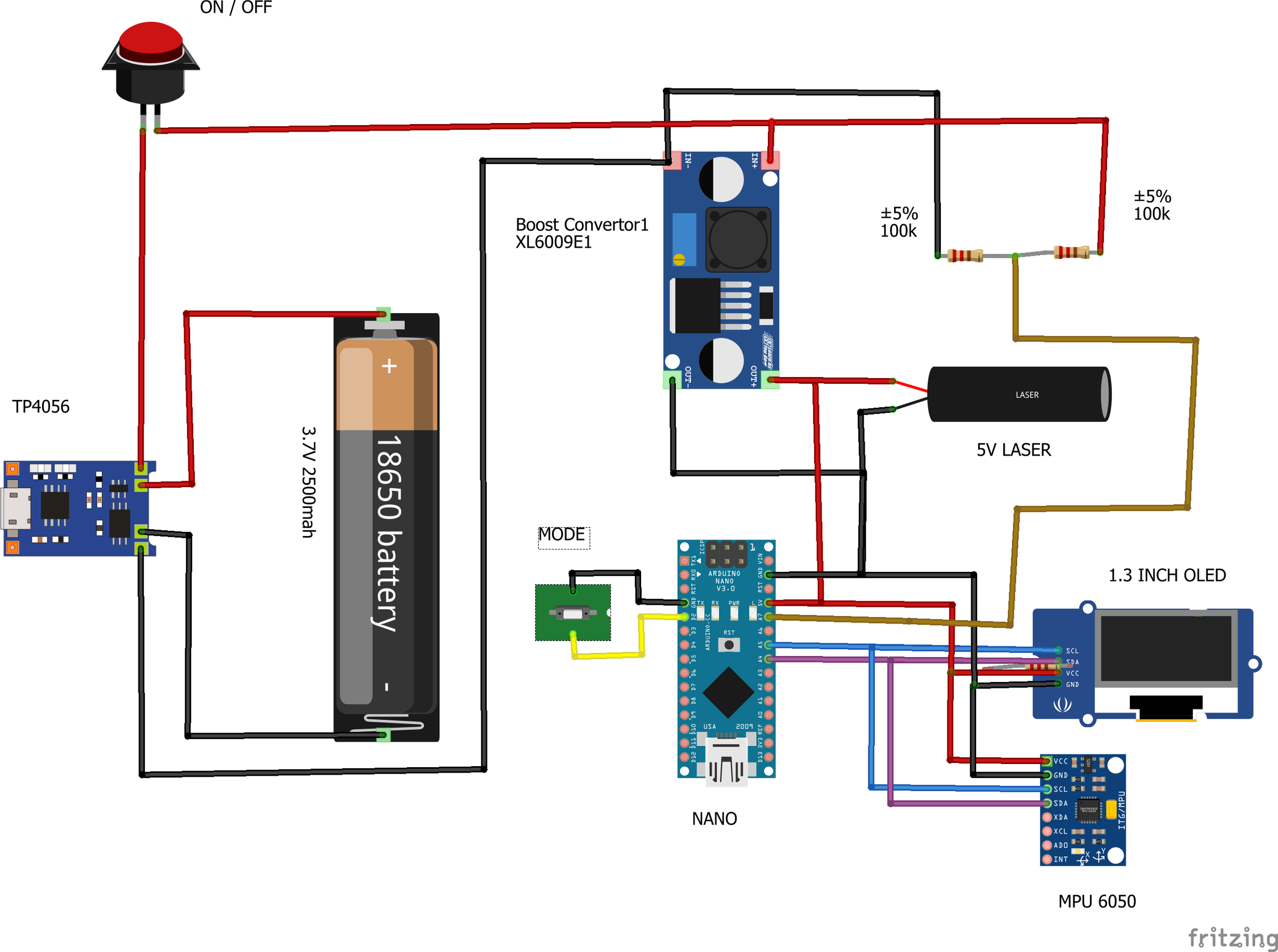

Wire in this order: switch → battery → boost module → laser → display → Arduino Nano → button → TP4056. MPU6050 and OLED share the I2C bus (SDA/SCL) alongside power and ground.

Why it matters: the boost module regulates the battery's ~3.7V up to 5.5V, not a flat 5.0V. As the LiPo cell sags under load over a session, a 5.0V-exact target could dip below what the Nano and other parts need reliably — 5.5V gives margin.

Common mistake: wiring the boost output directly without accounting for battery sag; mixing up SDA/SCL between the MPU6050 and OLED.

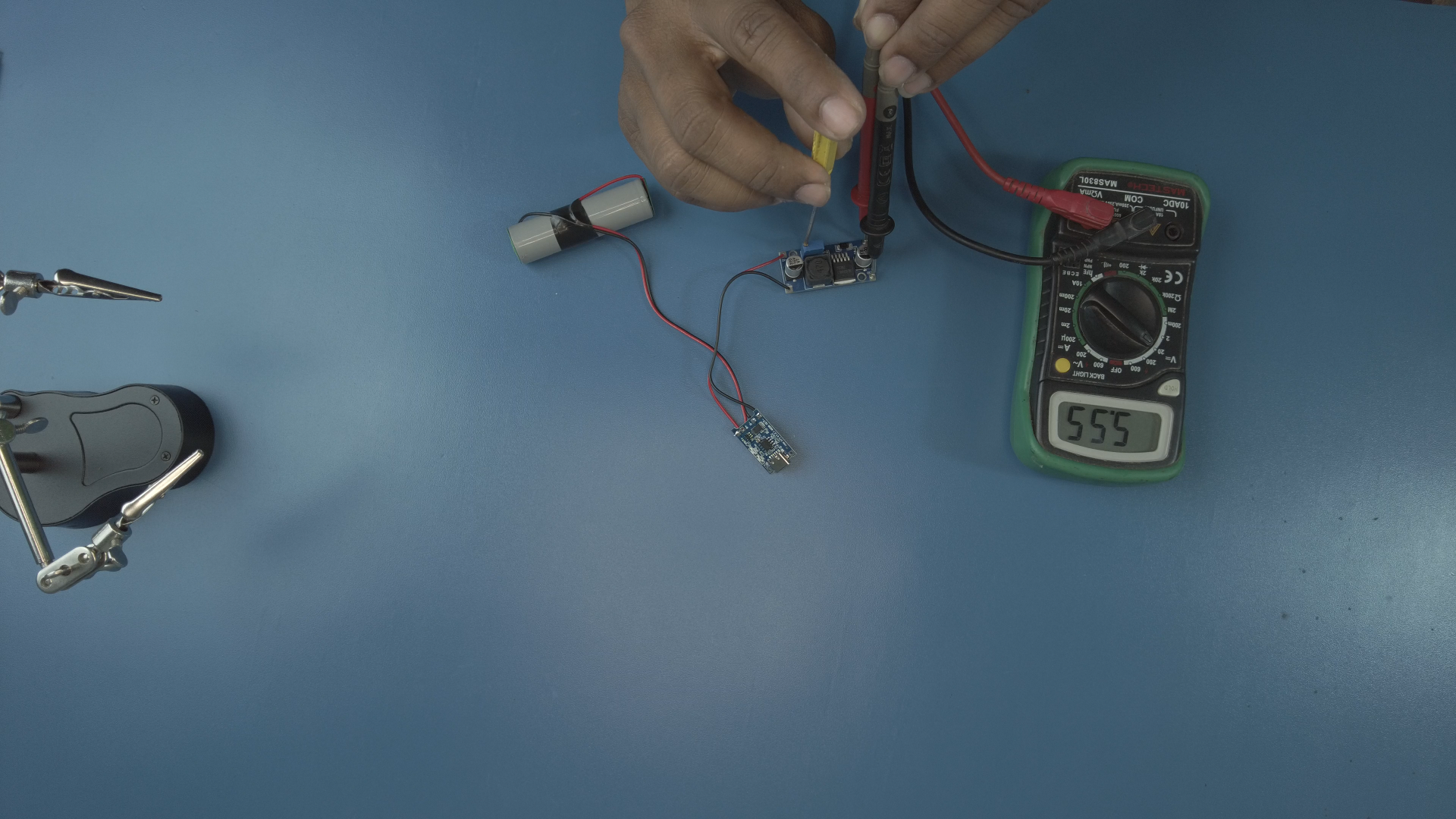

Tip: confirm the boost module is actually outputting ~5.5V with a multimeter before connecting the Nano.

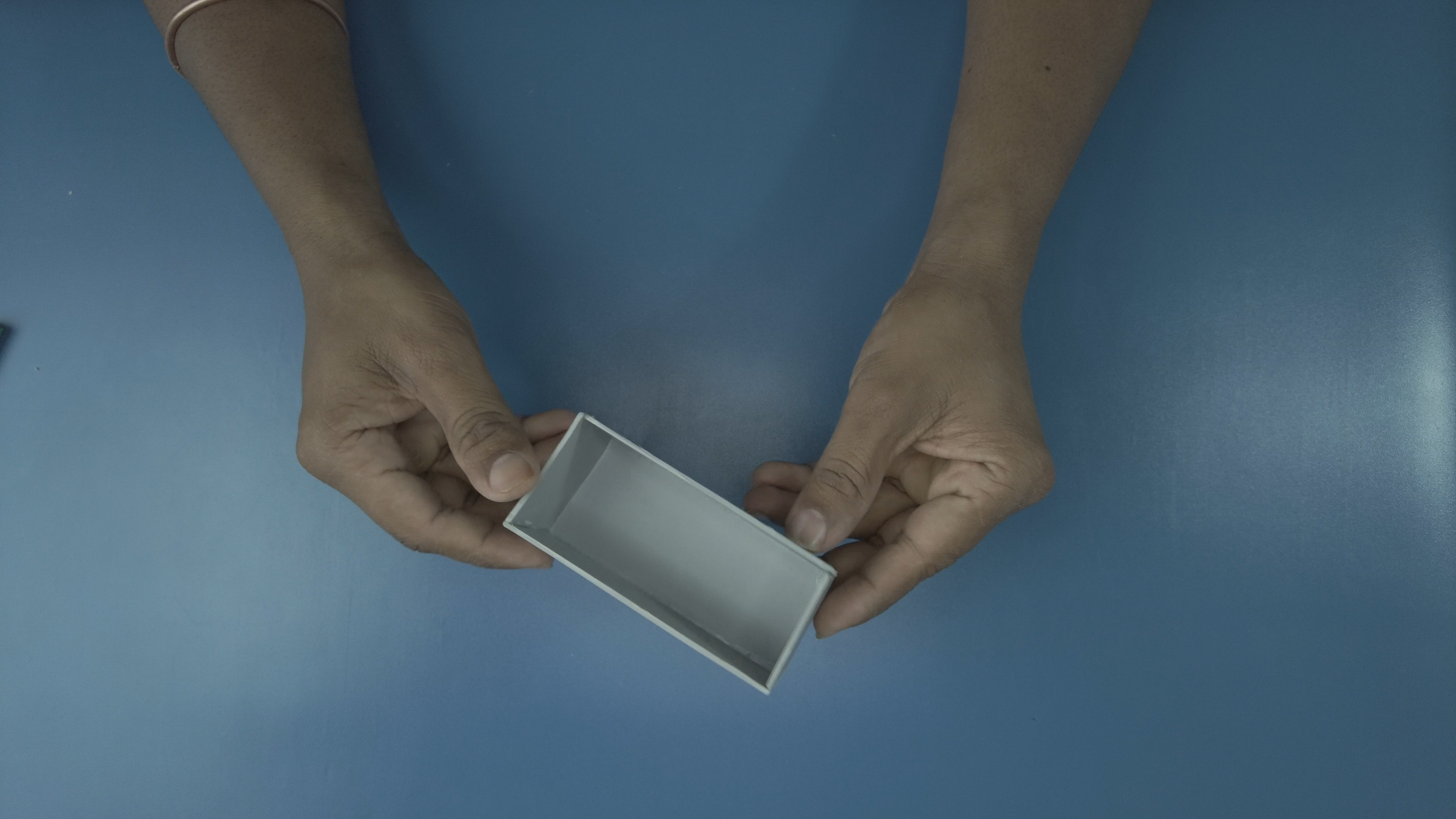

Cut PVC sheet into panels. Drill holes for the button, laser aperture, and port — with the box clamped down. Glue panels into a box shape, mount and wire components inside in the order from Step 3, then glue the top panel closed last.

Why it matters: this enclosure approach was driven entirely by not having access to a 3D printer. Paint was tried first and judged not to give a premium look, so the finish was solved with a vinyl eco-print skin instead (Step 6).

Common mistake: drilling without clamping the box — during this build the PVC box spun under drill torque at least once. Clamp it.

Tip: dry-fit and mark all hole locations before drilling any of them.

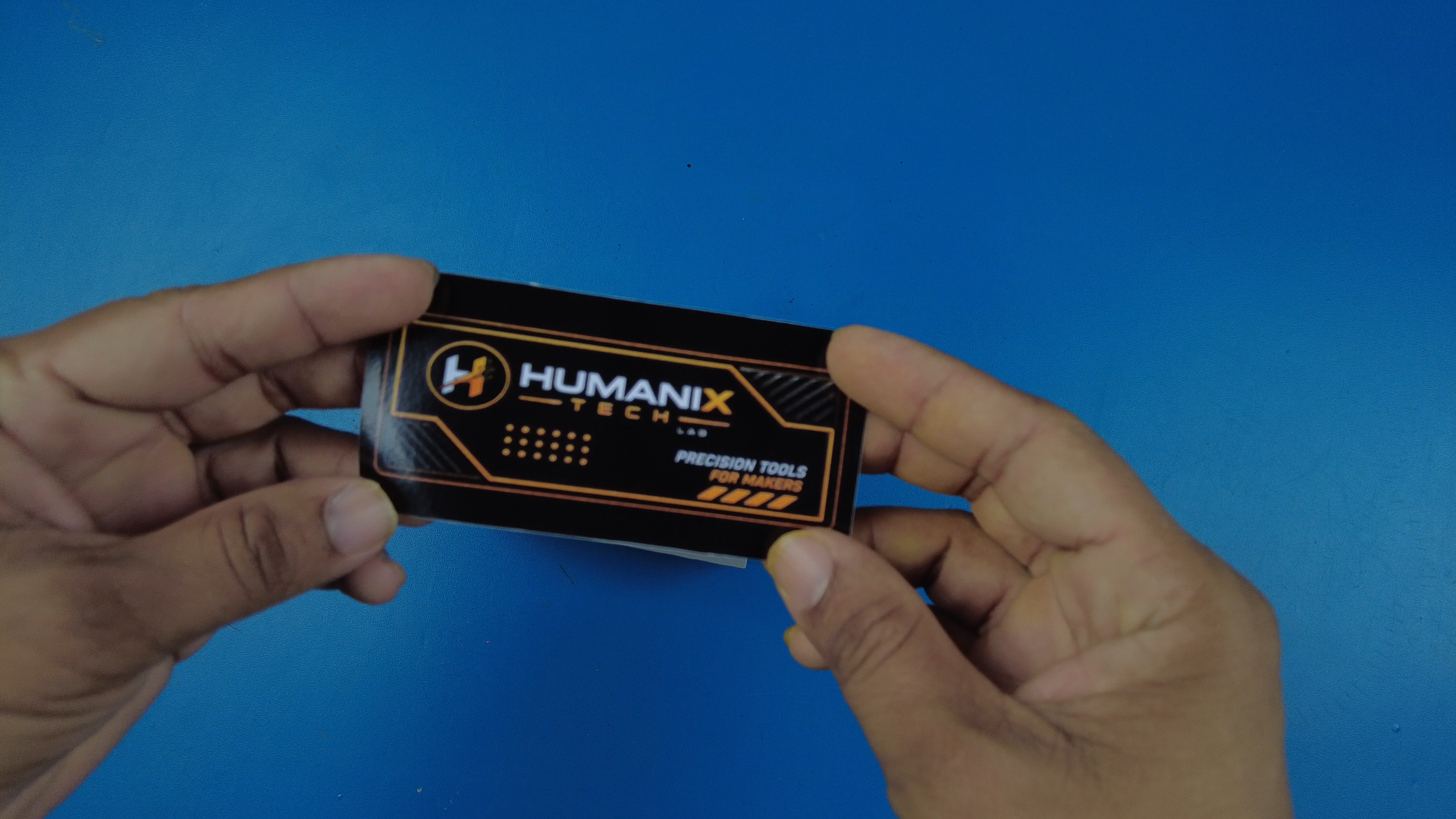

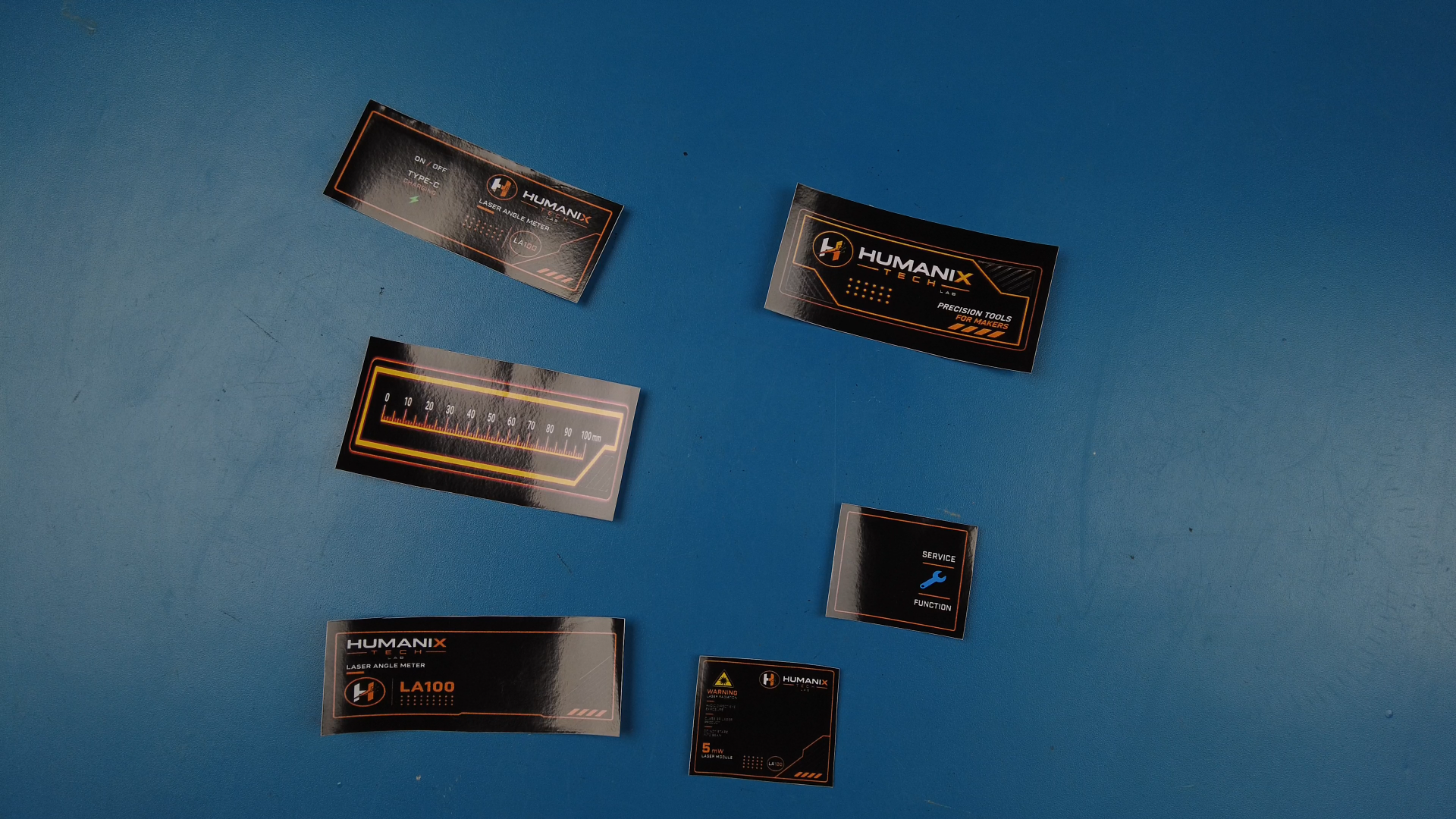

Design a vinyl eco-print skin sized to your enclosure's external dimensions. Print locally, cut to size, and hand-apply to the sealed box, working corners and joints carefully to minimize air bubbles.

Why it matters: this is the direct answer to not owning a 3D printer. From typical viewing distance (5–10 meters) the result reads close to a factory-made product. Up close, hand-applied seams are visibly imperfect — a limitation of first-time application technique, not the design.

Common mistake: rushing corner and joint application, which is exactly where imperfections show up.

Tip: use a squeegee or stiff card to work bubbles out from the center outward; budget extra vinyl for a second attempt on visible faces.

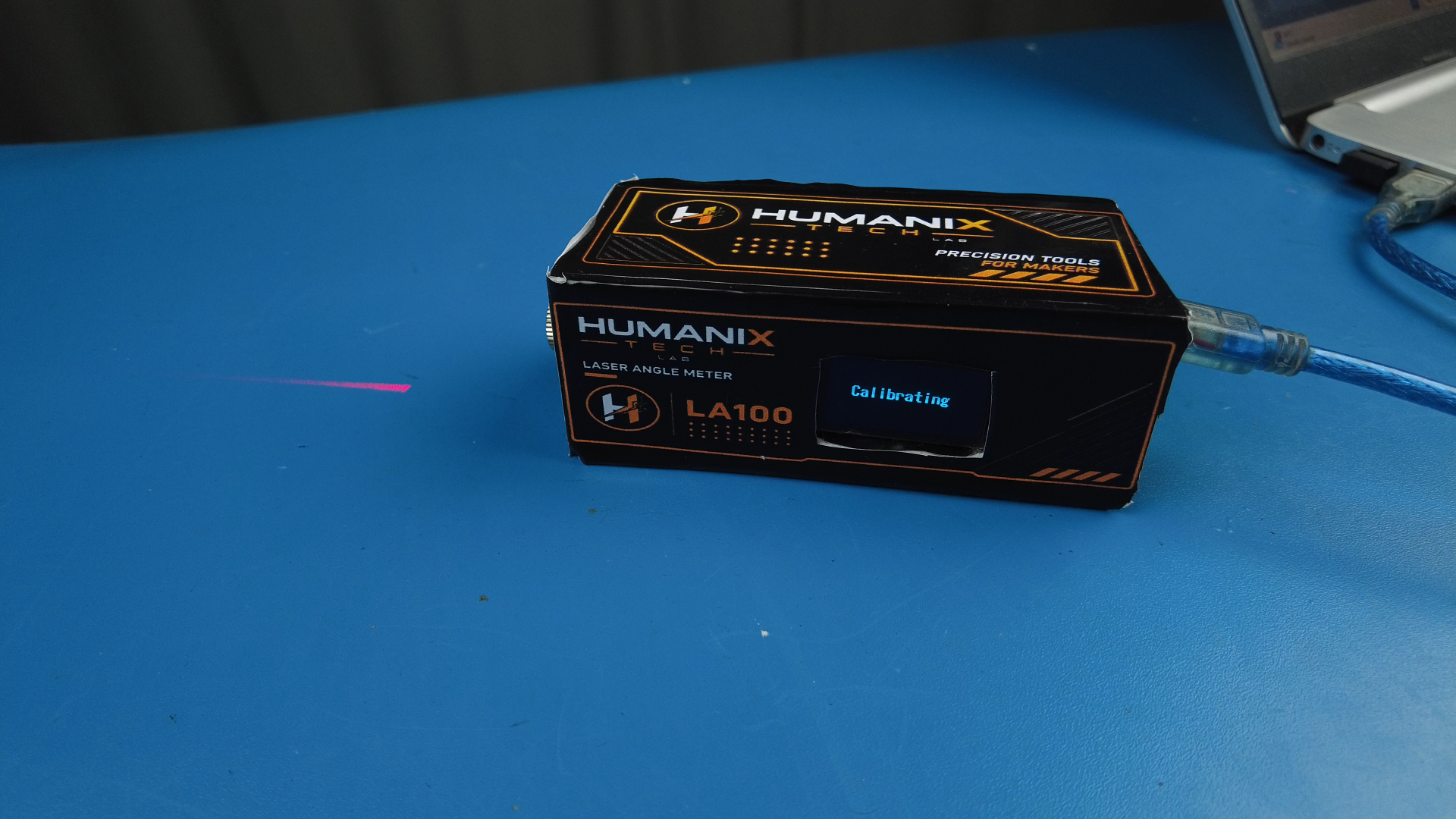

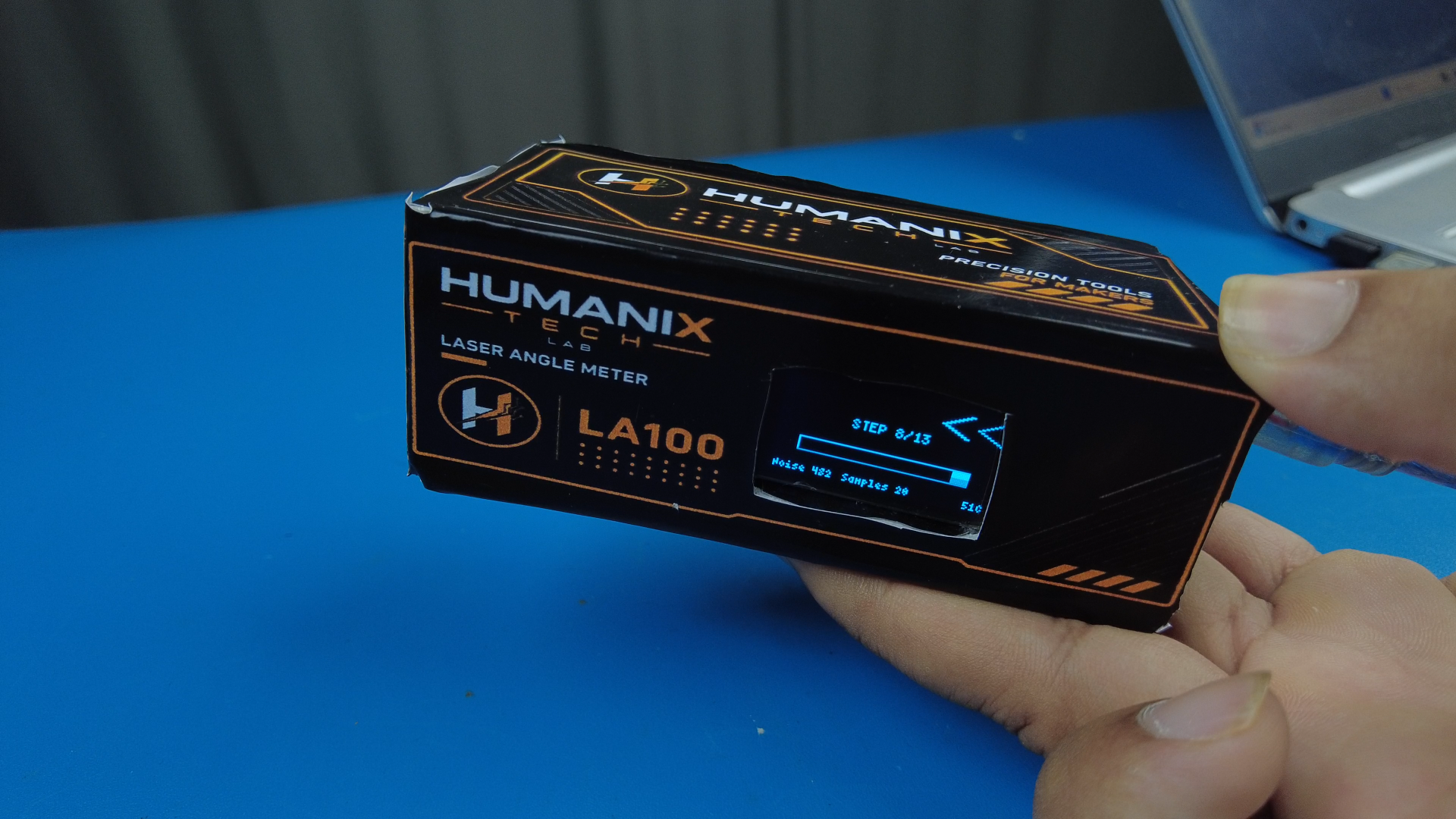

Flash Humanix_AL100_FactoryCalibration.ino first. Follow the on-screen 13-point sequence: CENTER 1 → RIGHT 1–5 → CENTER 2 → LEFT 1–5 → CENTER 3. Hold the unit steady at each prompted position.

Why it matters: each point averages 150–200 raw accelerometer samples using Welford's running mean/variance algorithm, so no individual sample has to be stored in RAM. If noise during a point exceeds a stability threshold, that point is automatically discarded and retried. The three separate center checks exist to catch drift across the session.

Common mistake: long-pressing the button mid-sequence out of habit — this is the same gesture used to abort back to step one, with no confirmation prompt, and it happens most often at the RIGHT/LEFT points. If calibration keeps restarting unexpectedly, also check for a loose button or wire connection.

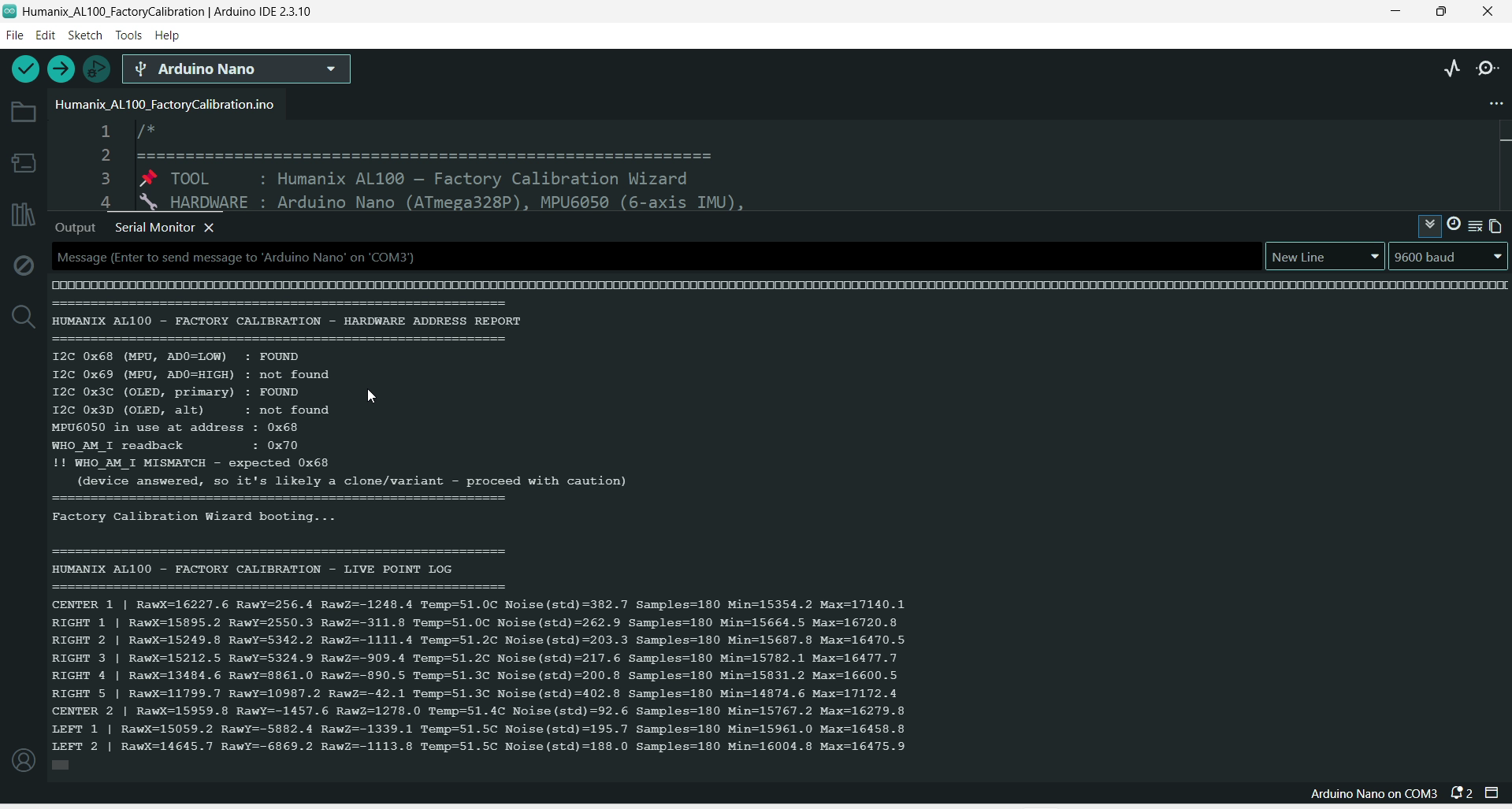

Tip: watch the Serial monitor during calibration — it reports live noise, sample count, and temperature per point.

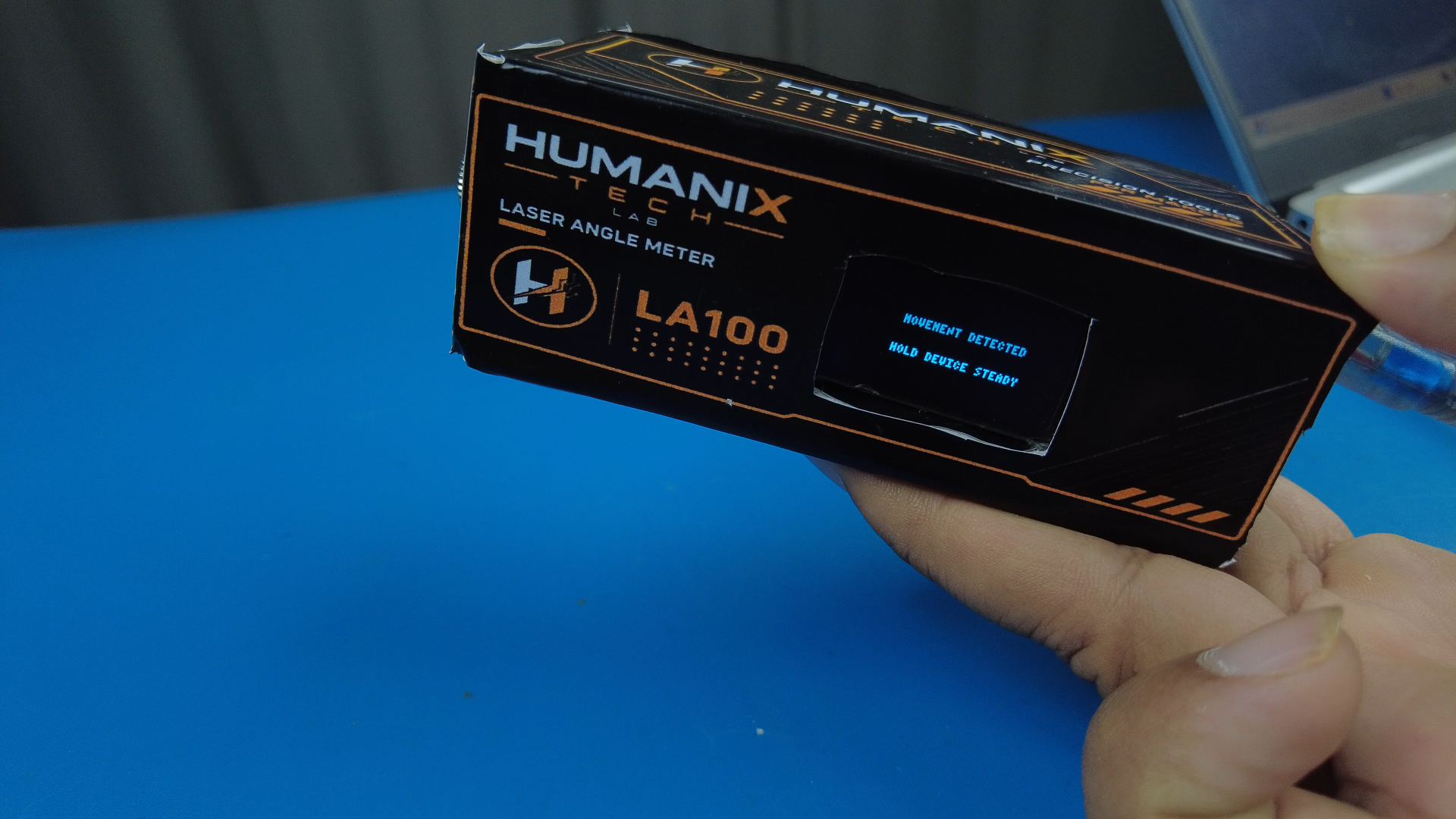

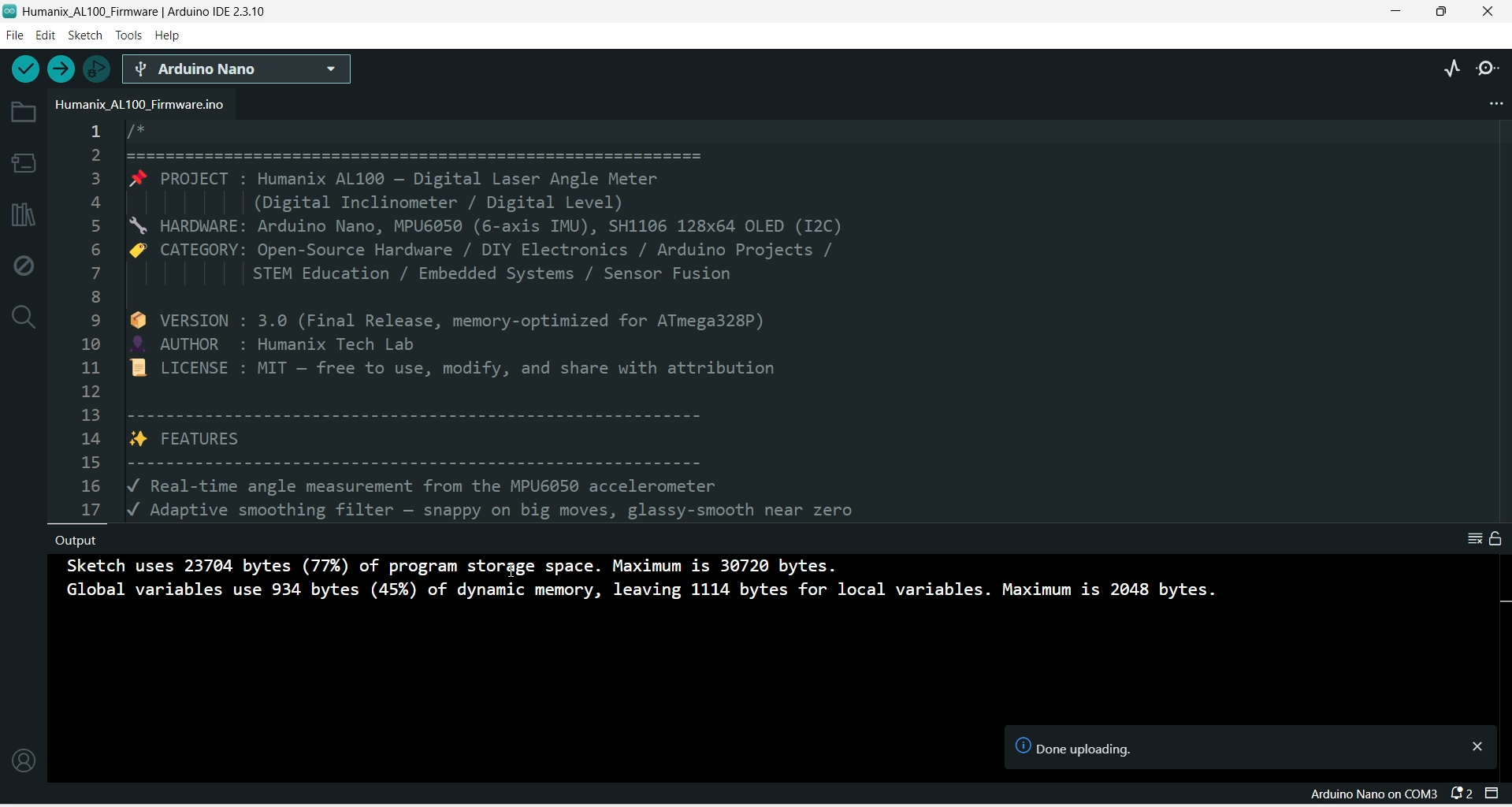

Flash Humanix_AL100_Firmware.ino. On a truly new board it performs a one-time flat-surface bootstrap average. On every later boot, it loads your saved calibration from EEPROM automatically.

Why it matters: this is the most important fix in the whole project. The original firmware re-averaged a short burst at every boot, assuming the device was lying flat — power it on tilted, and that tilt silently became the new "zero." The fix: completed calibration is written to EEPROM the moment it finishes, with a plausibility check on load.

Common mistake: assuming "auto-calibrate on every boot" is a convenience feature — it only reads that way until you power on somewhere the device can't lie flat.

Tip: after flashing, power-cycle the device on a non-flat surface deliberately, and confirm the angle doesn't reset to zero.

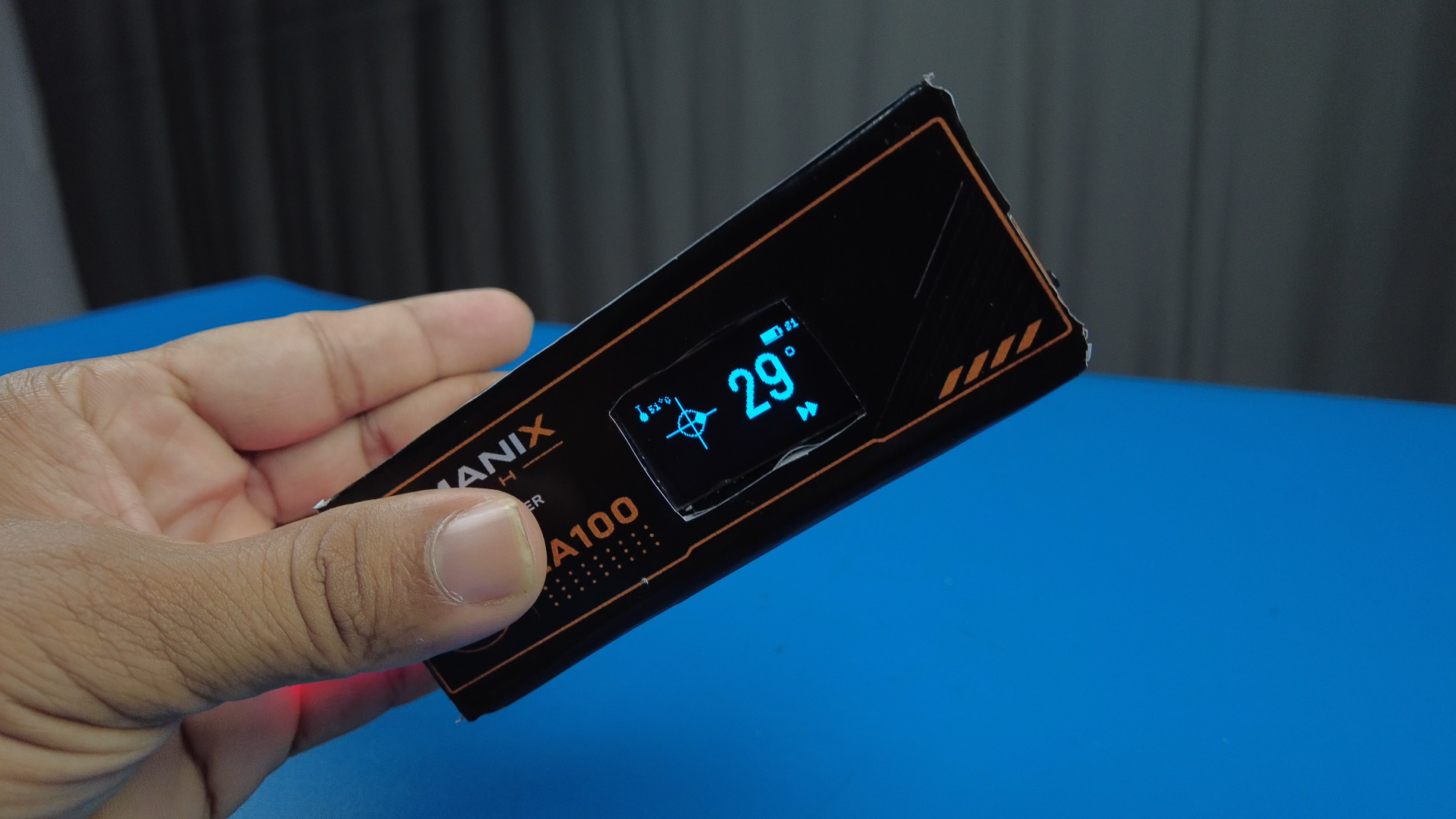

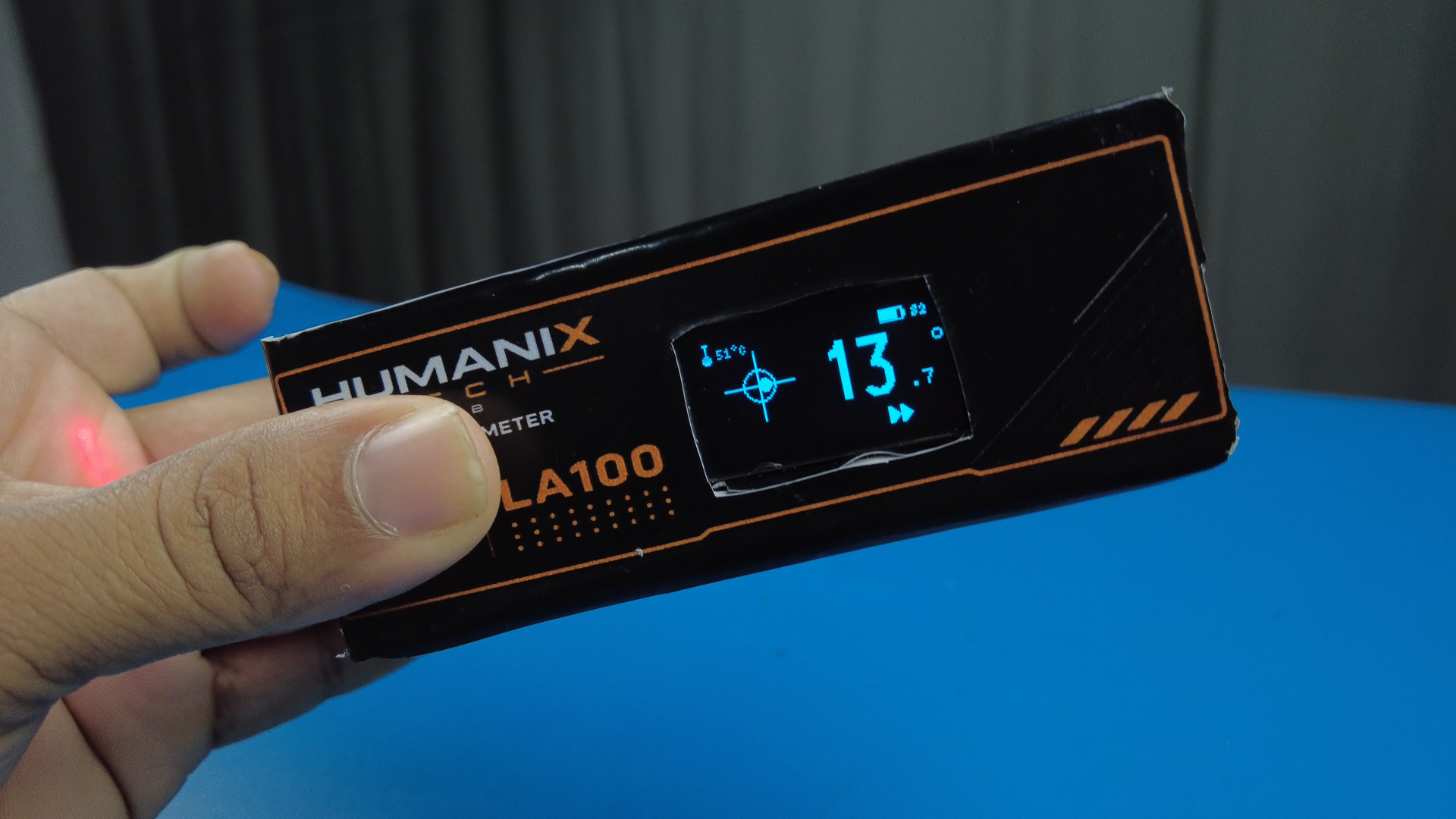

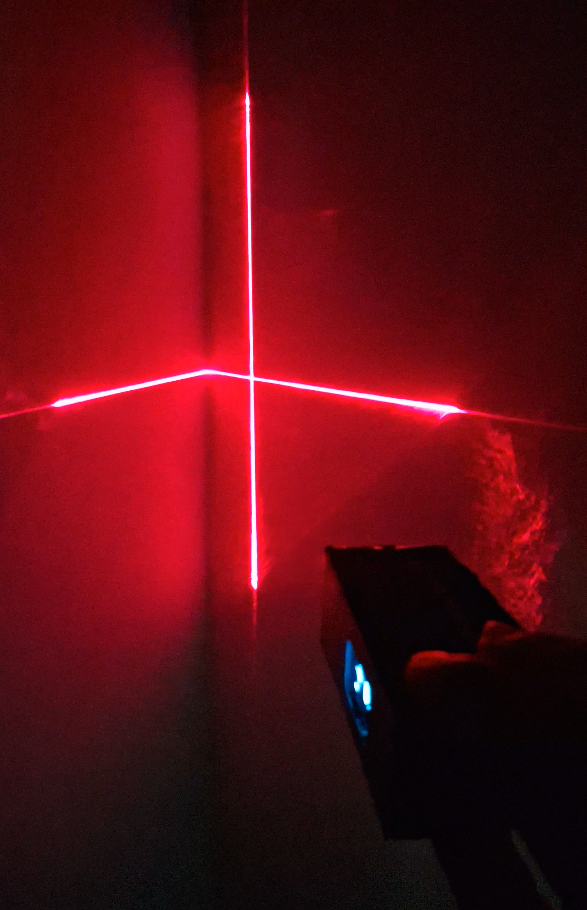

Test in a dark room to confirm laser visibility, and in normal lighting for typical use. Tilt the unit by hand and confirm the angle readout tracks smoothly. Cycle through all three button behaviors.

Why it matters: the displayed angle uses a three-tier adaptive smoothing filter — large jumps use a fast filter, medium jumps a medium filter, and small jitter uses a slow, steady-state filter so the number doesn't visibly buzz when the unit is nearly still.

Common mistake: testing in only one lighting condition — laser visibility and OLED contrast behave differently bright vs. dark.

Tip: test single/double/long-press deliberately in sequence, since all three functions share one control.

Do a final check of all button behaviors, battery percentage display, and the "NO SENSOR" fallback (temporarily disconnect the MPU6050 wiring to confirm it degrades gracefully rather than freezing).

Why it matters: because this is a sealed, industrial-style device, a failed sensor probe was deliberately designed to never block the UI — it shows a persistent "NO SENSOR" status instead.

Common mistake: skipping the "NO SENSOR" test just because the sensor is working fine right now.

Tip: keep the calibration wizard's Serial config-block output saved with your build notes — you'll want it if you ever re-flash firmware.

Why a laser + digital readout combined? Pairing a physical beam reference with a precise numeric value is the whole reason to build this over a plain tilt project — it answers "trust the number and see where it's pointing" together.

Why split calibration and firmware into two sketches? A single sketch would force every builder to redo full hardware bring-up on every build. This mirrors how a small manufacturer separates factory calibration from the product a customer actually uses.

Why PVC instead of 3D printing? No 3D printer was available. PVC is inexpensive and easy to cut/drill by hand — the practical choice, not necessarily the ideal one. Tighter tolerances via 3D printing are a Version 2 goal.

Why one button instead of several? A multi-button UI adds enclosure holes and complexity for marginal usability gain. One button with three press patterns keeps things simple, at the cost of every function depending on reliable press-timing.

Why a vinyl skin instead of paint? Spray paint was tried first and judged not premium-looking enough. The vinyl skin gets closer to a manufactured look at typical viewing distance, at the cost of visible imperfections up close from first-time application.

Why this battery and boost setup? An 18650 2500mAh cell gives good capacity-per-cost and is rechargeable. The boost module targets 5.5V rather than exactly 5.0V to keep headroom as the battery sags under load.

You don't need to be an embedded systems expert to follow this. The calibration sketch takes many readings at 13 known positions and averages them carefully (retrying any position where your hand wasn't steady), then hands that reference to the firmware sketch, which uses it every time it calculates an angle.

Calibration, in plain terms: it's teaching the device what "flat" and known tilt angles actually look like for your specific unit, instead of trusting a generic factory-average number.

Settings you may need to change:

#define USE_AXIS_X 1 // only ONE of these should be 1 — match your sensor's mounting #define USE_AXIS_Y 0 #define INVERT_DIRECTION 0 // flip if angle direction reads backwards

The calibration wizard also prints a copy-paste "config block" over Serial when it finishes — meant to be merged straight into your firmware sketch. The full commented sketches are in Downloads / GitHub for anyone who wants to go deeper — not walked through line-by-line here.

The 13-point calibration was validated using 3 flat/neutral references, 5 right-tilt, and 5 left-tilt references, each averaging 150–200 samples with running mean/variance. Each point is protected by a stability check that discards and retries noisy captures.

Battery percentage comes from a two-resistor voltage divider, averaged over multiple ADC samples. The unit was tested in a dark room (laser visibility) and normal lighting (typical use), with the angle screen validated live while tilting by hand.

Known limitation: long-term or comparative field accuracy data isn't available yet — this build is validated functionally, not against a certified reference instrument. Treat it as a maker-grade tool, not a calibrated instrument, for professional accuracy needs.

Angle reading is wrong right after power-on → device wasn't flat during first-ever bootstrap calibration → long-press to recalibrate (Smart Calibration); it's saved to EEPROM automatically going forward.

Angle reference seems to have drifted after months of use → unlikely on current firmware, but a fresh long-press calibration solves it either way.

Calibration wizard restarts back to step 1 unexpectedly → the long-press abort gesture overlaps with steady-holding at RIGHT/LEFT points, or a loose button/wire → hold more briefly at those points; check wiring continuity if it persists.

Screen shows "NO SENSOR" → MPU6050 not responding on I2C → check wiring, confirm 0x68/0x69 probing in Serial output, reseat connections.

OLED stays blank → wrong I2C address or bad solder joint on SDA/SCL → check Serial output for the OLED probe result (0x3C/0x3D); reflow suspect joints.

Battery percentage reads inaccurately → voltage divider tolerance or ADC noise → average over more samples, or verify resistor values with a multimeter.

Device resets or browns out under load → boost module not actually reaching ~5.5V under load → check with a multimeter while laser and OLED are both active.

Laser cross dim or hard to see → ambient lighting too bright, or module rotation misaligned → test in a dim room first; adjust rotation for beam alignment.

Version 2 hardware: 3D-printed enclosure for tighter tolerances and a smaller form factor, once a printer is available.

Version 2 firmware: a guarded/confirmed abort gesture for calibration, so an accidental long-press can't silently discard 13 points of progress.

Gyro-assisted smoothing: the MPU6050's onboard gyro channel is currently unused; could support short-term motion smoothing.

A distinct or longer abort gesture, separate from the calibration-start gesture.

Serviceability: current enclosure is glued shut; a future revision could use a removable, fastened lid.

Engineering: persistence (EEPROM) should be designed in from day one for any device with a calibrated reference — "auto-calibrate every boot" looks like a convenience feature right up until it isn't.

Design: a single, well-designed multi-behavior button can replace several dedicated buttons — but every function now depends on reliable press-timing.

Manufacturing: fixture or clamp your enclosure before drilling. This build learned that the hard way when the PVC box spun under drill torque.

Programming: memory constraints on a small microcontroller (32KB flash / 2KB SRAM) forced genuinely good architecture decisions — raw register access over heavier libraries, PROGMEM for labels, page-buffer OLED rendering — not optional polish, required to fit the feature set at all.

Finishing: a good design and print don't guarantee a good hand-applied result — application technique, not the design, was this build's real limiting factor on finish quality.

⚠️ Laser safety (required reading): this project includes a laser module. Never point the laser at eyes or into a camera sensor — during testing, calibration, normal use, or demonstrations. Treat the beam like any laser pointer or laser level.

Electrical safety: double-check polarity before connecting the battery to the boost module and TP4056. Confirm boost module output voltage with a multimeter before connecting the Arduino Nano and other 5V-rail components.

Battery safety: use a charge-protected 18650 cell and a proper single-cell charge controller (TP4056). Never leave a charging LiPo cell unattended, and inspect for swelling before each charge.

Tool safety: clamp your enclosure before drilling. Wear eye protection when cutting or drilling PVC.

Source Code: Humanix_AL100_FactoryCalibration.ino and Humanix_AL100_Firmware.ino — link placeholder, see GitHub.

Circuit Diagram — placeholder, schematic not yet published as a standalone file.

PCB Files — not applicable, this is a point-to-point/hand-wired build.

CAD / Enclosure Files — not applicable for this revision, no 3D printer was used.

Datasheets — MPU6050, Arduino Nano (ATmega328P) — link placeholders.

Images — placeholder, see the image shot list below.

The problem was simple to state and awkward to solve cheaply: a physical laser reference and a precise digital angle value and a fast way to lock a reading, in one affordable handheld tool. The LA100 solves it with process, not expensive parts — split calibration from firmware, persist that calibration properly after a real failure exposed why it mattered, restrain the UI to one button, and treat enclosure finish as an actual engineering problem.

Things didn't always go right the first time — a calibration bug that silently drifted the zero-reference, a PVC box that spun under a drill, vinyl edges that didn't apply as cleanly as the design deserved. All of it is documented here rather than smoothed over.

There's a clear Version 2 in mind — 3D-printed tolerances, gyro-assisted smoothing, a safer calibration-abort gesture — but this version already proves a cheap sensor build can feel like a real instrument if you're deliberate about the decisions around it.
