Build a Smart QR-Based Cashless Vending Machine Using Raspberry Pi

Traditional vending machines often rely on outdated payment methods and limited user interaction. In this project, I built a smart vending machine powered by Raspberry Pi that enables users to browse products, make cashless payments through a web interface, and receive products automatically after payment verification.

During this generation I see in many places there have many people who think cash on hand payment is difficult because today nobody can cash in hands due to this corruption. That is why I develop smart vending machines which have features of cashless payment like QR code, card payment.

The system combines a touchscreen interface, QR-based ordering, backend verification, and automated product dispensing. The goal was to create a modern vending experience that is faster, more secure, and easier to manage remotely.

Hardware

1. Raspberry Pi 4
2. Touchscreen Display
3. MDB Interface Board
4. Vending Machine Controller
5. Power Supply
6. QR Code Display Panel
7. Relay Module (if required)
8. Jumper Wires
9. USB C Cable
10. MicroSD Card

Software

1. Raspberry Pi OS
2. Python
3. Flask Backend
4. SQLite / MySQL Database
5. Web Dashboard
6. MDB Communication Library

1. QR-based product ordering
2. Cashless payment workflow
3. Touchscreen user interface
4. Automated product dispensing
5. Order ID verification
6. Raspberry Pi powered control system
7. MDB protocol integration
8. Remote backend management
9. Real-time transaction validation
10. User-friendly vending experience

The vending machine consists of three major sections:

1. Customer Interface
2. Payment Verification System
3. Product Dispensing Controller

Users begin by scanning a QR code displayed on the machine. The QR code opens a mobile-friendly ordering page where products can be selected and purchased.

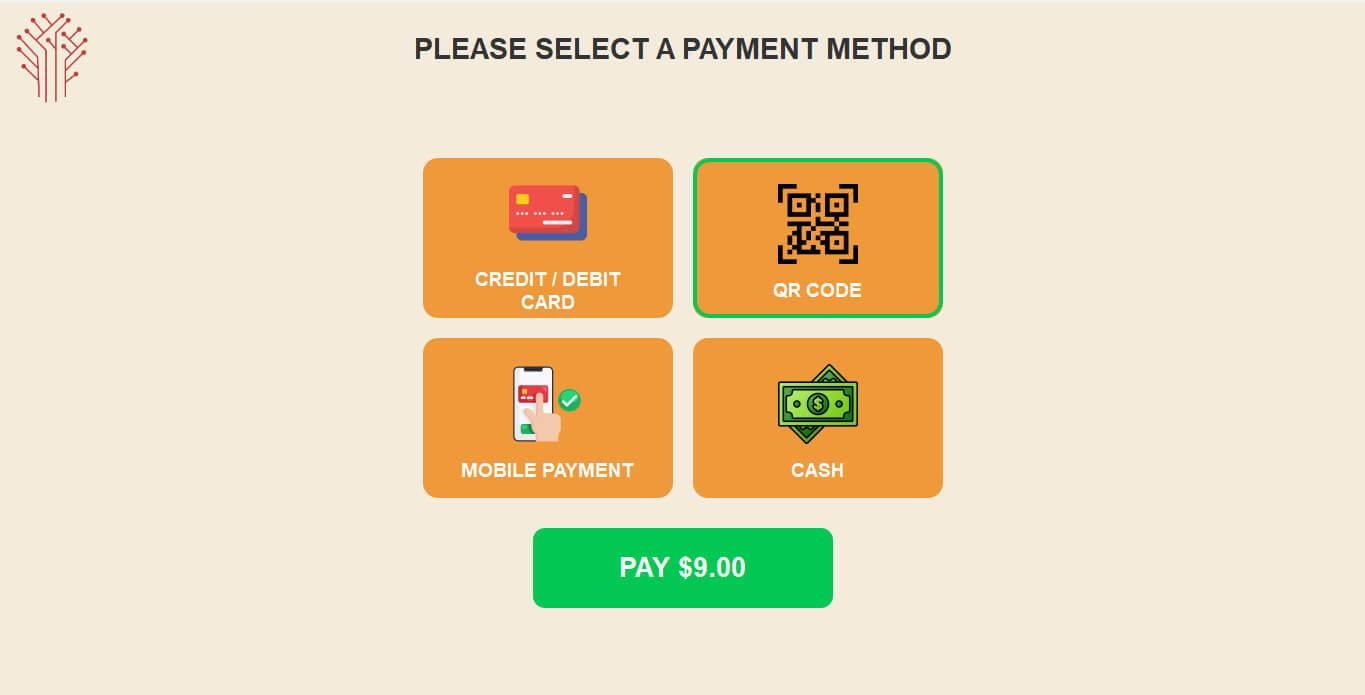

After selecting a product, the customer completes payment through the web application.

The backend generates a unique order ID and securely stores transaction information. This order ID acts as a digital token for dispensing the selected item.

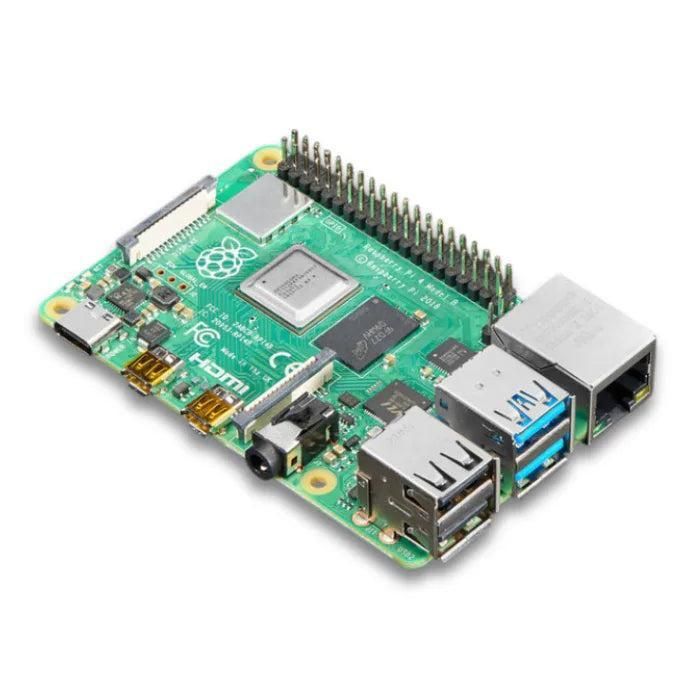

Raspberry Pi acts as the central controller of the entire machine.

Responsibilities include:

1. Running the user interface
2. Communicating with the backend
3. Verifying order IDs
4. Triggering product dispensing
5. Managing machine status

After payment, the customer enters the generated order ID on the vending machine display.

The Raspberry Pi sends a verification request to the backend server.

If the order is valid:

1. Payment status is confirmed
2. Product selection is validated
3. Dispensing sequence begins

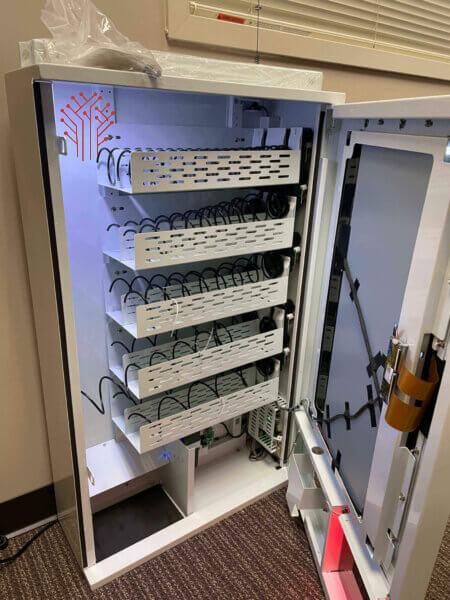

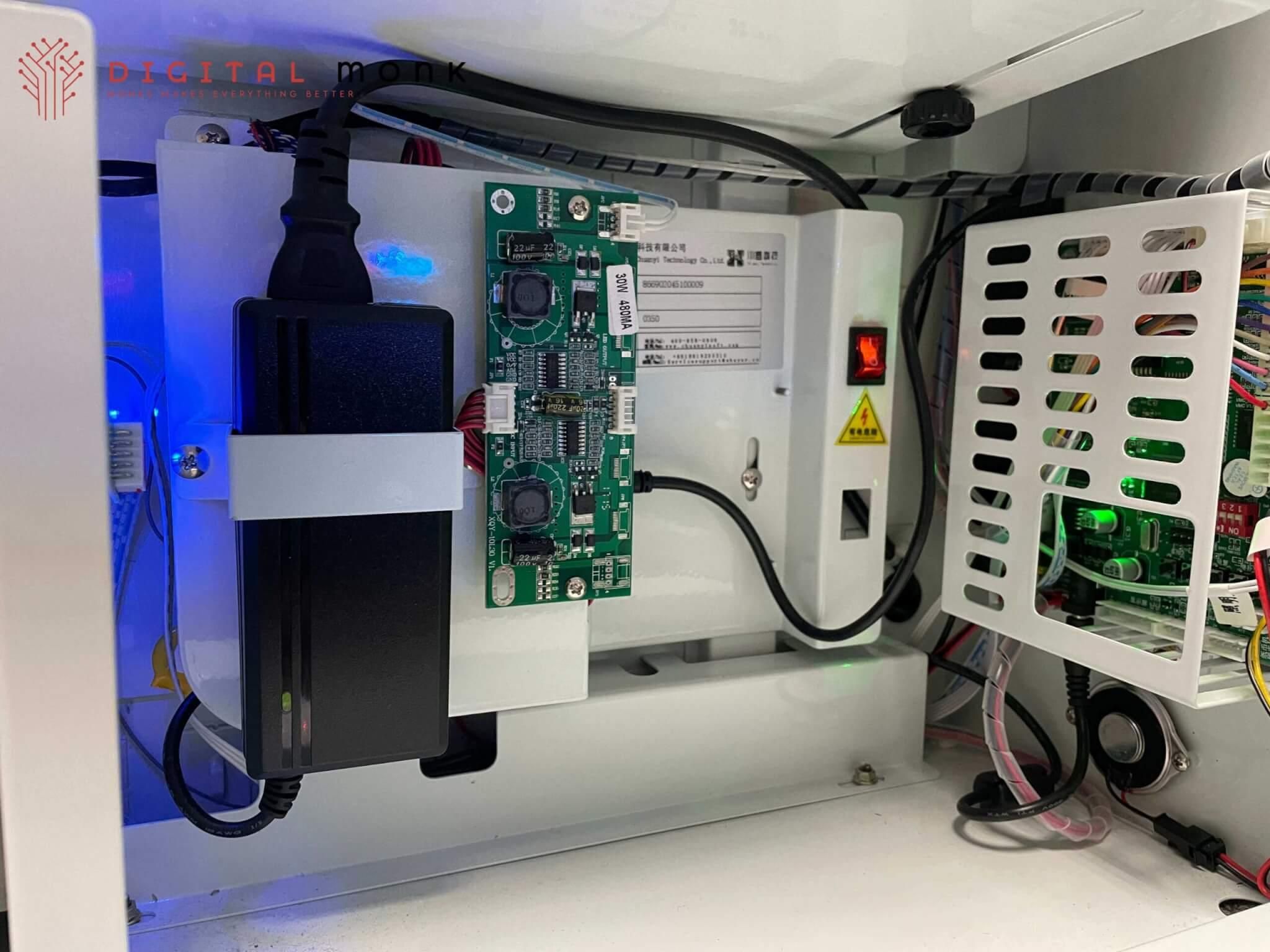

The vending controller receives commands through MDB communication.

Once verification succeeds:

1. Correct product slot is selected
2. Dispensing motor is activated
3. Product is released
4. Transaction is marked complete

During testing, the system successfully performed:

1. QR code scanning
2. Product selection
3. Payment confirmation
4. Order validation
5. Product dispensing

The complete flow worked without requiring cash or physical staff intervention.

1. Fully cashless operation
2. Reduced maintenance
3. Better customer experience
4. Secure transaction flow
5. Easy remote monitoring
6. Scalable for multiple locations
7. Faster purchasing process
8. Supports future feature expansion

1. Airports
2. Shopping Centers
3. Universities
4. Corporate Offices
5. Retail Stores
6. Hotels
7. Fitness Centers

A similar software stack can also be adapted for a vending machine for gym environments that sell supplements, protein bars, and sports drinks. For a Gym I developed this vending machine which has an alert system if the stock is entered at a mini level then this vending machine makes a buzzer for stock refill.

Businesses requiring specialized retail automation can explore custom vending solutions tailored to their products, branding, and payment workflows.

This project demonstrates how Raspberry Pi, web technologies, and automated dispensing hardware can be combined to create a modern smart vending machine. By replacing traditional payment methods with a digital workflow, the machine delivers a faster and more convenient purchasing experience while enabling operators to manage the system efficiently.

This machine has a real time monitoring system, cashless payment feature, smart display, and inventory system. Which is a real and advanced IoT based project. This vending machine is not only for gyms, it is developed for industrial, malls, beauty places, exhibitions and so many public or private places.
