Choosing the Right ESP32 Board for Your Project

Introduction

So you want to build an ESP32 project — great choice! But then you go to buy one and suddenly face a wall of confusing names: ESP32, ESP32-S3, ESP32-C3, ESP32-C6, ESP32-H2... 😵

Which one do you actually need?

This Instructable solves that problem. I'll walk you through every major ESP32 variant, explain what makes each one different, and — most importantly — tell you exactly which one to pick for your specific project.

No jargon. No wasted money. Just the right board for the job.

What is ESP32?

ESP32 is a family of low-cost, low-power microcontrollers (SoCs) made by Espressif Systems. What makes them special:

1. ✅ Built-in Wi-Fi (most variants)
2. ✅ Built-in Bluetooth
3. ✅ Programmable with Arduino IDE, MicroPython, or ESP-IDF
4. ✅ Tons of GPIO pins for sensors, motors, displays
5. ✅ Costs just $3–$15

Since the original ESP32 launched in 2016, Espressif has released 9 different chip variants, each optimized for a different purpose. That's what makes choosing confusing — but also powerful.

Supplies

1. Any ESP32 development board (specific recommendation in Step 4)
2. USB cable — Micro-USB or USB-C depending on your board
3. Breadboard + jumper wires (for prototyping)
4. Arduino IDE or VS Code with PlatformIO installed
5. Sensors or modules for your specific project

Estimated cost: $3 – $20 depending on board chosen

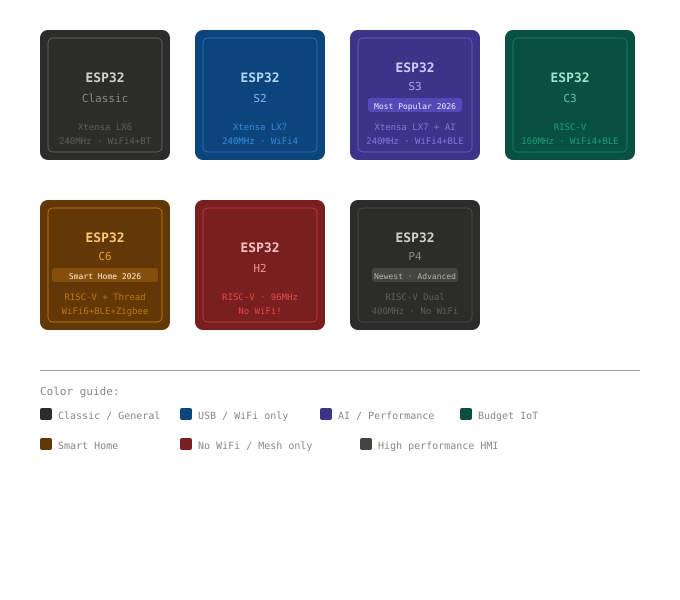

There are 7 major ESP32 variants. Here's what each one does:

🟦 ESP32 — Original / Classic

1. CPU: Dual-core Xtensa LX6 @ 240 MHz
2. Wireless: Wi-Fi 4 + Bluetooth Classic + BLE
3. Best For: General-purpose projects, prototyping, learning
4. Price: ~$3–$5

The original. Still widely used and has the largest community. Great starting point for beginners. Choose this if you're not sure what you need.

🟩 ESP32-S2

1. CPU: Single-core Xtensa LX7 @ 240 MHz
2. Wireless: Wi-Fi ONLY — No Bluetooth!
3. Special Feature: USB-OTG (can act as a USB keyboard or mouse)
4. Best For: USB HID devices, battery-powered Wi-Fi sensors
5. Price: ~$4–$6

⚠️ WARNING: No Bluetooth at all. If you need BLE, skip this one entirely.

🟥 ESP32-S3 ⭐ — Most Popular in 2026

1. CPU: Dual-core Xtensa LX7 @ 240 MHz
2. Wireless: Wi-Fi 4 + BLE 5.0
3. Special Features: AI accelerator (TinyML), camera & LCD support, USB-OTG
4. Memory: Up to 8 MB PSRAM + 16 MB Flash
5. Best For: AI/ML projects, camera vision, voice recognition, displays
6. Price: ~$6–$12

The powerhouse of the family. If you want to run machine learning on-device, use the ESP32-S3. The "Sense" version even includes an onboard camera and microphone.

🟨 ESP32-C3

1. CPU: Single-core RISC-V @ 160 MHz
2. Wireless: Wi-Fi 4 + BLE 5.0
3. Special Feature: Secure Boot, very low cost, minimal footprint
4. Best For: Low-power IoT sensors, budget-friendly connected devices
5. Price: ~$3–$5

The budget champion. Perfect when you need Wi-Fi + BLE in a small, cheap package with solid security.

🟪 ESP32-C6 ⭐ — Best for Smart Home 2026

1. CPU: Single-core RISC-V @ 160 MHz + Low-Power core @ 20 MHz
2. Wireless: Wi-Fi 6 + BLE 5.0 + Zigbee + Thread + Matter
3. Best For: Smart home devices, Matter/Thread ecosystems, Home Assistant
4. Price: ~$5–$8

The smart home king. If your project needs Zigbee, Thread, or Matter — the new universal smart home standard — the C6 is the only ESP32 that supports all of them natively.

⬛ ESP32-H2

1. CPU: Single-core RISC-V @ 96 MHz
2. Wireless: Zigbee + Thread + BLE — No Wi-Fi!
3. Best For: Zigbee end devices, Thread mesh nodes, battery-powered sensors
4. Price: ~$4–$6

⚠️ No Wi-Fi. Very niche — only choose this if your project is purely Zigbee or Thread with no internet connectivity needed.

🔵 ESP32-P4 — Newest / High Performance

1. CPU: Dual-core RISC-V @ 400 MHz
2. Wireless: None (requires external Wi-Fi module)
3. Special Feature: HMI displays, MIPI camera, high-performance processing
4. Best For: Touchscreen panels, industrial displays
5. Price: ~$10–$15

Cutting-edge but not yet widely available for hobbyists. Skip unless you specifically need 400 MHz processing for display-heavy applications.

Answer these 5 questions to find your perfect board in under 2 minutes:

Q1: Do you need AI or Machine Learning on-device?

1. ➡️ YES → Use ESP32-S3
2. ➡️ NO → Go to Q2

Q2: Do you need Zigbee, Thread, or Matter (smart home)?

1. ➡️ YES, and I also need Wi-Fi → Use ESP32-C6
2. ➡️ YES, no Wi-Fi needed → Use ESP32-H2
3. ➡️ NO → Go to Q3

Q3: Is budget your top priority?

1. ➡️ YES → Use ESP32-C3 or ESP32 Classic
2. ➡️ NO → Go to Q4

Q4: Do you need a camera or LCD display?

1. ➡️ YES → Use ESP32-S3
2. ➡️ NO → Go to Q5

Q5: Do you need USB HID — act as a keyboard or gamepad?

1. ➡️ YES → Use ESP32-S2 or ESP32-S3
2. ➡️ NO → Use ESP32 Classic — you're done! ✅

Find your project below and use the matching board:

Your Project Best Board Why

Learning Arduino basics

ESP32 Classic

Most tutorials, beginner-friendly

Home automation (Wi-Fi + app)

ESP32 Classic or C3

Simple, cheap, well supported

Smart home (Zigbee/Matter)

ESP32-C6

Only ESP32 with Wi-Fi 6 + Thread

AI face/object recognition

ESP32-S3

AI accelerator + camera support

Voice assistant (offline)

ESP32-S3

Dual-core + microphone ready

Battery-powered sensor node

ESP32-C3

Low power + low cost

USB keyboard or gamepad

ESP32-S2 or S3

USB-OTG built in

Weather station / data logger

ESP32 Classic or C3

Easy libraries, cheap

Robot / motor control

ESP32 Classic or S3

Good PWM + dual core

LoRa long-range sensor

ESP32 Classic

Pair with SX1276 LoRa module

Zigbee end device

ESP32-H2

No Wi-Fi overhead, ultra low power

Display / touchscreen HMI

ESP32-S3 or P4

Best LCD/MIPI display support

Once you know your chip, here are the actual boards to order:

👶 For Beginners

1. ESP32 DevKitC — Classic chip, standard, easy to find anywhere (~$4)
2. NodeMCU ESP32 — Classic chip, USB-serial chip included (~$5)
3. DOIT ESP32 DevKit V1 — Very common in starter kits, lots of tutorials (~$5)

📦 Compact / Wearable Size

1. Seeed XIAO ESP32-S3 — Tiny + powerful; Sense version has onboard camera (~$7–$12)
2. Seeed XIAO ESP32-C3 — Ultra-compact, cheapest XIAO option (~$5)
3. ESP32-C3 SuperMini — Thumb-sized, great for small enclosures (~$4)

🏠 Smart Home

1. Seeed XIAO ESP32-C6 — Matter/Thread ready, tiny form factor (~$6)
2. ESP32-C6-DevKitC-1 — Official Espressif board, full GPIO access (~$8)

🤖 AI / Camera Projects

1. ESP32-S3 DevKitC-1 — Official board, best for TinyML projects (~$10)
2. Seeed XIAO ESP32-S3 Sense — Onboard OV3660 camera + digital microphone (~$12)
3. ESP32-CAM — Cheap camera board, limited GPIO but great to get started (~$5)
4.


💡 Tip: Buy from reputable sellers on AliExpress, Amazon, or the Seeed Studio official store. Avoid unknown clones — they sometimes use inferior or counterfeit chips.

Here is a side-by-side comparison of all major ESP32 variants:

These are the most common mistakes beginners make — avoid them and save yourself time and money:

❌ Mistake 1: Buying ESP32-S2 for BLE

The ESP32-S2 has zero Bluetooth — not even BLE. Many people buy it without checking and get stuck. Always verify the wireless specs before ordering.

❌ Mistake 2: Using ESP32-H2 for a Wi-Fi project

The H2 has no Wi-Fi at all. It's only Zigbee/Thread/BLE. Great for mesh smart home nodes, but completely useless for anything that needs internet connectivity.

❌ Mistake 3: Choosing by price alone

Yes, some boards cost just $2–$3. But a budget chip won't run your camera project, won't handle big ML models, and may lack library support. Match specs to the job first, then consider price.

❌ Mistake 4: Ignoring memory (RAM / Flash)

For AI, audio, or complex applications — RAM matters a lot. The ESP32-S3 can have 8 MB PSRAM. The classic ESP32 has 520 KB. Know what your project needs before buying.

❌ Mistake 5: Forgetting about community support

If you're a beginner, choose a board with a huge community. ESP32 Classic and ESP32-S3 have thousands of tutorials, libraries, and forum answers. Obscure variants leave you alone when things break.

❌ Mistake 6: Boards without a USB-serial chip

Some ultra-cheap boards don't include a CH340 or CP2102 USB-to-serial chip, meaning you can't program them via USB without buying a separate programmer. Always check the board listing before ordering.

Here's your final cheat-sheet summary:

1. 🏆 Best all-rounder → ESP32 Classic
2. 🤖 Best for AI / Camera → ESP32-S3
3. 🏠 Best for Smart Home → ESP32-C6
4. 💰 Best budget pick → ESP32-C3
5. 🔋 Best for battery life → ESP32-C3 or C6 (has low-power core)
6. 🎛️ Best for USB devices → ESP32-S2 or S3

The ESP32 family has a perfect board for every project. Spend 5 minutes matching your needs to the right chip — you'll save money, avoid frustration, and build faster.

If this helped you, leave a comment with which board you chose and what you're building! Happy making! 🛠️
