The 13-Hour Wall: Troubleshooting the IRS2092 500W Amplifier Failure

Building your own high-power audio gear is a rewarding experience—until it isn't. In this project, I spent 13 hours deep in the guts of an IRS2092S-based 500W Class D Amplifier, only to come face-to-face with the reality that sometimes, despite your best efforts, the silicon wins.

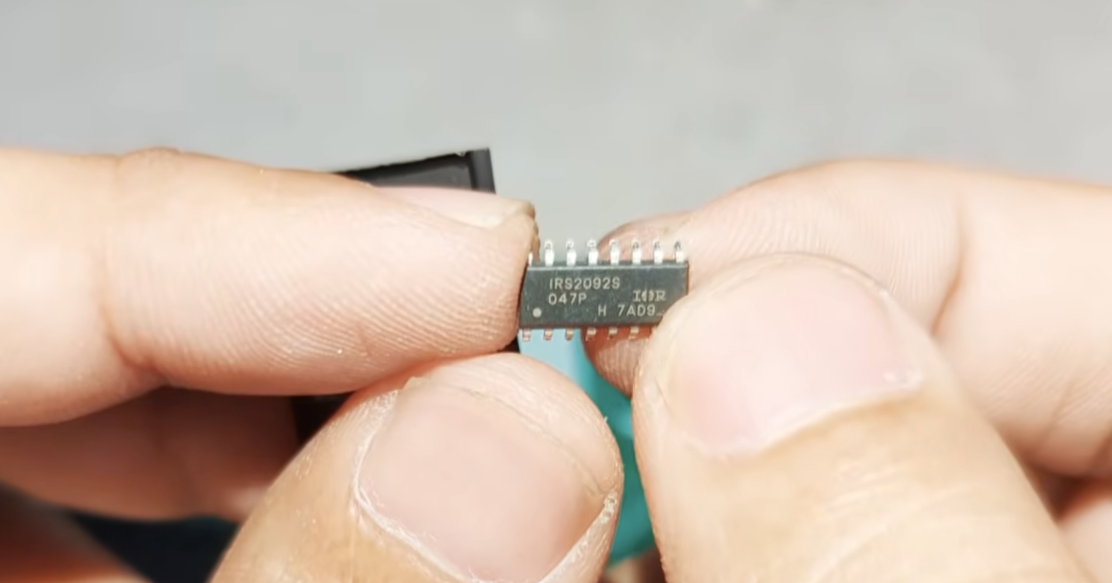

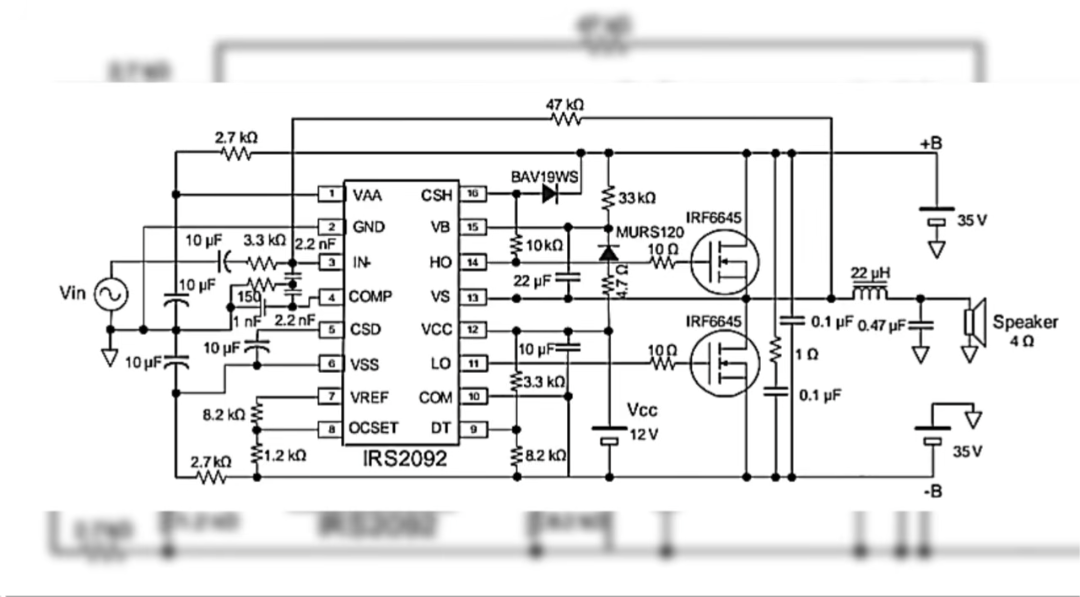

The heart of this project is the IRS2092S, a protected Class D audio amplifier driver. When paired with high-speed MOSFETs and a well-wound inductor, it is capable of delivering half a kilowatt of power with incredible efficiency.

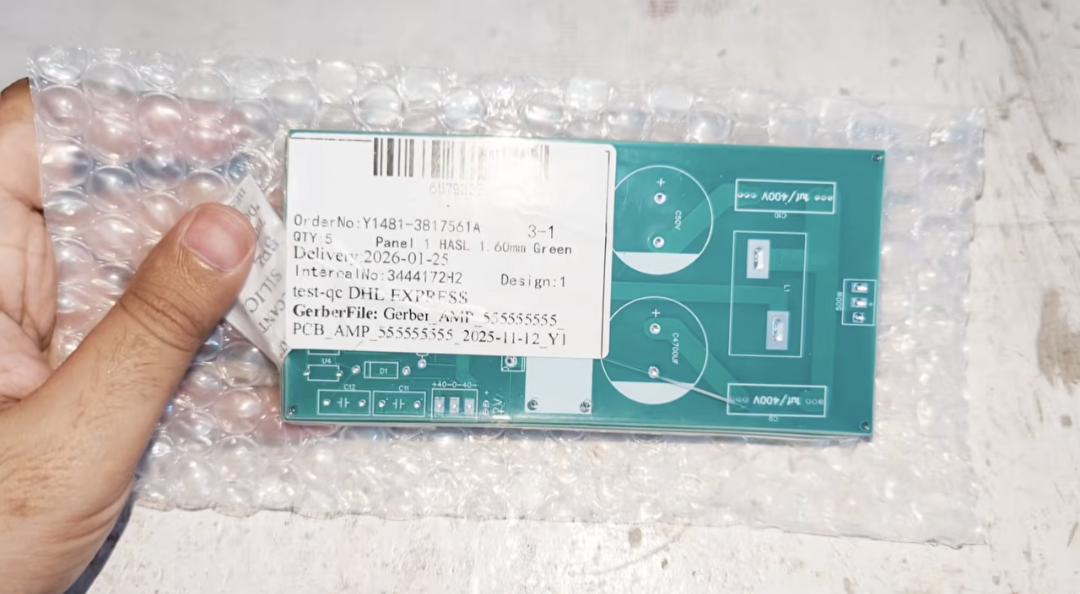

The assembly was done using high-quality components to keep the footprint small. For a circuit this complex, precision is everything ordered from JLCPCB

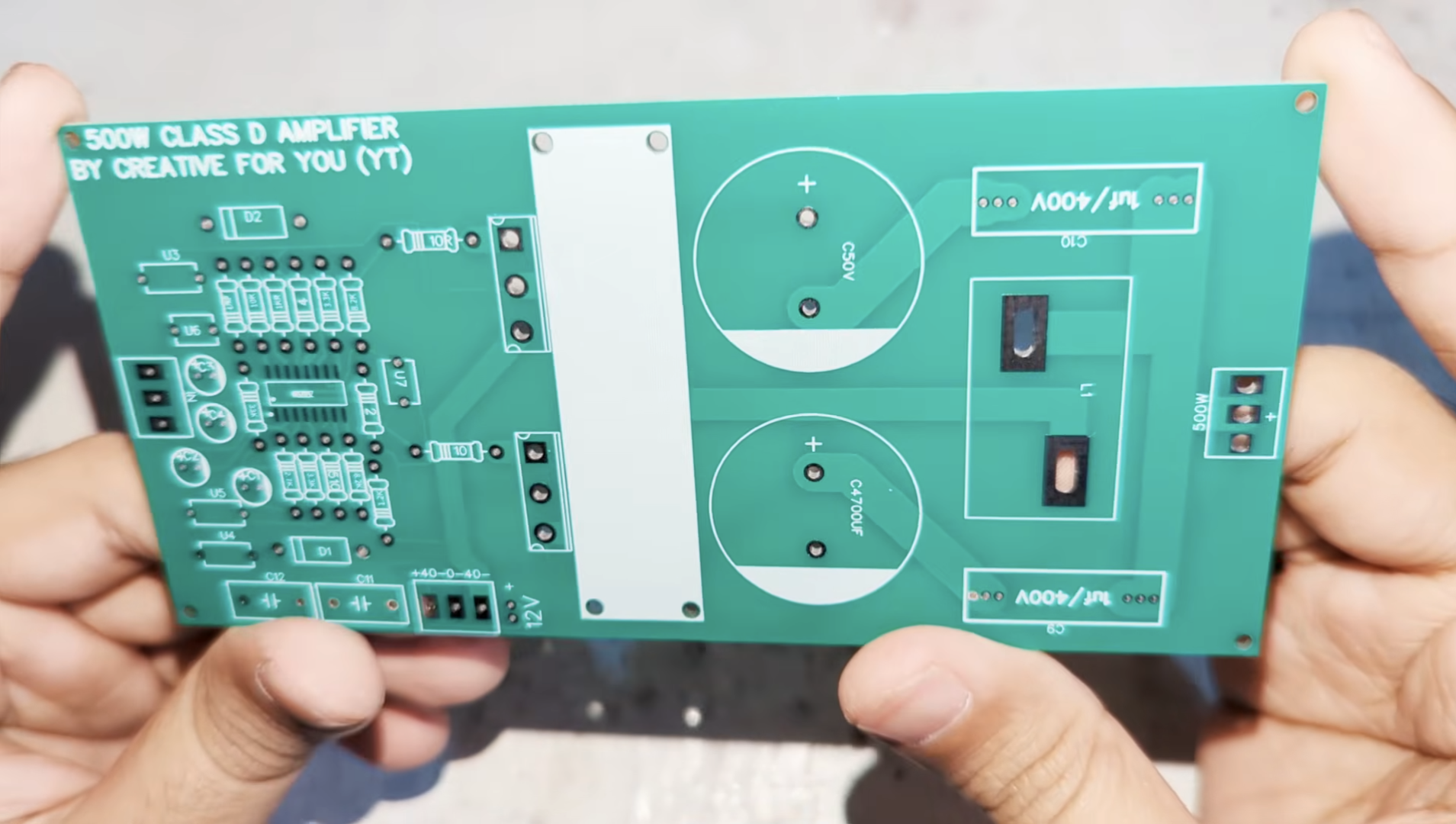

PCB Design: A professional 2-layer board was used to handle the high current and fast switching speeds.

Component Sourcing: Low-ESR capacitors and high-speed MOSFETs were selected to handle the 500W load.

The Inductor: A critical component in Class D, wound carefully to ensure it wouldn't saturate under load.

Link: I Order my PCB from JLCPCB, Track Your JLCPCB Orders and Shipments with JLCONE (Desktop or Mobile App) Download Here: https://jlcpcb.com/download?from=JLA

Where the 13 Hours WentTroubleshooting

A Class D amplifier is far more difficult than a standard Class AB "linear" amp.

Because it relies on high-frequency switching, you can't just check for "clean" voltage; you are chasing ghosts in the nanosecond range.

The "Hiccup" Mode: The IRS2092 has built-in Over-Current Protection (OCP). If it detects even a tiny mismatch in the MOSFET timing or a slight solder bridge, it enters a "hiccup" cycle where it tries to start and immediately shuts down.

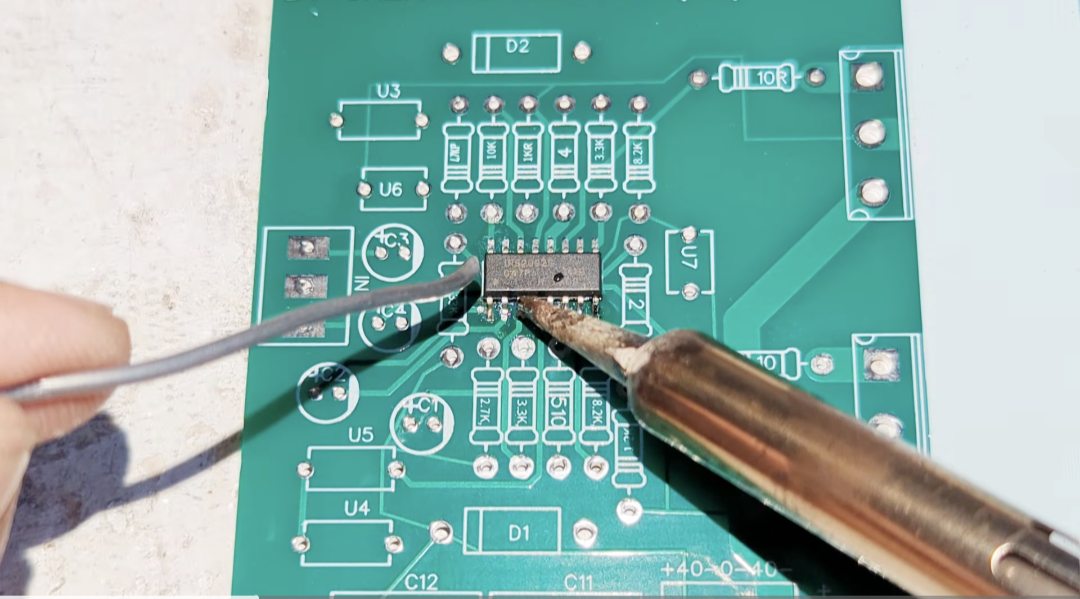

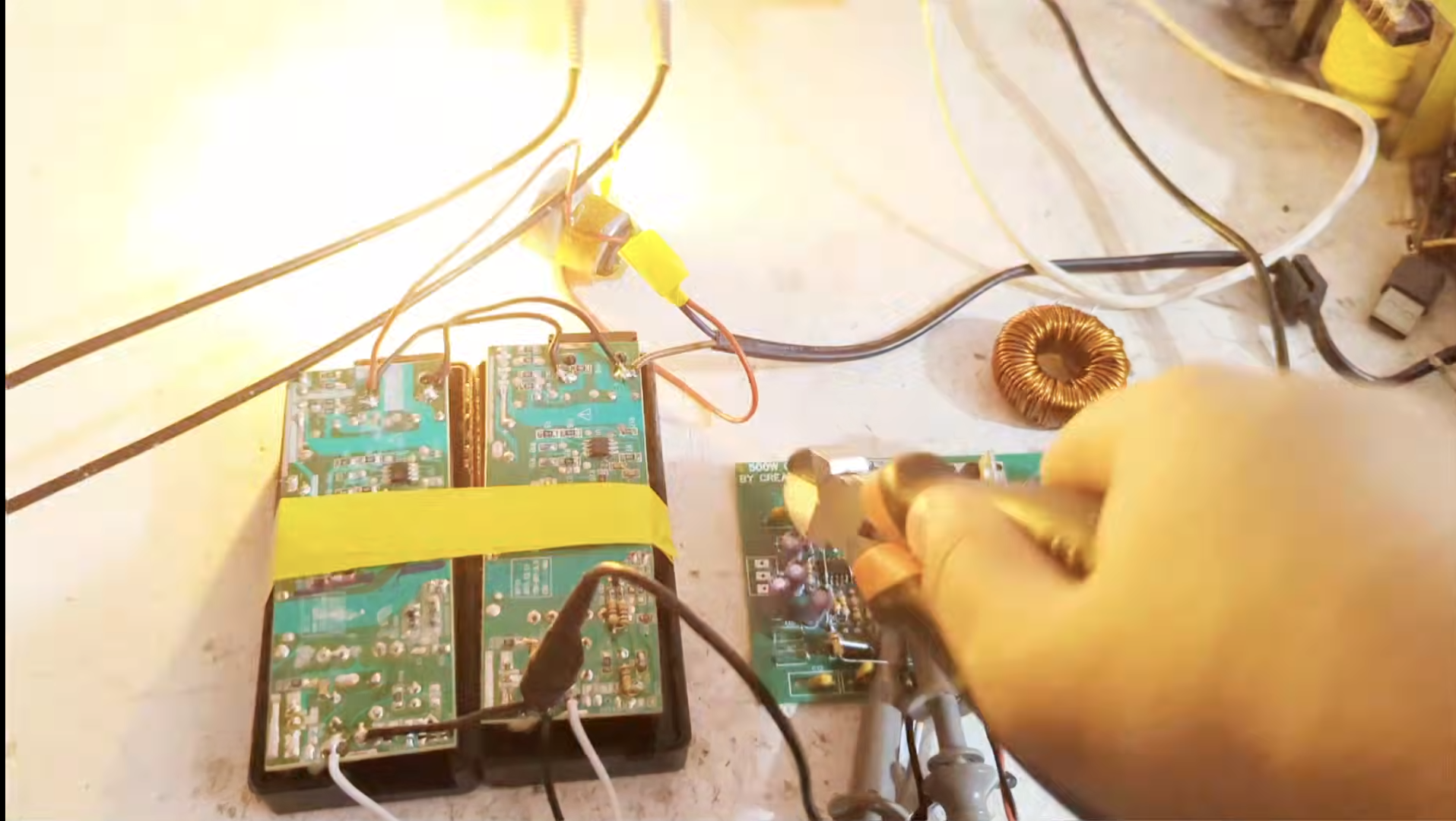

Heat vs. Logic: Repeatedly swapping components like the bootstrap capacitor and gate resistors consumed hours. Every time a component is desoldered and resoldered, you risk damaging the delicate PCB pads.

Signal Integrity: Using an oscilloscope to check the PWM (Pulse Width Modulation) signal is essential. However, the noise generated by the switching can often make it difficult to see if the chip is actually failing or if your probes are picking up interference.

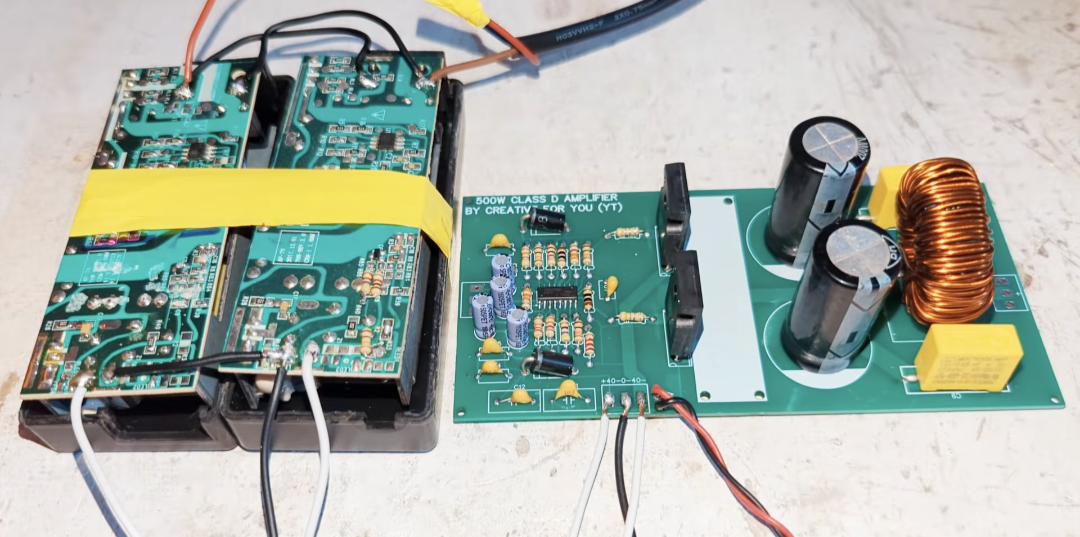

After 13 hours of rework, the board remained non-functional.

In electronics, "Failure" is just a different kind of data. Potential culprits for this specific build failure include:

Internal IC Damage: It is possible the IRS2092S was damaged during the initial power-on or through electrostatic discharge (ESD).

Hidden Shorts: With SMT components, a microscopic bridge under the IC or a MOSFET can be impossible to see without an X-ray or removing the chip entirely.

Trace Impedance: At 500W, even the resistance of a PCB trace can cause a voltage drop that triggers the protection logic.

Failure is part of the engineering process. Every hour spent at the bench—even if the LED doesn't turn green—is an hour spent getting better at the craft.

Interested in the technical details? Check out the full breakdown and the soldering process in the video here:

https://youtu.be/MPOG_rQB3kU?si=oug-TlHZXVzJfPCo
