CogniWake: Alarm Clock for Executive Dysfunction

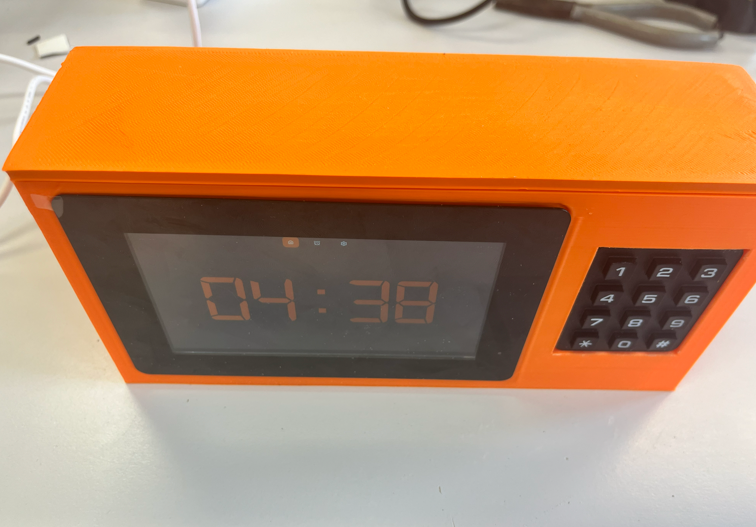

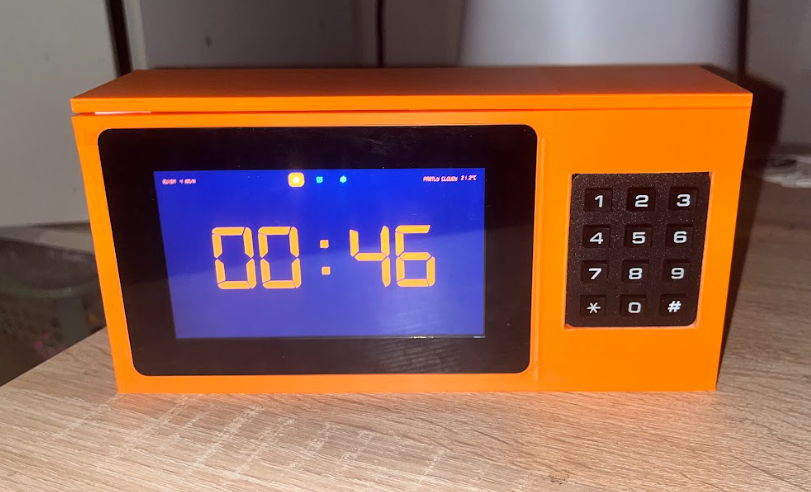

Hello there! In this instructable I will be covering the assembly & inner workings of a school project I have decided to name CogniWake.

CogniWake

CogniWake is an alarm clock for people with executive dysfunction (or simply trouble getting up ;]) that requires mental and physical user activity to influence the alarm state.

Why did I build this?

I have ADHD and an extreme difficulty getting up in the morning.

I consistently turn off/disable alarms while half-asleep and go back to bed only to wake up hours later with no recollection of ever turning off the alarm.

With this project I intend to consistently get myself "booted" up enough to stay awake and begin my day.

What does it do?

Core functionality

When an alarm is triggered, a math query is shown on the display.
To turn off the alarm this query must be solved.

(Easy difficulty)

Snoozing

Triggering the RCWL0516 radar sensor for 3 seconds will snooze the alarm.
Snooze enable/length is configurable per alarm.

Temporary muting

If the Accelerometer/gyroscope detects the device being lifted, the alarm will temporarily be muted for as long as the device is held.

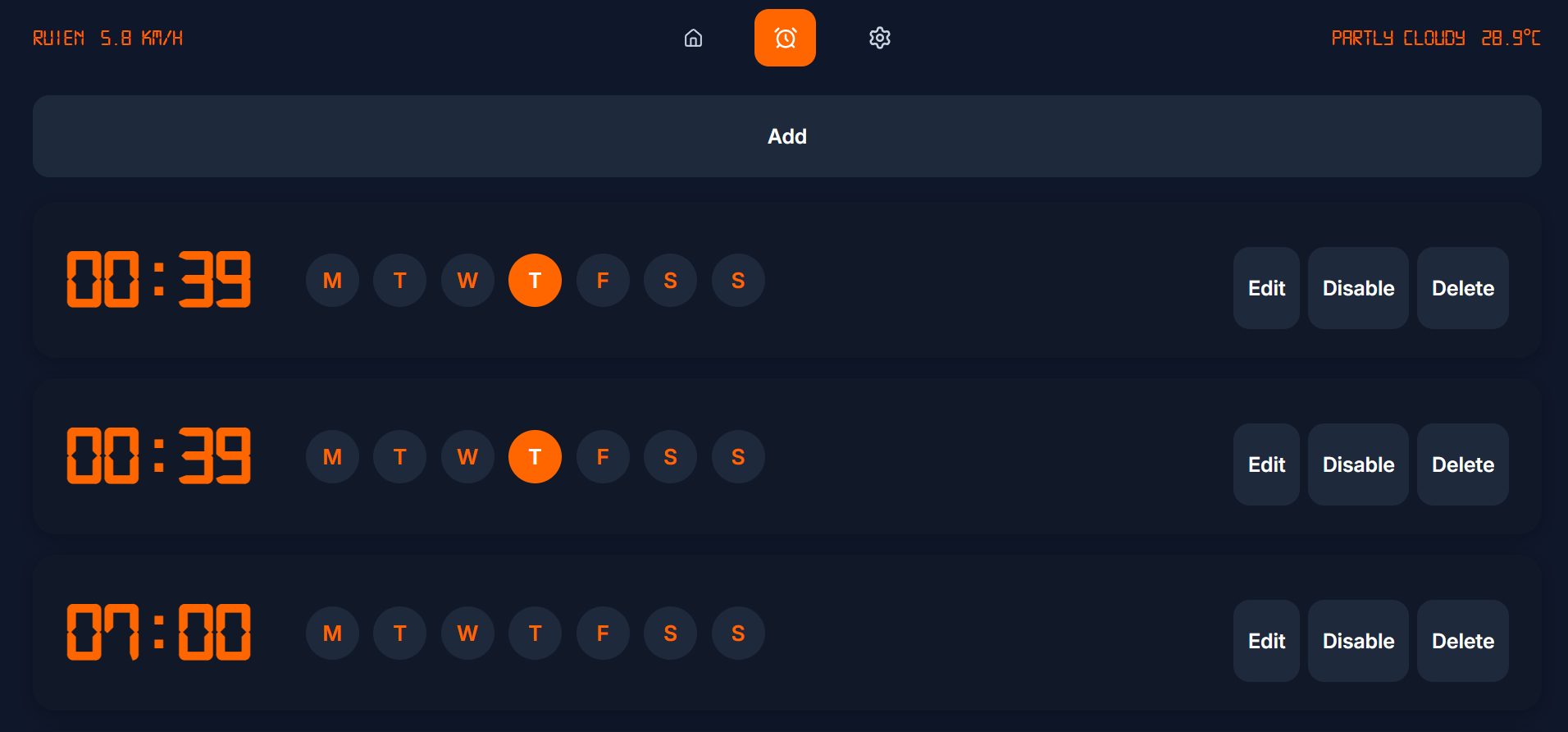

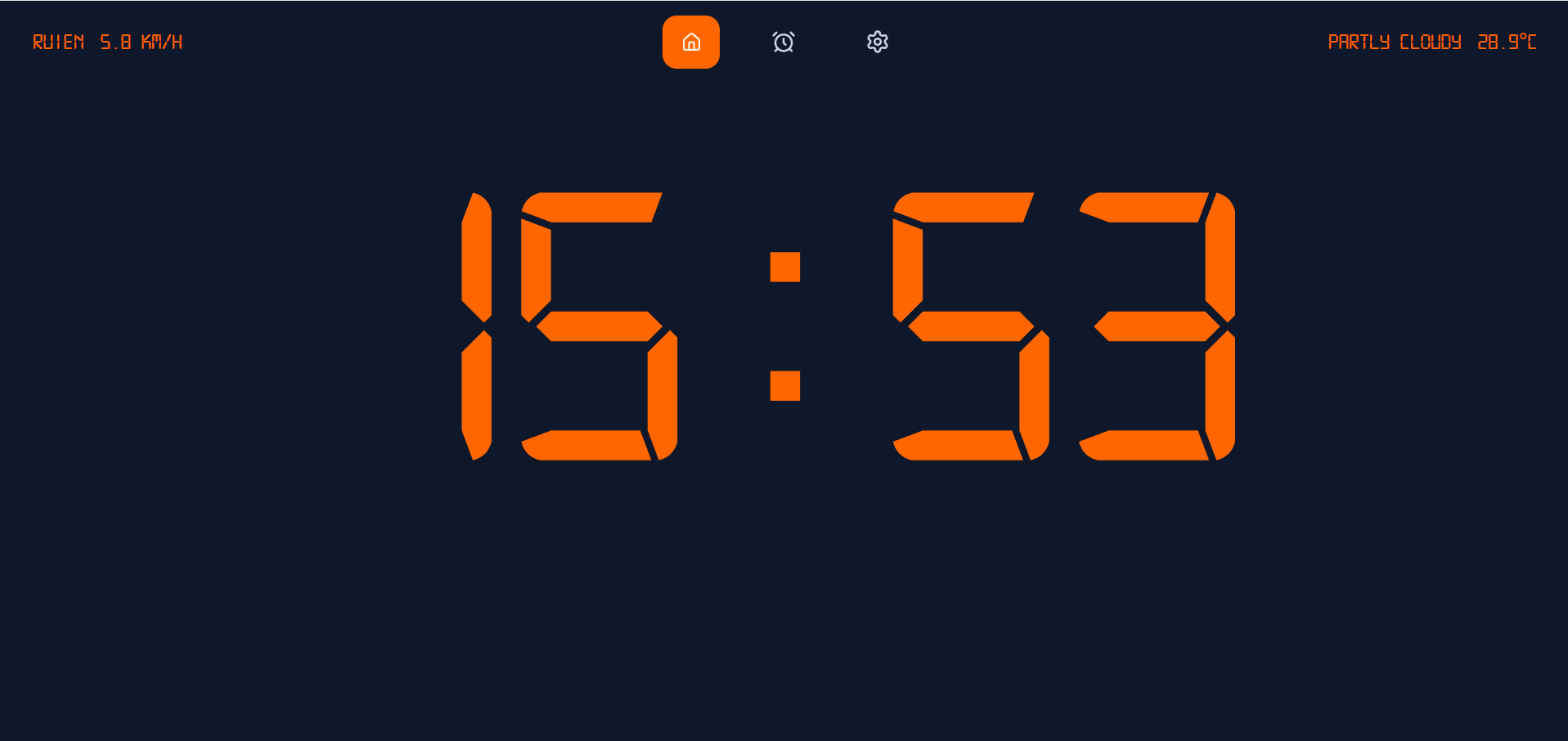

Software & features

The full explanation can be found in the section after Final Assembly.

Supplies

Raspberry Pi 4B 1GB + min 16GB SD card
Assembled T-piece cobbler
Half-size breadboard
Pi Touch Display 2 (5”)
MPU6050 Gyroscope / Accelerometer
RCWL0516 Microwave Motion Sensor
SFM-27-I Piezo Buzzer
Vibration motor module
ULN2003 Darlington Array (for our buzzer)
DS3231 RTC Module
PLA (3D printer!)
8 x M2.5 Screws
Soldering iron + tin
4 x Rubber foot pads
7 x Double-sided adhesive pads
3 twist ties
10 female headers

A more detailed bill of materials and price list can be found in this GitHub repository.

Flashing the Image

Requirements

Image from this GitHub repository
Raspberry Pi Imager or Balena Etcher
SD card (16 GB Minimum)

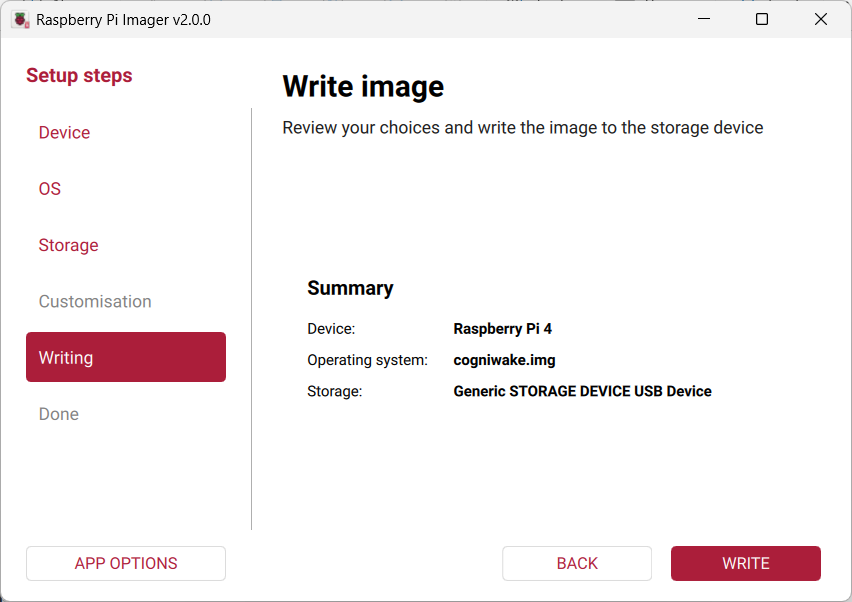

1. Open Raspberry Pi Imager

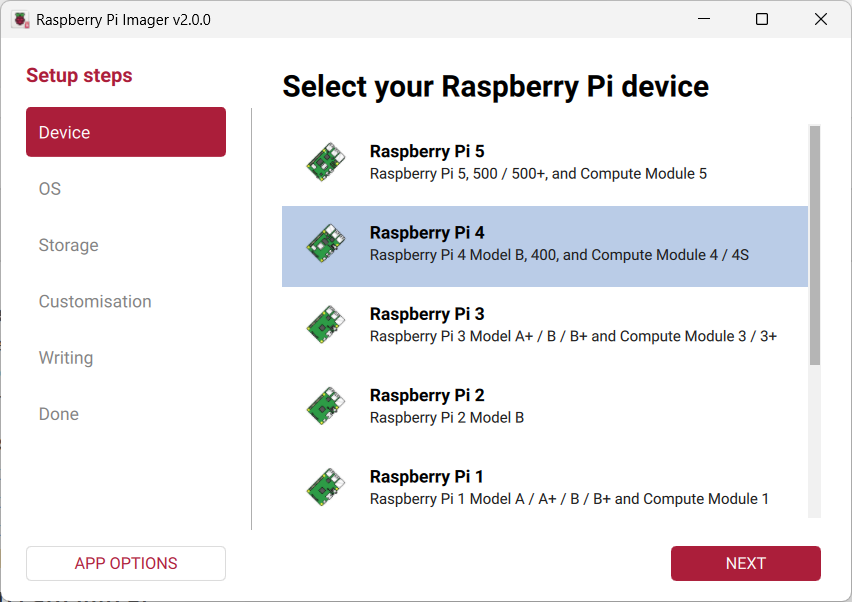

Select Raspberry Pi 4 Option

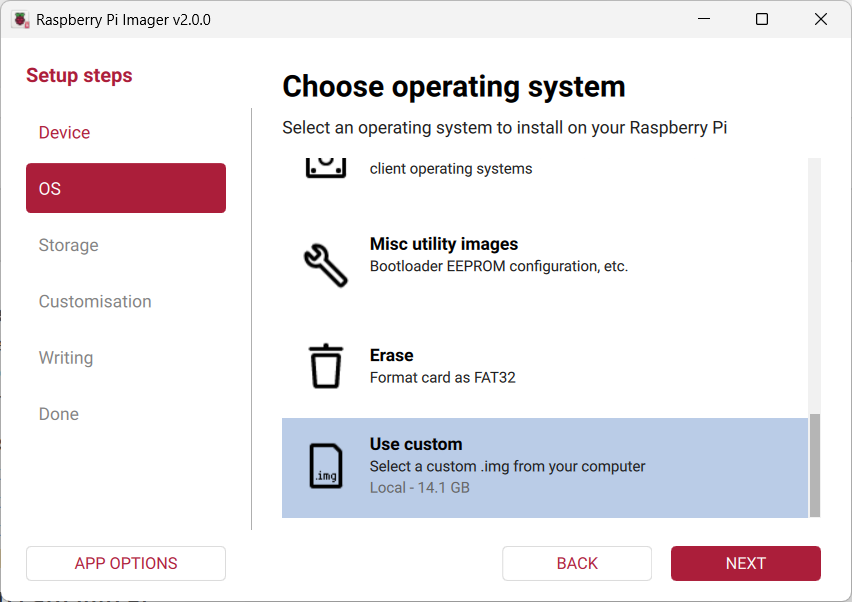

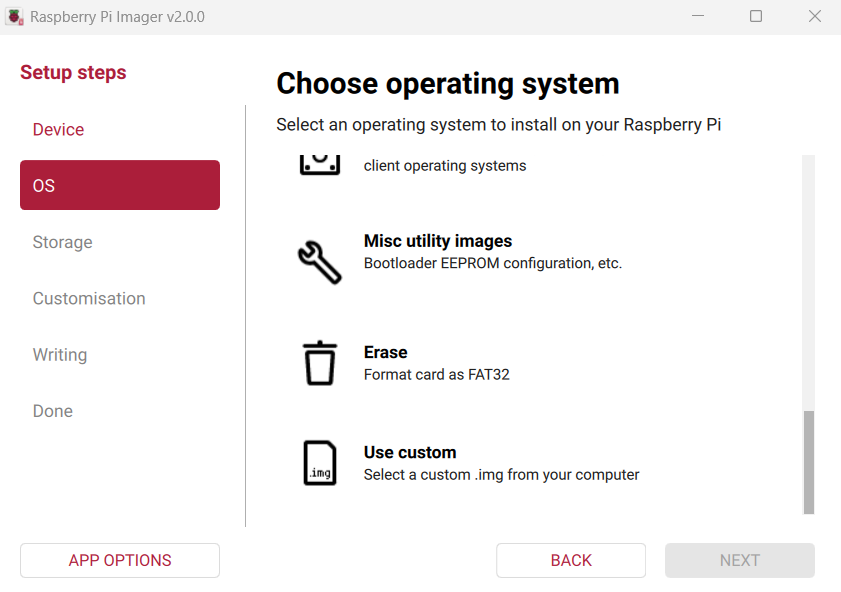

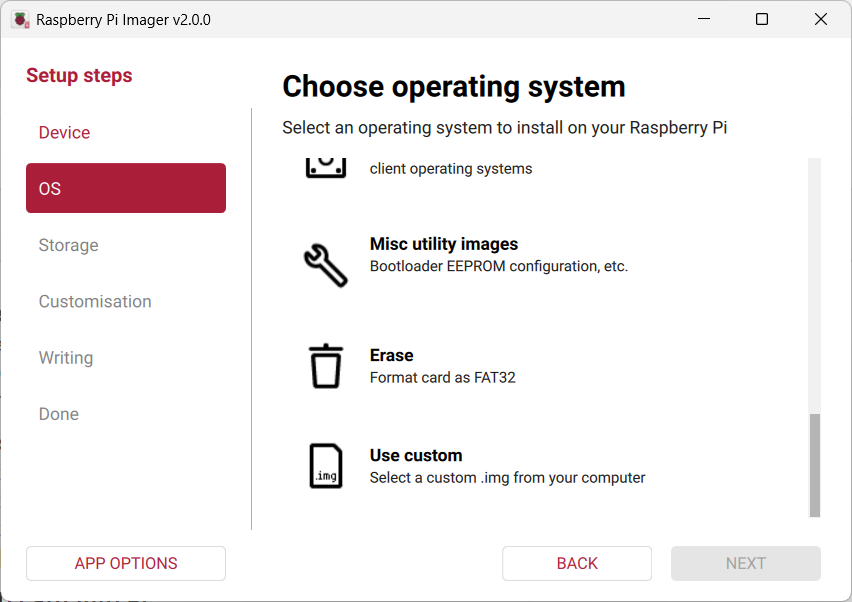

Select custom Image

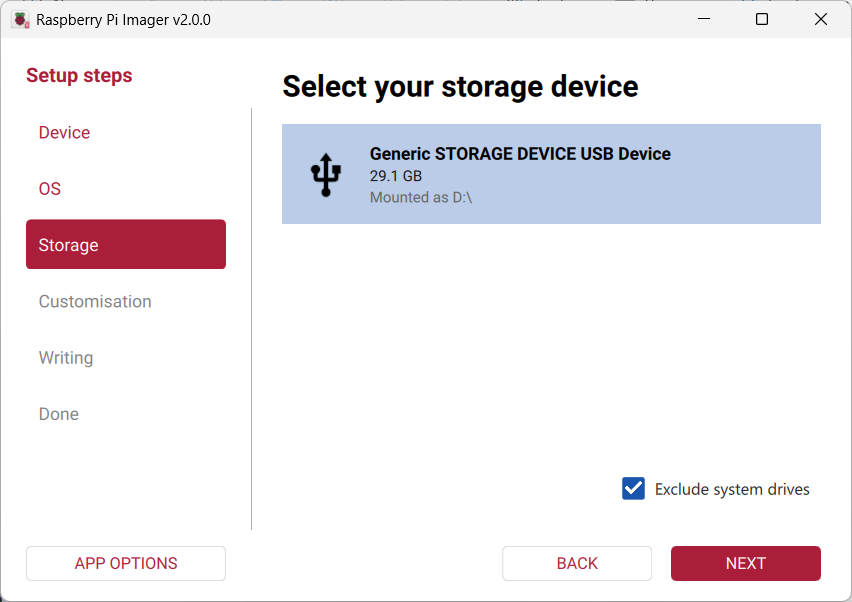

Select storage device

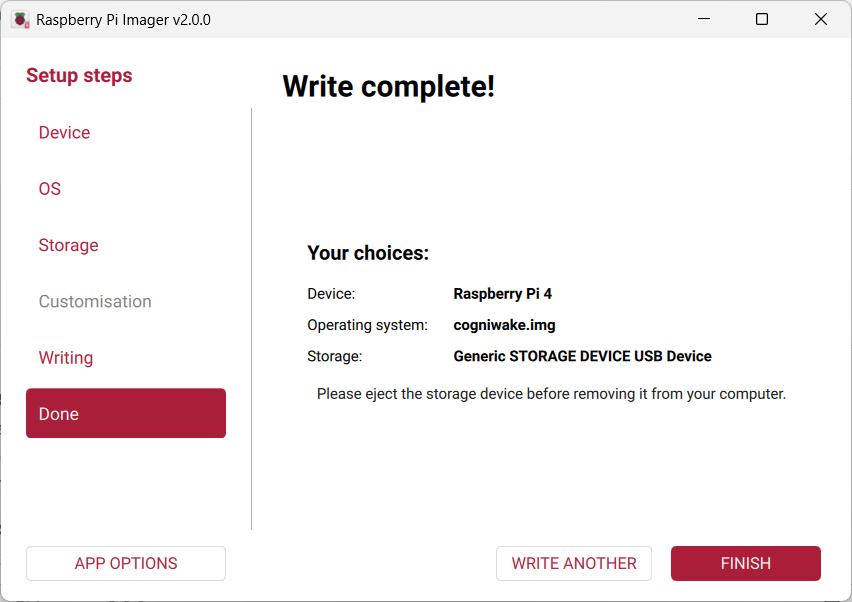

Flash

2. Insert SD card into Pi

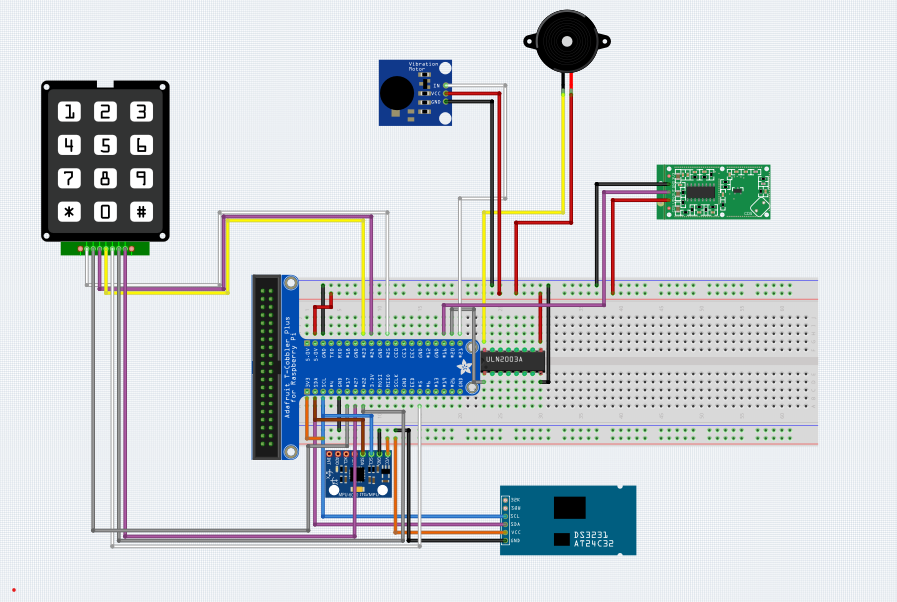

Building the Breadboard

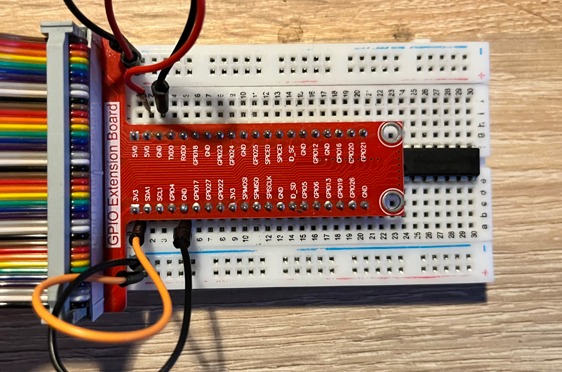

1. Connect the T piece cobbler to your pi's 40 pin header.

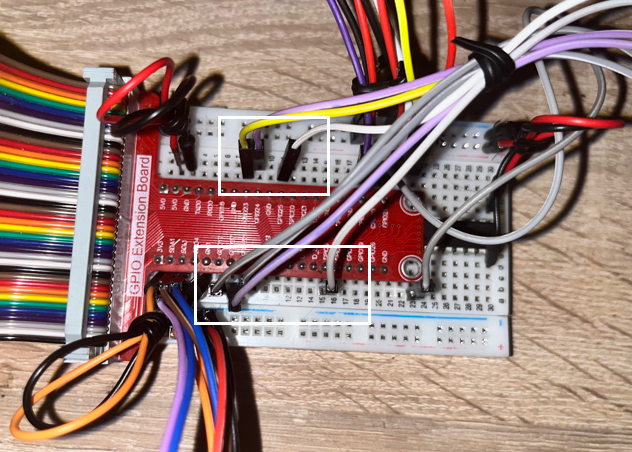

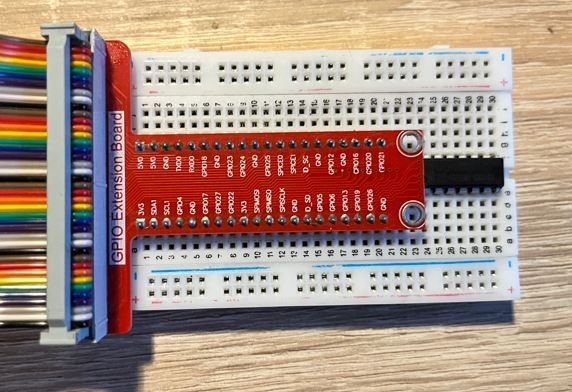

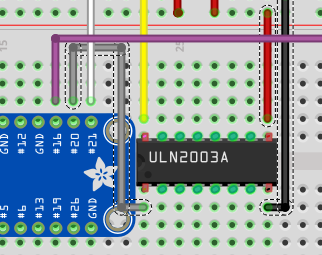

2. Place ULN2003 Darlington Array in breadboard.

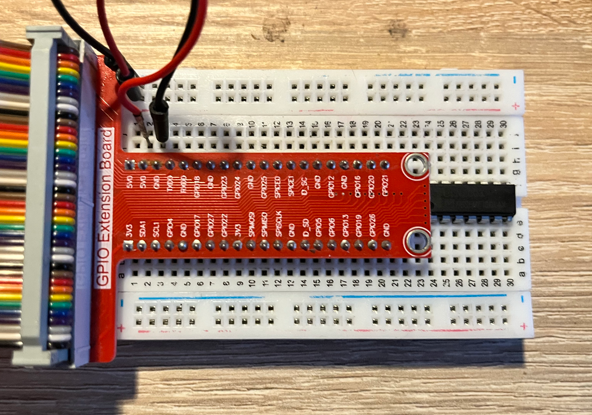

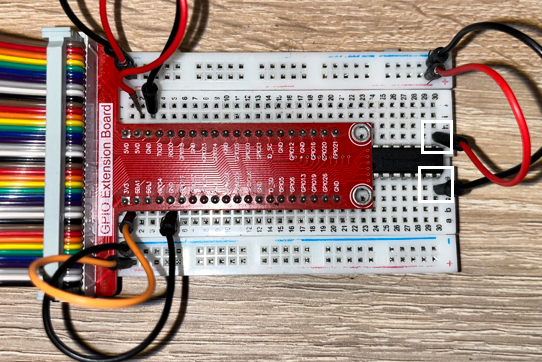

3. Connect 5V to the + rail and GND to the - rail on the 5V side.

4. Connect 3.3V to the + rail and GND to the - rail on the 3.3V side.

5. Connect 5V to ULN2003 pin 9 and GND to ULN2003 pin 8. ULN Pin 1 to GPIO 20

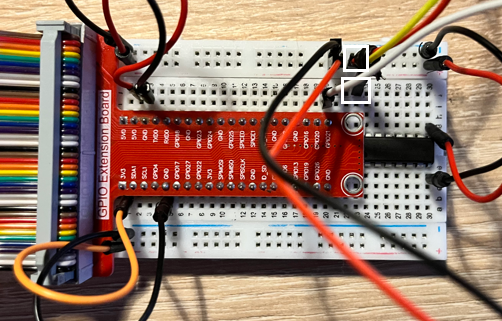

6. Connect buzzer 5V to the + rail and buzzer GND to ULN2003 pin 16.

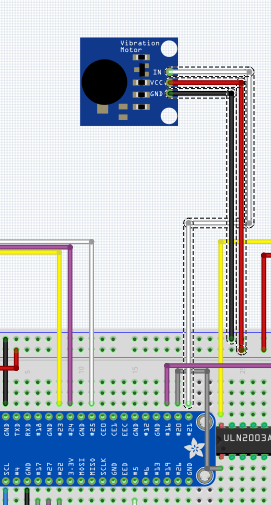

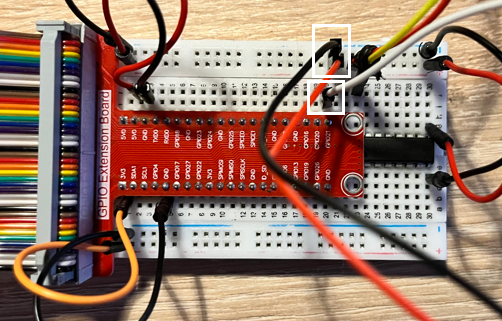

7. Connect vibration motor module 5V/GND to +/- rails and IN to GPIO 21.

>

8. Connect RCWL0516 Microwave Radar 5V/GND to +/- rails and OUT to GPIO 16.

Note: This component does not come with headers. Soldering your own headers is necessary.

9. Connect MPU6050 VCC/GND to 3.3V +/-rails and SDA/SCL to SDA/SCL (Pi)

connect AD0 to 3.3V to change the i2c address.
This is required because the RTC shares the same default address.

10. Connect DS3231 RTC VCC/GND to 3.3V +/- rails and SDA/SCL to SDA/SCL (Pi)

11. Keypad

Note: This component does not come with headers. Soldering your own headers is necessary.
Leave the outer 2 NC pins unpopulated
Pinout
1: C2 -> GPIO 25
2: R1 -> GPIO 17
3: C1 -> GPIO 24
4 R4 -> GPIO 23
5 C3 -> GPIO 5
6 R3 -> GPIO 22
7 R2 -> GPIO 27

Final Assembly

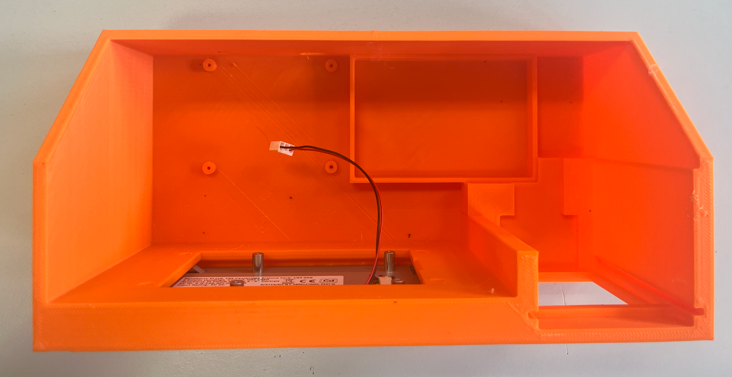

Get the 3D printable files from this GitHub Repository. The enclosure consists of 2 parts, the main body and the roof.

The roof slides into the slit behind the keypad and keeps both itself and the keypad in place. Adhesive pads can be added in case of tolerance mishaps.

Mounting the display

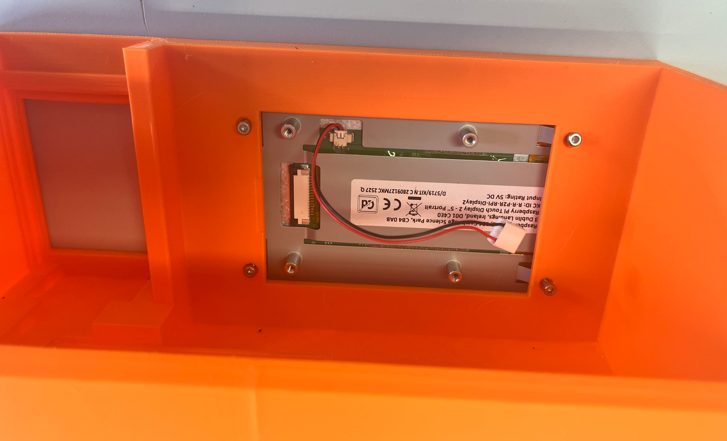

Fit the display in the recess

Attach the display using M2.5 screws.

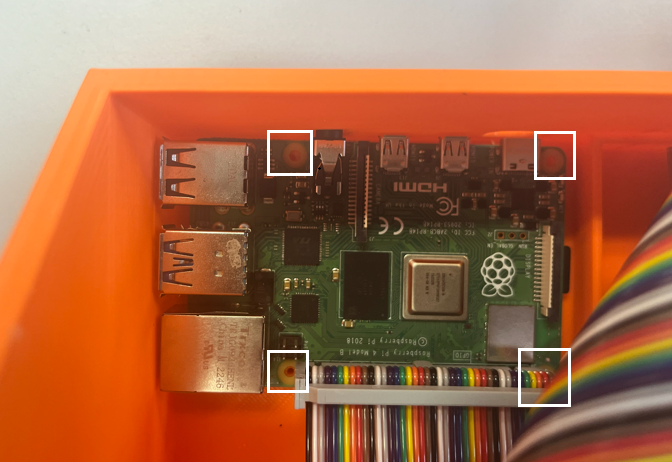

Mounting the pi

Mounting the breadboard

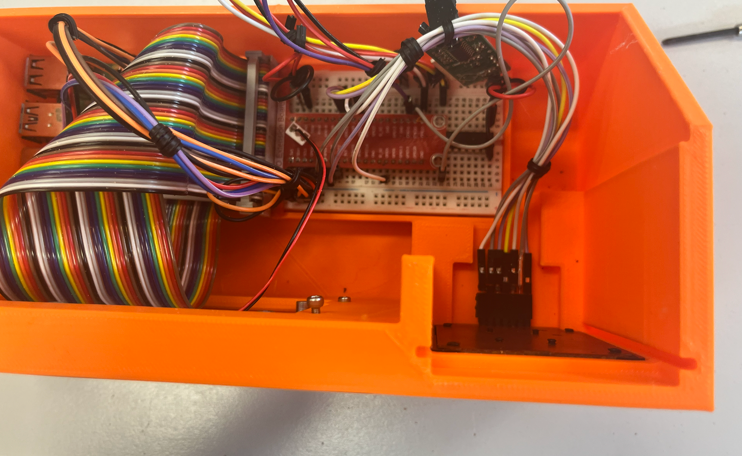

Peel off the adhesive strip on the underside of the breadboard and slot it in the tray.

Connecting the display

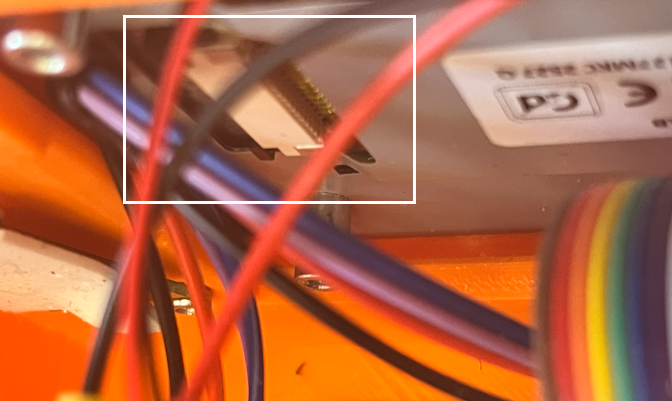

Connect the DSI cable to the ribbon slot on the display

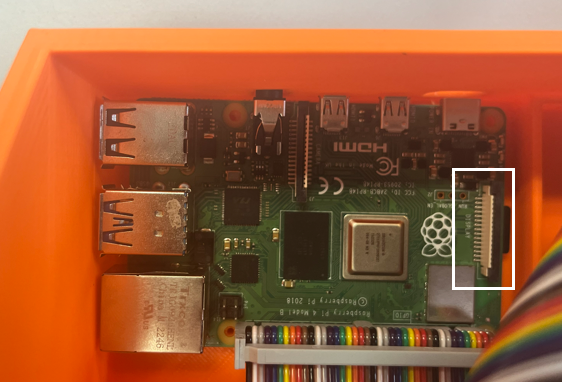

Guide the DSI cable to the DISPLAY port on the Pi.

Fit it with the metal contacts facing the inside of the Pi board.
Connect a red and black wire to the 5v and ground rail and connect these to their counterparts on the display connector.

Sensor mounts

Slide the keypad into the cutout

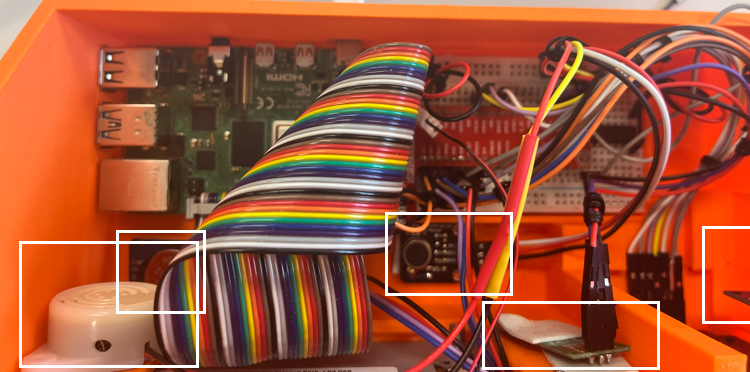

Use adhesive pads to stick the other sensors to the enclosure.

Mount the roof

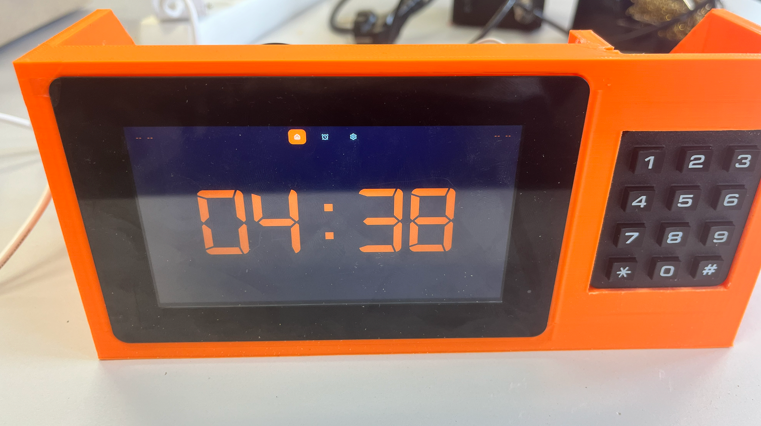

Before attaching the roof, plug in the USB-C cable and test if the SD card boots. If the device reaches the kiosk screen you can continue the assembly.

After confirming functionality, slide the roof mounting plate behind the keypad using the guide rails.
Depending on the tolerance of your 3d printer the fit could be loose and might require extra adhesive pads to keep the roof from moving.
