Illuminated Concrete Moon Sculpture

Hello Instructables family! I’m Sabyasachi from Infinity Workshop, and after a long break, I’m back with a brand-new project. I’m right in the middle of exams, but I managed to scrape together just enough time to bring this build to life—so please go easy on me if you spot any small mistakes along the way!

Without further delay, let's jump right into the build.

In this project, we are going to transform everyday cement into a textured, cratered lunar surface backlit by a soft, ethereal glow. By combining simple cement-crafting techniques with custom ambient lighting, you'll create a striking piece of functional wall art—which can even double as a unique coffee table top! Whether you want a modern celestial centerpiece for your living space or just want to experiment with concrete texturing, this step-by-step guide will walk you through layering, detailing, and wiring your very own illuminated moon.

What You'll Need

1. Materials: White cement (2 kg), wall putty (300 g), LED strip (length to suit your size), power supply (matched to your LED strip), heavy cardboard or Masonite board, standard glue (1 kg), waterproof glue (like Fevicol Marine), acrylic paints (black and white), clear matte sealer or varnish, full-scale moon reference printout, carbon or tattoo transfer paper, marker, painter's tape.
2. Tools: Mixing bucket, trowel, sculpting tools, coarse sandpaper, rotary tool with bit attachments, jigsaw (if using Masonite or thick board), hot glue gun, soldering iron (optional), clamps/clips, paintbrushes, dust mask & safety glasses, spray bottle (for water).
3. Difficulty: Intermediate
4. Time Required: 4–5 days (including drying and curing time)

Reclaim & Measure: Gather your leftover cardboard or board scraps. Use a tape measure and a pencil to mark out a 12-inch radius (24-inch diameter) circle on each sheet.

Layering Scraps: If your scrap pieces aren't large enough to cut full circles, don't worry—cut partial shapes and piecemeal them together across layers. Stacking offset pieces will still yield a solid, rigid core.

Precision Cutting: Use a jigsaw to cut out your marked circles. A fine-toothed blade (like a metal or fine-wood scroll blade) is highly recommended here, as it minimizes tearing and leaves much cleaner edges on cardboard or Masonite.

Safety First: Clamp your board firmly to your workbench before cutting, and wear eye protection—jigsaws can throw off fine dust quickly.

Spread a thick, even coat of glue between every single layer. Don't be shy with the glue here—using a good amount makes sure all your pieces stick together as one solid block.

Align your full circle pieces right in the center. If you have a smaller piece like I did, stick that right on top to give your base extra thickness in the middle.

Once everything is stacked, pile on the heaviest things you can find around the house—like heavy books, water jugs, or weights. Leaving heavy weight on top squeezes out all the trapped air, keeps the cardboard from bending, and makes your base super strong and flat once it dries.

Trim away any overhanging edges with a utility knife or your jigsaw to get a clean, round circle.

If you notice gaps between the layers or realize the inner glue hasn't fully set yet—just like I found in my build—don't panic. Squeeze extra glue directly into those open seams, then attach binder clips or spring clamps all around the perimeter. Put your heavy weights back on top of the stack and let it sit until the glue dries completely rock-hard. This extra step stops the edges from peeling apart later under the weight of the cement.

Once your cardboard stack is completely dry and rock-solid, it’s time to waterproof it. Cardboard acts like a sponge, so if wet white cement touches untreated cardboard, the water will soak right in. That soaking will warp your cardboard base, ruin your circular shape, and weaken the whole sculpture.

To stop that from happening, cover every single square inch of your cardboard form with a heavy layer of waterproof adhesive, like Fevicol Marine. Coat the front, back, and especially the exposed side edges where the cardboard layers meet. Use a paintbrush or scraper to work the glue into every tiny seam and gap.

Let this coat dry completely until it forms a hard, water-resistant barrier. Spending a little extra time on this step guarantees your cardboard stays bone-dry and perfectly flat when you apply the wet cement layers later.

Now that your base is sealed tight, it's time for the first layer of cement. Take your white cement and slowly mix it with water until you get a smooth, thick consistency—think of something like peanut butter or thick cake batter. You don't want it too runny, or it will spill over the sides, but it needs to be soft enough to spread easily.

Spread an even layer of this cement mix across the entire front face and around the side edges of your prepared cardboard form. Use a trowel, a flat spatula, or even a gloved hand to smooth it out. This initial coat creates a solid, bright white foundation that covers your base and gives your detailed lunar textures something strong to stick to in the next steps. Let it set completely before moving on to sculpting the craters.

To give the moon a realistic 3D shape, apply another layer of white cement, thicker in the center and tapering off toward the edges to form a subtle dome. Work fairly quickly—you want to add this while your base coat is still slightly fresh so the layers bond together properly instead of drying separately and cracking.

Keep your cement layer light and controlled. I made the mistake of piling on way too much material here, which added unnecessary weight and caused hairline cracks as it dried. To avoid those cracks and keep the piece lightweight, build the volume gradually and keep the total thickness under a few millimeters. Smooth out the curve using a wet trowel or gloved hands, then let it set until it is firm enough for crater details.

Once your cement dome has dried and cured completely, it is time to shape and smooth the surface. Take coarse 40-grit sandpaper first to aggressively knock down high spots, rough ridges, and any unexpected bumps or uneven elevation errors left over from the cement application.

After leveling out the major flaws, switch to 80-grit sandpaper to blend the surface and refine the overall contour of your dome. Finally, pass over the entire face with 100-grit sandpaper to give your base a clean, smooth finish. Work in gentle, circular motions and wipe away the fine dust periodically so you can check your progress. Getting the surface smooth now ensures that your moon texture and crater details will look crisp and realistic in the next stage.

Find a high-resolution, top-down image of the moon online that clearly shows the major craters, maria (the dark plains), and ray systems. Scale the image on your computer so its diameter matches the exact size of your concrete dome. Since a 24-inch printout won't fit on a standard home printer, use a "poster print" setting or an online tool to split the image across multiple A4 pages. Print these out, align the overlapping grid lines carefully, and tape the sheets together to create your full-scale moon template.

Next, place transfer paper—such as carbon paper, graphite transfer sheets, or tattoo stencil paper—dark-side down across your smoothed cement surface. Lay your taped moon template directly on top and lock it in place around the edges with painter's tape so it cannot shift while you work.

Using a ballpoint pen, stylus, or fine marker, trace firmly around every crater ring, main ridge, and textural boundary. Apply steady pressure so the dark pigment transfers clearly onto the light cement face. Once you have traced all the key landmarks, peel back a corner of the paper to verify that the transfer lines are sharp and visible before lifting off the template entirely. You now have a precise, accurate map directly on your sculpture to guide your carving and detailing tools.

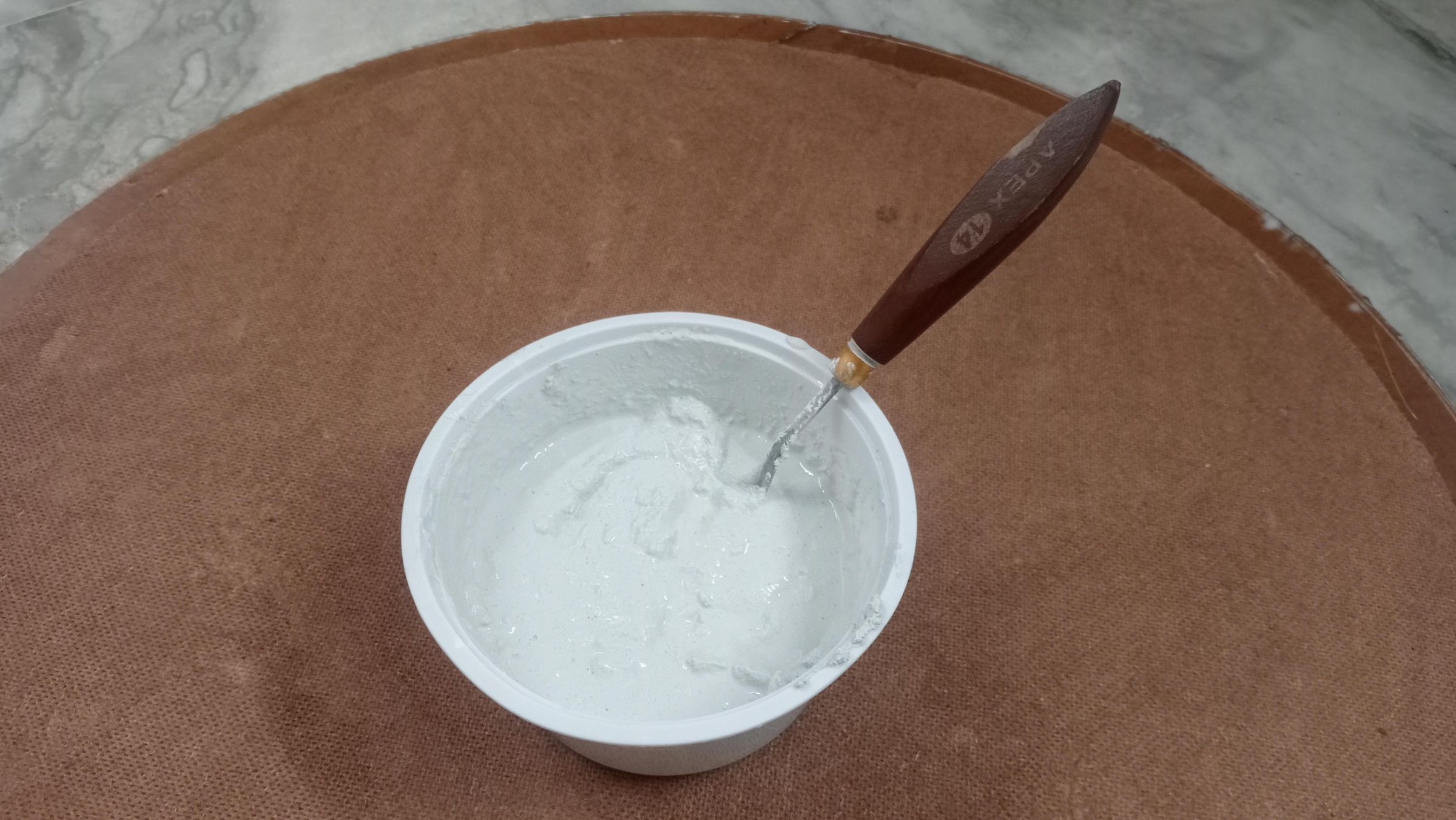

Mix your wall putty with water to create a workable, creamy slurry—thick enough to hold its shape, but soft enough to spread smoothly. Using your transferred pattern lines as a guide, carefully build up the higher elevation regions, crater rims, and raised lunar plateaus. Keep a 3D model or reference image of the moon open on your phone or computer so you can match the actual topography as you lay down the material.

Once you have mapped out and applied all the raised details, let the wall putty set and dry completely until it turns rock-hard.

After everything has fully cured, take fine sandpaper (around 120-grit to 220-grit) and lightly sand the entire surface to an even, continuous level. Soften any sharp edges and blend the wall putty seamlessly into the cement base coat beneath it. This gives your craters and high-altitude areas a natural, realistic elevation without looking like rough chunks stuck onto the sculpture.

Mix a small batch of thin wall putty slurry. Dip the tips of a dry, stiff 2-inch paintbrush into the mixture, then hold the brush perpendicular to the sculpture and tap the bristles firmly across the surface in a bouncing motion.

This stippling technique leaves behind thousands of tiny, raised micro-bumps that mimic the rough, pitted soil of the actual lunar regolith. Focus heavier tapping around crater rims and rough terrain, and keep it lighter on the flatter plains. Let this textured layer dry completely—no sanding needed for this step, as those tiny bumps are what give the sculpture its authentic, realistic stone feel under light.

Now grab your sculpting tools to carve out the depth of the meteor holes, crater centers, and surface dents directly into the putty layers. Use rounded loops, small gouges, or dental picks to scoop out material from the crater interiors while keeping the surrounding rims raised to mimic the real lunar surface.

For faster work and cleaner results, bring in a rotary tool with a small ball-head or round carbide bit. Use high speed with a soft, gentle touch to hollow out deeper impact craters, score thin impact rays spreading outward, and smooth out the inner walls of larger basins. Work back and forth between your rotary tool for quick shaping and hand tools for fine detail work until the surface matches your reference image.

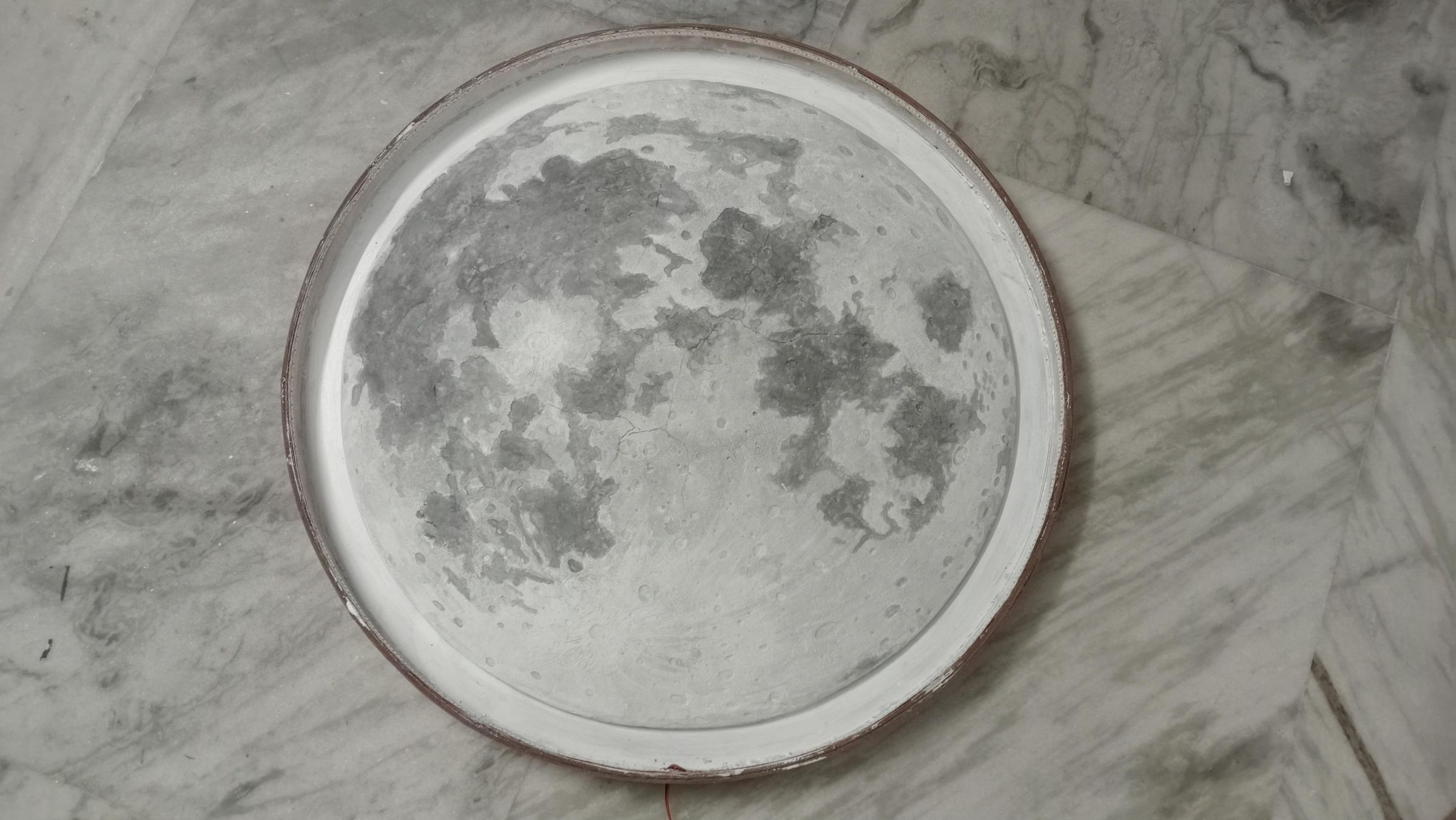

To mimic the Moon's surface accurately with black and white acrylics, use a dry brushing and sponging technique rather than flat coats.

1. Dark Parts (Maria / Basalt Plains): Mix a dark charcoal grey rather than pure black. Dab it on with a textured sea sponge or a crumpled paper towel to create soft, uneven terrain edges.
2. Light Parts (Highlands / Anorthosite): Use pure white or a very pale light grey. Apply it with a stiff, dry brush using light stippling motions over the raised areas to let the dark tones show through the crevices.
3. Craters & Contrast: Add tiny specks of white on the edges of your dark regions to simulate impact rays, and sweep a faint wash of medium grey around the crater rims to build depth.

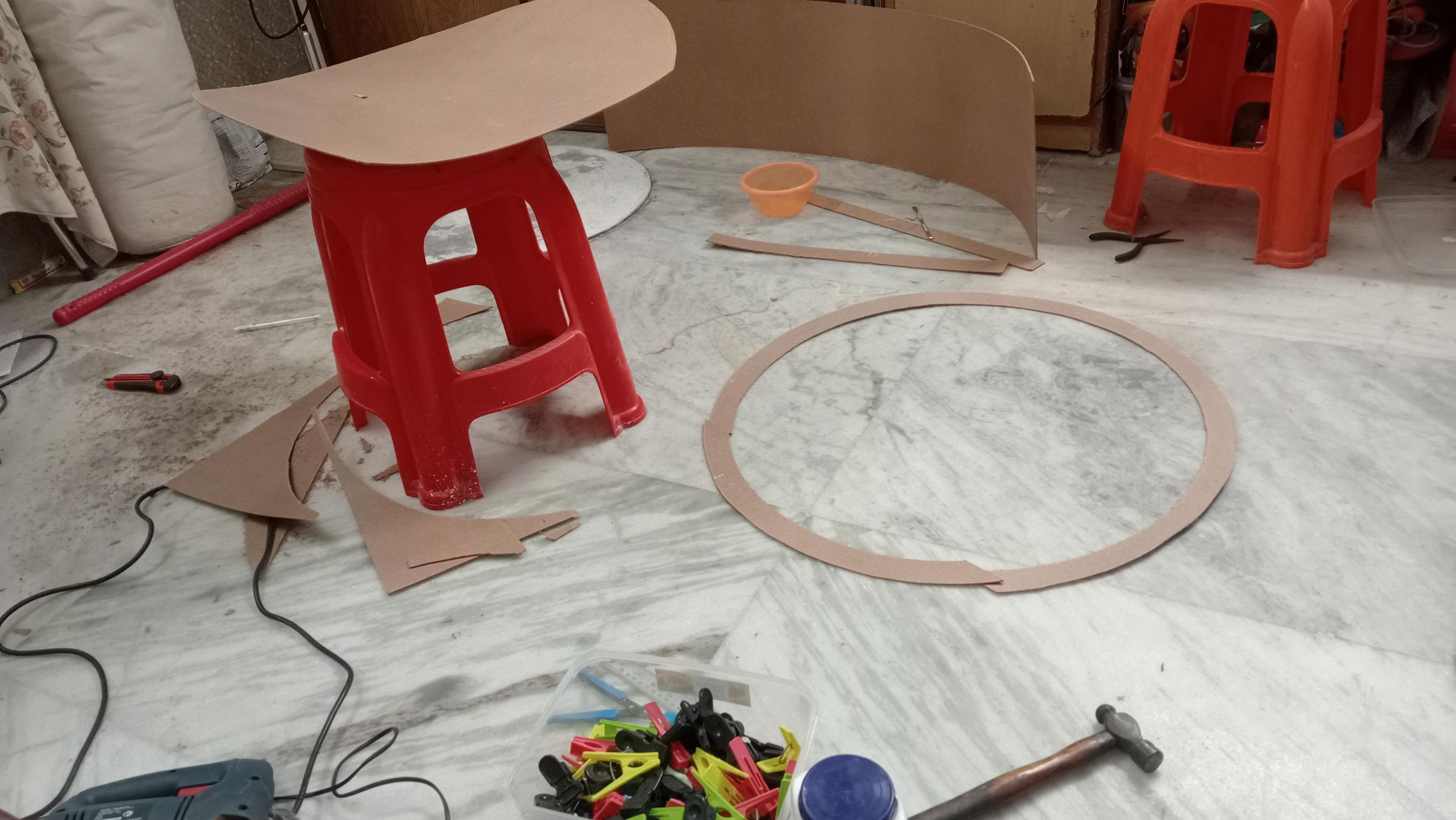

To frame your moon sculpture and house the electrical wiring without locking everything in permanently, build a separate, detachable mounting base:

1. Cut the Outer Rim: Cut cardboard strips 3.5 cm wide to form the side wall of your frame.
2. Form the Enclosure Base: Cut a large cardboard circle about 27 inches in diameter (giving your 24-inch moon a clean border all around) and attach your 3.5 cm strips around the outer perimeter to form a shallow dish.
3. Reinforce with Leftover Board: Glue extra cardboard pieces across the top and inside panels to give the enclosure solid structure.
4. Clamp and Dry: Apply plenty of glue along the seams, securing the rim with binder clips or spring clamps until the structure dries rock-hard.

Keeping this base enclosure completely separate from the moon sculpture allows you to pop the moon off anytime you need to access the wiring, replace LEDs, or mount the frame to your wall.

Mount the LED Strips: Run 12-volt white LED strip lights around the inside floor of your base enclosure. Stick them down in a circular pattern facing inward or upward so the light reflects off the bright white inner surface.

Pass the Power Cable: Drill or punch a clean hole through the bottom or side rim of the cardboard enclosure. Thread the 12-volt power leads or female DC jack through this hole to connect to your LED strip.

Attach and Seal the Moon: Place your finished moon sculpture down into the center of the enclosure. Align it evenly so you have a balanced glow leaking around the edges, then secure it into the base frame using hot glue, small mounting brackets, or a snug press-fit.

Close up and Power On: Tuck all excess wiring neatly out of sight inside the hollow cavity, close up any back access panels, and plug in your 12-volt power adapter to watch your illuminated lunar sculpture come to life.

Step back, dim the room lights, and flip the switch on your 12-volt power supply.

When powered on, the cool white LED halo bounces off the reflective inner base, throwing dramatic backlighting across your wall. The soft glow highlights every carved crater, raised ridge, and stippled texture on the surface, giving the entire piece the unmistakable depth and silhouette of the real moon floating in space.

Conclusion

Building your own illuminated concrete moon takes a bit of patience—between letting the cement layers cure and waiting for the wall putty to dry—but the end result is a high-end piece of wall art that looks straight out of a studio.

By combining a lightweight cardboard frame with real cement textures and low-voltage lighting, you get the heavy, authentic look of carved stone without the weight or cost. Mount it in your living room, studio, or bedroom as a ambient night light and focal piece.

If you build your own version, drop a photo in the comments below—I'd love to see how your lunar topography turns out!
