Crafting a Miniature Orcrist : Precision Aluminum Shaping With Mixed-Material Metalworking

Welcome to my guide on recreating Orcrist, the Goblin-cleaver, from The Hobbit as a highly detailed miniature masterpiece. Movie replicas are always a favorite in the maker community, but building one at a miniature scale presents a unique challenge: it demands jewelry-level precision, where a single millimeter can make or break the symmetry of the iconic "dragon tooth" blade.

Instead of relying on heavy industrial machinery or an advanced blacksmithing forge, this project is designed to be built entirely in a home workshop using highly accessible materials.

By combining different mediums, this build achieves a premium, realistic depth that goes far beyond a standard single-material toy:

1. The Blade & Accents: Shaped and polished completely from raw aluminum stock to achieve a brilliant, authentic metallic shine.
2. The Grip: Outfitted with custom-carved wood handle scales, providing a rich, organic contrast against the bright metal.
3. The Scabbard: Cleverly formed from a PVC sheet and layered with detailed aluminum sheet overlays to perfectly match the Elven aesthetic of the sword itself.

Whether you are a Lord of the Rings fan looking to add a cinematic relic to your desk, or a fellow maker looking to practice fine metal shaping, material blending, and plastic thermoforming, this step-by-step guide will take you through the entire journey from raw scraps to a finished legendary artifact. Let's get making!

Before cutting into the metal, it is essential to gather all your materials and safety gear. This project relies on a blend of materials to achieve a realistic, high-contrast finish without requiring a blacksmithing forge.

Materials & Tools

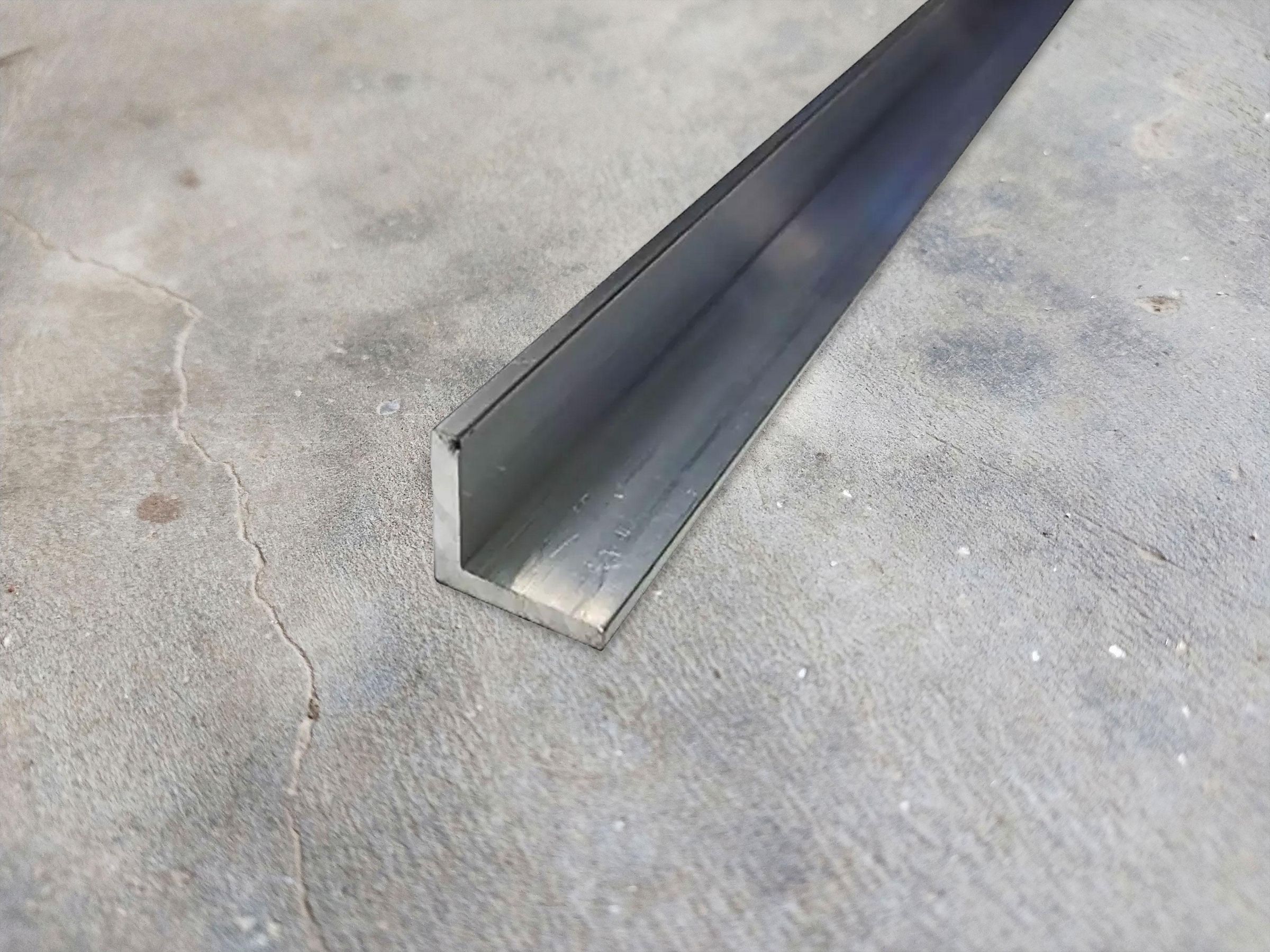

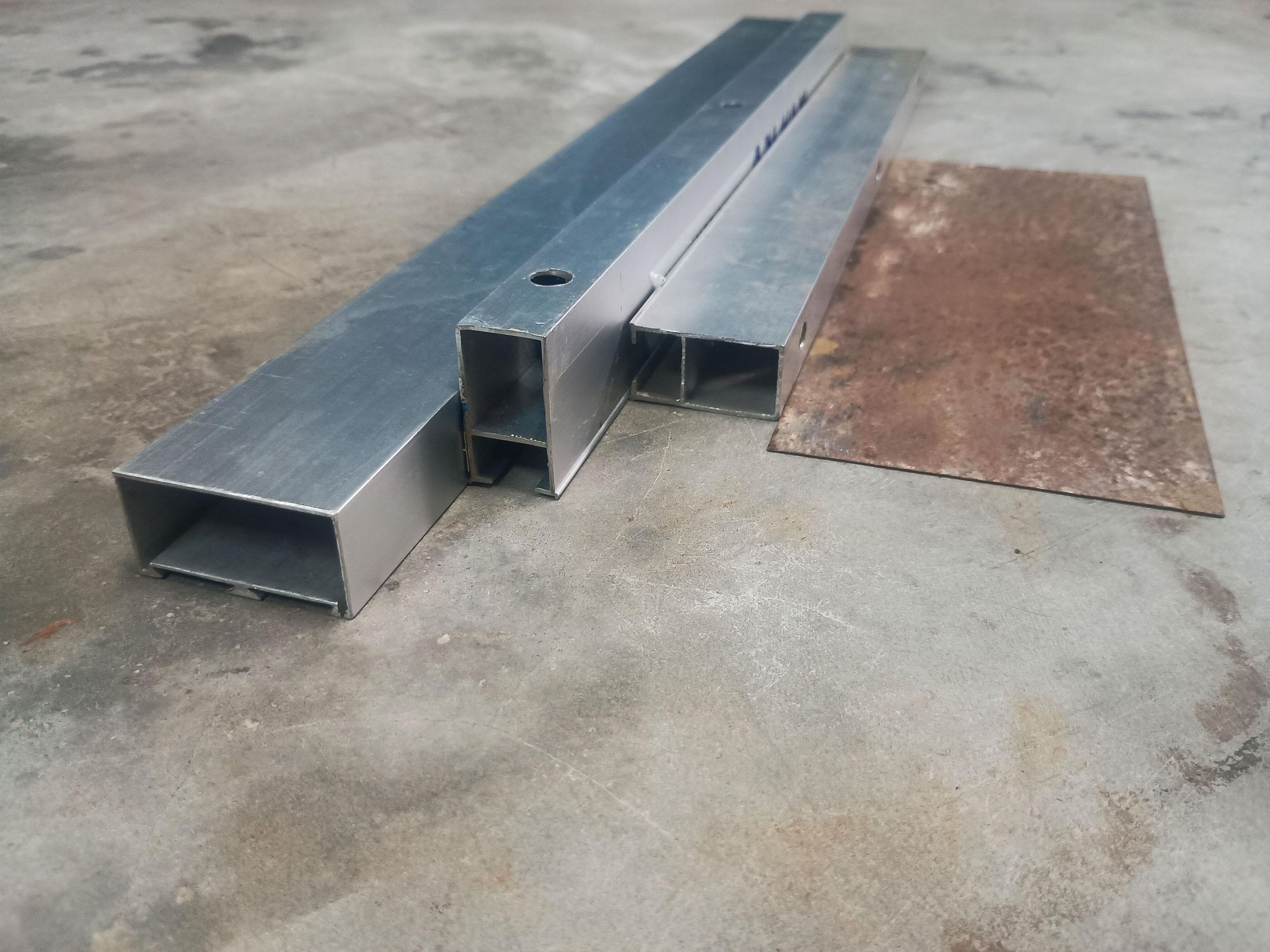

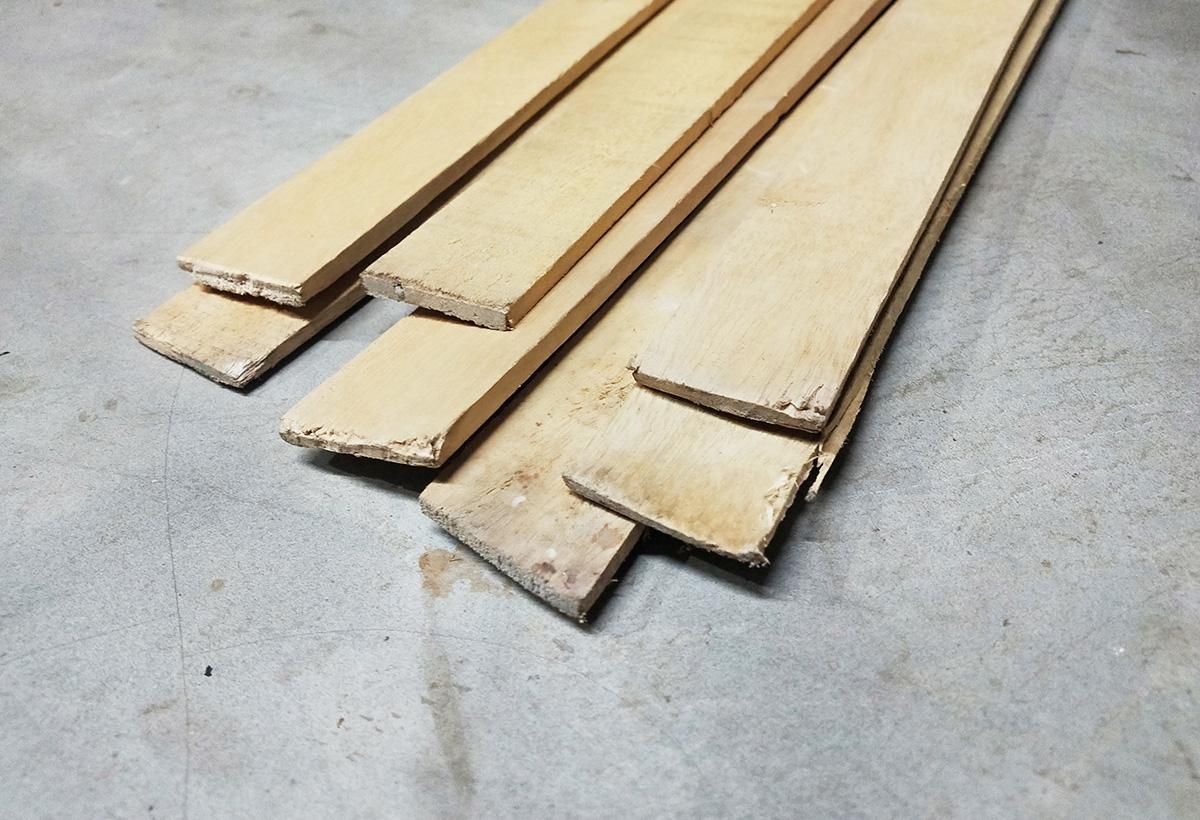

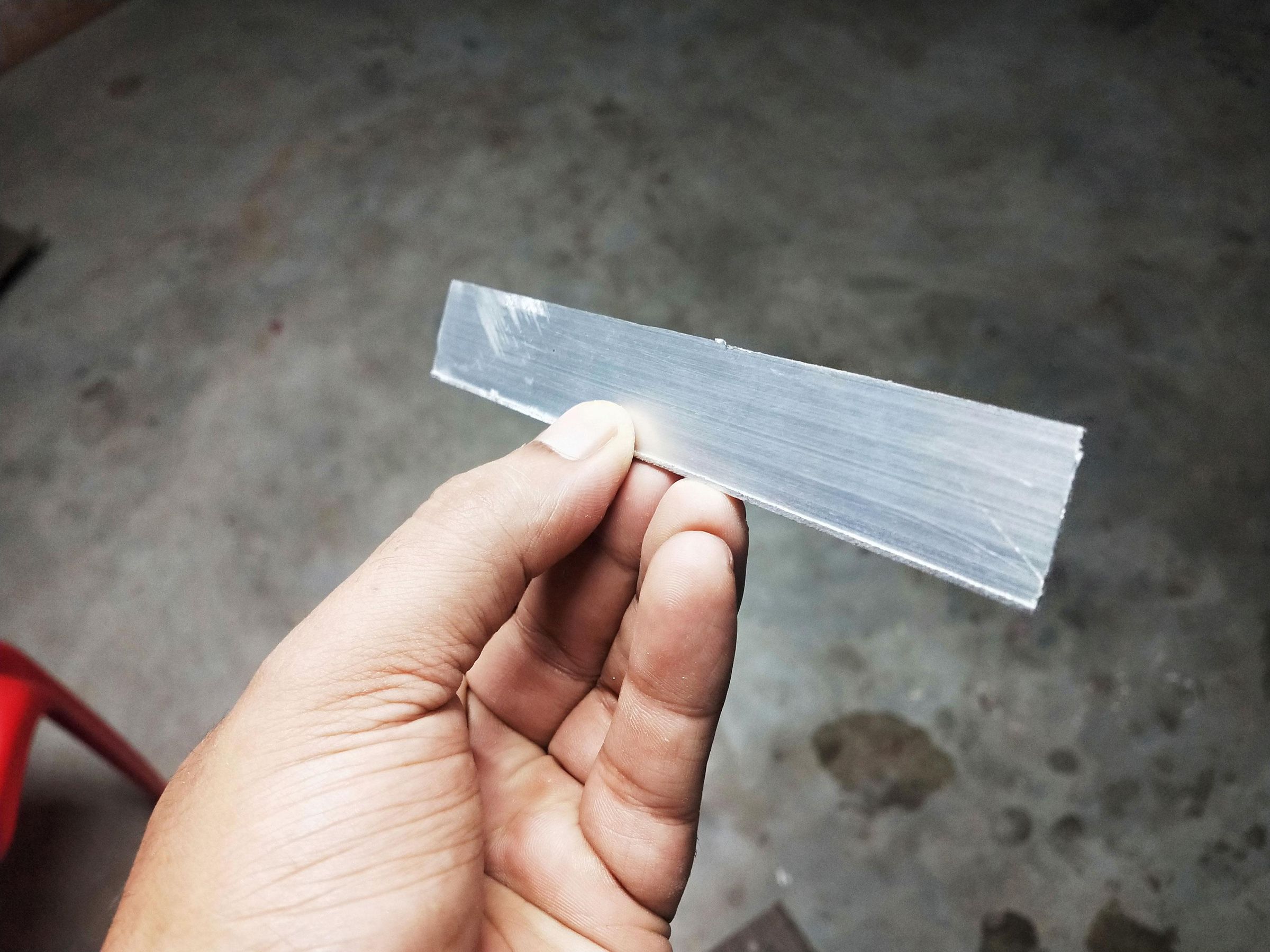

1. Core Materials: 1mm aluminium bar (blade), 2.5mm aluminium (guard), wood scrap (handle), PVC sheet (sheath), and thin metal sheet (sheath overlay).

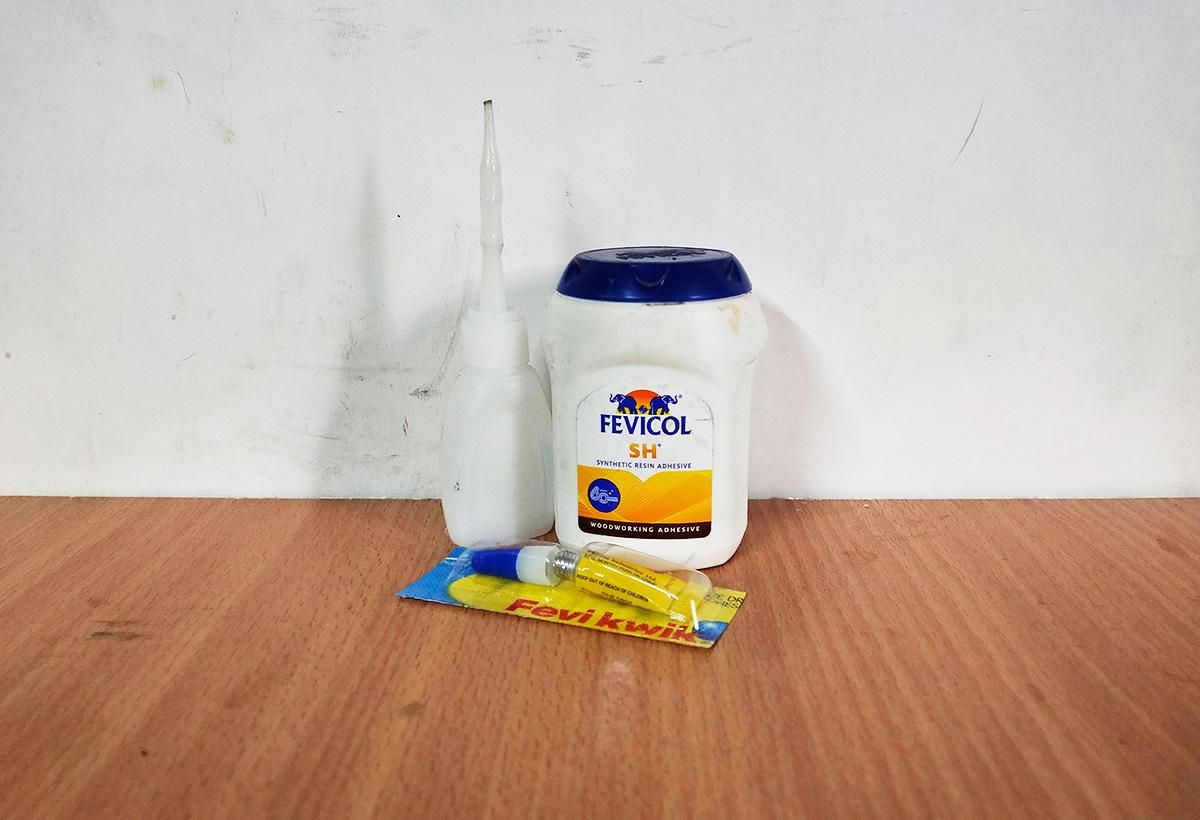

2. Adhesives: Epoxy glue (for bonding the wood handle to the metal tang) and super glue (for assembling the sheath components).

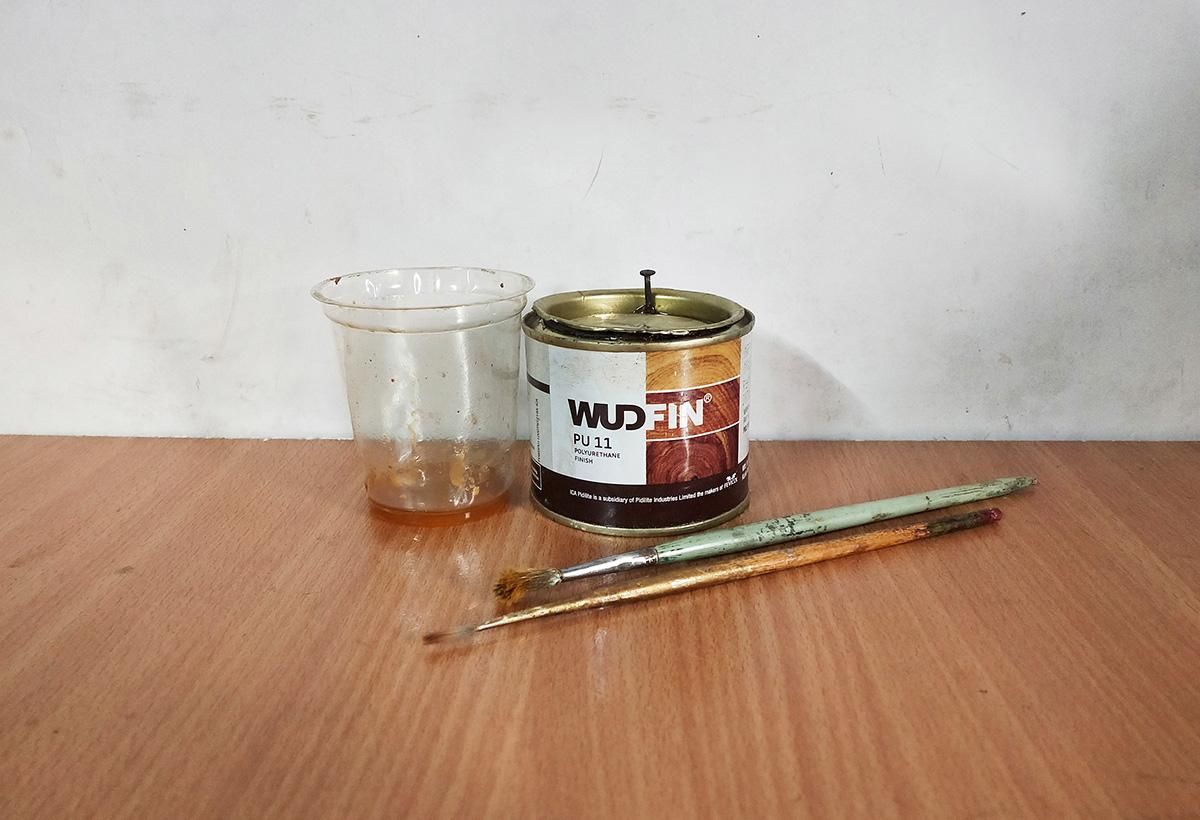

3. Finishing & Details: Varnish, golden color paint, and color brushes.
4. Software: Autodesk Fusion 360 for precision template scaling and 3D layout tracking.

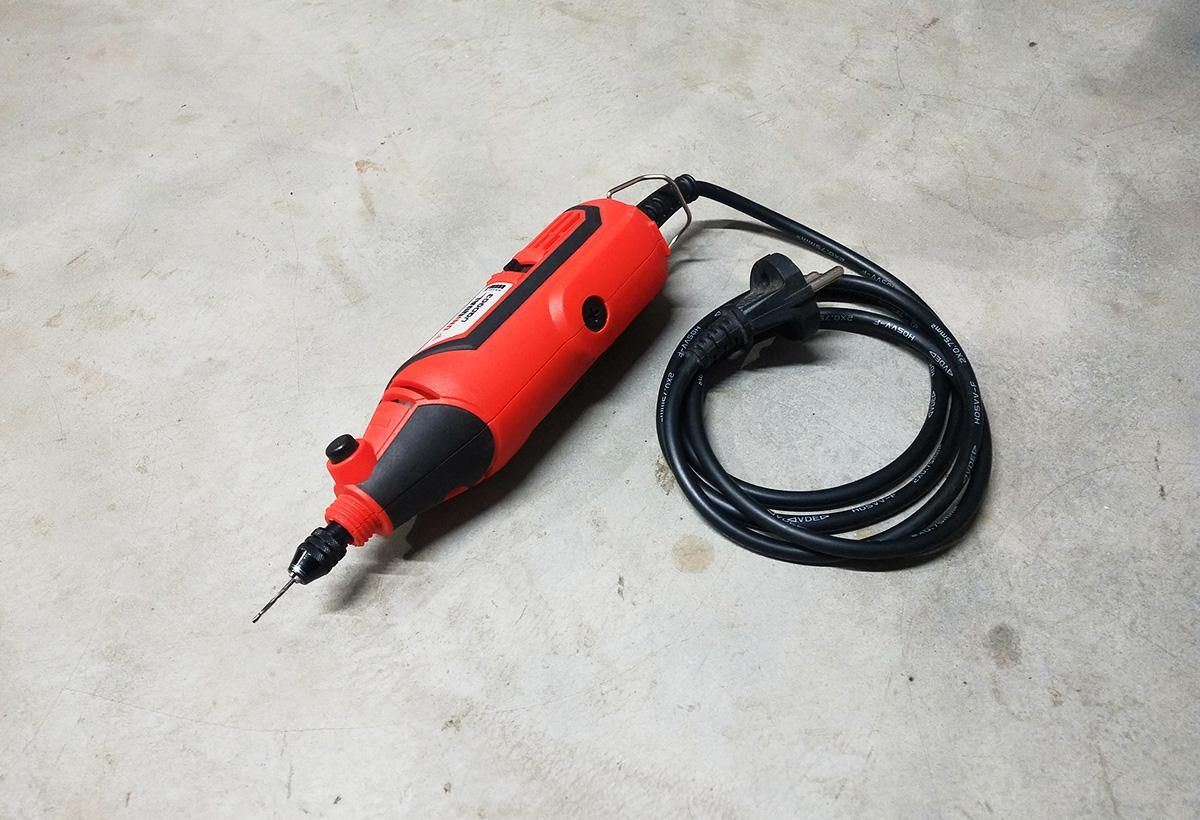

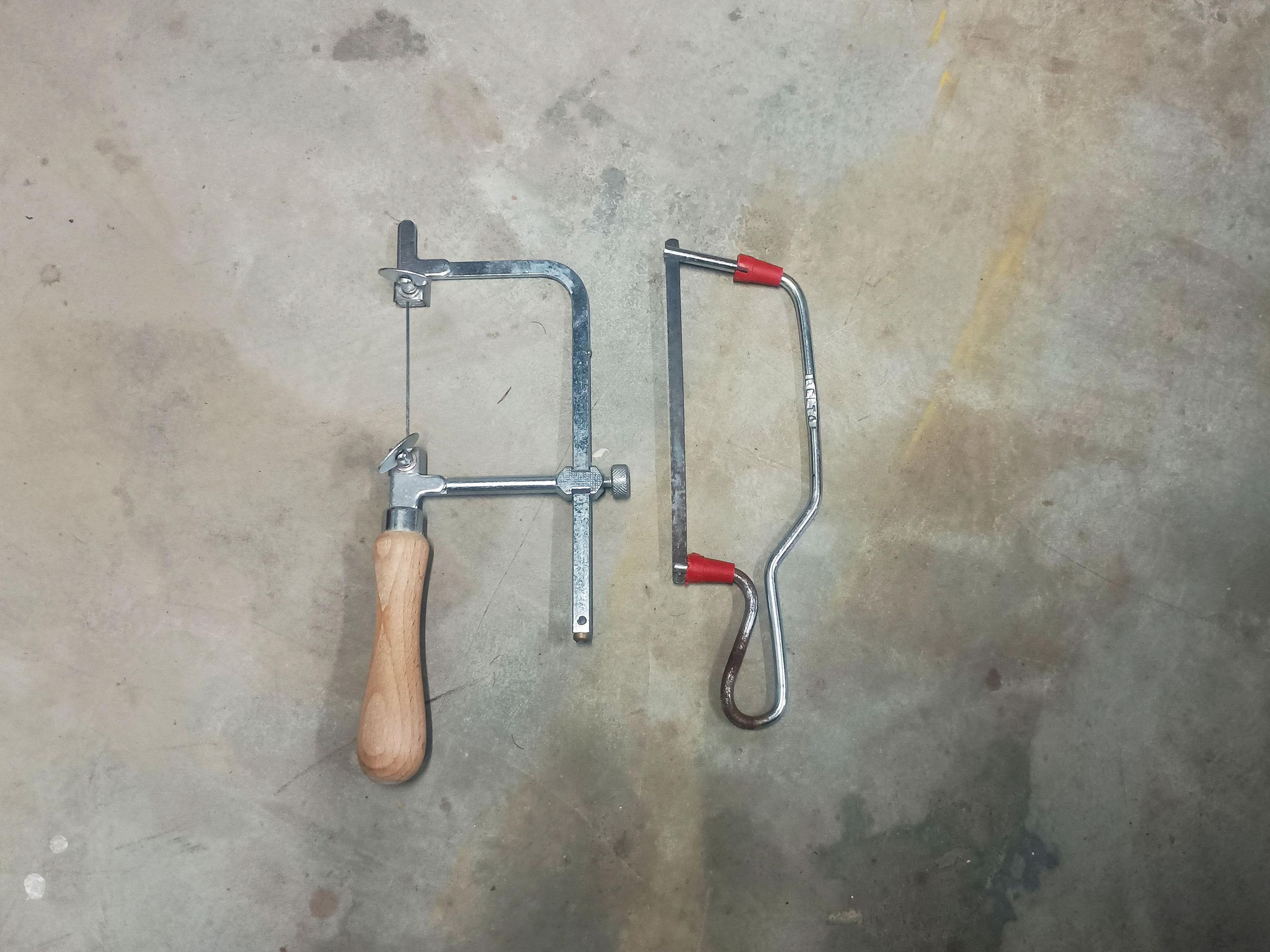

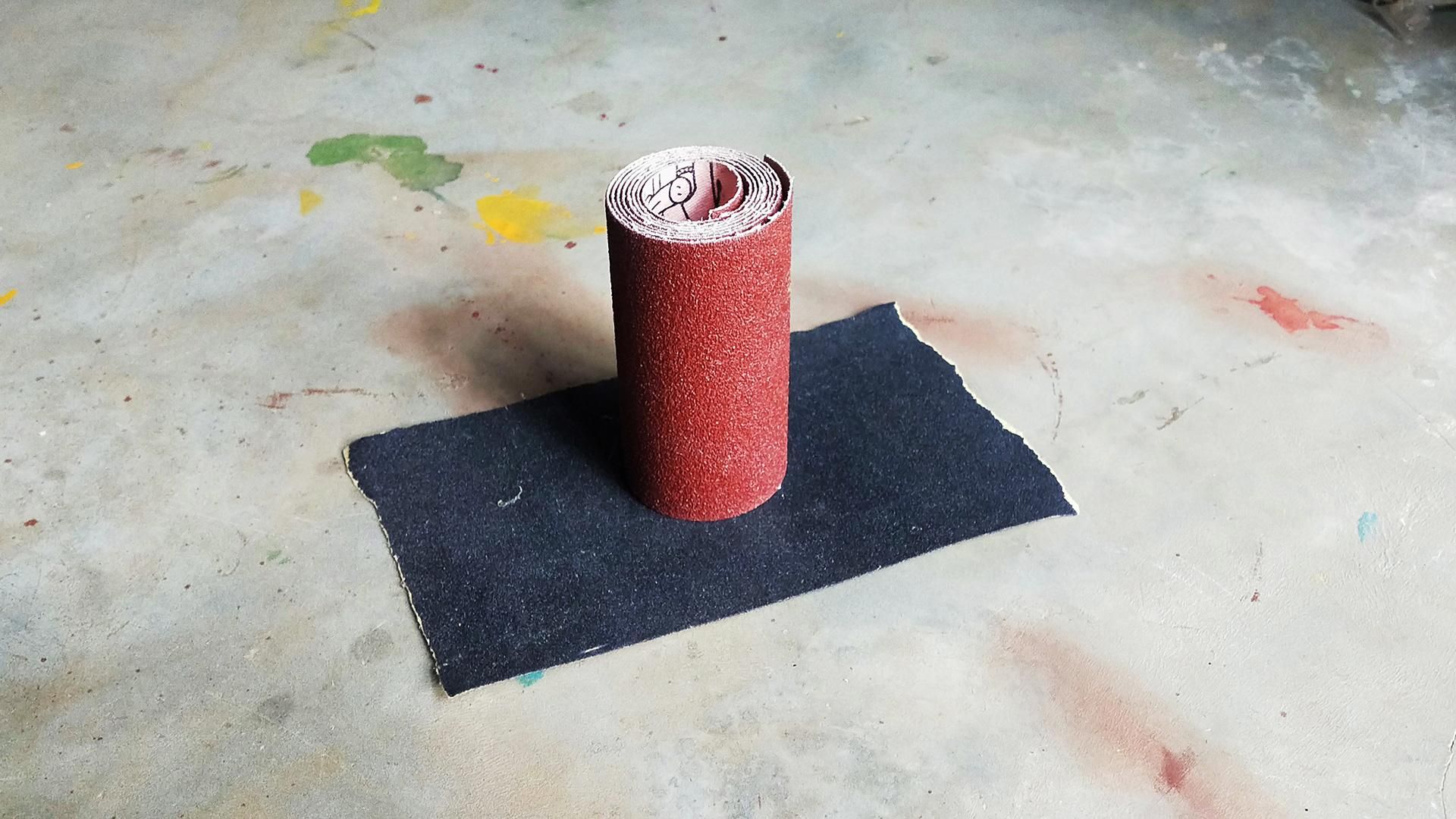

5. Cutting & Shaping: Mini hacksaw, rotary tool (for polishing), hand files, and assorted sandpaper grits.

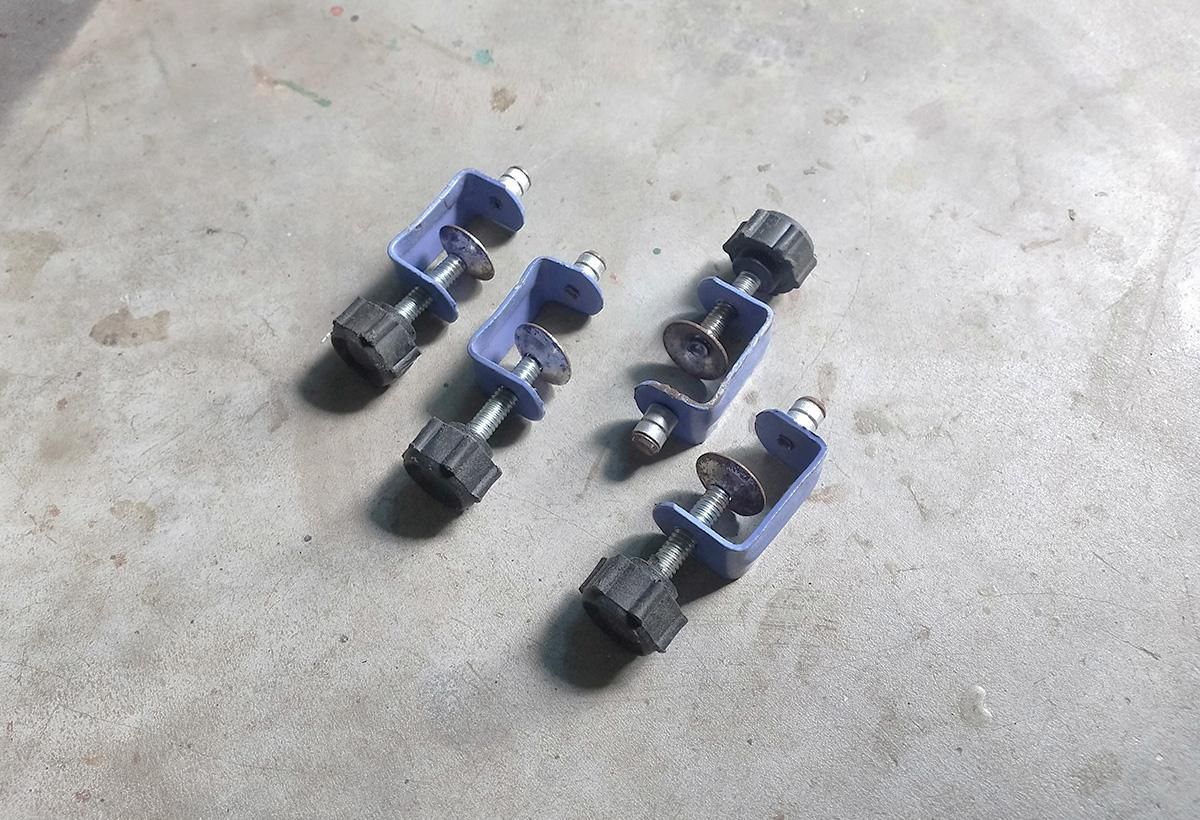

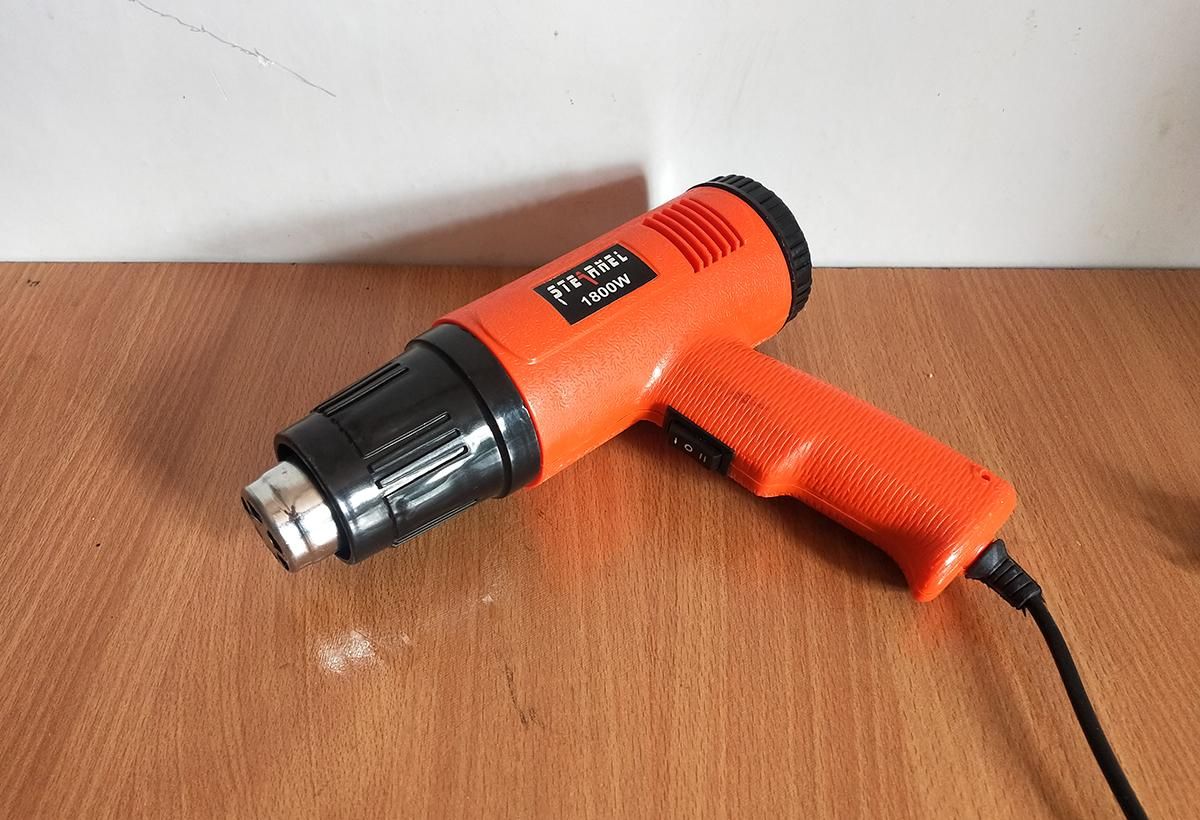

6. Assembly & Molding: Hot air gun (for PVC thermoforming) and clamps.
7. Safety Gear: Hand gloves and protective eyewear/dust mask.

So, I have break down the step-by-step fabrication guide for you, let's dive into the making.

Before cutting metal, precision was established digitally to match the miniature scale.

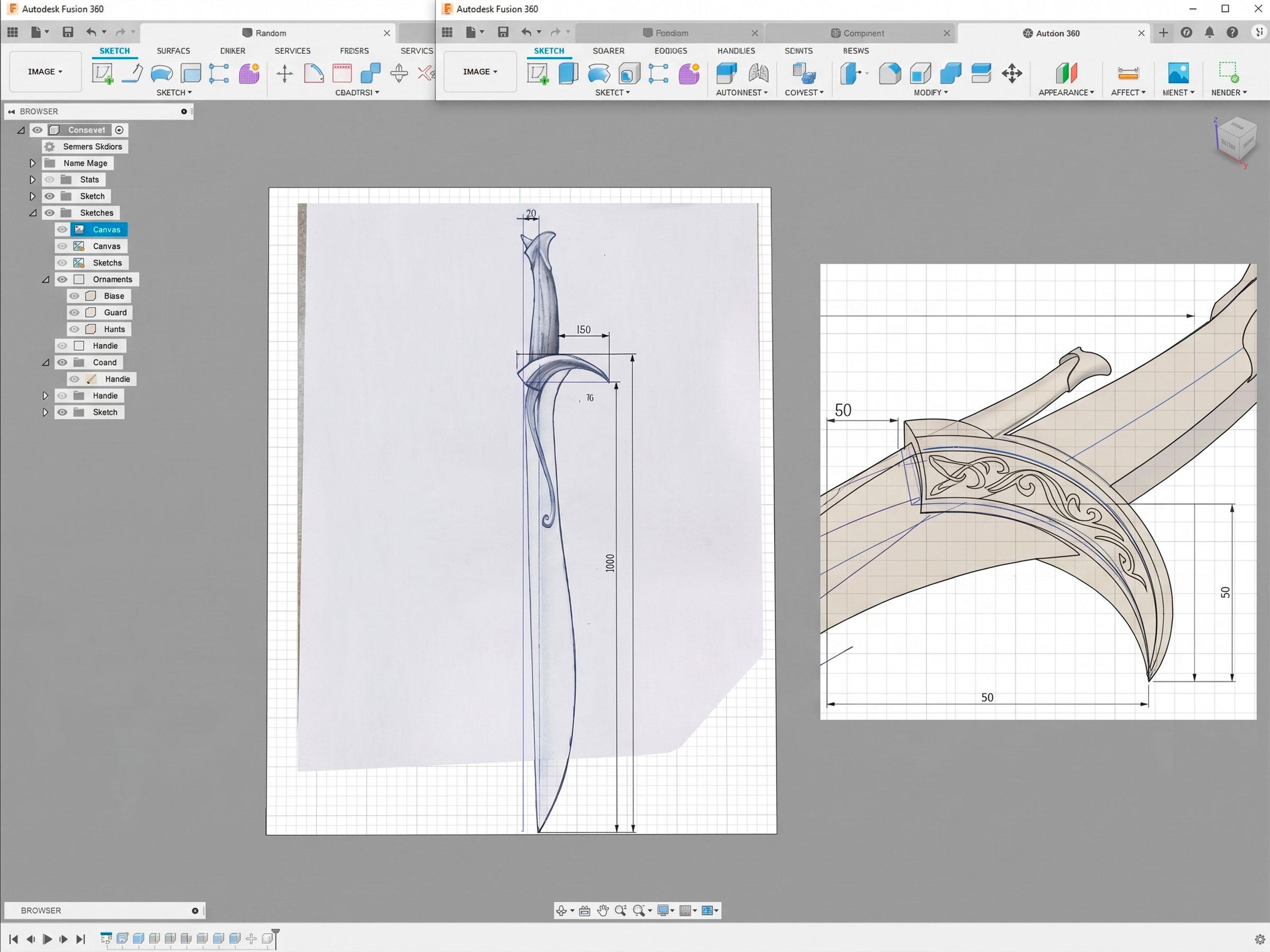

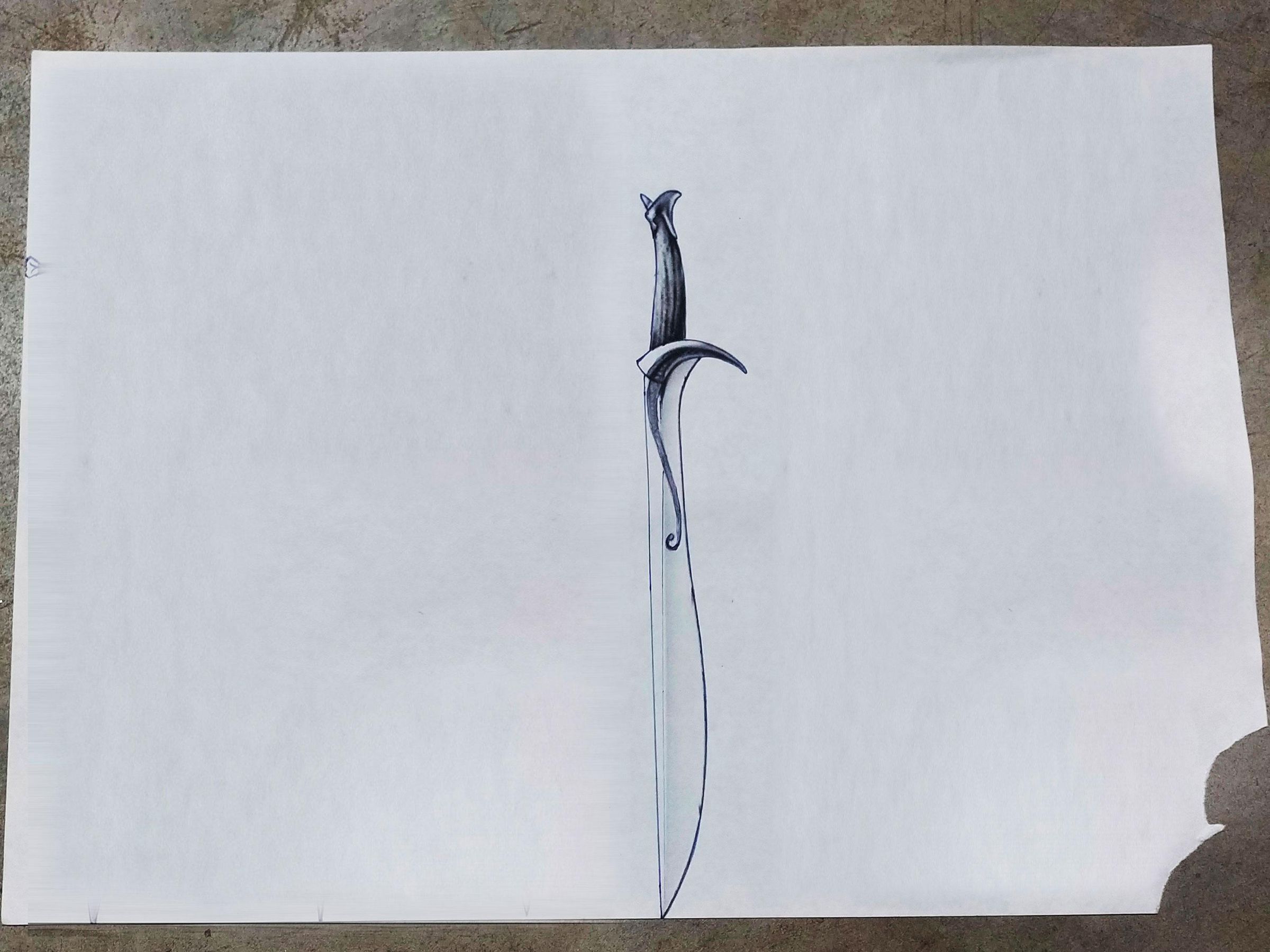

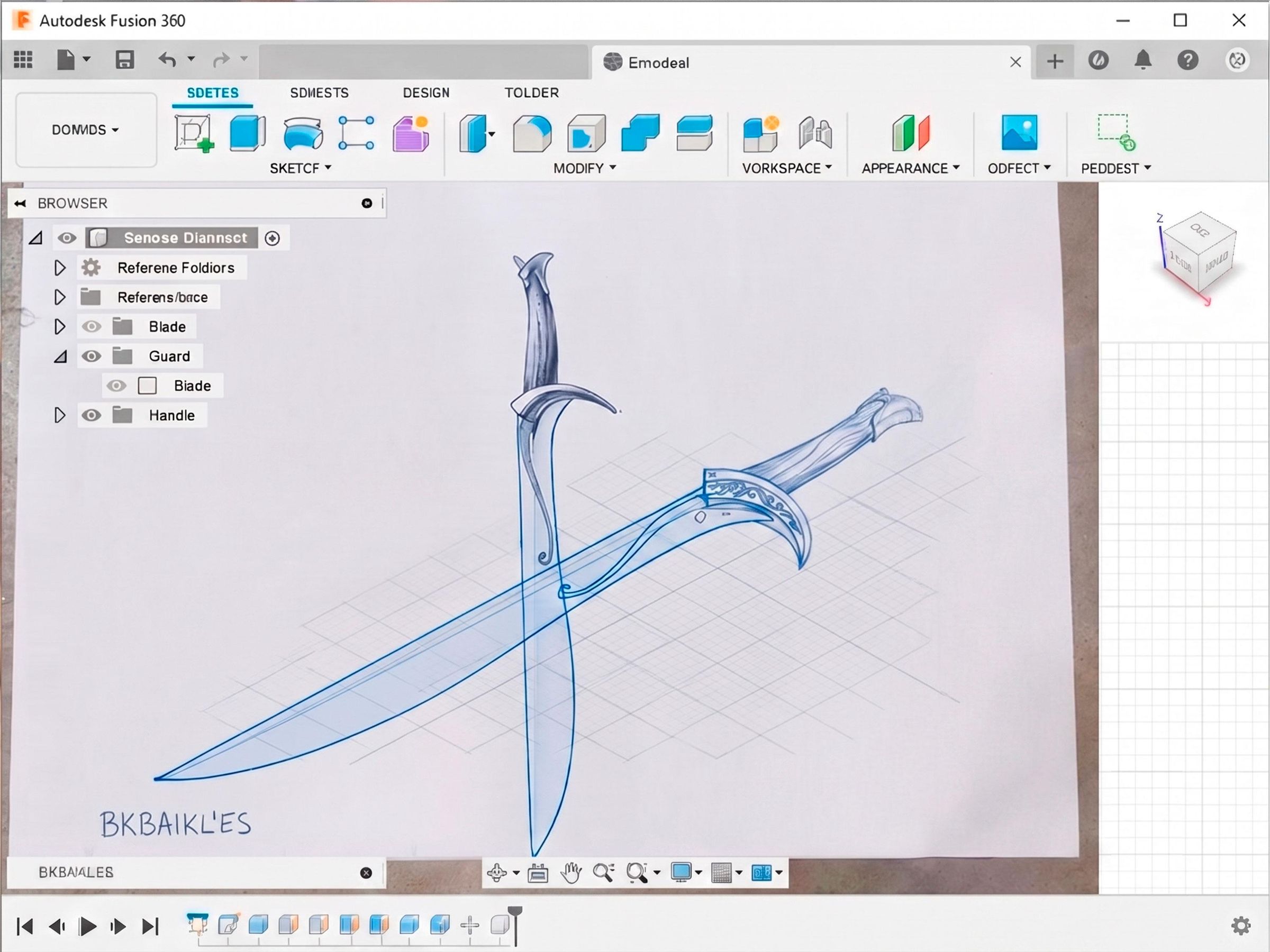

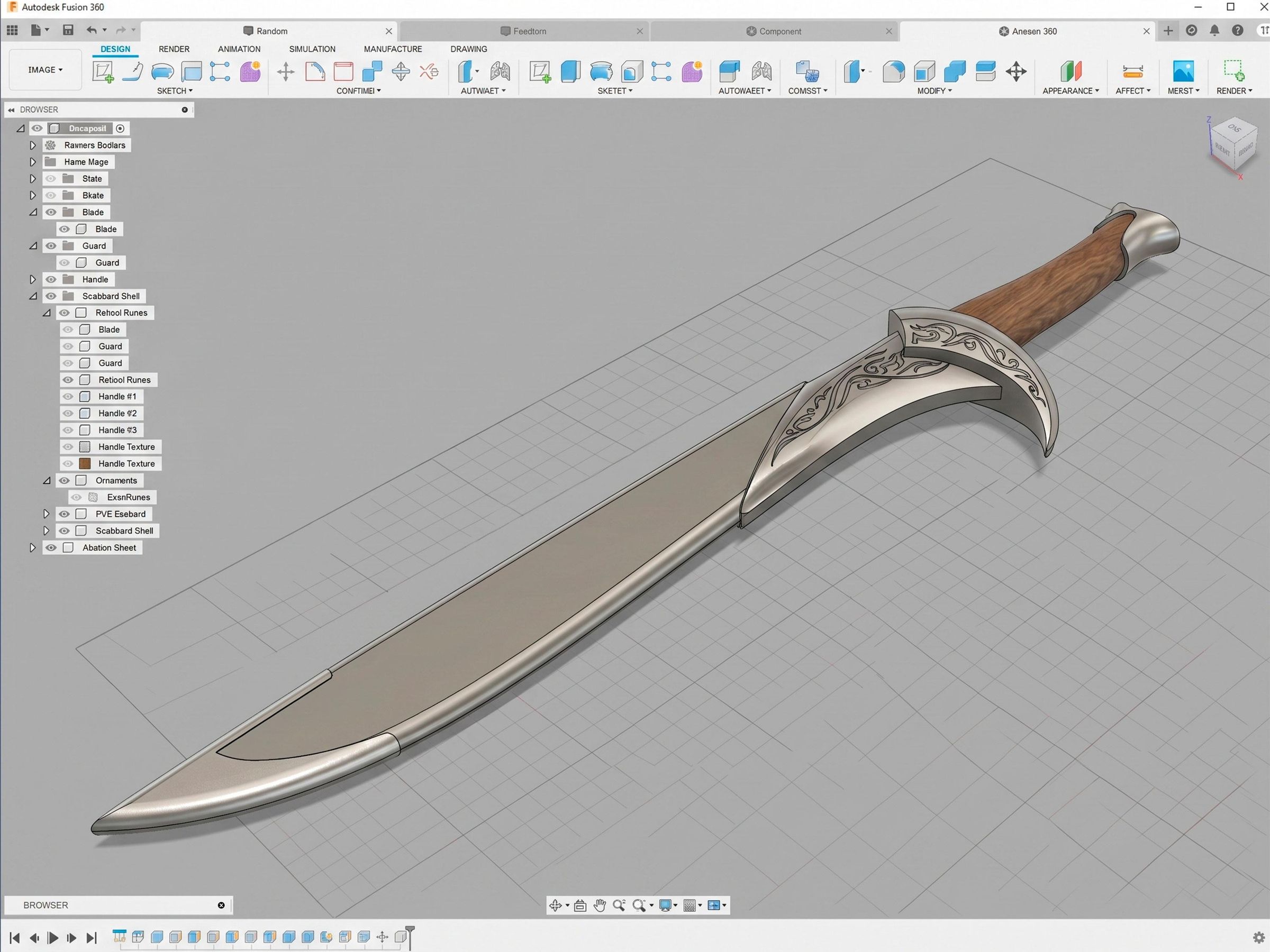

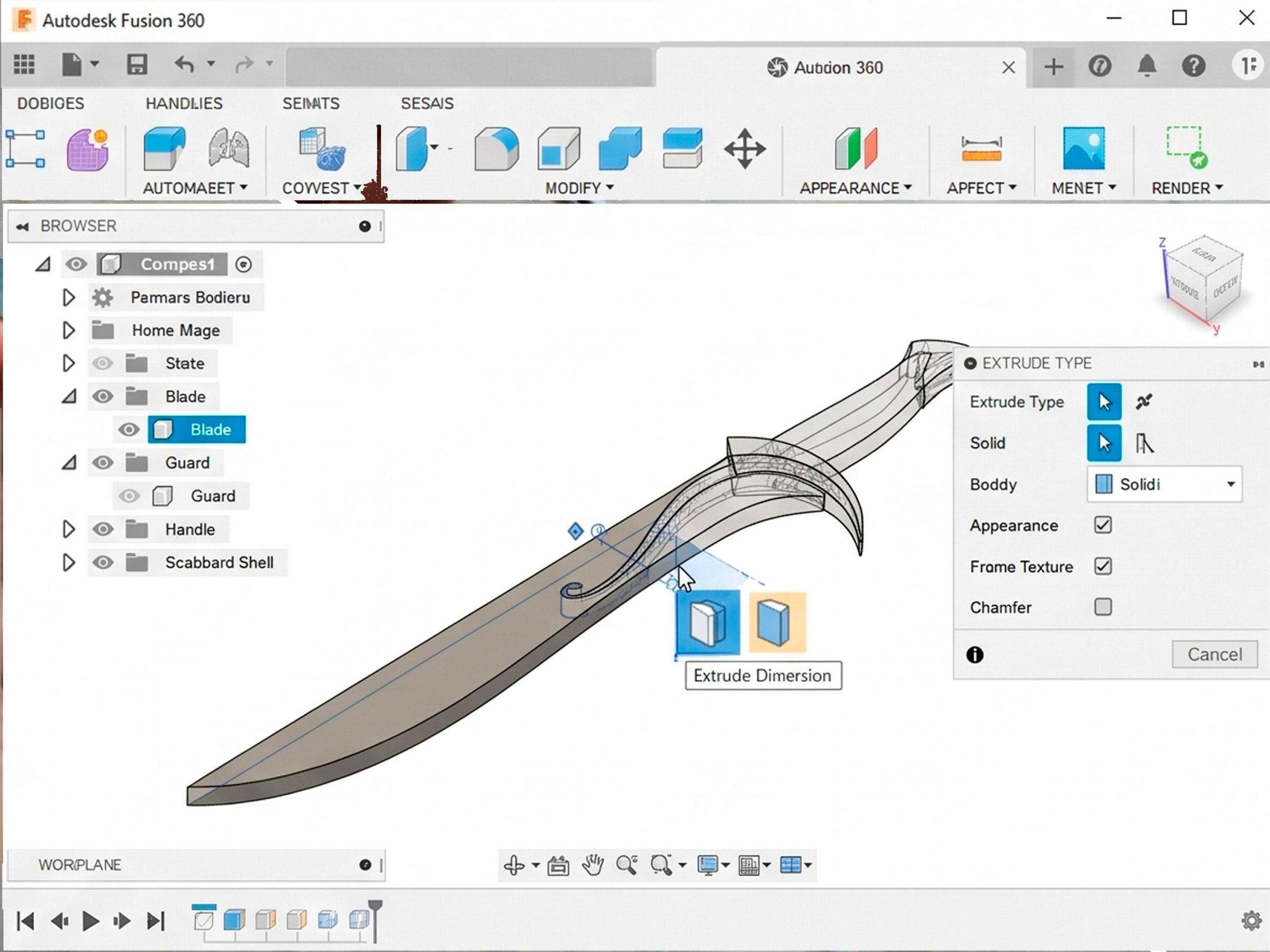

1. Import Canvas: Hand-drawn sketch imported into Autodesk Fusion 360.
2. Trace Profile: Spline tool used to precisely trace the blade and guard lines.
3. Component Check: Modeled parts as separate digital layers to guarantee a perfect slip-fit.

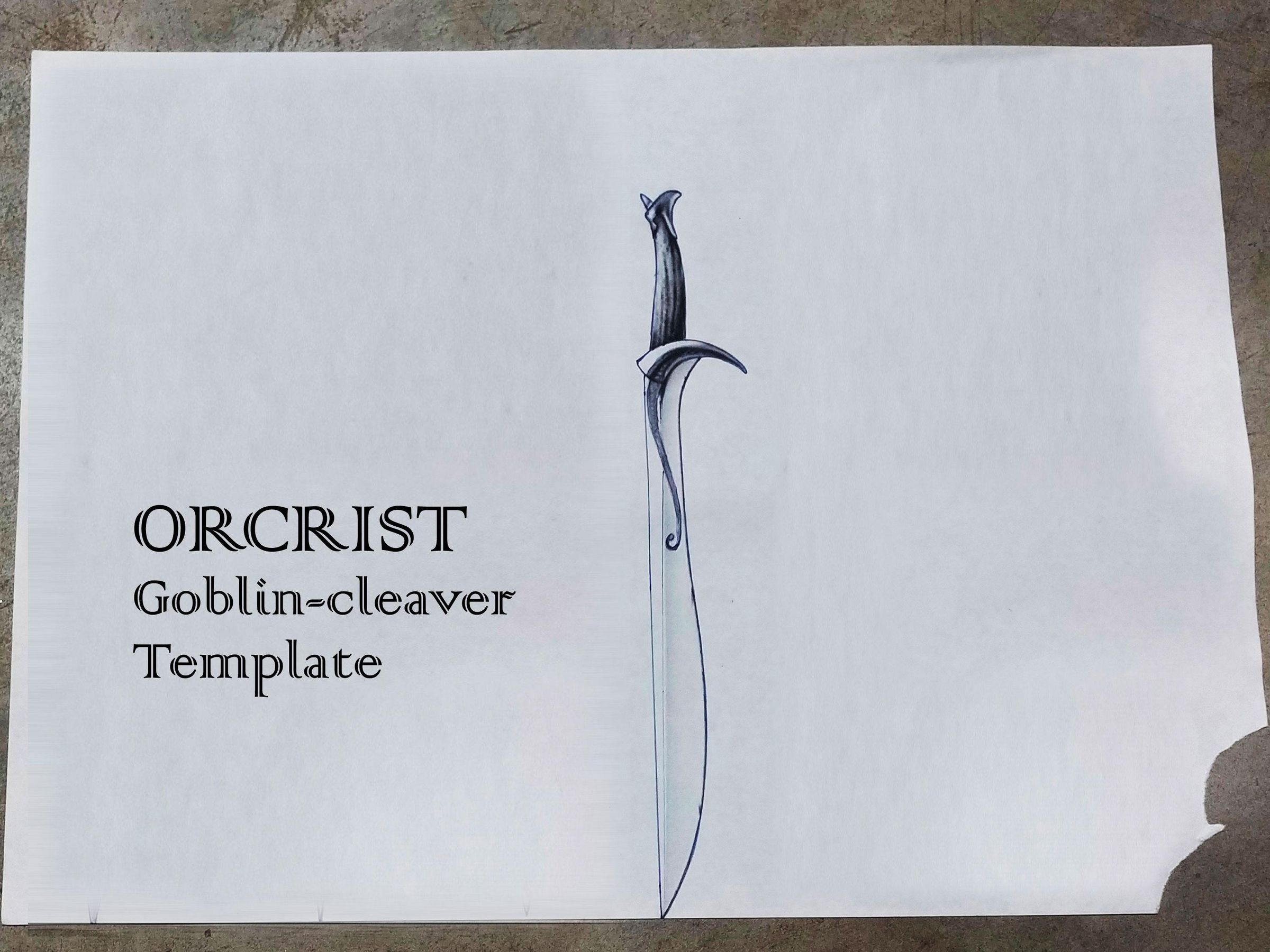

4. Print Layout: 2D vectors printed at a 1:1 scale to use as a physical cutting guide.

💡 Pro Tip: Use Fusion 360's "Thicken" command on your sketch to visually verify exactly how the 1mm and 2.5mm aluminium sheets will layer together before cutting.

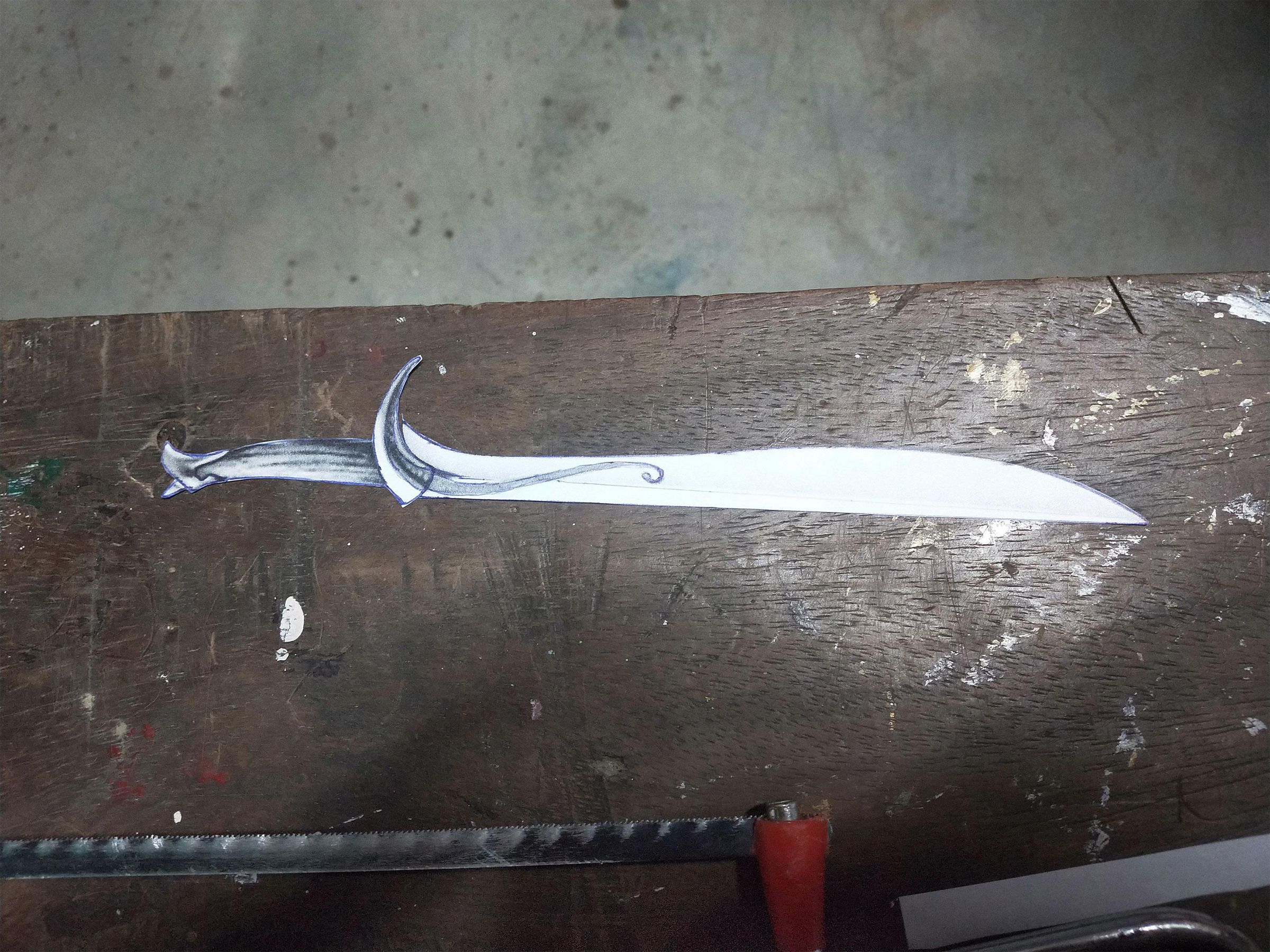

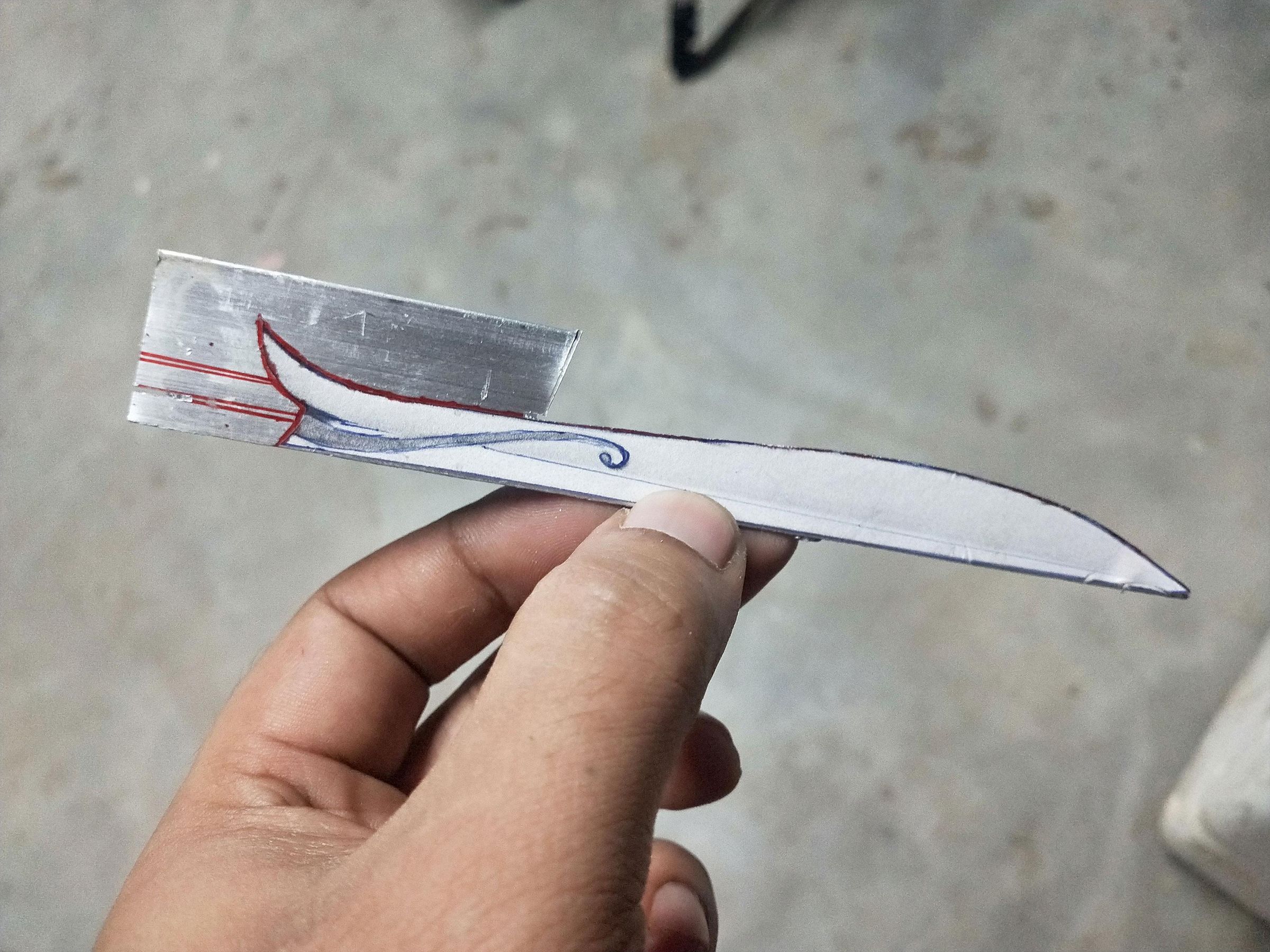

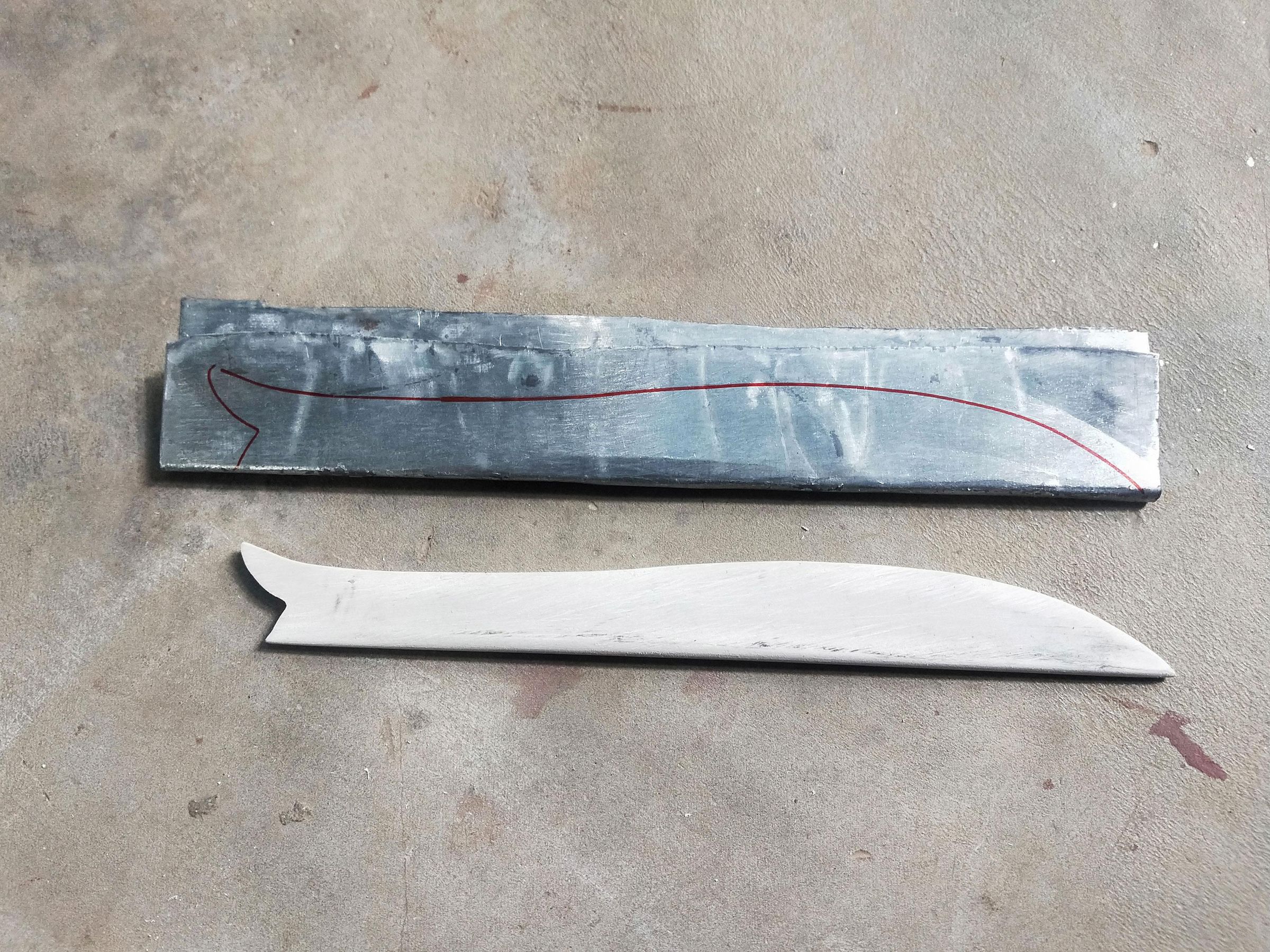

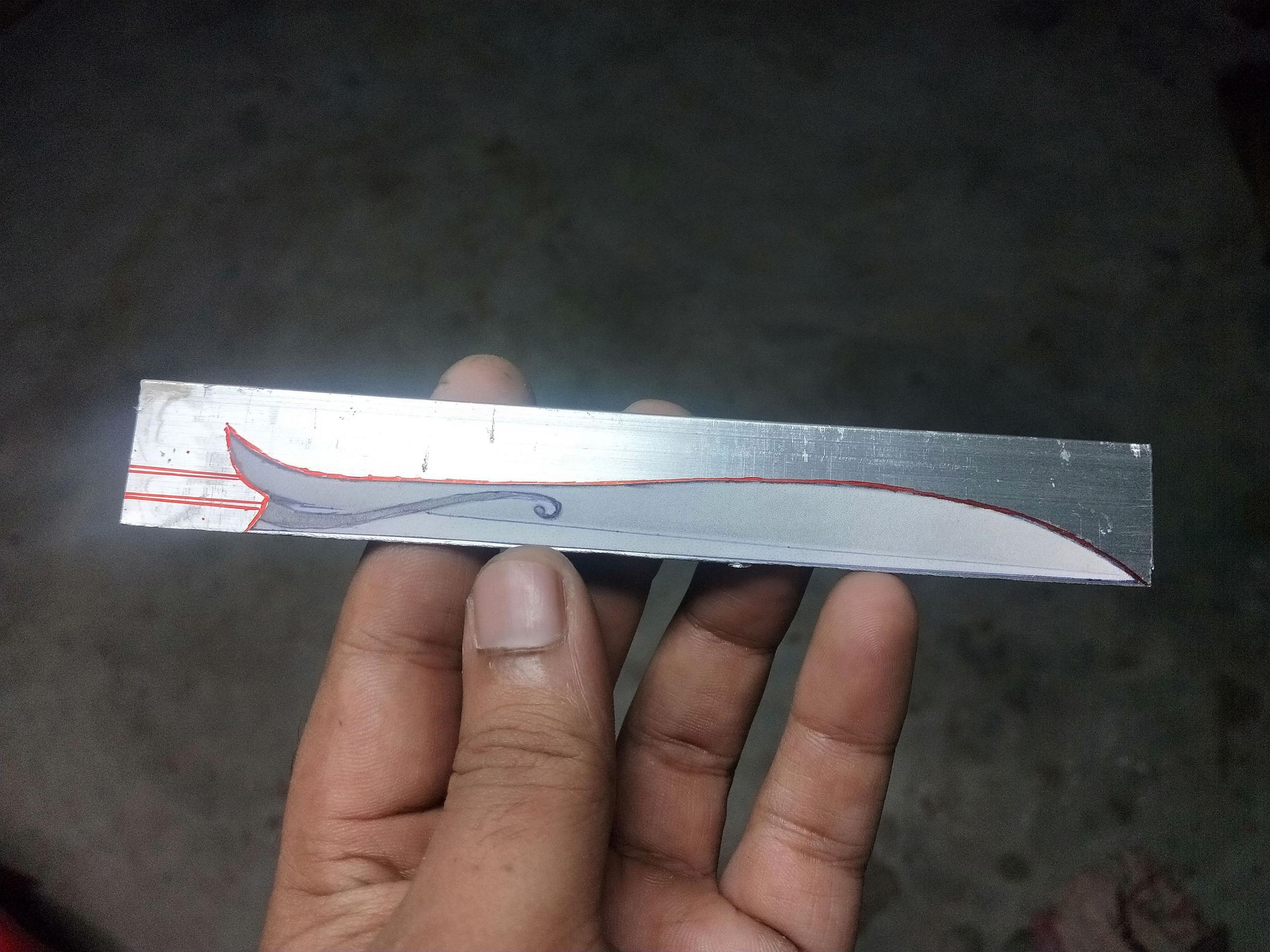

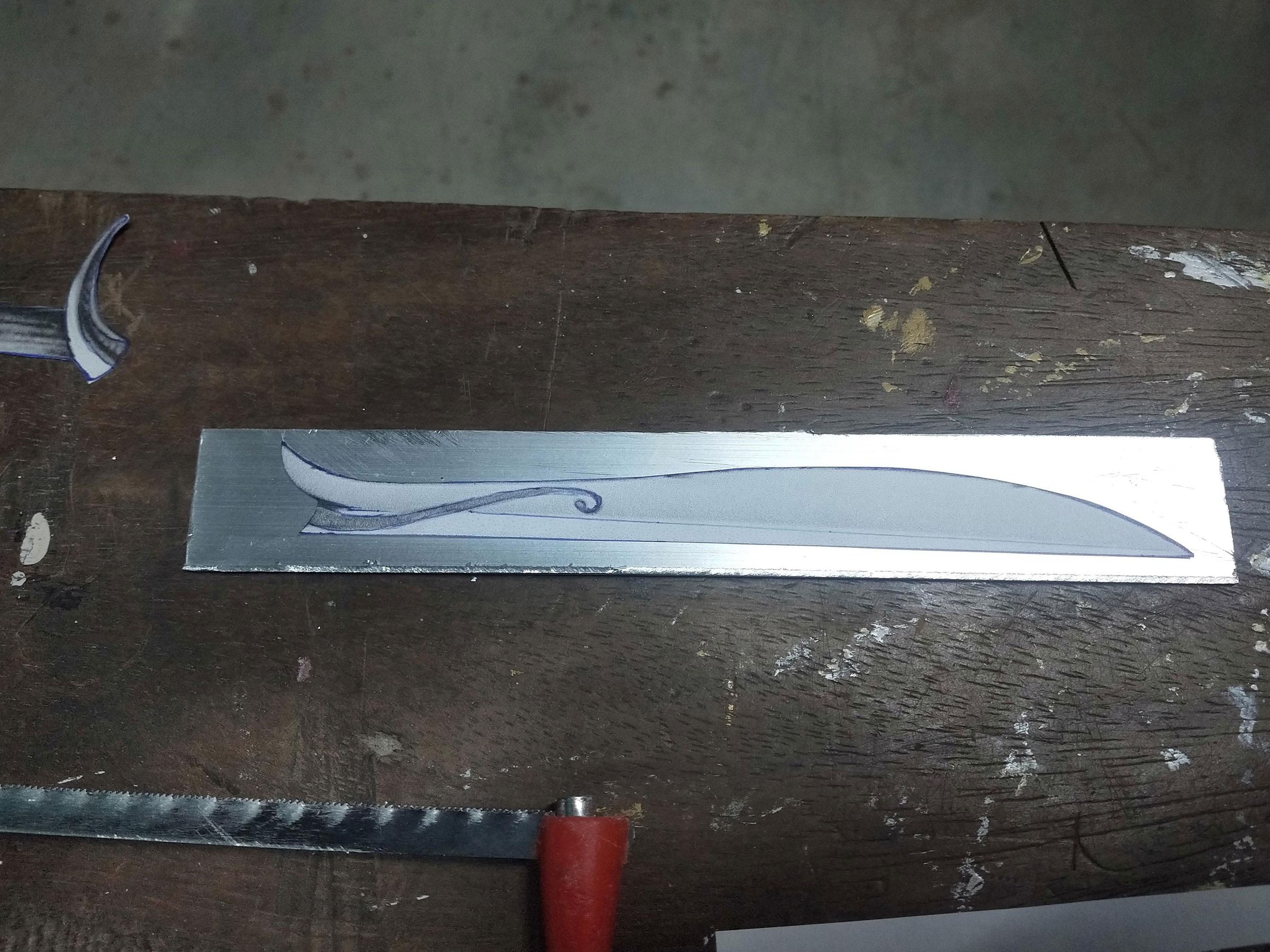

1. Transfer Template: Secure the printed 1:1 scale paper template directly onto the 1mm aluminium bar stock using glue or double-sided tape.
2. Secure Stock: Clamp the aluminium bar firmly to the workbench using a sturdy pair of clamps to completely eliminate vibrations while sawing.

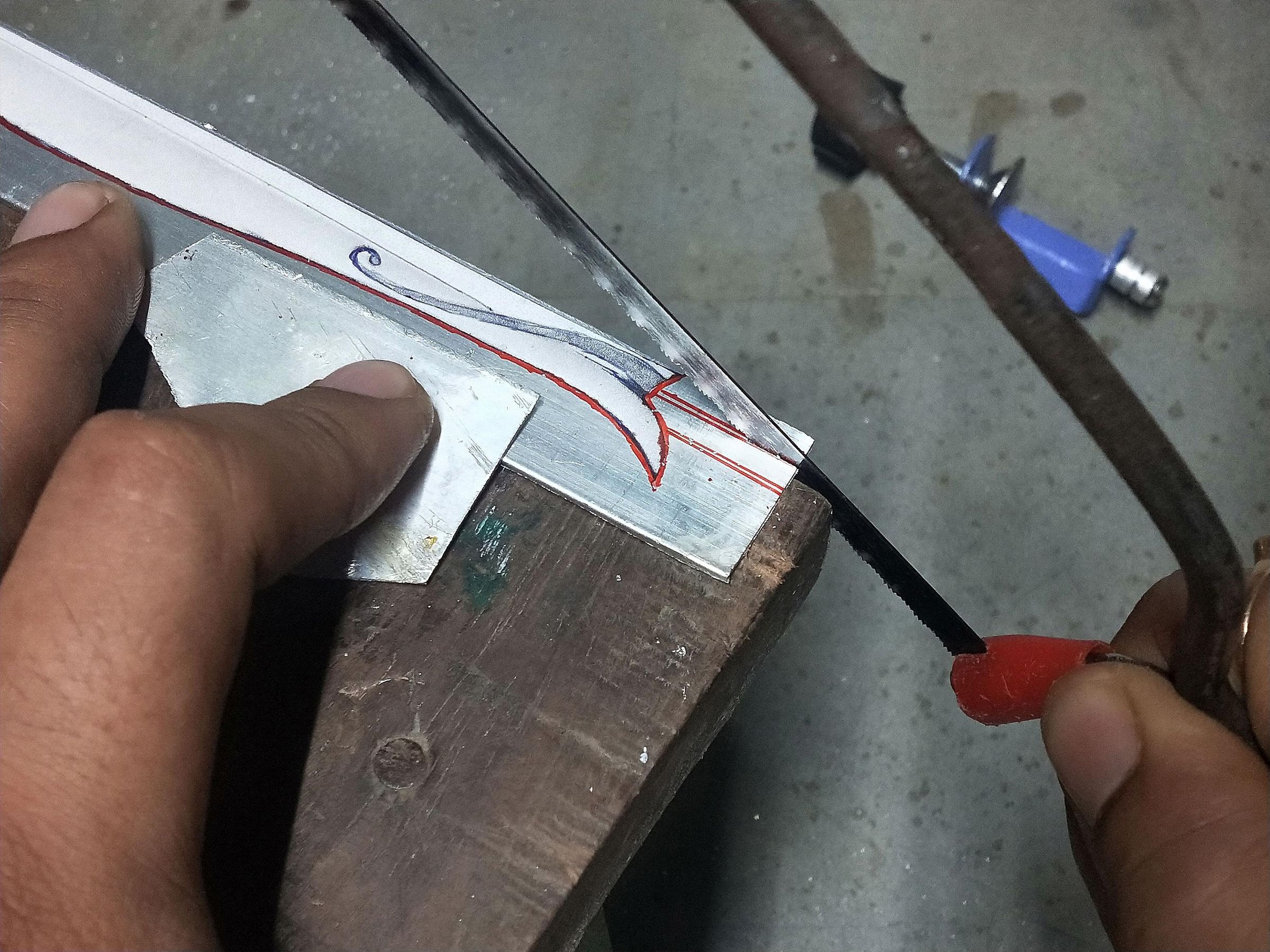

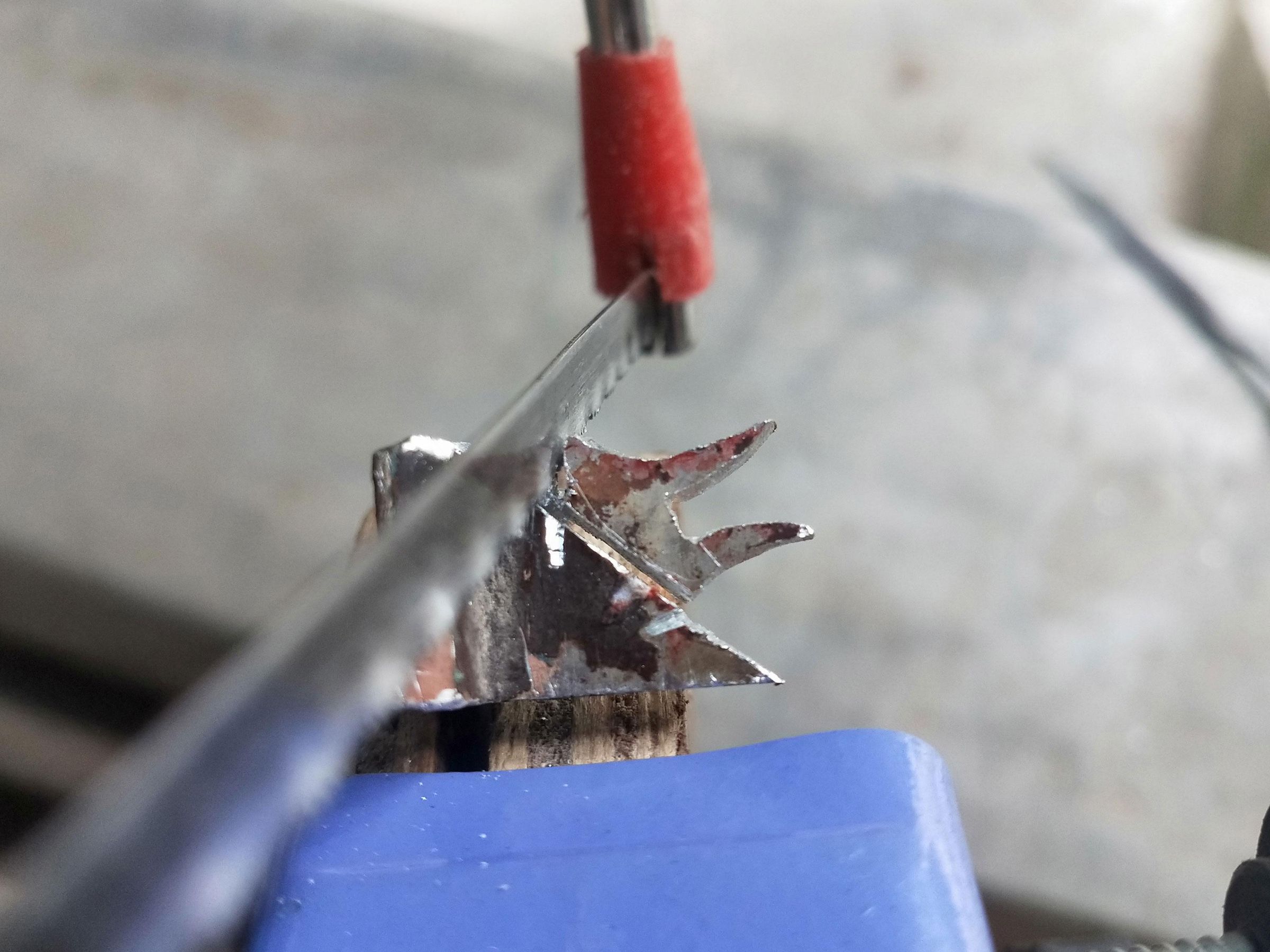

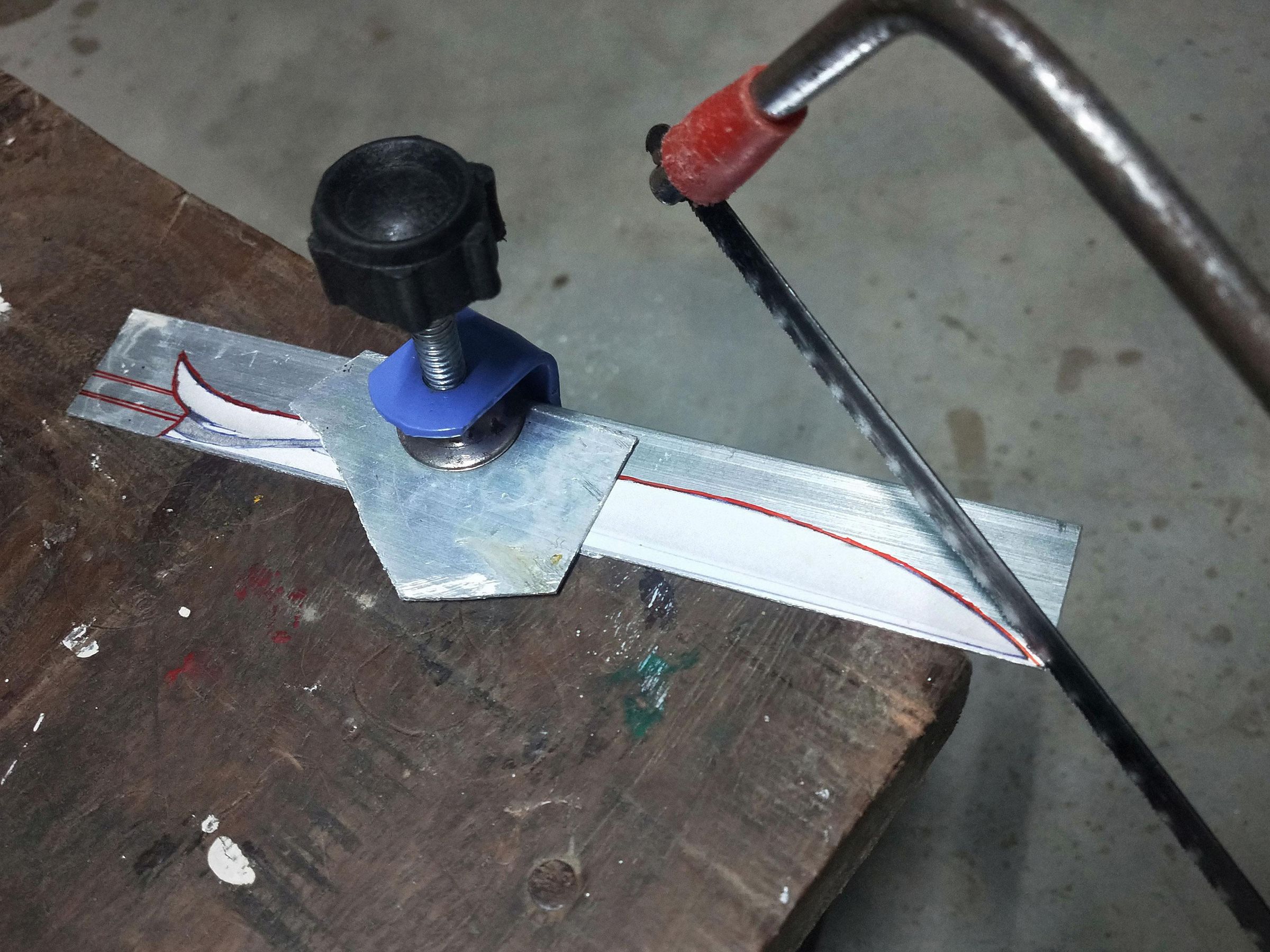

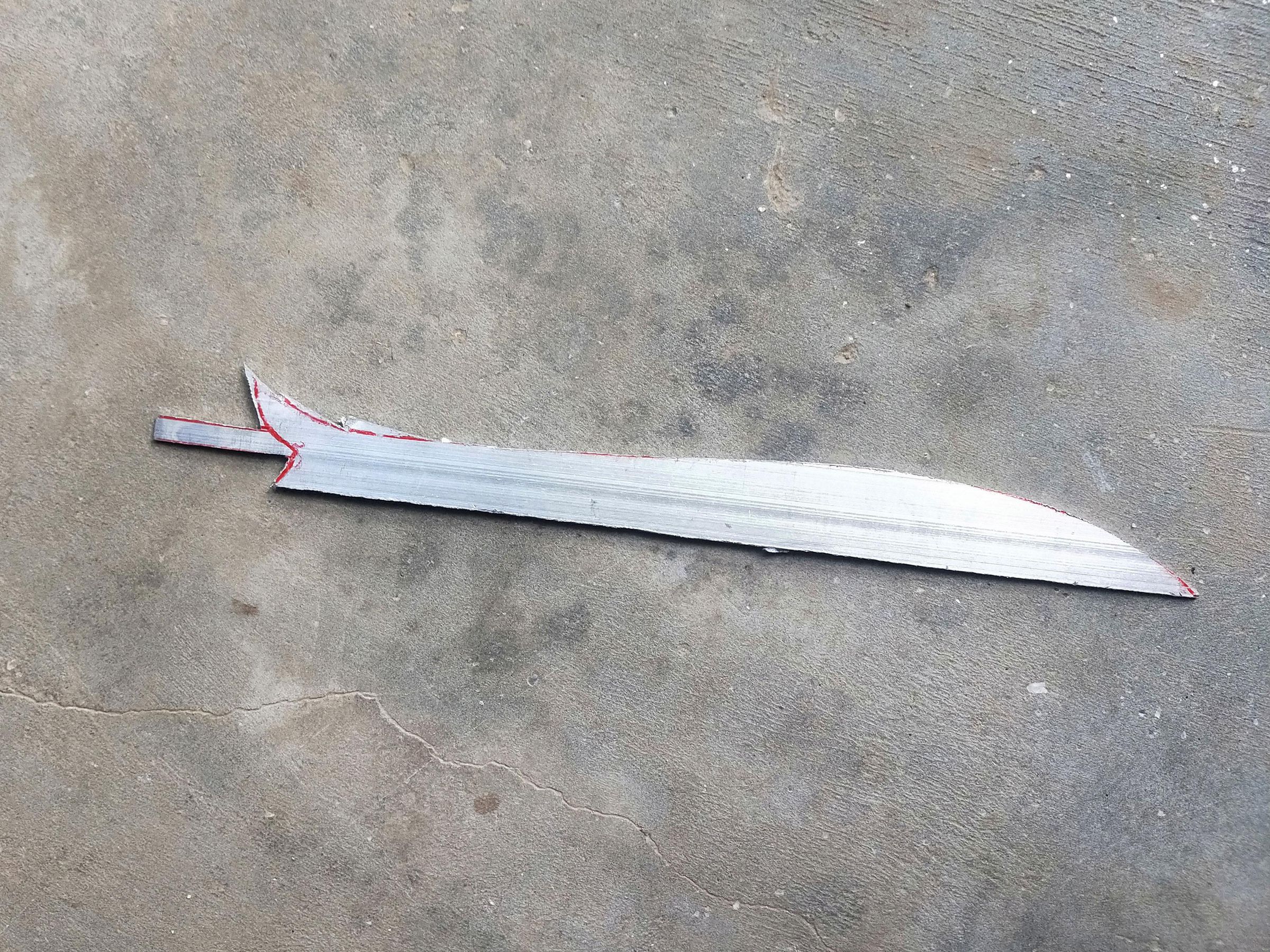

3. Rough Cut: Carefully follow the outer contours of the blade and central tang using a mini hacksaw, taking slow, straight strokes.

💡 Pro Tip: Lightly lubricate your mini hacksaw blade with a drop of multi-purpose oil or beeswax before cutting; it keeps the blade running smoothly and drastically reduces binding in the soft aluminium.

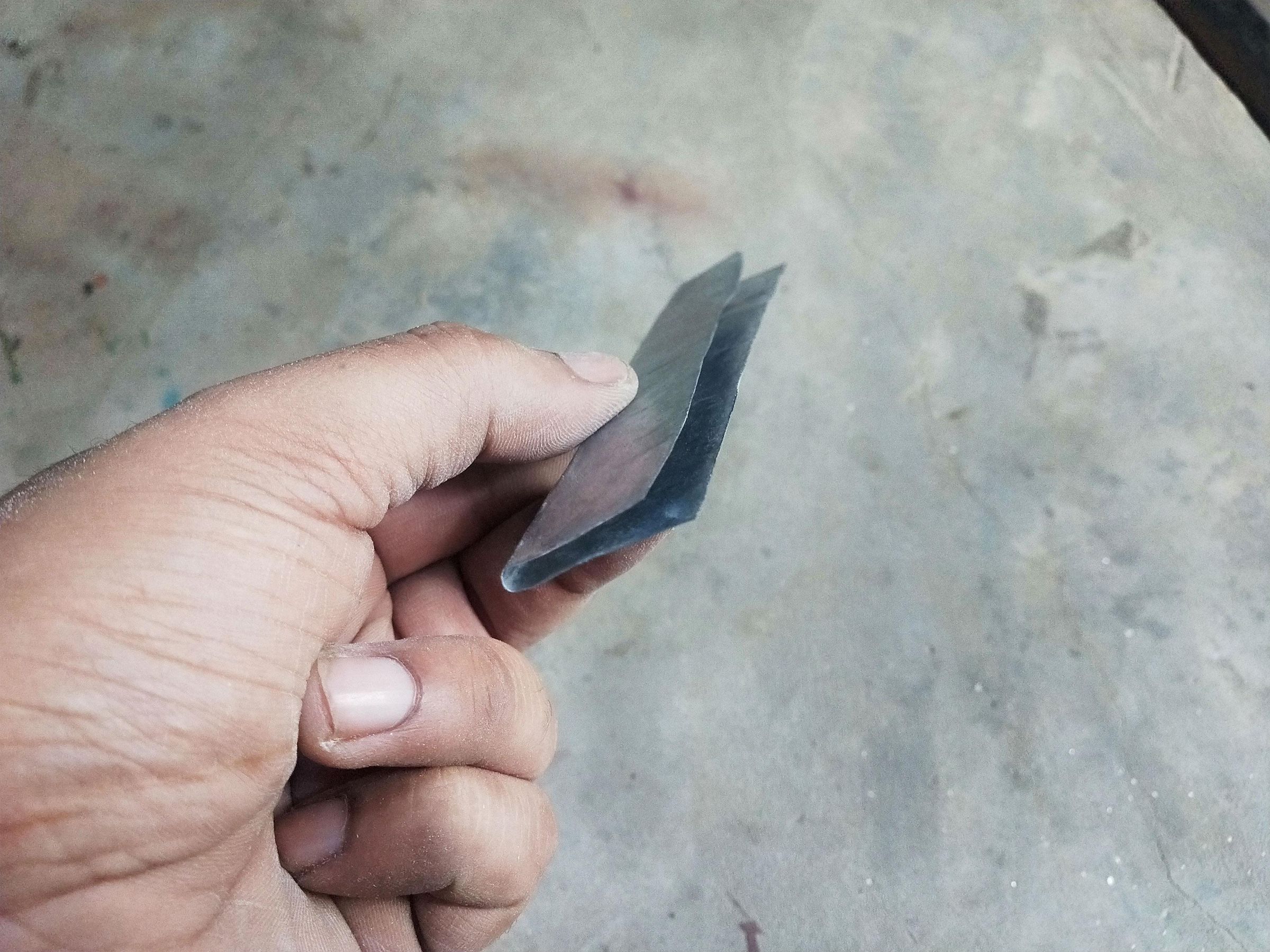

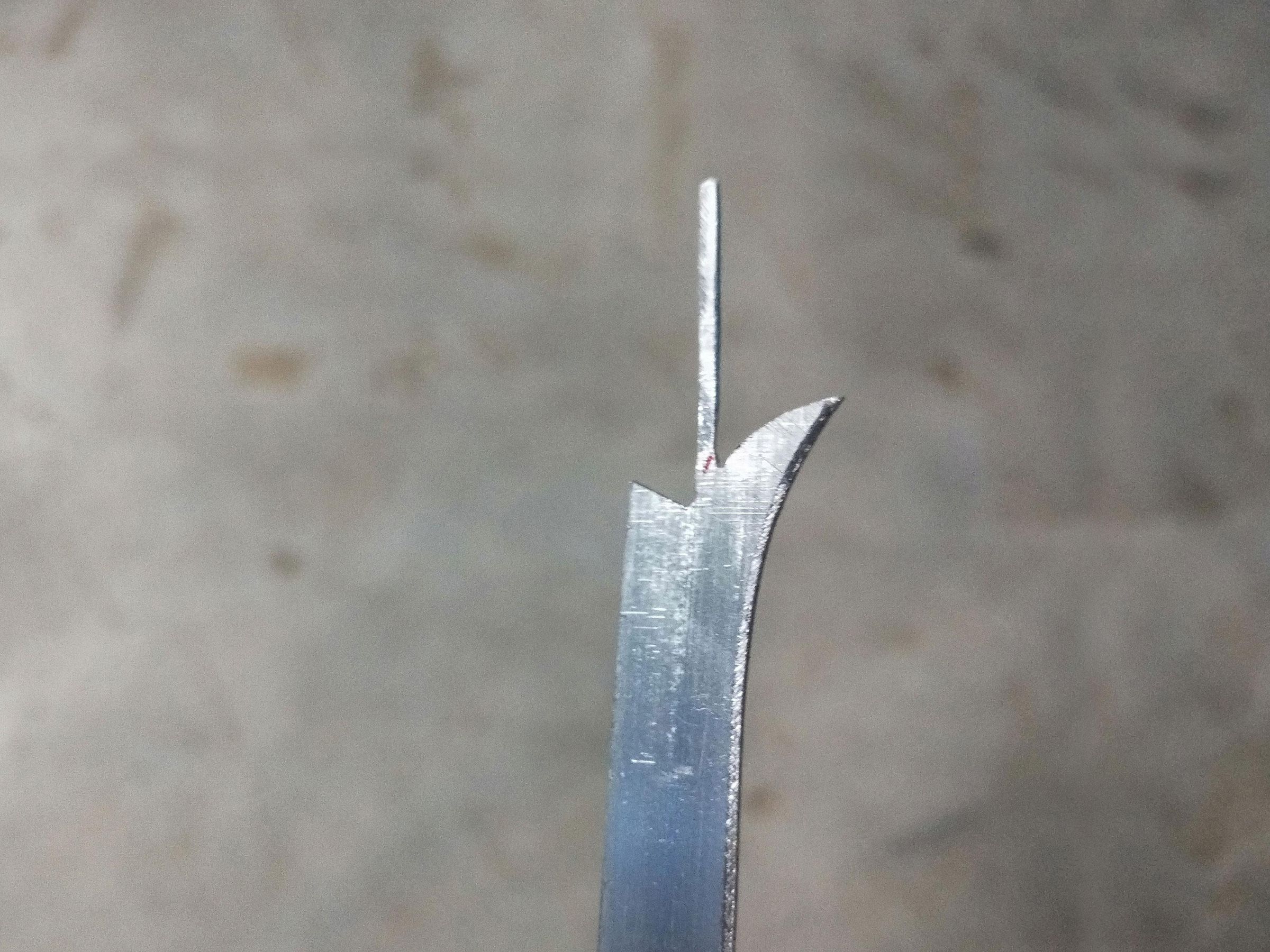

1. Secure for Filing: Clamp the rough-cut 1mm blade securely between two protective wooden blocks to prevent bending or marring the soft aluminium.

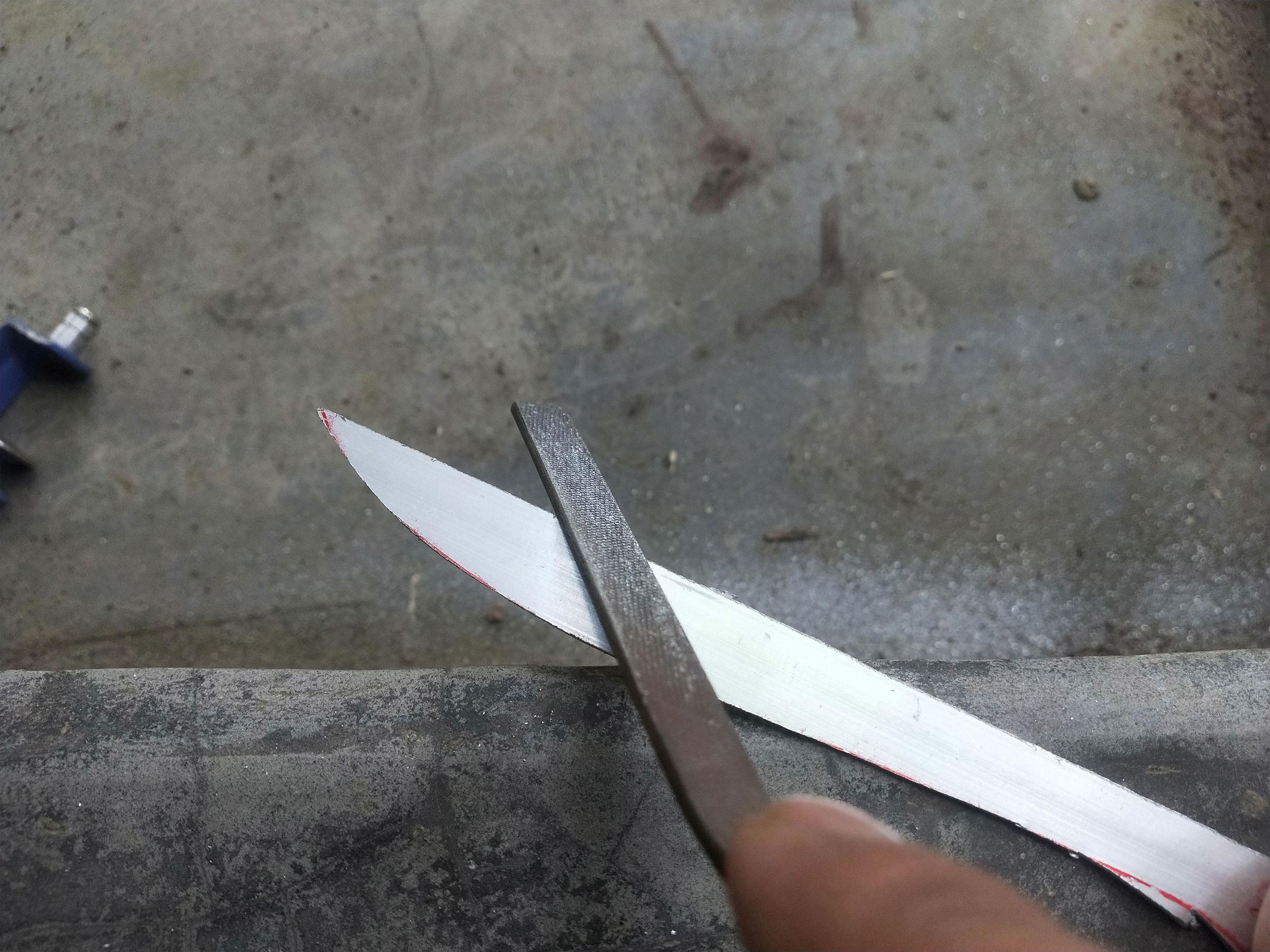

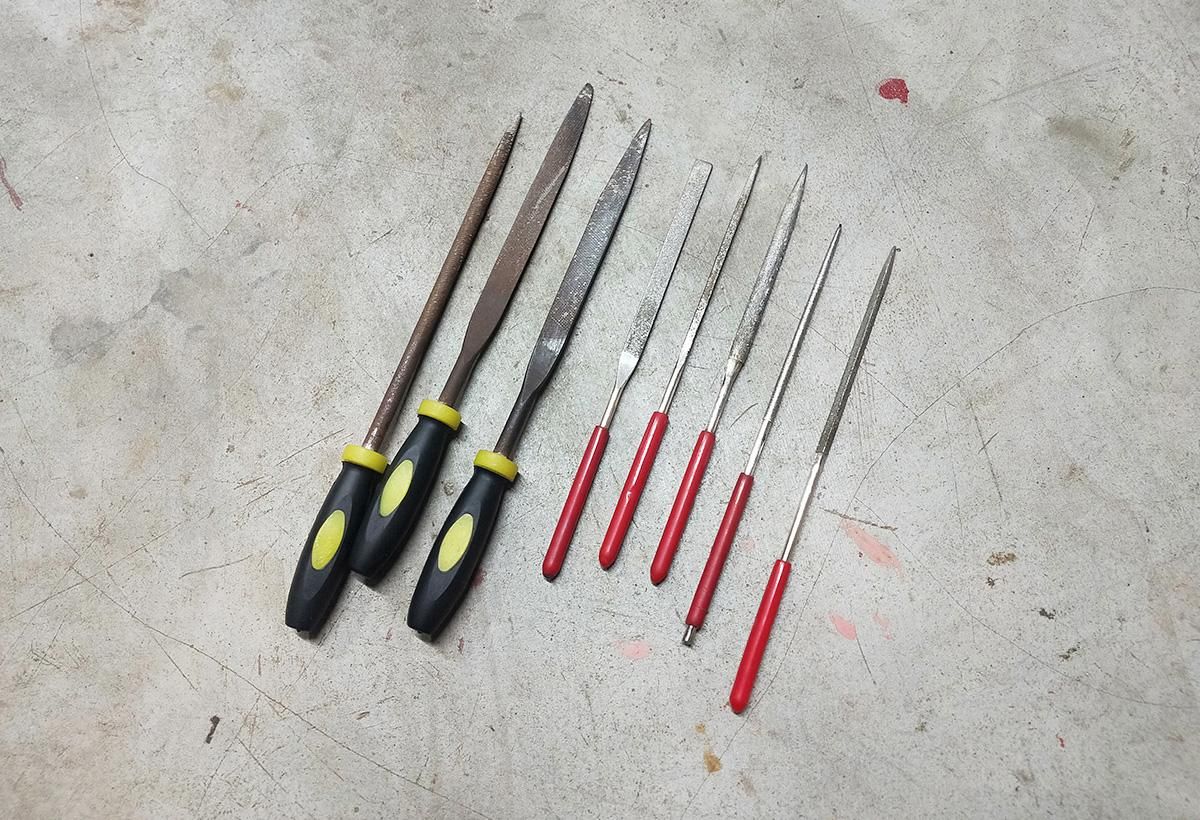

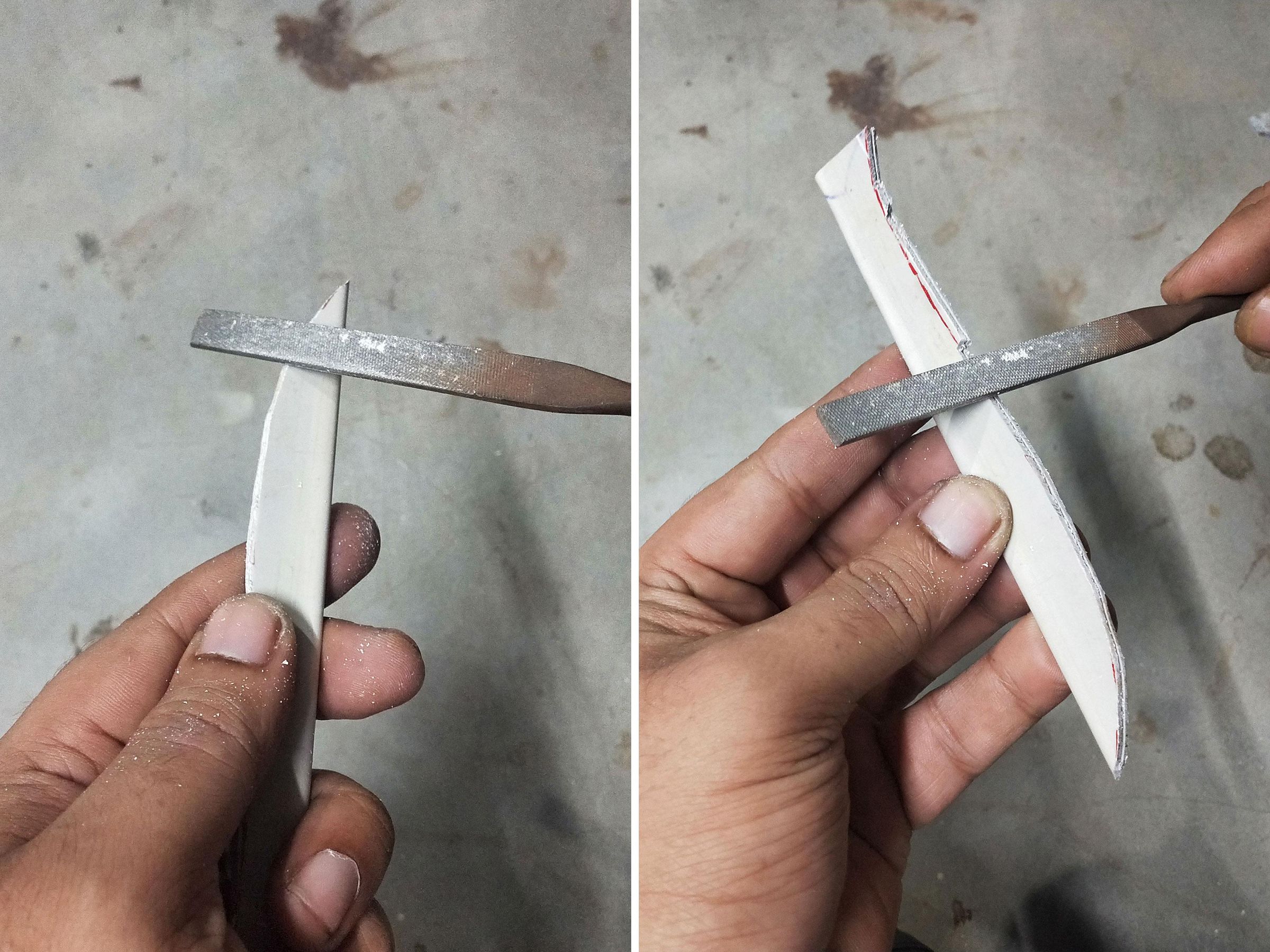

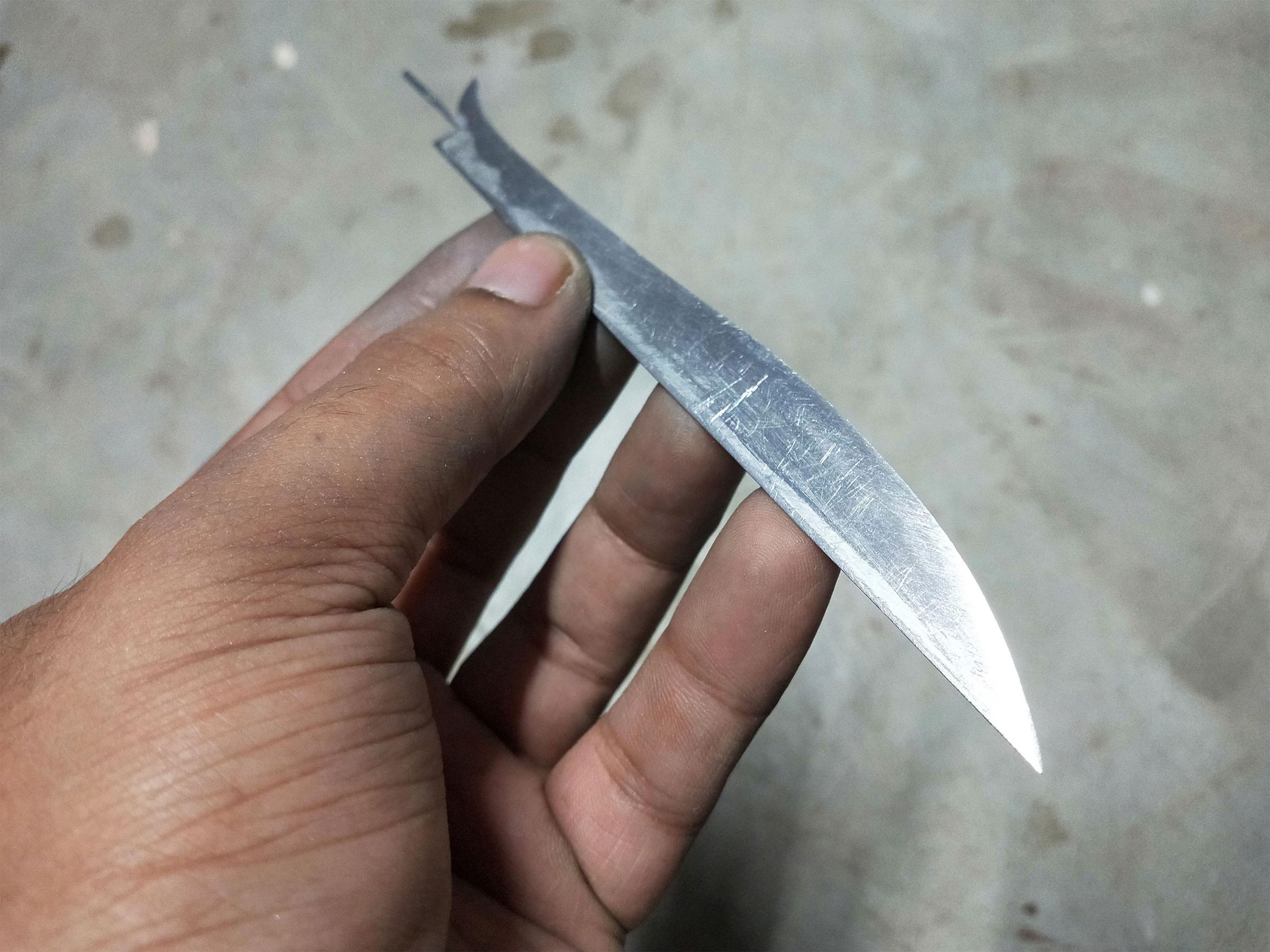

2. Establish Edge Lines: Use flat hand files to work the metal down perfectly to the final lines of your blueprint template.

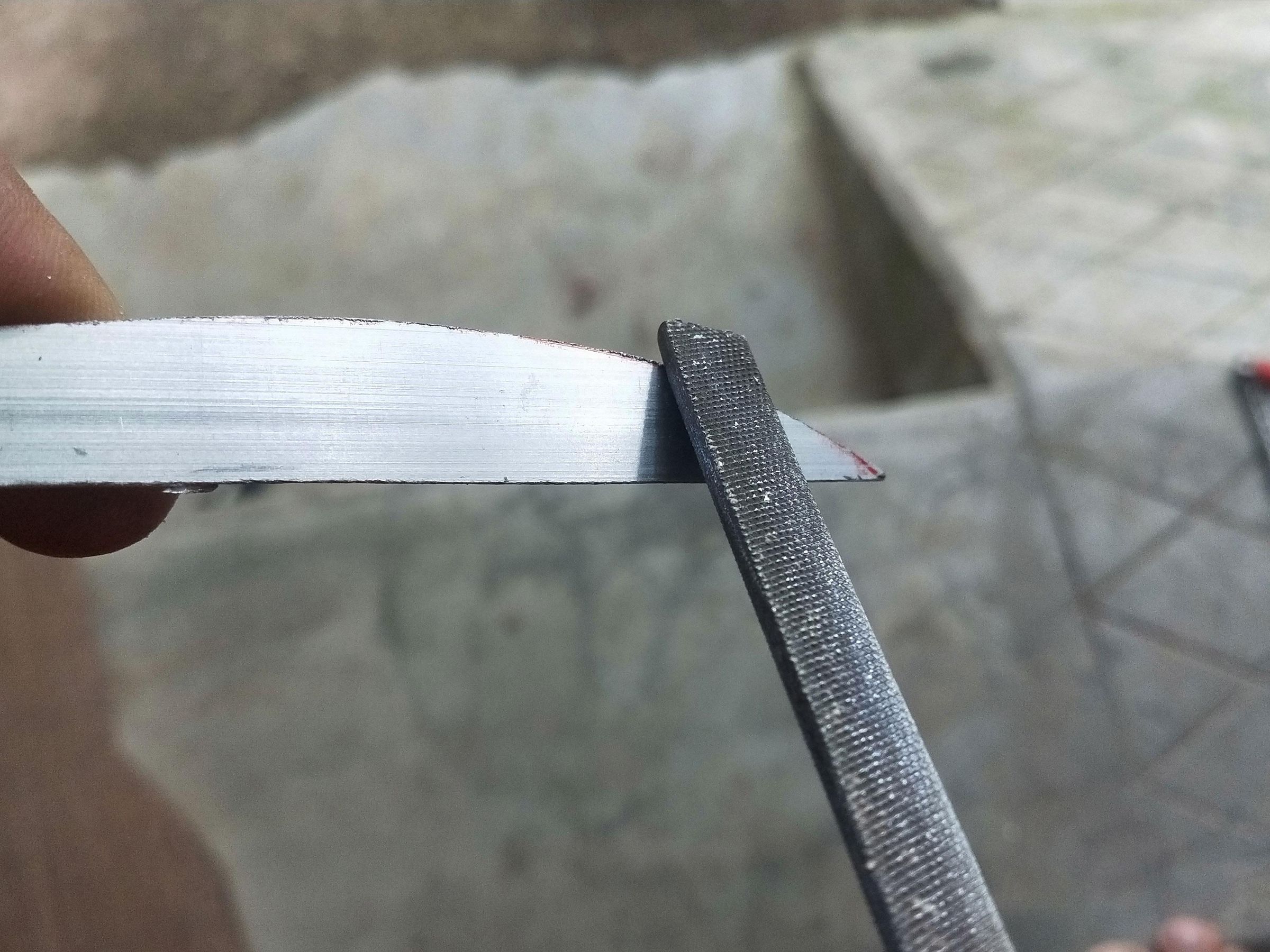

3. File the Bevel: Hold the file at a consistent, shallow angle along the bottom half of the blade to grind a clean, single cutting bevel.
4. Smooth the Spine: File the top edge flat and square to form a prominent, authentic sword spine.

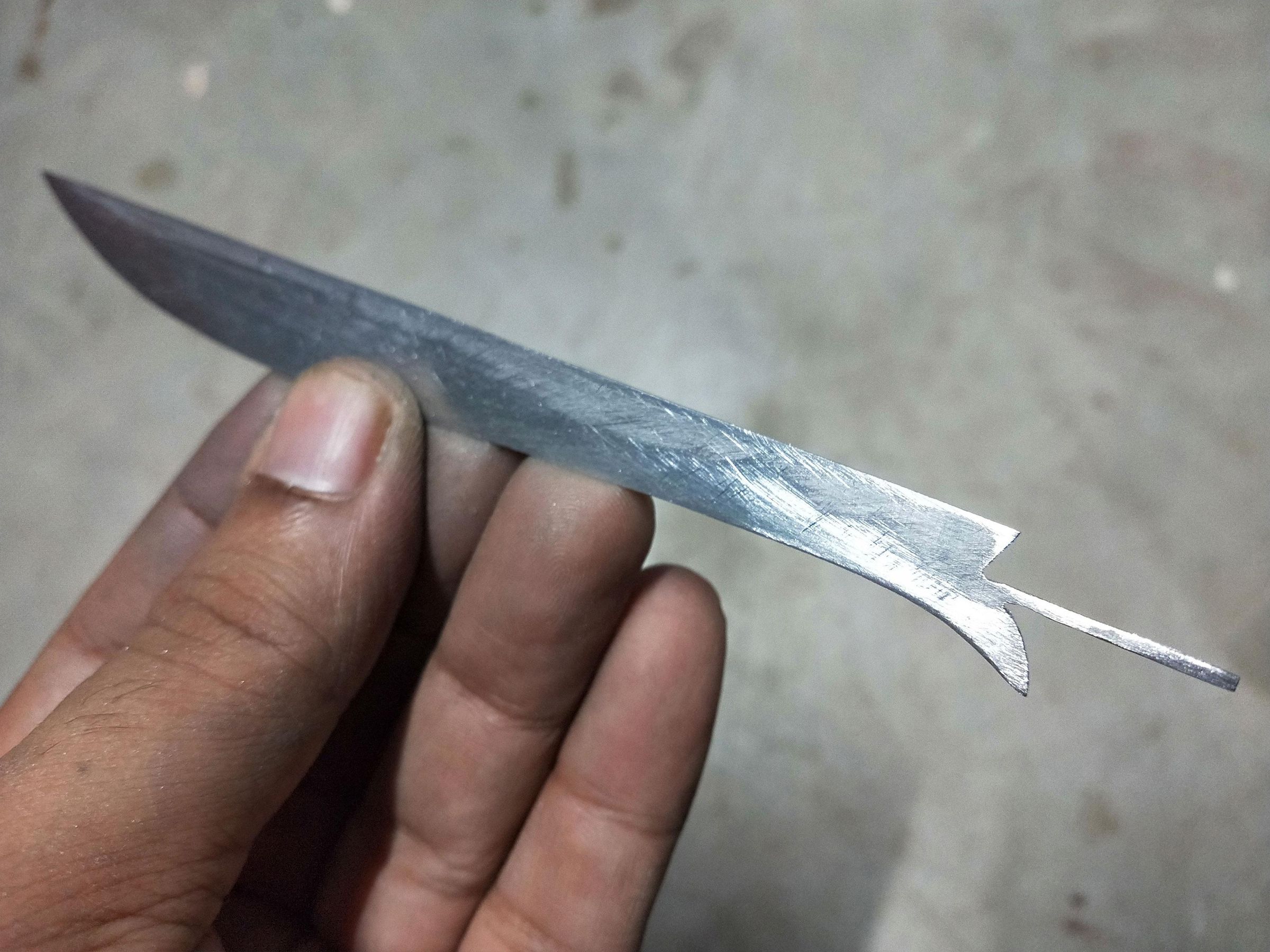

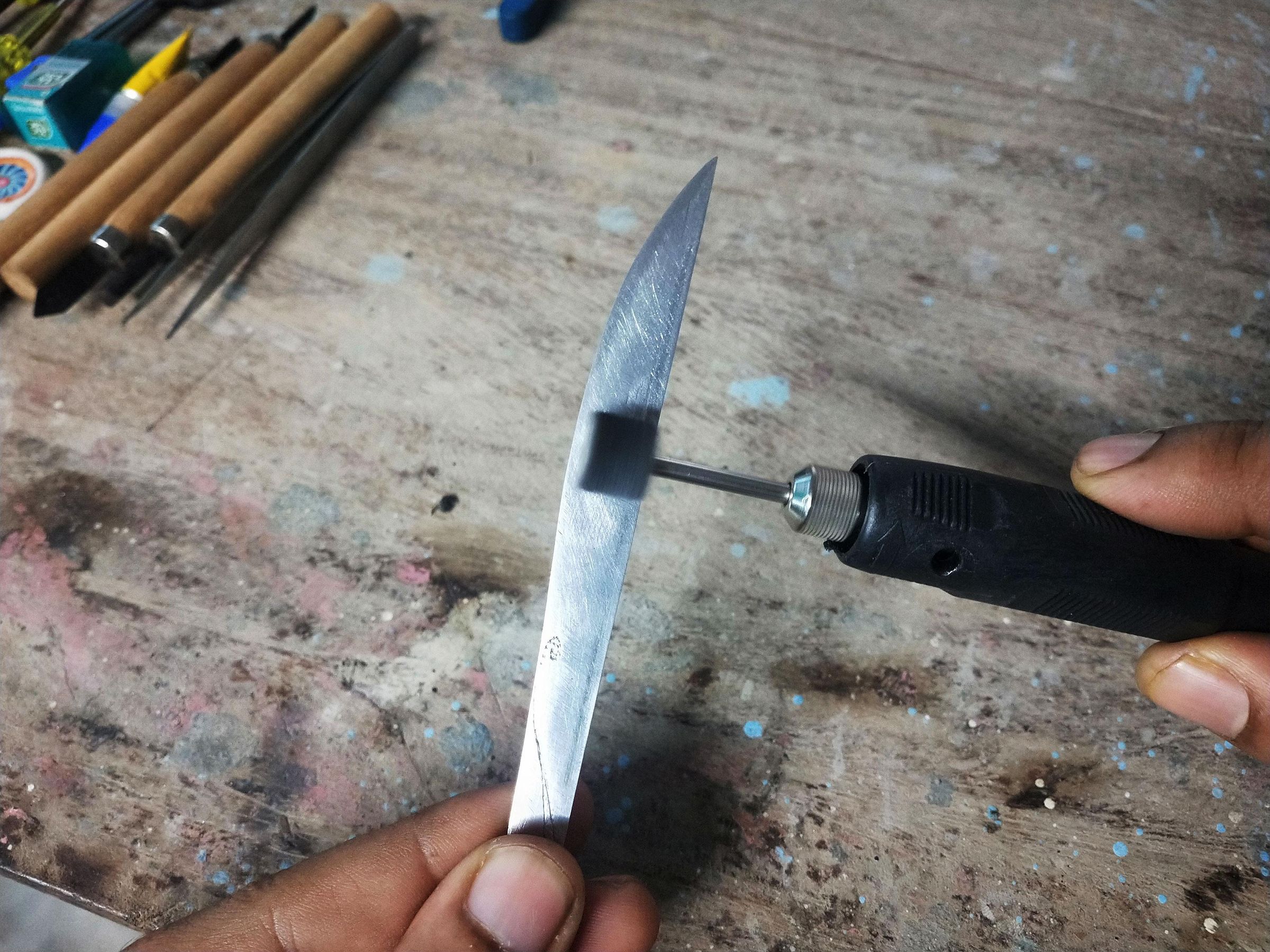

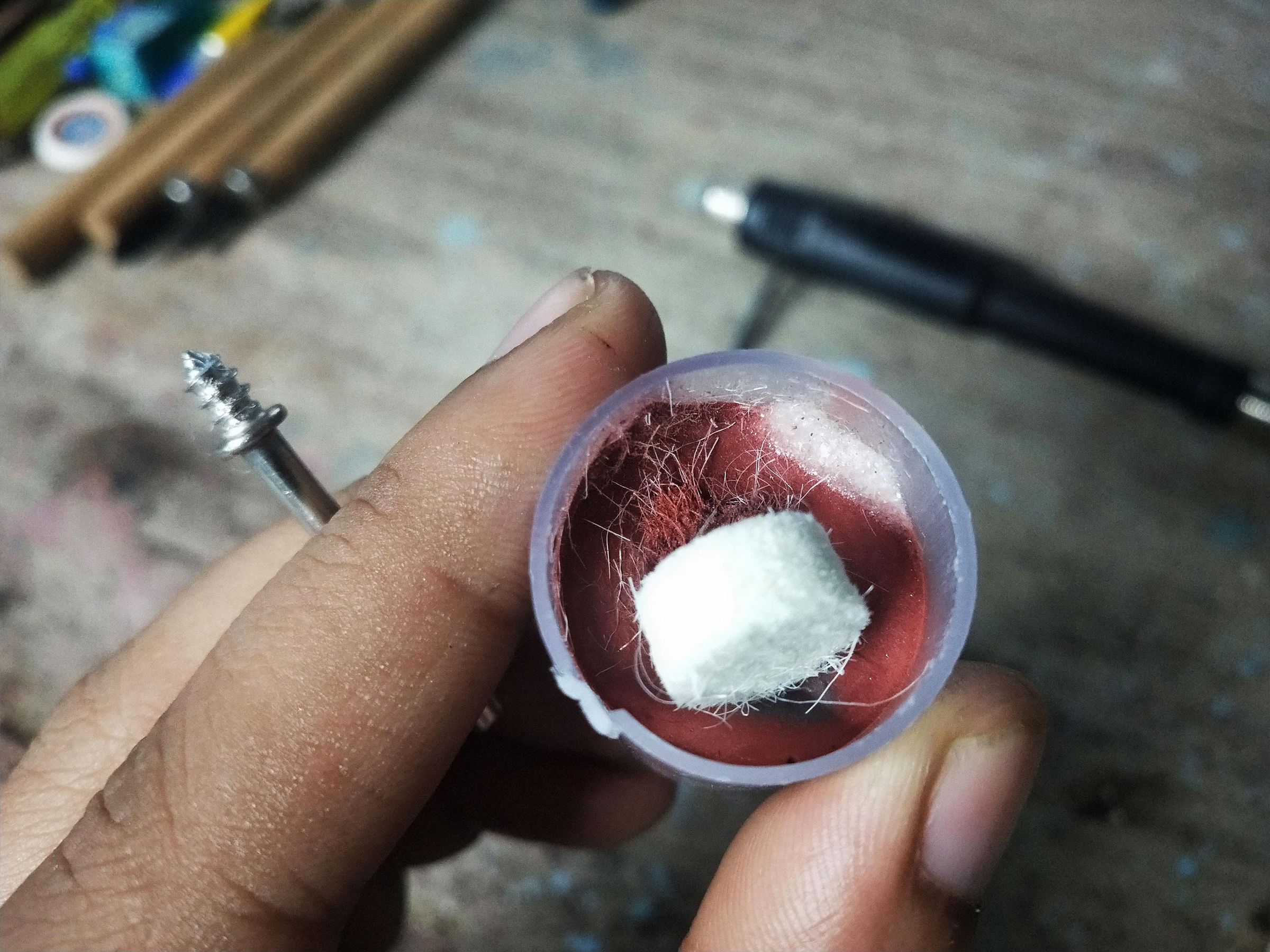

5. Rotary Buffing: Apply metal polishing compound to a felt wheel on your rotary tool and buff the aluminium at medium speed until it hits a mirror shine.

💡 Pro Tip: When filing aluminium, apply chalk directly to the file teeth first. This prevents soft metal pins from clogging the cuts and scratching your polished surfaces.

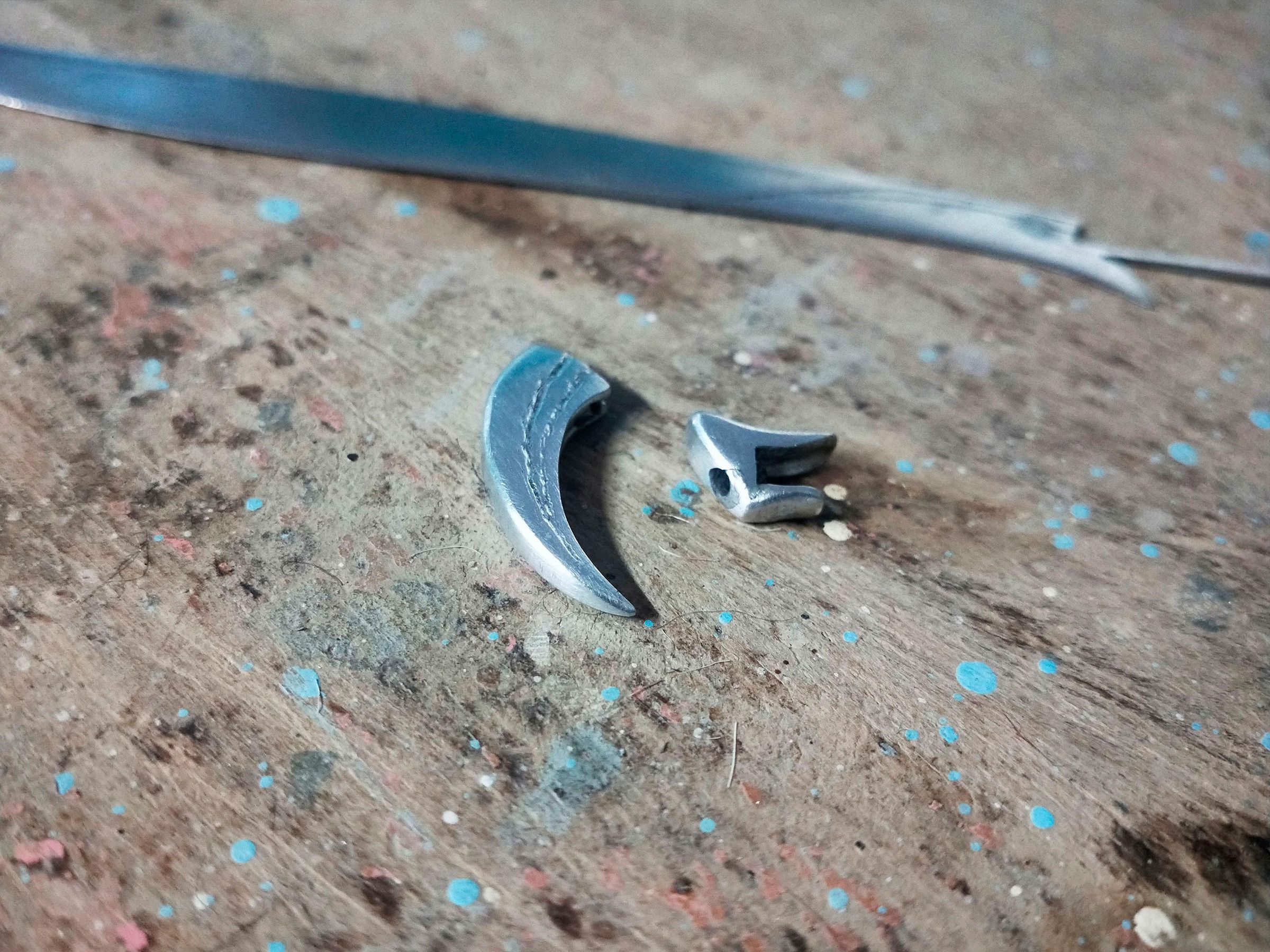

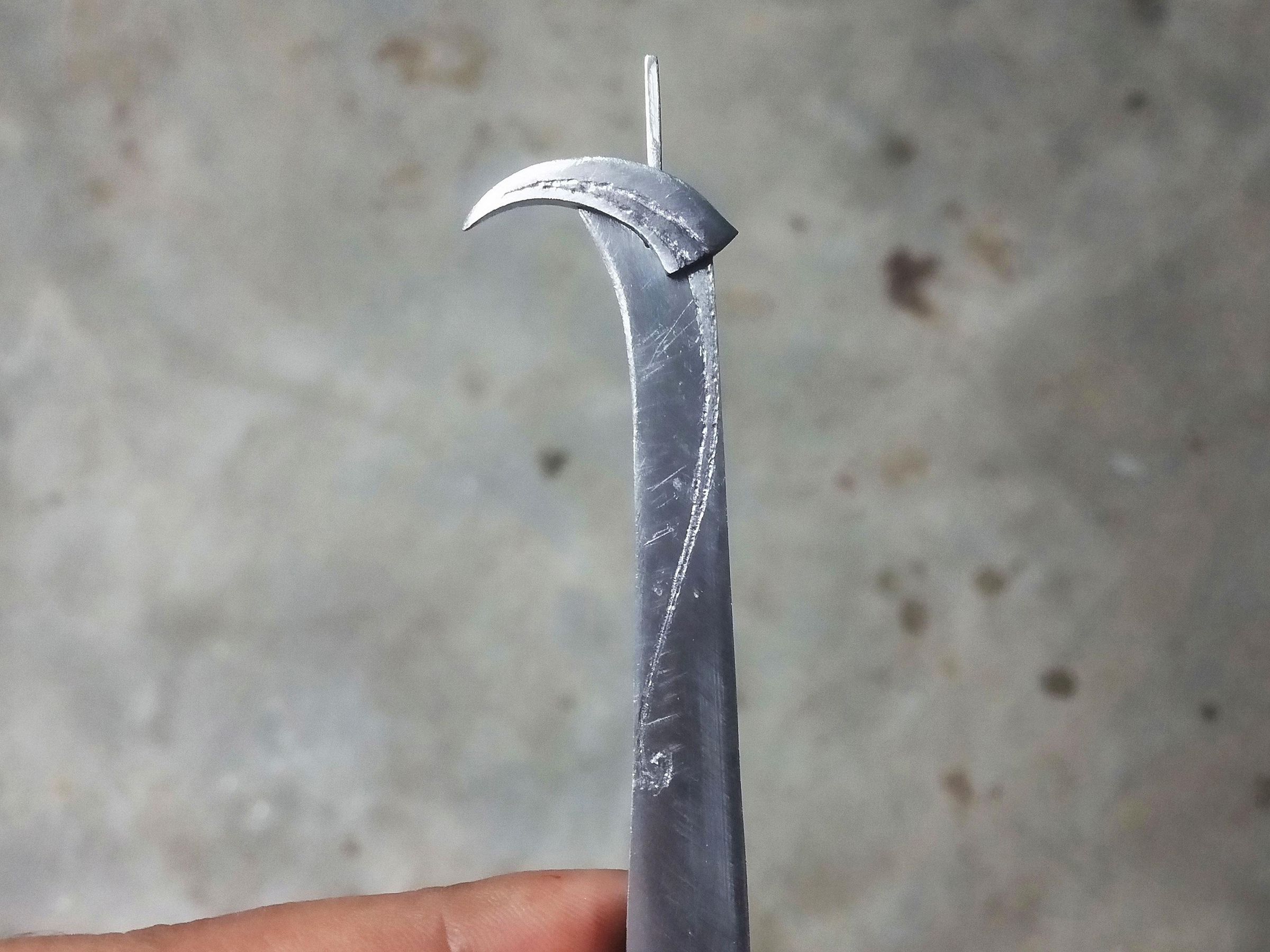

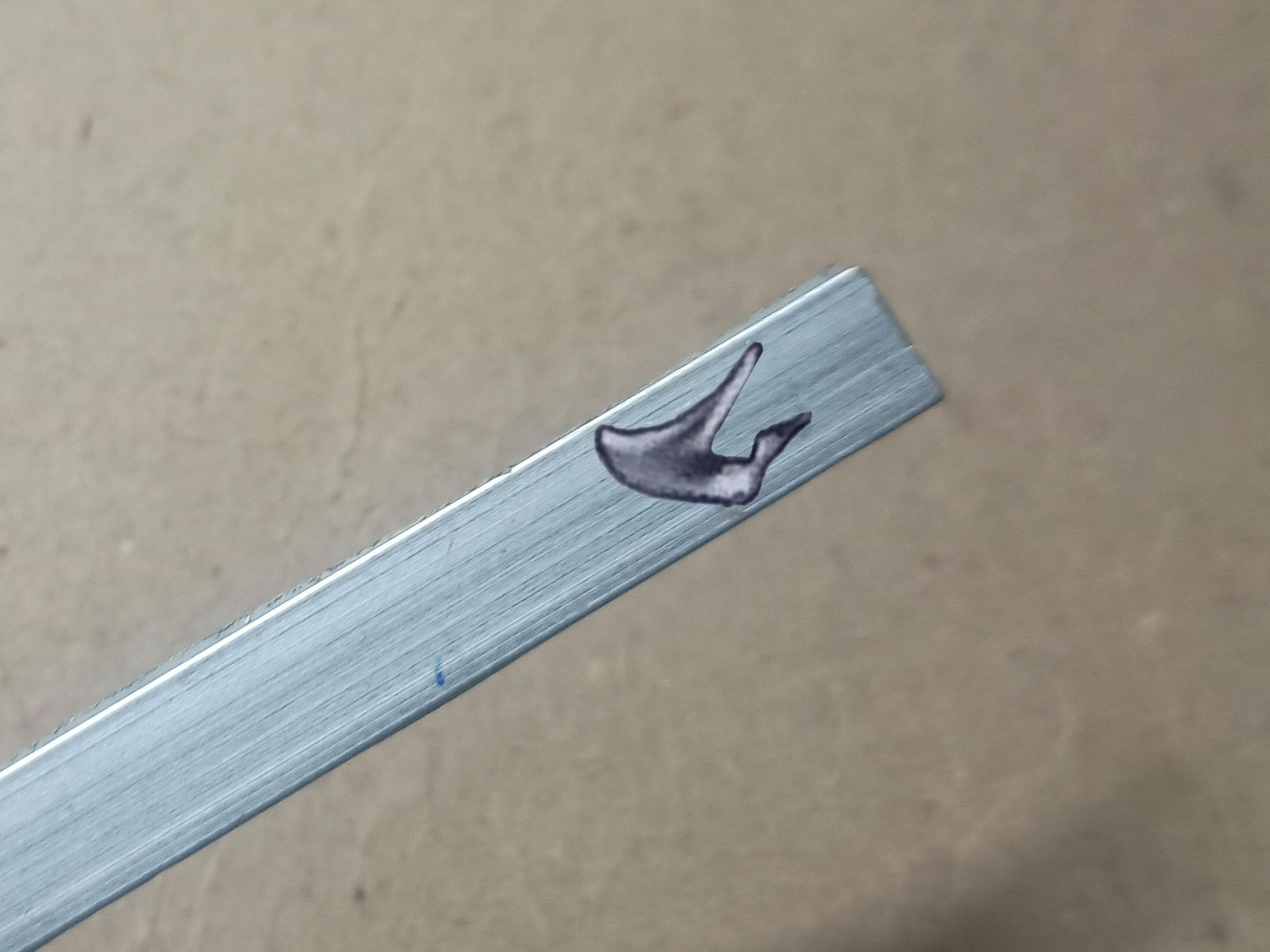

1. Transfer Design: Stick the curved guard template onto the 2.5mm aluminium stock and mark the center point where the blade tang will pass through.

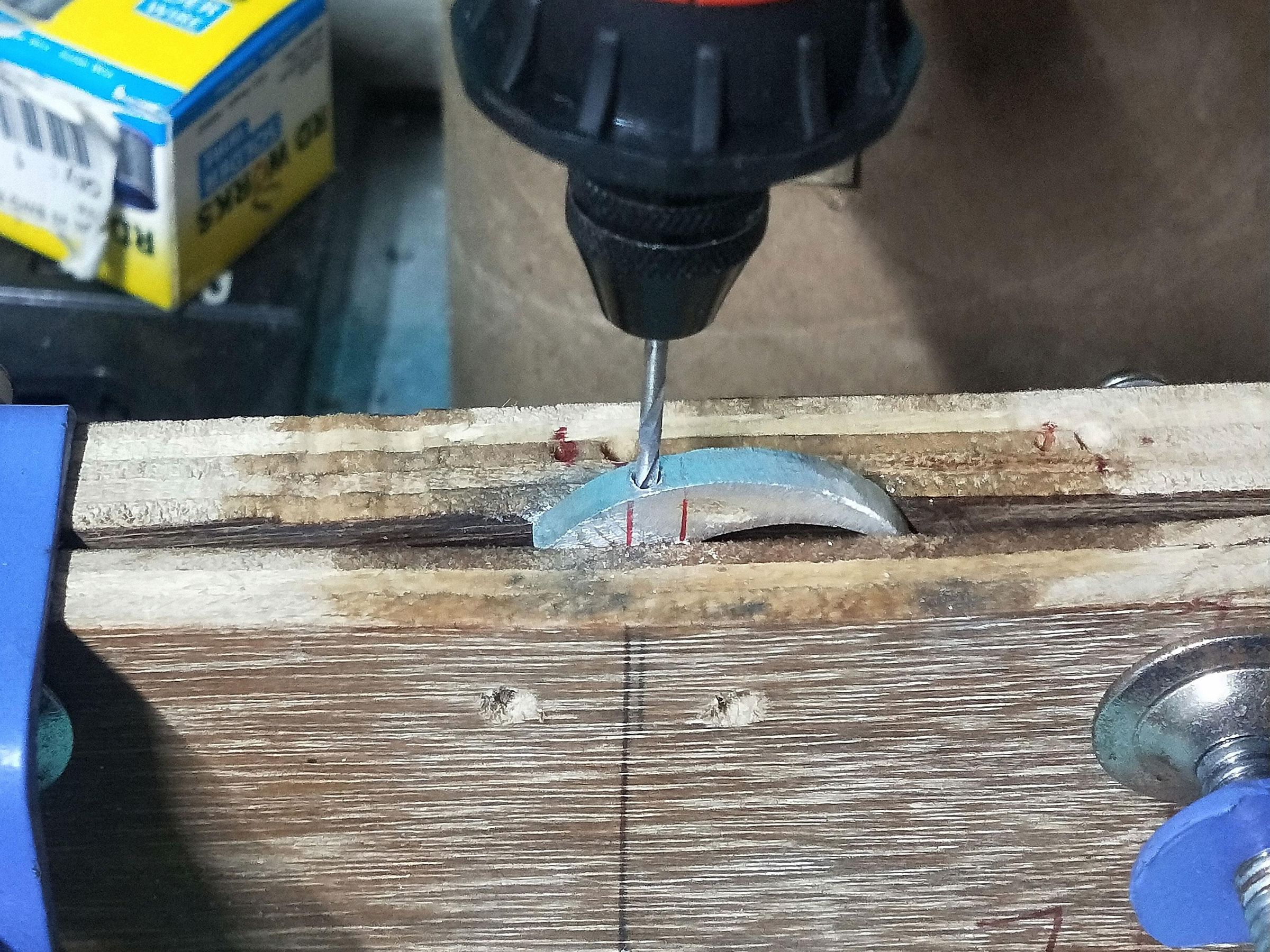

2. Drill & Chain: Drill a hole along the center slot mark to pass the blade tang.

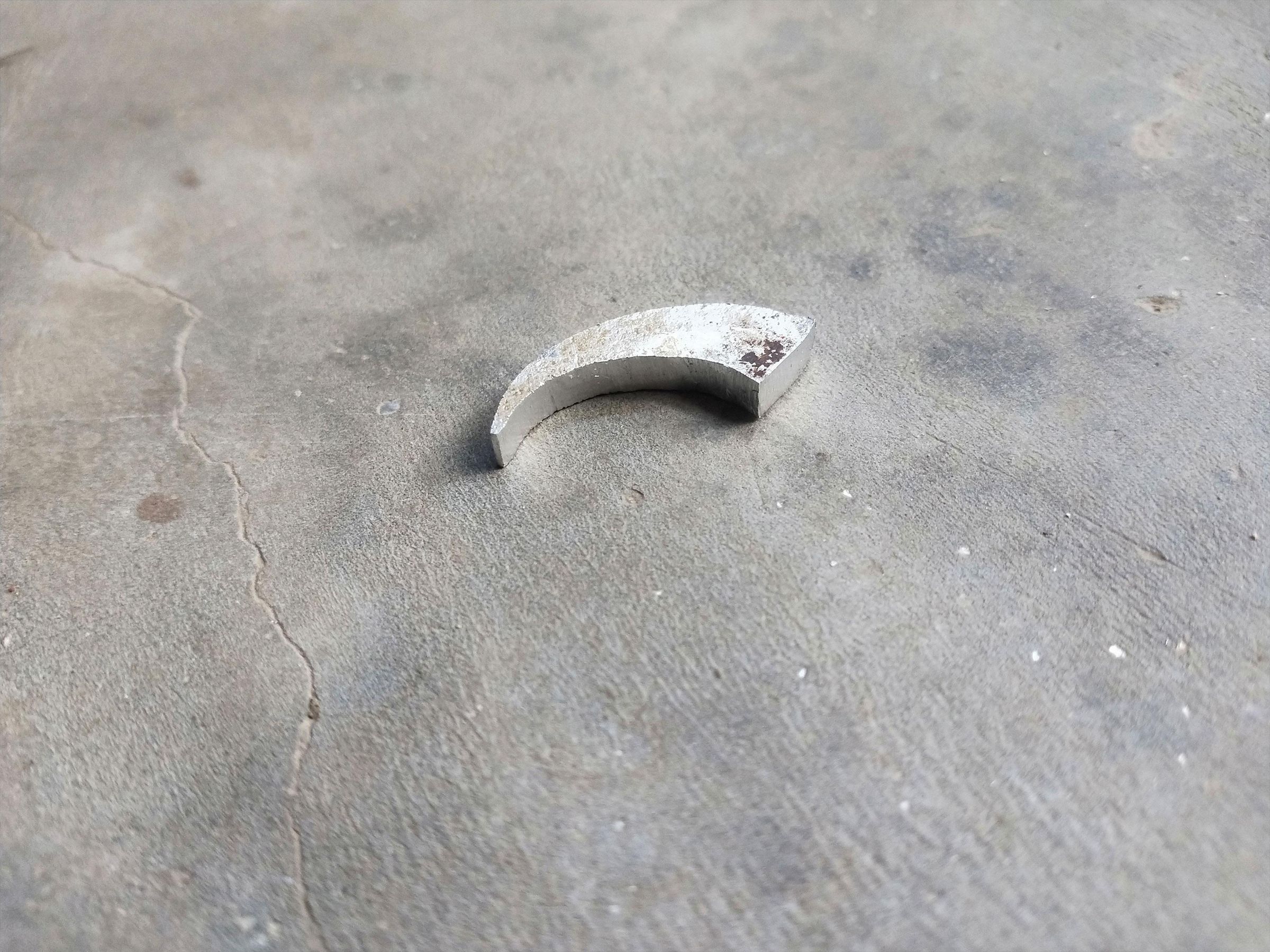

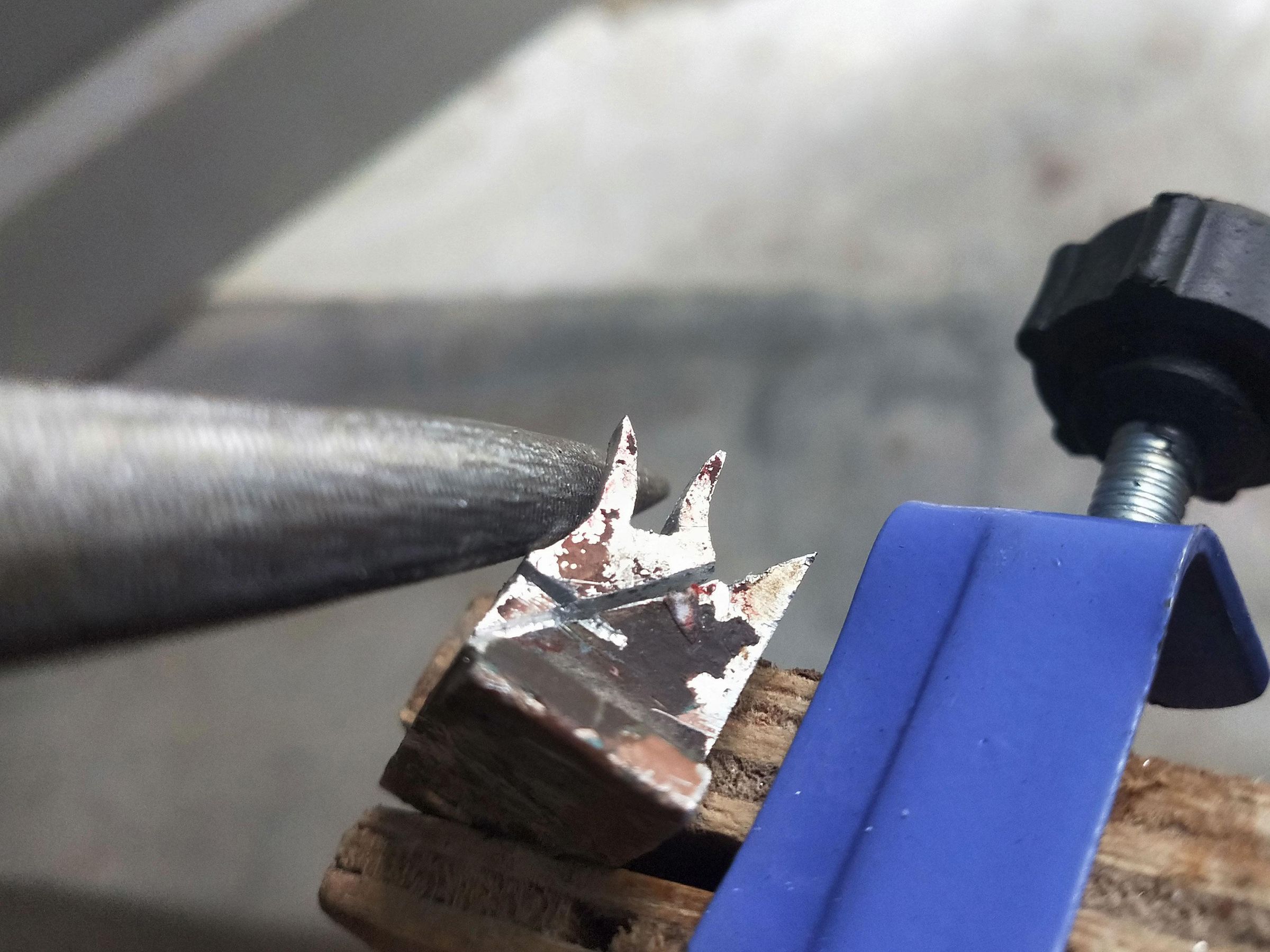

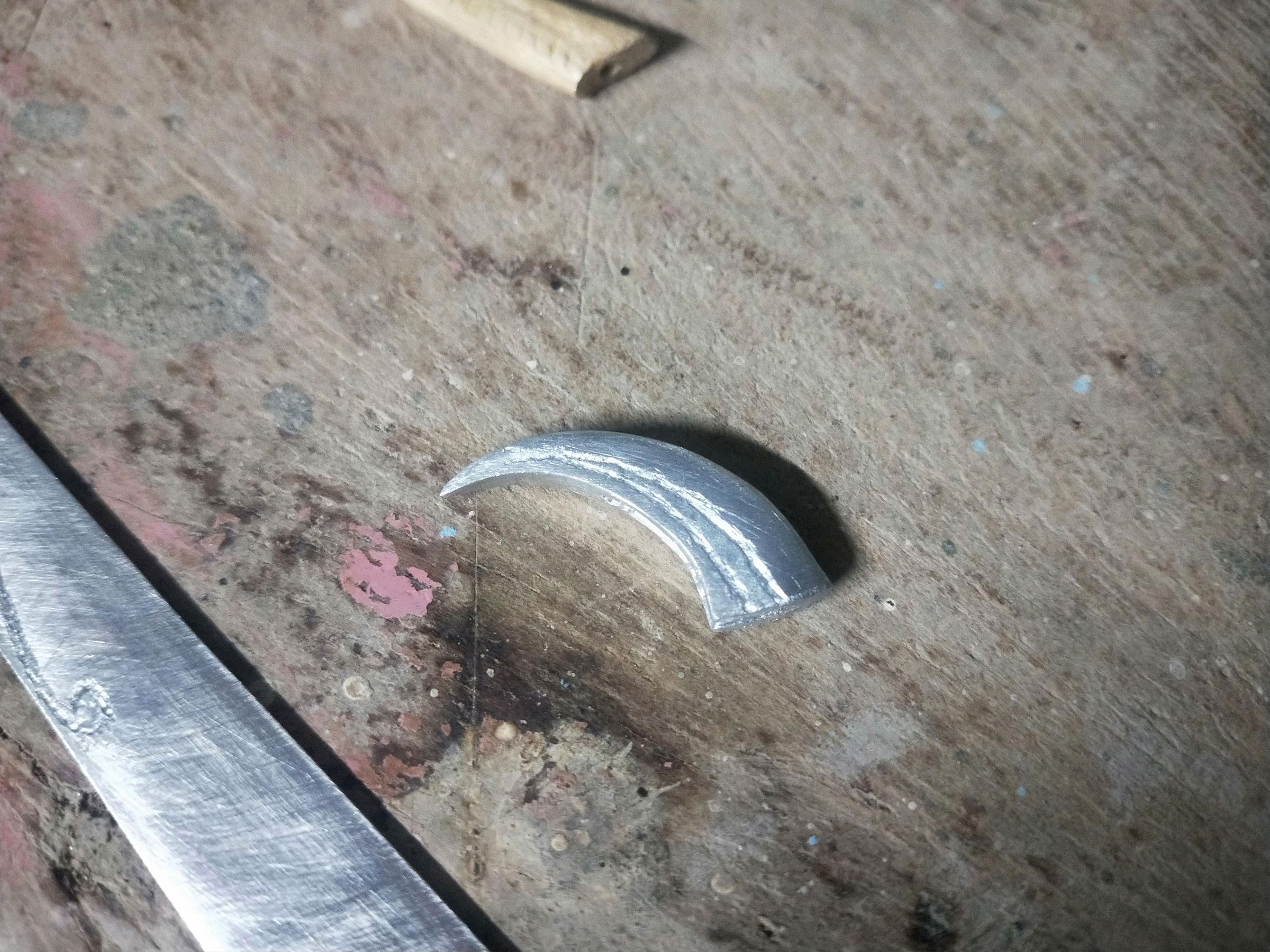

3. Rough Profile: Clamp the stock tightly and use your mini hacksaw to cut out the aggressive, sweeping hook of Orcrist's elven guard.

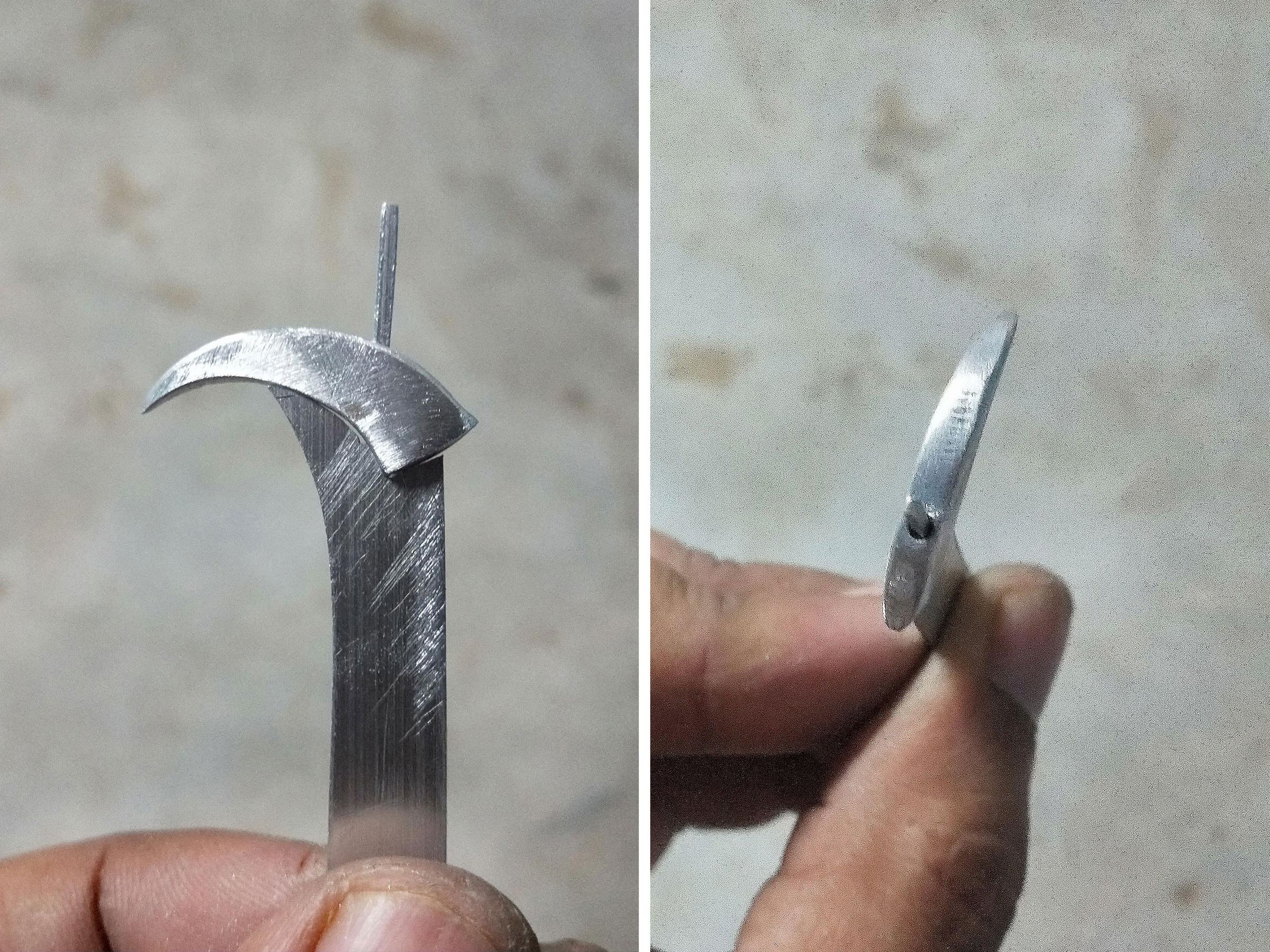

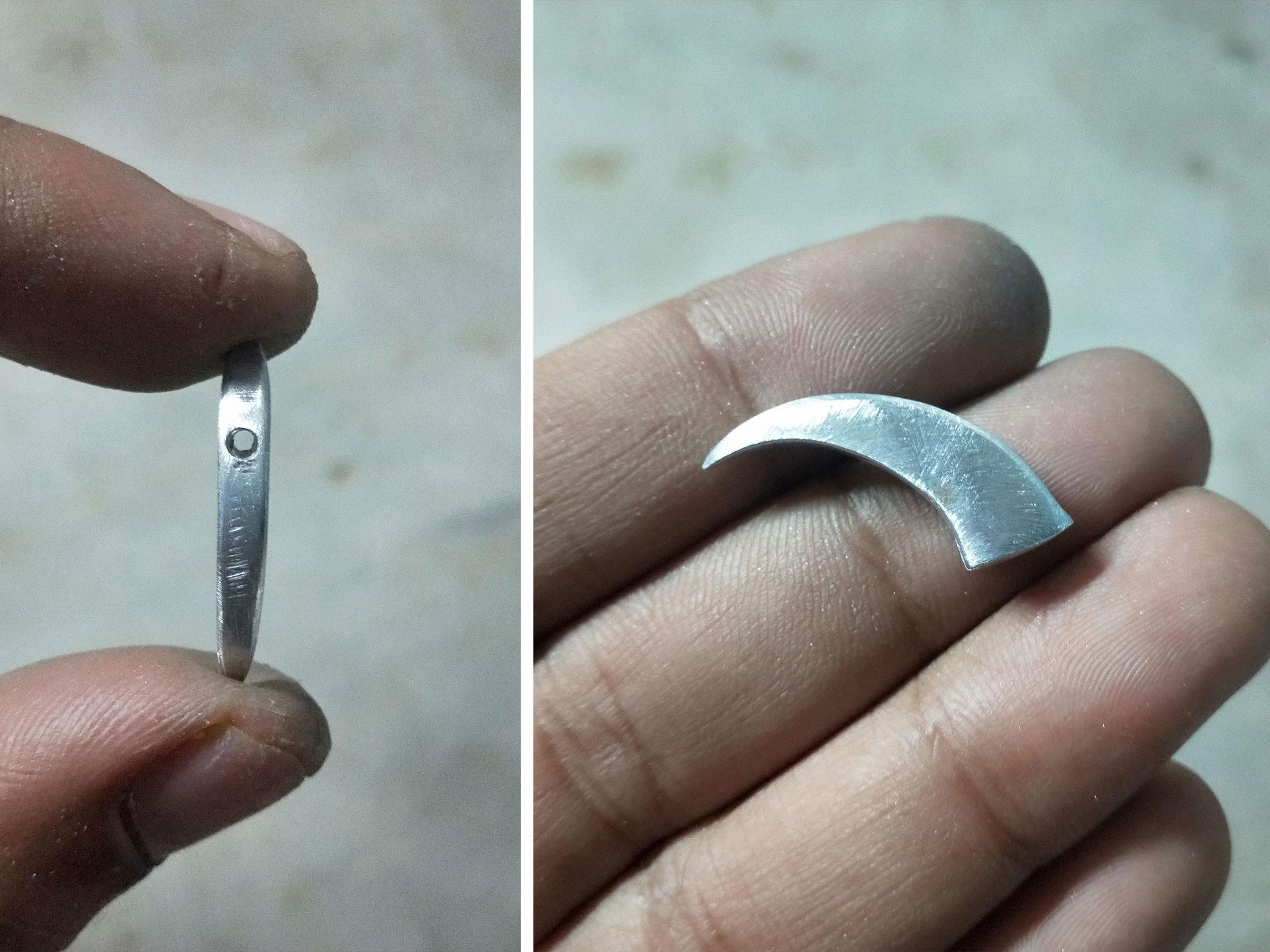

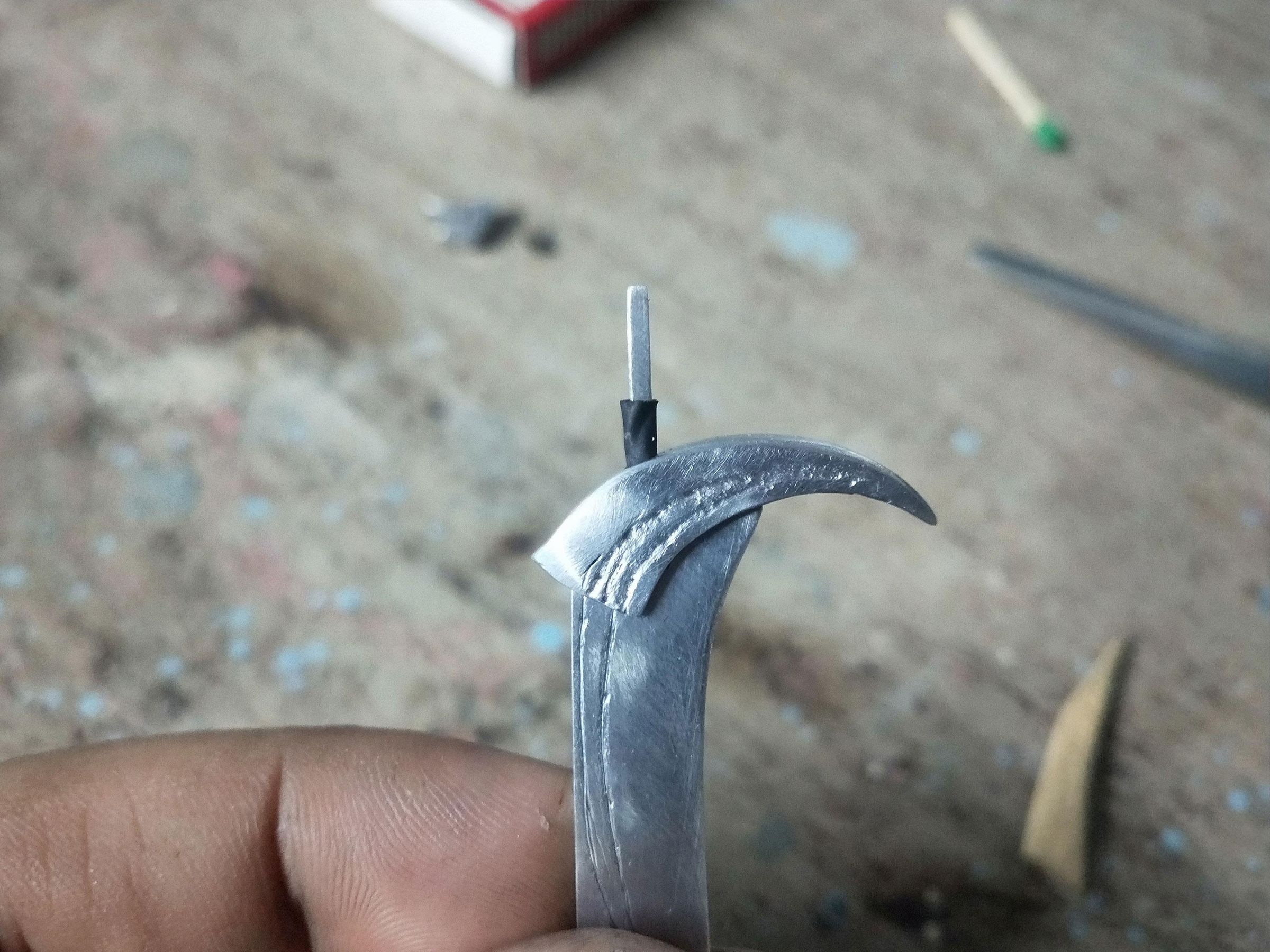

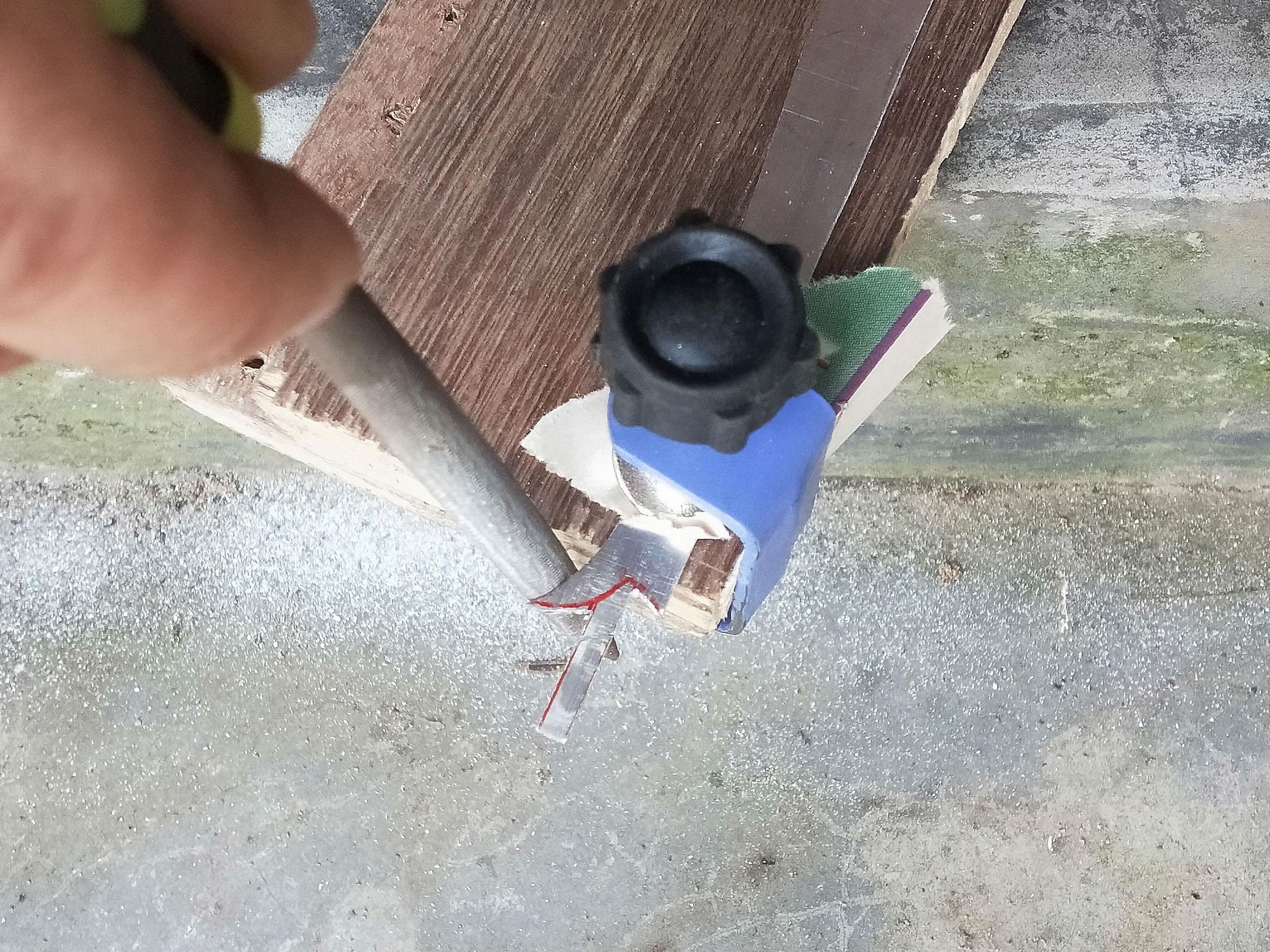

4. Bevel & Blend: Use half-round hand files to smooth the tight inner curves and file down the outer edges into a smooth, aerodynamic profile.

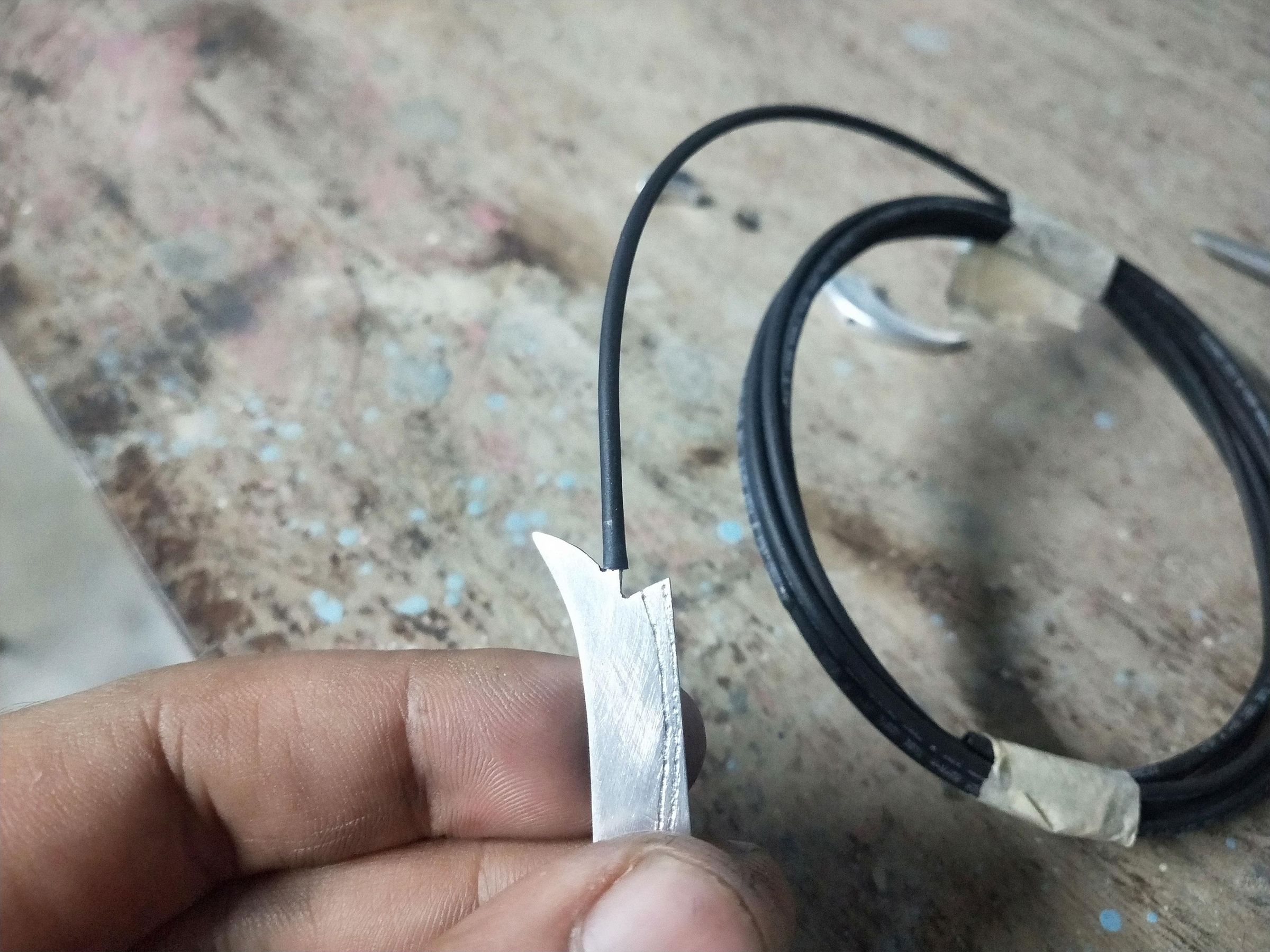

💡 Pro Tip: To get a perfectly tight fit against the blade, file the tang slot slightly undersized, then gently tap the guard onto the blade tang using a soft wood scrap block to friction-lock them together. In my case I made the hole bigger, so I had to use a 1mm heat shrink tube to fit it tightly.

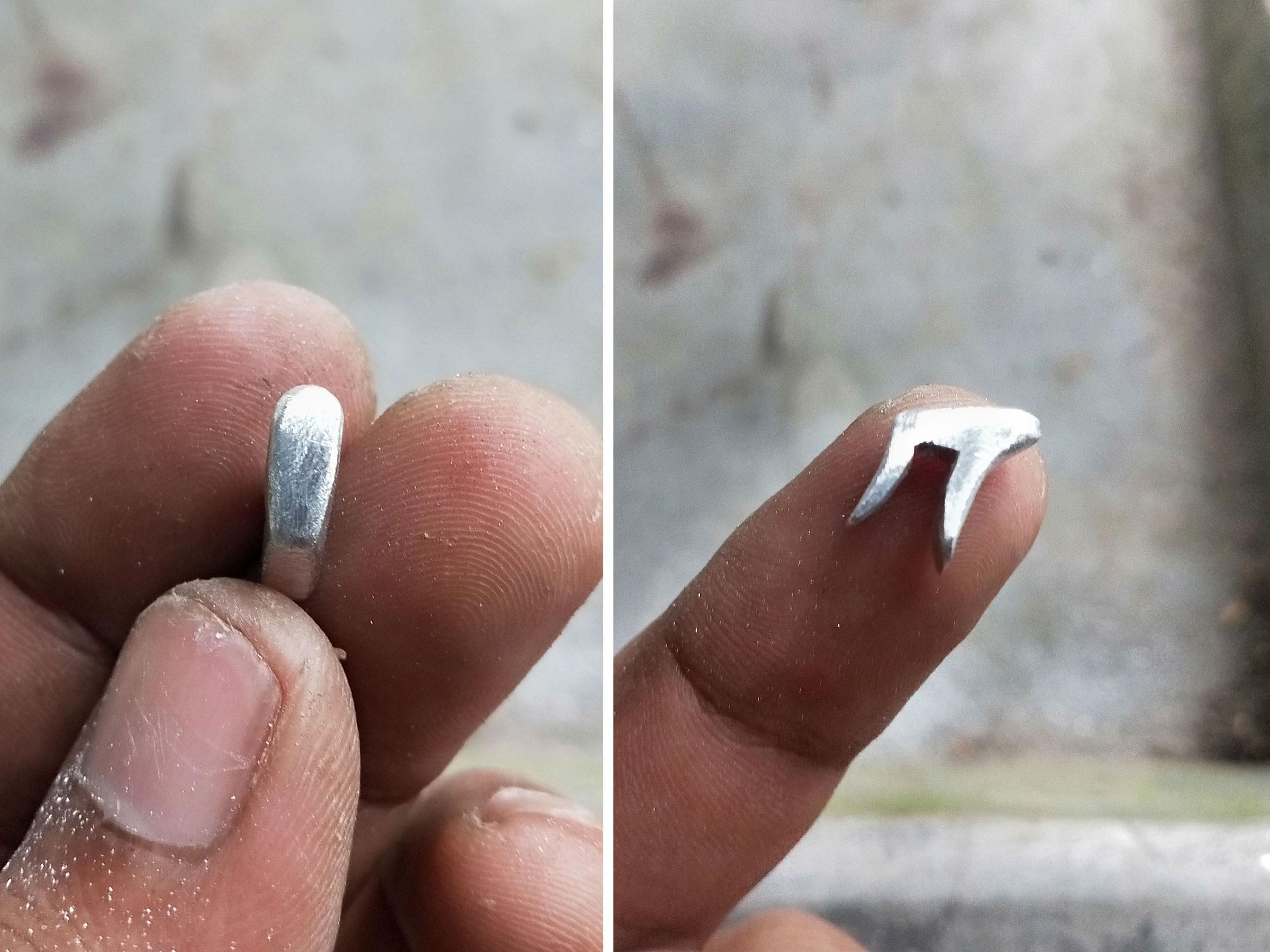

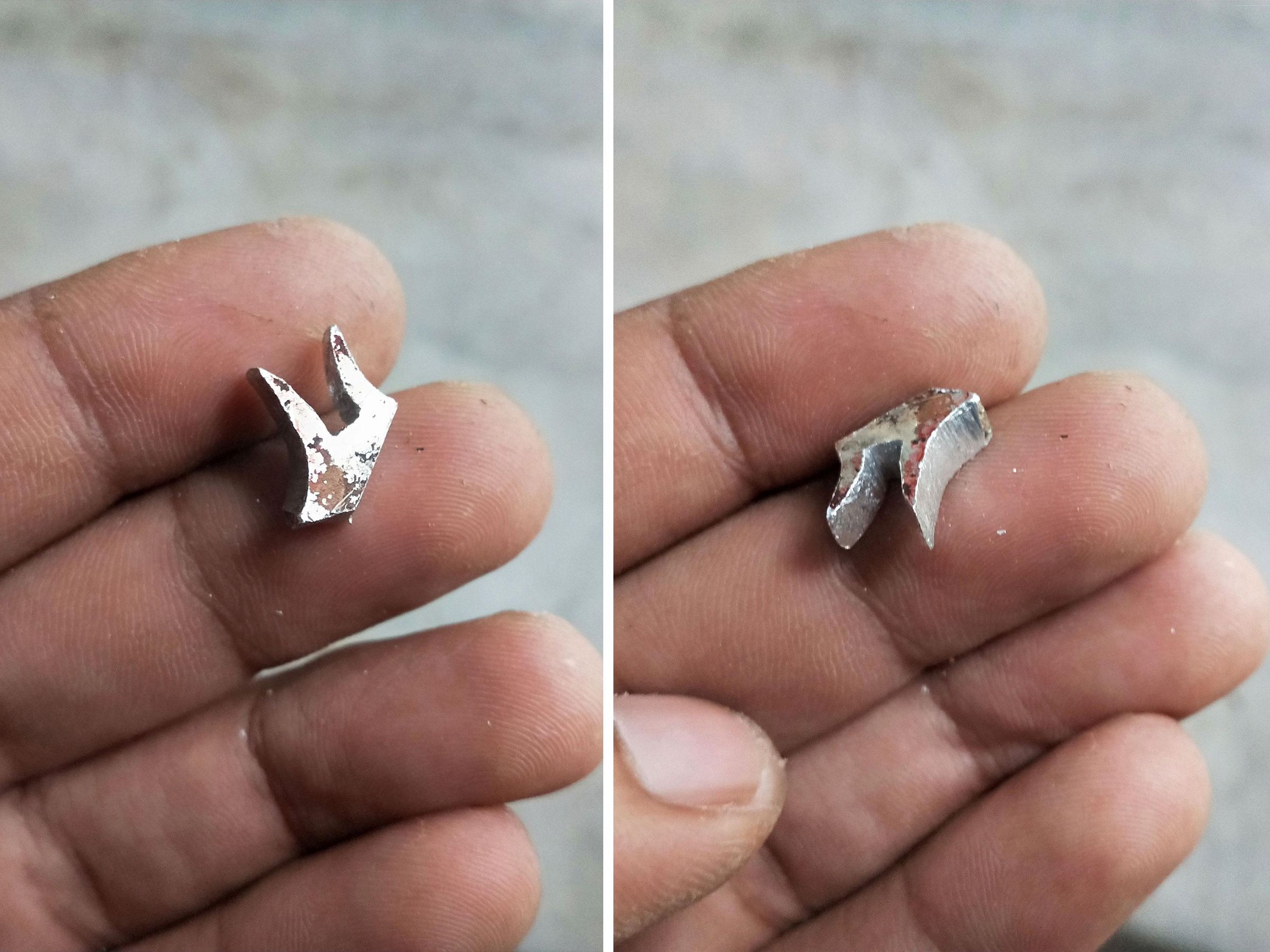

1. Transfer Shape: Paste the distinct endcap template onto a piece of the thicker 2.5mm aluminium stock.
2. Rough Cut: Secure the piece in your clamps and use the mini hacksaw to cut the profile, leaving a small extension at the base to slot into the wood handle.

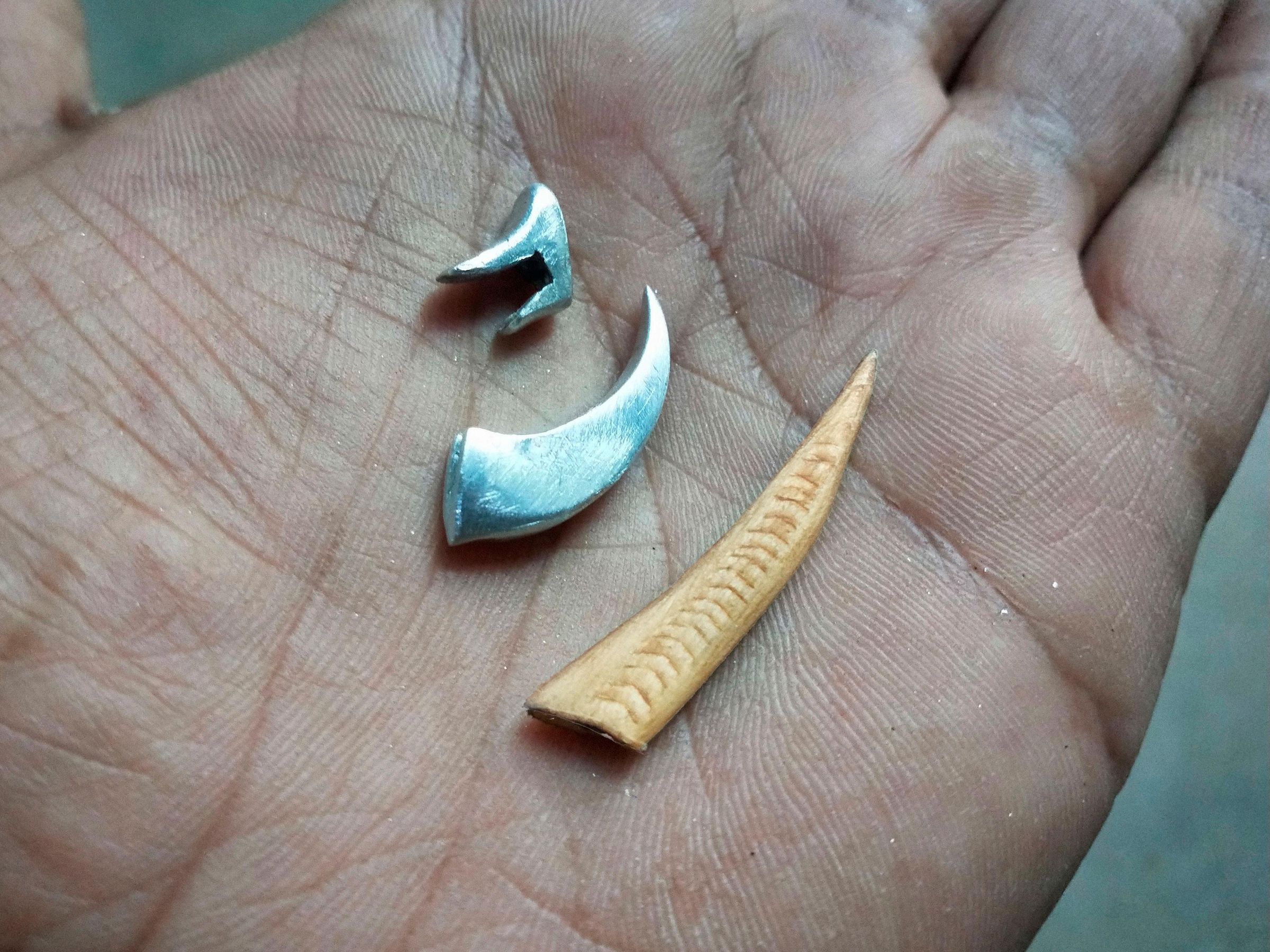

3. Refine Curves: Use needle hand files to carefully sculpt the elegant, swooping elven curves of the miniature endcap.

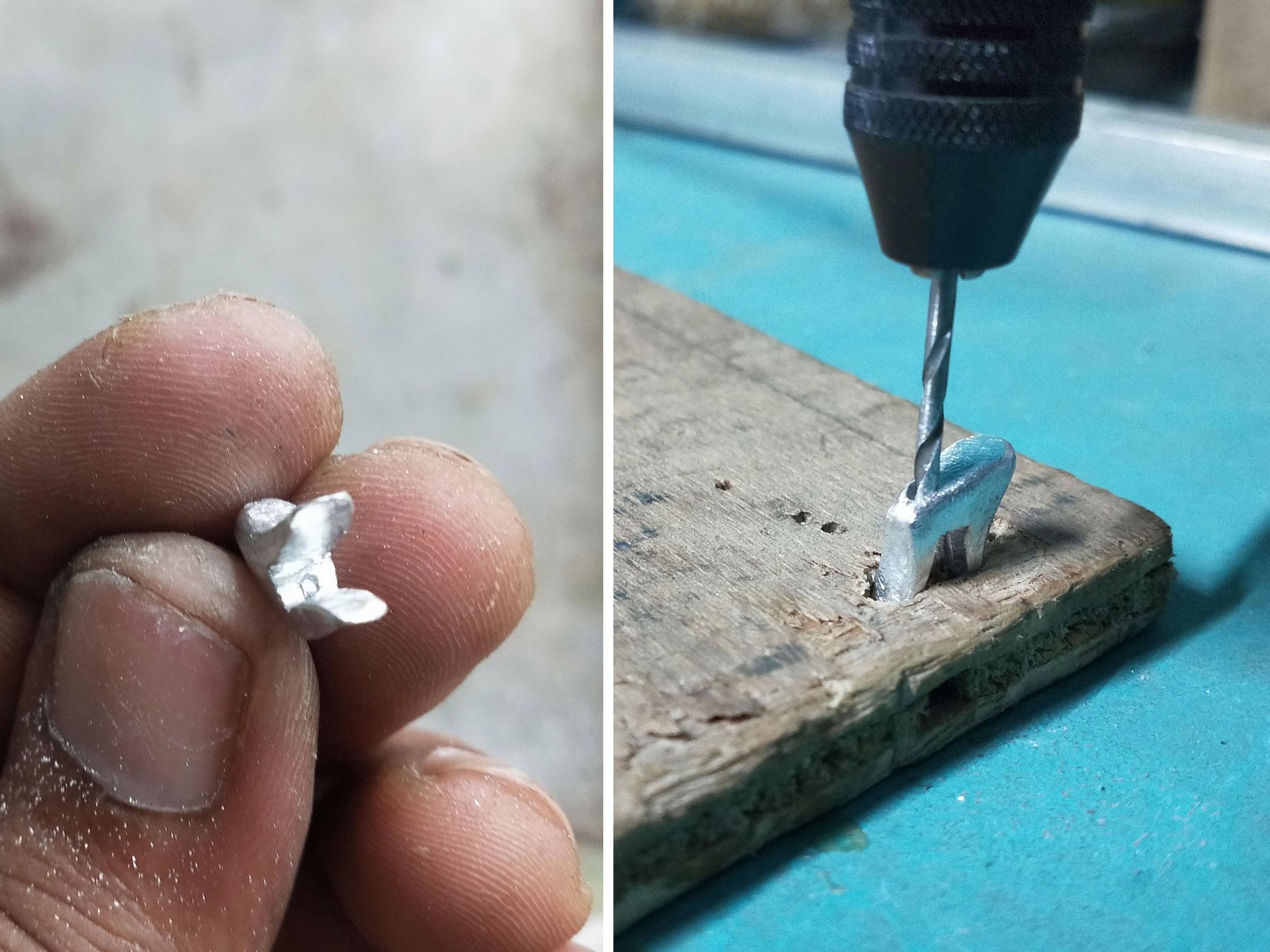

4. Drill & Chain: Drill a hole along the center slot mark, to fit onto the tip of the handle grip acting as a endcap that finishes the handle.

💡 Pro Tip: Keep the pommel attached to a larger piece of scrap metal while filing the fine details; having more material to clamp onto makes handling miniature parts significantly safer and easier.

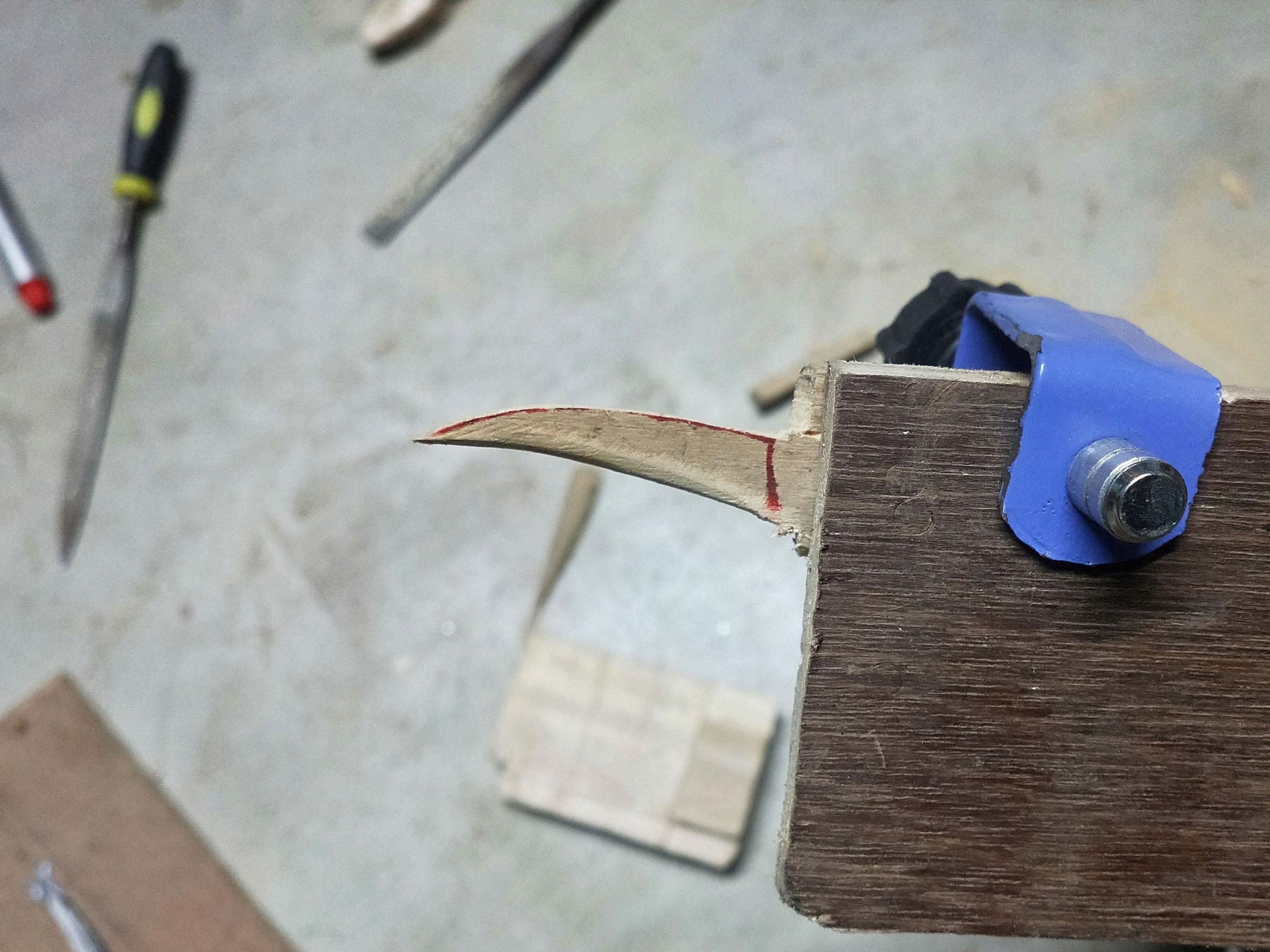

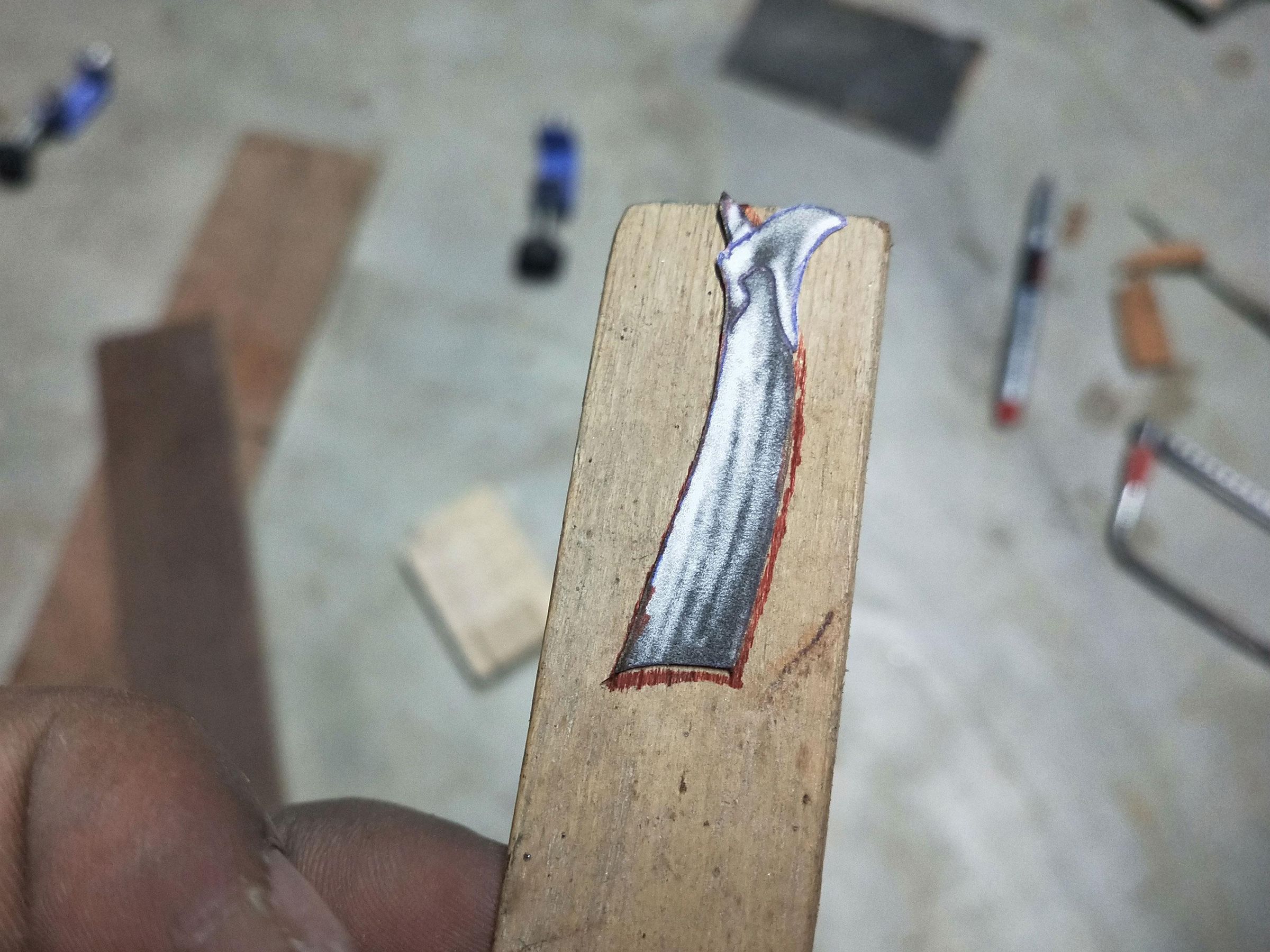

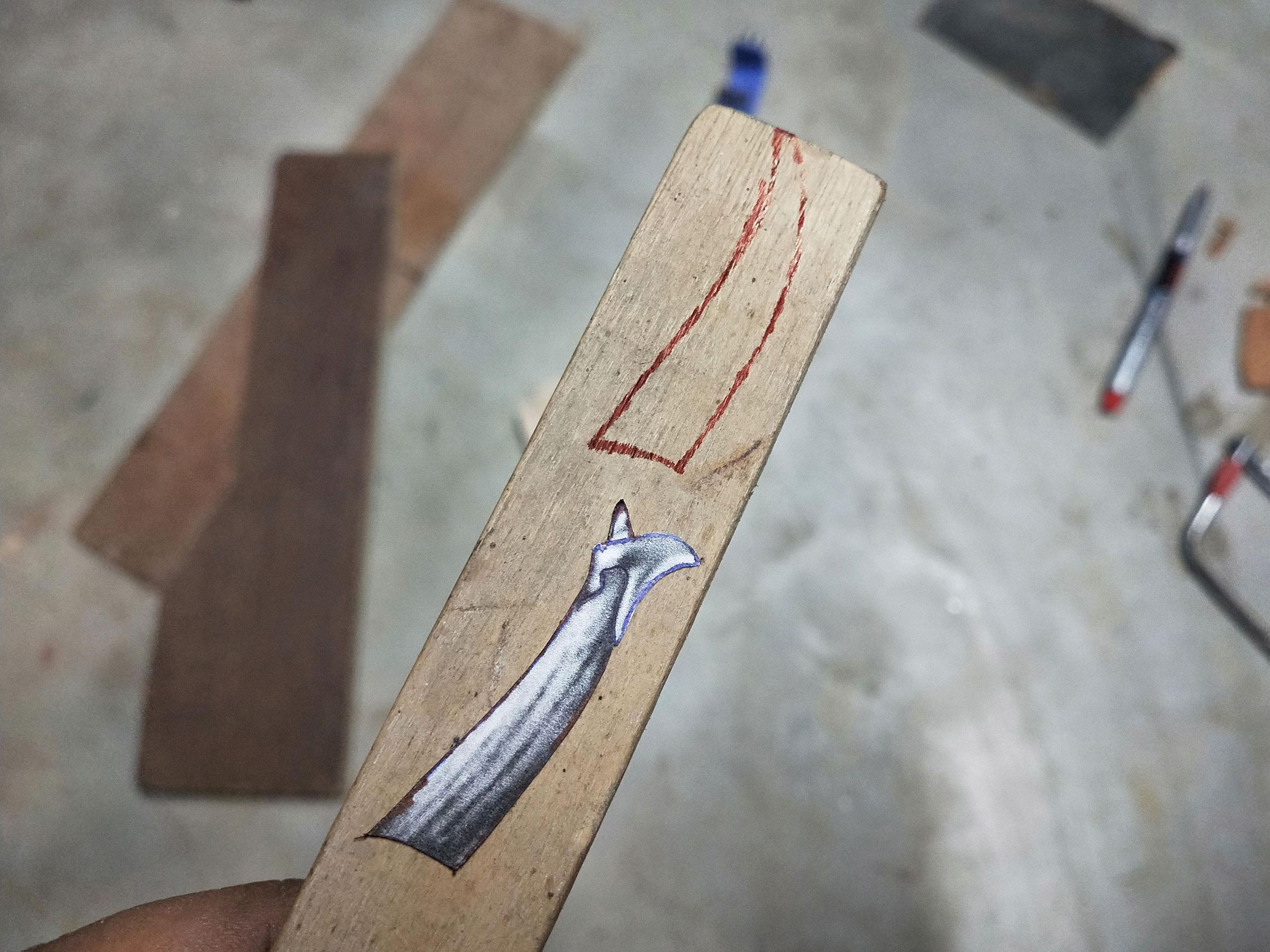

1. Cut the Wood: Stick the handle template onto the piece of scrap wood. Use a mini hacksaw to slice a single, oversized block from your wood scrap to serve as the handle blank.
2. Drill Hole: Mark the center of the block and drill a straight hole down its length, to make the slot for the tang.

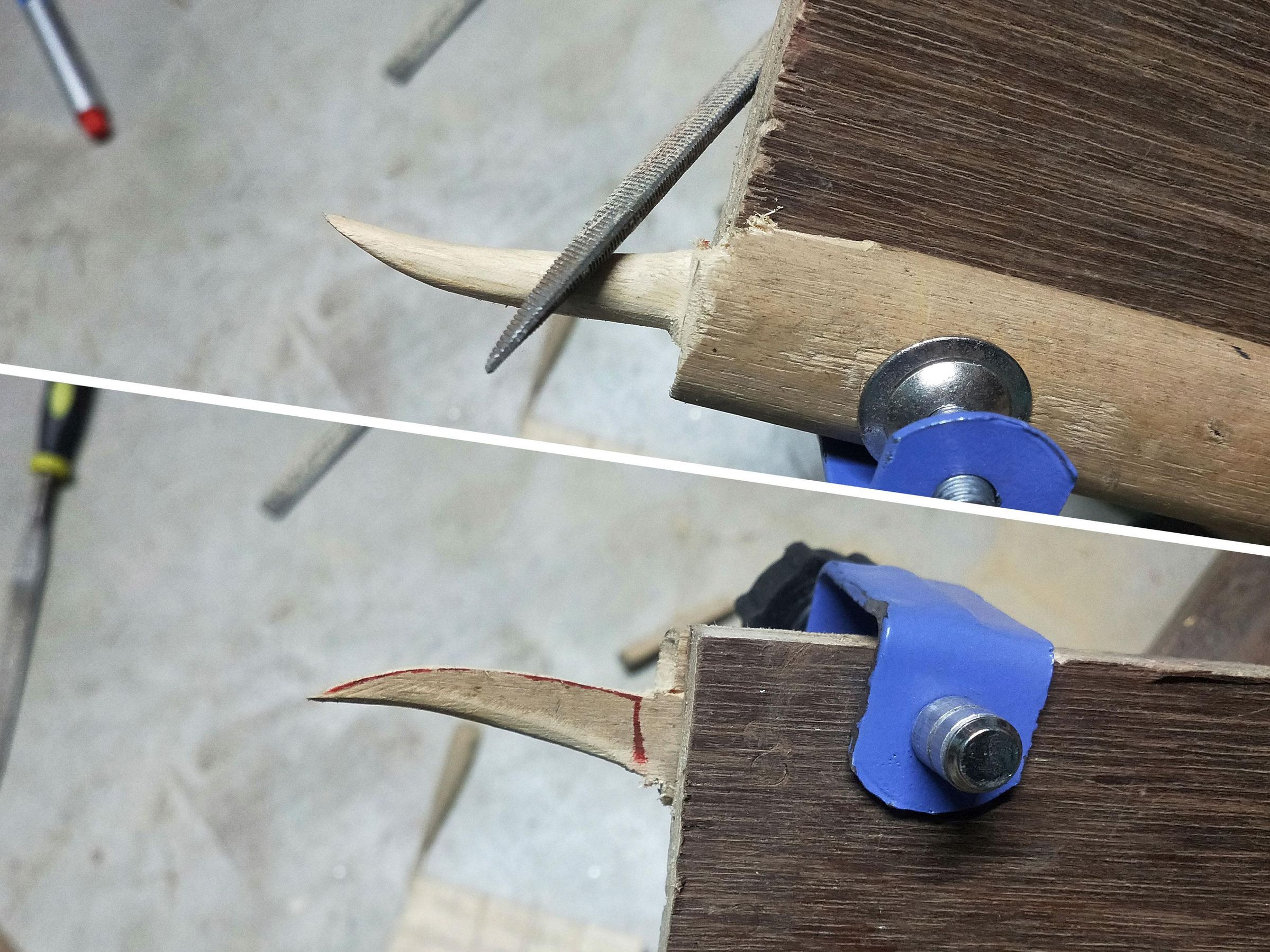

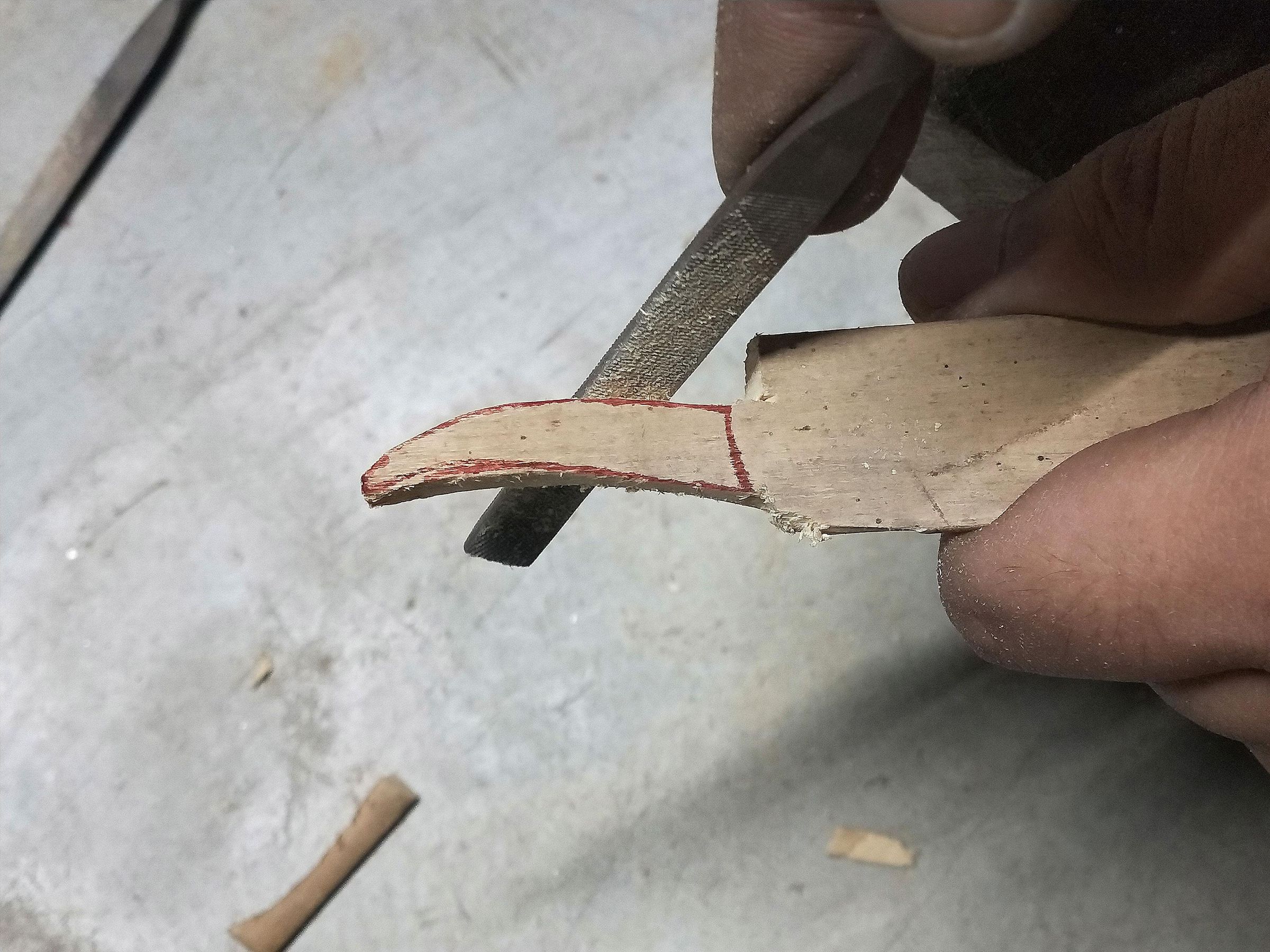

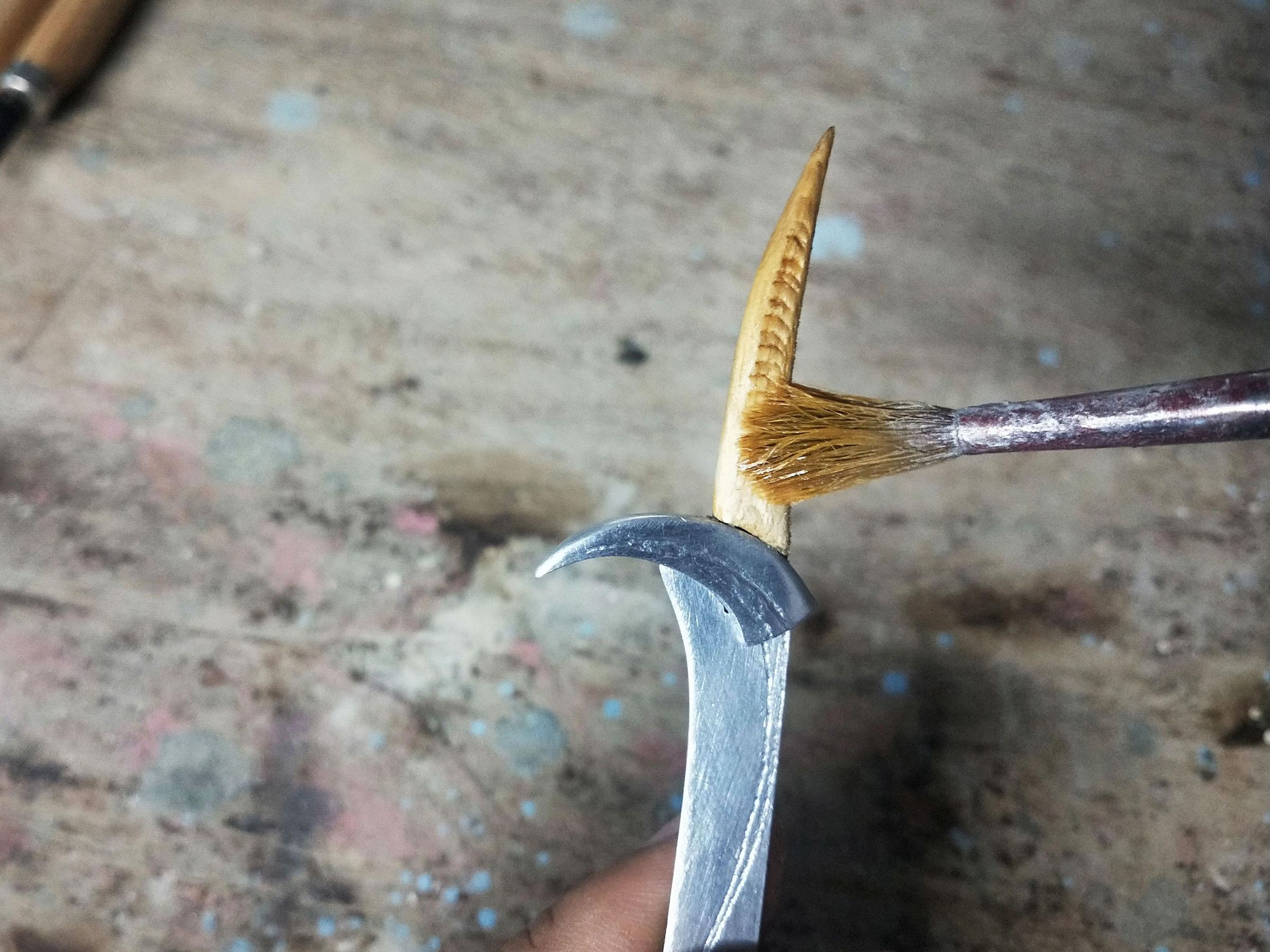

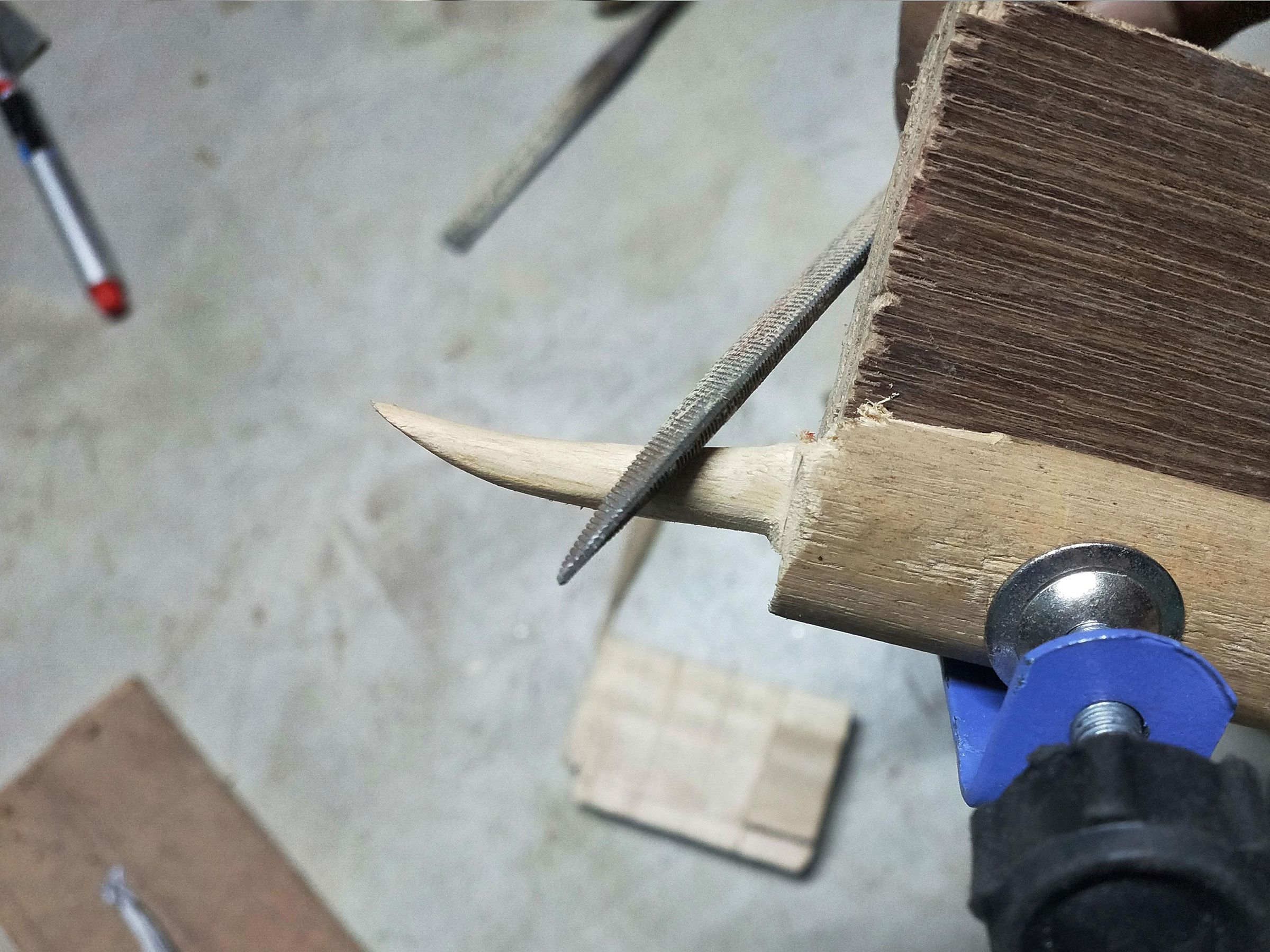

3. Filing & Shaping: Mount the handle to the tang with epoxy glue, then use coarse hand files to sculpt the raw block into smooth, ergonomic curves. then make textures along the middle line to give a fine design.

💡 Pro Tip: Leave the wood block slightly blocky while drilling; the flat, square exterior faces make it much easier to clamp securely on your workbench without slipping.

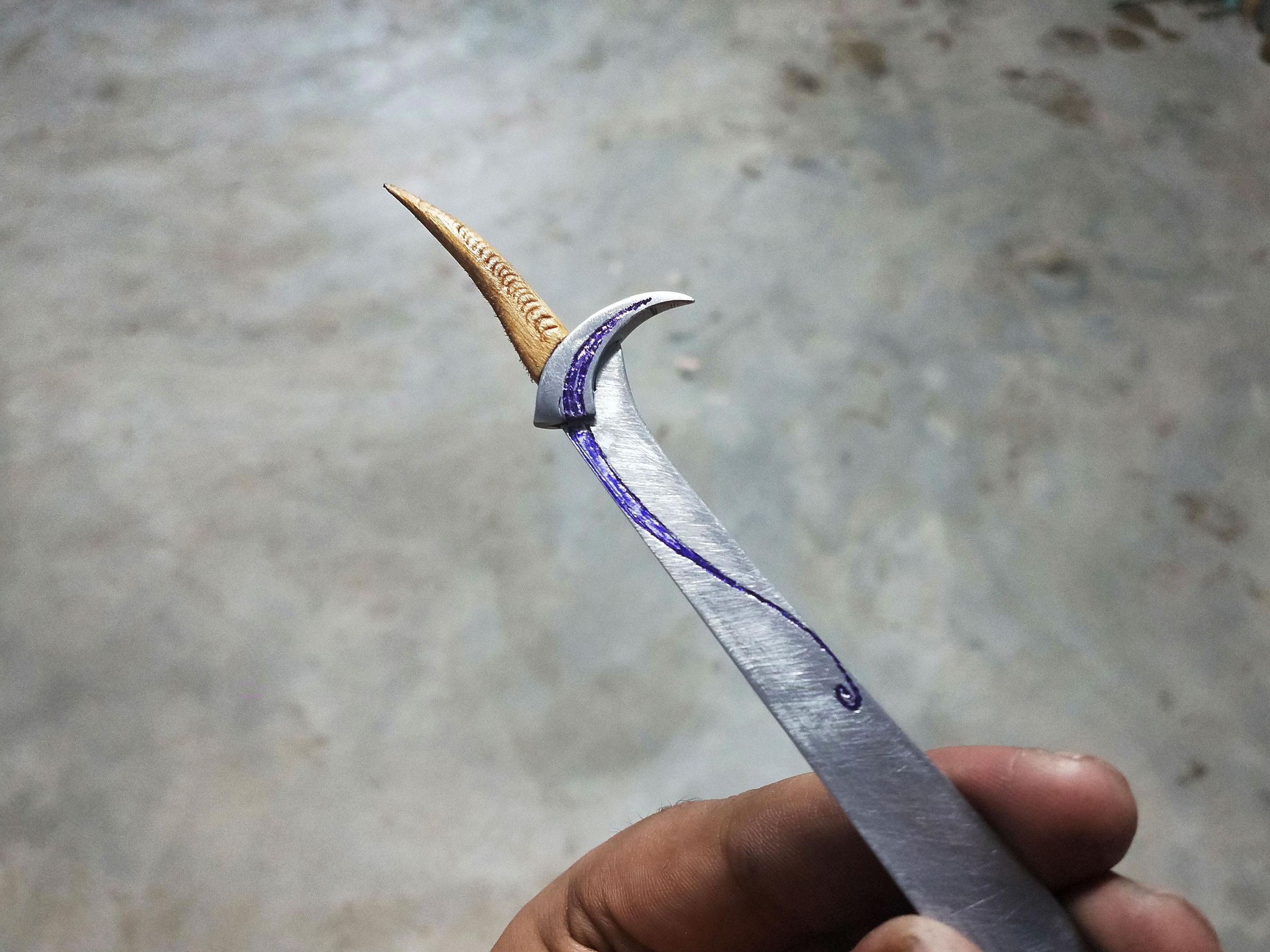

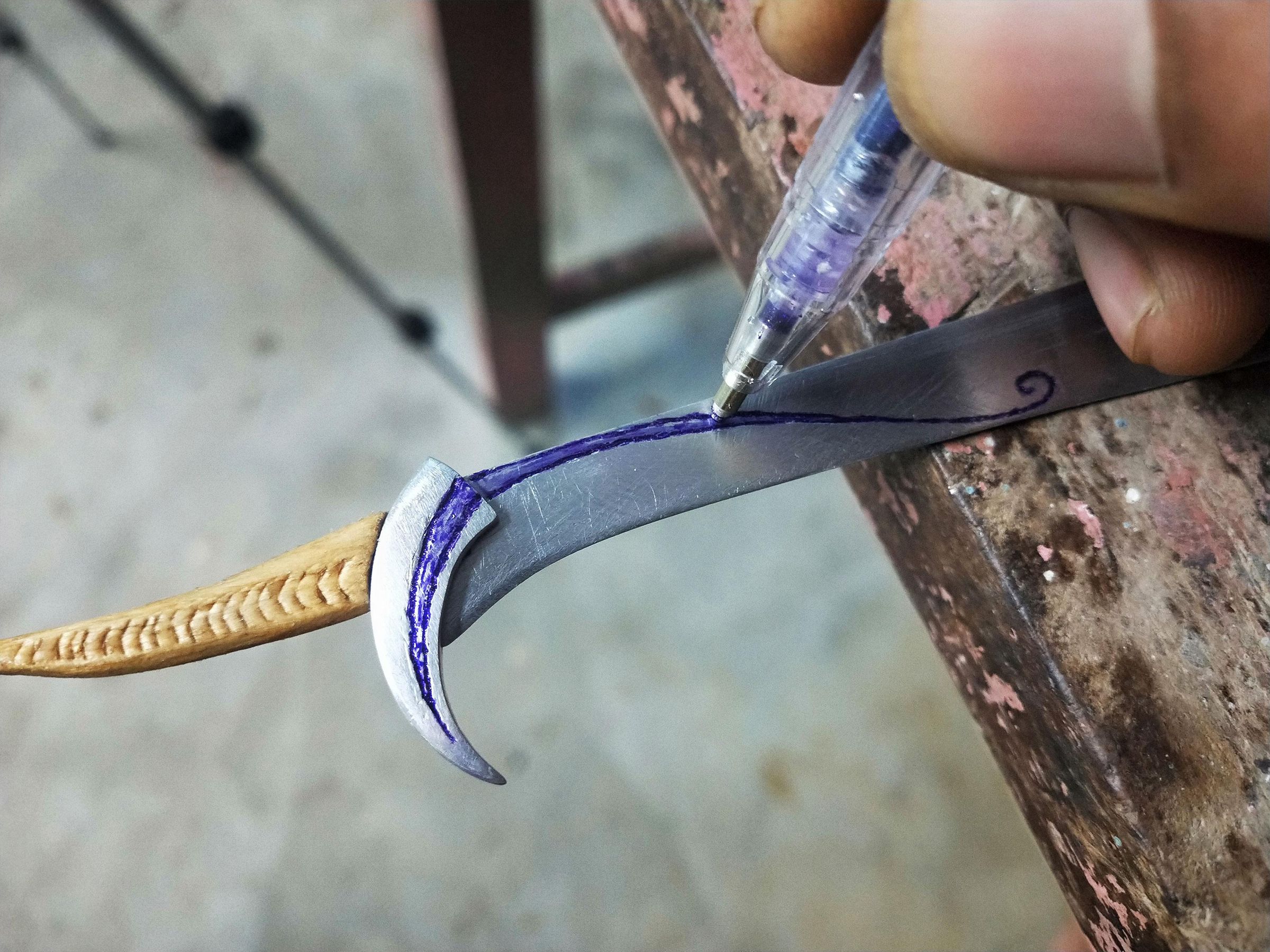

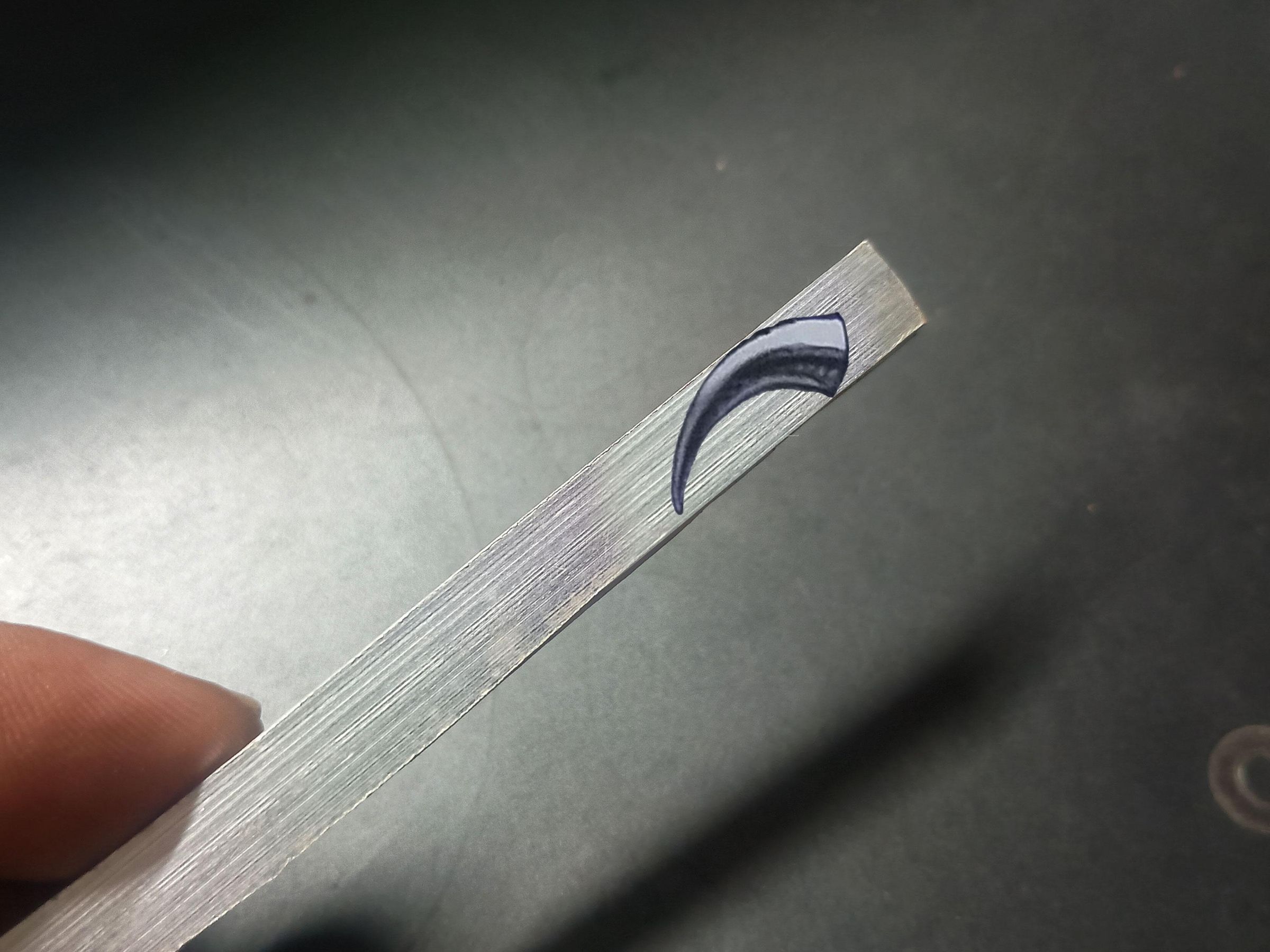

1. Transfer Layout: Overlay your reference template and use a sharp steel scriber (or a heavy-duty needle) to scratch the intricate elven vine work and rune lines through the ink into the metal.

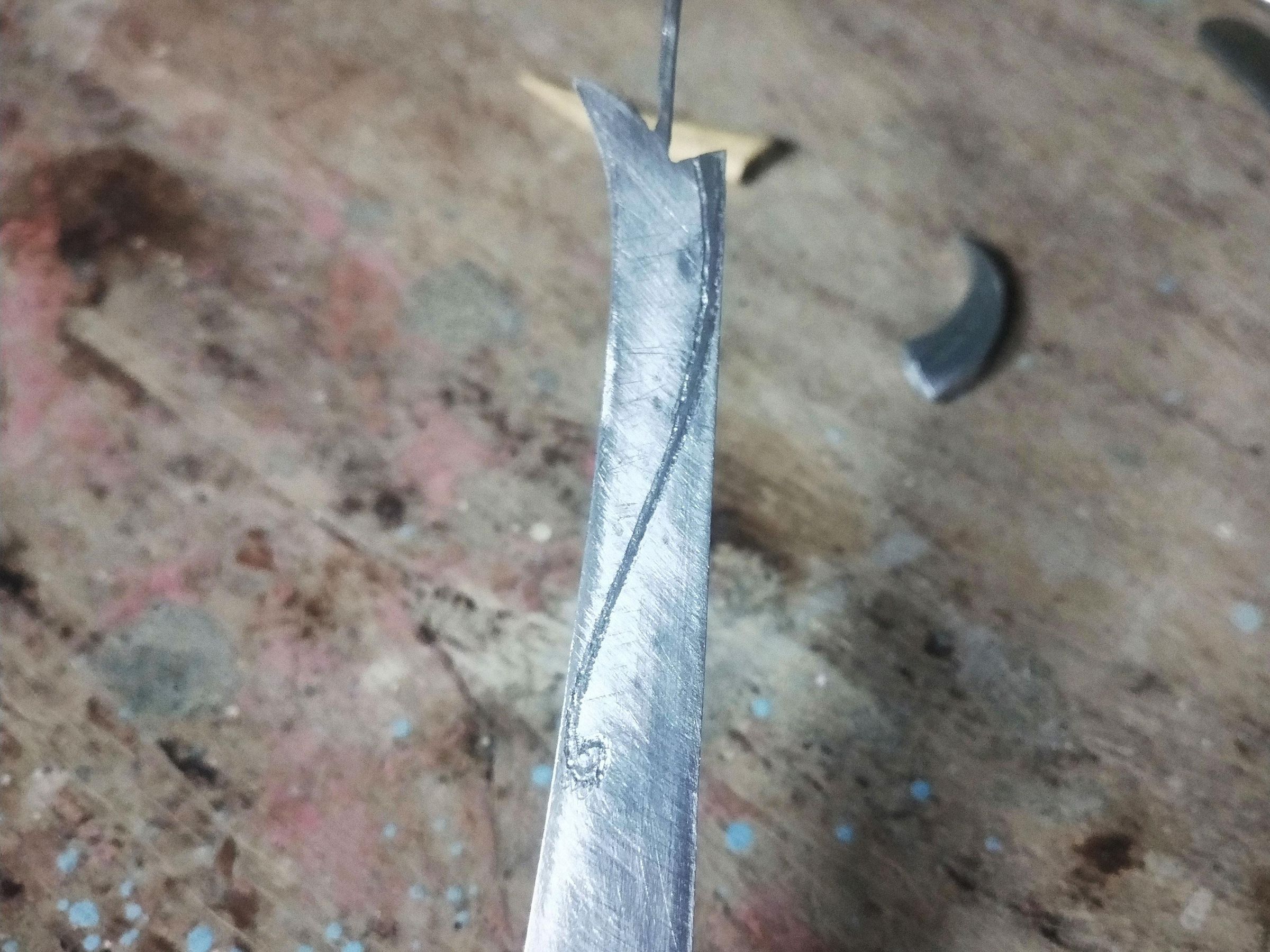

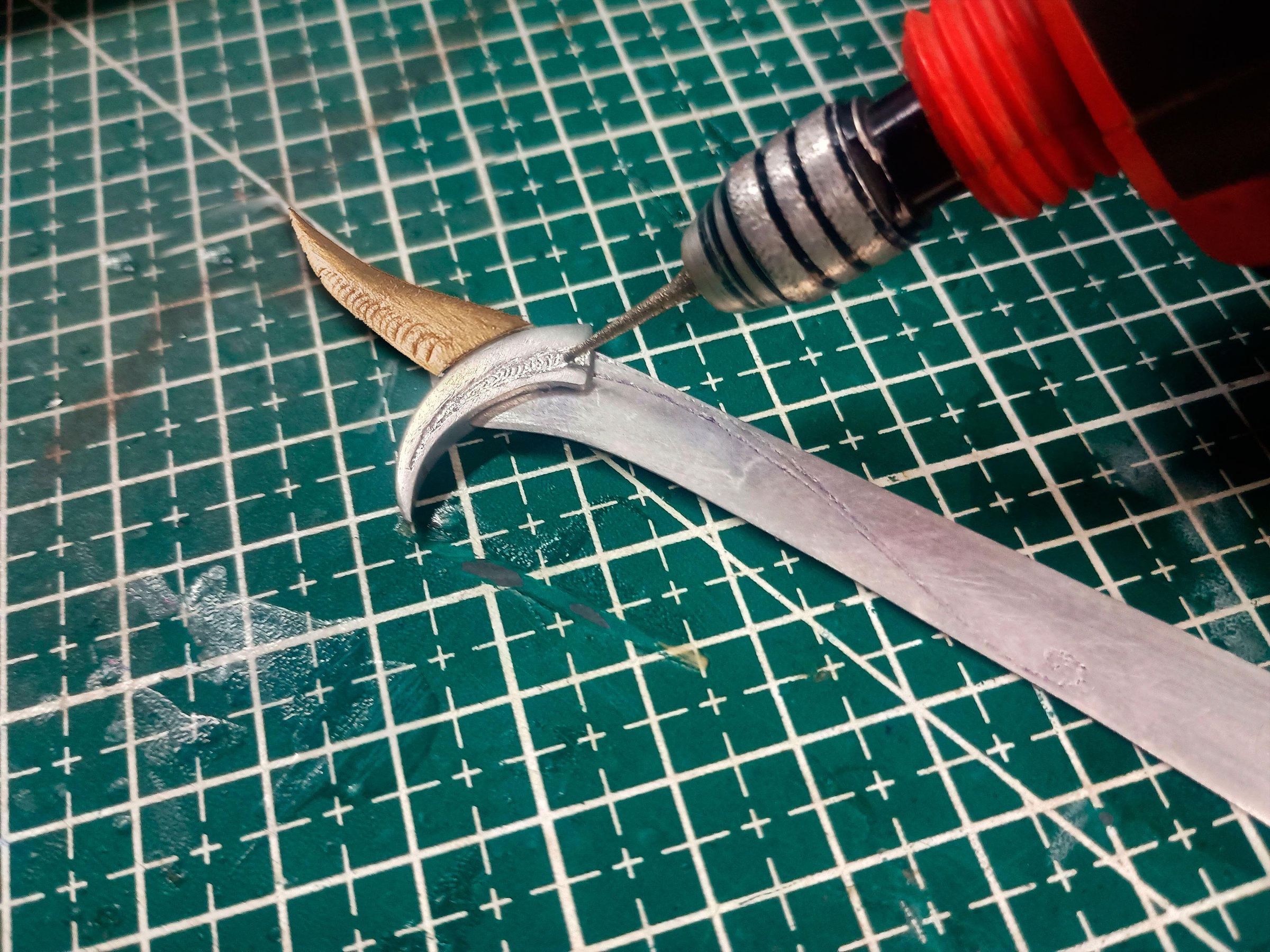

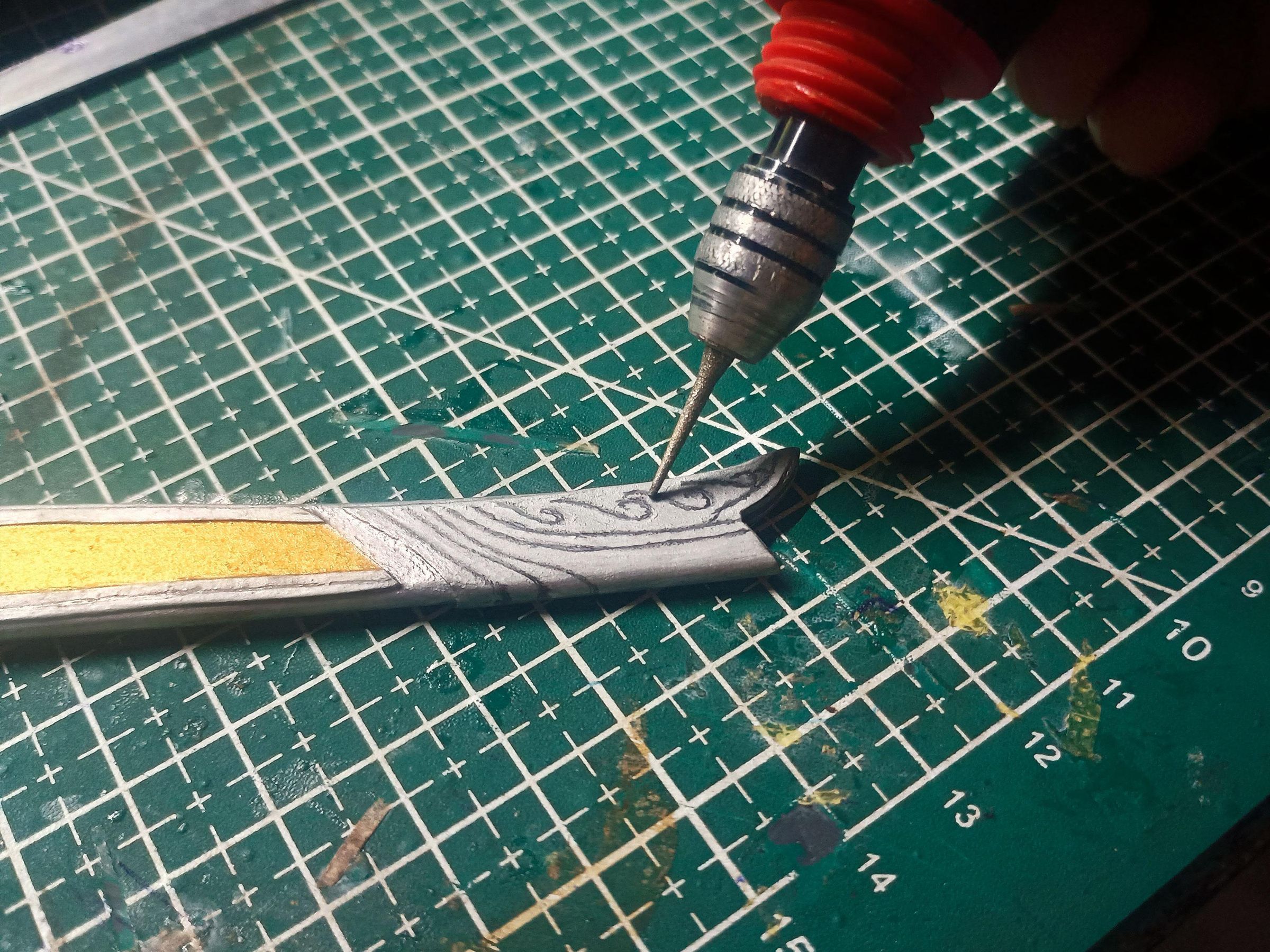

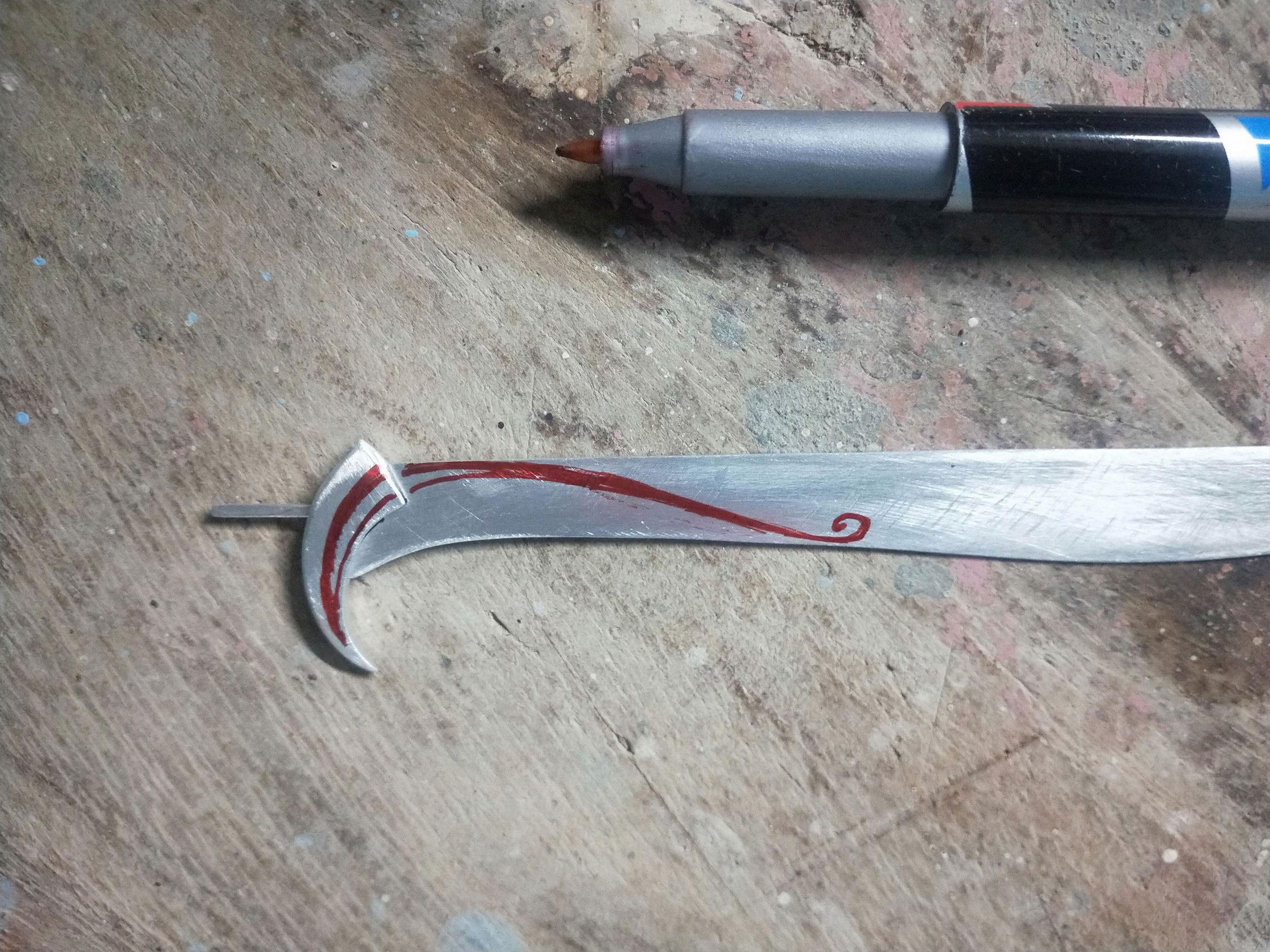

2. Engrave Details: Follow the scribed lines carefully using a fine-tipped engraving bit on your rotary tool to etch the permanent ornamental details into the aluminium.

💡 Pro Tip: Apply a thin layer of blue layout fluid or a dark permanent marker over the polished areas of the blade and guard to create a high-contrast marking surface.

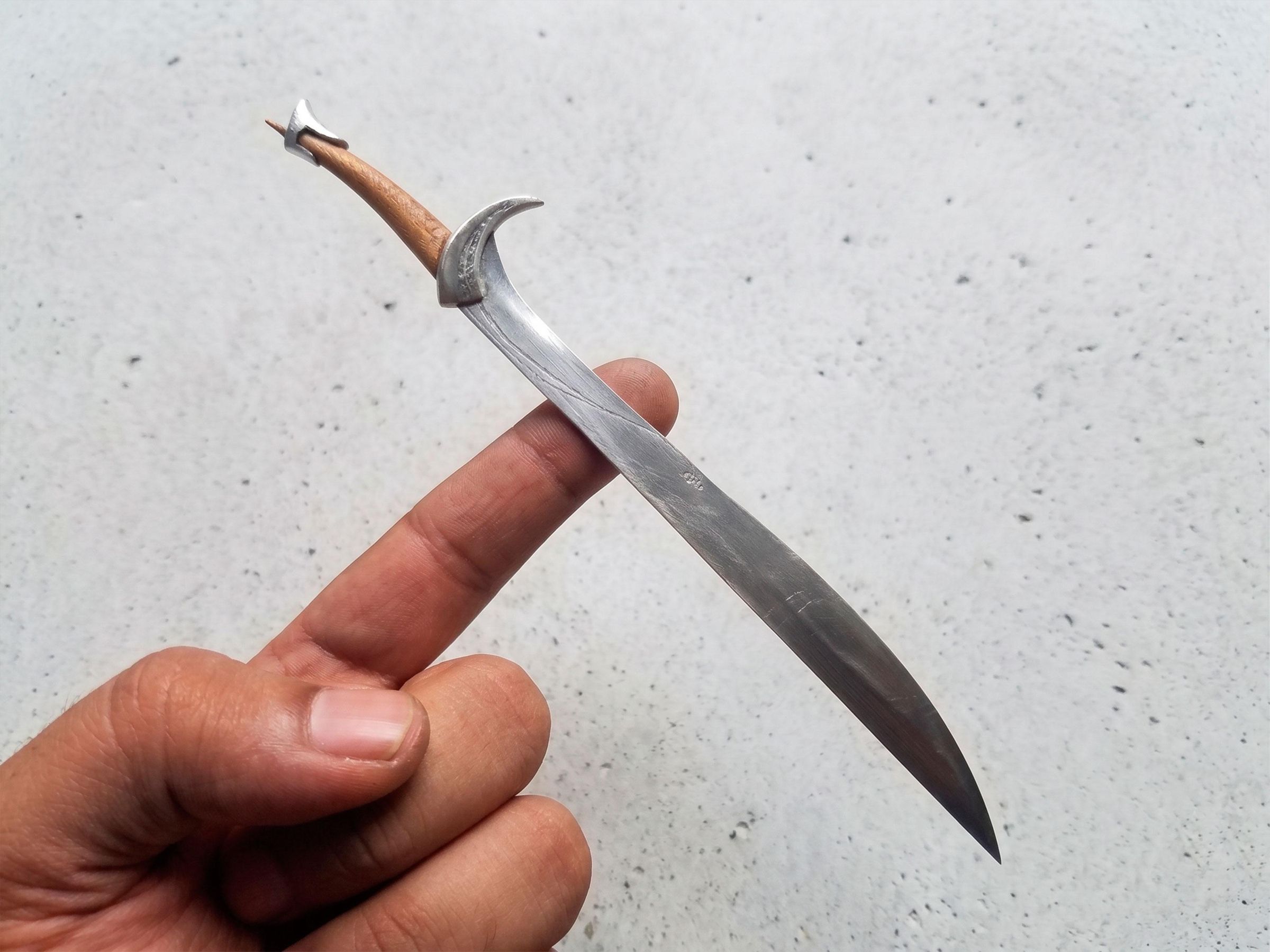

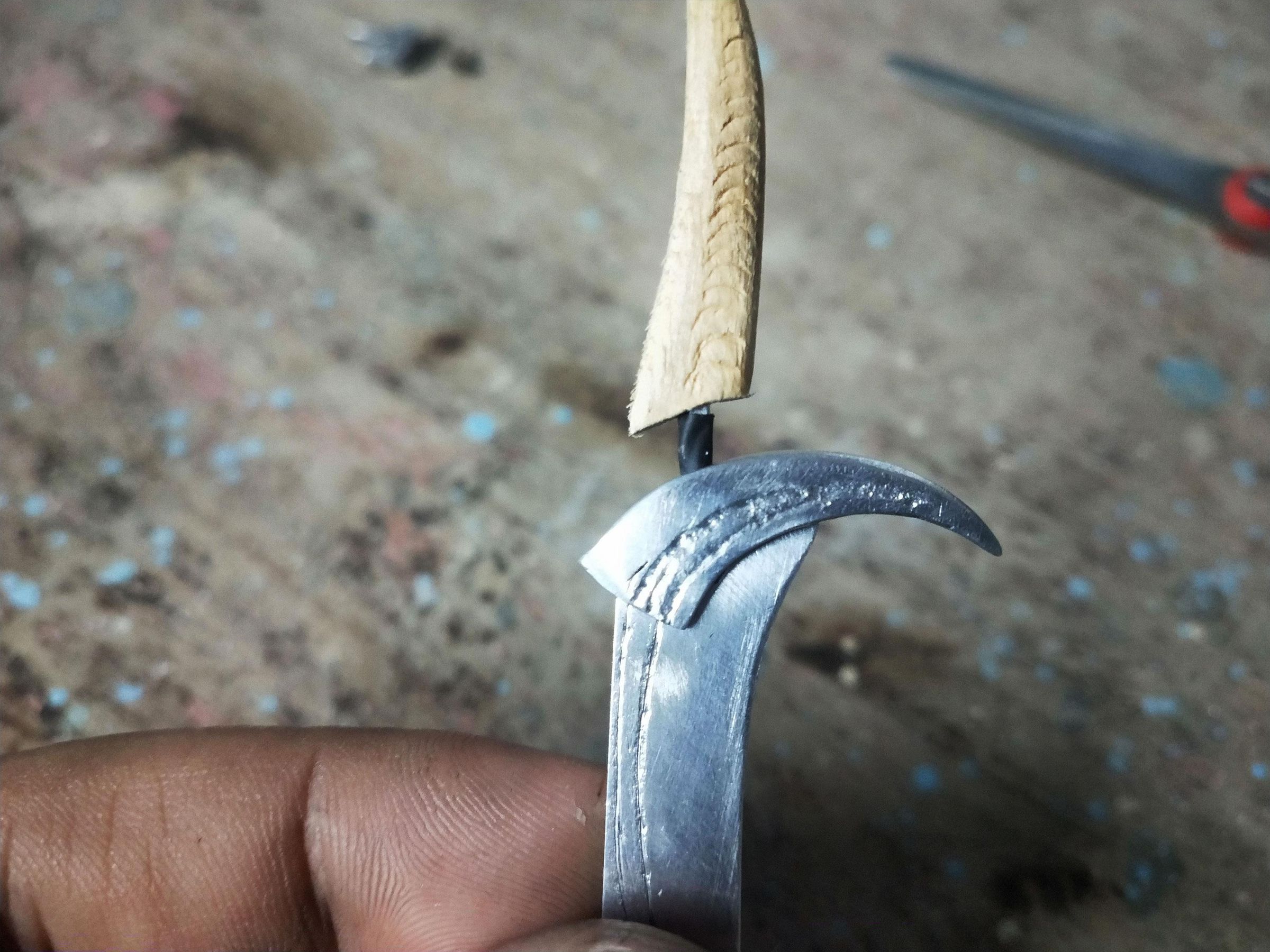

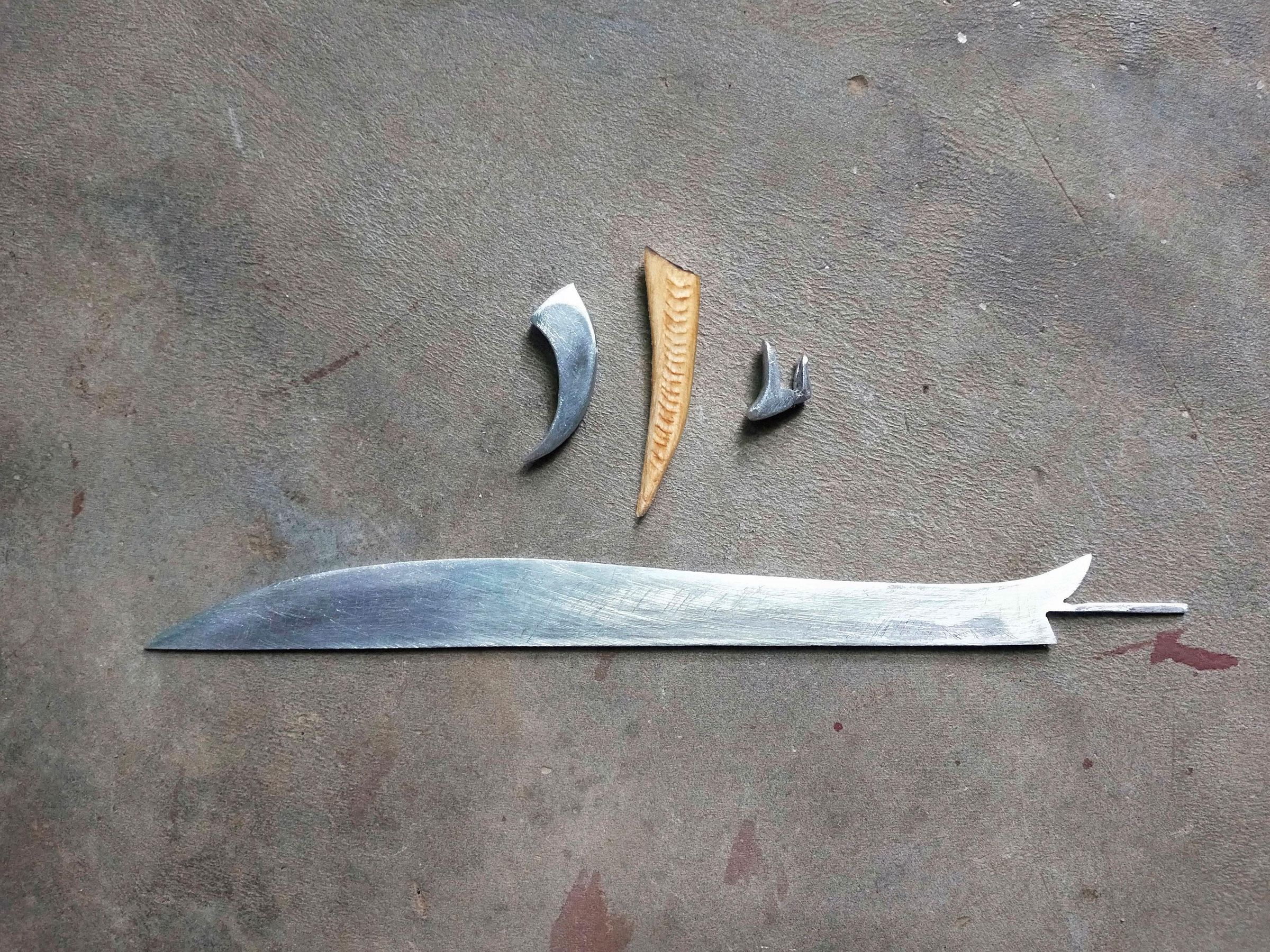

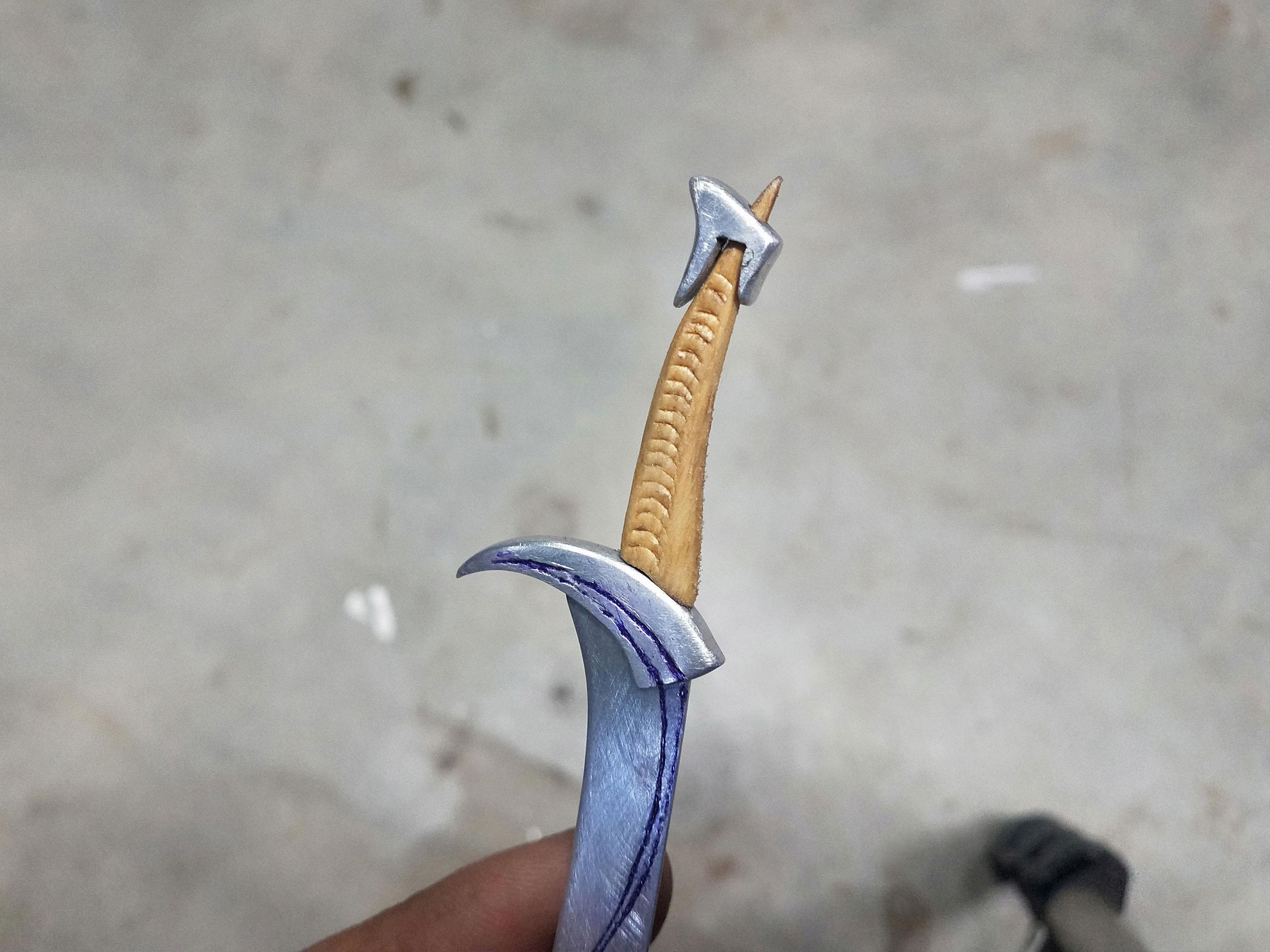

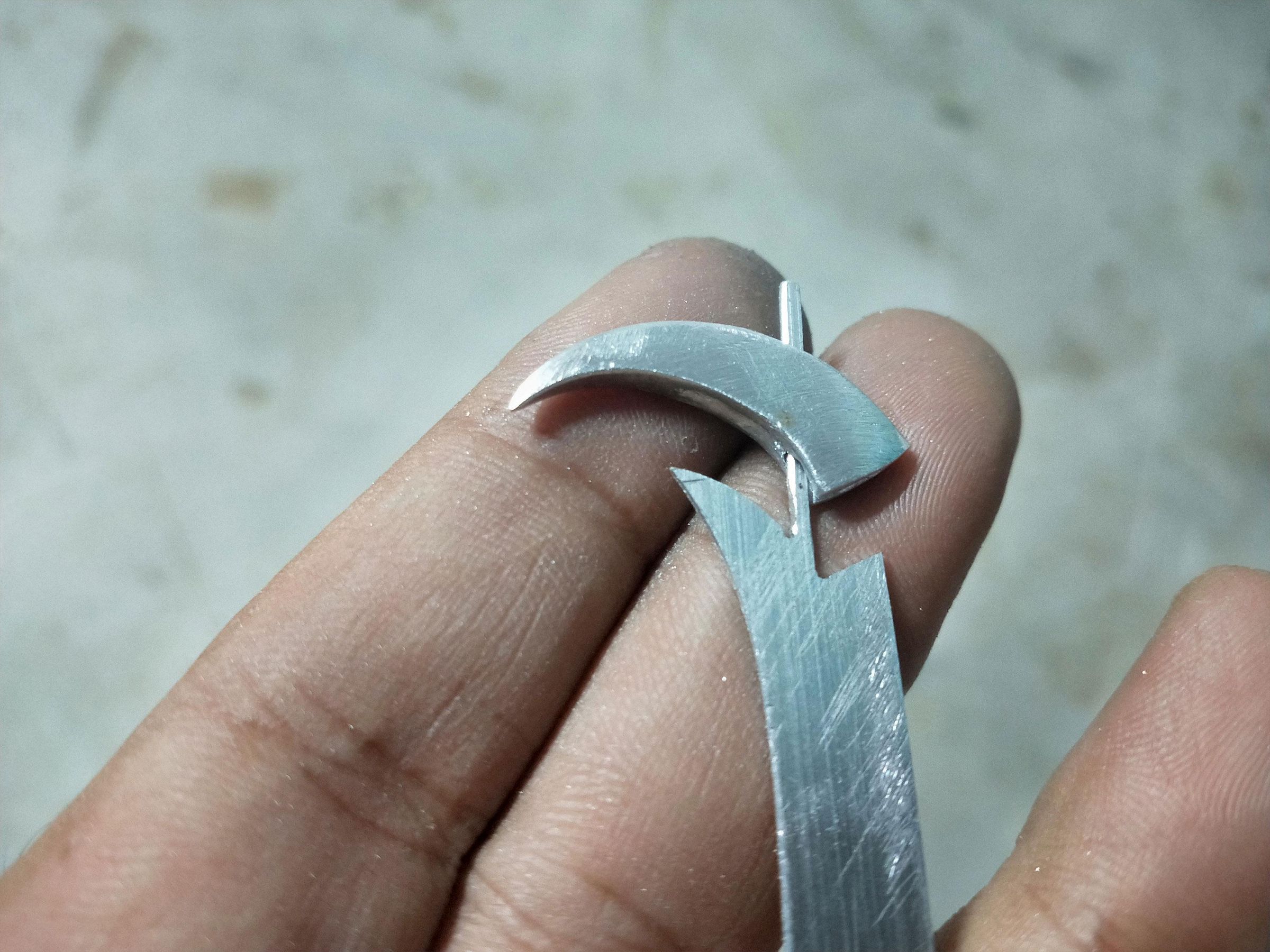

1. Dry Fit Test: Slide the guard, wooden handle, and pommel onto the aluminium blade tang to ensure all components seat perfectly flush with zero gaps.
2. Apply Adhesive: Coat the length of the tang and the inner slots of the components with high-strength epoxy glue.
3. Stack & Compress: Slide the parts permanently onto the tang in order, lock the entire assembly tightly end-to-end using clamps, and wipe away any squeezed-out glue.

💡 Pro Tip: Use a cotton swab dipped in rubbing alcohol to quickly clean up excess uncured epoxy around the joints before it hardens and spoils your mirror finish.

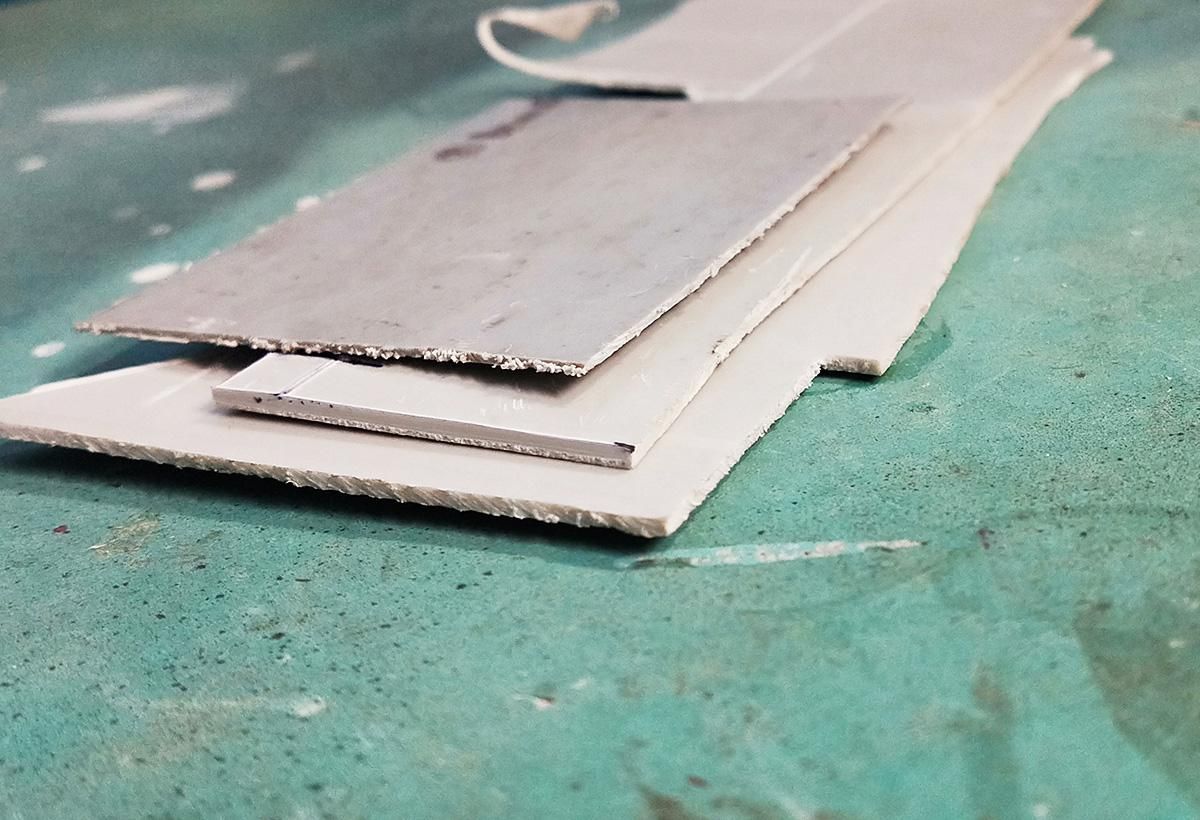

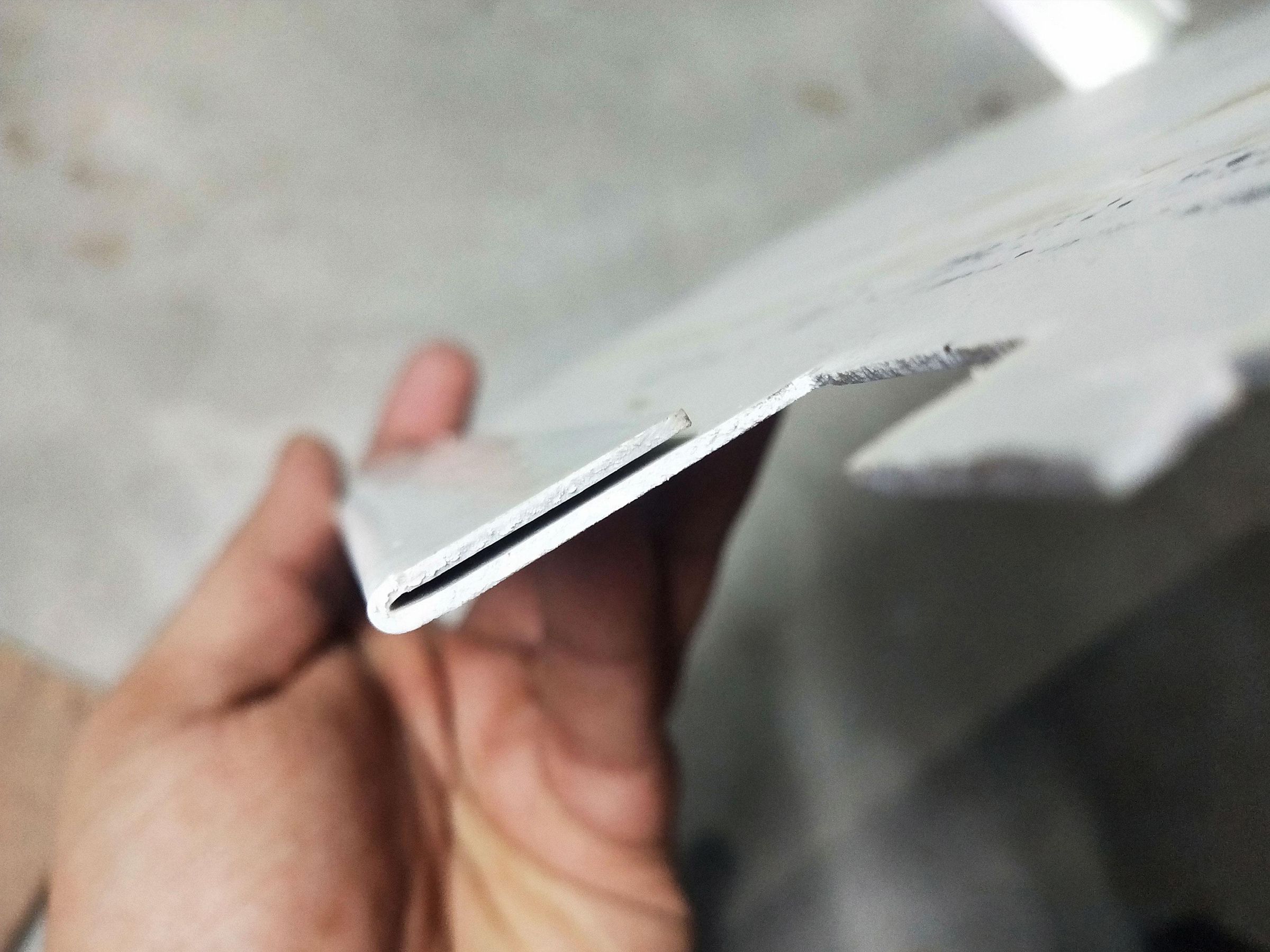

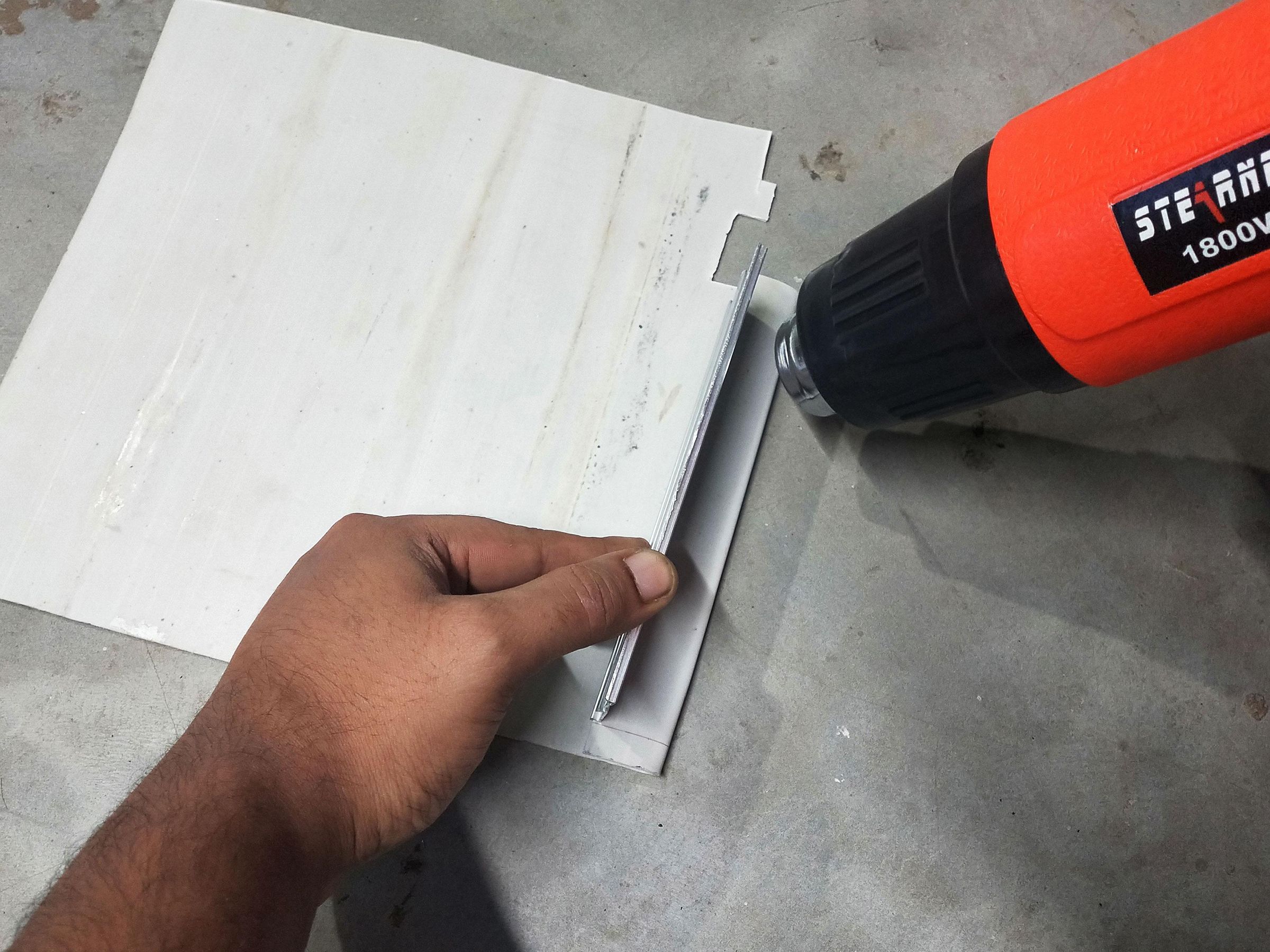

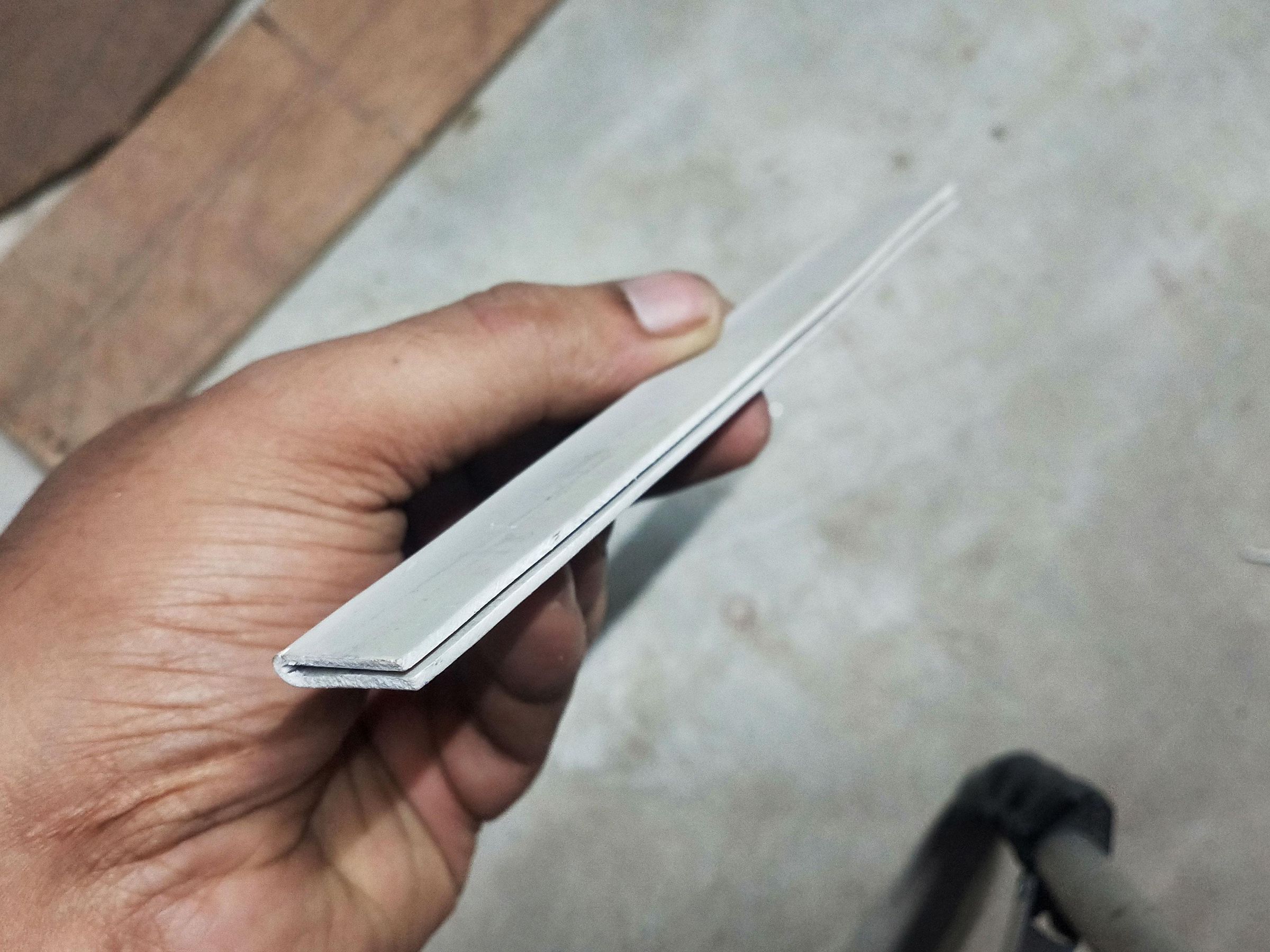

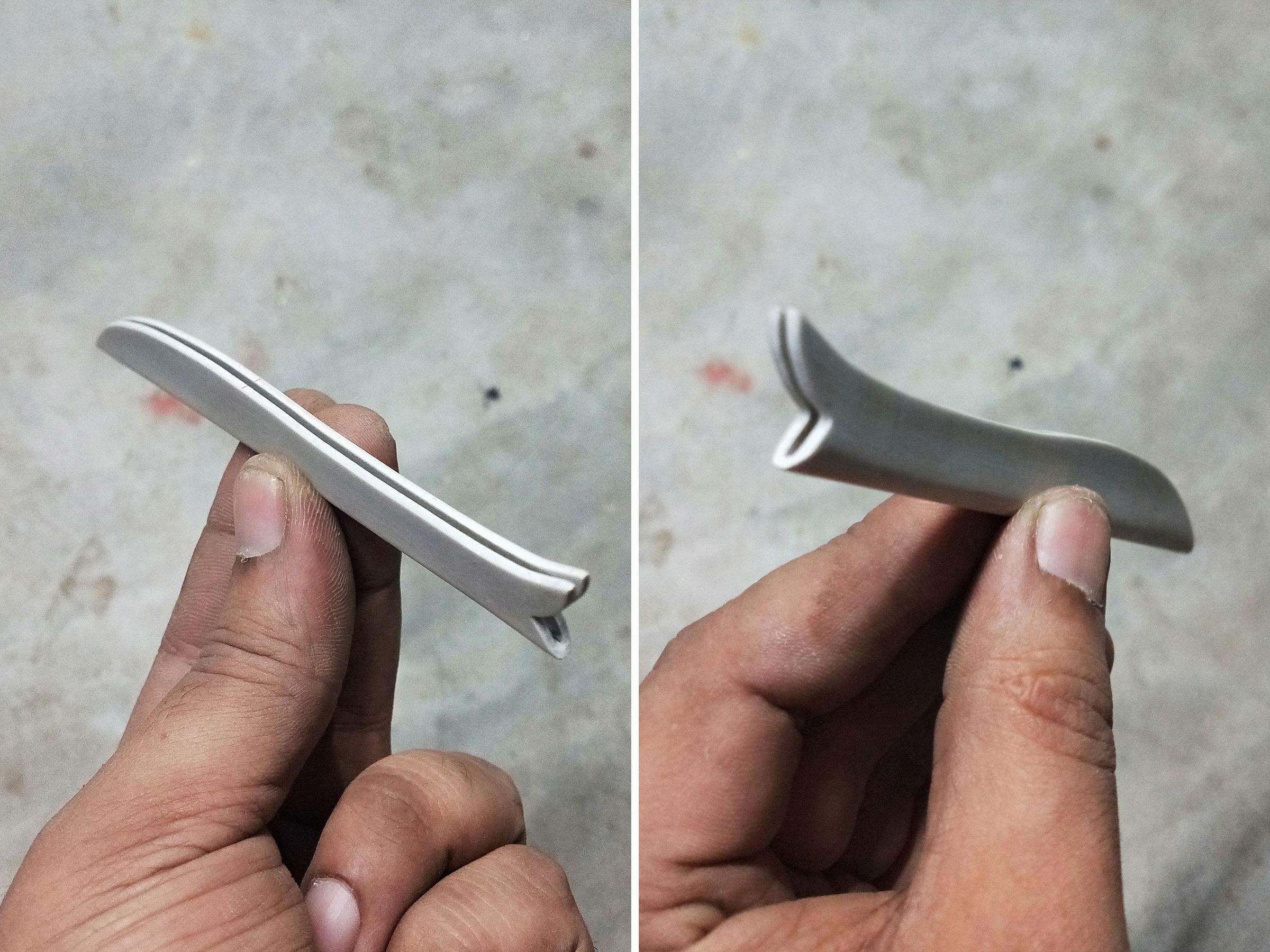

1. Heat & Bend: Soften a flat PVC sheet using a hot air gun and fold it tightly into a U-shape over an aluminium spacer to establish the blade clearance.

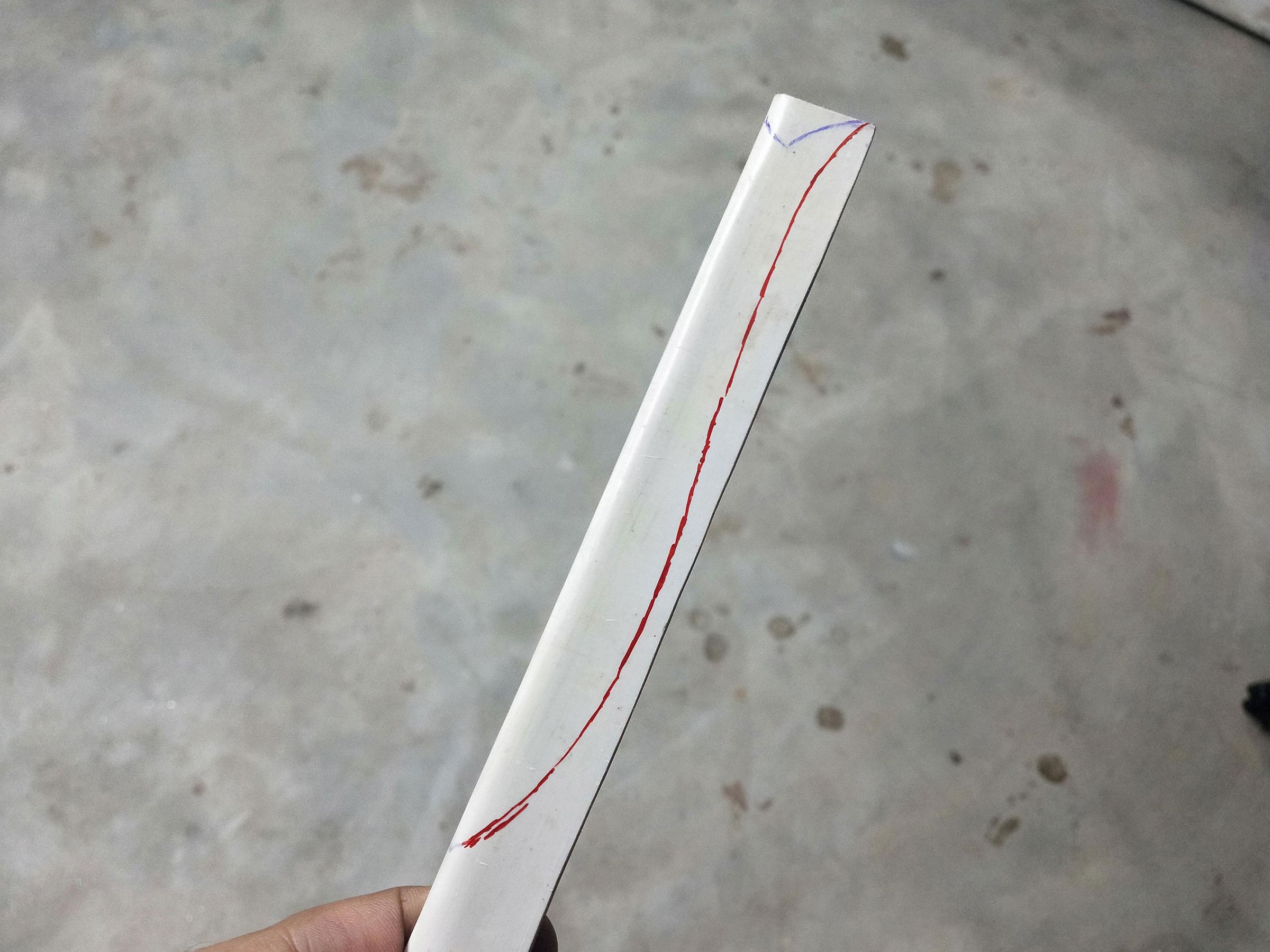

2. Mark Outlines: Use a marker to draw the sweeping, organic profile curves directly onto the folded PVC channel.

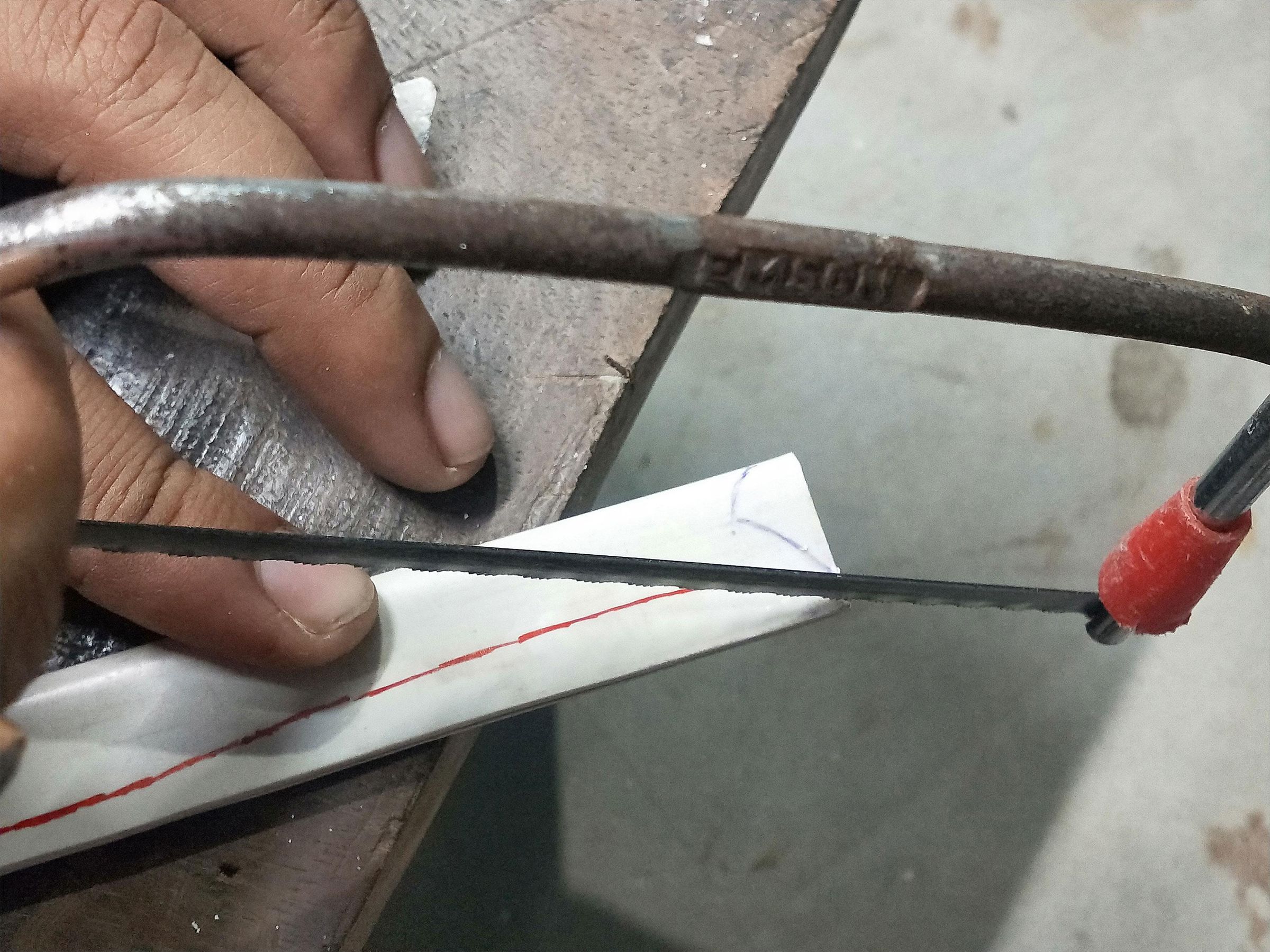

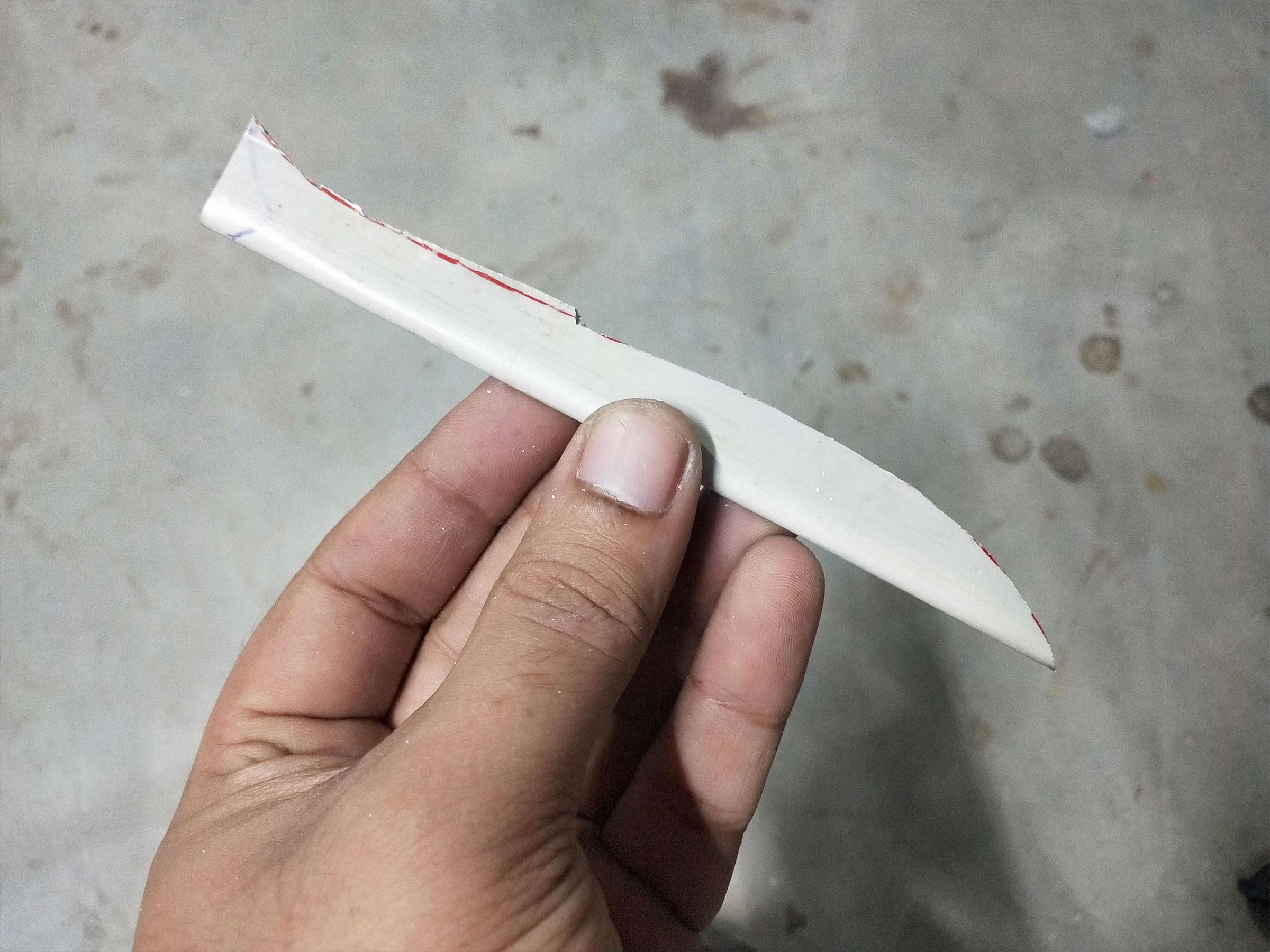

3. Cut the Profile: Secure the marked plastic channel and use a mini hacksaw to cleanly trim away all excess PVC along your layout lines.
4. File & Clean Up: Use coarse flat hand files followed by sandpaper to flatten the saw marks and blend the rough cut edges into a perfectly smooth, solid seam.

💡 Pro Tip: Keep the hot air gun moving in wide, continuous sweeping motions rather than holding it in one spot to prevent overheating or scorching the white PVC surface.

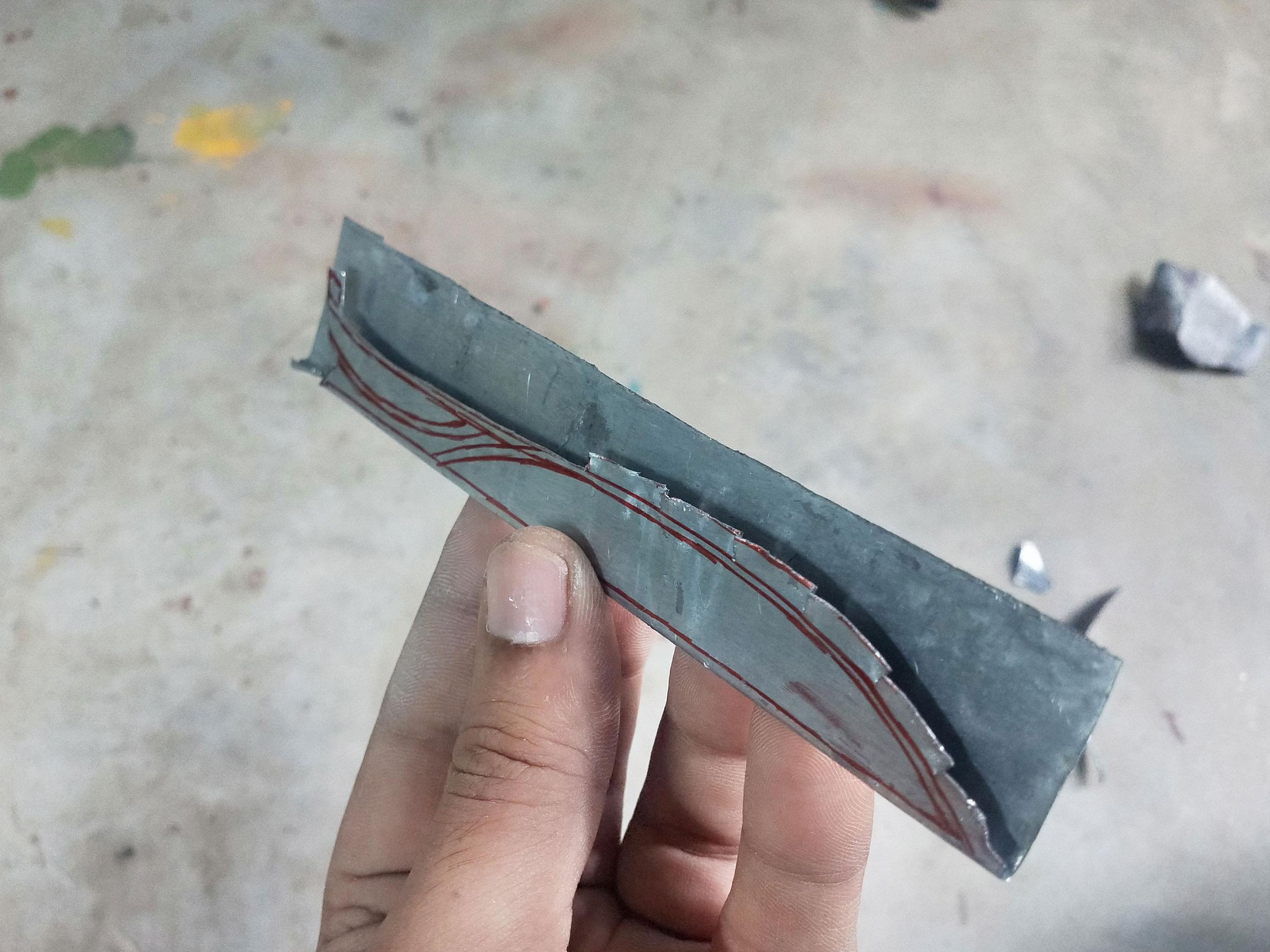

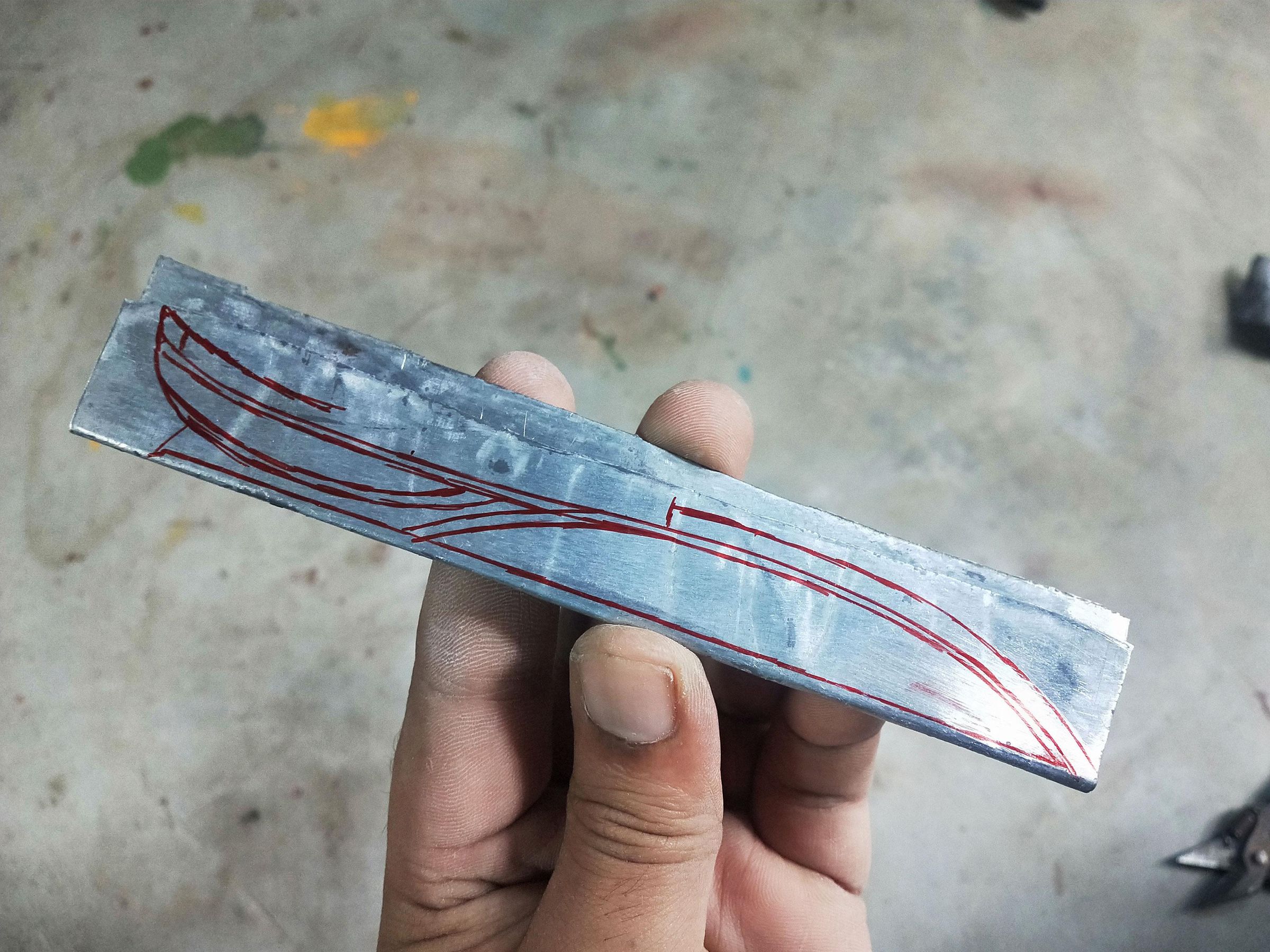

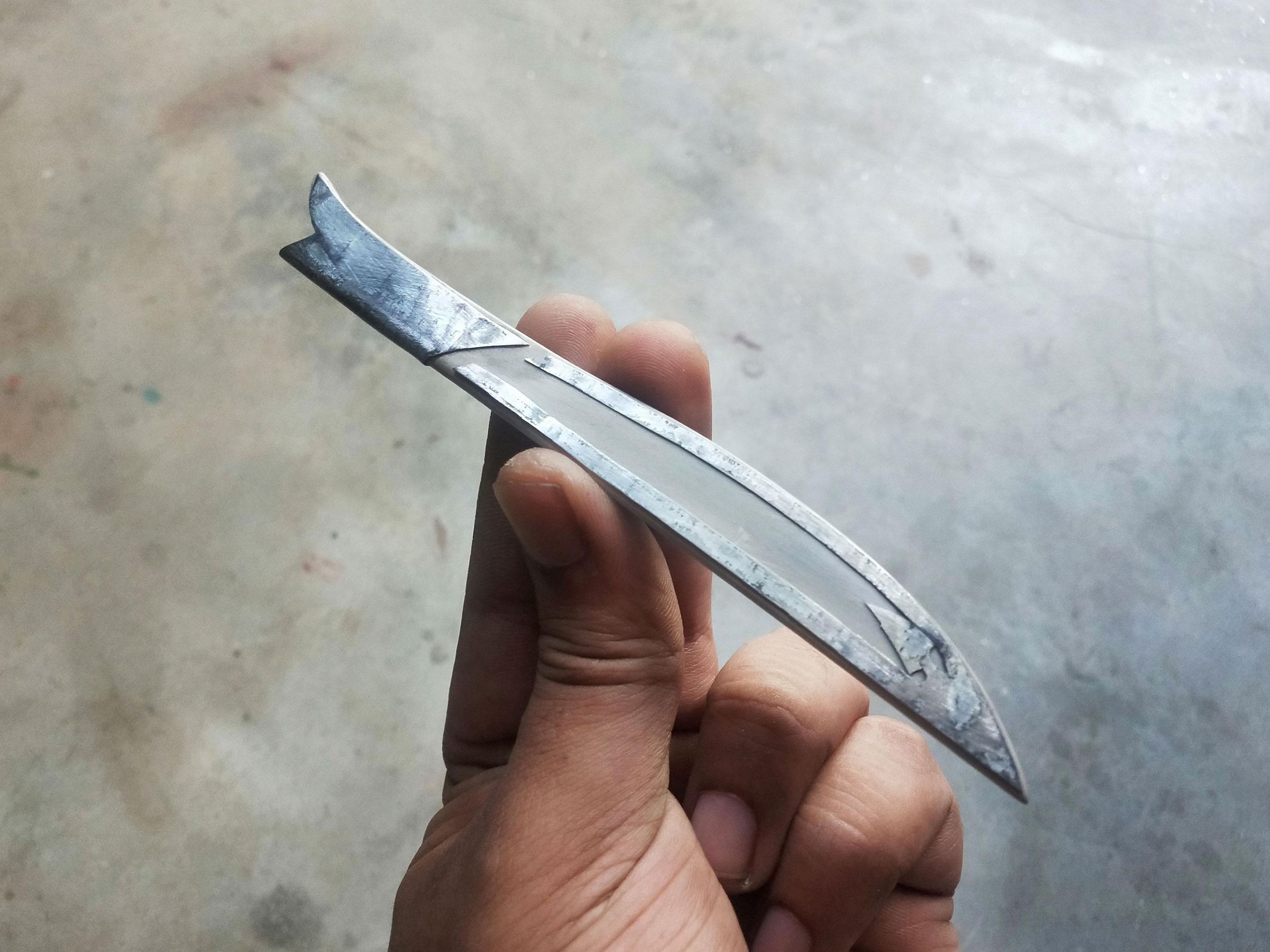

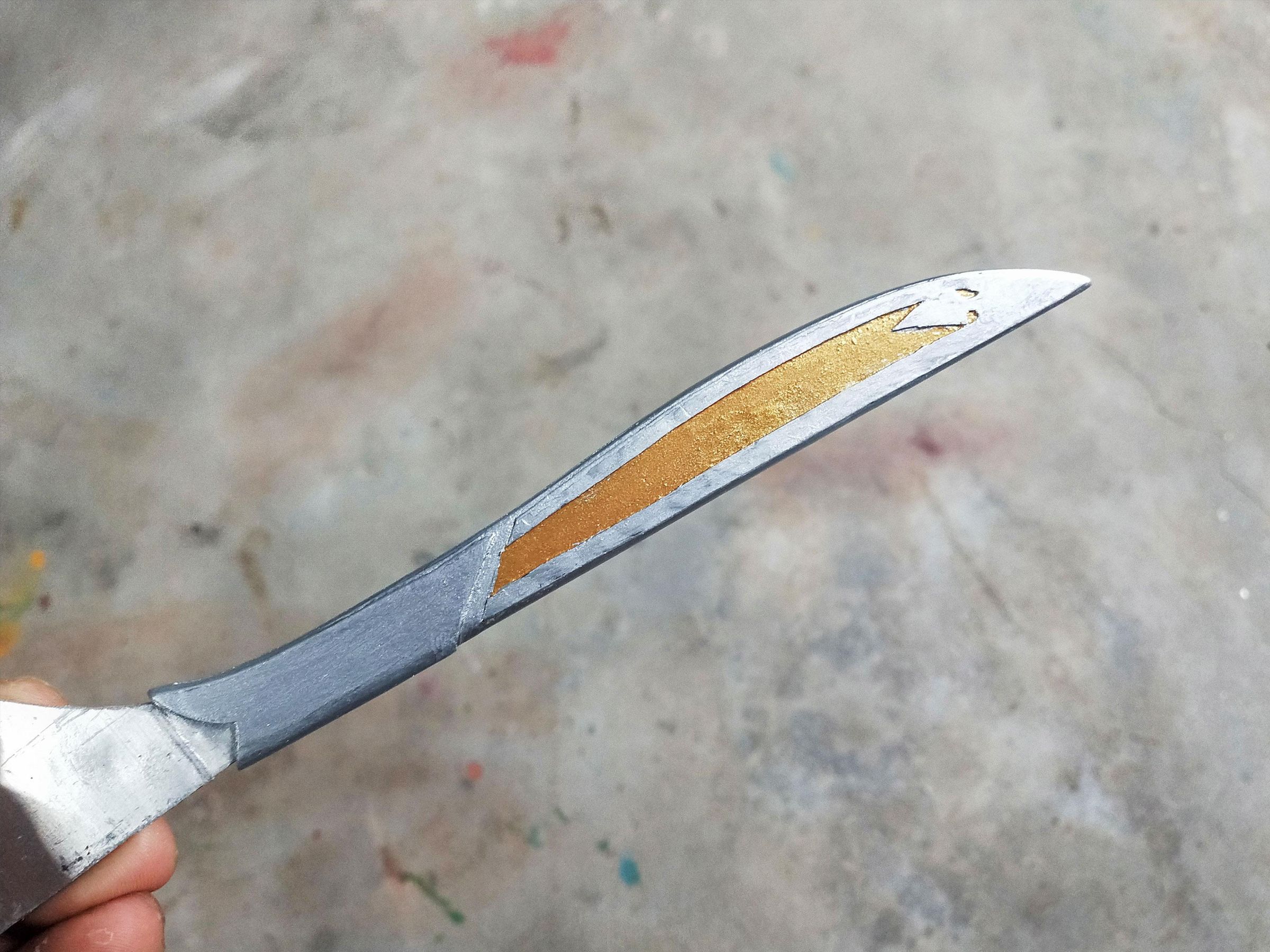

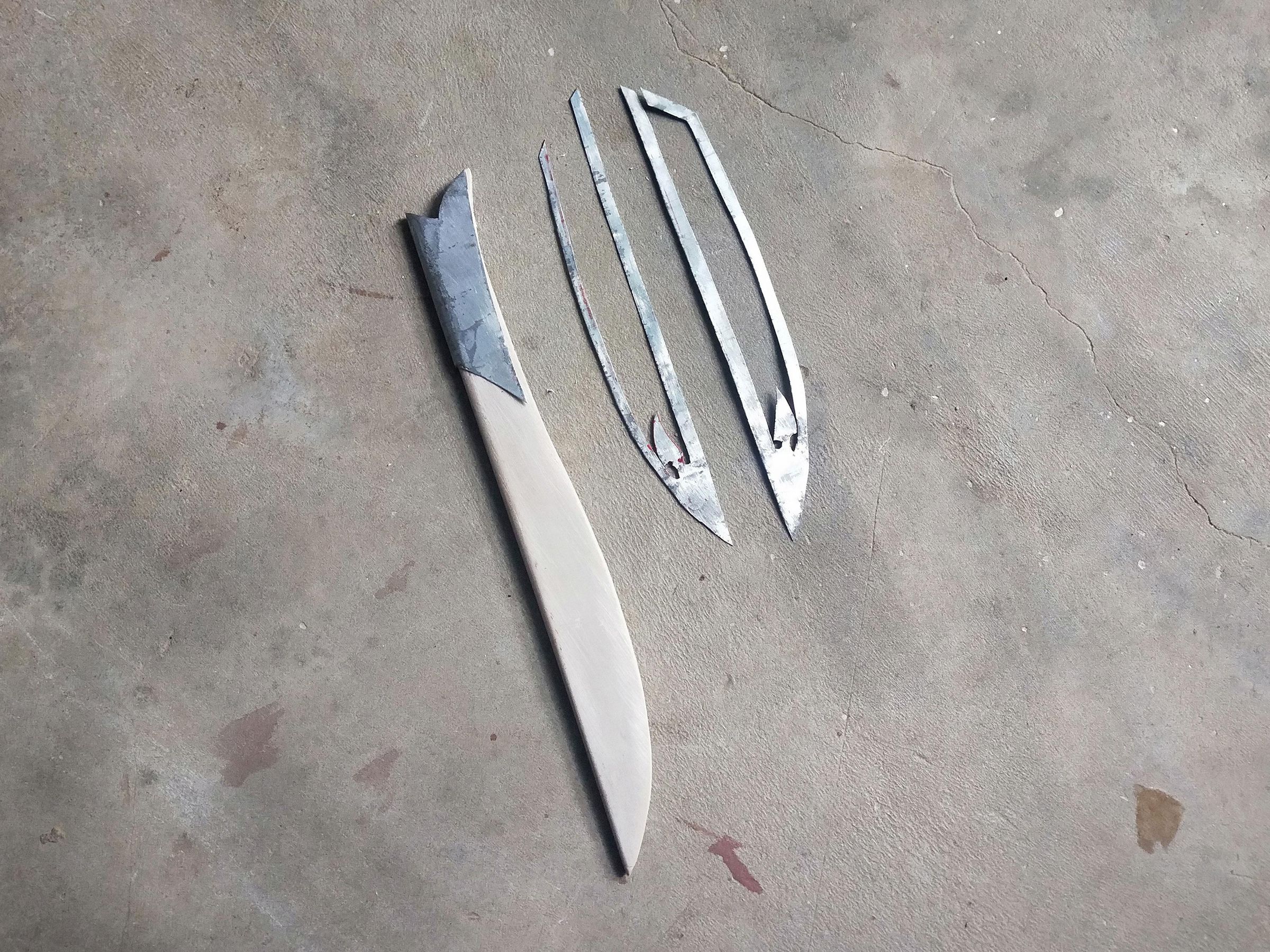

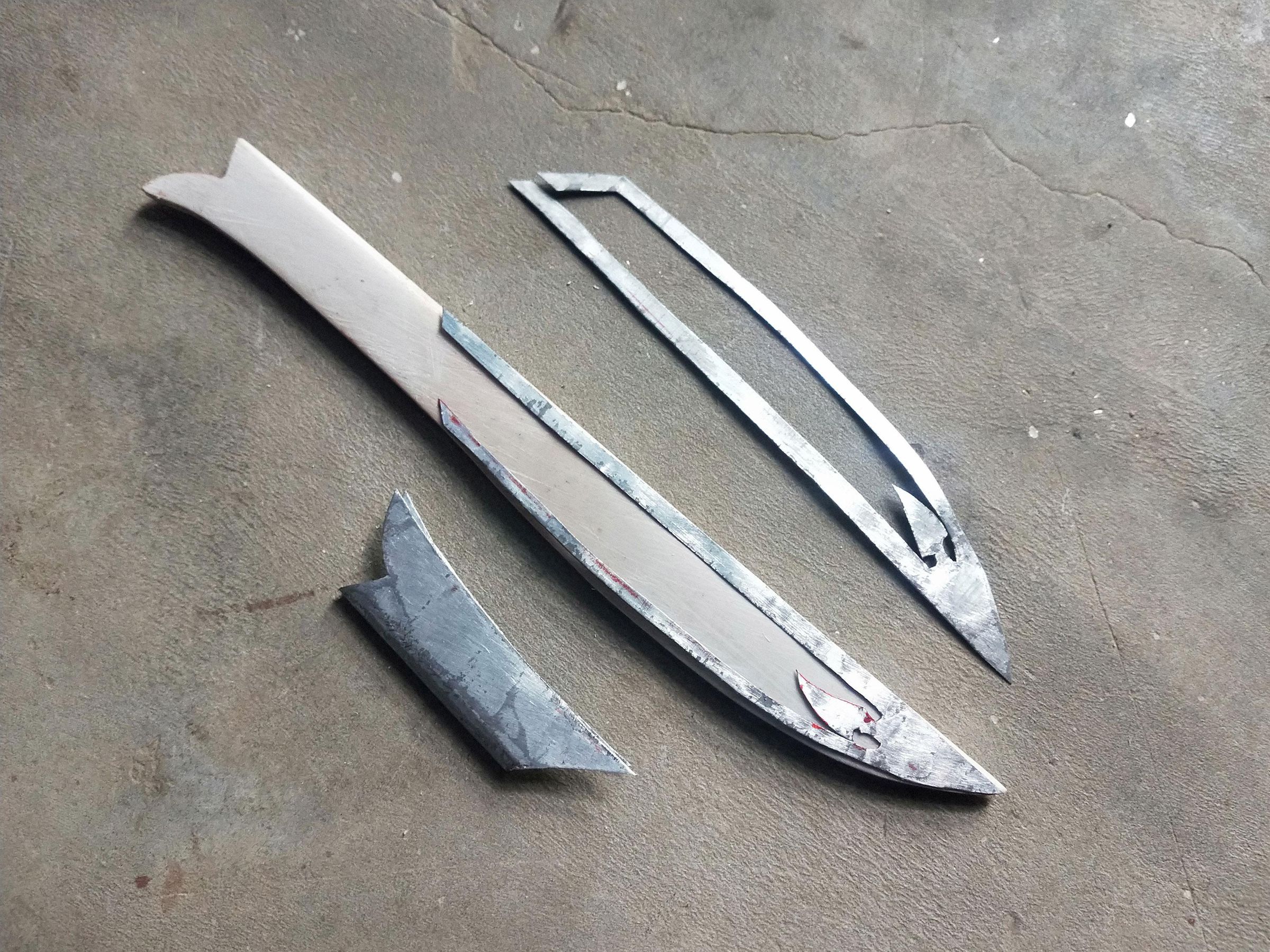

1. Mark Layouts: Use a fine marker to trace the elegant elven borders, throat piece, and tip accents directly onto the thin metal sheet using your PVC core as a size guide.

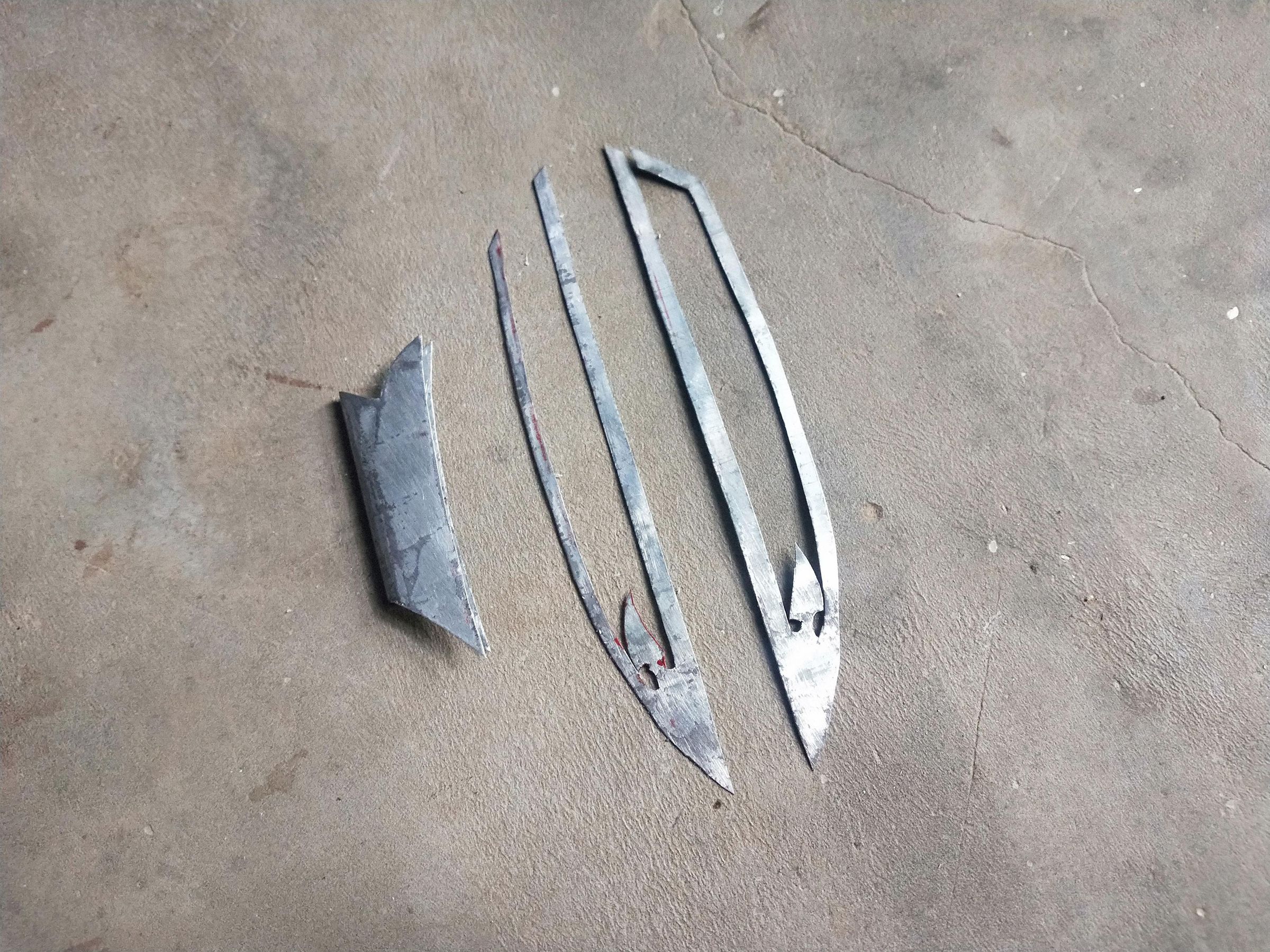

2. Cut Overlays: Carefully cut out the traced ornamental framing pieces along your layout lines using your mini hacksaw or heavy duty shears.
3. Test & Pre-Fit: Place the cut metal accents against the shaped PVC body, adjusting the edges with needle files so they wrap cleanly without overhanging.
4. Glue & Fuse: Apply a few drops of super glue along the underside of the metal overlays, then press them firmly onto the PVC sheath body until completely bonded.

💡 Pro Tip: Lightly scuff the smooth PVC plastic surface with medium-grit sandpaper before applying the super glue; creating this texture gives the adhesive a much stronger mechanical bite onto the metal.

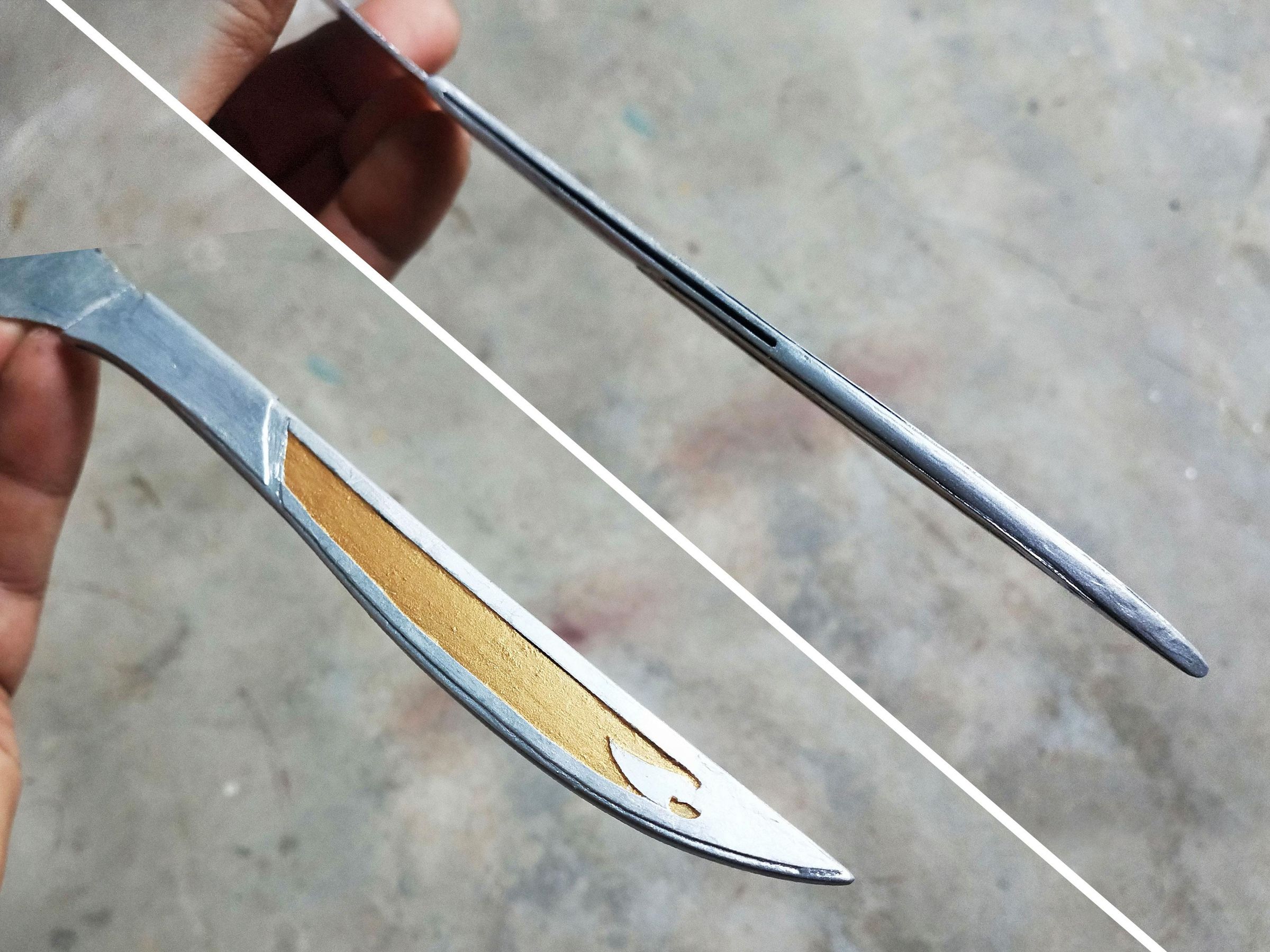

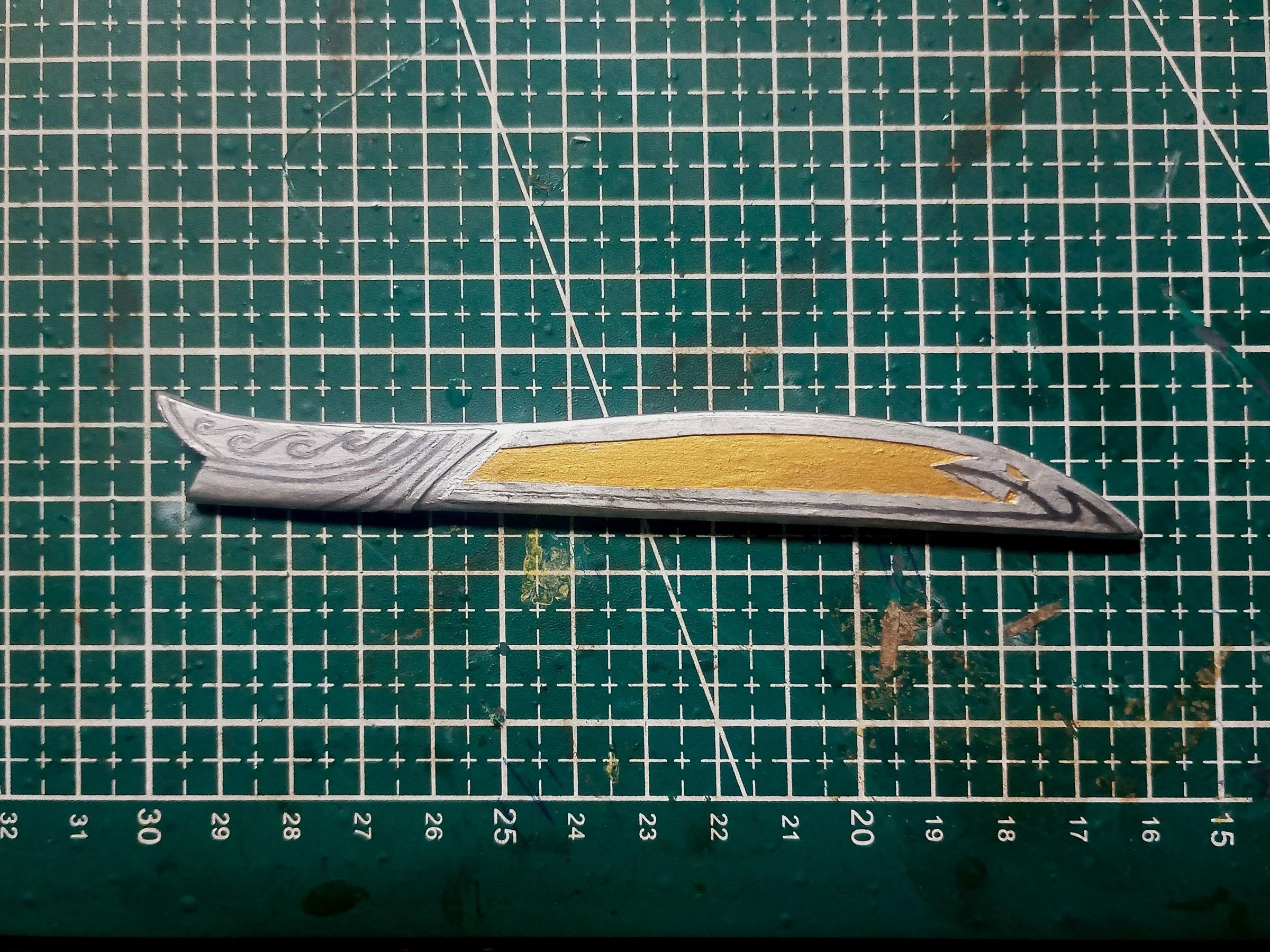

1. Mask Accent Zones: Apply masking tape along the borders of your glued metal overlays to isolate the open PVC sections from the metallic framing.

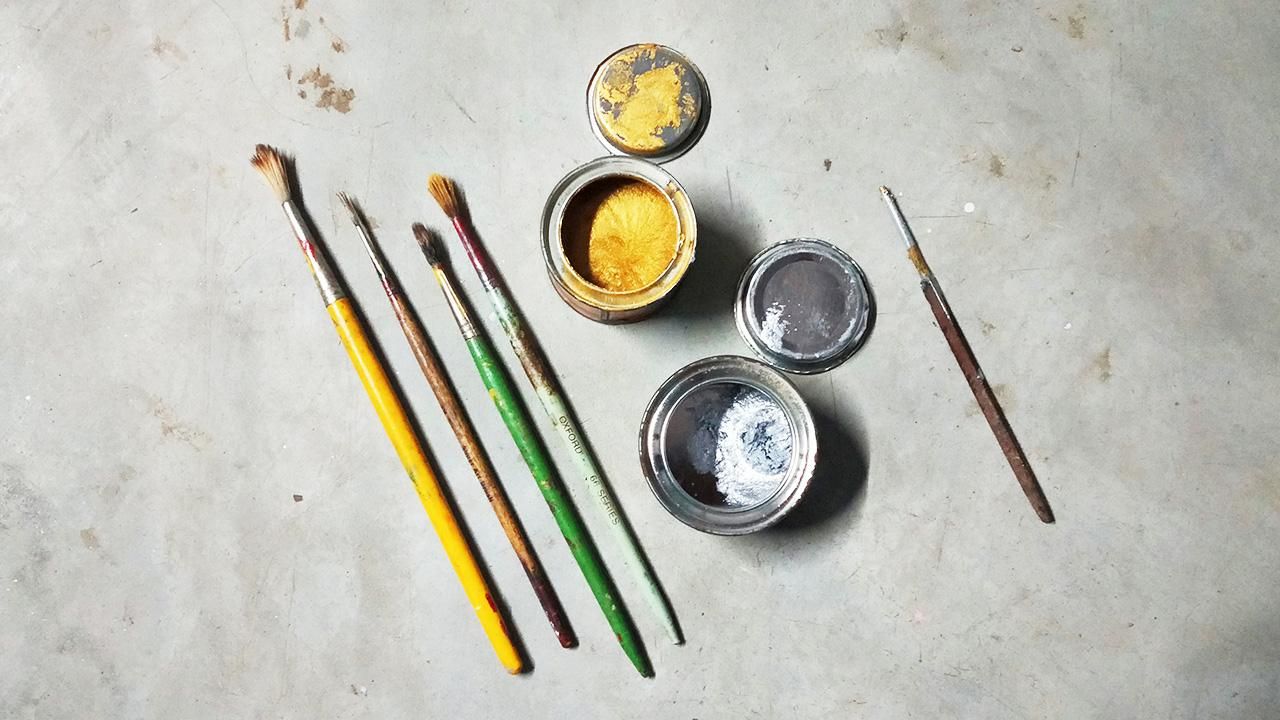

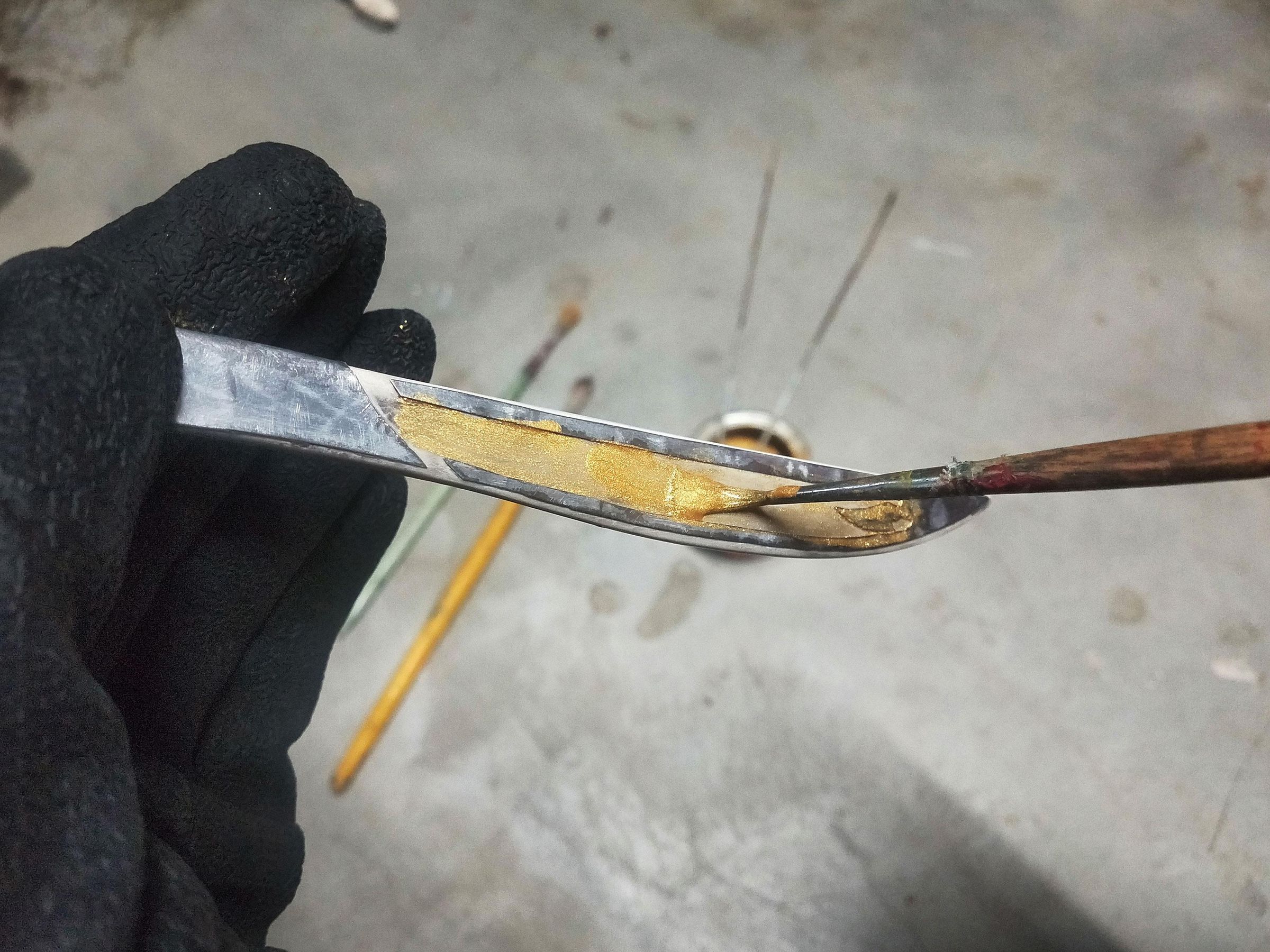

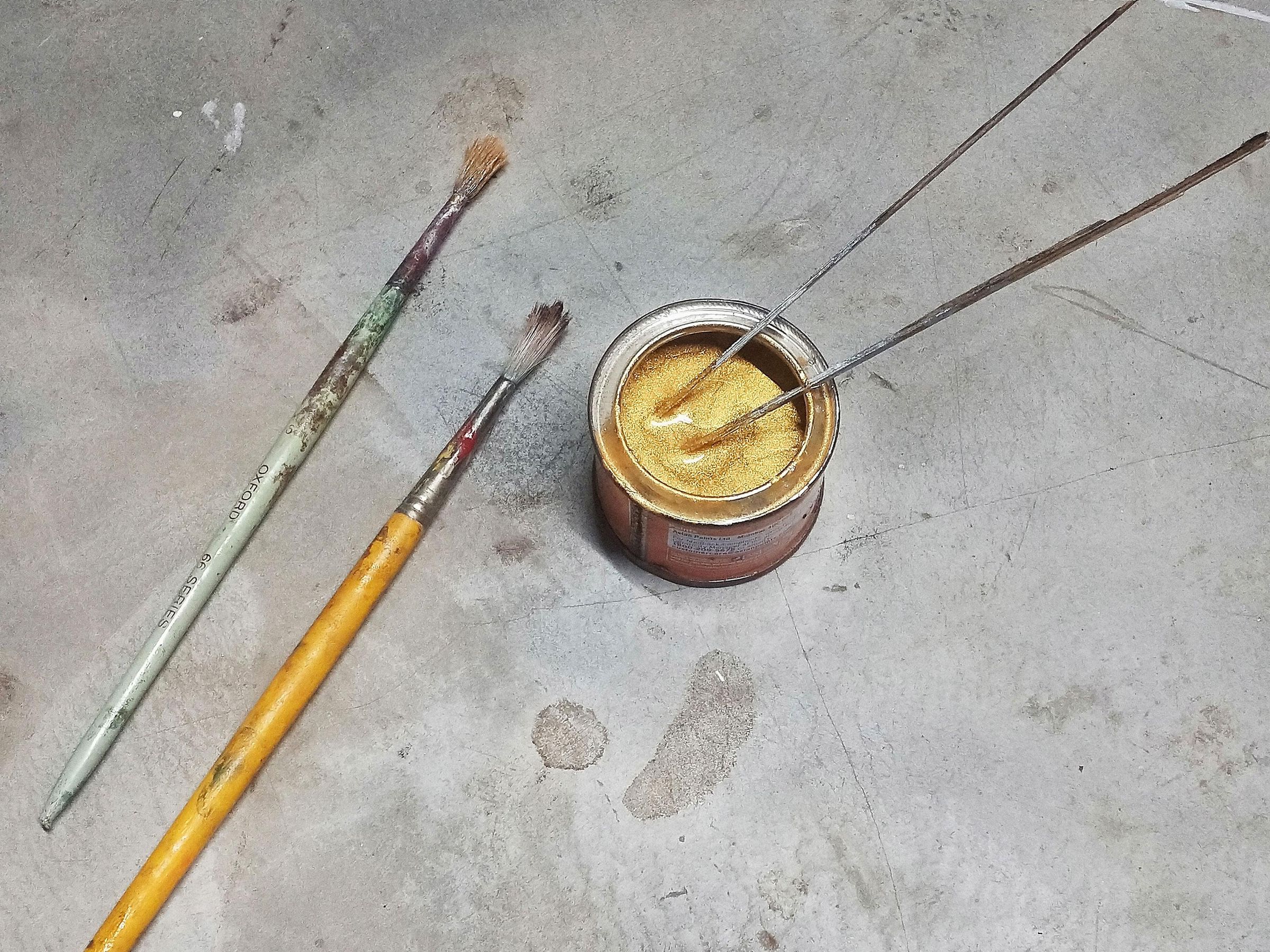

2. Paint the Gold Core: Use a fine color brush to apply a smooth, even layer of golden color paint into the recessed center valleys of the sheath body.
3. Touch Up Silver Overlays: Carefully brush metallic silver paint over the metal sheet accents and trim borders to enhance their chrome sheen and cover any surface scuffs.
4. Seal & Protect: Let the paint dry completely, peel away the masking tape, and apply a thin layer of protective clear varnish to lock in the colors and prevent chipping.

💡 Pro Tip: Apply two very thin coats of gold paint instead of one thick layer; this completely eliminates visible brush strokes and results in a flawless, factory-smooth surface texture.

Project Summary:

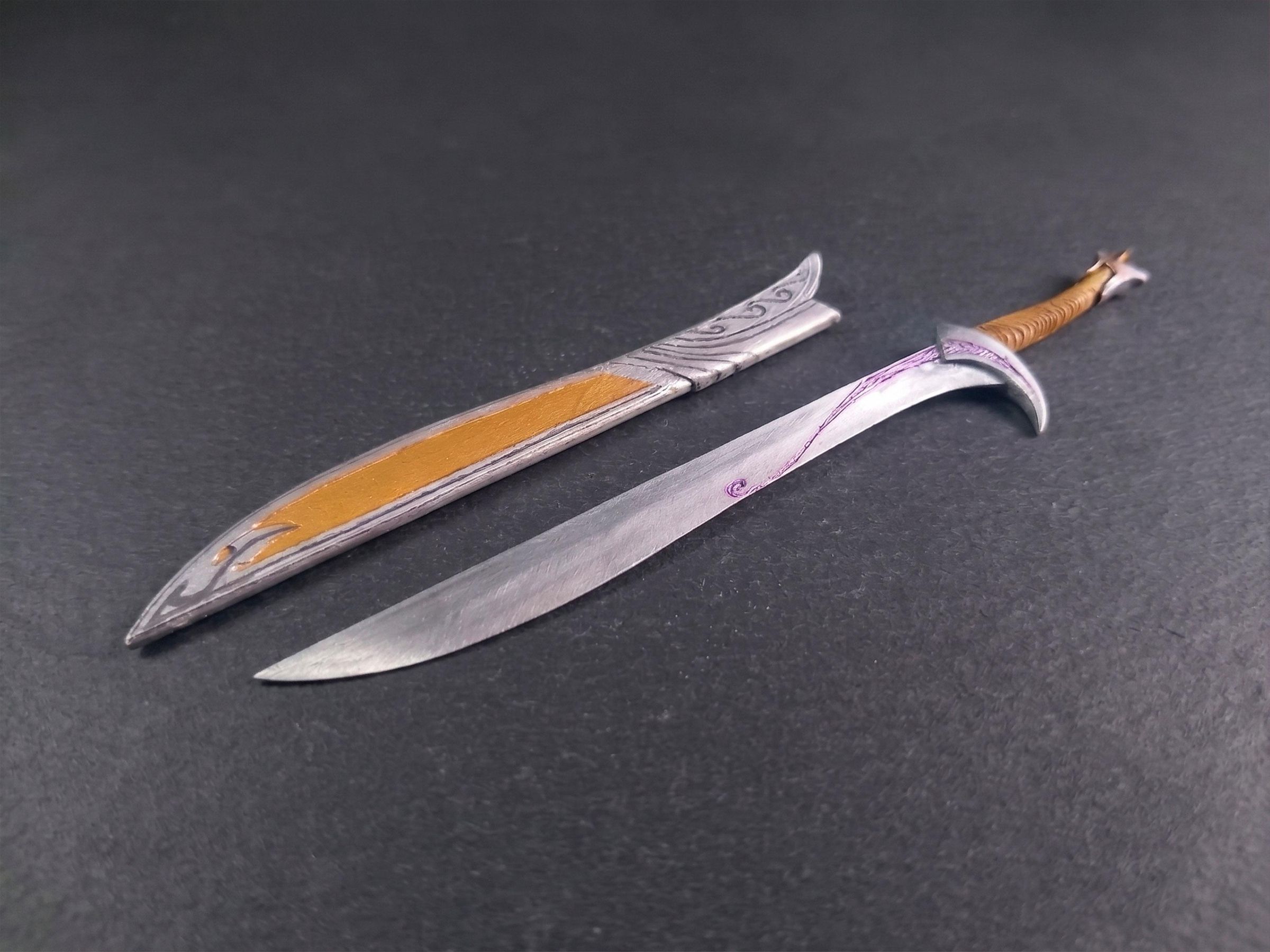

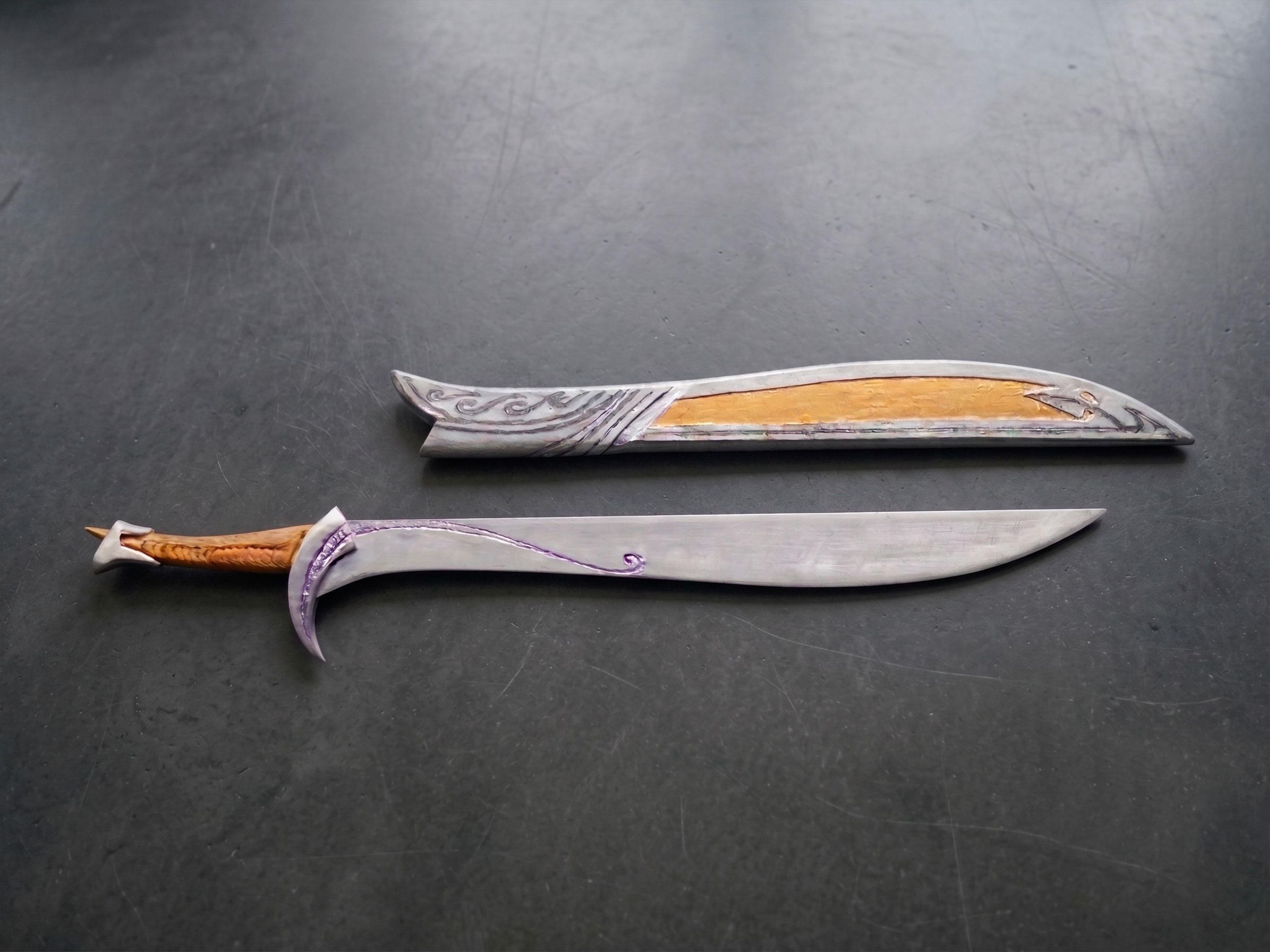

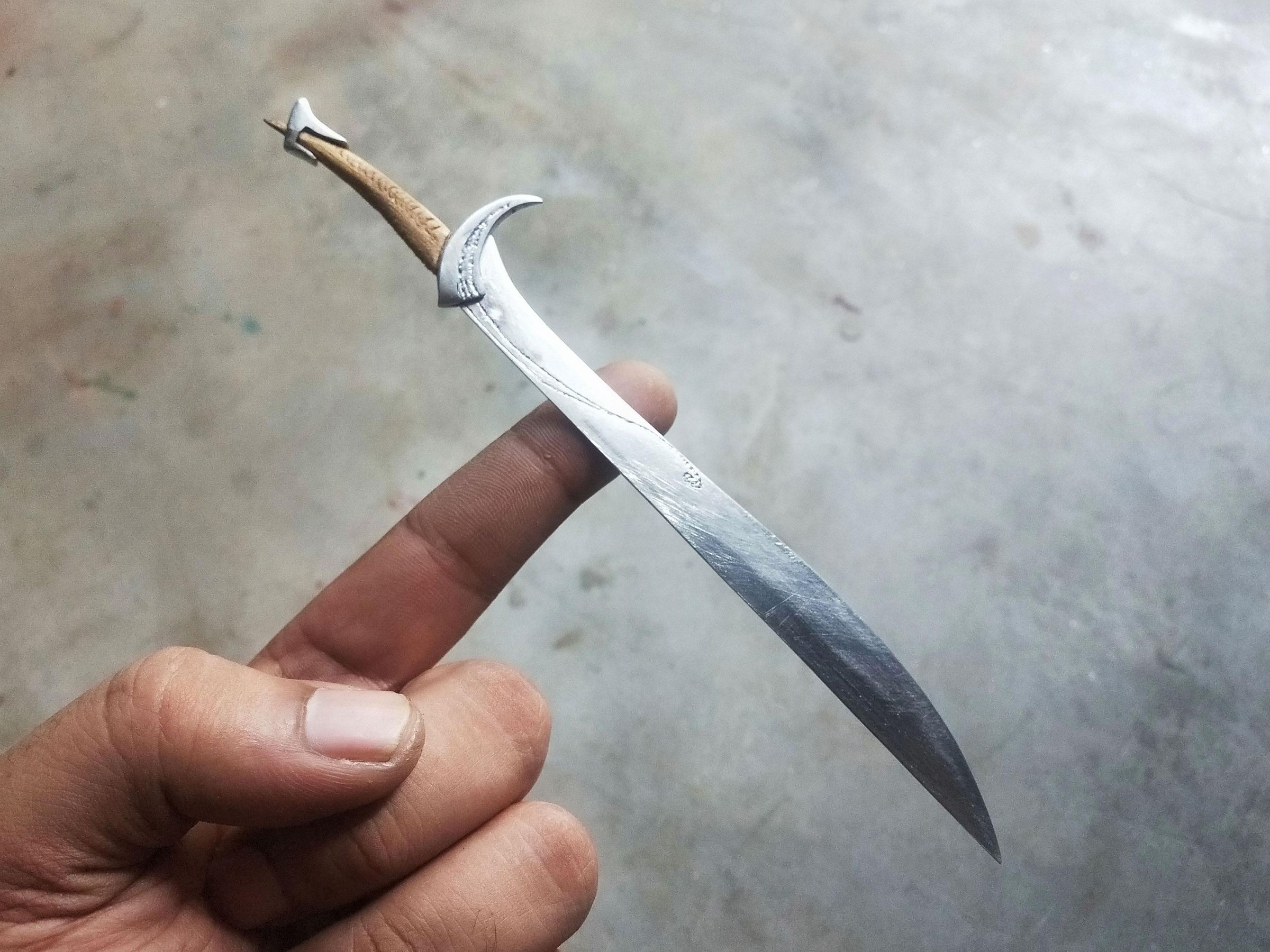

This project demonstrates how to replicate a highly detailed, miniature fantasy sword from scratch using basic hand tools and accessible hobby materials. By layering thin aluminium sheets, processing a single piece of organic wood scrap, and thermoforming a custom PVC sheath, you can bypass expensive forge work to create a beautiful, durable, and highly precise display model.

Pros & Cons:

1. Budget-Friendly: Uses cheap materials like wood scrap, thin aluminium, and PVC sheets instead of expensive tooling.
2. No Advanced Machinery Required: The entire build relies on accessible hand tools like a mini hacksaw, files, and a rotary tool.
3. High Realism: Combining genuine metal elements with real engraved hardwood achieves an authentic look that 3D prints can't match.
4. Time-Intensive: Achieving a flawless mirror finish and carving fine elven runes by hand requires substantial patience.
5. Delicate Precision: Working at a miniature scale makes small mistakes—like an off-center drill hole—much more noticeable.

Advantages & Creative Uses:

1. Cosplay & Prop Display: Perfect as a detailed desk prop, collectible figurine accessory, or a miniature replica display piece for your workshop.
2. Skill Builder: Serves as an excellent foundational project for learning basic metal filing, digital blueprint tracing, and wood-turning or sculpting techniques.
3. Zero-Waste Crafting: An ideal way to clear out your workshop by transforming small, unusable wood and metal scraps into a high-value art piece.

Thank you so much for following along with this miniature sword build! It really was an incredibly rewarding challenge, and I hope it inspires you to look at your workshop scraps a little differently.
