DIY 10x12 Backyard Shed Framing & Foundation Guide

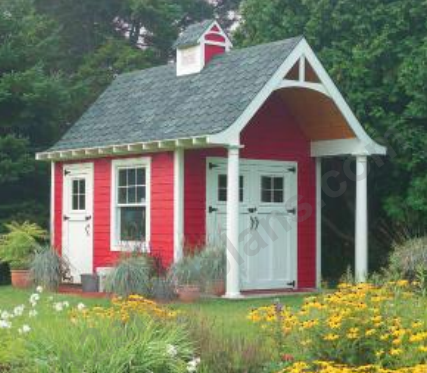

Building a dedicated outdoor shed is one of the most rewarding DIY woodworking projects. While many online tutorials rely on basic digital sketches that leave you guessing on dimensions, this tutorial covers the essential foundation and framing stages. Setting a rock-solid, square base and sturdy wall frames will ensure your backyard workshop or storage space lasts for decades.

Supplies

1. Treated 4x4 skids and 2x6 pressure-treated framing lumber (foundation & floor)
2. Standard 2x4 lumber (studs, plates, and rafters)
3. 3/4" exterior-grade tongue-and-groove plywood (subfloor)
4. 1/2" OSB or plywood for wall and roof sheathing
5. 3" and 3.5" framing nails / structural exterior screws
6. Standard tools: circular saw, speed square, 4-ft level, chalk line, and drill

Complete Cut List & Dimensions:

1. Foundation Skids: (3) 4x4 x 12' Pressure-Treated
2. Floor Joists: (10) 2x6 x 10' Pressure-Treated (cut to 117")
3. Subfloor: (4) 3/4" x 4' x 8' Exterior-Grade Plywood
4. Wall Studs: (35) 2x4 x 92-5/8" Standard Lumber
5. Wall Plates: (8) 2x4 x 12', (8) 2x4 x 10' Standard Lumber
6. Rafters: (14) 2x4 x 8' (cut to pitch)

Clear all sod, roots, and debris from a 12x14 foot perimeter. Dig down 3 to 4 inches, line the area with weed-barrier landscape fabric, and fill it with crushed gravel. Compact the gravel bed until level. Lay your pressure-treated 4x4 skids parallel across the pad. Place a 4-foot carpenter's level across each skid, shimming with gravel where necessary until the surface is completely flat.

Build the outer perimeter box using pressure-treated 2x6 lumber. Set your floor joists at 16 inches on-center to easily handle heavy equipment like lawnmowers. Measure diagonally from corner to corner; adjust the frame until both diagonal measurements match exactly to guarantee a square base. Fasten 3/4-inch exterior-grade plywood over the frame, staggering the panel seams and securing them with 2.5-inch screws.

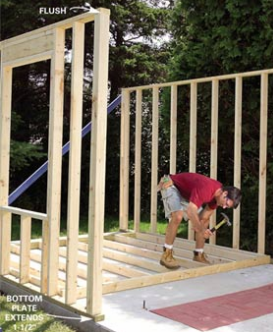

Lay out your 2x4 top and bottom plates flat on the subfloor deck. Mark stud placements 16 inches on-center and frame out your rough door opening on the front wall. Nail the wall studs to the plates while lying flat, lift each wall assembly upright, and brace them temporarily with scrap lumber. Check with a level to ensure the walls are plumb, then nail the interlocking corner studs securely together.

Cut a single master rafter pair to establish your desired roof pitch and mark the birdsmouth cuts before batch-cutting the remaining lumber. Set the rafters across the top wall plates at 24-inch centers, joining them securely at the peak with structural gusset plates or a center ridge board. Cover the roof frame with 1/2-inch OSB sheathing, starting from the lower eaves upward, and immediately tack down roofing felt to protect the wood from moisture.

This build is based on my original 10x12 shed design. If you want to read more about the planning process, view detailed 3D diagrams of this build, or see my other woodworking projects, you can find the full plans on my website: 10x12 Shed Plans.
