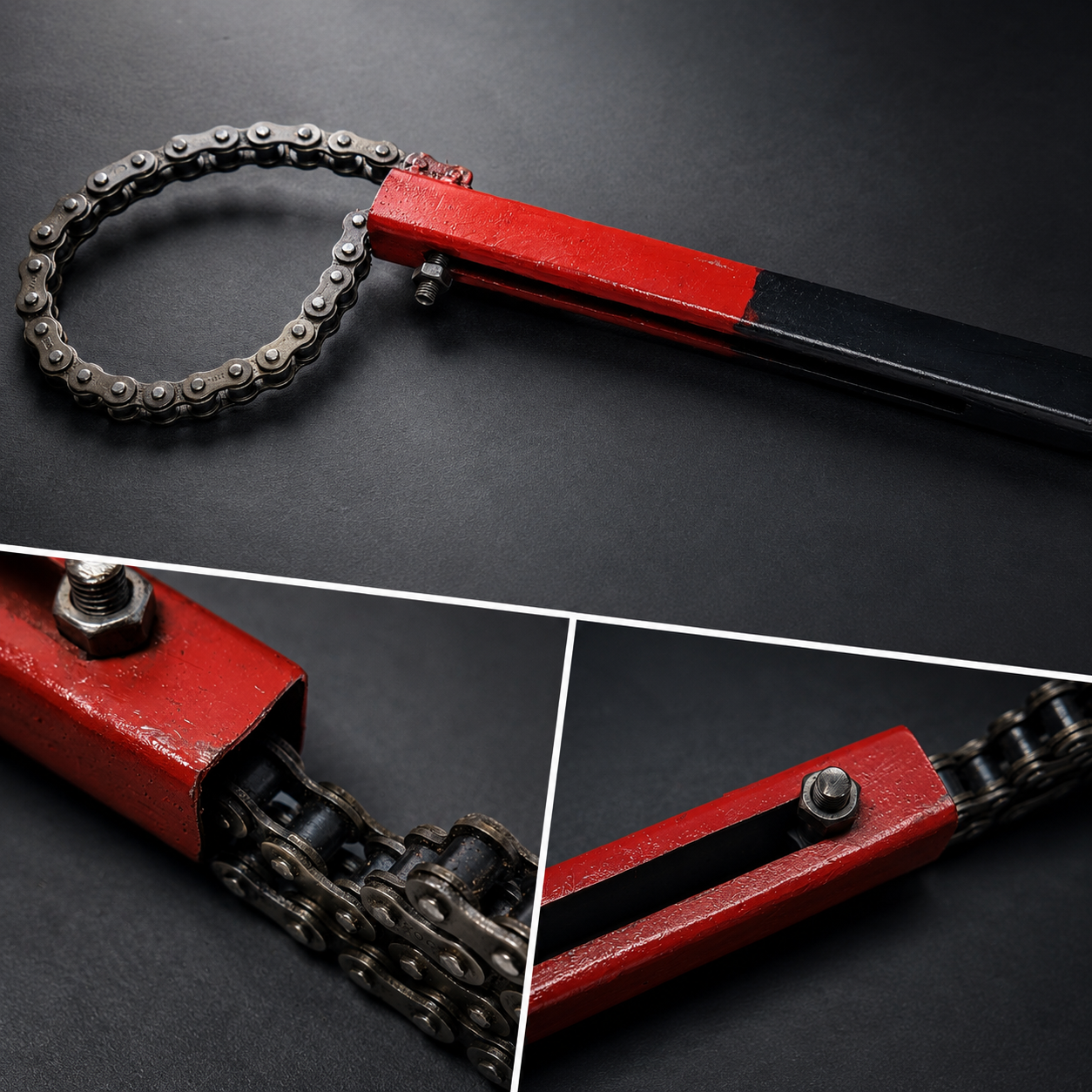

DIY Adjustable Chain Wrench for Damage-Free Pipe Handling

Pipe wrenches are excellent tools, but they are often limited by their jaw capacity. When working with pipes, filters, fittings, or other round objects of different diameters, a chain wrench provides a simple and highly effective alternative.

In this project, I built an adjustable chain wrench using scrap steel tubing, a recycled bicycle chain, and basic hardware. The design features a sliding adjustment mechanism that allows the chain loop to be quickly resized, enabling the tool to grip a wide range of object diameters with a single wrench.

One of the unique advantages of a chain wrench is the way the chain conforms to the surface being gripped. The individual chain links wrap around the workpiece and create multiple contact points, producing a secure hold even on stubborn or hard-to-grip objects. As force is applied to the handle, the chain tightens around the object, increasing grip and reducing the likelihood of slipping.

Beyond its practical usefulness, this project is also a great example of metal recycling and upcycling. An old bicycle chain and steel offcuts that might otherwise be discarded are transformed into a durable workshop tool with real everyday value.

This build demonstrates several core metalworking skills, including measuring, cutting, welding, grinding, finishing, and assembly. The result is a rugged, adjustable tool that is simple to construct, economical, and built to last.

Let's get started!

Materials

1. Square steel tube (handle)
2.

3. Bicycle chain
4.

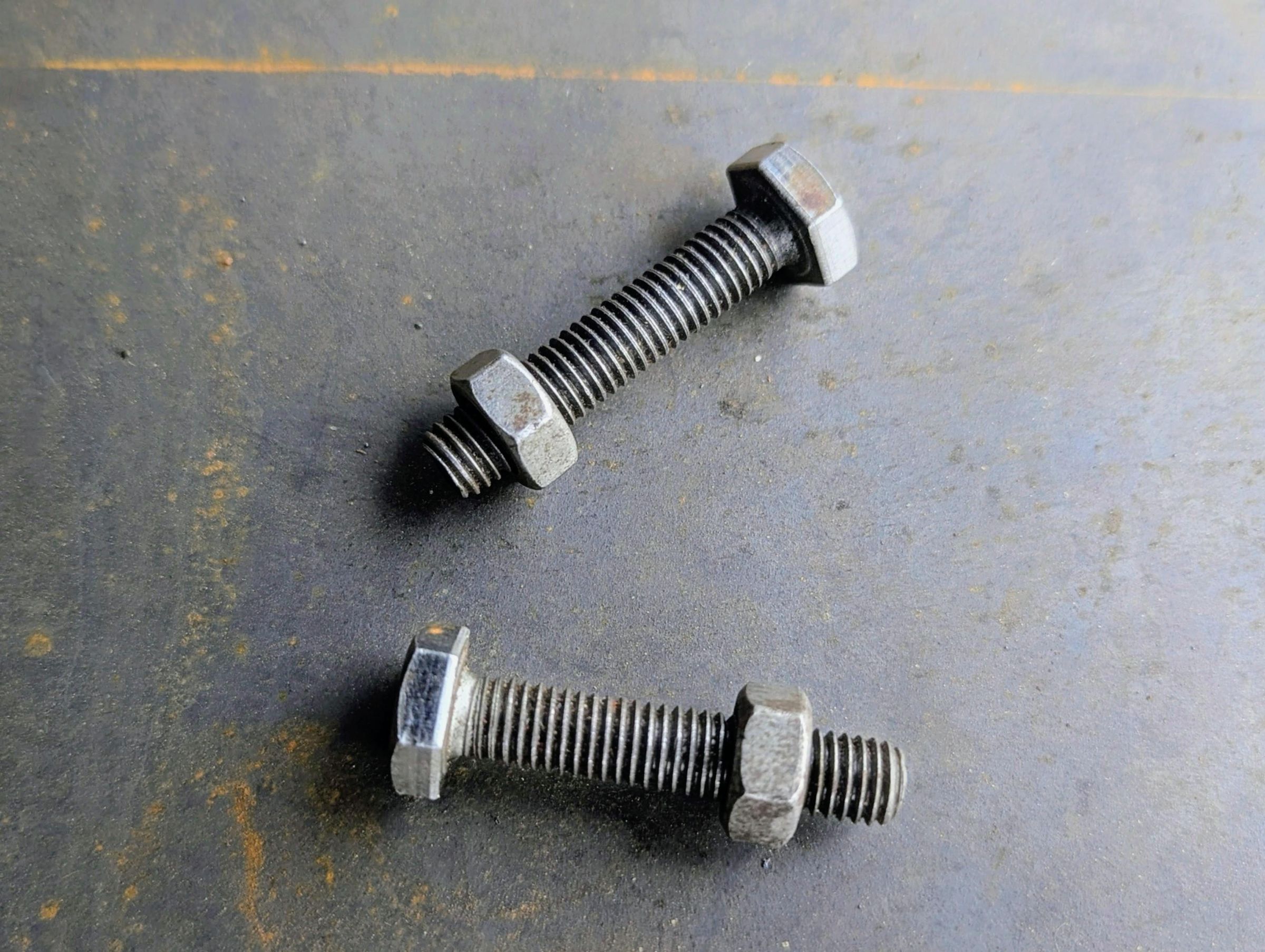

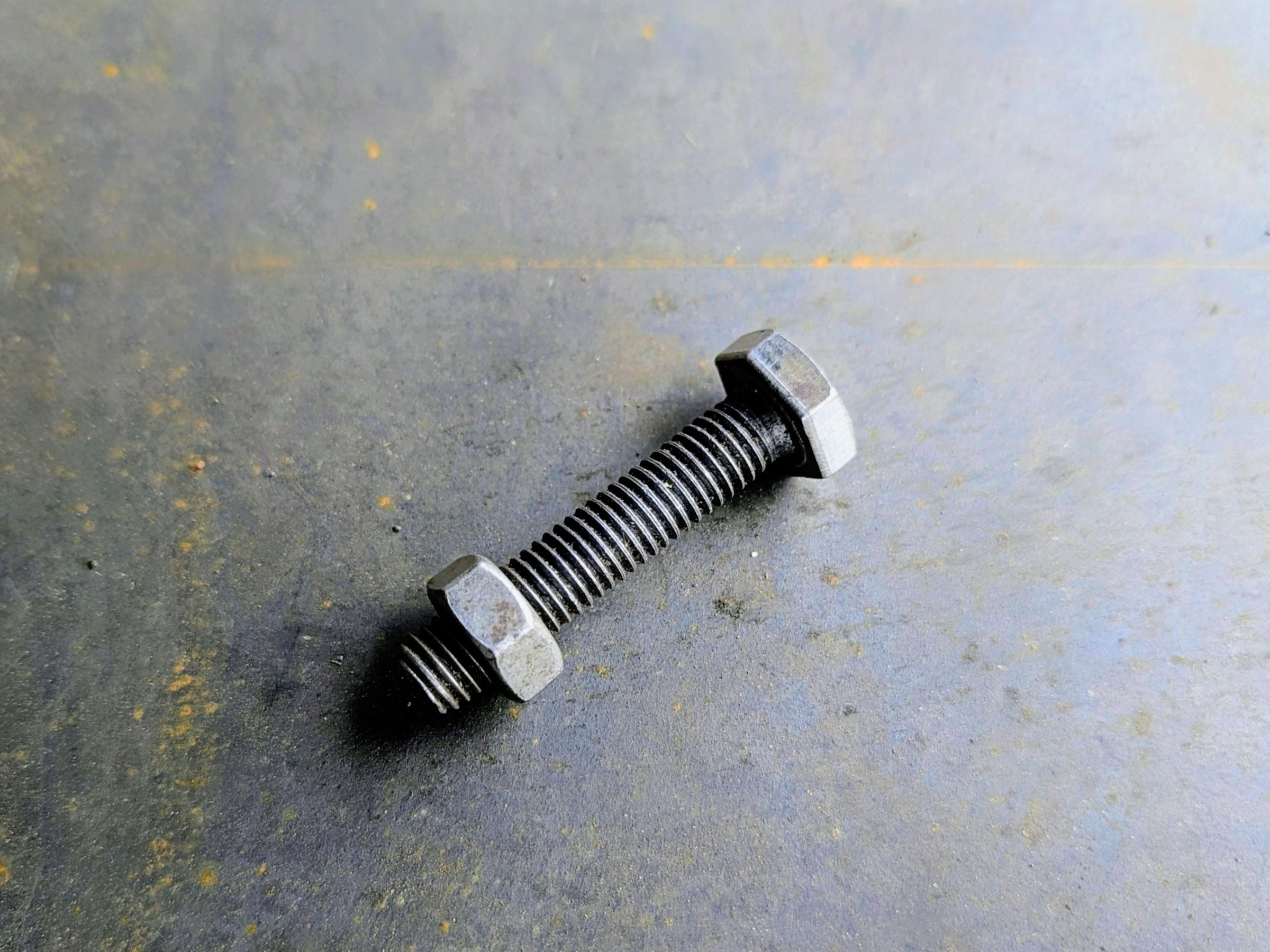

5. Bolt and nut
6.

7. Paint

Tools

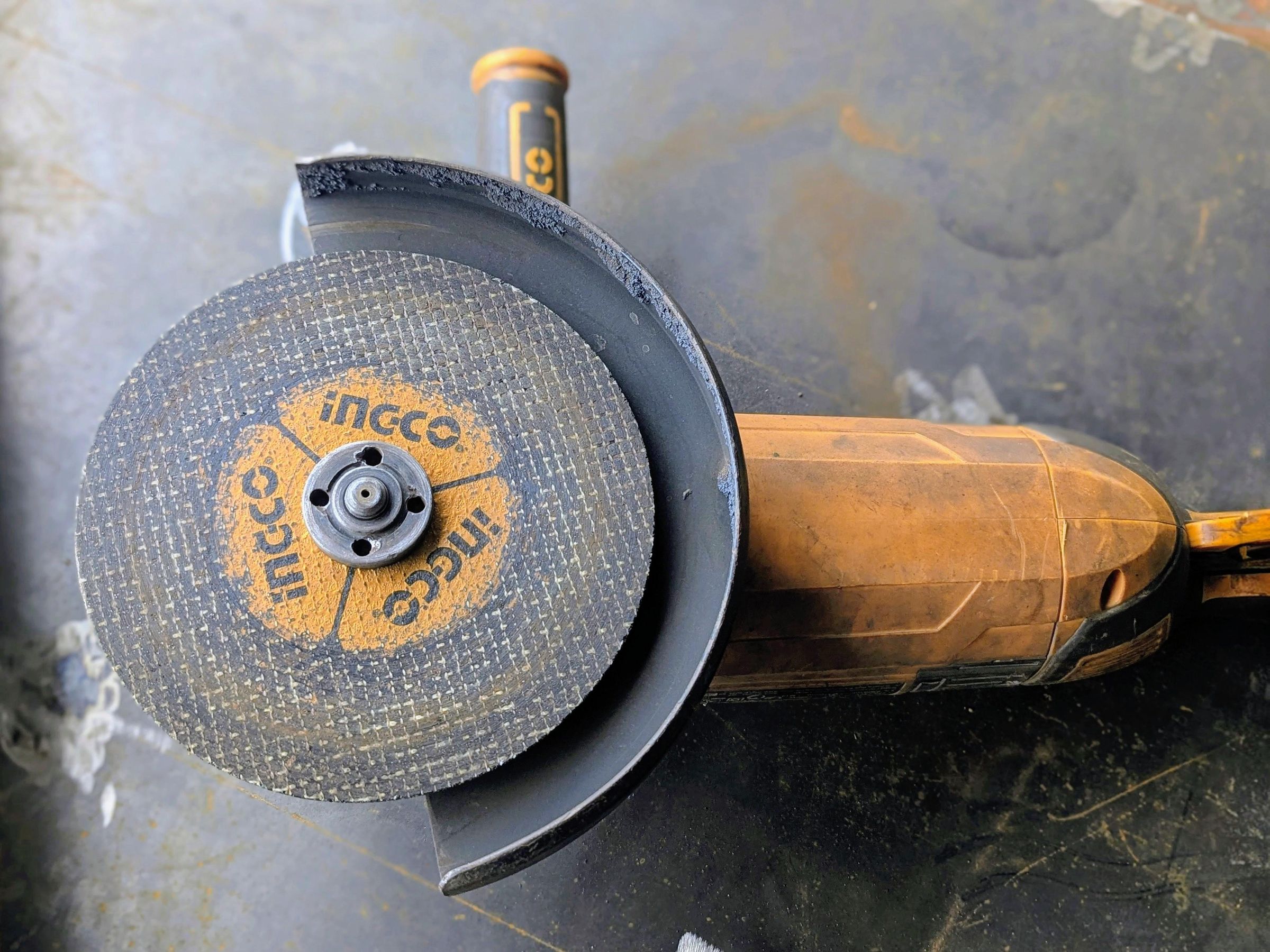

1. Angle grinder
2.

3. Welder
4.

5. Measuring tape
6.

7. Bench vise

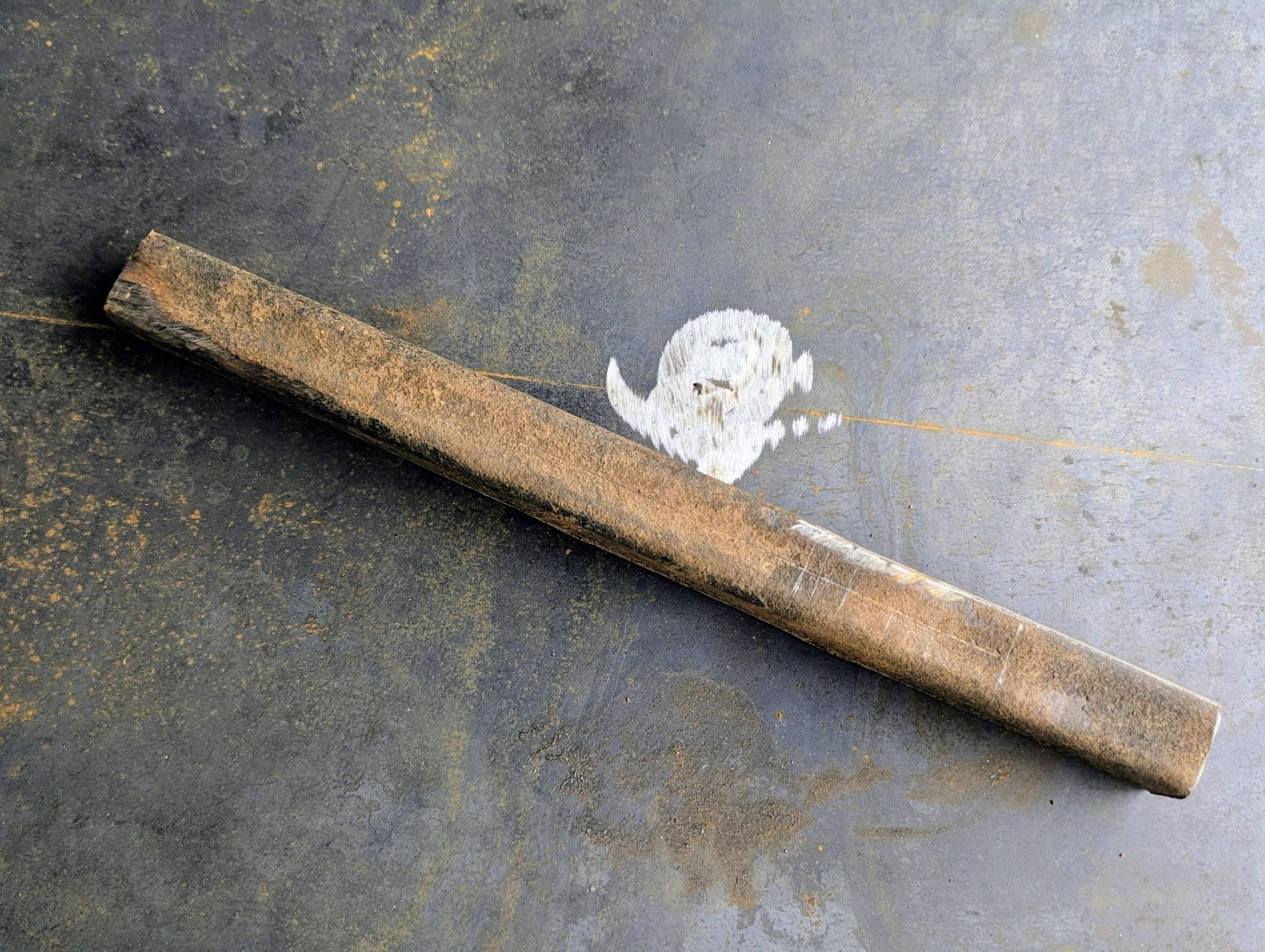

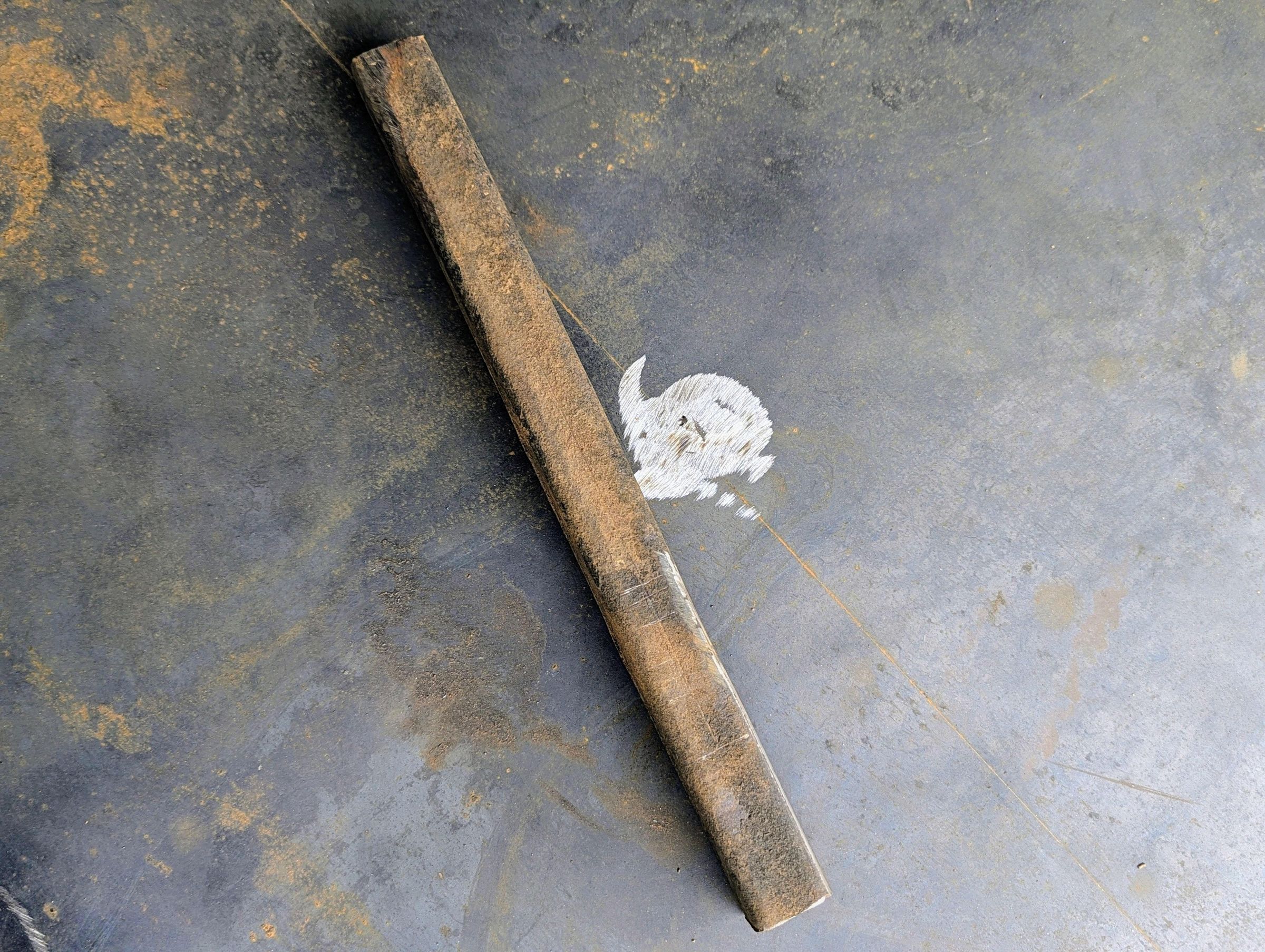

The main handle was made from a piece of square steel tubing measuring 2.4 cm × 2.4 cm (approximately 1 inch × 1 inch). A 29 cm length was cut to form the body of the wrench.

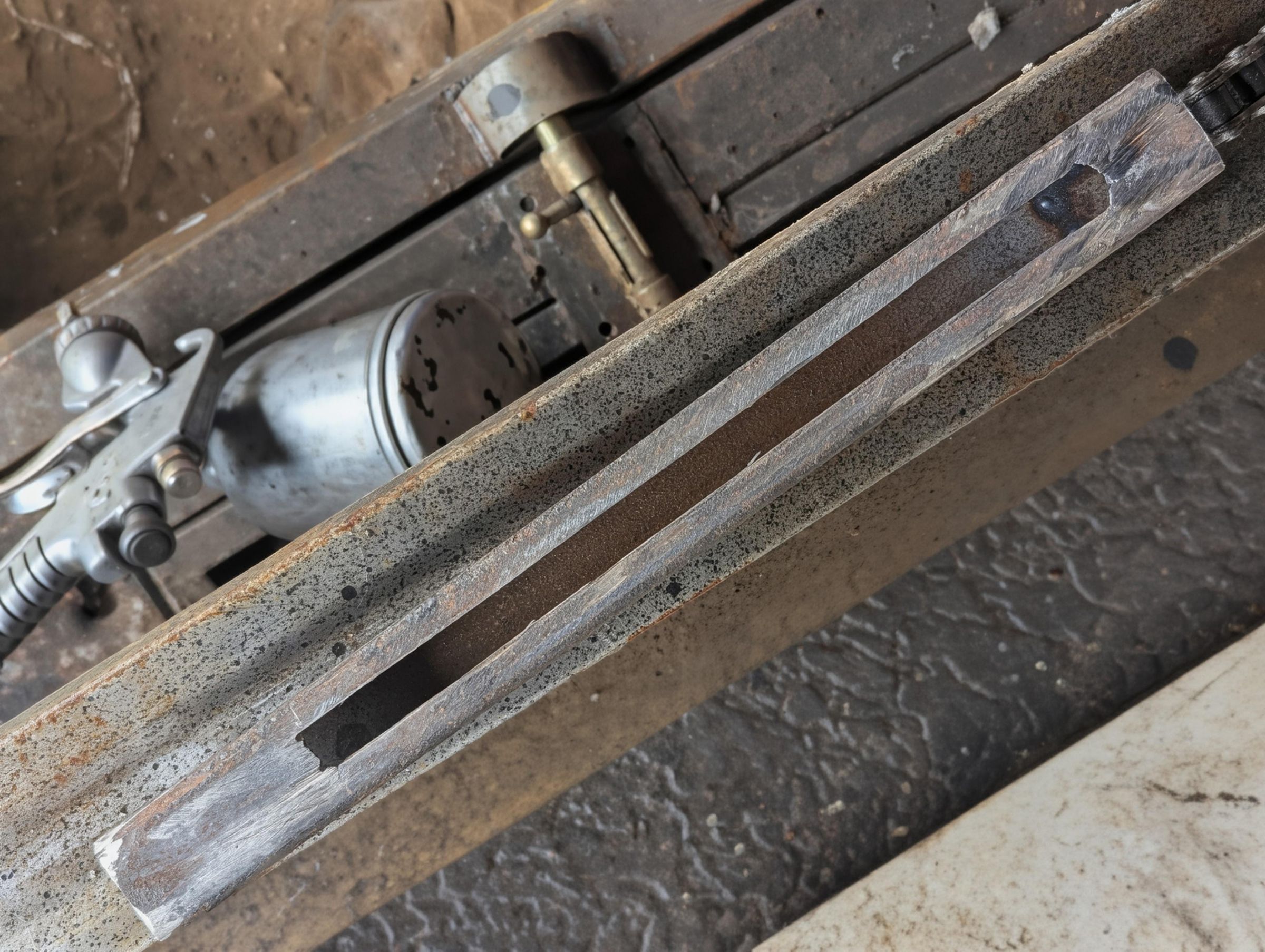

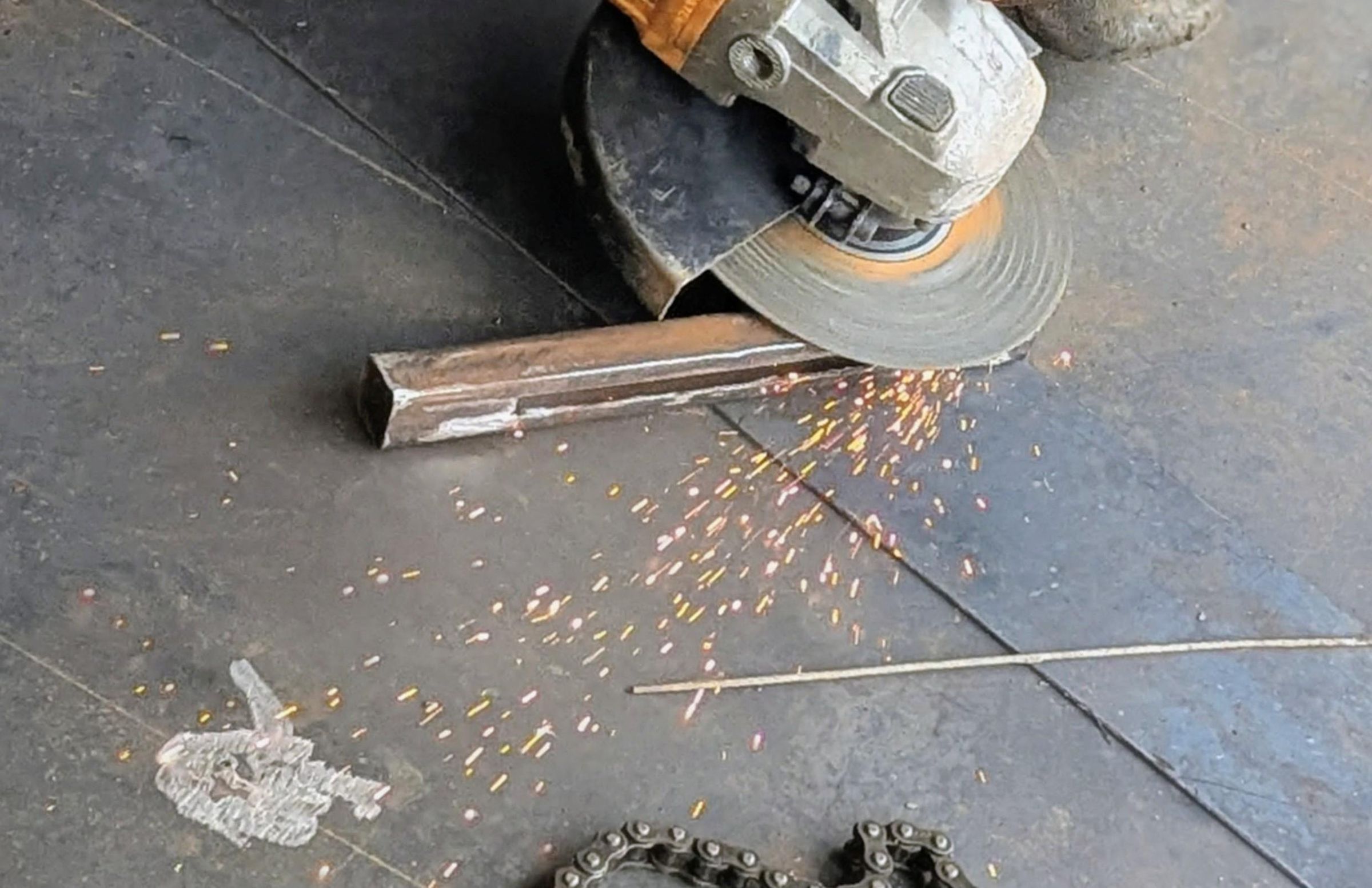

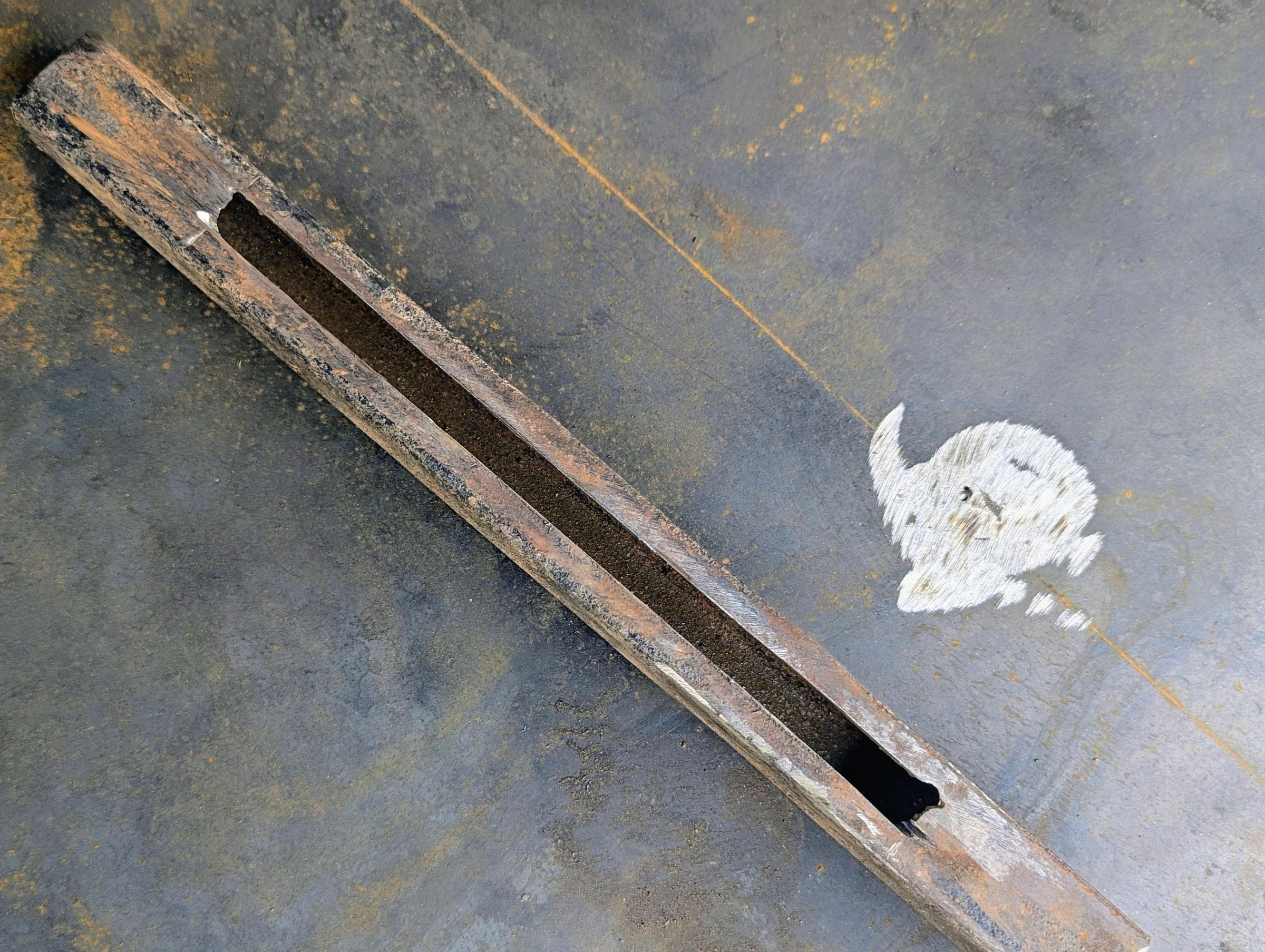

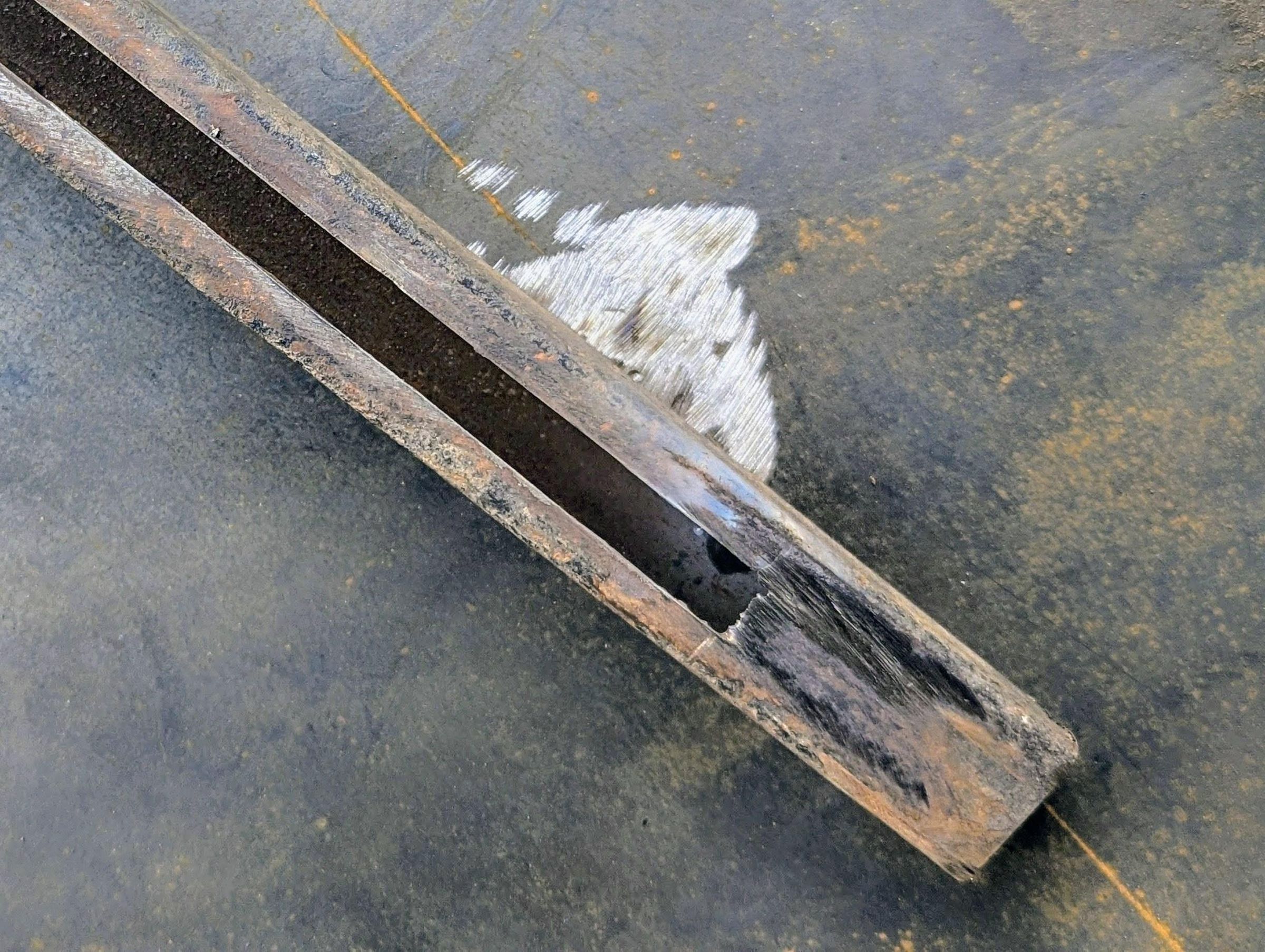

To create the adjustment mechanism, I marked a centered slot along the length of the tube. The slot started 5 cm from one end and ended 2 cm from the opposite end. A width of 1 cm was marked and carefully cut out using an angle grinder.

This slot serves as the adjustment track for the sliding chain holder. By allowing the adjustment bolt to move along the channel, the chain loop can be lengthened or shortened to accommodate different pipe and object diameters.

After cutting, the ends of the slot were rough and uneven. To improve both appearance and functionality, I used a welder to fill the jagged areas before grinding and sanding everything smooth. Taking the time to clean up the slot helps the adjustment mechanism move more smoothly and gives the finished tool a more professional appearance.

With the slot completed, the main handle was ready for the chain installation and adjustment components.

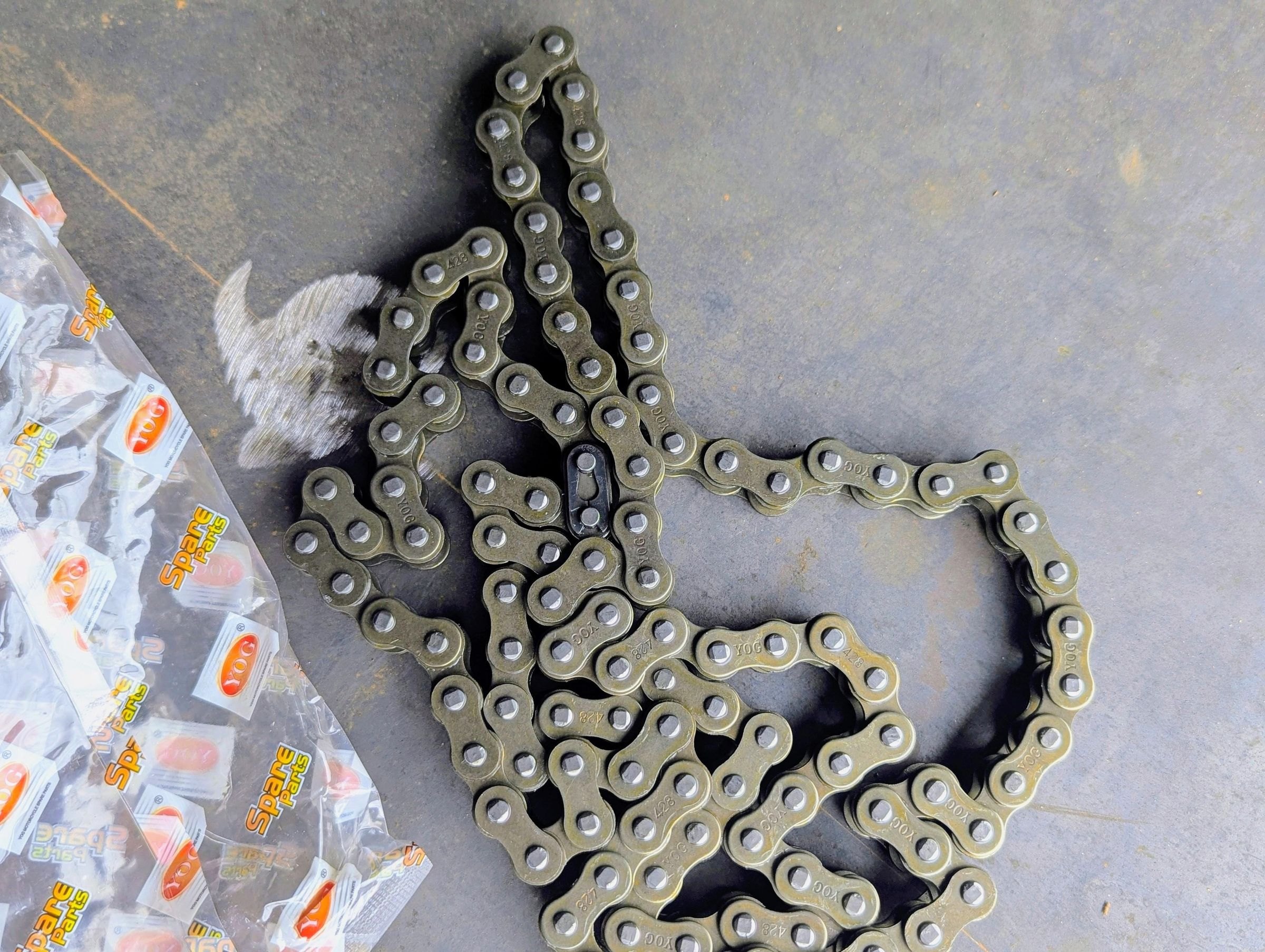

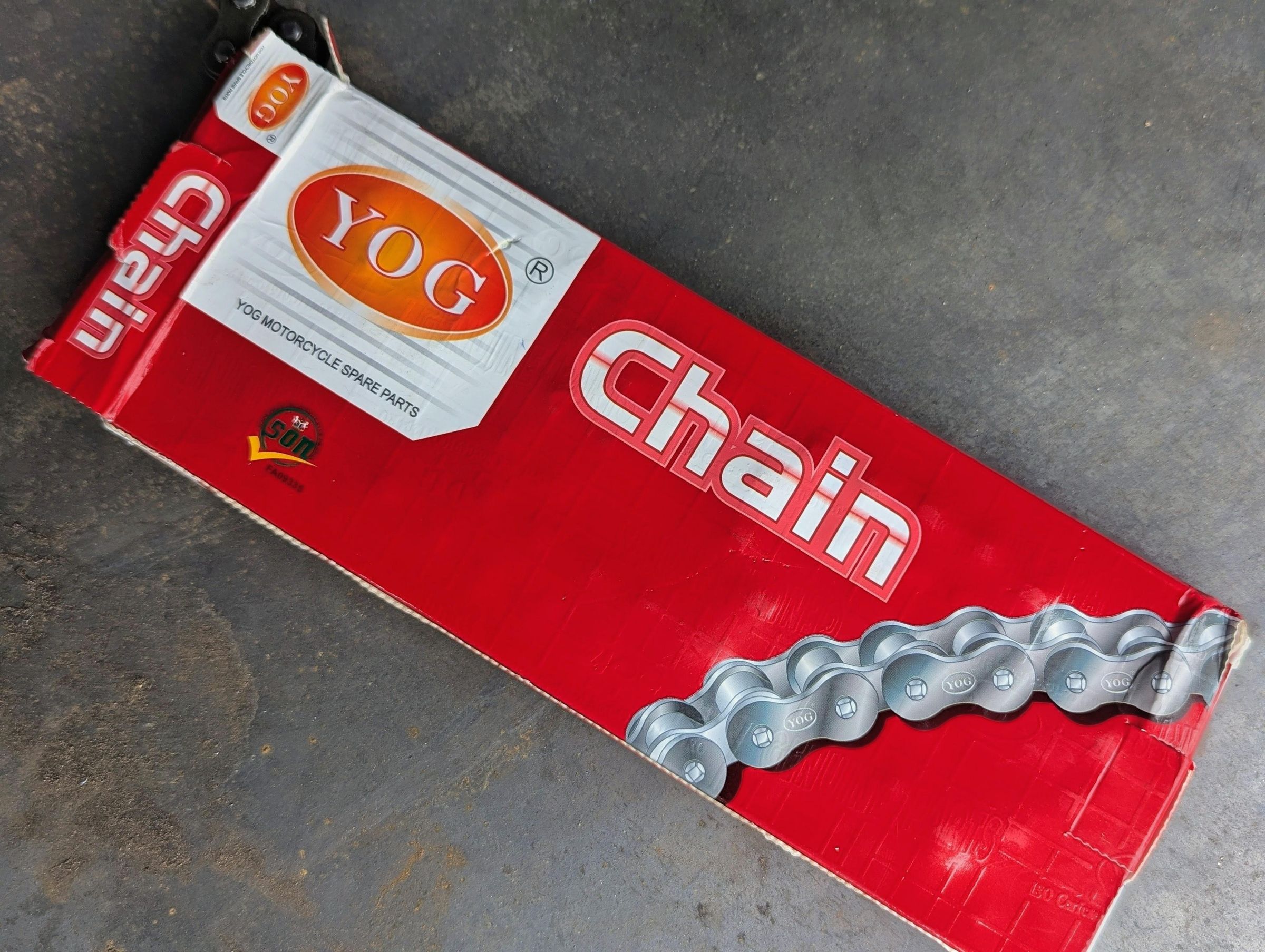

The gripping element of this wrench is a standard bike chain. Although chain wrenches are often a great way to repurpose worn or discarded bicycle chains, I used a new chain for this build because I was unable to source a used one locally. If you have an old bicycle chain available, this project is an excellent opportunity to give it a second life.

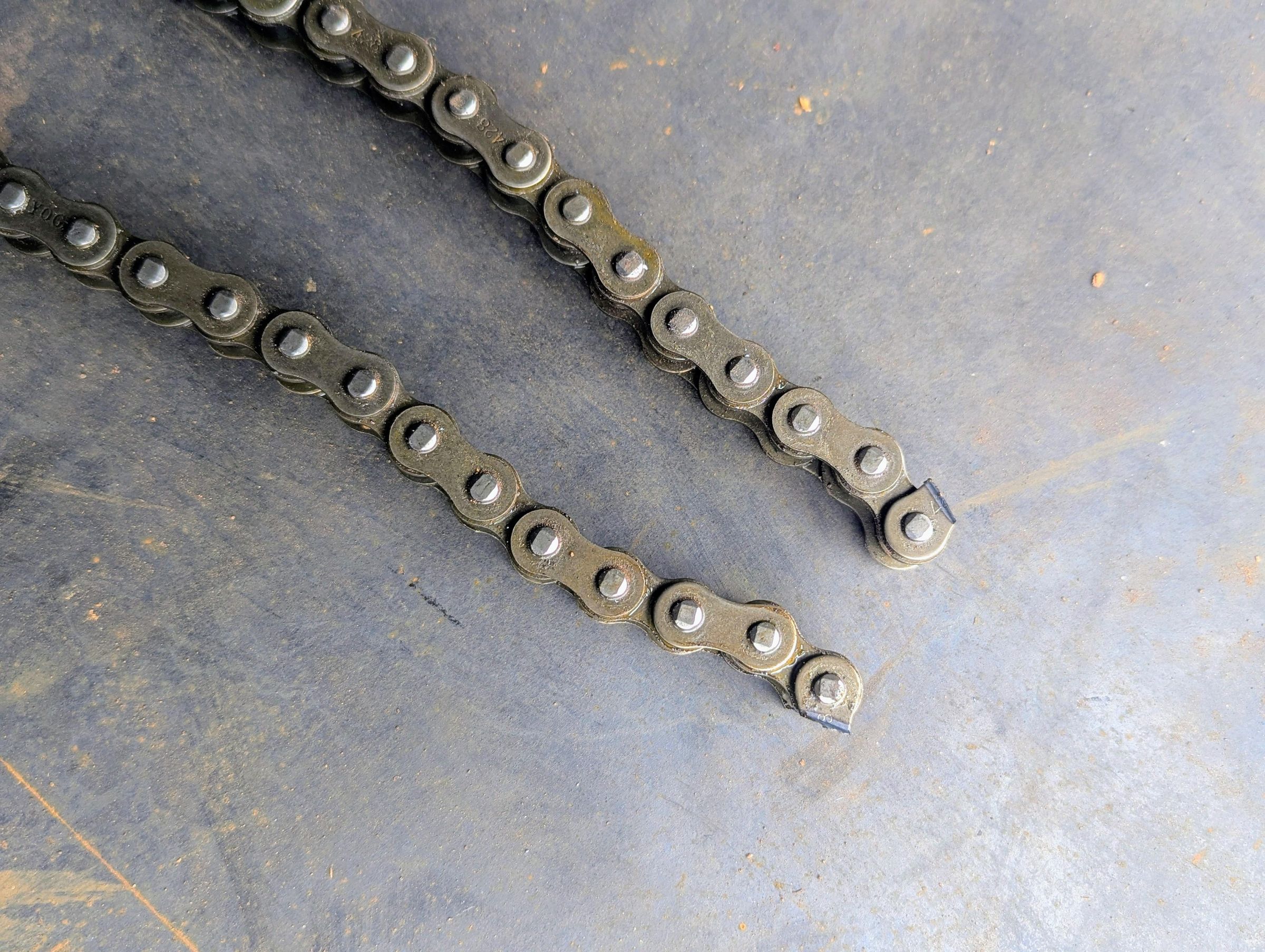

Bicycle chains are typically supplied as a continuous loop, so the first task was to separate the chain into a single length. Using an angle grinder, I carefully cut through one link to open the chain and create a straight section suitable for the wrench.

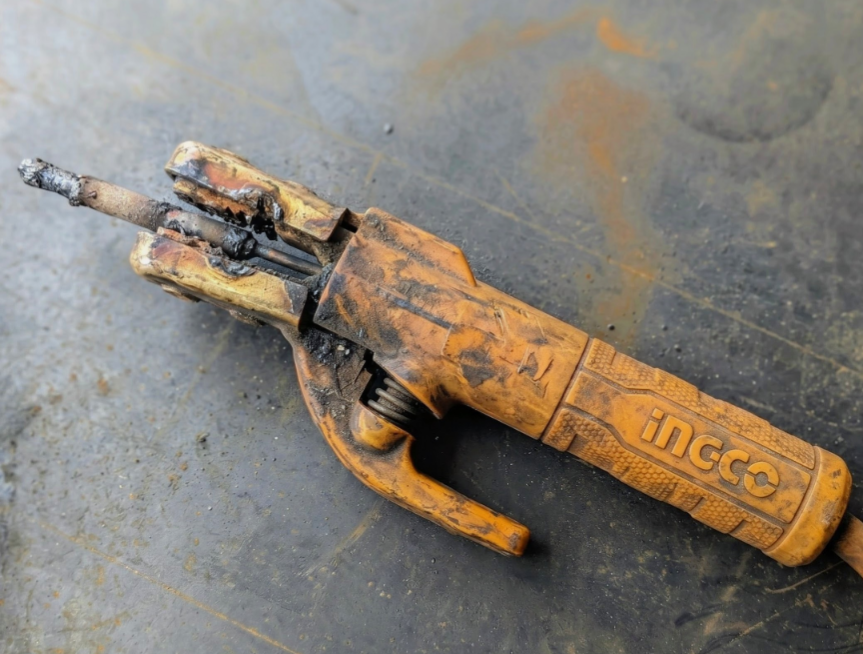

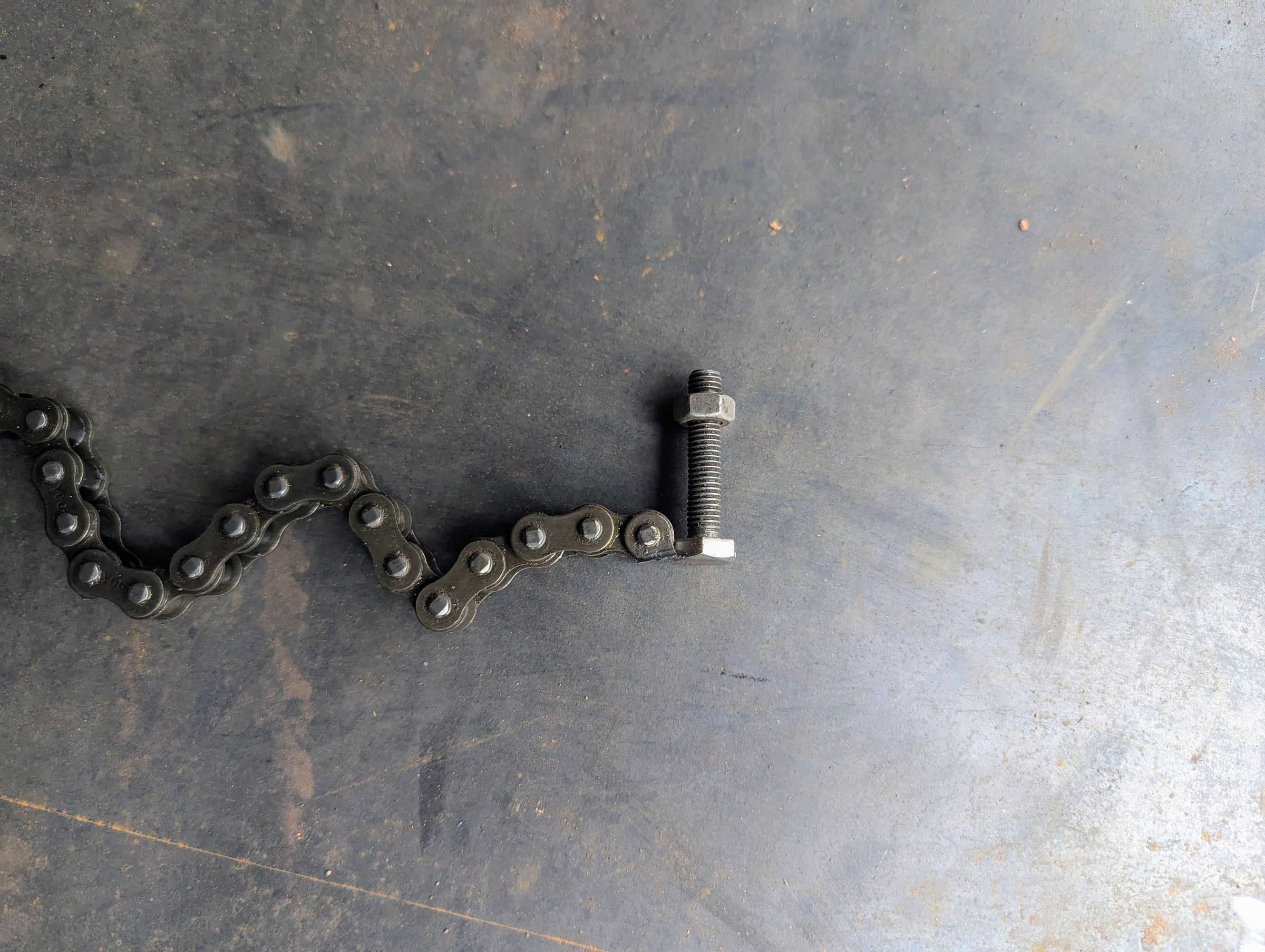

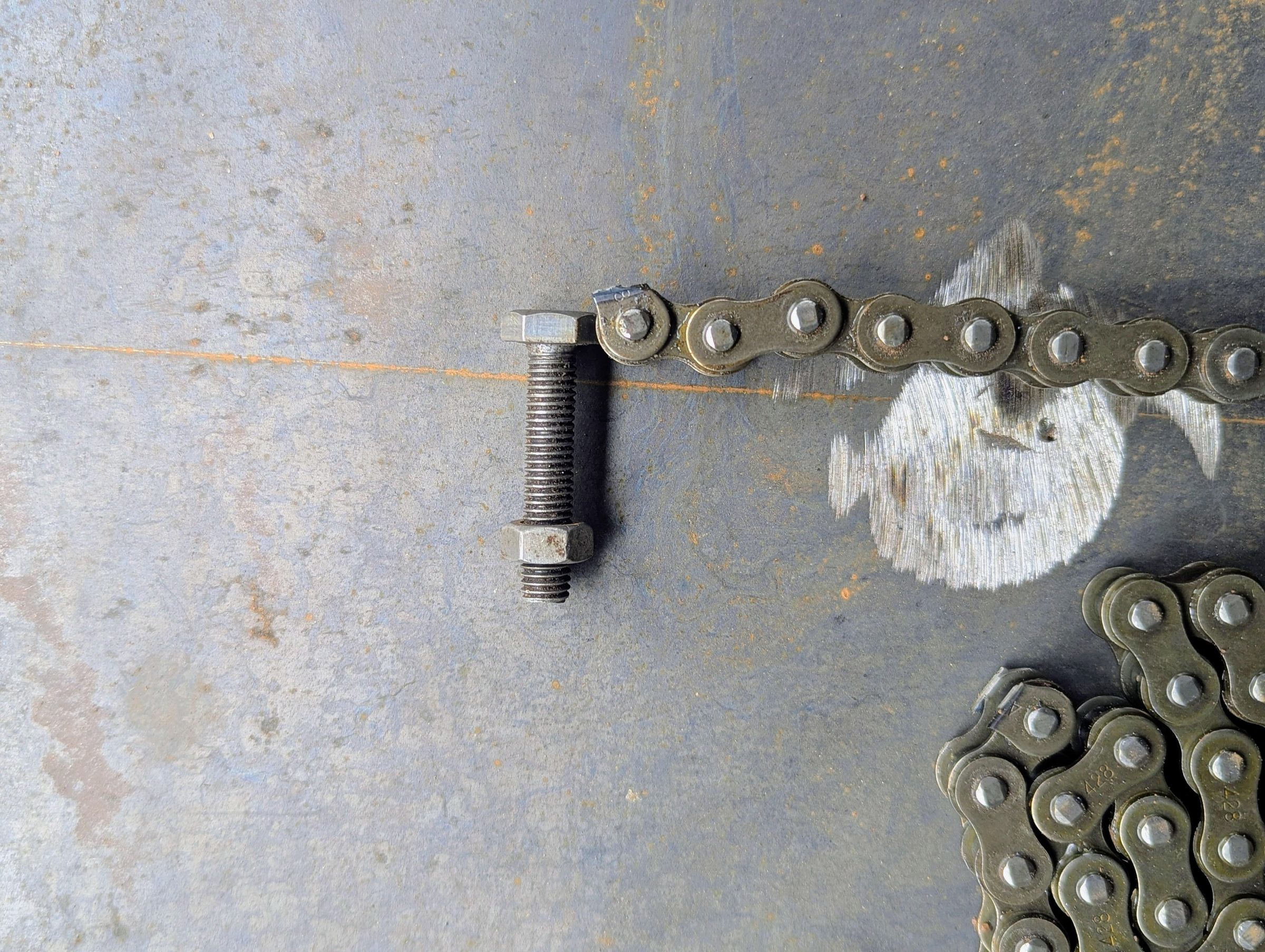

Next, I prepared the adjustment connection by welding the head of a bolt to one end of the chain. This bolt will act as the sliding anchor for the adjustment mechanism. When welding, it is important to apply heat only where needed and avoid accidentally welding the neighboring chain links together. The chain must remain flexible for the wrench to function properly.

Once completed, the bolt-and-chain assembly formed the foundation of the adjustment system. In the next step, the bolt will be inserted through the slot in the handle, allowing the chain loop to be lengthened or shortened to fit different workpiece diameters.

With the handle and chain prepared, it was time to assemble the adjustment mechanism and form the wrench loop.

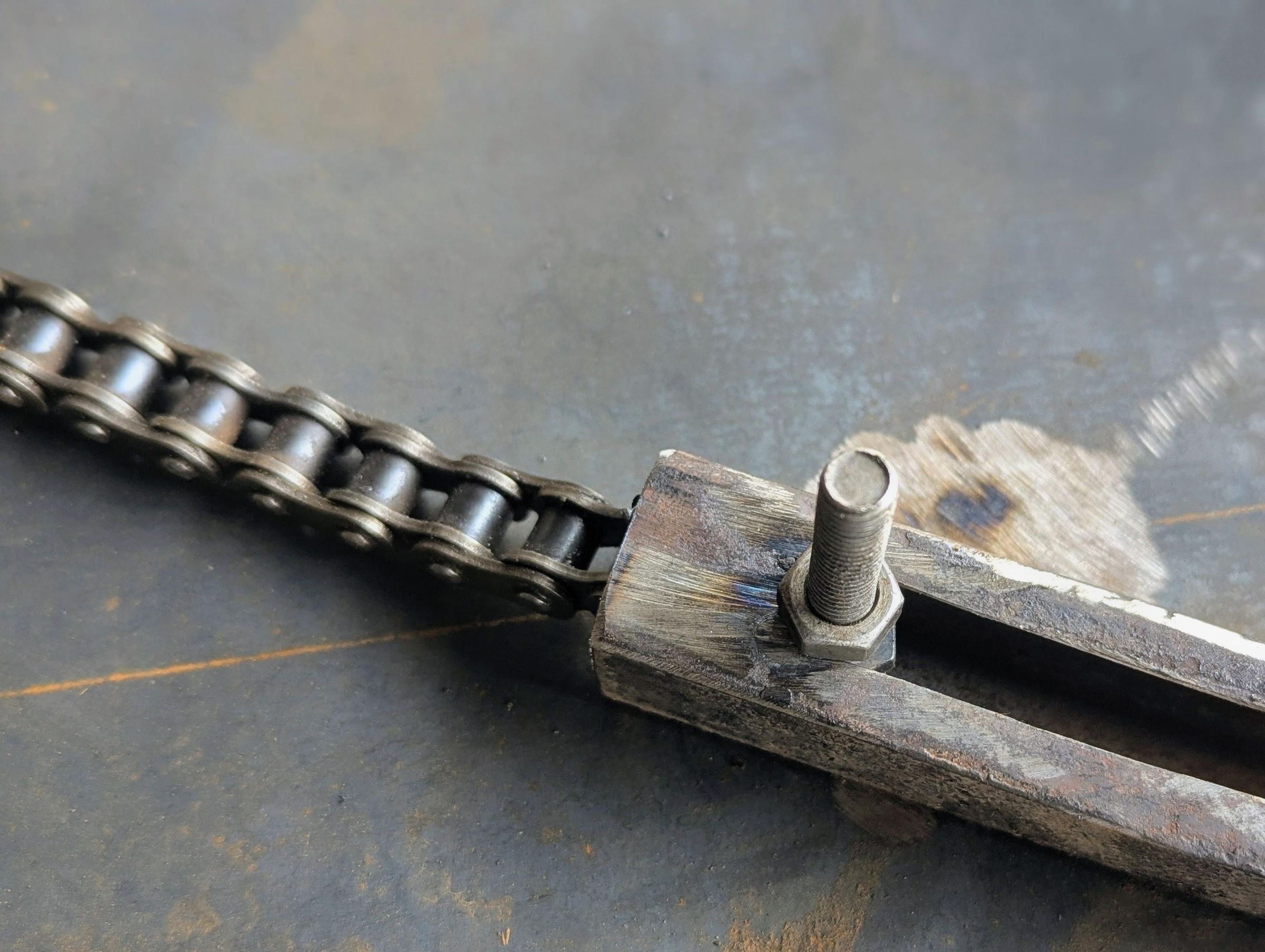

The bolt attached to the chain was inserted through the adjustment slot from inside the handle. To do this, I first removed the nut and tilted the bolt so it could fit through the open end of the steel tube. Once inside, I guided it toward the slot and rotated it into an upright position so the threaded portion protruded through the slot.

After confirming that the bolt could slide freely along the channel, I reinstalled the nut. This prevents the bolt from accidentally pulling back into the handle while still allowing it to move along the slot when adjustments are needed.

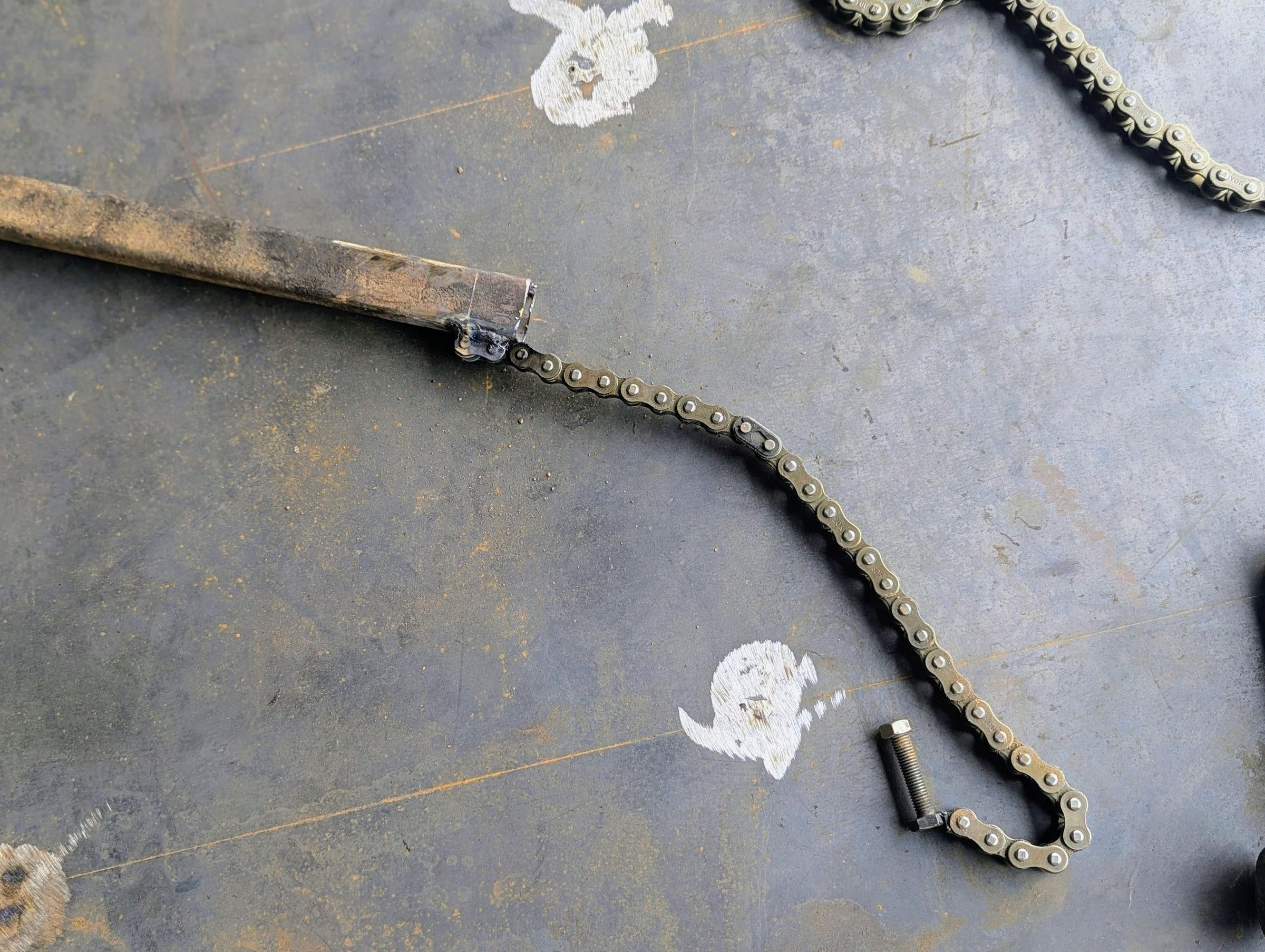

Next, I determined the maximum loop size I wanted the wrench to accommodate. With the chain extended, I measured and marked the required length before trimming away the excess. In my case, the final chain length was approximately 40 cm.

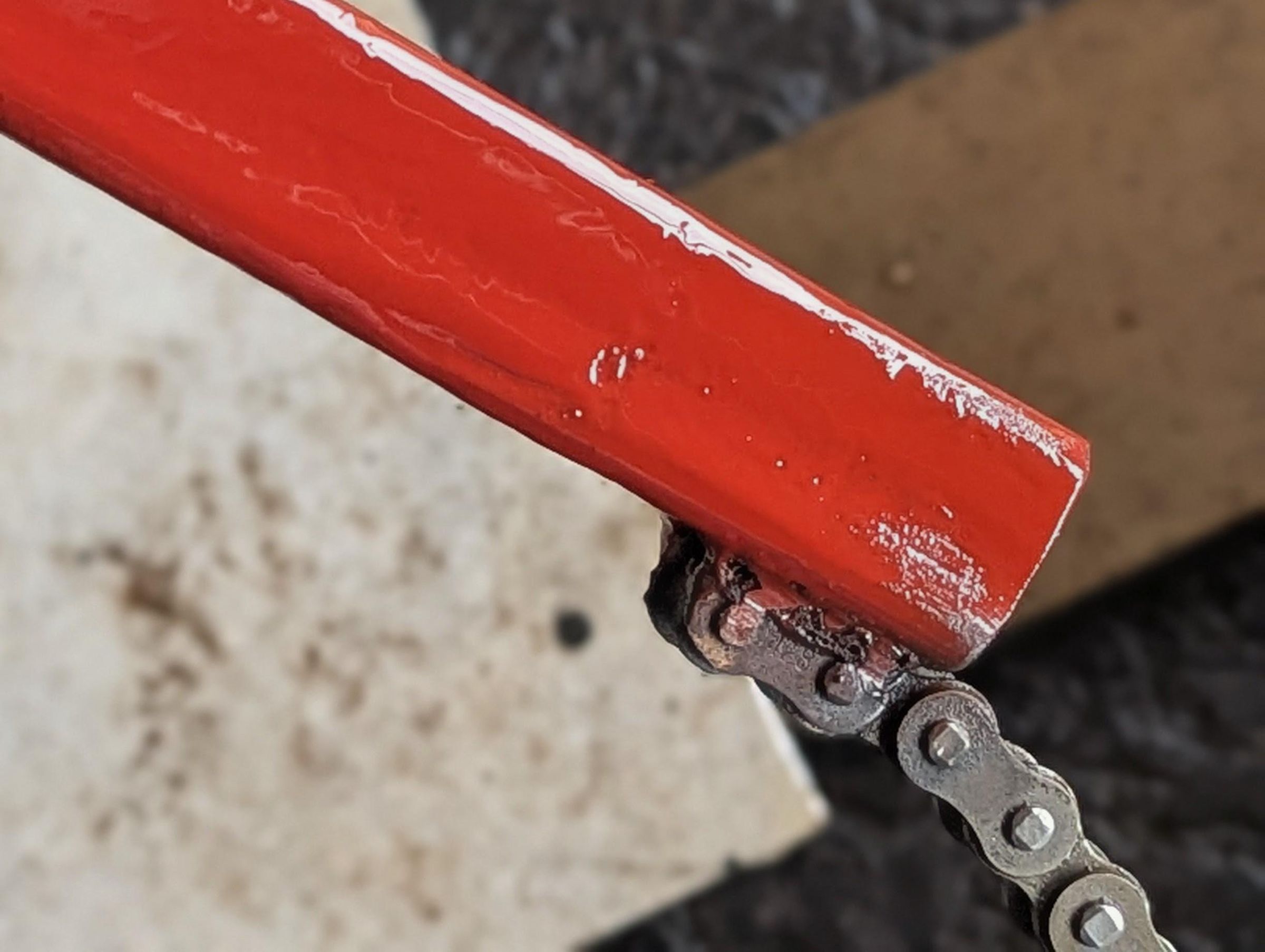

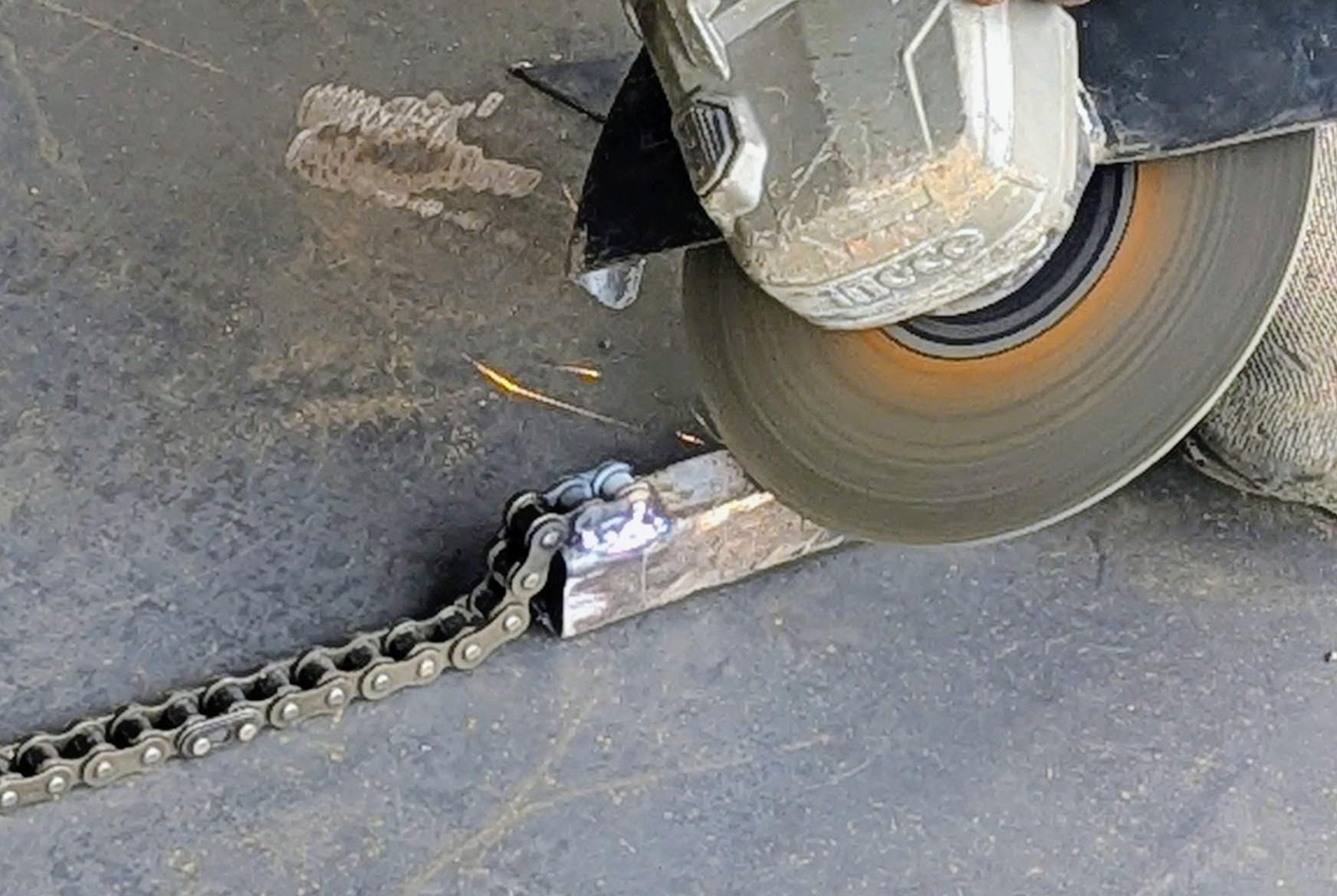

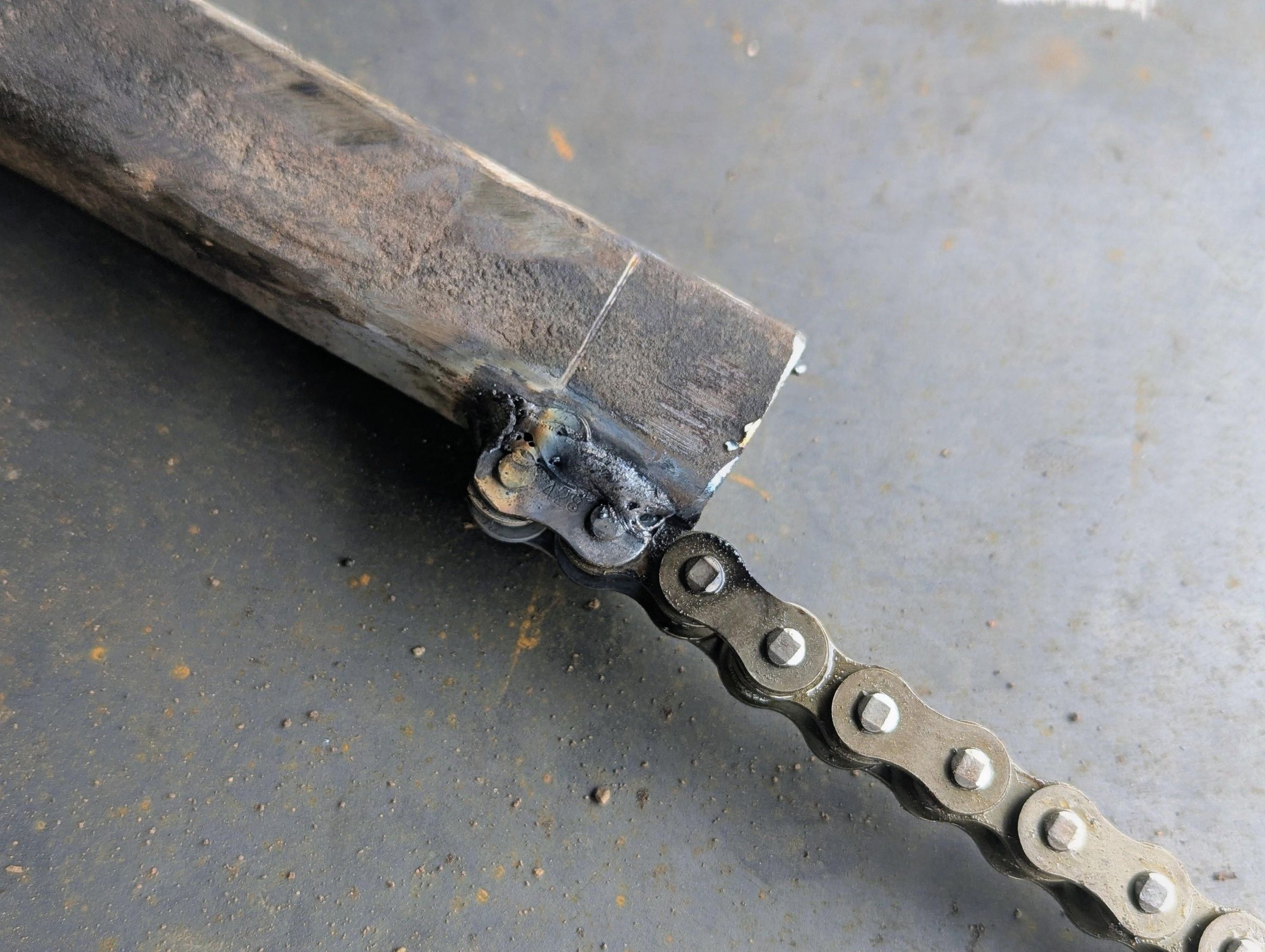

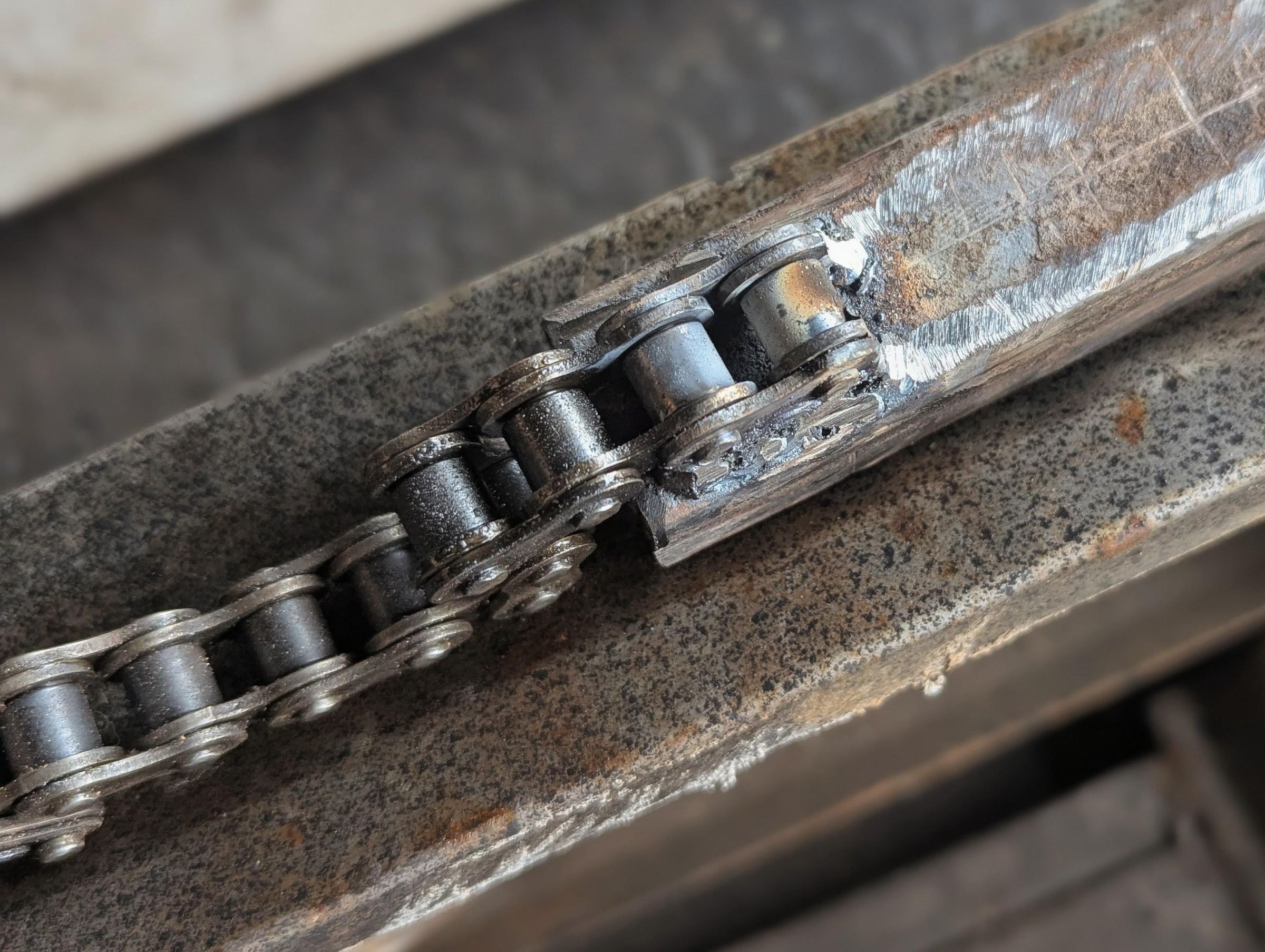

To complete the loop, the last chain link on the free end was welded to the underside of the handle. This permanently anchors the chain while leaving the rest of the chain free to wrap around objects and tighten under load.

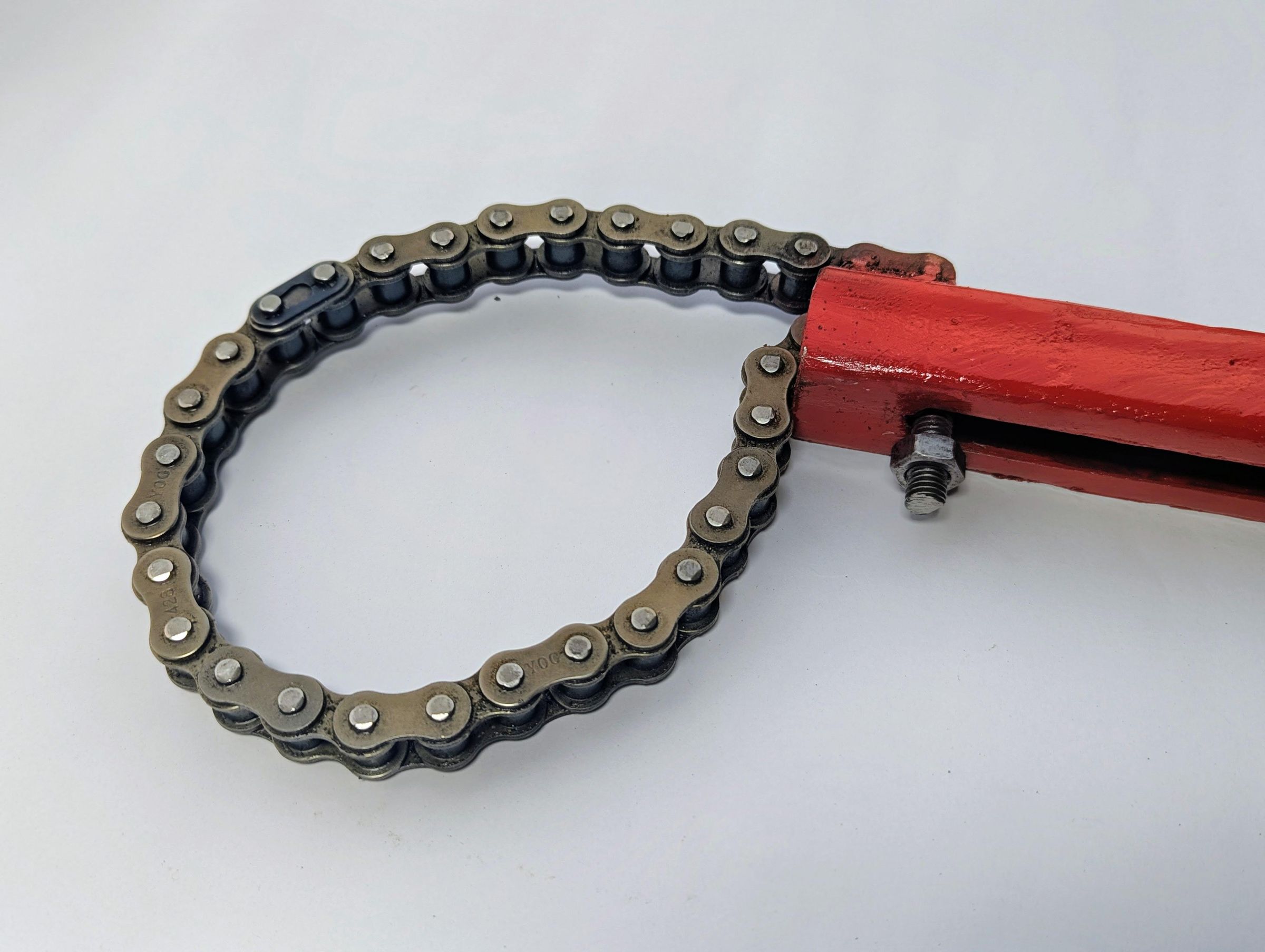

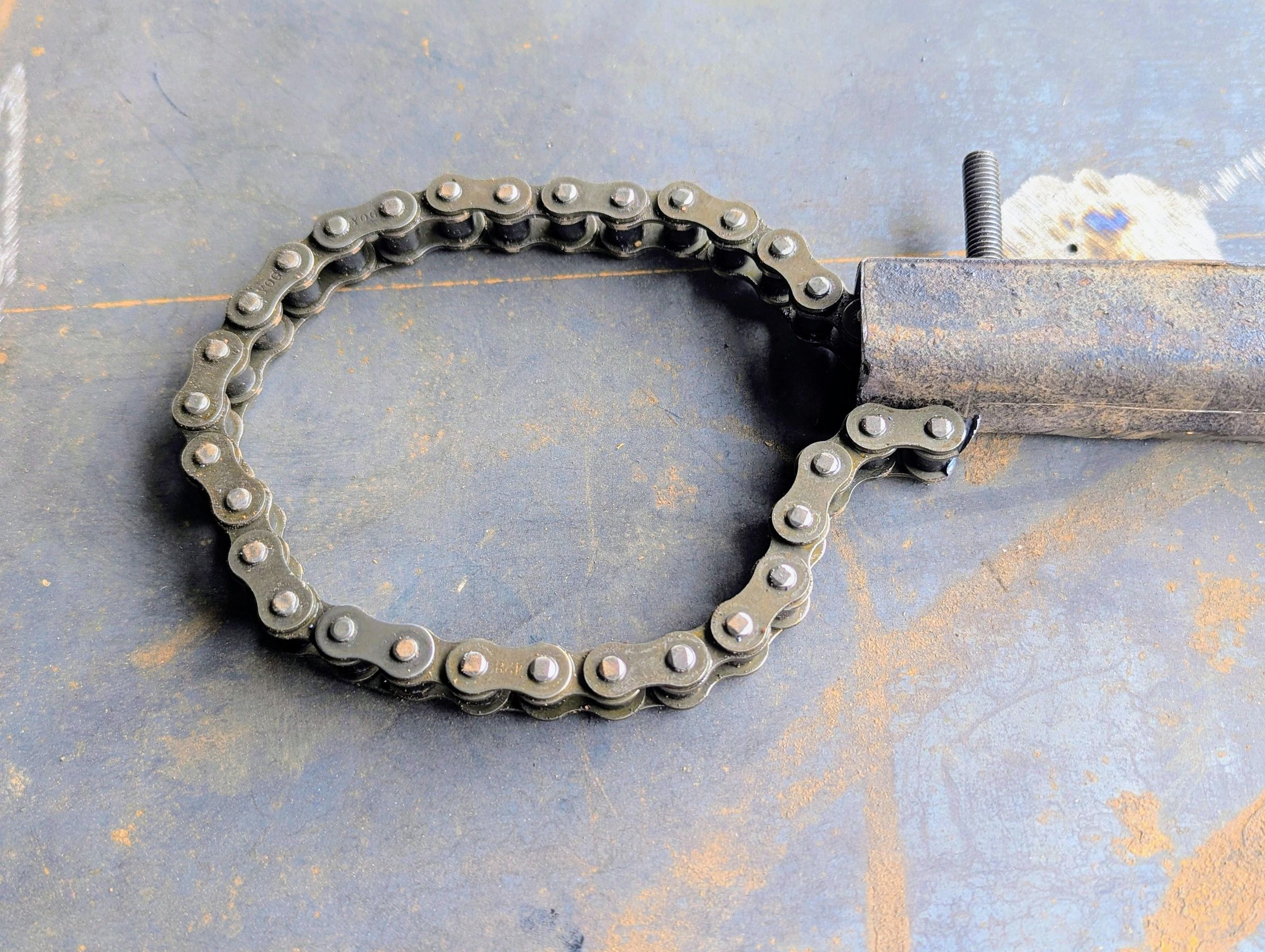

At this point, the adjustable chain loop was fully installed. Sliding the bolt along the slot changes the size of the loop, allowing the wrench to grip a variety of pipe and object diameters with a single tool.

With the chain loop assembly complete, I disassembled the adjustment mechanism by removing the nut and sliding the bolt-and-chain assembly out of the handle. This provided unobstructed access to all areas that needed finishing.

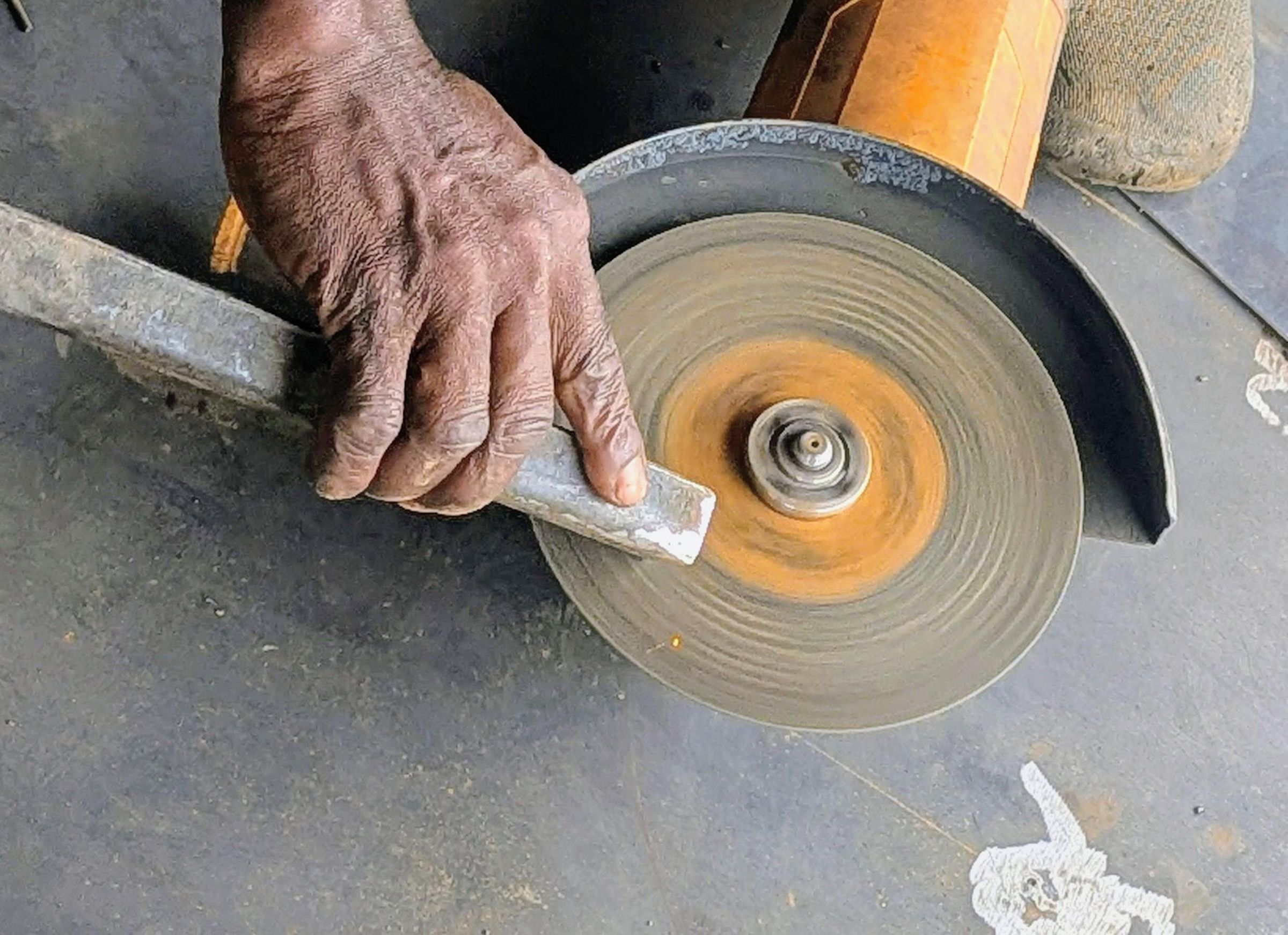

Using an angle grinder, I carefully smoothed the cut ends of the steel tube, refined the edges of the adjustment slot, and blended the welds securing the chain to the underside of the handle. Any remaining burrs, sharp corners, and rough weld spatter were removed during this process.

Although this step may seem cosmetic, it has a significant impact on both the appearance and functionality of the finished tool. Smoothing the slot edges helps the adjustment bolt slide more freely, while removing sharp edges makes the wrench safer and more comfortable to handle during use.

Taking the time to properly finish the metalwork transforms the project from a rough fabrication into a tool that looks and feels professionally made.

Before painting, I prepared the metal surfaces by removing the rust and oxidation from the steel handle. Using an angle grinder, I cleaned all sides of the tube down to bare metal, paying special attention to areas that would be visible in the finished build. Proper surface preparation helps paint adhere better and results in a more durable finish.

Once the metal was cleaned, I moved to the painting area and selected a red-and-black color scheme. These colors are commonly associated with workshop and industrial tools, making the wrench instantly recognizable as a piece of equipment. The contrasting colors also help highlight the shape of the tool and make it easier to spot in a busy toolbox or workshop.

Beyond aesthetics, the paint serves an important functional purpose. It helps protect the steel from moisture and corrosion, extending the life of the tool. The coating also seals areas where rust was removed during fabrication, reducing the likelihood of future oxidation.

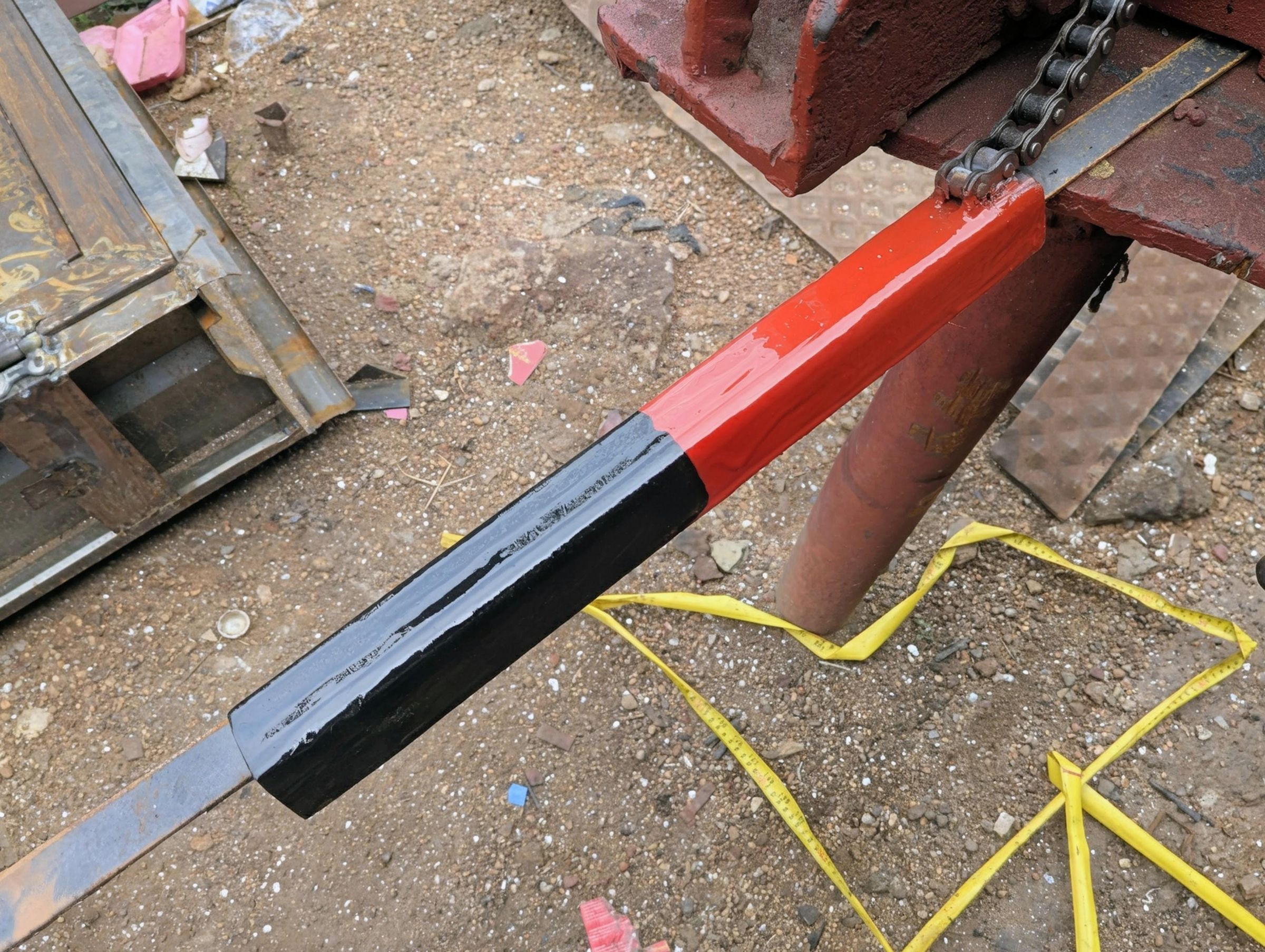

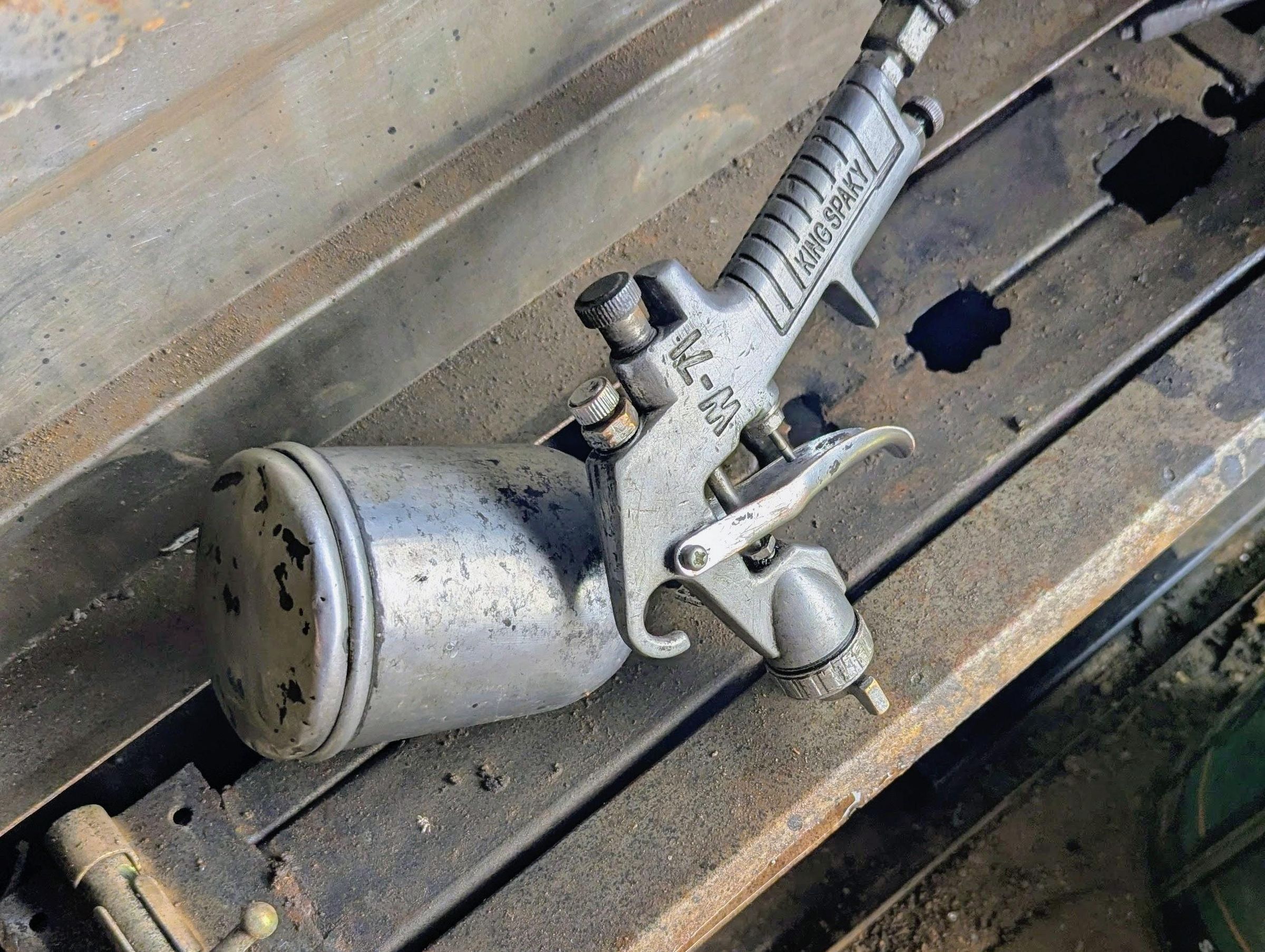

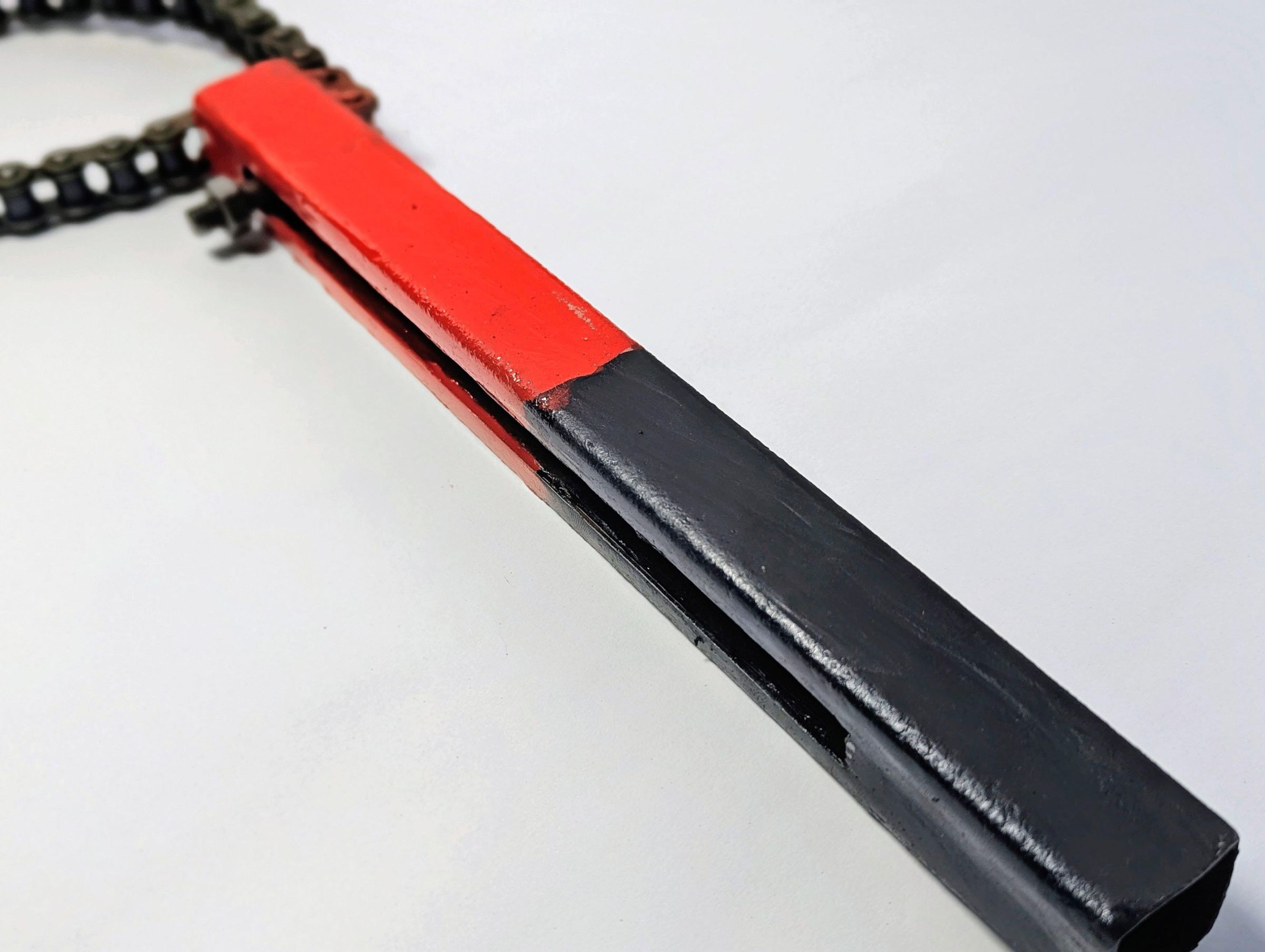

I filled the sprayer with red paint and coated the half of the handle nearest the chain. After allowing adequate drying time, I painted the remaining half black. To provide additional protection, I also attempted to coat the inside surfaces of the steel tube wherever possible.

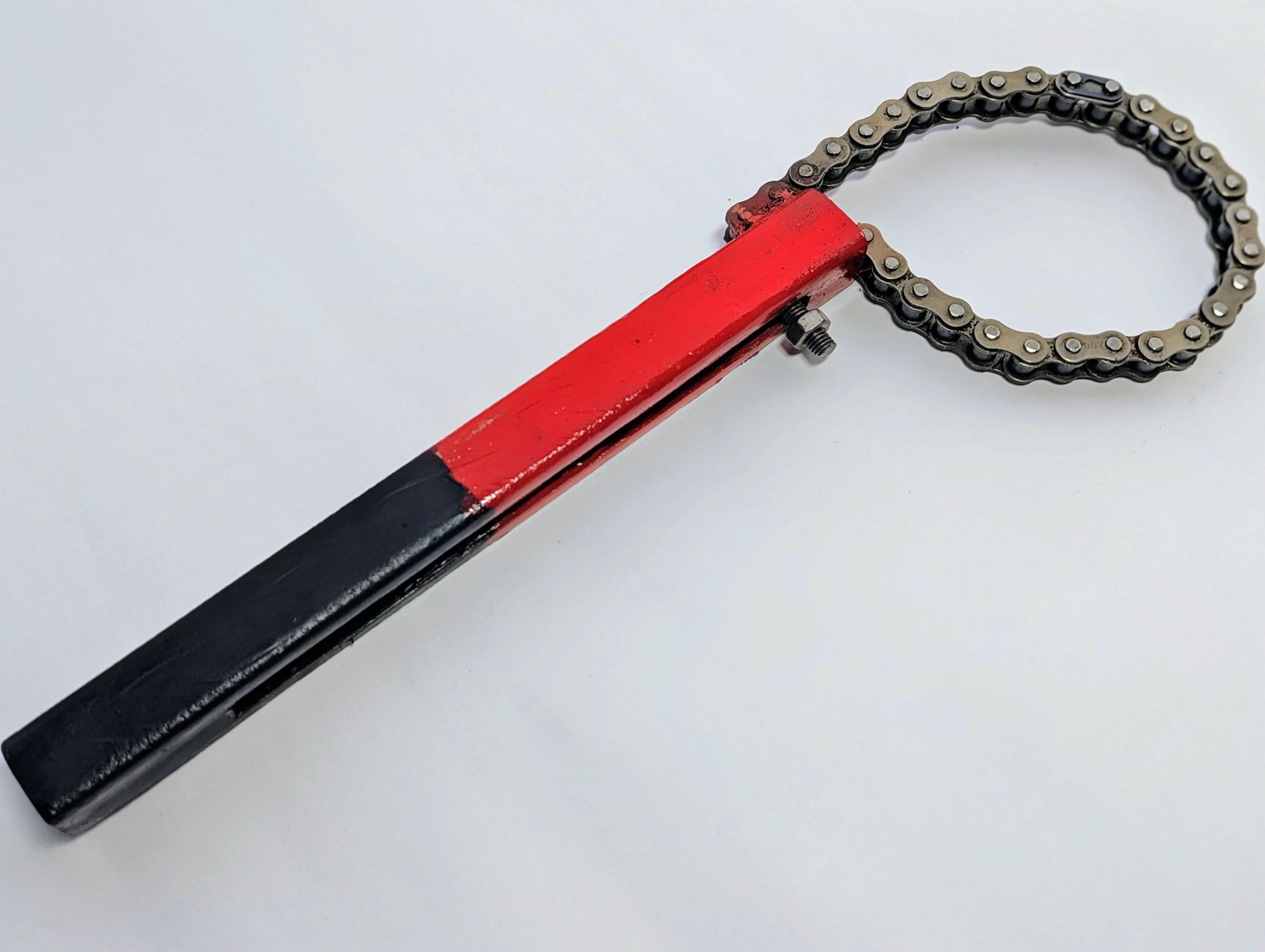

The finished red-and-black appearance gives the wrench a professional workshop look while providing a protective barrier against wear and rust. With the paint fully cured, the tool was ready for final assembly and testing.

At this point, the chain wrench is fully assembled and ready for real-world use. This step focuses on testing its gripping strength, adjustability, and effectiveness on tightly fastened cylindrical objects.

The tool is designed for practical use cases such as loosening plumbing fittings, pipes, oil filters, and other round components that are difficult to grip with conventional tools. Its adjustable chain mechanism allows it to adapt to different diameters, making it a versatile workshop and household repair tool.

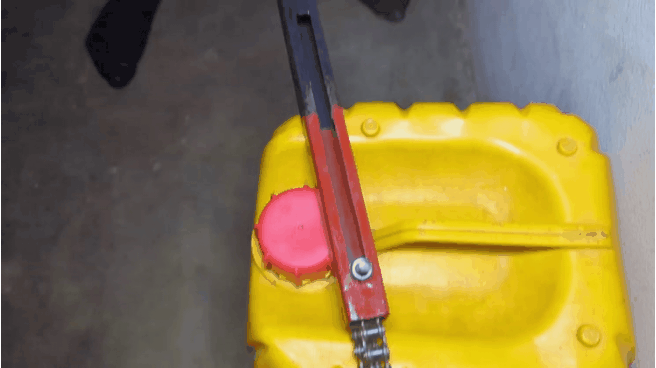

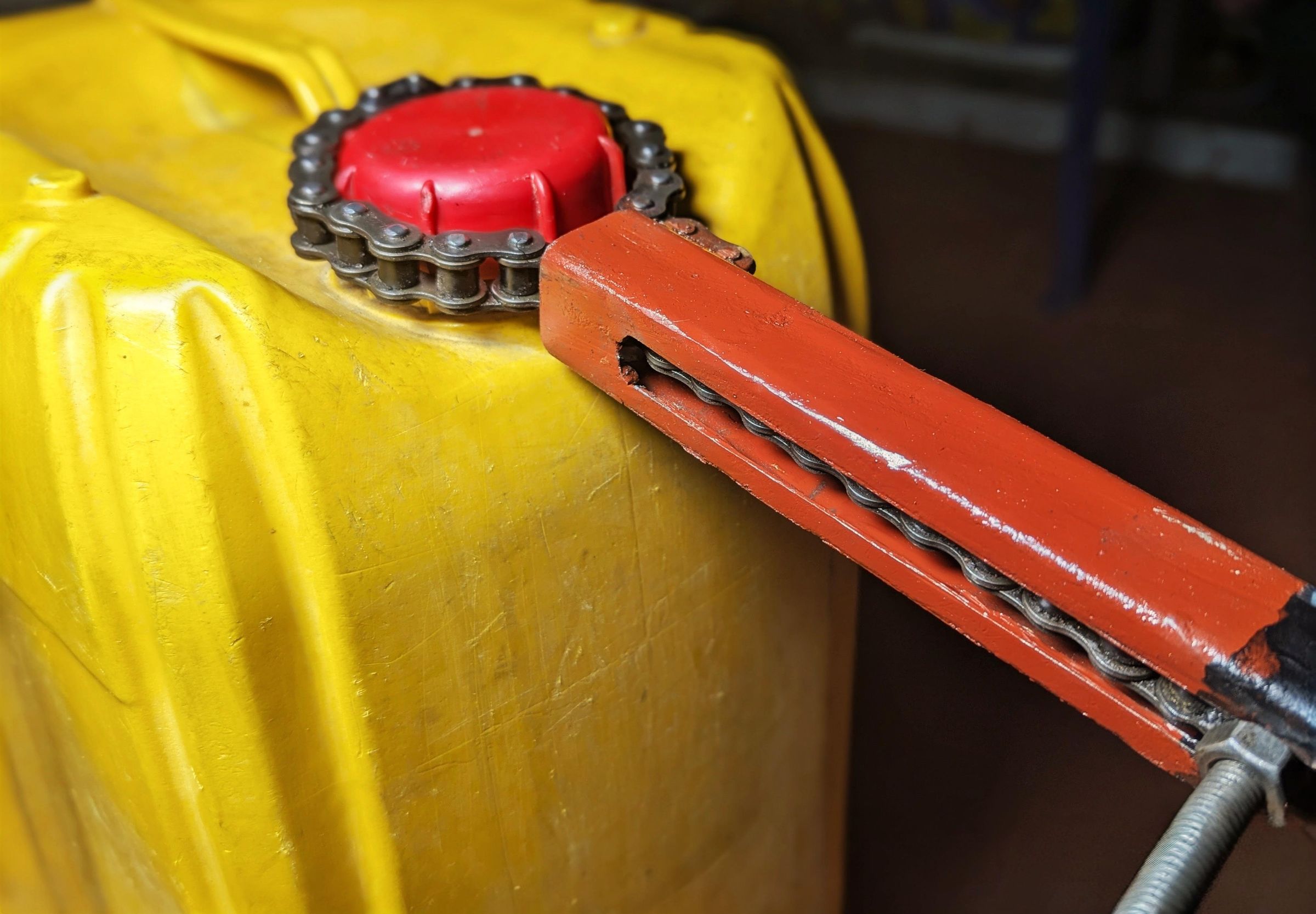

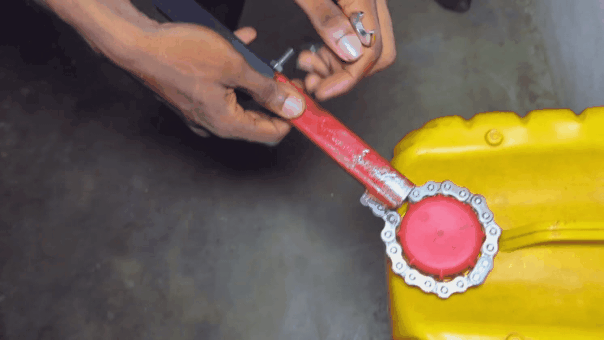

For demonstration purposes, I tested it on the lid of a standard jerry can (yellow). The cap had become tightly sealed and could not be opened by hand due to pressure and friction over time.

The process was straightforward:

1. The chain loop is placed around the object to be gripped
2.

3. The adjustment bolt is slid to reduce the loop size until the chain tightly hugs the surface
4.

5. The locking nut is tightened to secure the grip (a spanner can be used for extra tightening if needed, especially when hands are slippery or grease is present)
6.

7. Finally, the handle is rotated in the loosening direction, causing the chain to grip firmly and apply torque to unscrew the object

In testing, the jerry can cap was removed smoothly with minimal effort, demonstrating strong grip efficiency and torque transfer.

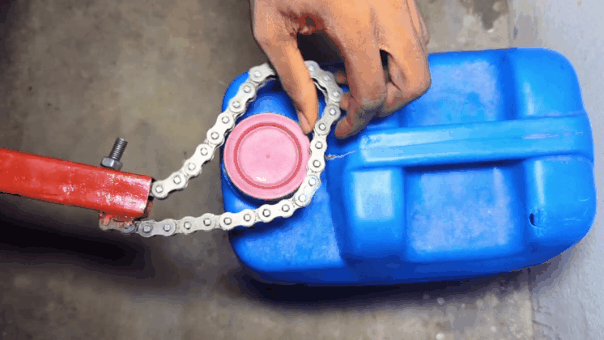

(The blue jerry can was purely for demo, though, the cap wasn't jammed)

Beyond this demonstration, the tool proves useful in several real-life scenarios, including:

1. Removing stubborn oil filters during vehicle maintenance
2. Loosening or tightening plumbing pipes and threaded fittings
3. Opening industrial drum lids and chemical containers that are often tightly sealed
4. Gripping PVC or metal pipes during repair or installation work
5. Assisting in farm and workshop maintenance tasks, where cylindrical components are common
6. Emergency situations where improvised gripping tools are needed for rounded or slippery surfaces

This project was driven by a core idea behind working with metal in a meaningful way: turning simple stock materials into a tool that solves a real mechanical problem in a practical, durable, and repairable form.

After fabrication and testing, the adjustable chain wrench proved that a straightforward design can still compete with, and in some cases improve upon, conventional workshop tools. It performs reliably under load, grips securely across different diameters, and adapts quickly without requiring multiple tool sizes.

A major insight from testing is the way this tool handles force. Unlike a traditional pipe wrench that applies concentrated pressure at two opposing points, this design wraps around the entire surface of the object. The result is a more uniform distribution of stress along the circumference. In practical terms, this significantly reduces the risk of crushing or deforming thin-walled pipes and fittings, especially in plumbing and maintenance work where material damage can easily become a problem.

This project, working within the limits of metal fabrication, focuses on real-world usability rather than complexity.

In conclusion, the adjustable chain wrench is a versatile workshop tool designed for everyday problems where reliability matters more than sophistication.
