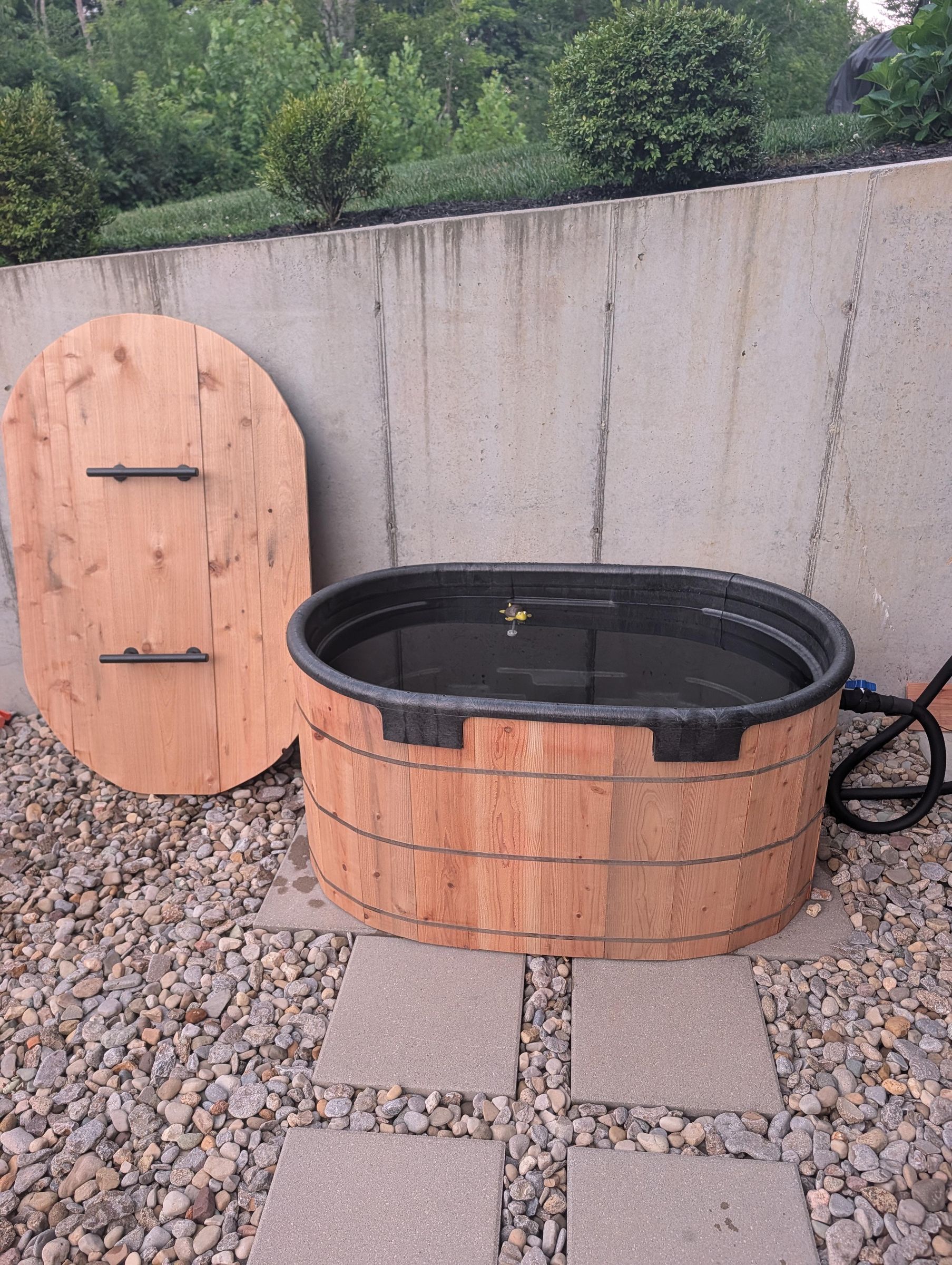

DIY Insulated Cedar Cold Plunge

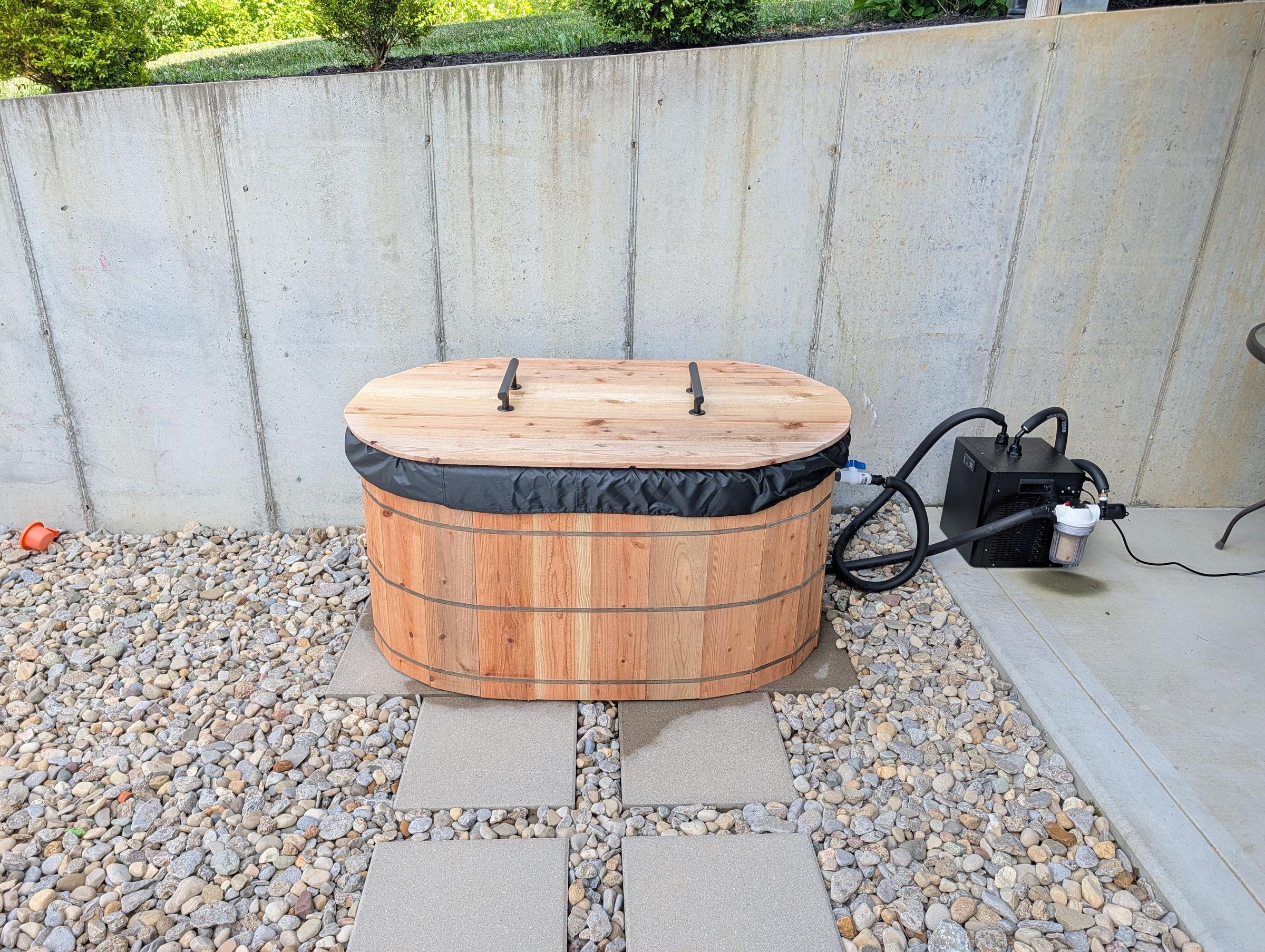

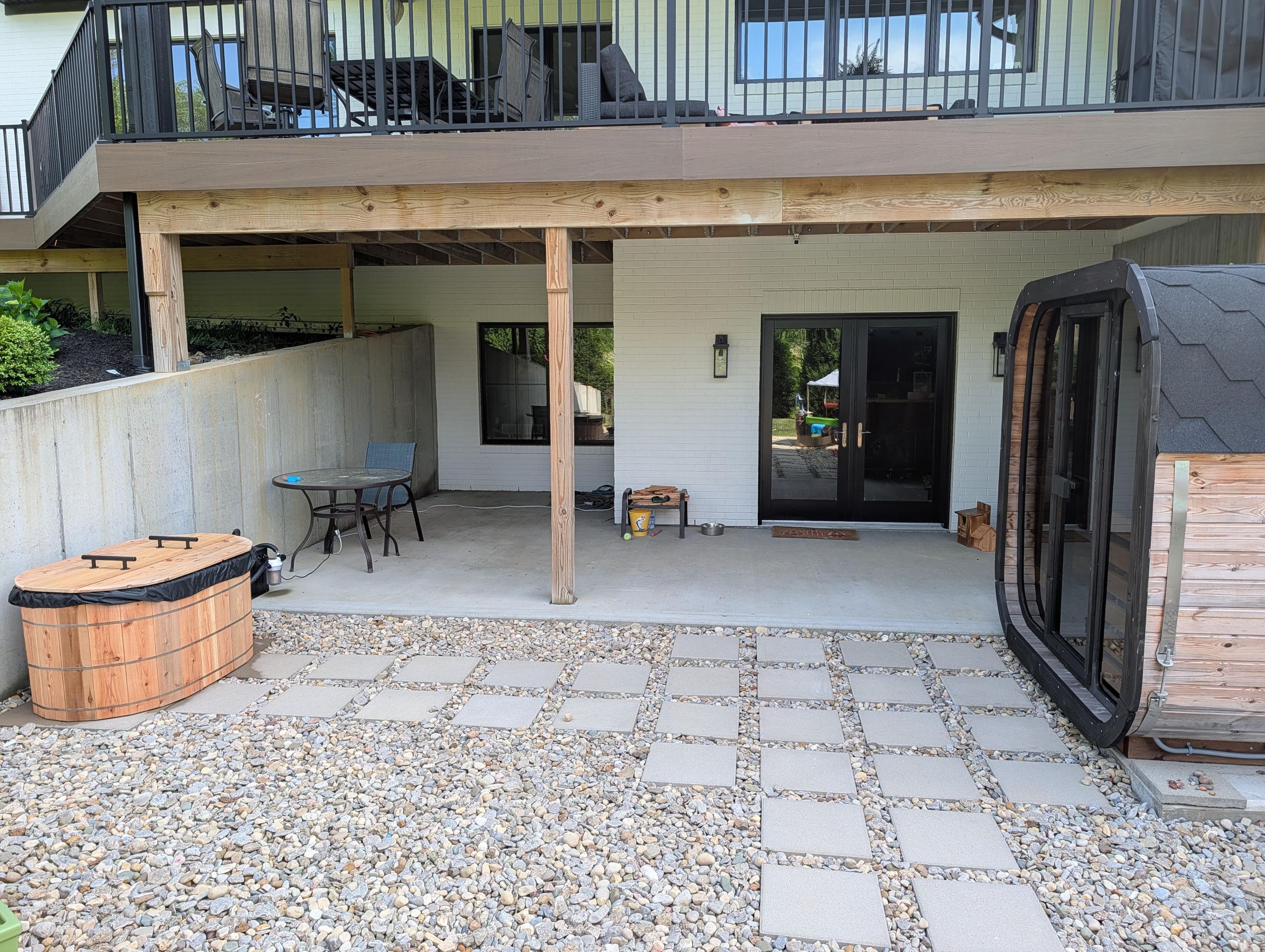

Maintaining sub-50°F water during a Midwest summer typically requires continuous, high draw mechanical cooling. This project solves thermal inefficiency with a custom contoured cedar exterior that seamlessly blends into a backyard sauna setup. By applying spray insulation to a standard 100-gallon structural stock tank, this build achieves an R-26 thermal barrier.

Paired with a smart controlled 1/3 HP chiller, the system maintains a constant 42–45°F water temperature while limiting compressor runtime to roughly two hours per day. By cladding the tank tightly to its native radius, this design completely eliminates the bulky footprint of traditional square framed DIY plunges. All for a total cost of approximately $850.

Components / Material List:

Tub & Envelope:

1. Tank: 100-Gallon Rubbermaid Tank (Primary vessel) https://amzn.to/4vHdGlI
2. Wood Shell & Lid: 17 Cedar Fence Pickets Home Depot link
3. Wall Insulation: 12 Cans Spray Foam https://amzn.to/3SoZsaK
4. Rigid Foam: 1/2" (Base) and 2" (Lid) XPS Foam Boards Home Depot link
5. Blowout Barrier: 1-mil Plastic Drop Cloth (Prevents foam blowout) https://amzn.to/3QoL5CF
6. Lid Vapor Barrier: Heavy-Duty Contractor Trash Bags / 6-Mil Poly https://amzn.to/3S419ug
7. Banding: 50 ft Stainless Steel Worm Clamps https://amzn.to/3SGyU4Q
8. Tank Cover: 100-Gallon Stock Tank Cover (Added sealing layer) https://amzn.to/3S9Fh0v
9. Lid Handles: Two heavy-duty industrial handles https://amzn.to/4vRYmmA

Plumbing and Cooling:

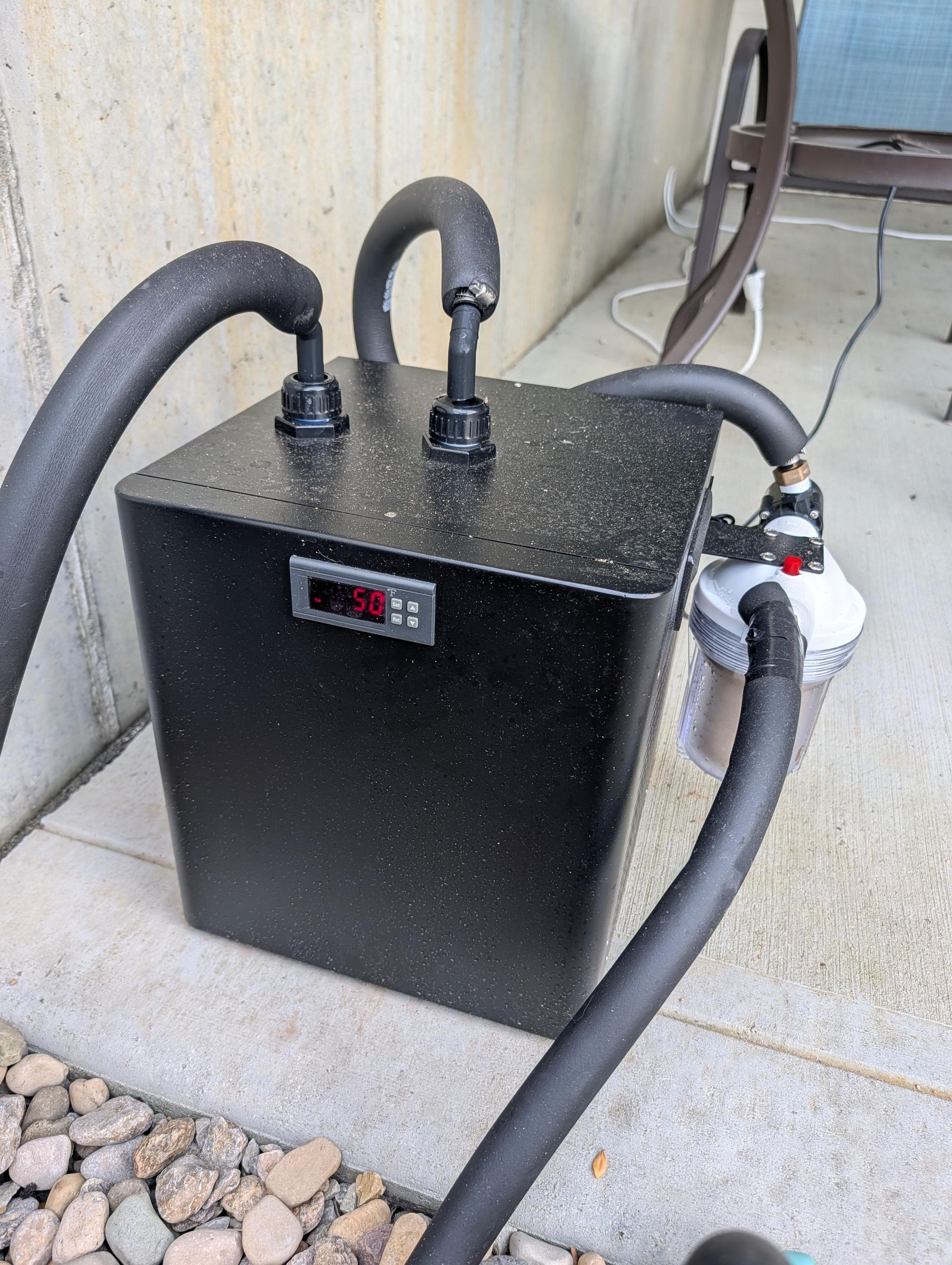

1. Chiller System: 1/3 HP (Includes pump, filter, tubing) - I have both cheap chillers. Either is fine. They both get the job done. https://amzn.to/4uLF9BN or https://amzn.to/4eqgD4n
2. Bulkheads: Banjo 3/4" Polypropylene (x2) https://amzn.to/4xjv81g
3. Gaskets: 2" Rubber Gaskets (For OEM bottom drain) https://amzn.to/4fKa2D5
4. Wall Extension 1: 4" x 3/4" PVC Riser Home Depot Link
5. Wall Extension 2: 8" x 3/4" PVC Riser Home Depot Link (got from local hardware store HD didn't have 8")
6. Valves: 3/4" Shut-Off Valves (x2) Home Depot Link
7. Reducers: 3/4" to 1/2" Reducing Nipples (x2) Home Depot Link
8. Hose Clamps: Stainless Steel Hose Clamps (x3) Home Depot Link

Optional and added later:

1. Extra tubing insulation: Prevents sweating when its hot out https://amzn.to/4y14hYm

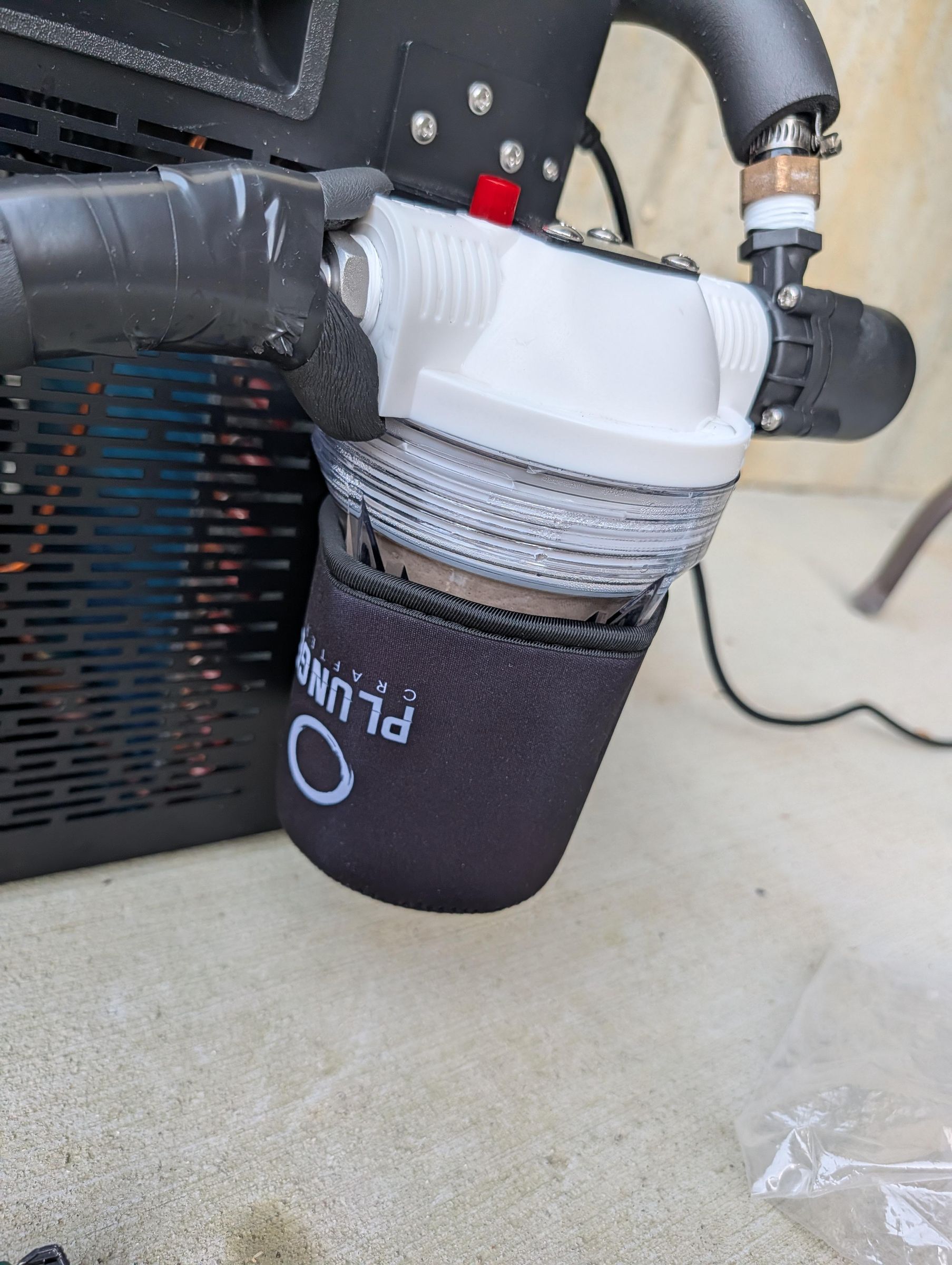

2. Extra Filter Jacket: Prevents sweating when its hot out https://amzn.to/4uCCxpV
3. Inkbird temp control: Adds wifi and prevents the pump from running 24/7 https://amzn.to/43BkJAs

Note: As an Amazon Associate, I earn a small commission from qualifying purchases at no additional cost to you. Links are added for convenience.

The foundation of a leak-proof cooling system requires precise plumbing penetrations before any insulation or cladding is applied.

1. Top Return: Drill a 1-3/8" hole for the top return.

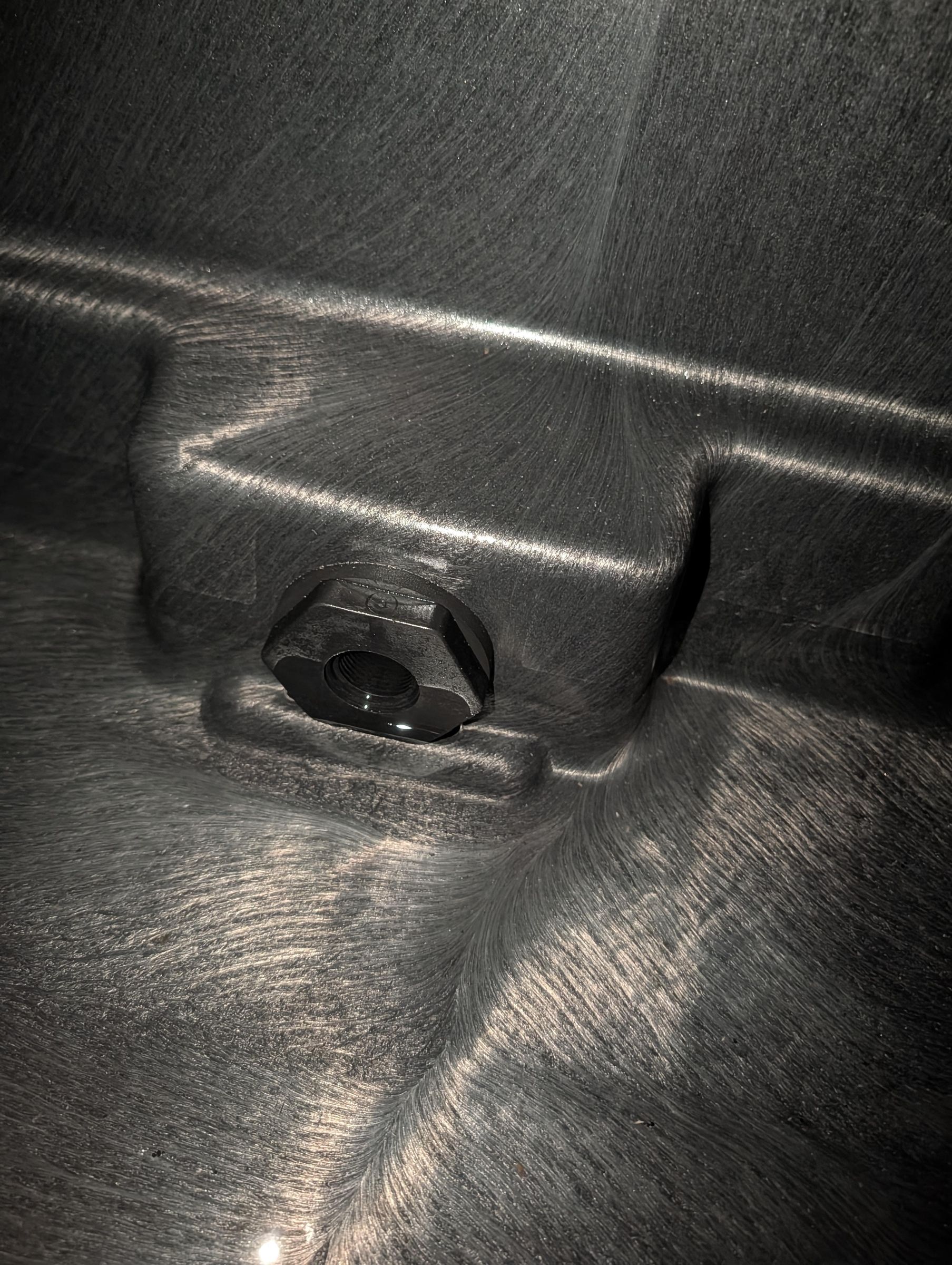

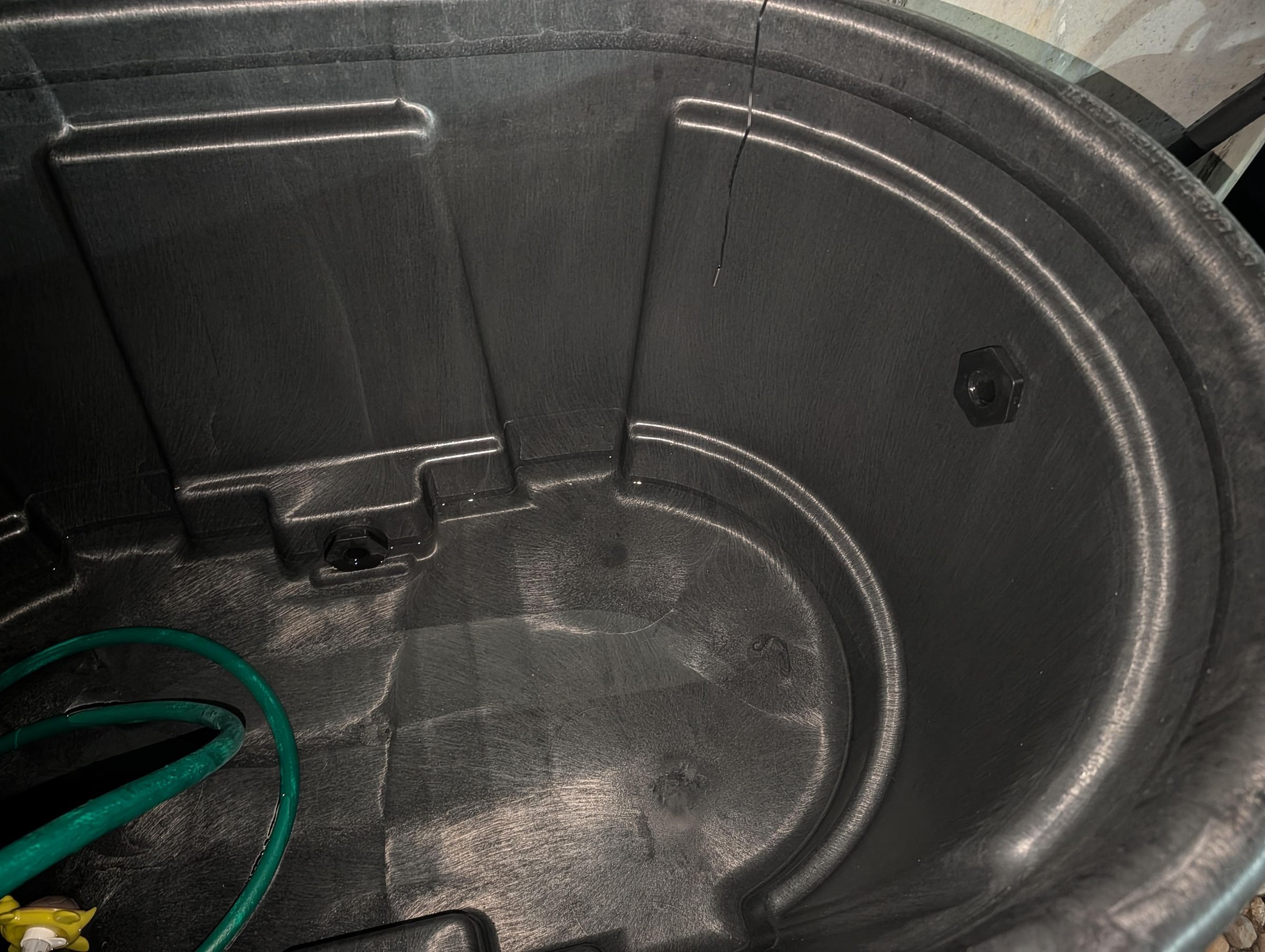

2. Bulkhead Installation: Install the Banjo bulkheads into the tank. Use the 2" rubber gaskets to properly seal the bottom OEM hole.
3. Blowout Prevention: Wrap the tub tightly in a 1-mil plastic drop cloth. This critical step prevents the expanding spray foam from blowing out between the exterior wood joints.

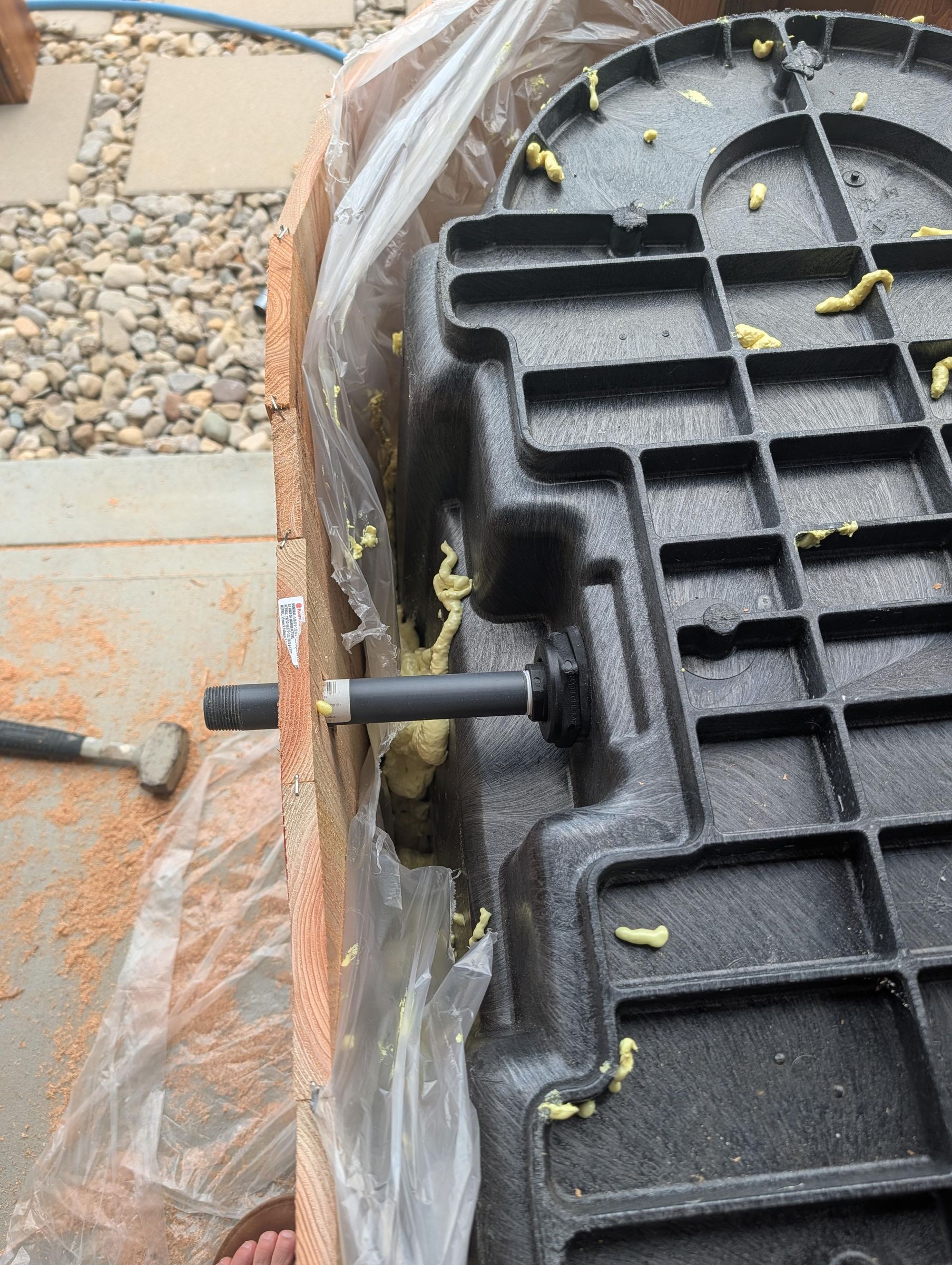

4. Riser Integration: Wrap the 4" and 8" PVC risers heavily with Teflon tape and install them directly into the bulkheads before adding the cedar planks.

This step establishes the thermal barrier necessary to defeat ambient summer heat.

1. Picket Placement: Drill precise holes in the cedar pickets to allow the PVC risers to pass through cleanly.

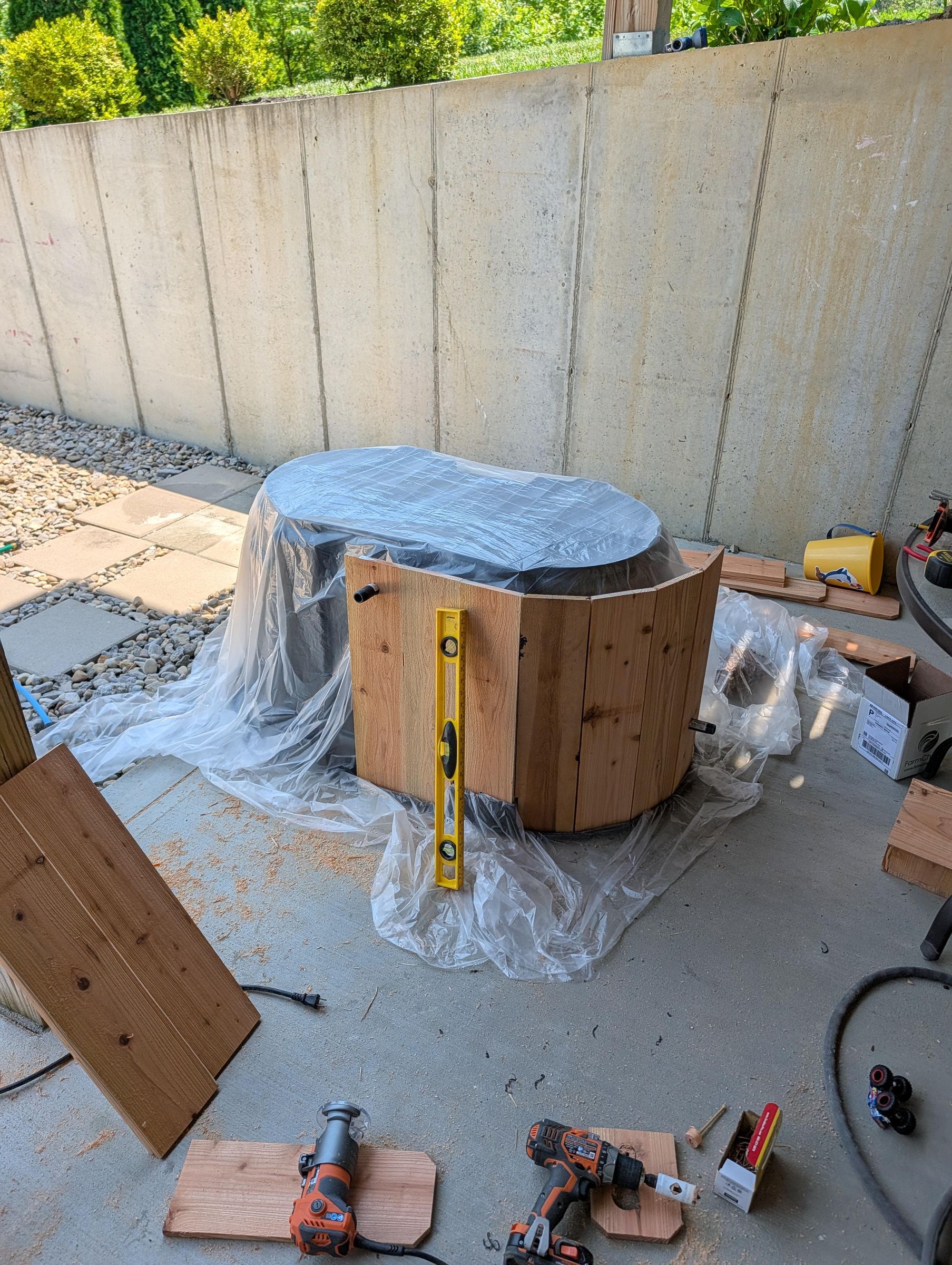

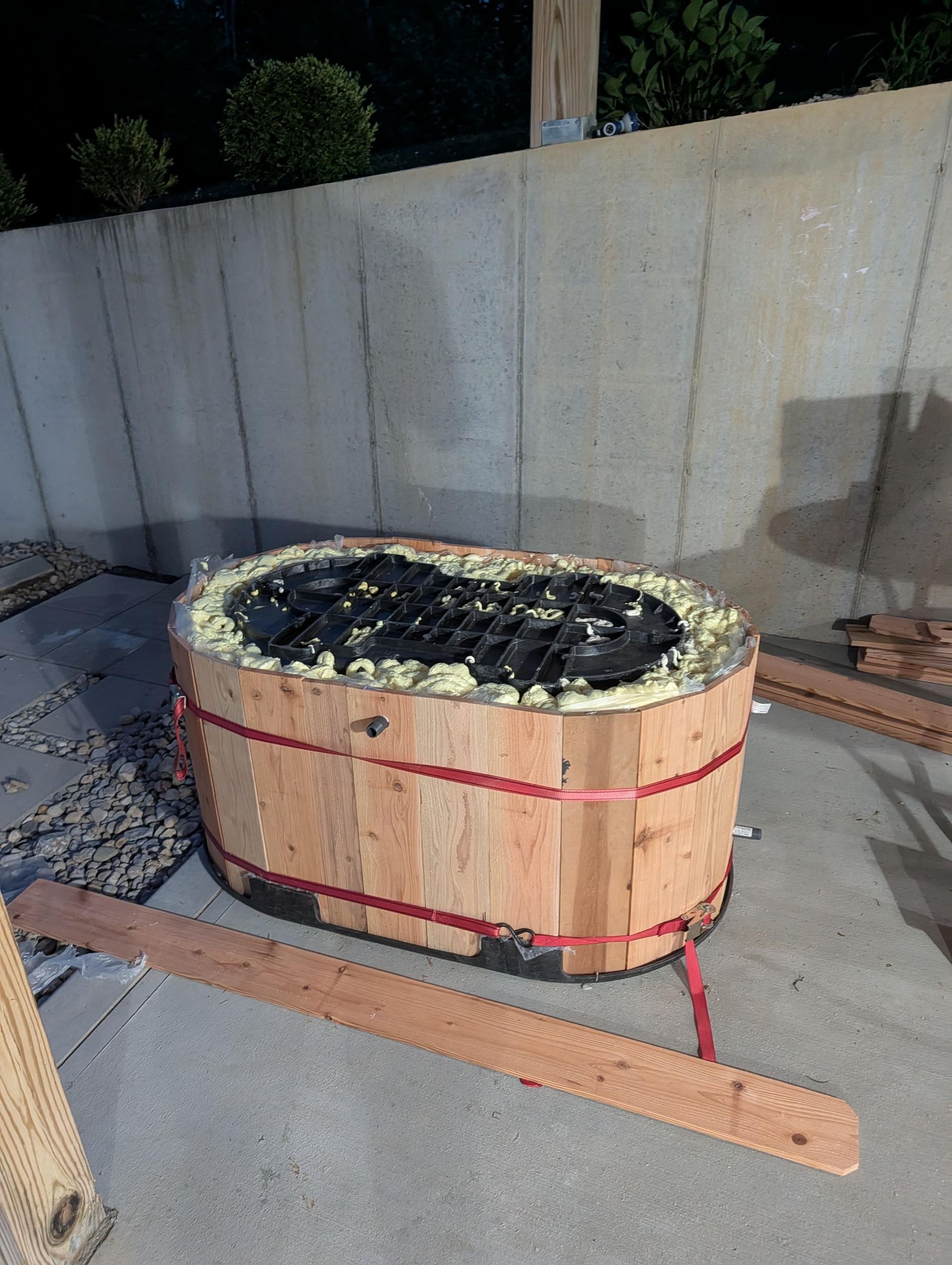

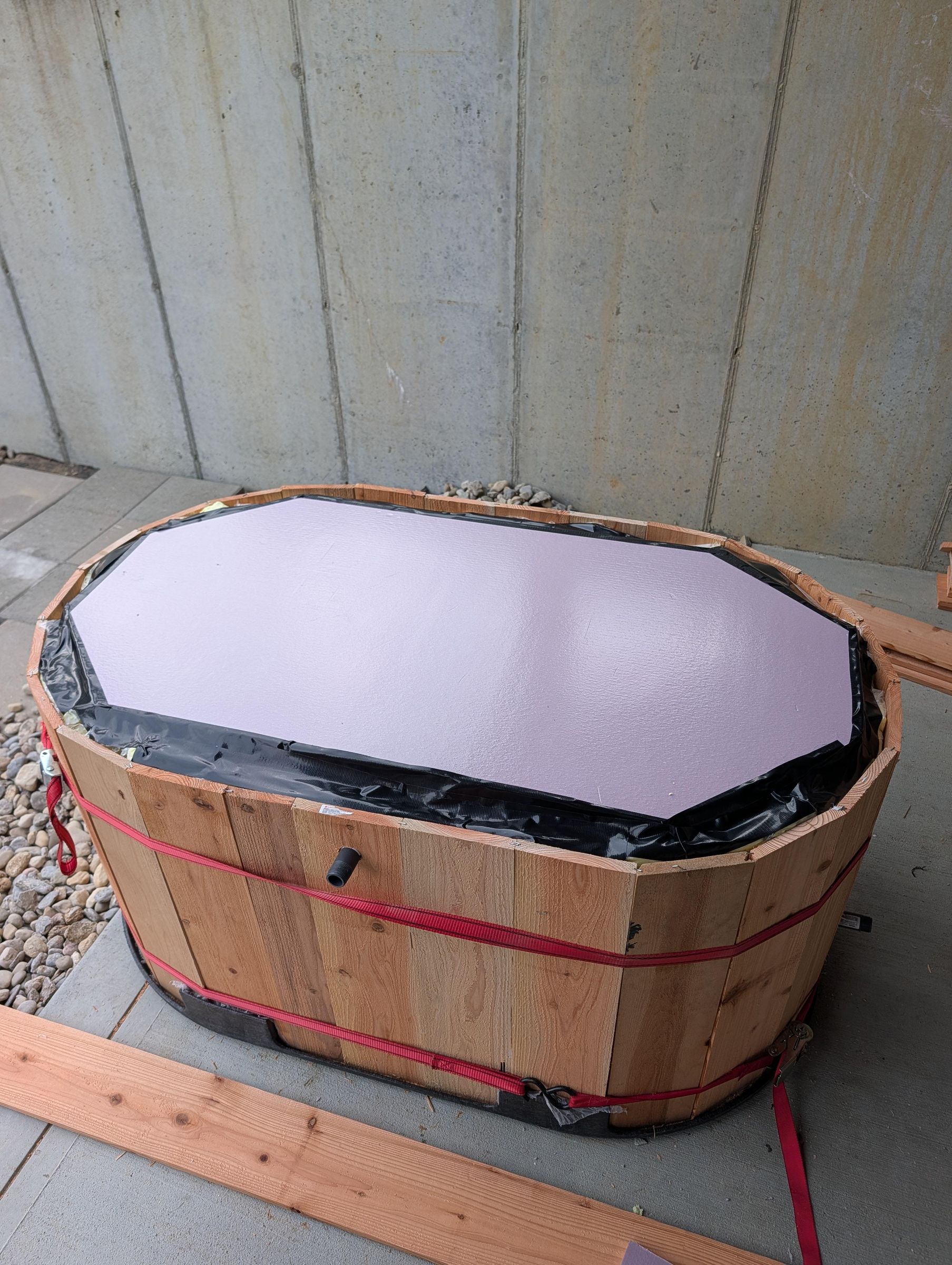

2. Temporary Securing: Stand the cedar pickets up around the perimeter and secure them temporarily using ratchet straps. Use one staple between each board to keep them aligned in place.
3. Foam Injection: Inject 12 cans of spray foam directly into the void between the rubber tub and the interior of the cedar pickets. Allow the thermal layer to cure completely.

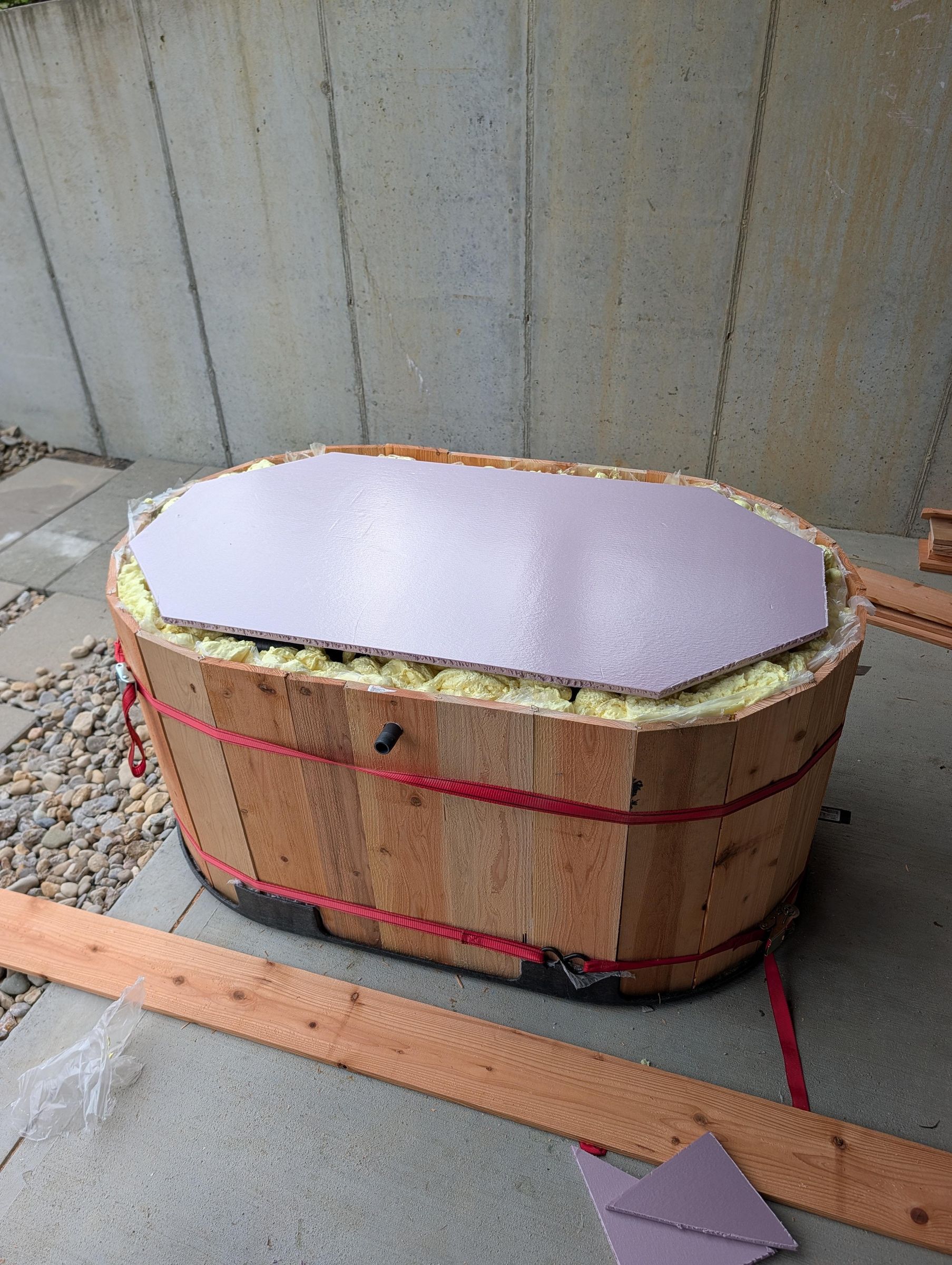

4. Base Insulation: Cut the 1/2" XPS rigid foam to size and secure it to the base of the tub.

Once the thermal envelope has solidified, secure the structure and complete the exterior plumbing manifold.

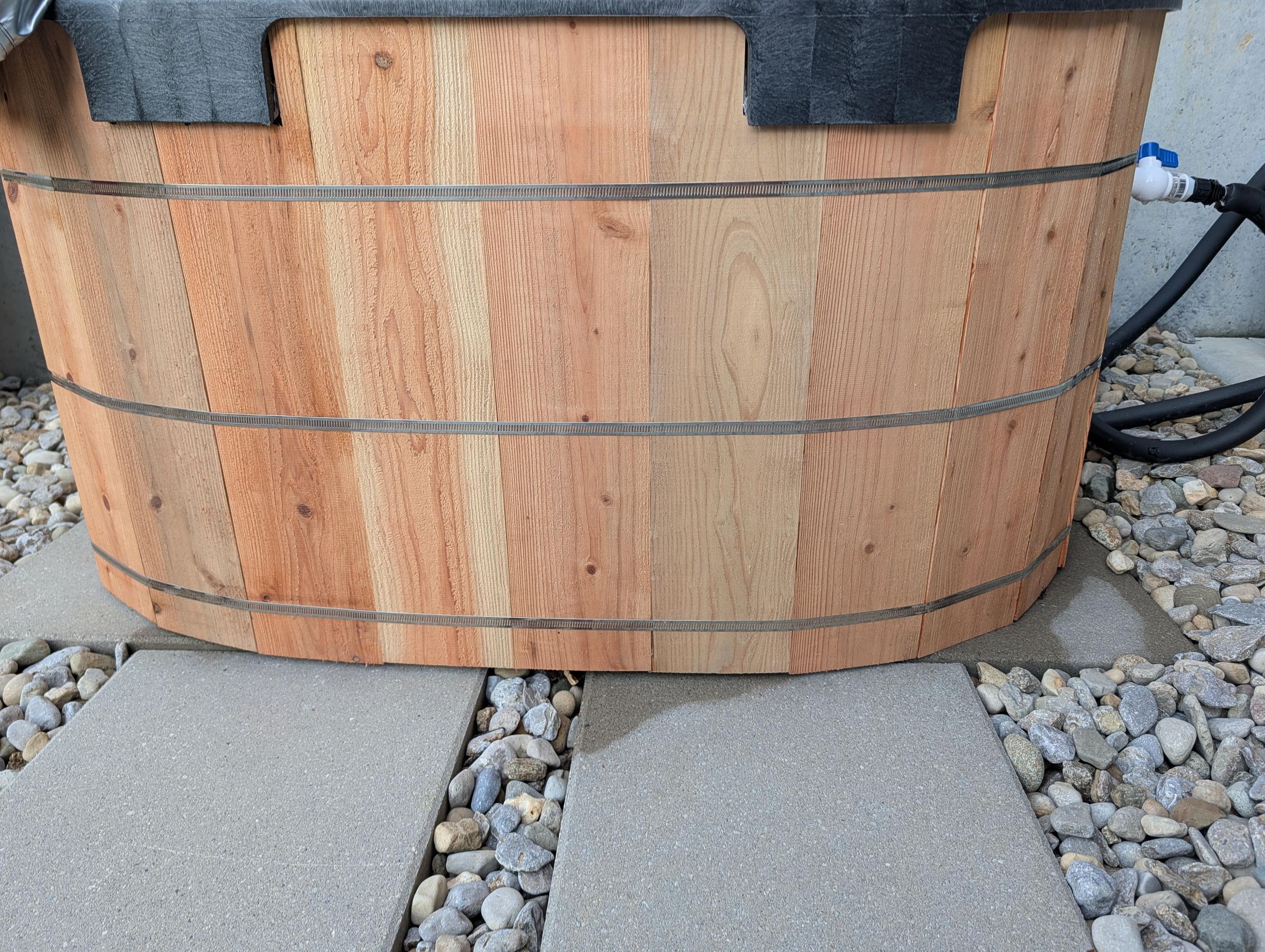

1. Structural Banding: Once the foam is fully cured, remove the temporary ratchet straps and replace them with the permanent 50 ft stainless steel worm clamps. Link the clamps together to span the circumference.

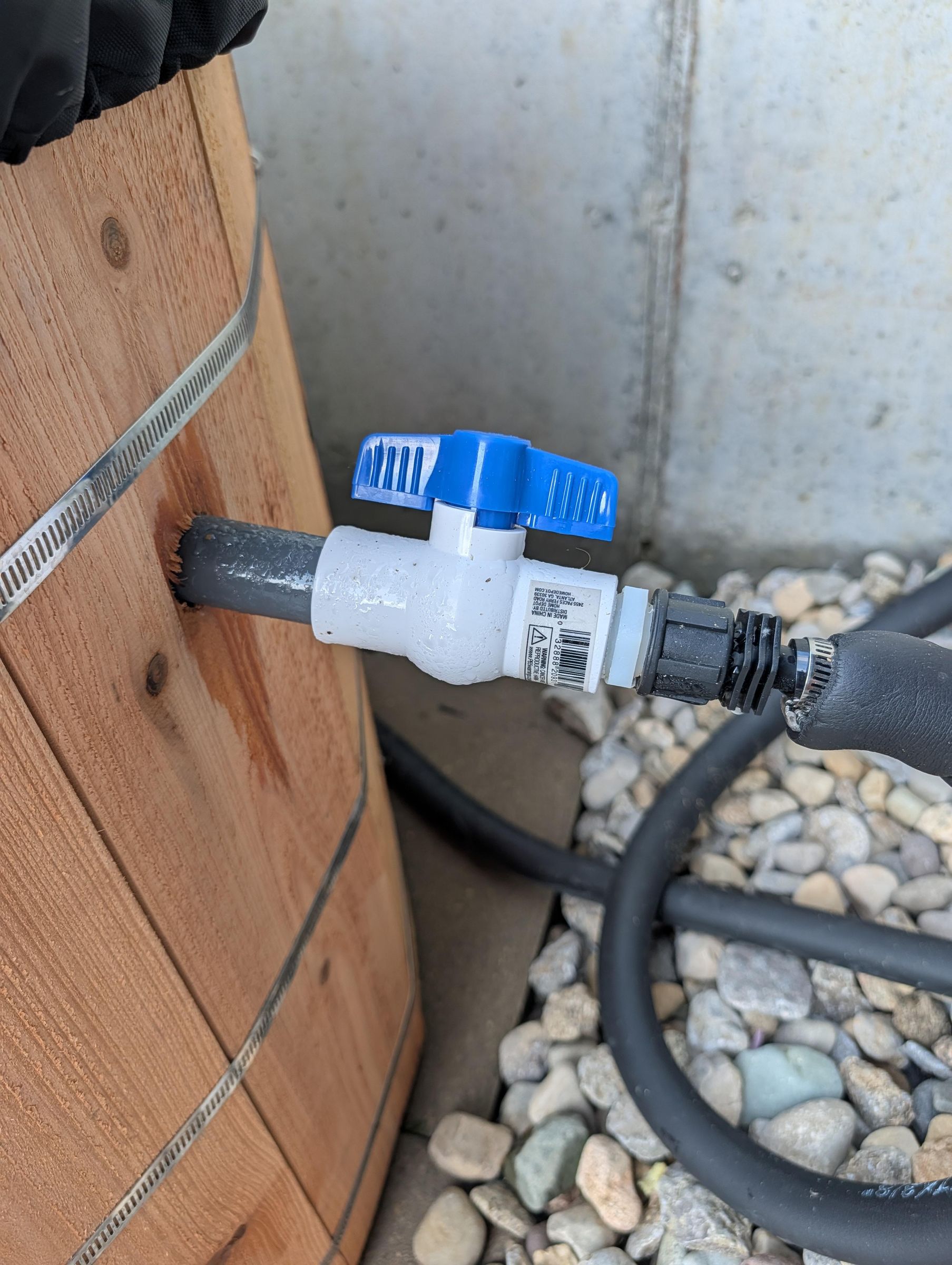

2. Valve Assembly: Attach the 3/4" shut-off valves and the 3/4" to 1/2" reducing nipples to the protruding PVC risers. Ensure Teflon tape is applied between all threaded joints

Routing the Loop: Run the flexible tubing in the following sequence: Bottom Bulkhead -> Pre-Filter -> Pump -> Chiller Inlet. Then, connect the Chiller Outlet directly to the Top Bulkhead.

Prime the System: Open the shut-off valves to allow water to gravity-feed into the mechanical system. Never run the pump dry.

System Test: Turn on the circulation pump and verify steady water flow before powering the compressor.

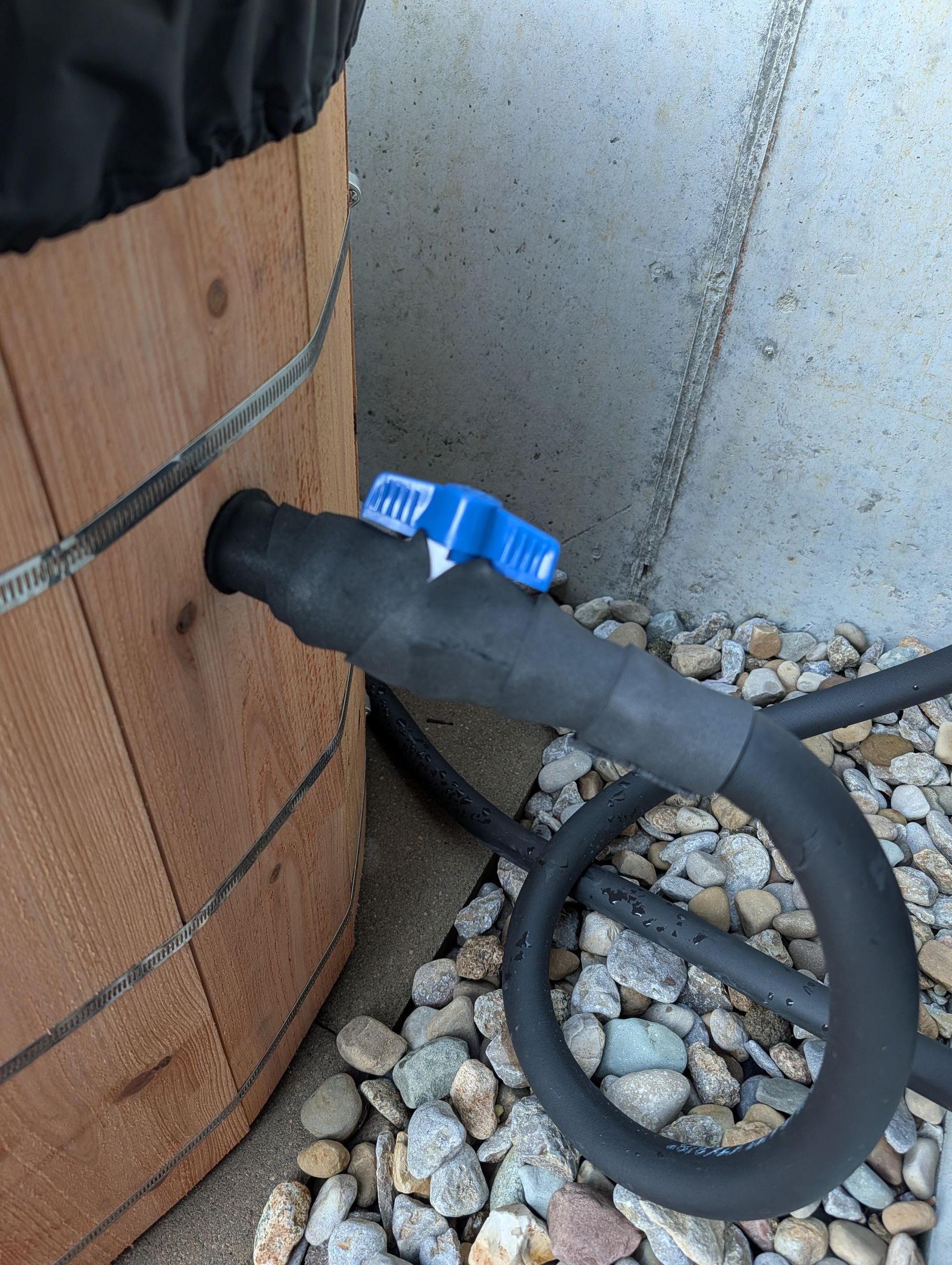

Efficiency Upgrades: Add foam insulation to all exposed exterior pipes and the filter housing to prevent condensation sweating in the summer heat. Connect the mechanicals to an Inkbird WiFi temperature controller to manage the duty cycle and prevent the pump from running 24/7.

A massive amount of thermal loss occurs at the water's surface. This engineered lid acts as a plug to seal the system.

1. Lid Decking: Fasten the remaining cedar pickets together using top-mounted cross battens to form the primary lid deck. Attach the two heavy-duty industrial handles.

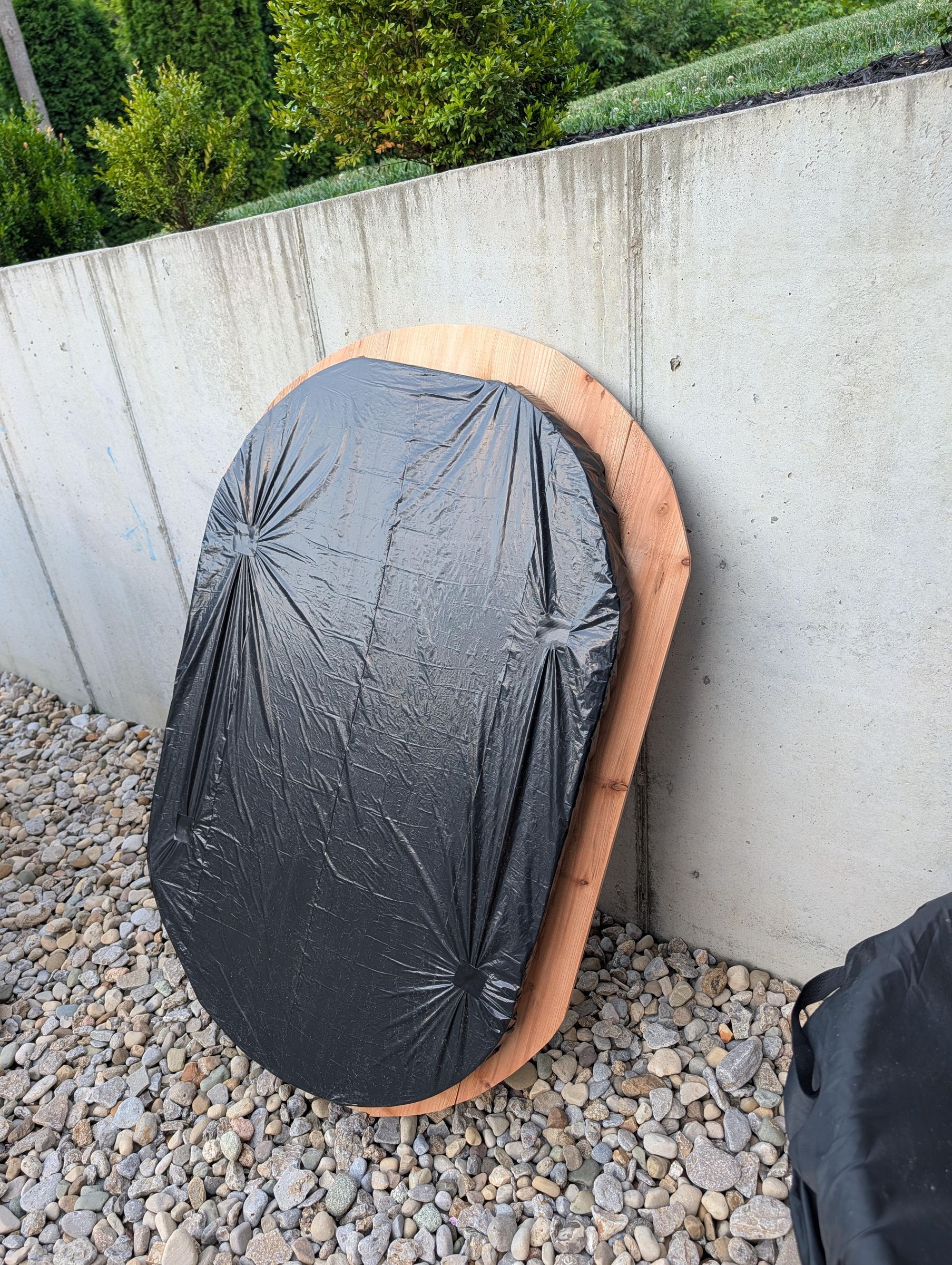

2. Vapor Barrier Core: Cut the 2" XPS rigid foam to perfectly fit the inner lip of the stock tank. Wrap the foam block entirely in heavy-duty contractor bags and aggressively tape all seams on the top face to create a completely sealed vapor barrier.
3. Assembly: Anchor the wrapped XPS foam beneath the cedar deck using 2.5" stainless steel screws and plastic washers, driving them directly upward into the batten lines.

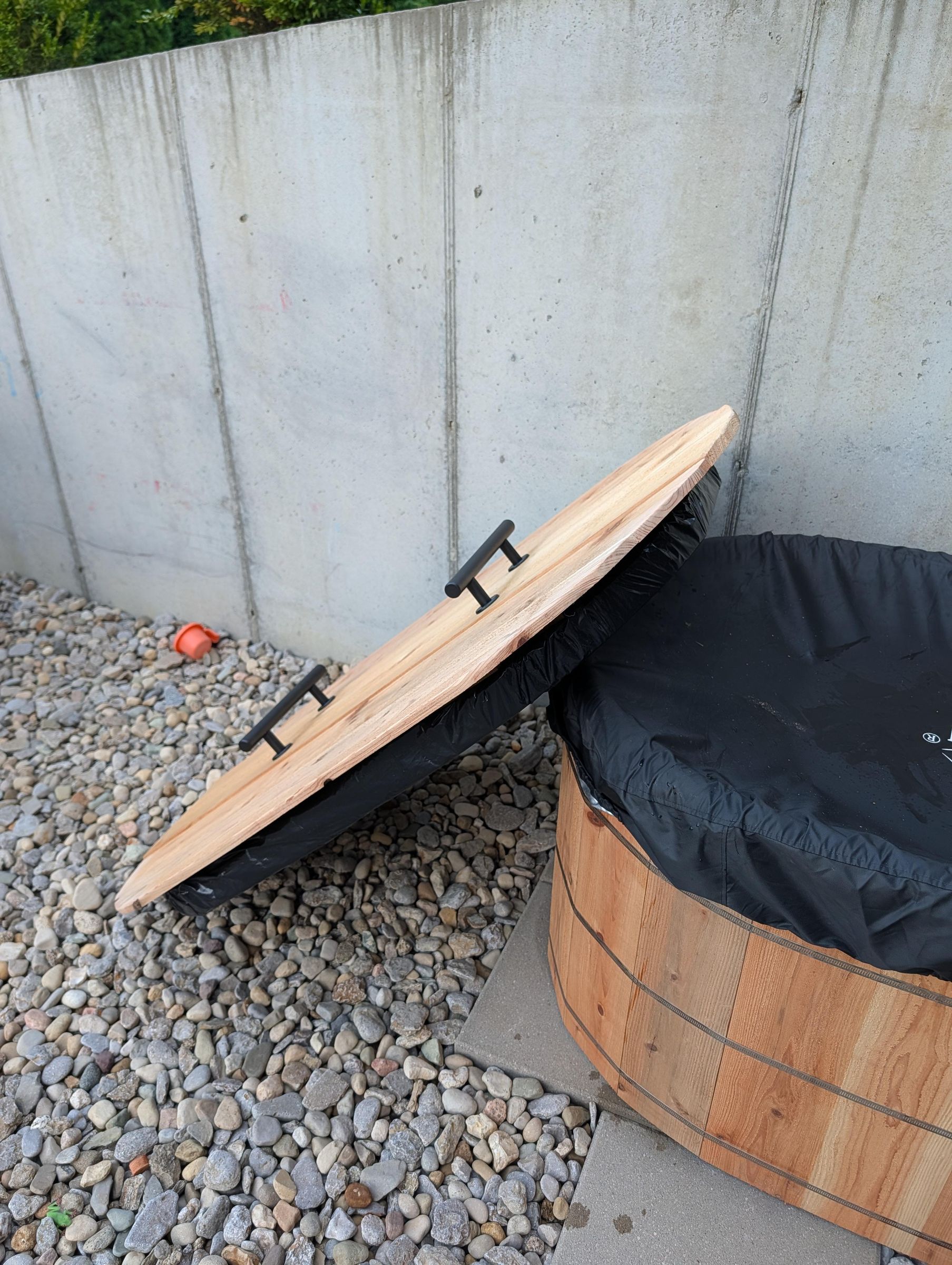

4. The Final Seal: Stretch the 100-gallon stock tank cover entirely over the tub lip before placing the insulated lid on top. This ensures a completely airtight thermal seal.
