DIY Machine to Turn Multilayer Plastic Into Usable Strips

This project comes from a simple problem — preparation.

Multilayer plastic (chips packets, wrappers, etc.) is everywhere, but it’s rarely reused. Not because it’s useless, but because it’s difficult to process. Before making anything, the material has to be cleaned, cut, joined, and made consistent — and that takes time.

So instead of designing a product, I focused on the process.

This is a manual workstation that combines cutting, joining, and strip-making into one setup. The idea is to make the material more usable by bringing some control into the preparation stage.

The system uses simple components like rollers, a blade setup, and a cutter to convert sheets into uniform strips that can be used for further making.

It’s not about the final product —

it’s about making the material workable.

If preparation becomes easier, reuse becomes possible.

✍️ MATERIALS

1. Plywood (12 mm used, 18 mm recommended)
2. Used for the base structure
3. MDF sheets (4 mm)
4. Used for blade assembly layers
5. MS sheet (2 mm)
6. Laser cut brackets for holding rollers
7. PVC pipes (~30 mm diameter)
8. Used as rollers
9. PVC end caps
10. Drilled to fit axle rod
11. Threaded rod (8 mm)
12. Used as roller axle
13. Bolts, nuts, washers
14. For fixing rollers and blade assembly
15. Cutter blades (snap-off type)
16. Used for strip cutting
17. Cycle tube rubber
18. Used inside blade assembly for tightening blades
19. Paper cutter (guillotine type, A4 used)
20. Heat sealer (12 inch used)
21. (8 inch also works depending on setup)
22. Wood screws / nails
23. For base assembly

TOOLS REQUIRED

1. Laser cutter access (for MDF and MS brackets)
2. Drill machine
3. Screwdriver / spanner set
4. Sandpaper

FILES ATTACHED

1. METAL BRACLET LASER CUT FILE
2. BLADE HOLDER MDF LASER CUT FILE

This setup is a manual workstation designed to convert multilayer plastic into usable strips.

It combines three main functions:

1. cutting
2. joining
3. strip making

The material is first prepared into sheets, then fed through rollers and passed through a blade system, where it gets converted into uniform strips.

All components are arranged on a single base to make the process continuous and easier to control.

The system is simple, uses easily available materials, and can be adjusted based on the tools you have.

The idea is not to make a product, but to make the material usable.

Before building the base, it’s important to plan the layout according to the tools you are using.

In this setup, I used:

1. a 12 inch heat sealer
2. an A4 guillotine paper cutter

These define the overall size of the base.

You can also use:

1. 8 inch sealer
2. A3 cutter

So the dimensions are not fixed — the layout should be adjusted based on your setup.

The idea is to place everything in a straight workflow:

cut → join → strip

This helps make the process continuous and easy to use.

Mark the positions of:

1. cutter
2. sealer
3. roller system
4. blade assembly

before starting to build the base.

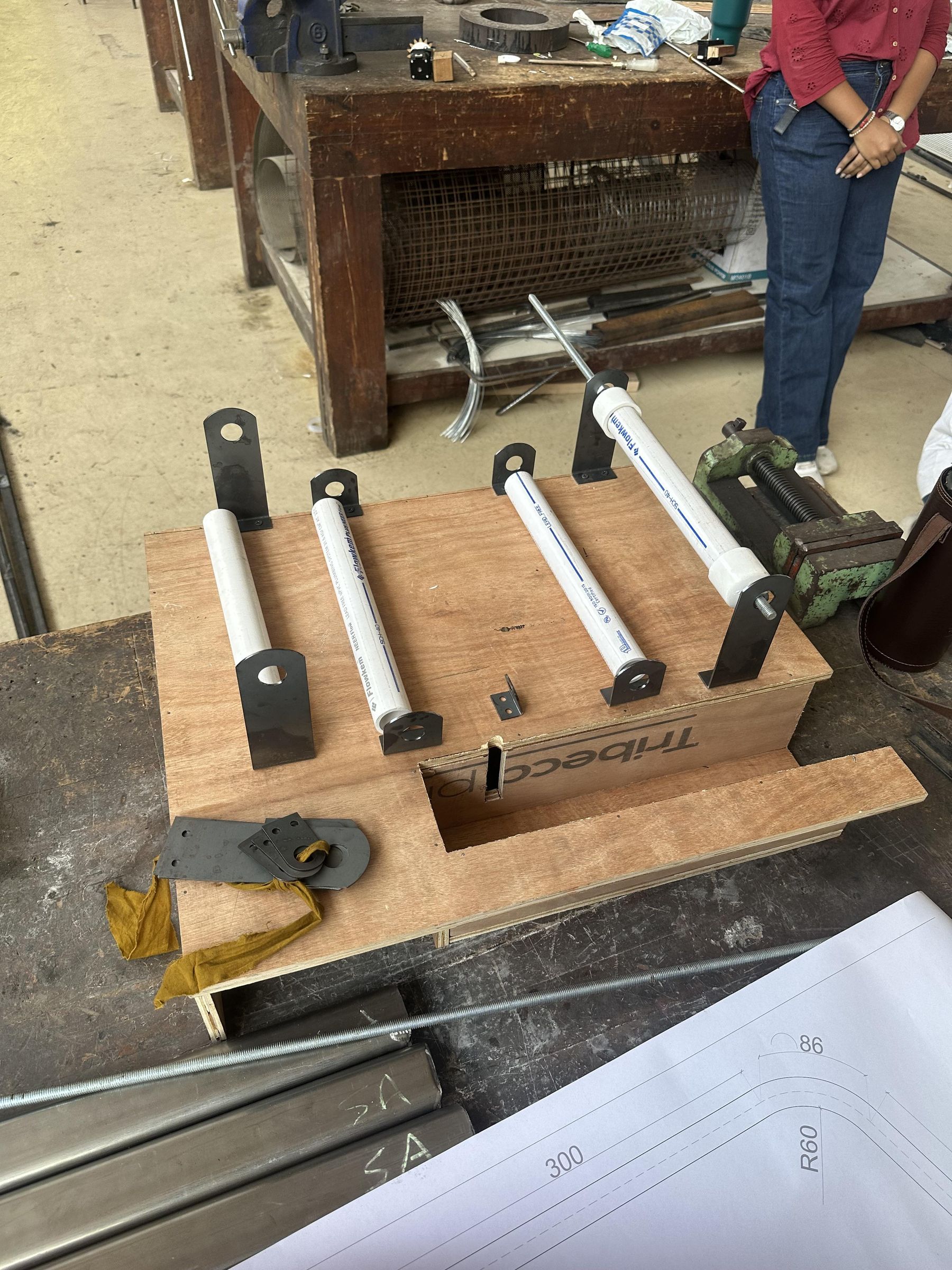

The base is made using plywood and acts as the support for all components.

I used 12 mm plywood, but using 18 mm plywood is recommended for better stability.

🔨 STEPS

1. Cut the plywood pieces based on your planned layout
2. Arrange them to form the base structure
3. Fix the parts together using nails or screws
4. Make sure all edges are aligned properly

⚙️ IMPORTANT

Before fixing everything permanently, check the placement of:

1. cutter
2. sealer
3. roller system

Make sure everything fits well and stays aligned.

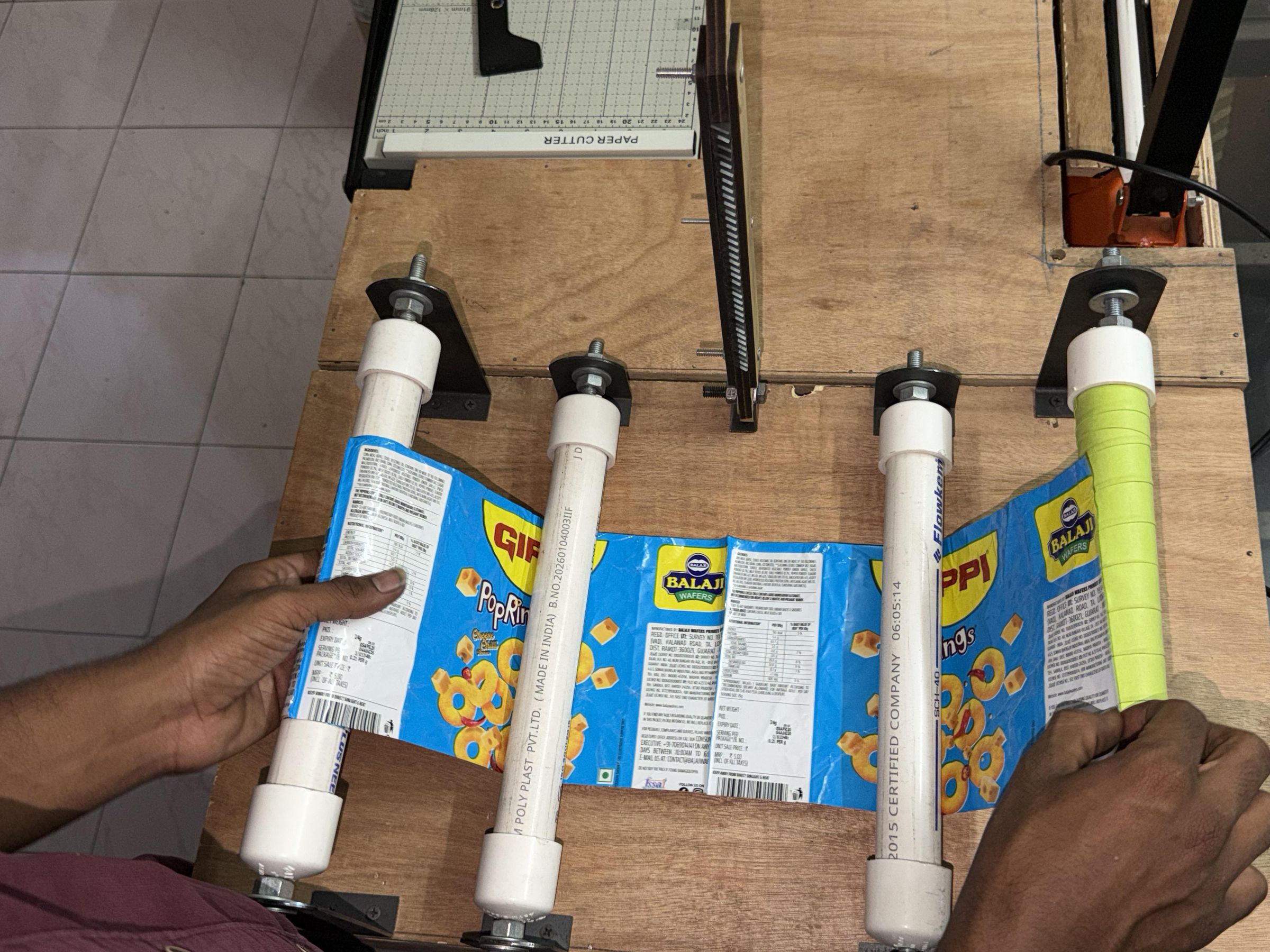

The roller system is used to pull the material forward through the machine in a controlled way.

Instead of pushing the material manually, the roller helps feed it smoothly into the blade system.

⚙️ COMPONENTS USED

1. PVC pipe (~30 mm diameter) – used as the roller
2. PVC end caps – fitted on both sides
3. 8 mm threaded rod – used as the axle
4. Metal brackets (2 mm MS) – to hold the roller
5. Nuts and washers – for fixing

🔨 STEPS

1. Cut the PVC pipe to the required width
2. Fix end caps on both sides of the pipe
3. Drill 8 mm holes through the caps
4. Insert the threaded rod through the pipe
5. Fix the rod using nuts on both sides
6. Mount the roller onto the base using metal brackets

🔁 HANDLE (IMPORTANT)

A handle is attached to one side of the threaded rod.

1. This is used to rotate the roller manually
2. Turning the handle pulls the sheet forward

👉 keep the rotation smooth and free

⚠️ IMPORTANT

1. Make sure the roller rotates freely
2. Keep it aligned with the blade system
3. Avoid wobbling (tighten evenly)

This is the part where the sheet is converted into strips.

The blade system is designed to hold multiple cutter blades in parallel, so the material can be cut into uniform strips in one pass.

🧩 STRUCTURE

The assembly is made using stacked MDF layers:

1. Top layer: 4 mm MDF
2. Middle layer: 8 mm (two 4 mm sheets stacked)
3. Bottom layer: 4 mm MDF

The middle layer contains slots for inserting the blades.

🔪 BLADE SPACING

1. Each blade is placed with a 5 mm gap
2. This gap defines the width of the strips

👉 Changing the spacing will change the strip width

🔧 BLADE FITTING

1. Cut slots in the middle MDF layer
2. Insert cutter blades into the slots
3. Make sure all blades are aligned and parallel

🧷 TIGHTENING SYSTEM

A cycle tube rubber strip is placed inside the assembly.

1. This creates pressure
2. Holds blades tightly in place
3. Prevents movement during cutting

🔩 FINAL ASSEMBLY

1. Stack all MDF layers
2. Insert blades into slots
3. Place rubber strip inside
4. Tighten using bolts and nuts

👉 Tighten evenly across all points

⚠️ IMPORTANT

1. Keep blade spacing consistent (5 mm)
2. Ensure all blades are straight
3. Uneven tightening can affect strip quality

Once the base, roller, and blade system are ready, everything needs to be aligned properly.

This step is important because the material should move straight from the roller into the blade system without shifting.

🔧 MOUNTING THE BLADE SYSTEM

1. Place the blade assembly in line with the roller
2. Fix it onto the base using screws or bolts
3. Make sure it is firmly attached and does not move

📏 ALIGNMENT

1. The roller and blade system should be in the same straight line
2. The sheet should enter the blades without bending or twisting

👉 even small misalignment can cause uneven strips

🔁 DISTANCE SETTING

1. Keep a small gap between roller and blade system
2. Enough space for the sheet to pass smoothly
3. Not too far, or the sheet may lose alignment

Before using the machine, the plastic needs to be prepared into sheets.

Multilayer plastic usually comes in small pieces like wrappers and packets, so it has to be combined into a usable form.

🔁 PROCESS

1. COLLECTION

Collect multilayer plastic waste like snack packets and wrappers

2. CLEANING

Clean the material if needed

(remove dust, dirt, etc.)

3. JOINING

Use a heat sealer to join edges of smaller pieces

1. Place edges together
2. Seal along the edge
3. Repeat to make a larger sheet

4. STANDARDIZING

1. Trim the sheet into a consistent size
2. Remove uneven edges

👉 This helps in smooth feeding through the machine

⚠️ IMPORTANT

1. Sheets should be flat and aligned
2. Avoid folds and wrinkles
3. Irregular sheets will affect cutting

Once everything is assembled and aligned, the system is ready to use.

The process is simple and manual, and happens in a continuous flow.

🔁 STEPS

1. FEED

Place the prepared sheet at the entry point

1. Align it properly
2. Make sure it is straight

2. ROLL

Rotate the handle to move the sheet forward

1. The roller pulls the material
2. Movement should be smooth

3. CUT

As the sheet passes through the blade system

1. It gets cut into strips
2. Blades maintain uniform spacing

4. OUTPUT

Strips come out from the other side

1. Collect them as they come out
2. Keep them aligned

⚠️ IMPORTANT

1. Feed the sheet straight
2. Don’t force the roller
3. Maintain steady rotation

The machine converts prepared sheets into uniform strips in a single pass.

The output is consistent and easier to handle compared to manual cutting.

🔍 OUTPUT FEATURES

1. Uniform width (5 mm spacing)
2. Parallel strips
3. Continuous output

🧠 USES

These strips can be used for:

1. weaving
2. making surfaces
3. further experiments

This project showed that the main challenge is not making products, but preparing the material.

A lot of time and effort goes into cleaning, joining, and aligning the plastic before it can be used. By organizing this into a system, the process becomes easier and more consistent.

The current setup works, but there are still areas that can be improved.

🔍 LEARNINGS

1. Preparation takes more effort than expected
2. Consistency depends on alignment and control
3. Small changes in setup affect the output
4. A simple system can reduce manual effort

🔧 IMPROVEMENTS

1. Adjustable blade spacing for different strip widths
2. Better alignment guides for smoother feeding
3. Stronger base for long-term use
4. Option to add a motor for continuous operation
