DIY Mini Stereo Audio Amplifier Using TDA2822 IC

Are you looking for a simple, budget-friendly project to boost the audio of your DIY speakers, smartphones, or desktop setup? In this Instructable, we will build a compact and highly efficient Stereo Audio Amplifier using the popular TDA2822 IC.

This specific circuit is perfect for electronics beginners because it requires very few external components, operates flawlessly on low voltages ($3\text{V}$ to $5\text{V}$), and consumes minimal current. Let's get started!

Electronics Components:

1x utsource TDA2822 Integrated Circuit (IC)

2x 100µF Electrolytic Capacitors

1x 4.7µF Electrolytic Capacitor

1x 3.5mm Aux Audio Cable (or an Aux jack breakout)

2x Speakers (4 Ω to 8 Ω)

1. 1x DC Power Supply (3V to 5V battery holder or USB power cable)

Tools and Supplies:

1. Soldering Iron & Solder wire
2. Connecting wires
3. Perfboard / Breadboard (Optional, for prototyping)

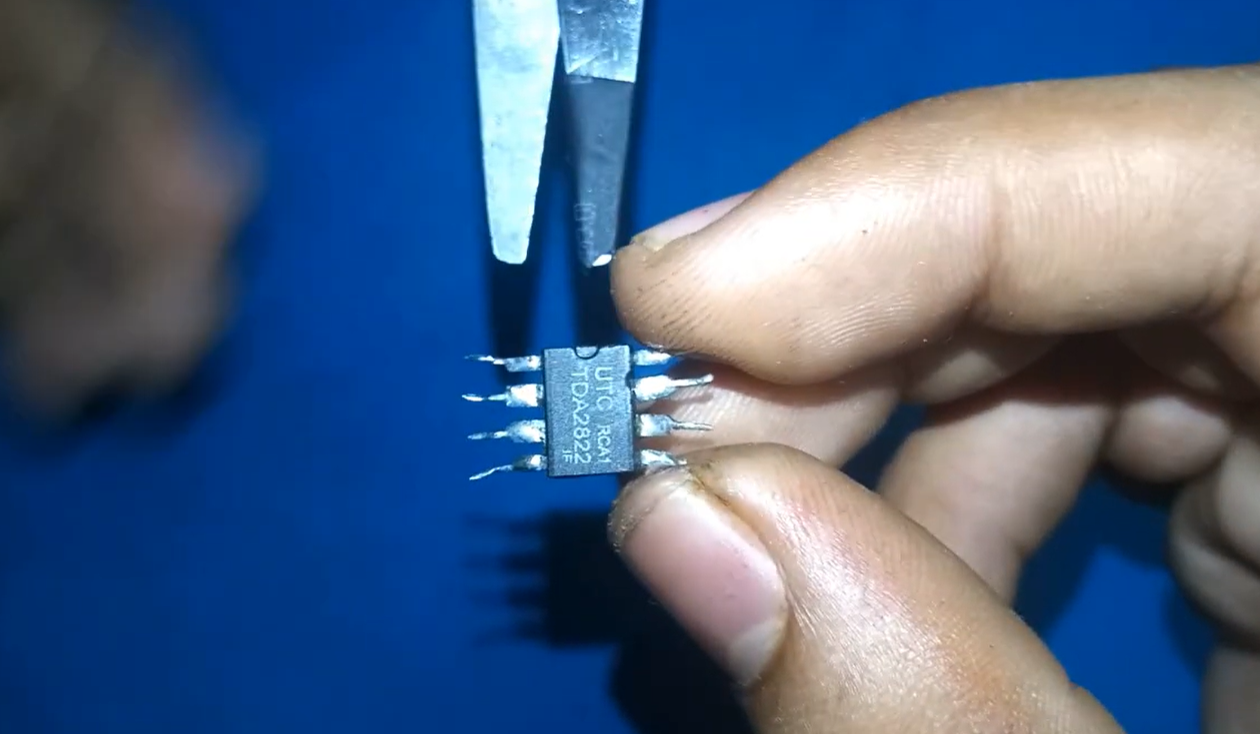

To avoid short circuits or blowing up the IC, it is crucial to understand the pin arrangement. The TDA2822 is an 8-pin Dual In-line Package (DIP) IC.

Locate the small notch or dot on one end of the chip; this indicates the top. Pin 1 starts at the top left and counts down to Pin 4, then moves across to Pin 5 on the bottom right and counts up to Pin 8 at the top right.

1. Pin 1 & Pin 3: Amplifier Outputs (Left & Right Channels)
2. Pin 2: VCC (Positive Power Supply input, 3V–5V)
3. Pin 4: GND (Ground / Negative Power connection)
4. Pin 6 & Pin 7: Audio Signal Inputs (Right & Left)

Now, let's assemble the core circuit. We will connect the filtering and coupling capacitors to stabilize the audio signals.

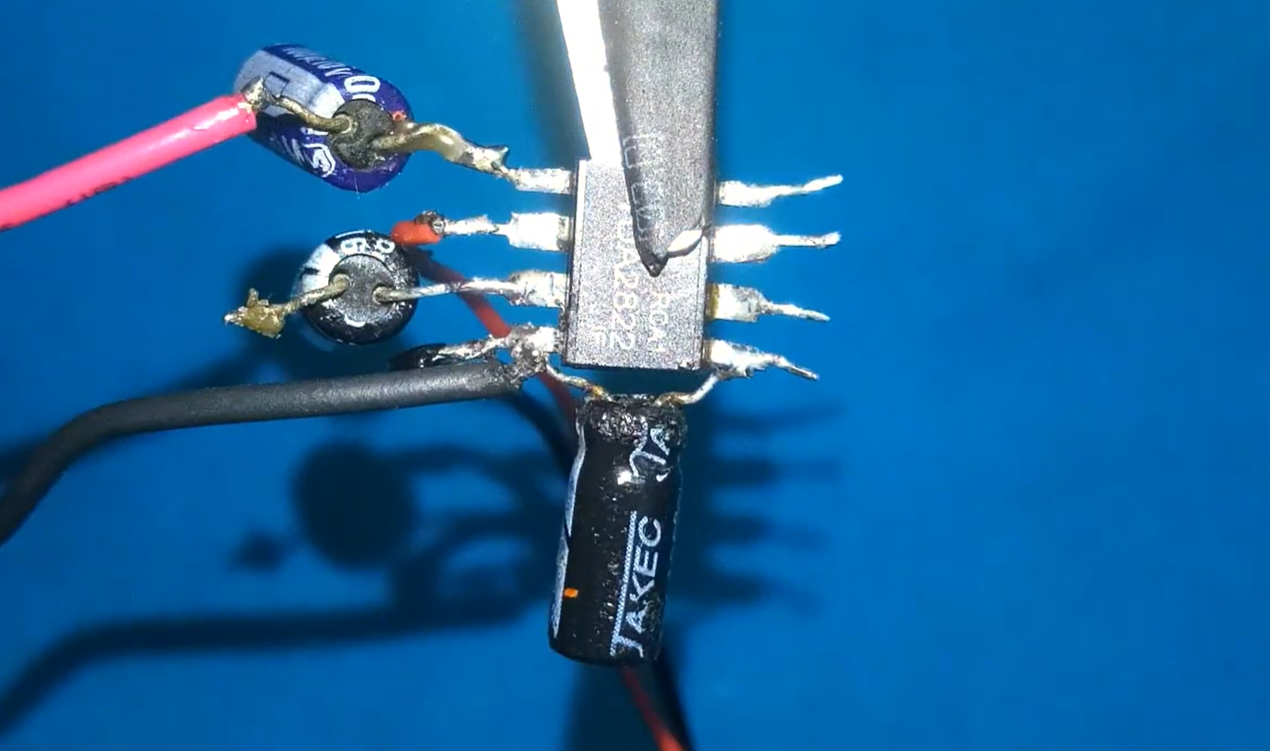

1. Output Capacitors: Solder the positive leads of the two 100μF capacitors directly to the output pins (Pin 1 and Pin 3) of the TDA2822 IC. The negative leads will connect to the positive terminals of your left and right speakers later.
2. Power Filter Capacitor: Solder the 4.7µF capacitor across the power rails to smooth out noise. Connect its positive terminal to Pin 2 (VCC) and its negative terminal to Pin 4 (GND).
3. Aux Cable Wiring: Strip your 3.5mm Aux audio cable to reveal three wires: Ground, Left channel, and Right channel. Solder the Left and Right signal wires to Pin 7 and Pin 6 respectively.

With the main components secured, it's time to connect the peripherals that bring our amplifier to life.

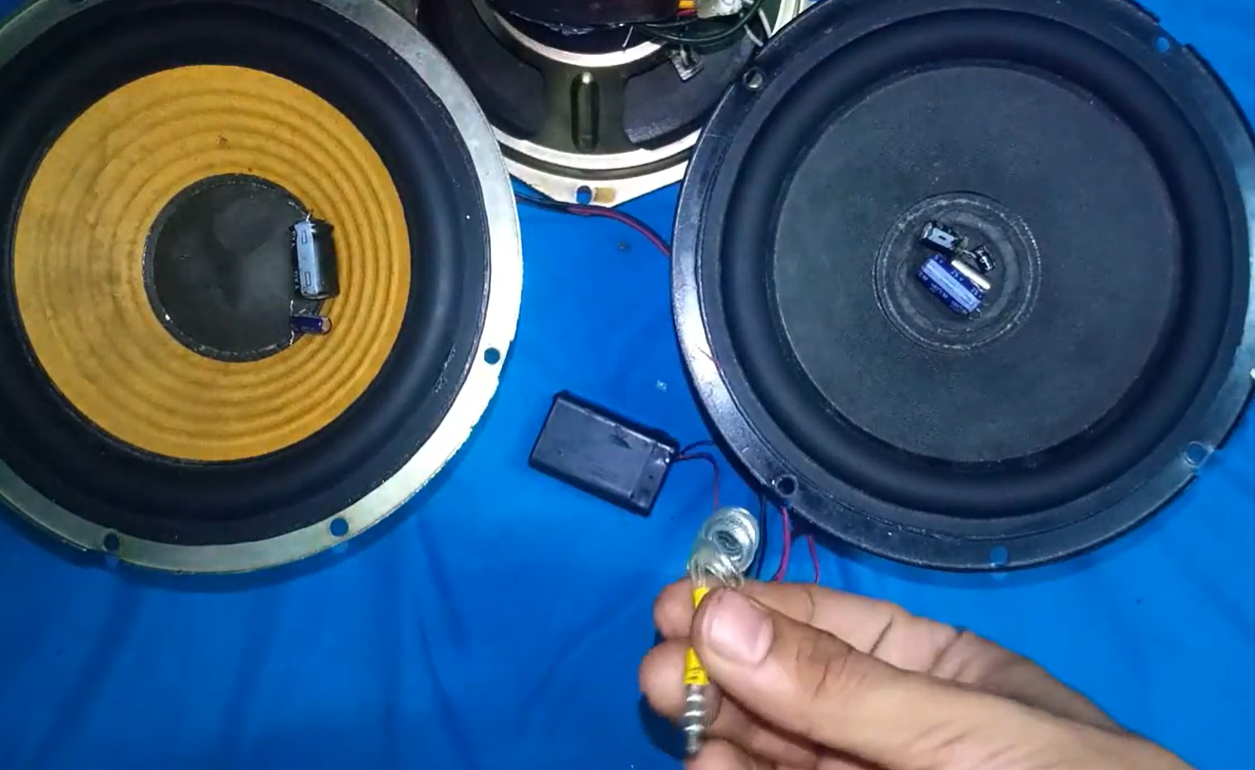

1. Connect Speakers: Connect the negative lead of the first 100μF capacitor to the positive terminal of the Left Speaker. Connect the negative lead of the second 100μF capacitor to the positive terminal of the Right Speaker. Ground both negative terminals of the speakers by wiring them back to Pin 4 (GND).
2. Connect Power: Attach the positive wire of your 3V - 5V power supply (like a USBpower line) to Pin 2 (Vcc) and the negative wire to Pin 4 (GND).

⚠️ Note: Double-check your connections before powering on! Make sure there are no accidental solder bridges between adjacent pins.

Plug the Aux cable into your phone, computer, or music player. Turn on your low-voltage power supply and play a track!

Testing Stereo Balance:

Play a stereo audio test to verify that the left channel sound comes out of the left speaker and the right channel sound comes out of the right speaker. You should hear clear audio separation.

Troubleshooting Tips:

1. No Sound? Check if your power supply is delivering between 3V and 5V. Ensure the ground (Pin 4) is shared correctly among power, speakers, and the audio input source.
2. Heavy Distortion? Ensure you are not overdriving the input volume. If the sound remains distorted, double-check that your output capacitors are oriented correctly.
