How to Repair Broken Plastic - Diy Plastic Welding

A while back, a corner snapped off one of my plastic parts, leaving me with two separate pieces. Replacing it would have been the easy option, but I didn't want to throw away something that was mostly still in good shape.

So I decided to try plastic welding with a soldering iron. I made a custom tip for the iron, joined the broken pieces temporarily, and then reinforced the break with fine mesh from an old metal tea strainer, melting it into the plastic.

If you enjoy practical repairs like this, I also share related posts on my WhatsApp channel, Diy in a Minute, so feel free to join and learn more there.

1. The broken plastic part
2. Soldering iron
3. Two soldering rods to compare (one normal, one custom-made with a slightly pressed and pointed tip)
4. Nose plier
5. White tape
6. Old metal tea strainer with a very fine mesh
7. Scissors
8. Drill machine with a drill bit
9. A piece of wood board (to support the part while drilling)
10. Soft cloth
11. Screwdriver

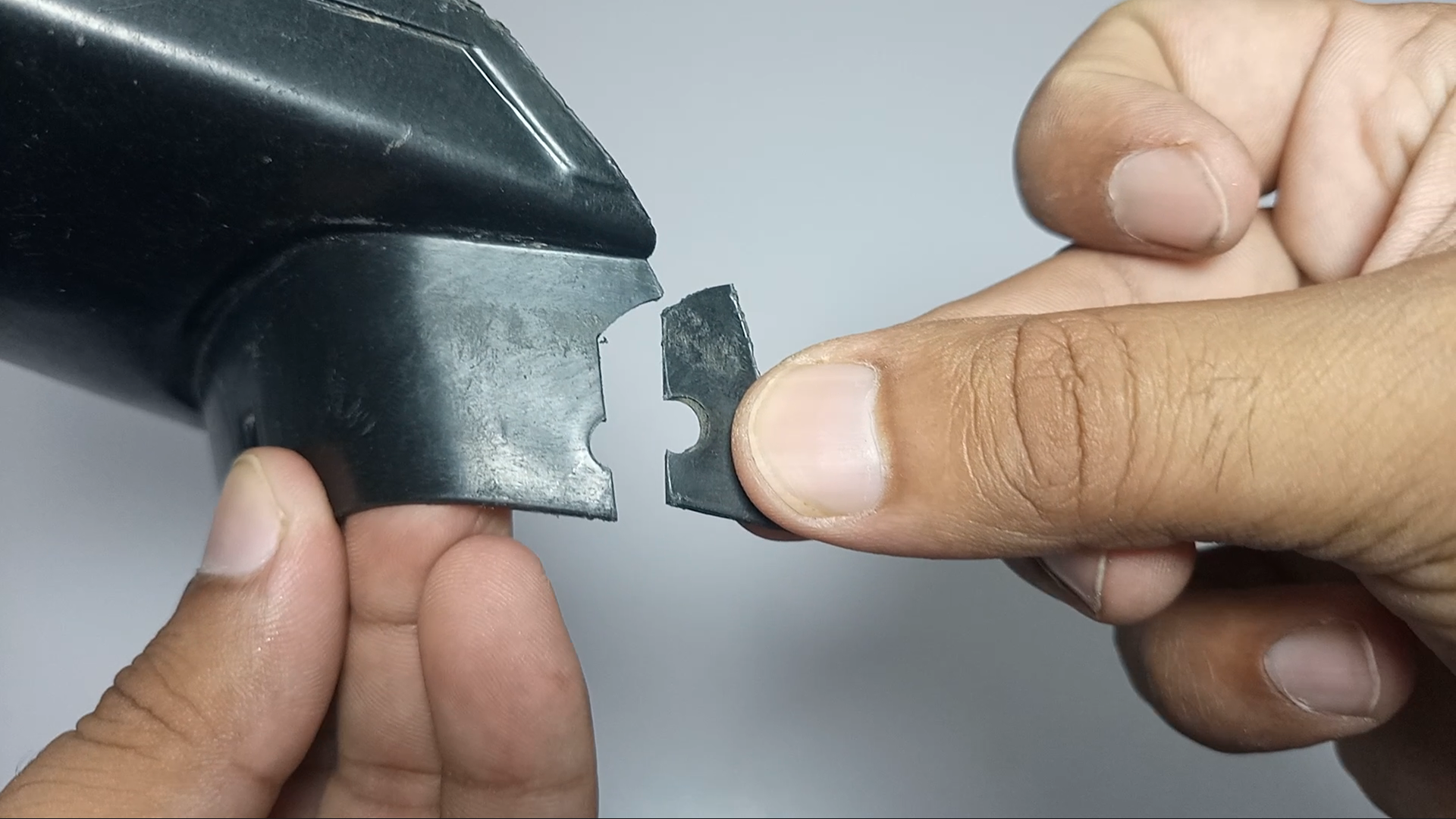

Start by looking closely at the damage. In my case a corner of the plastic had snapped off completely, so I had two separate pieces. Checking how the break lines up gives you a clear idea of what needs to be repaired and how the pieces will fit back together.

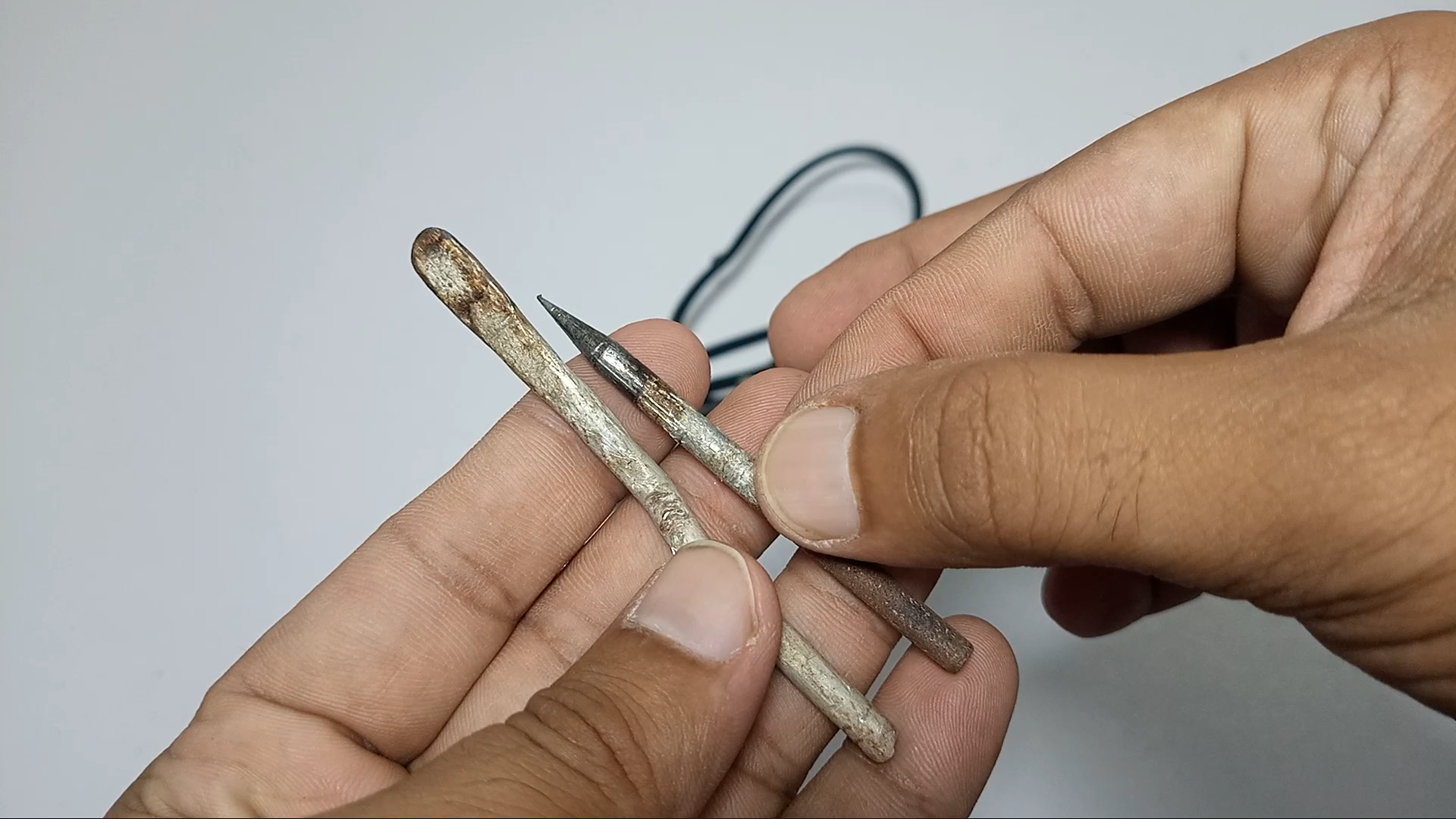

I compared two soldering rods and picked the custom-made one, which has a slightly pressed and pointed tip. I opened the screw on the soldering iron, slid the custom rod inside, and tightened it securely so it wouldn't move during the repair.

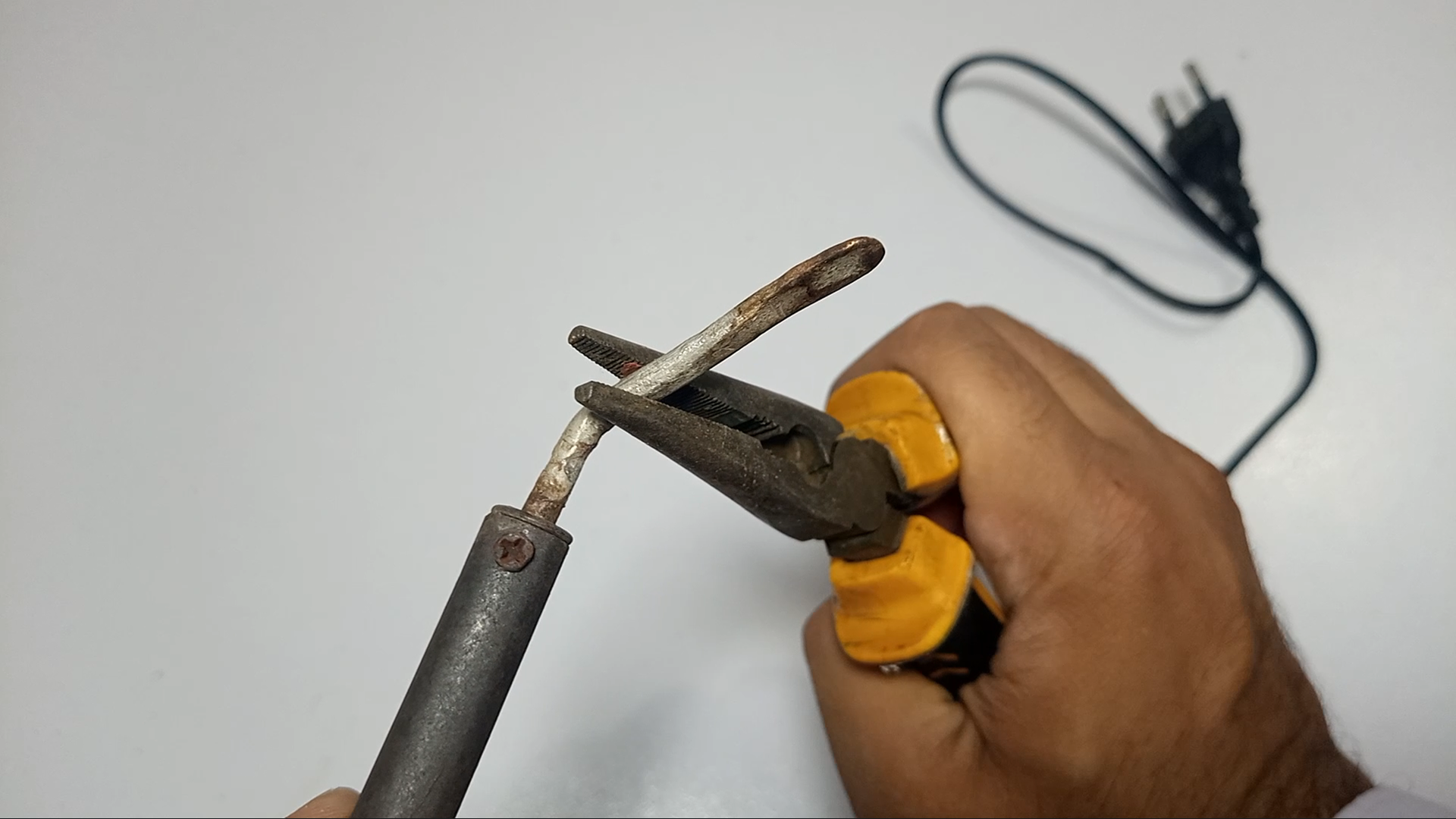

Using a nose plier, I bent the tip of the rod into an L-shape. This made the iron easier to handle on the plastic surface during the repair.

I brought the broken piece back to its exact original position. Holding one side in place, I used the soldering iron to melt and join the plastic temporarily. Then I aligned the other side carefully and secured it the same way. Good alignment here matters, because everything afterward builds on it.

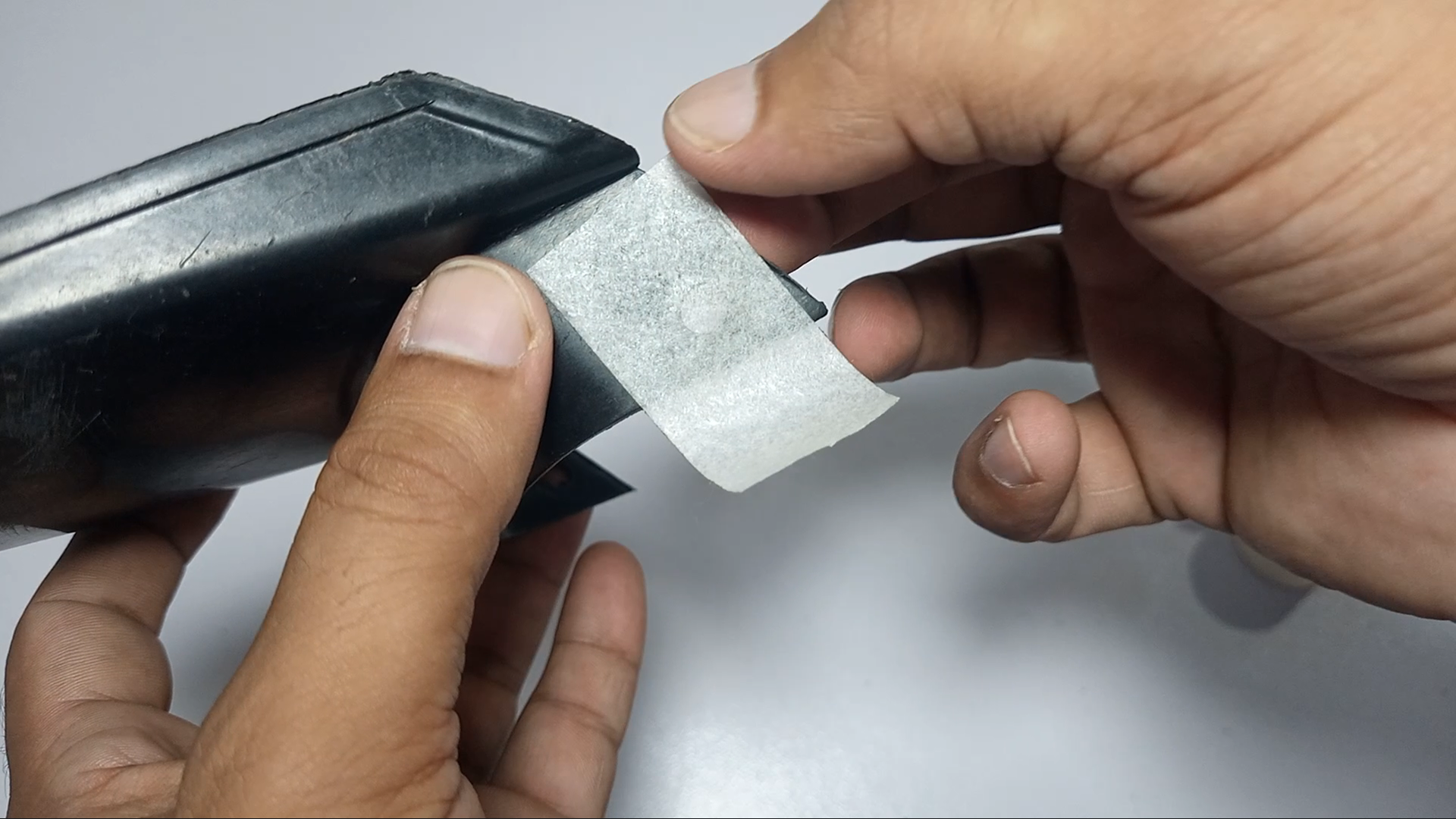

I stuck white tape on the exterior side of the part, where I hadn't used the soldering iron. Then I trimmed off the excess tape at the front so the next steps would be easier.

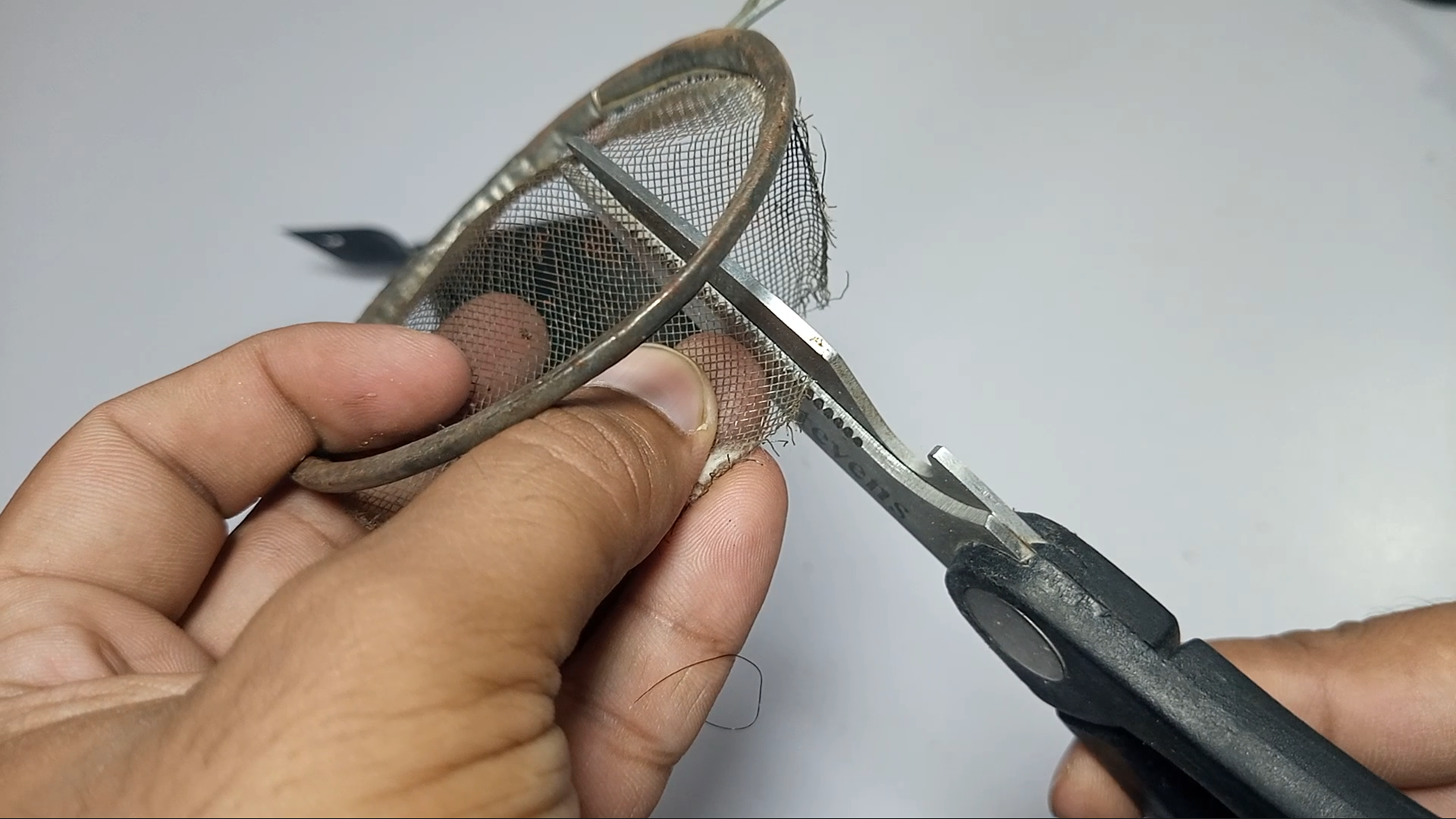

I used an old metal tea strainer with a very fine mesh. Since the plastic was quite thin, a fine mesh was the better fit. I cut the mesh from one side of the strainer, placed it over the broken area, and trimmed it to match the size and shape of the break.

I held the mesh in position and used the soldering iron to secure the corners and side sections first. Then I worked on the broken center and welded it back together. As I pressed the hot iron over the mesh, it sank into the plastic and became embedded, which adds strength to the repair. I kept pressing around the edges and across the center until the whole mesh was firmly fixed in the plastic. I also used the tip of a screwdriver to help press the mesh down in tight spots.

Some plastic was slightly raised on the repaired area. I carefully applied heat again with the soldering iron to smooth and level it, giving the repair an even, uniform shape.

I peeled the tape off the repaired plastic. Some adhesive stayed behind on the surface, which I left to clean up in a later step.

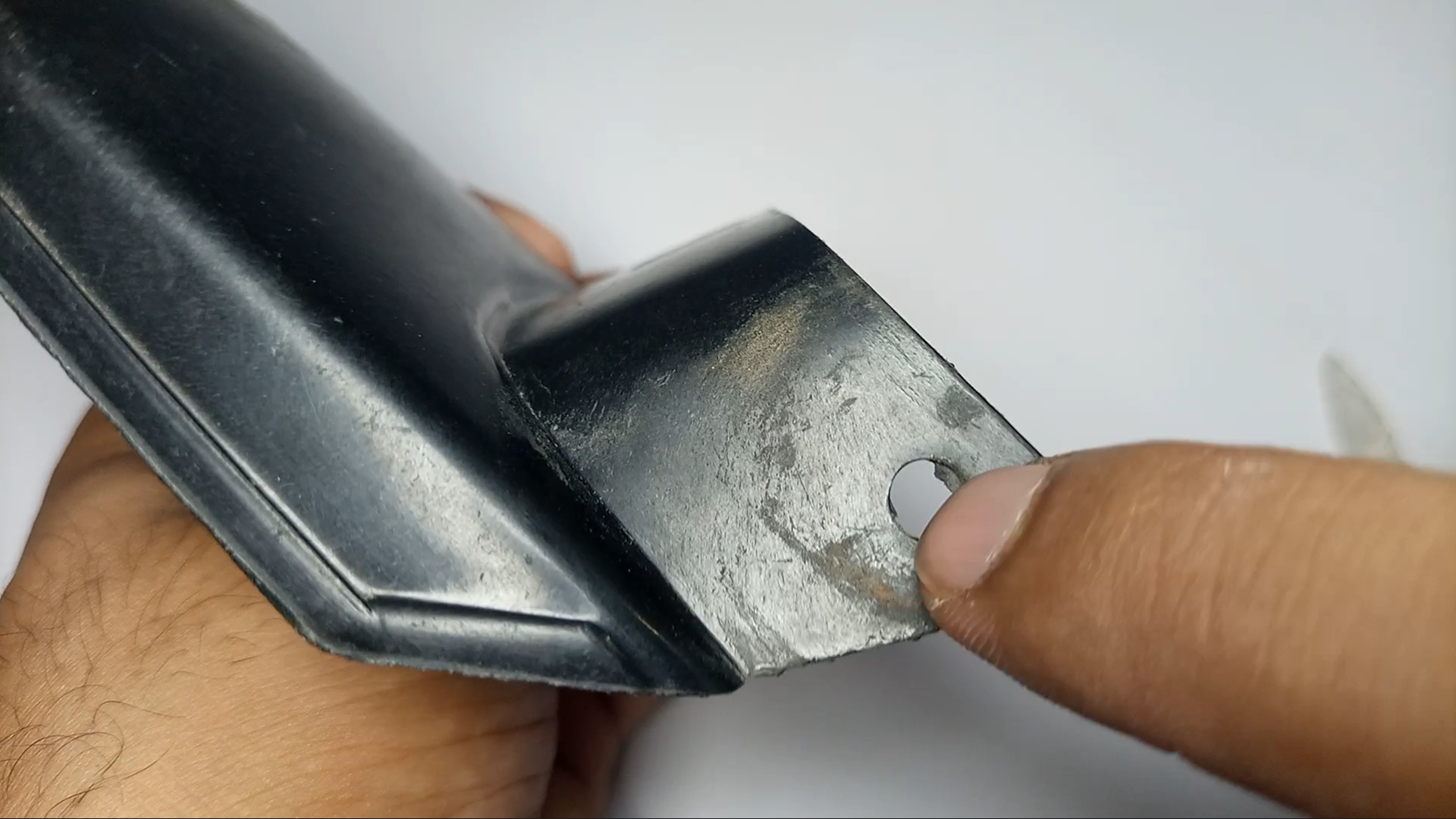

The mesh had covered the part's original hole. The other side of the part has the same hole, so I used it as a guide and drilled a new hole of the same size and position, with the part supported on a piece of wood. Now both sides matched again.

I used a soft cloth to carefully wipe the leftover tape adhesive off all sides of the part. After cleaning, the surface was smooth, clean, and even.

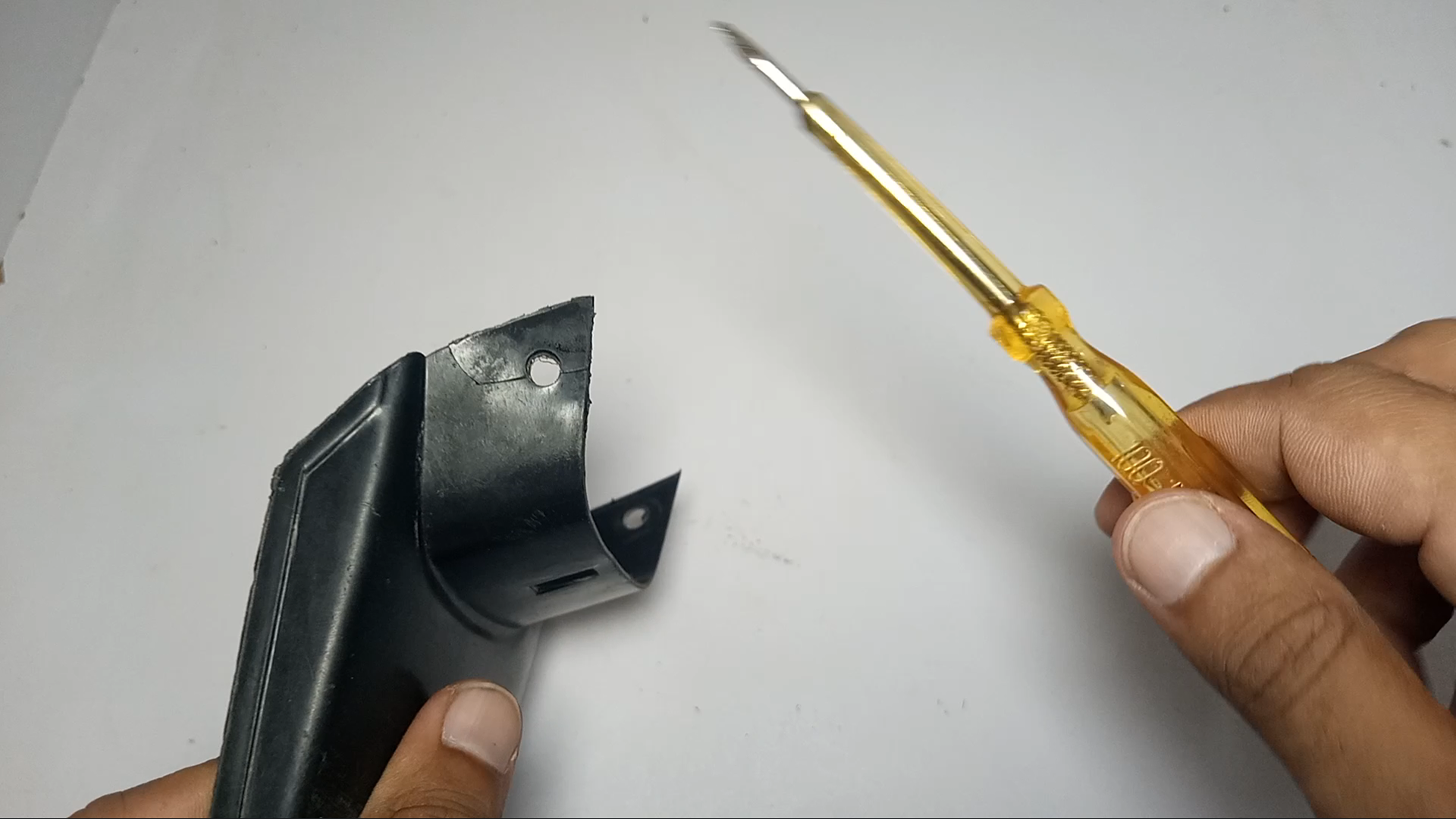

To check the strength, I held the repaired corner and hit it firmly against the table several times. I also pressed on it with force and tapped the corner with a screwdriver. The repaired section stayed firmly in place with no visible damage.
