Dark Detector Circuit

by 952442 in Circuits > Electronics

12 Views, 0 Favorites, 0 Comments

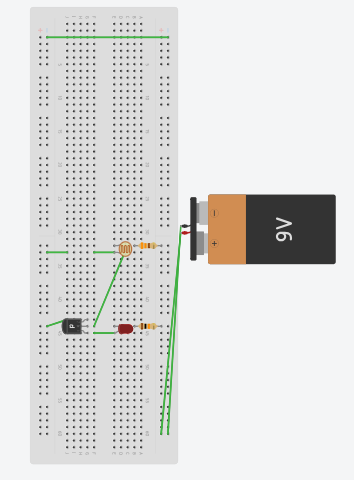

Dark Detector Circuit


This instruction set is made to assist others with building a circuit with a LDR

Supplies

  1. Wires, have about 20 cm on hand
  2. LDR
  3. PNP transistor
  4. LED, any color
  5. 10k ohms resistor
  6. 330 ohms resistor
  7. 9V Battery

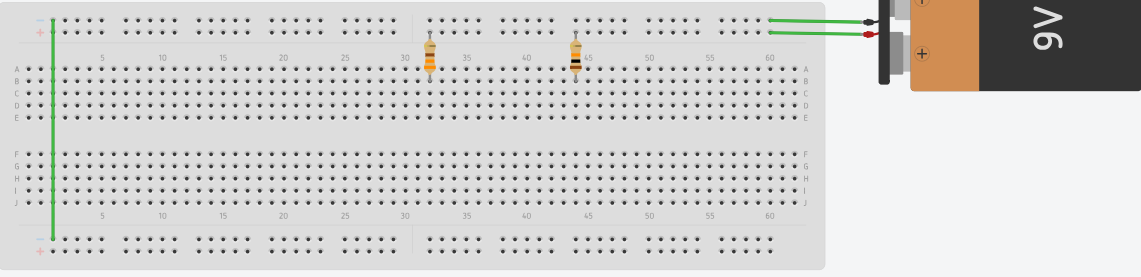

Insert the Resistors Resonably Far Away From Eachother


you will have a 10k resistor and a 330 resistor. You need to spread them out around 10 spaces from eachother and connect them to a positive side.

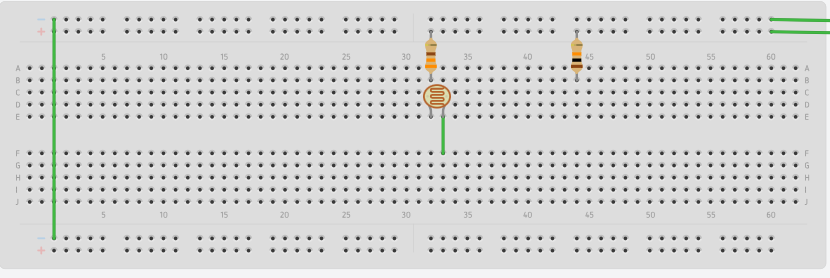

Attach LDR to Curcuit


The LDR should be connected to the 10kΩ resistor.

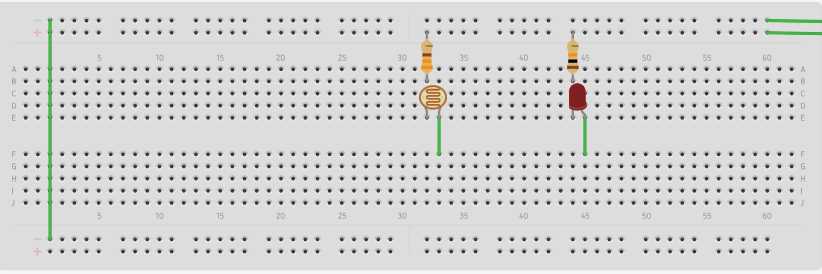

Attach LED to Circuit


The LED should be connected to the 330Ω resistor.

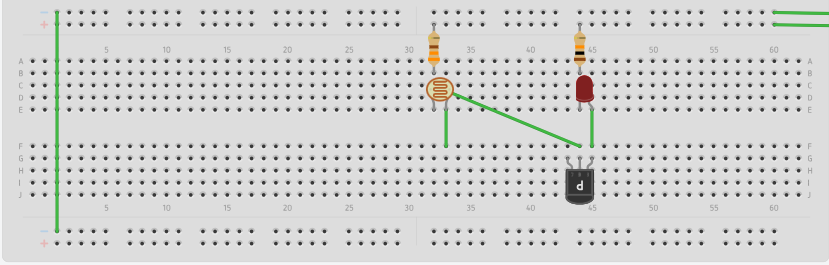

Attach Transister to Circuit

Screenshot 2025-11-04 084151.png

You need a PNP transister and connect the emitter to the LED.

Connect the Other Resistor to the Transistor


Specifically the base of the PNP.

Connect the LDR and the Transistor to Grounding

Screenshot 2025-11-04 084531.png

You should have started with the positive end, now you end with the negative end.

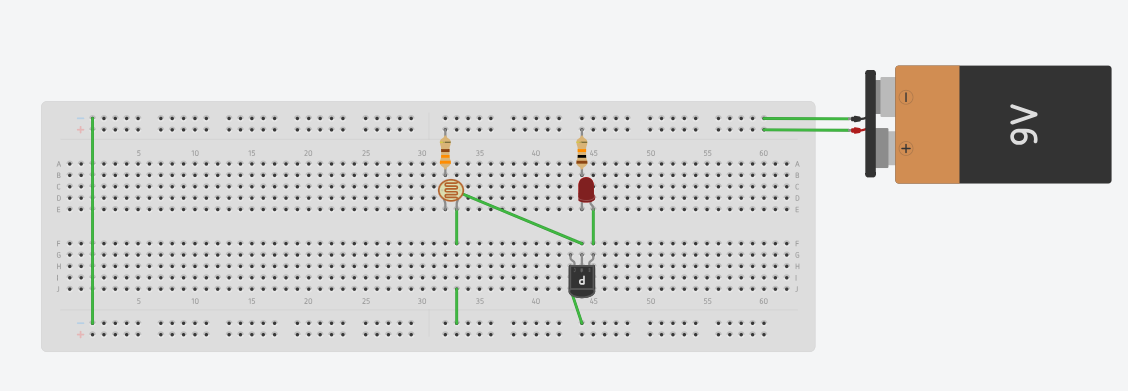

Connect the Battery and Test the Circuit

Screenshot 2025-11-04 090654.png

Go back steps if the circuit does not work.
