Designing an Industrial Pneumatic Animatronic Mech From Scratch

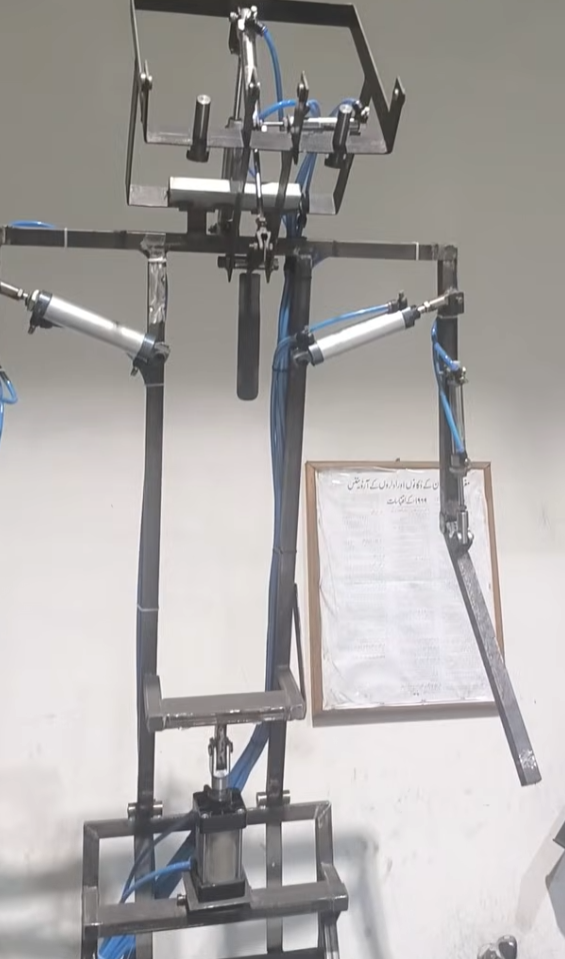

My name is Hakan, I am 14 years old from Pakistan, and I am a completely self-taught animatronics builder. This project is a bare-metal animatronic understructure (mech) built entirely from scratch. I chose to keep the mechanical chassis exposed to showcase the complex engineering. The mech is driven by industrial pneumatics to achieve high-speed, realistic movements, utilizing a custom frame layout that I fully engineered in SolidWorks to solve complex clearance and structural challenges.*This mech is basiclly inspired by the Rockafire explosion

( i would also highly recommend you guys check the channel i have more videos on there)

1. Design Software: SolidWorks for 3D chassis engineering.
2. Mechanical Frame: Custom steel, linkages, brackets, and high-strength fasteners.
3. Pneumatic System: Industrial air cylinders, solenoid valves, pneumatic tubing, and a regulated air compressor.
4. Control Electronics:Arduino mega,16 channel Relay board,jumper wires ,a pc for programming,a power distrubition block and a power supply

Every great project starts with a spark, and mine came directly from an animatronics legend. I have always been fascinated by classical animatronic design, especially the complex mechanical setups of vintage dinner-theater shows.

The real motivation to finally stop watching videos and actually start building my own industrial-grade mech came from a personal Cameo video message from Aaron Fechter, the creator of the iconic Rock-afire Explosion animatronics. Hearing words of encouragement from an industry pioneer pushed me to take the leap.

Living in Pakistan, where components and specialized training are highly limited, I knew it would be a massive challenge. However, his message inspired me to commit to self-learning the mechanics, fluids, and engineering principles required to turn my dream of building complex moving characters into a reality.

The absolute hardest part of this entire build was figuring out the mechanical layout of the main body chassis. Because I wanted a high-strength, durable structure, I chose to work with physical metal parts. However, metal has no flexibility, meaning even a tiny error in my geometry would cause the entire mech to jam.

To solve this challenge, I spent days self-learning and using SolidWorks to model the body frame in 3D. The trickiest part was calculating the exact clearance requirements for the heavy-duty industrial pneumatic cylinders. I had to map out the full range of motion (the arcs of movement) for every joint to ensure that when the air cylinders fired at high pressure, the metal brackets and pistons wouldn't collide with each other or bind the mechanism.

Through virtual prototyping in SolidWorks, I successfully verified the pivot locations, optimized the linkage lengths, and ensured a completely smooth mechanical cycle before ever cutting or drilling a single piece of real metal.

Since I had never worked with heavy metal before, learning how to securely drill and fuse the steel chassis was a massive learning curve.

At the very beginning, I tried using a TIG welder. Because TIG welding requires incredible precision, torch control, and simultaneous foot-pedal management, it was incredibly frustrating and difficult for me to get a clean, stable arc. My early test welds kept burning through or failing entirely.

Realizing I needed a process better suited for this structural frame, I switched over to a MIG welder. The moment I started using MIG, everything got so much easier! The continuous wire feed allowed me to focus entirely on my torch movement and pool control. Within a short time, I went from messy test tacks to laying down incredibly solid, robust structural joints.

After mastering the welds, I precision-drilled the mounting holes through the thick metal bars to house the heavy-duty pivot pins for the pneumatic cylinders, bringing the physical chassis together.

To bring this bare-metal mech to life with explosive, realistic speed, I bypassed hobby-grade servos and went straight to industrial pneumatics. This system relies on a continuous supply of regulated compressed air to drive mechanical motion.

Here is how the pneumatic loop is configured:

1. The Power Source: High-pressure air runs from a compressor into a pressure regulator to maintain a safe, stable force.
2. The Control Routing: The air line splits into a manifold of industrial solenoid valves. These valves act as electronic gates.
3. The Brains: A microcontroller switches electronic relay modules on and off. When a relay activates, it triggers a 24V/12V signal that opens a solenoid valve.
4. The Movement: Once the valve opens, compressed air rushes through flexible pneumatic tubing directly into the industrial air cylinders. This instant pressure rapidly extends and retracts the pistons, moving the heavy metal body parts via the pivot points designed in SolidWorks.

Because pneumatic motion can be quite aggressive, I had to fine-tune the flow control valves to keep the movements organic and prevent the metal linkages from destroying themselves under high impacts.
