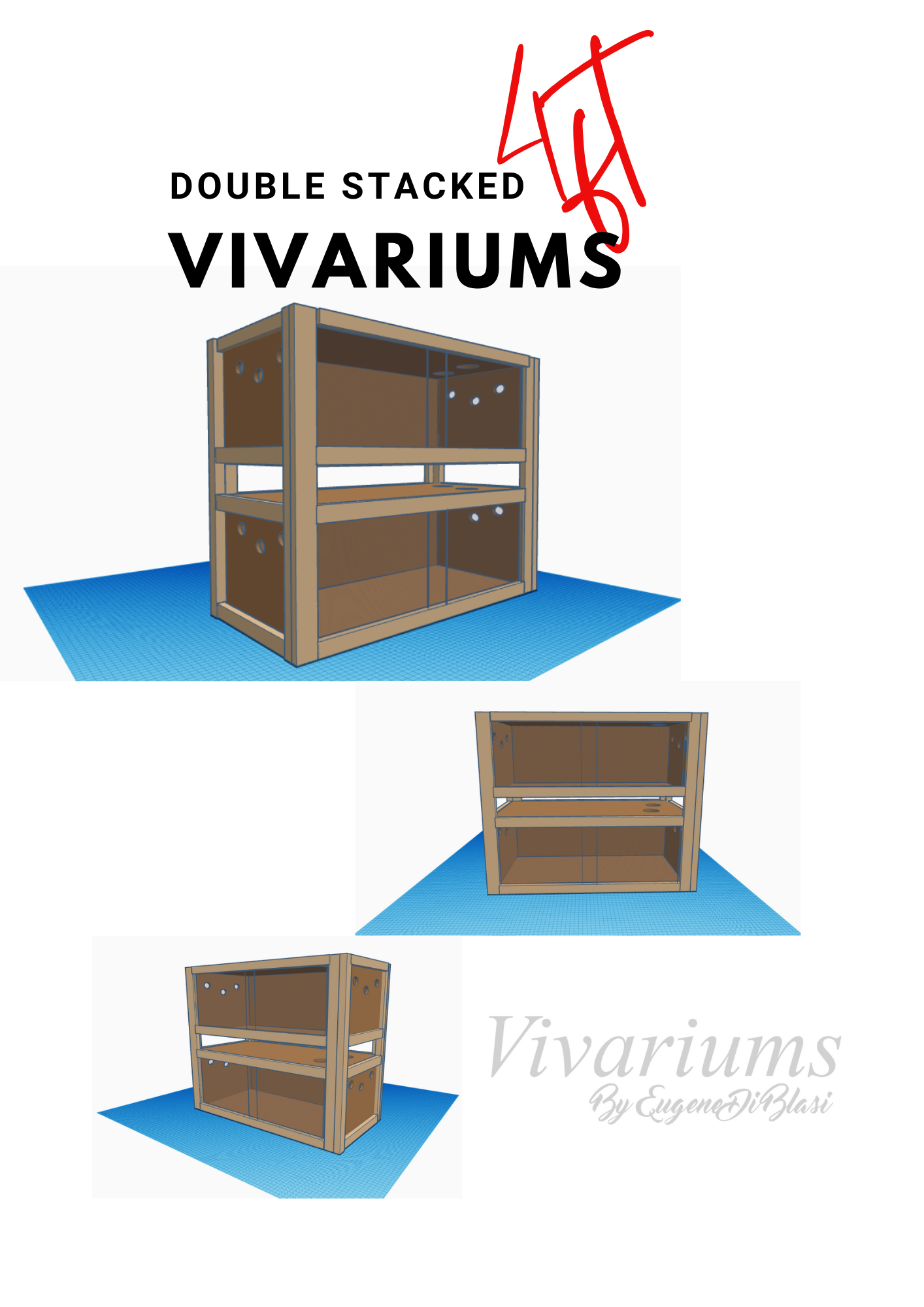

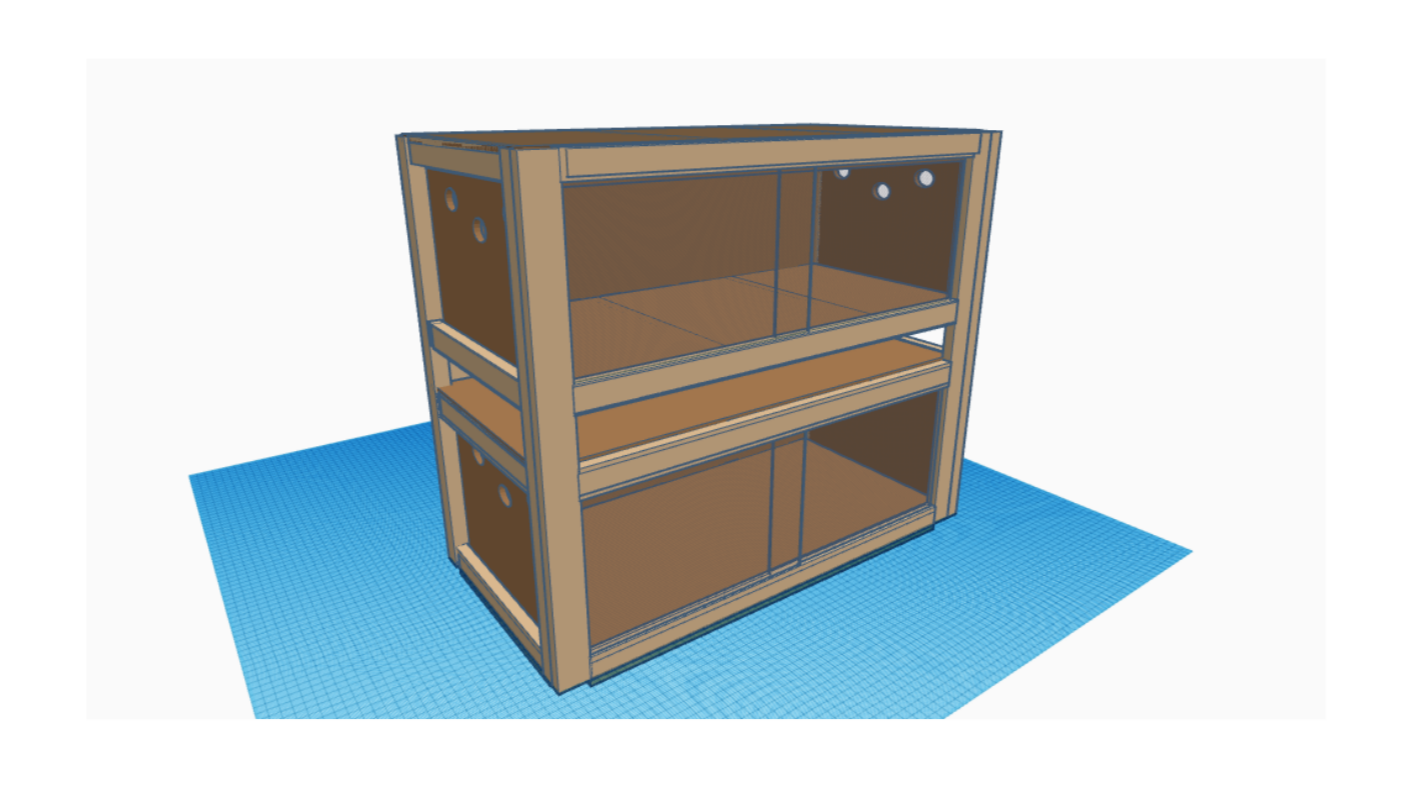

Double Stacked 4ft Vivariums (with Storage)

Before getting started please see the files below, for sizes of the wood to be cut. Some hardware suppliers offer to cut sheet materials, or if preferred you could order cut to size from various online suppliers.

To save on time and hassle it is advised to have all materials cut to size upon purchase, as it would make transportation and handling much easier, as well as cut down on preparation time. However if you are unable to do so just follow the cutting guides provided.

Double Stacked 4ft Vivarium Measurements.pdf

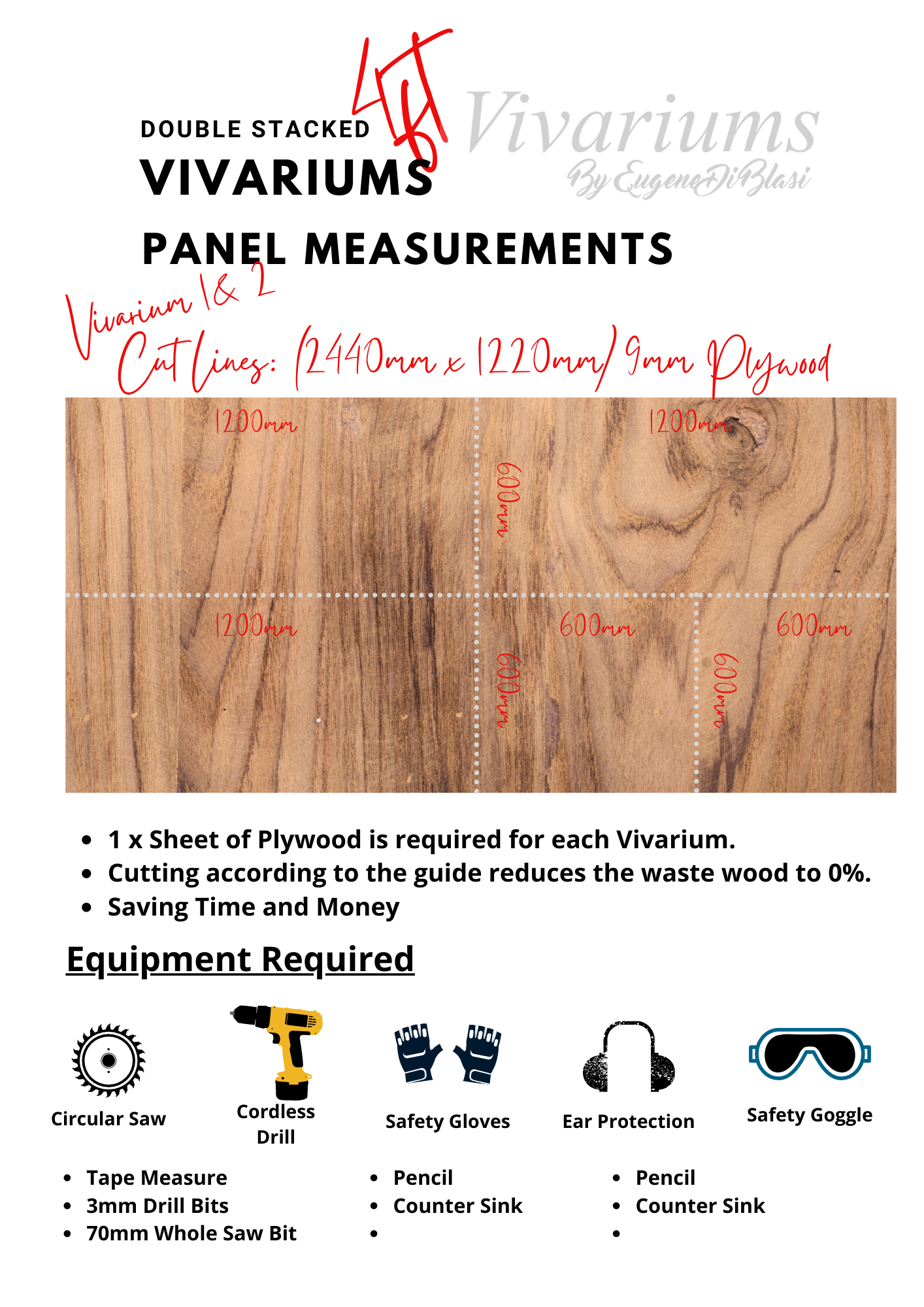

1. 9mm Plywood Sheet Cutting Guide
2. Framing Timber Cutting Guide
3. Panel Measurements
4. Top Panel - Basking Dome Cut-Outs

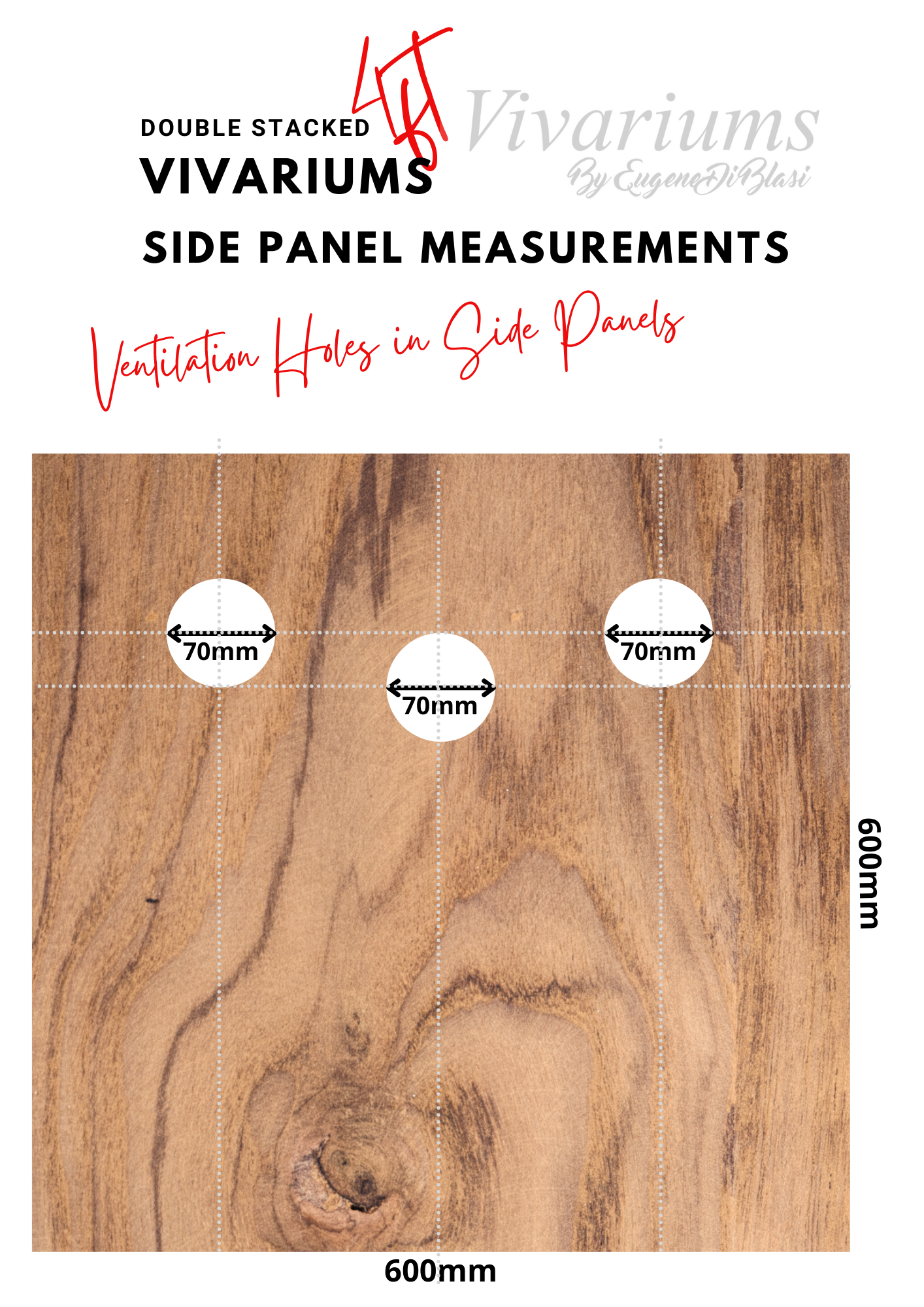

5. Side Panels - Ventilation Cut-Outs

• 8 x Front and Rear Frames: 1200mm (Whitewood PSE Timber - 20mm x 45mm x 2.4m)

• 4 x Front Frame Supports: 1110mm

• 8 x Side Frames: 600mm

• 12 x Side Frame Supports: 600mm

• 8 x Vertical Frames: 1600mm

•16 x 45-Degree Corner Supports

• 2 x Hardwood Plywood Board (L)2.44m (W)1.22m (T)12mm

• 2 x Hardwood Plywood Board (L)2.44m (W)1.22m (T)9mm

• 15 x Smooth Square edge Pine Stripwood (L)2.4m (W)46mm (T)21mm

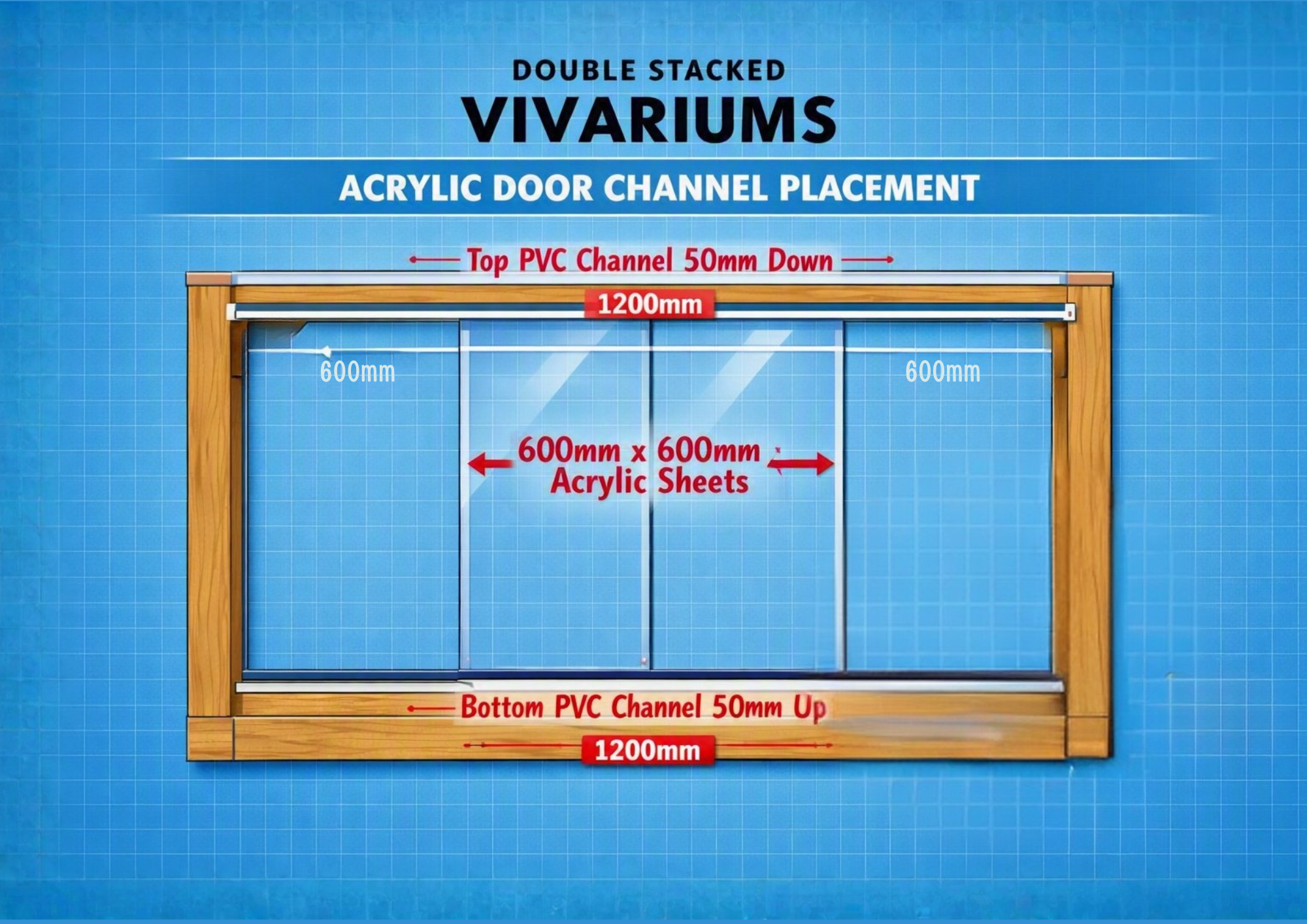

• 2 x Liteglaze Clear Acrylic Flat Glazing sheet, (L)1.2m (W)0.6m (T)2mm

• 4 x PVC Double Channel / Double U Section (White) 1.8m

• 12 x Air Vent Covers, (Dia)70mm

• TurboDrive Yellow zinc-plated Steel Wood Screw (Dia)4mm (L)60mm, 100 Pack

• Diall Stainless steel Wood Screw (Dia)4.5mm (L)45mm, 200 Pack

• Diall Yellow zinc-plated Carbon steel Wood Screw (Dia)3.5mm (L)25mm, 100 Pack

• Erbauer Bi-metal Holesaw (Dia)70mm

• Tape Measure

• Cordless Drill

• Circular Saw

• 3mm Wood drill bit

• 4mm Wood drill bit

• Counter Sink

• Stanley Knife

• PVA Glue

• Water Based Varnish

• Paint Brush

• Pencil

The Importance of Following Instructions to Build a Vivarium

Building a vivarium is a meticulous process that requires careful attention to detail. Adhering to the provided instructions is crucial for several reasons:

1. Safety: A vivarium houses a living creature. Following instructions ensures the enclosure is structurally sound and free from hazards that could harm your pet.
2. Animal Well-being: A properly constructed vivarium provides the ideal environment for your reptile or amphibian. Skipping steps or making alterations without proper knowledge can negatively impact the animal's health and comfort.
3. Functionality: Each step in the building process serves a specific purpose, such as ventilation, drainage, or temperature regulation. Omitting any step can compromise the vivarium's overall functionality.
4. Efficiency: Instructions are designed to optimize the building process. Following them can save time and prevent mistakes that might require rework.
5. Longevity: A well-built vivarium will last longer. Cutting corners or deviating from the plan can weaken the structure and reduce its lifespan.

By diligently following the instructions, you're investing time and effort into creating a safe, comfortable, and long-lasting home for your pet.

Instructions: Reading the Wood Screw Size Guide

Determine the appropriate wood screw size for your project based on the provided size guide.

Steps:

1. Measure the thickness of the wood you will be screwing into. Use a ruler or caliper to measure the thickness in millimeters.
2. Locate the corresponding line on the size guide. Find the horizontal line that represents the thickness of your wood.
3. Identify the screw length. The vertical line intersecting your chosen thickness line indicates the recommended screw length in millimeters.

Example:

If you are screwing into wood that is 25 millimeters thick, find the horizontal line labeled "25" on the size guide. The vertical line intersecting this point indicates the recommended screw length.

Additional Considerations:

1. The size guide provides a general recommendation. Actual screw length may vary depending on specific project requirements and desired screw head type.
2. For added strength and security, consider using screws that penetrate through the wood and into a structural member.
3. Always use a pilot hole slightly smaller than the screw diameter to prevent wood splitting.

By following these steps and using the provided size guide, you can select the appropriate wood screw for your project.

Materials:

1. 1 x sheet of 9mm plywood for each vivarium (2440mm x 1220mm)

Equipment:

1. Circular saw
2. Cordless drill
3. Tape measure
4. Pencil
5. 3mm drill bits
6. Counter sink bit
7. 70mm whole saw bit
8. Safety gloves
9. Ear protection
10. Safety goggles

Steps:

1. Measure and cut plywood:
2. Measure and mark the plywood according to the provided dimensions (1200mm x 1200mm for each panel).
3. Use the circular saw to cut the plywood along the marked lines.
4. Prepare the holes:
5. Use the 3mm drill bit to create pilot holes for the screws.
6. Use the counter sink bit to create countersinks for the screw heads.
7. Use the 70mm whole saw bit to cut out any necessary holes (dimensions not specified in the image).

Additional Considerations:

1. Consider adding additional supports or bracing for stability, especially if the vivariums will be housing heavy animals.
2. Always wear safety gear when using power tools and working with wood.

Materials:

1. 2 x Hardwood Plywood Board (L)2.44m (W)1.22m (T)9mm
2. 2 x Hardwood Plywood Board (L)2.44m (W)1.22m (T)5mm

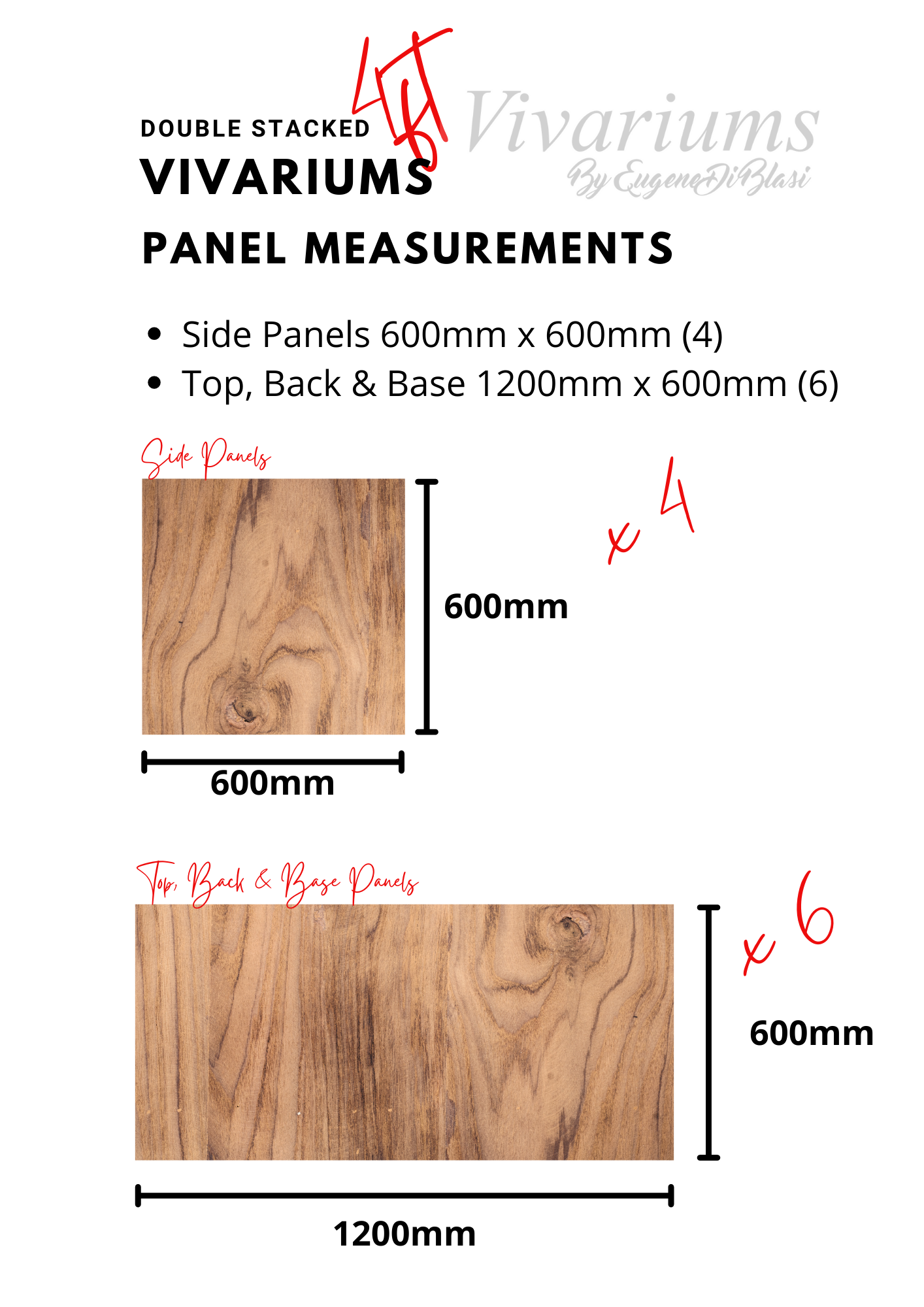

The image provides panel measurements for building double-stacked vivariums.

1. Side Panels: 600mm x 600mm (4 required)
2. Top, Back, and Base Panels: 1200mm x 600mm (6 required).

Assemble the vivariums:

1. Follow the assembly instructions provided in the image or with your chosen design.
2. Secure the panels together using screws and the pre-drilled holes.

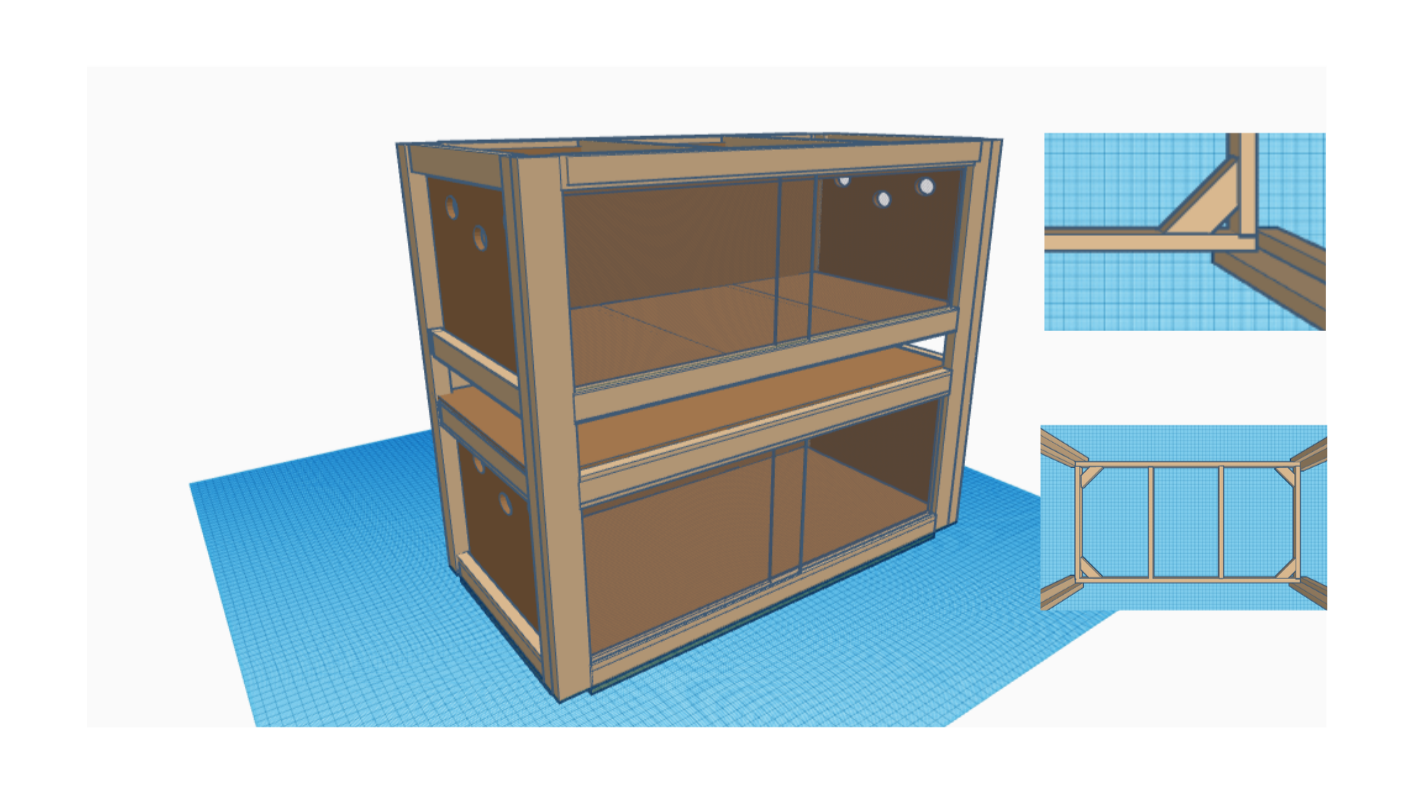

Instructions: Creating a Corner Brace Joint

To construct a sturdy corner joint using a triangular brace.

Materials:

1. Wood planks (dimensions not specified)
2. Wood screws or nails
3. Wood glue (optional)

Tools:

1. Saw
2. Measuring tape
3. Pencil
4. Drill (if using screws)
5. Clamps (optional)

Steps:

1. Measure and cut the brace:
2. Determine the desired length of the brace based on the size of the corner joint.
3. Measure and mark a 45-degree angle on one end of the wood plank.
4. Cut the wood plank along the marked line to create the triangular brace.
5. Position the brace:
6. Place the brace at the corner of the two wood planks you want to join.
7. Ensure the brace fits snugly against both planks.
8. Secure the brace:
9. Apply wood glue to the joints (optional).
10. Use screws or nails to fasten the brace to both wood planks.
11. If using screws, pre-drill pilot holes to prevent wood splitting.
12. Clamp the joint while the glue dries (if used).

Additional Tips:

1. For added strength, consider using two braces for each corner.
2. Ensure the brace is securely fastened to prevent movement.
3. Sand the edges of the wood for a smooth finish.

By following these steps, you should create a strong and stable corner joint.

Note: The image shows a basic corner brace joint. Specific dimensions and materials may vary depending on the project.

Building Double Stacked Vivariums

Tools & Materials Needed:

1. Wood screws of various sizes (refer to the size guide)
2. Wood for the vivarium frame and corner supports
3. Saw for cutting wood
4. Drill and screwdriver
5. Measuring tape
6. Pencil
7. Clamps (optional)
8. Instructions:

1. Cut Wood:

1. Refer to the "Corner Supports Cut Lines" diagram in the previous step, for the correct angle (45° degrees) to cut the corners of your wood pieces.
2. Ensure the lengths of your wood pieces are appropriate for the desired vivarium size.
3. Based on the desired dimensions of your vivarium, cut the wood planks to the specified lengths.
4. 8 x Front and Rear Frames: 1200mm
5. 4 x Front Frame Supports: 1110mm
6. 8 x Side Frames: 600mm
7. 12 x Side Frame Supports: 600mm
8. 8 x Vertical Frames: 1600mm
9. 6 x 45-Degree Corner Supports

2. Assemble Frame:

1. Assemble the Frame:
2. Position the cut wood planks to form the rectangular frame structure.
3. Secure the joints using wood screws, nails, or wood glue.
4. For additional strength, consider using two braces for each corner.
5. Join the wood pieces together using the wood screws.
6. The image provides a visual guide for the frame shape.
7. Refer to the "Wood Screw Size Guide" to select the appropriate screw size for the thickness of your wood.

3. Attach Corner Supports:

1. Create Corner Braces:
2. Cut the wood planks to form the triangular corner braces as shown in the image. Ensure a snug fit at the corners
3. Position the corner supports at the corners of your vivarium frame.
4. Secure them in place using the appropriate size wood screws.

4. Reinforcement (Optional):

1. For added stability, incorporate additional crossbars or supports within the frame.

Additional Tips:

1. Use a level to ensure your vivarium is level and stable.
2. Pre-drill holes for the screws to prevent wood splitting.
3. Sand any rough edges for a smooth finish.

Remember:

1. Safety first! Wear protective gear like gloves and goggles when using power tools.

Objective:

To construct a sturdy corner joint using a triangular brace and a screw.

Materials:

Whitewood PSE Timber - 20mm x 45mm x 2.4m

1. 8 x Wood planks
2. Length: 1200mm
3. Thickness: 20mm
4. Width: 45mm
5. Wood screw (appropriate length)

Tools:

1. Saw
2. Measuring tape
3. Pencil
4. Drill
5. Screwdriver

Steps:

1. Cut Wood:
2. Measure and cut the wood planks to the desired length (45mm for the width, 20mm for the height).
3. Create a 45-degree angle at one end of each plank to form the corner joint.
4. Assemble the Corner:
5. Join the two cut ends of the planks to form a right angle.
6. Ensure the joint is tight and secure.
7. Insert the Screw:
8. Drill a pilot hole at the appropriate depth into the corner of the joint.
9. Insert the wood screw into the pilot hole and tighten it securely with a screwdriver.

Additional Tips:

1. Use wood glue for added strength and stability.
2. For a cleaner finish, countersink the screw head.
3. Consider using multiple screws for larger or heavier loads.

By following these steps, you should create a strong and stable corner joint.

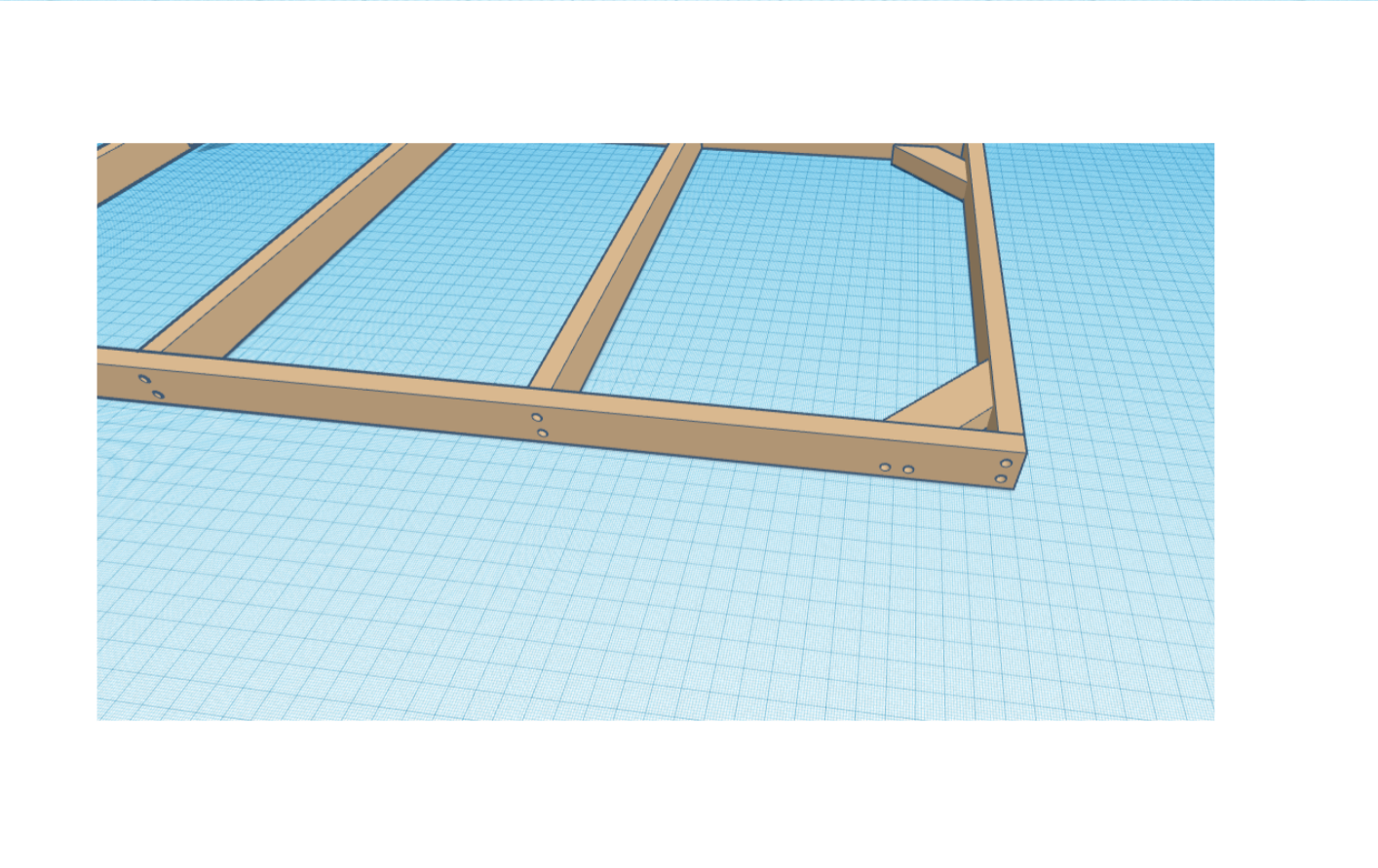

Objective:

Construct a sturdy base frame for the vivarium.

Materials:

1. Wood planks
2. Drill & Screws
3. Hammer or screwdriver

Tools:

1. Saw
2. Measuring tape
3. Pencil

Steps:

1. Prepare the wood: Cut the wood planks to the required lengths based on your coop's dimensions. Refer to the detailed building plans for exact measurements.
2. Assemble the corner supports: Create the corner supports by joining two wood planks at a right angle, as shown in the inset of the image. Secure the joint with nails or screws. You'll need four of these corner supports.
3. Build the base frame: Arrange the corner supports at the corners of the vivarium's footprint. Connect them with additional wood planks to form a rectangular frame. Secure the joints with screws.
4. Attach the legs: Attach the pre-cut legs to the inside corners of the base frame. Ensure they are securely fastened with nails or screws.

Additional Considerations:

1. The image doesn't specify the exact dimensions or wood type, so refer to your building plans for those details.
2. Consider using treated wood for outdoor applications to increase durability.
3. For added stability, you might want to reinforce the frame with additional cross members.

Safety First:

1. Always wear safety goggles and gloves when working with power tools.
2. Follow proper safety guidelines when using nails, screws, and hammers.

By following these steps and referencing the detailed building plans, you should be able to construct a solid base frame for your vivarium.

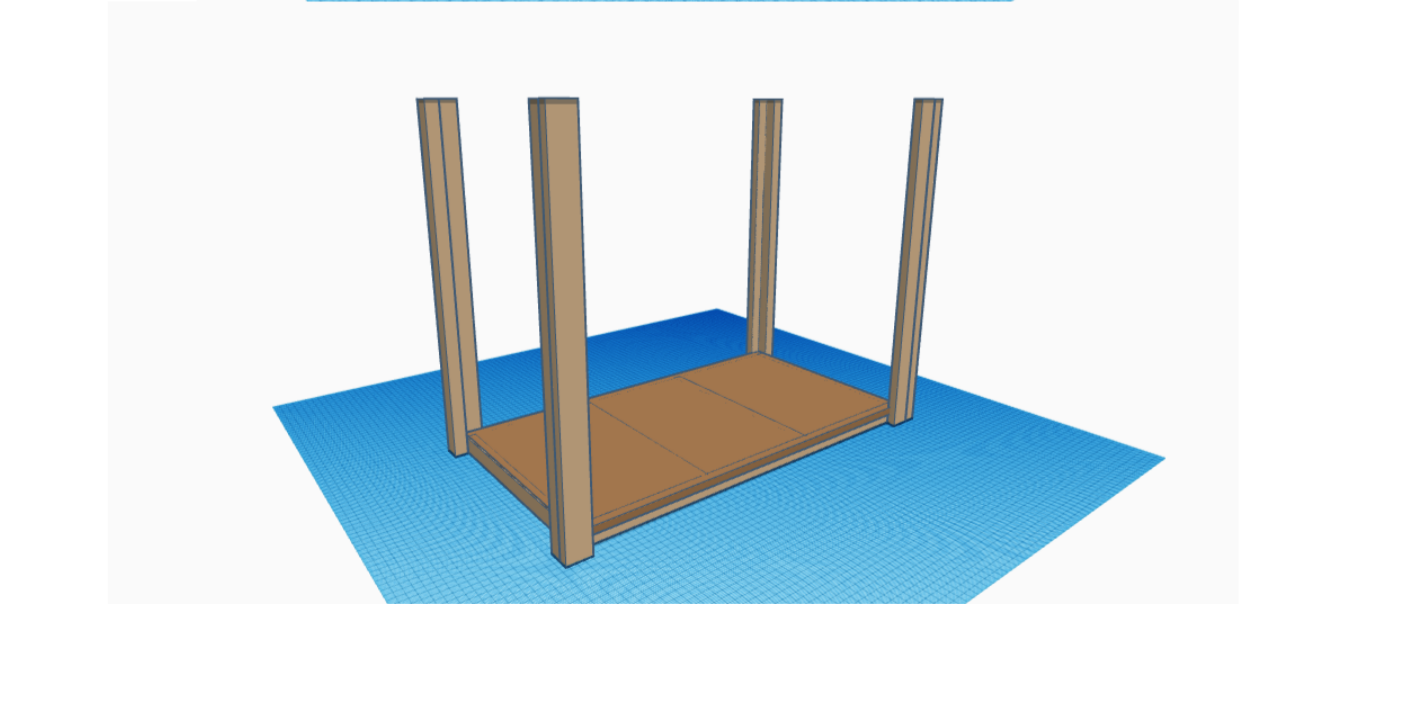

Objective:

Construct a basic frame structure using four vertical posts.

Materials:

1. Four wooden posts (dimensions not specified)
2. Vivarium Base

Tools:

1. Measuring tape
2. Level
3. Saw (if cutting posts to size)
4. Drill and screws or hammer and nails

Steps:

1. Prepare the posts:
2. Ensure all posts are the same length. If necessary, cut them to the desired length using a saw (1200mm).
3. Check the posts for any warping or damage.
4. Position the posts:
5. Determine the desired layout for the frame.
6. Place the posts in their intended locations.
7. Use a level to ensure the posts are vertical.
8. Secure the posts:
9. Depending on the base material (concrete, wood, etc.), choose the appropriate method to secure the posts.
10. If attaching to wood, use screws and a drill or screwdriver.
11. If attaching to concrete, use anchors and a drill.

Additional Considerations:

1. The image shows a simple frame structure. Additional components, such as horizontal beams or cross-bracing, may be required for stability and support depending on the intended use.
2. For outdoor applications, consider using treated wood to resist rot and decay.
3. Ensure the posts are buried deep enough into the ground or secured to the base material to prevent tipping or movement.

By following these steps, you can create a basic frame structure. Remember to adjust the instructions based on your specific project requirements and materials.

Instructions: Securing a Side Panels

Objective:

Achieve a flush, gapless connection between two panels at a corner joint.

Materials:

1. Wood panels
2. Saw
3. Measuring tape
4. Pencil
5. Woodworking clamps (optional)
6. Screws of appropriate length

Steps:

1. Measure and Cut:
2. Determine the desired dimensions of the panels.
3. Measure and mark the cutting lines on the panels at the corner.
4. Use a saw to cut the panels along the marked lines.
5. Assemble:
6. Align panels: Position the side panel correctly against the main structure.
7. Position the cut ends of the panels together, ensuring they form a tight corner.
8. If necessary, use woodworking clamps to hold the panels securely in place.
9. Verify that there is no visible gap between the panels. Adjust as needed.
10. Mark screw position: Determine the optimal placement for the screw on the main structure and mark it clearly.
11. Drill pilot hole: Create a pilot hole at the marked position on the main structure using a drill bit slightly smaller than the screw diameter. This prevents wood splitting.
12. Insert and tighten screw: Insert the screw into the pilot hole and tighten it securely using a screwdriver or drill. Ensure the screw head is fully embedded for a flush finish.

Tips:

1. For precise cuts, consider using a miter saw.
2. Test fitting the panels before making final cuts.
3. If a small gap remains, you can use wood filler or caulk to fill it.
4. Sand the edges of the panels for a smooth finish.

Additional Notes:

1. The First image demonstrates a "left side panel" and "front left" connection. The same principles apply to other corners.
2. This technique is commonly used in woodworking projects like cabinets, shelves, and frames.
3. The image demonstrates a basic assembly method. Specific applications may require additional steps or considerations.
4. Always prioritize safety when using tools. Wear appropriate protective gear.

By following these steps, you should achieve a clean and professional-looking corner joint with no visible gaps.

The top panel forms the upper structure of each vivarium and must be installed square and flush to ensure proper alignment for stacking.

Materials

1. 1200mm × 600mm plywood panel
2. Wood screws (45mm recommended)
3. PVA glue (optional)

Tools

1. Drill
2. 3mm pilot drill bit
3. Countersink bit
4. Measuring tape
5. Carpenter’s square
6. Clamps (optional)

Instructions

1. Position the Top Panel Place the 1200mm × 600mm top panel onto the frame. Ensure all edges sit flush with the vertical frame supports.
2. Check Alignment Use a carpenter’s square to confirm the panel is perfectly aligned. Adjust as needed before fixing.
3. Drill Pilot Holes Drill 3mm pilot holes along the perimeter, spaced 150mm apart.
4. Countersink Countersink each pilot hole to prevent screw heads from protruding.
5. Secure the Panel Fix the panel using 45mm wood screws. Apply PVA glue along the frame edges for additional strength (optional).
6. Final Check Ensure the panel is level and securely attached before proceeding.

Stacking the vivariums requires careful alignment and secure fixing to ensure stability and safety.

Materials

1. 45mm wood screws
2. 4 × metal corner brackets (recommended)
3. PVA glue (optional)

Tools

1. Drill
2. 3mm pilot drill bit
3. Carpenter’s square
4. Level

Instructions

1. Prepare the Lower Vivarium Ensure the lower vivarium is level and positioned where it will permanently sit.
2. Align the Upper Vivarium Carefully lift the second vivarium and place it on top of the first. Align all vertical frame supports so the structure sits flush.
3. Check Level Use a level to ensure the stacked units are perfectly straight.
4. Secure the Units Together Use metal corner brackets inside the frame to join the upper and lower vivarium. Drill pilot holes and fix with 45mm screws.
5. Optional Reinforcement Apply PVA glue between the frames before stacking for additional rigidity.
6. Final Stability Check Ensure there is no wobble or movement. If needed, add additional brackets at the rear.
7.


Proper ventilation is essential for maintaining airflow and humidity levels inside the vivarium.

Ventilation Hole Placement

Each side panel requires three 70mm ventilation holes, evenly spaced.

Measurements

1. Panel size: 600mm × 600mm
2. Hole diameter: 70mm
3. Hole spacing:
4. 100mm from the top edge
5. 150mm between each hole
6. Centered horizontally (300mm from either side)

Instructions

1. Mark Hole Positions Use a measuring tape and pencil to mark the center of each hole.
2. Drill Ventilation Holes Use a 70mm hole saw to cut each hole cleanly. Sand edges to remove splinters.
3. Insert Vent Covers Push each cover into place. Secure with screws if required by the cover design.
4. Check Airflow Ensure all covers sit flush and allow unrestricted airflow.

The PVC double‑channel guides hold the sliding acrylic doors in place.

Placement Measurements

1. Bottom channel height: 50mm from base panel
2. Top channel height: 50mm from top panel
3. Channel length: 1200mm

Instructions

1. Cut Channels to Length Cut both PVC channels to 1200mm.
2. Position Bottom Channel Place the bottom channel 50mm above the base panel. Ensure it is perfectly level.
3. Fix Bottom Channel Drill 3mm pilot holes every 200mm. Secure with 25mm screws.
4. Position Top Channel Align the top channel 50mm below the top panel.
5. Fix Top Channel Repeat the same screw spacing and pilot hole method.
6. Check Alignment Insert a scrap acrylic piece to ensure smooth sliding.

Inserting Acrylic Sheets

Acrylic Sheet Specifications

1. Material: Clear acrylic
2. Thickness: 2mm
3. Size: 595mm × 580mm (two sheets per vivarium)

Instructions

1. Prepare Channels Clean channels with isopropyl alcohol.
2. Insert First Sheet Slide the first acrylic sheet into the rear channel.
3. Insert Second Sheet Slide the second sheet into the front channel.
4. Install Stoppers (Recommended) Add small rubber bumpers inside the channel ends to prevent sheets from sliding out.
5. Test Movement Ensure both sheets slide smoothly without binding.

Understanding the Basics

Before we dive into the specifics, let's ensure we're clear on the essential components:

1. UVB Bulb: Provides essential ultraviolet rays for your bearded dragon's health.
2. Heating Lamp: Generates heat for a basking spot.
3. Fixtures: These hold the bulbs securely.
4. Thermostat: Controls the heating lamp to maintain optimal temperatures.
5. Timer: Controls the lighting cycle for day and night simulation.
6. Wiring and Plugs: To connect the components to the power source.

Step-by-Step Guide

1. Choose the Right Bulbs:
2. UVB Bulb: Opt for a T5 or T8 fluorescent UVB bulb with a UVB output of 10.0 or 12.0. Ensure it's suitable for the length of your vivarium.
3. Heating Lamp: A ceramic heat emitter (CHE) is often preferred for bearded dragons as it doesn't emit light, disrupting their day-night cycle. Alternatively, a basking spot bulb can be used.
4. Install the Fixtures:
5. Secure the fixtures for both the UVB and heating lamps inside the vivarium. The UVB bulb should be placed at one end to create a gradient, while the heating lamp should be on the opposite end to create a basking spot.
6. Ensure the fixtures are securely mounted to prevent accidents.
7. Connect the Wiring:
8. Connect the UVB bulb and heating lamp to their respective fixtures.
9. Connect the power cords to the thermostat and timer (if using).
10. Set Up the Thermostat:
11. Attach the temperature probe of the thermostat to the cool side of the vivarium.
12. Set the desired temperature for the basking spot and the cool side.
13. Set Up the Timer:
14. Program the timer to simulate a 12-hour day and 12-hour night cycle.
15. Connect the heating lamp and UVB bulb to the timer.
16. Placement and Distance:
17. Place the UVB bulb at a distance where your bearded dragon can access UVB rays while basking.
18. Position the heating lamp to create a temperature gradient, with the hottest spot being the basking area.
19. Monitor and Adjust:
20. Use a thermometer to monitor temperatures in the basking area and cool side. Adjust the heating lamp and thermostat as needed.
21. Regularly check the UVB bulb's output using a UVB meter. UVB bulbs lose potency over time.

Additional Tips:

1. Safety First: Always ensure proper ventilation and fire safety precautions.
2. Cable Management: Keep wires tidy and out of reach to prevent accidents.
3. Regular Maintenance: Clean the bulbs and fixtures regularly to maintain optimal performance.
4. Consider a Digital Thermometer: For precise temperature control.

By following these steps and considering the specific needs of your bearded dragon, you can create a suitable environment for your pet.

Electrical Safety & Wiring Diagram (Required)

Recommended Setup

1. UVB: T5 HO 12%
2. Daytime Heat: Basking Lamp
3. nightime Heat: Ceramic Heat Emitter (CHE)
4. Thermostat: On/off or dimming
5. Timer: 12‑hour cycle

Wiring Diagram (Text‑Based)

Mains Power → Timer → UVB Fixture

Mains Power → Thermostat → Basking Lamp → CHE Fixture

Thermostat Probe → Cool Side of Vivarium

Safety Notes

1. Never place CHE directly on wood
2. Use ceramic fixtures only
3. Keep wires away from heat sources
4. Use cable clips to secure wiring
5. Test temperatures for 48 hours before adding animals

Materials:

1. LED strip
2. LED strip power supply
3. LED strip controller (optional)
4. Double-sided adhesive tape or mounting clips
5. Wire cutters
6. Soldering iron and solder (if necessary for connecting multiple strips)

Tools:

1. Measuring tape
2. Pencil
3. Scissors

Instructions:

1. Measure the Front Profile:
2. Measure the length of the vivarium's front profile where you want to place the LED strip.
3. Add a small amount to account for corners or curves.
4. Cut the LED Strip:
5. LED strips usually have cutting points marked every three or six LEDs. Cut the strip to the desired length at one of these points using wire cutters.
6. Prepare the Surface:
7. Clean the front profile of the vivarium with isopropyl alcohol to remove dirt and grease. Ensure the surface is dry before proceeding.
8. Apply Adhesive Tape or Mounting Clips:
9. If using double-sided adhesive tape, peel off the backing and apply it to the back of the LED strip.
10. If using mounting clips, attach them to the vivarium's front profile at regular intervals.
11. Attach the LED Strip:
12. Carefully press the LED strip with the adhesive tape or clips onto the front profile of the vivarium. Ensure it's securely attached.
13. Connect the Power Supply:
14. Connect the LED strip to the power supply according to the manufacturer's instructions.
15. Test the Lights:
16. Plug in the power supply to test the LED strip. Ensure all LEDs are working correctly.
17. Add Controller (Optional):
18. If using an LED strip controller, connect it between the power supply and the LED strip. Follow the controller's instructions for setup.

Additional Tips:

1. For a seamless look, consider using a waterproof LED strip, especially if the vivarium is in a humid environment.
2. If you need to extend the LED strip, connect additional strips using a soldering iron and solder. Ensure proper polarity when connecting the strips.
3. To hide the power cord, you can use cable clips or channels to route it along the back of the vivarium.
4. For a more even light distribution, consider using a diffuser over the LED strip.

By following these steps, you can successfully install LED strips on your vivarium's front profile to create a visually appealing and functional lighting setup.

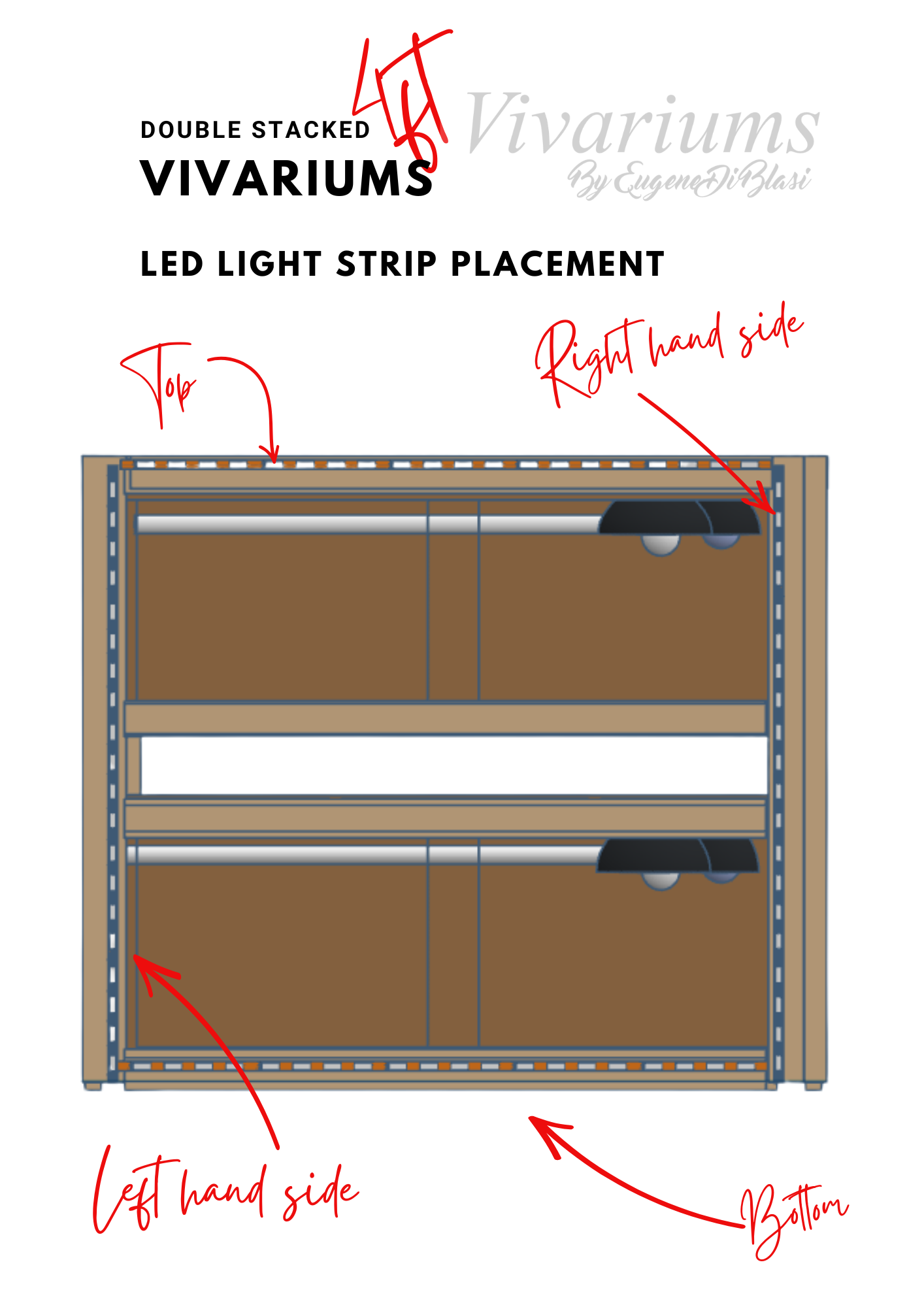

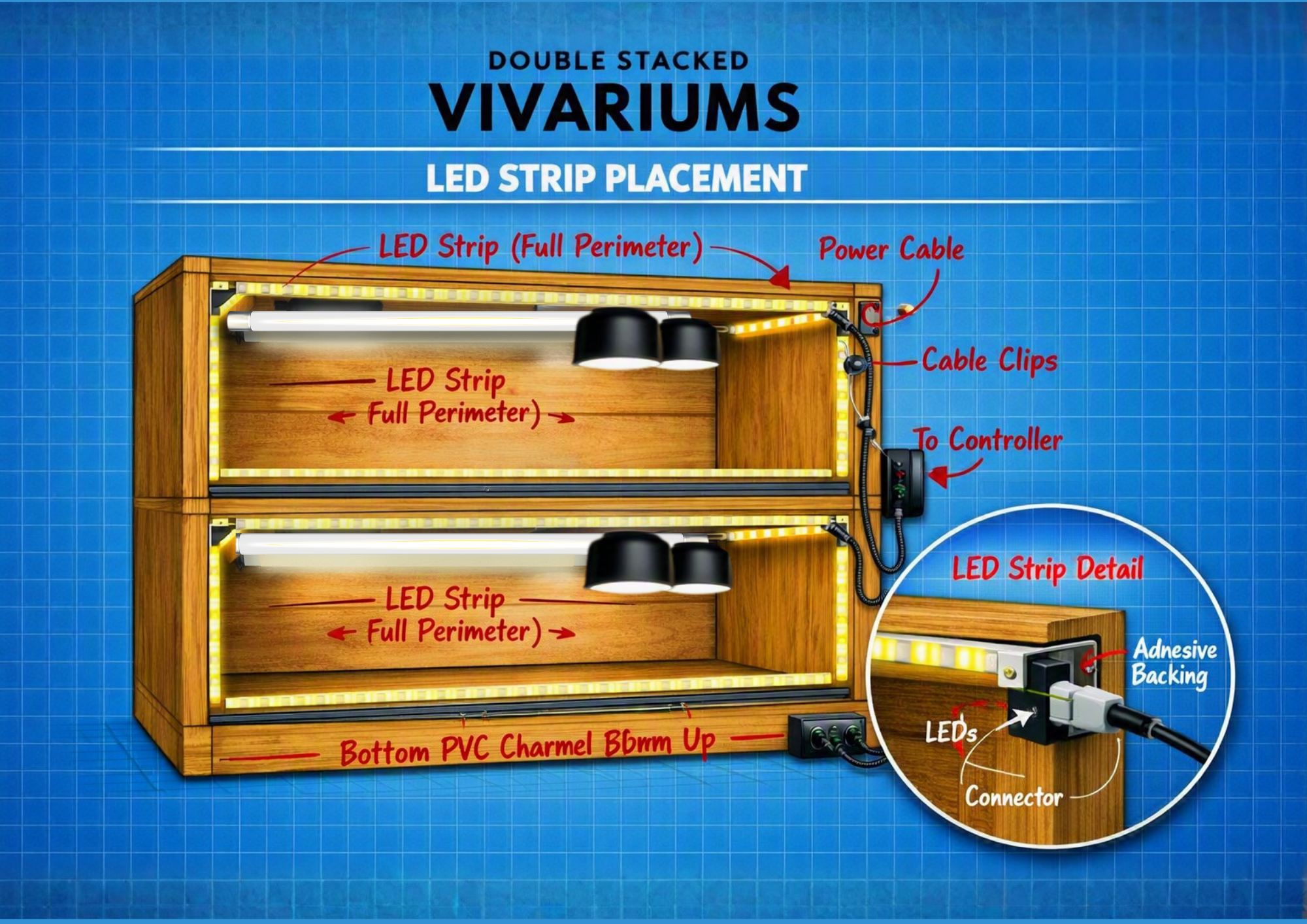

LED Strip Installation (Updated)

LED Requirements

1. 12V LED strip
2. 2A minimum power supply
3. IP65 waterproof rating (recommended)

Instructions

1. Measure Front Profile Cut LED strip at marked cut points.
2. Prepare Surface Clean with alcohol for better adhesion.
3. Attach Strip Use double‑sided tape or mounting clips.
4. Connect Power Ensure polarity matches (+ to +, – to –).
5. Secure Wiring Use cable clips to prevent sagging.
6. Test Lighting Ensure full brightness and no flickering.

Materials:

1. Wooden cutout front panel
2. Vivarium frame
3. Wood screws
4. Drill
5. Screwdriver
6. Pencil
7. Measuring tape

Instructions:

1. Prepare the Wooden Cutout:
2. Ensure the wooden cutout is the correct size to fit the vivarium opening.
3. Sand any rough edges for a smooth finish.
4. Mark Attachment Points:
5. Hold the wooden cutout in place on the vivarium opening.
6. Mark the points on the vivarium frame where you want to attach the screws.
7. Drill Pilot Holes:
8. Drill pilot holes in the marked locations on the vivarium frame. This prevents the wood from splitting when screwing.
9. Align the Wooden Cutout:
10. Position the wooden cutout accurately on the vivarium frame, aligning it with the pilot holes.
11. Ensure the LED lights are positioned behind the wood panel and not visible, but ensuring they illuminate the cutouts effectively.
12. Secure with Screws:
13. Insert the screws into the pilot holes and tighten them securely. Use screws that are appropriate for the thickness of the wood and the vivarium frame.
14. Check for Stability:
15. Gently test the wooden cutout to ensure it is firmly attached and doesn't wobble.

Additional Tips:

1. For a better seal, you can apply a bead of silicone caulk around the edges of the wooden cutout before attaching it.
2. If the wooden cutout is heavy, consider using additional supports or braces for reinforcement.
3. For a more finished look, you can paint or stain the wooden cutout to match your desired aesthetic.

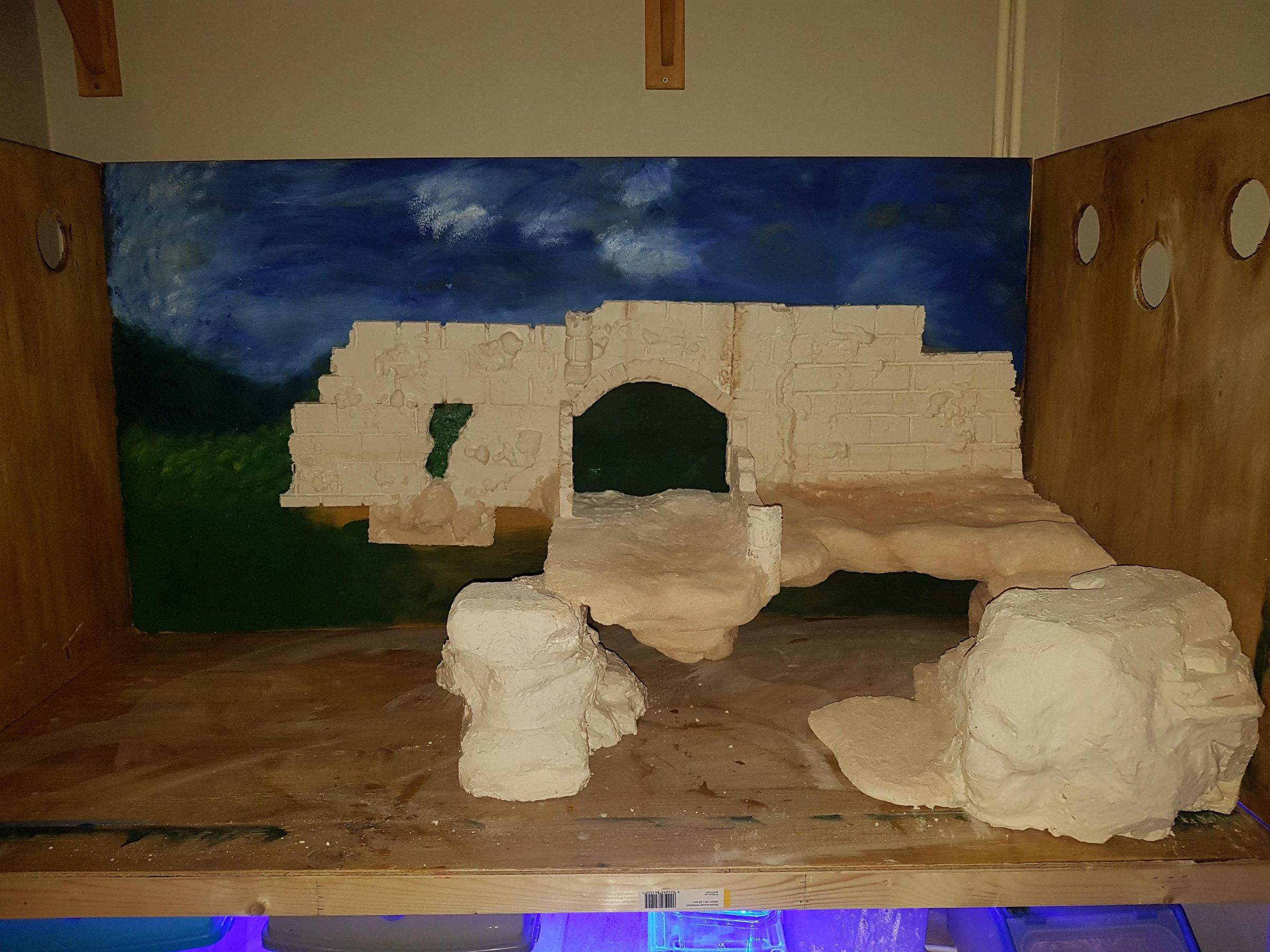

Materials Needed:

1. Polystyrene sheets
2. Paper mache paste (or a mixture of flour and water)
3. Newspaper or other paper strips
4. Grout
5. Acrylic paints
6. Water-based acrylic matt finish varnish
7. Brushes
8. Cutting tools (knife, scissors)
9. Sandpaper

Step-by-Step Instructions:

1. Design and Cut Polystyrene:

1. Sketch out the desired shape for your decor.
2. Use a cutting tool to shape the polystyrene according to your design. You can cut, carve, or layer multiple sheets to achieve the desired form.

2. Create a Paper Mache Base:

1. Tear newspaper or other paper into strips.
2. Apply a layer of paper mache paste to the polystyrene.
3. Place paper strips over the paste, overlapping them for strength.
4. Repeat layers until you achieve the desired thickness and strength.
5. Allow the paper mache to dry completely.

3. Apply Grout:

1. Mix the grout according to the package instructions.
2. Apply a thick layer of grout over the dried paper mache using a brush or trowel.
3. Create texture by pressing into the grout with various tools (e.g., forks, sponges, crumpled paper).
4. Allow the grout to dry completely.

4. Sanding and Shaping:

1. Once the grout is dry, use sandpaper to smooth any rough edges or areas.
2. Shape the decor further if needed by carving or adding more grout.

5. Painting:

1. Apply acrylic paints to the dried grout to achieve the desired color. You may need multiple coats for full coverage.
2. Allow the paint to dry completely.

6. Varnishing:

1. Apply several coats of water-based acrylic matt finish varnish to protect the decor and enhance its appearance. Allow each coat to dry before applying the next.

Tips:

1. For a more realistic look, consider using different colors of grout or paint to create depth and dimension.
2. Experiment with different textures and patterns in the grout layer for added interest.
3. To achieve a more natural look, incorporate real elements like moss, bark, or small plants into the decor.
4. Seal the finished decor with a waterproof sealant if you plan to use it in a humid environment.

By following these steps and using your creativity, you can create unique and realistic decor pieces to enhance your vivarium.

- - www.instructables.com - -VIVARIUM PI - - www.instructables.com - -
