This project focuses on the engineering reality of small craft propulsion. By using real-time telemetry, I discovered that pushing an inflatable kayak (Itiwit 100+) to its hull limit of 6.0 km/h required 19.0A, while backing off to 5.0 km/h dropped the consumption to 5.85A.

In this guide, I will document the front-mount geometry, the LiFePO4 battery integration, and the telemetry setup that allowed me to triple my range by understanding hydrodynamic drag.

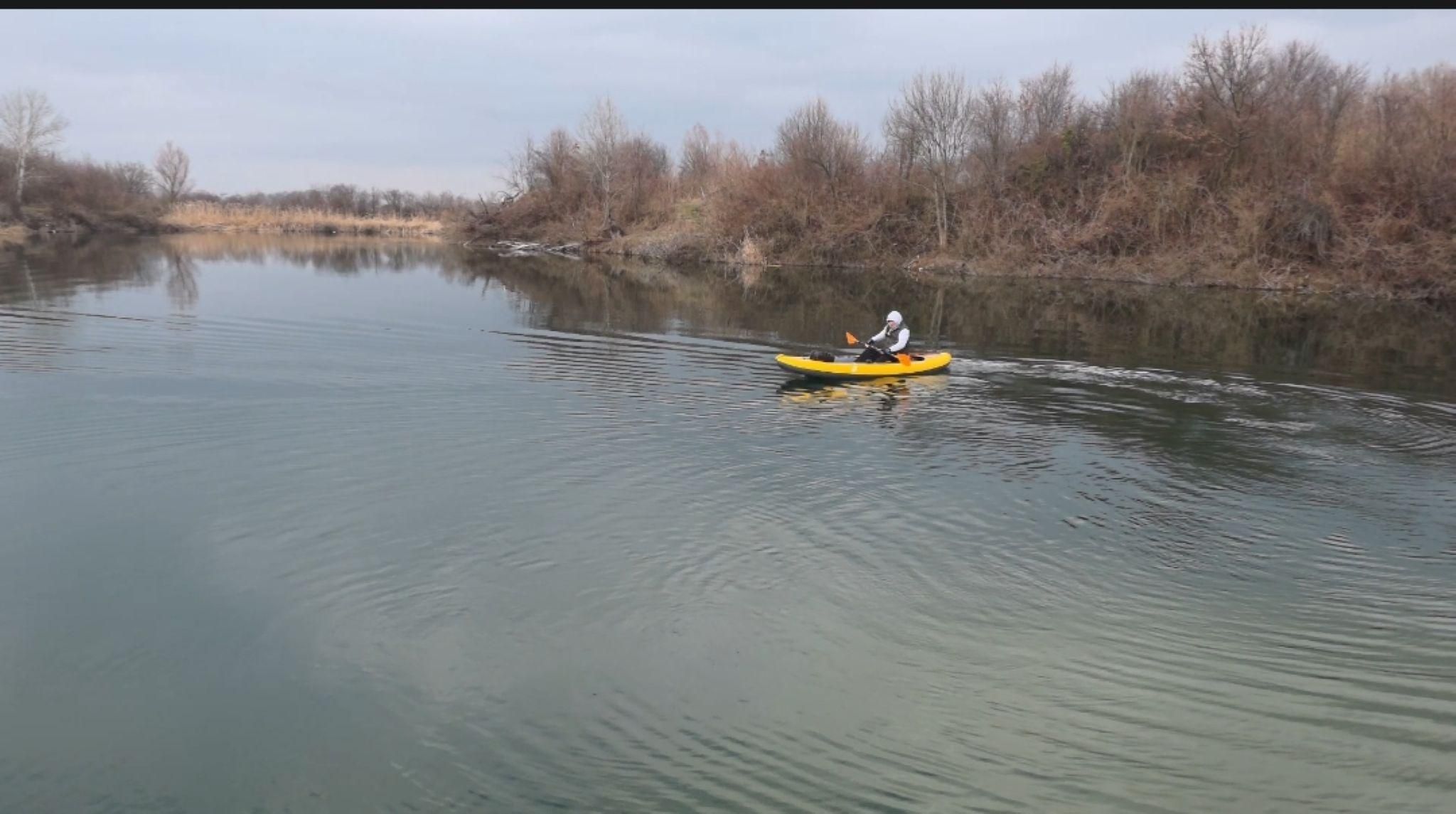

Vessel: Itiwit 100+ Inflatable Kayak (drop-stitch floor at 5.2 psi).

1. Power: 12V LiFePO4 Battery system.
2. Motor: Modified trolling motor with custom bow-mount bracket.
3. Telemetry: Real-time HUD (Voltage, Amperage, Speed over Ground).
4. Hardware: Marine-grade wiring, PWM controller, and custom-reinforced mounting plate.
5. Tools: Multimeter, wire crimpers, and basic mechanical tools.

Every hull has a speed limit where drag becomes exponential. In this step, we analyze the telemetry data.

1. The Wall: At 6 km/h, the motor draws 19A. The bow begins to dive, creating massive turbulence.
2. The Sweet Spot: At 5 km/h, the draw is only 5.85A.
3. Efficiency: A 16% reduction in speed leads to a ~70% reduction in energy consumption.

Attached below is the real-world telemetry video and the power-to-speed curve analysis.

Full technical schematics and high-res wiring diagrams are available in my technical library here:

https://ko-fi.com/ekayaktelemetry

The Mechanical Setup: Custom Bow-Mount & Hull Rigidity

Key Mechanical Specifications:

1. Hull Pressure: The drop-stitch floor is inflated to exactly 5.2 psi. This rigidity is crucial to prevent the hull from flexing under the motor's thrust, which would otherwise skew our efficiency data.
2. Mounting Geometry: I engineered a custom front-mount (bow-mount) bracket. Placing the motor at the front allows for "pulling" the vessel through the water, which offers superior directional stability compared to a rear mount on a short inflatable hull.
3. Trim Optimization: The motor's angle (trim) was fine-tuned to ensure the thrust vector is perfectly horizontal. Any vertical component in the thrust would lead to "bow diving," significantly increasing hydrodynamic drag.

In the next steps, we will see how this mechanical stability translates into massive energy savings.

The Electronic Heart: LiFePO4 Systems & Real-Time Telemetry

To achieve a 70% reduction in energy consumption, you need to see the data as it happens. This setup isn't just about power; it's about monitoring the relationship between voltage, current, and speed.

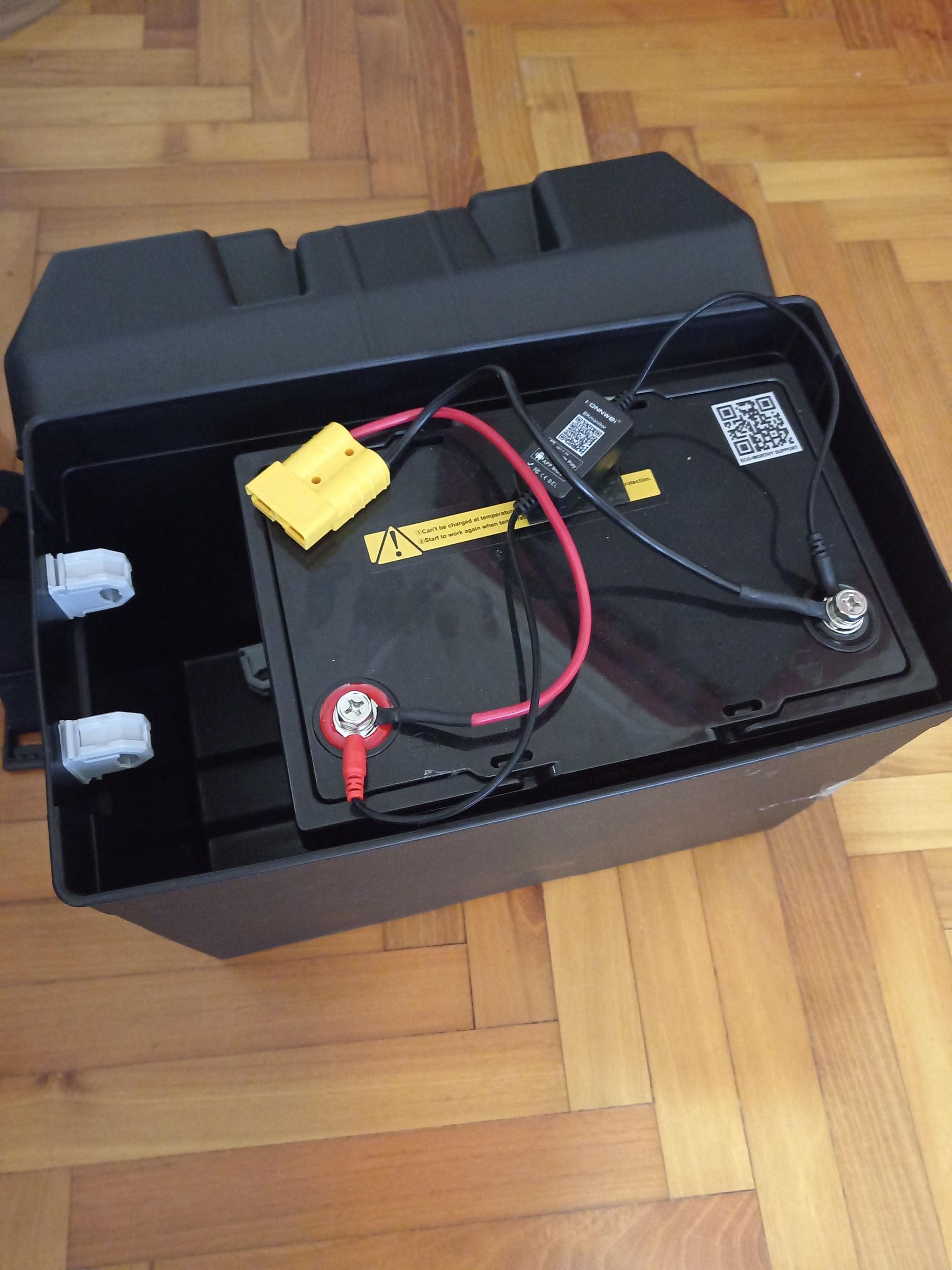

The Power Source: I am using a LiFePO4 battery bank. Unlike lead-acid, LiFePO4 maintains a very flat discharge curve. Under a heavy 19A load, the system stays stable at 13.3V, providing consistent torque to the motor.

The Telemetry HUD (Head-Up Display): The system features a real-time monitor that tracks:

1. Voltage (V): To monitor battery health and sag.
2. Amperage (A): The most critical metric for efficiency.
3. Speed over Ground (km/h): Calculated via GPS to account for current and wind.

Wiring & Safety: All connections use marine-grade connectors to prevent corrosion. I've implemented a PWM (Pulse Width Modulation) controller instead of a standard stepped switch, allowing for granular control over the motor's RPM. This precision is what allows us to find the "Sweet Spot" between displacement and drag.

Note: Accurate telemetry is the difference between a 1-hour trip and a 4-hour trip on the same charge.
