Welcome to my project: Toothpick Eiffel Tower Replica.

How could you combine something monumentally immense and one-of-a-kind with something completely opposite: tiny and used every day?

And furthermore, how could their histories be connected within the same historical period?

Here I'm going to show you how to make a low-cost Eiffel Tower replica made out of wooden toothpicks, with a fine and minimalist design, so join me!

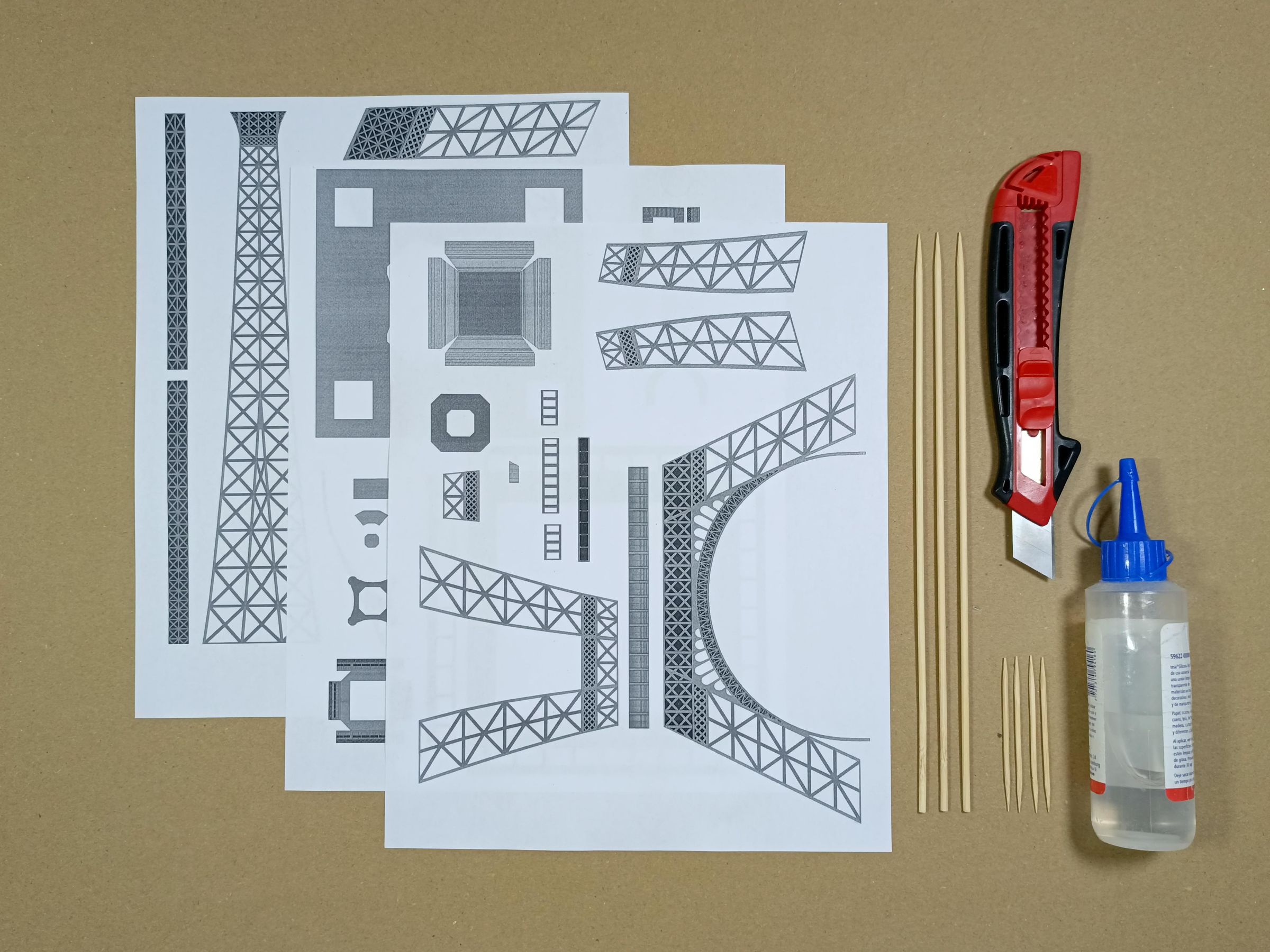

Cutter/Scissors

Template

Toothpicks

Glue

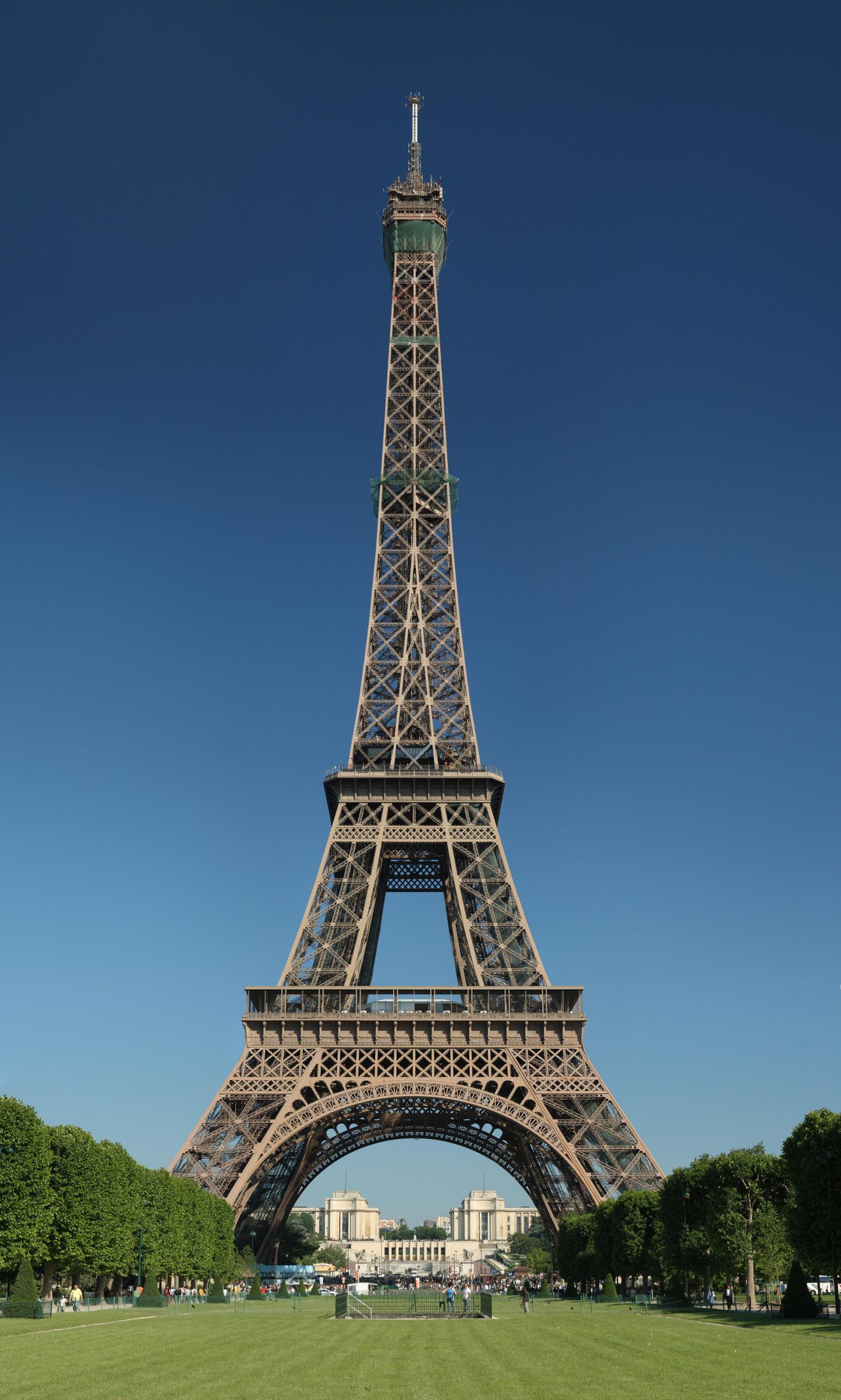

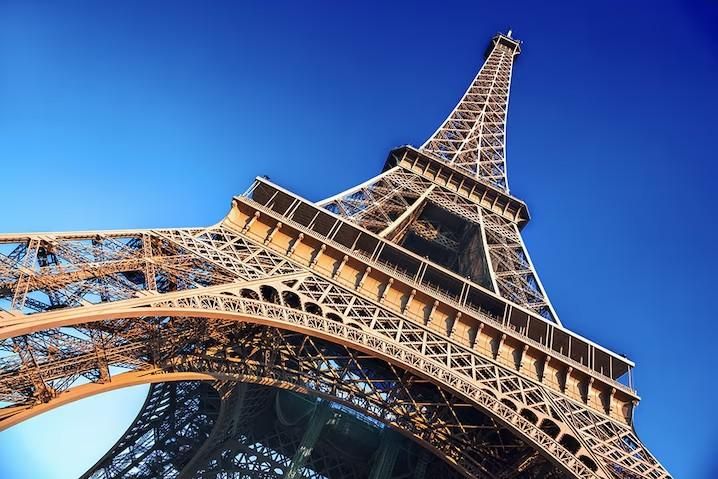

The Eiffel Tower (named after the engineer Gustave Eiffel) is an iconic wrought-iron lattice tower located on the Champ de Mars in Paris, France, serving as a global symbol of France and one of the world's most visited landmarks.

the construction began on January 28, 1887 and completed in March 31, 1889 for the World's Fair to celebrate the French Revolution's centennial, the Eiffel Tower was designed by engineers Maurice Koechlin and Émile Nouguier, and built by Gustave Eiffel.

Initially criticized by artists, the 300-meter iron structure was meant to stand for only 20 years.

Fun Facts:

Locally nicknamed "La dame de fer" (French for "Iron Lady")

The "Iron Lady" is Painted by Hand: A team of 25 painters applies 60 tons of paint every 7 years, completely by hand, to protect it from rust.

Built to Last? Originally, it was meant to be dismantled after 20 years, but it was saved because it became an invaluable antenna for military and scientific communications.

It "Grows" in Summer: Because the tower is constructed from puddle iron, the heat causes the metal to expand. During the summer, the tower can grow by up to 6 inches.

Secret Top-Floor Apartment: Gustave Eiffel designed a secret apartment for himself at the very top of the tower, where he famously entertained famous guests like Thomas Edison.

It Was Once Yellow: It has changed colors several times, including red-brown, yellow-orange, and a specially blended "Eiffel Tower brown".

Visible Miles Away: On a clear day, you can see up to 42 miles away from the top.

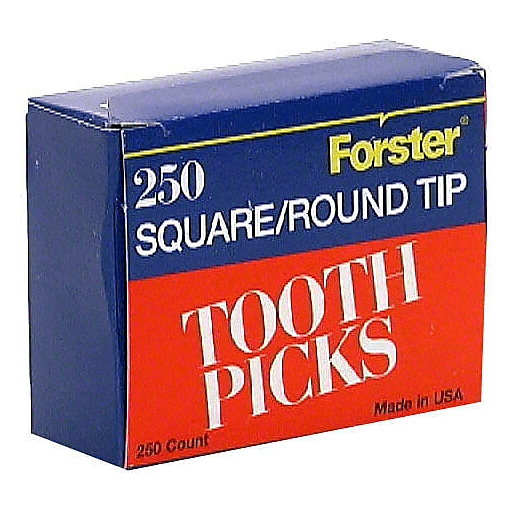

The toothpick is the oldest instrument for dental cleaning, with evidence of use by early hominids 1.8 million years ago. Originally twigs or bone, toothpicks evolved into ornate, costly items made of gold and silver in the 17th century before becoming mass-produced, disposable wooden items in the 19th century, with Charles Forster founding the first major factory in 1869

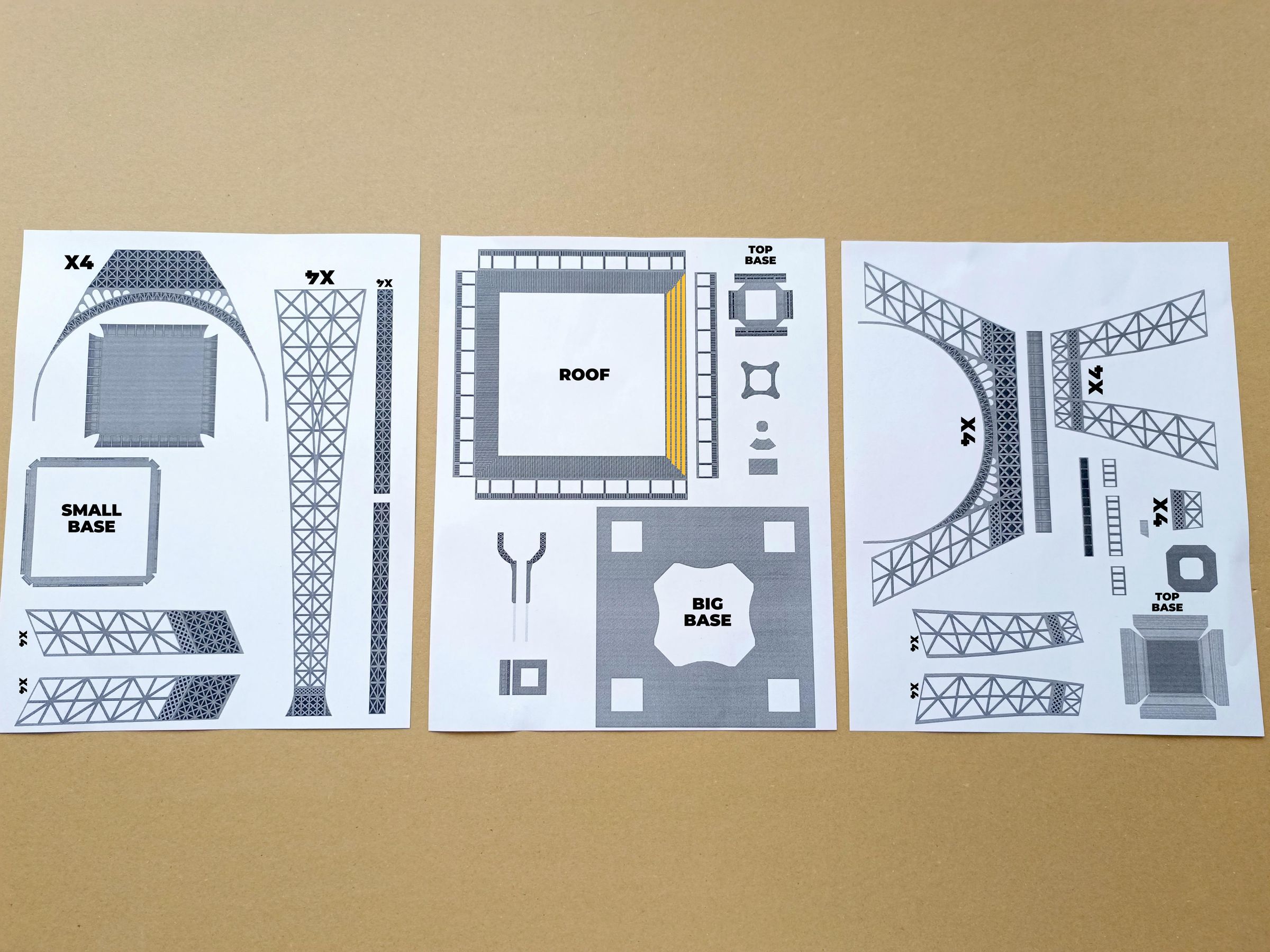

Here you can download the templates for the Eiffel Tower Replica and then review step by step which one corresponds and guide you through the assembly.

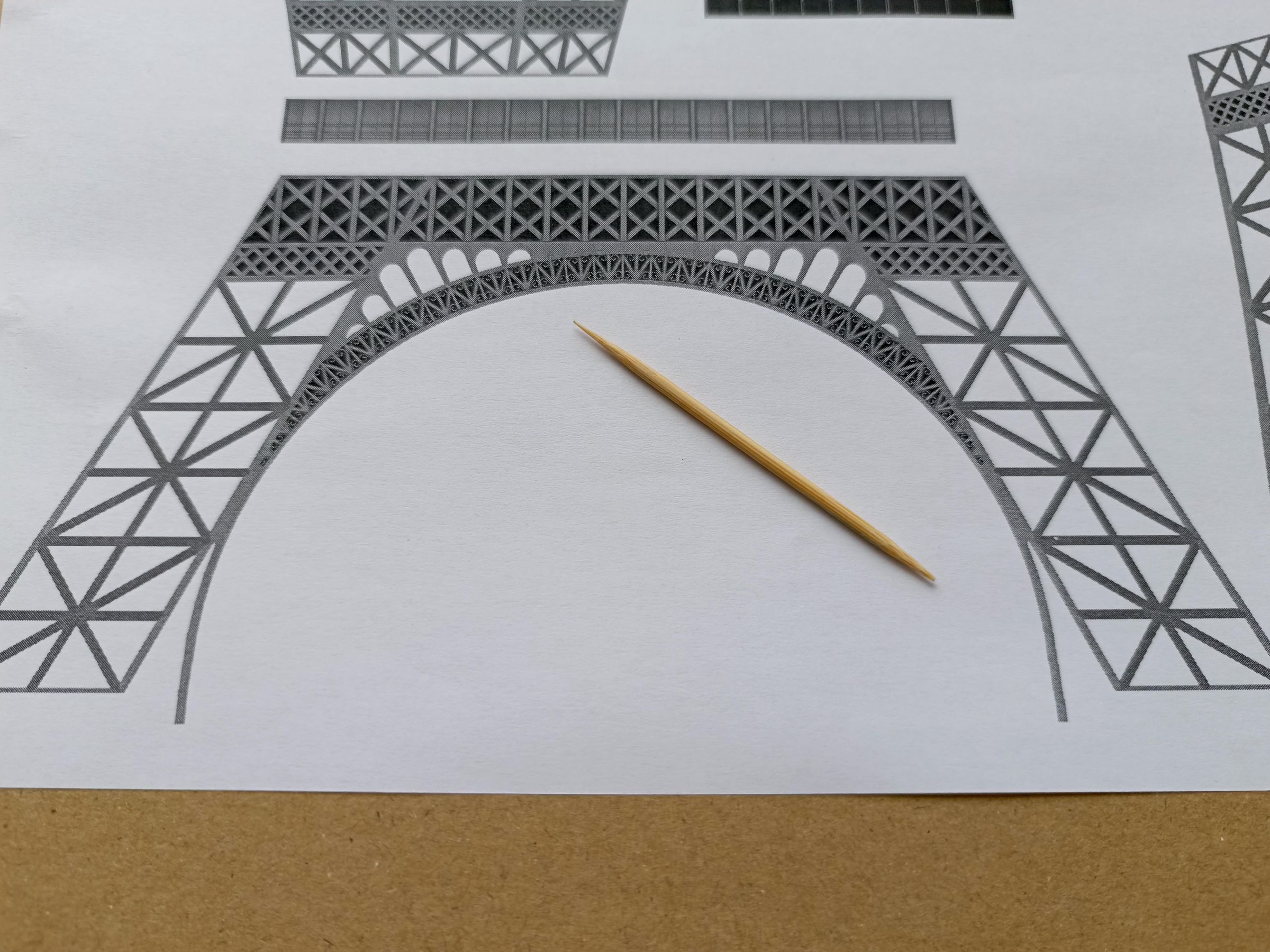

To begin, understand that the templates are merely a placement guide, where you can position the toothpicks according to the shapes and pieces. It doesn't necessarily have to be exactly the same as my tower, so feel free to add or remove areas where you may or may not want to place the toothpicks. The more toothpicks, the more detail the tower will have.

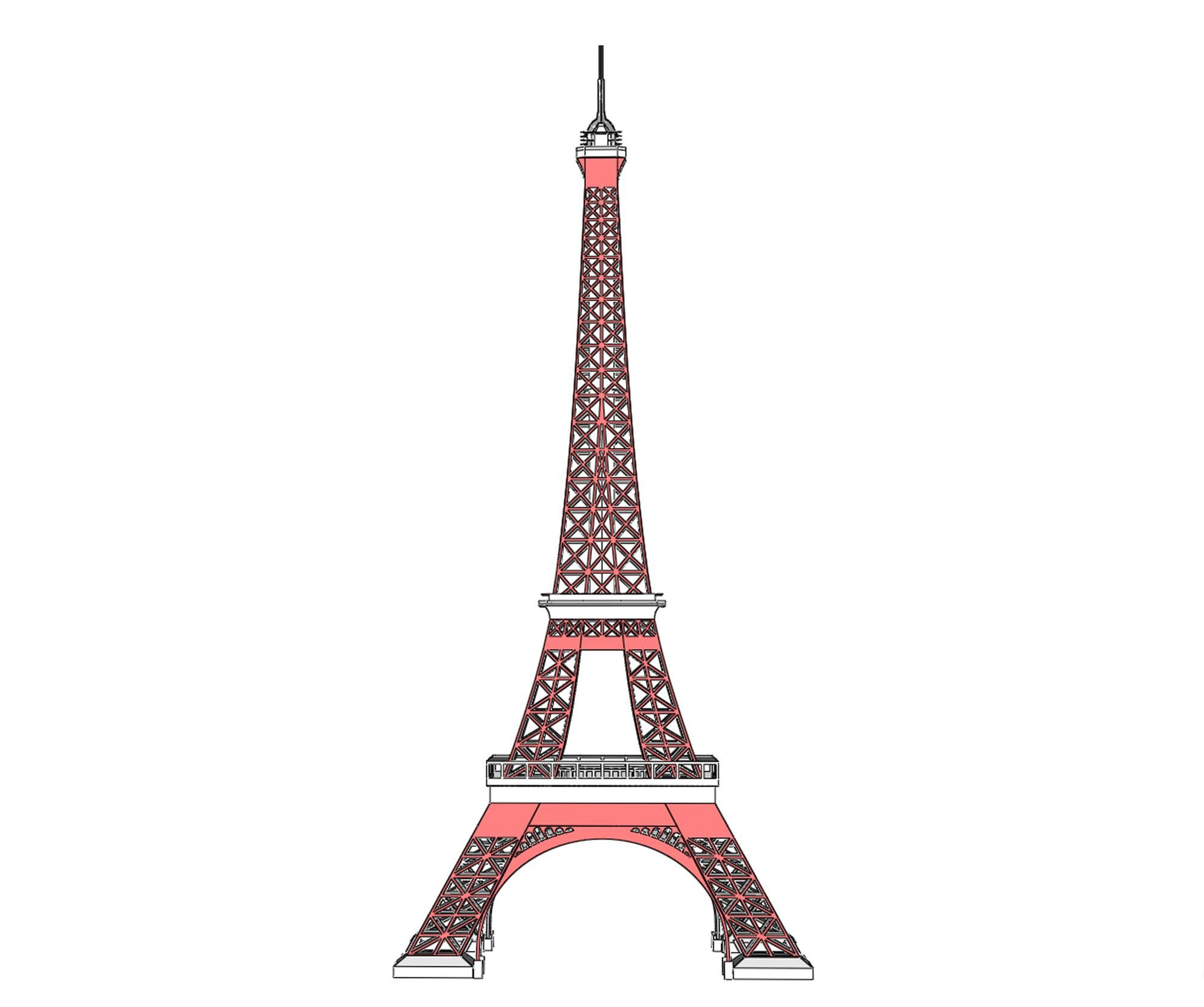

Before starting, here you will find some key points that will help you better understand the assembly. To build the tower, you will have to repeat several pieces, which represent the side faces of the tower. Also, check the 3D model image to locate where each piece goes.

Below you will find the assembly process for one of the pieces, a process that you will have to repeat as many times as necessary until all parts of the Eiffel Tower are completed.

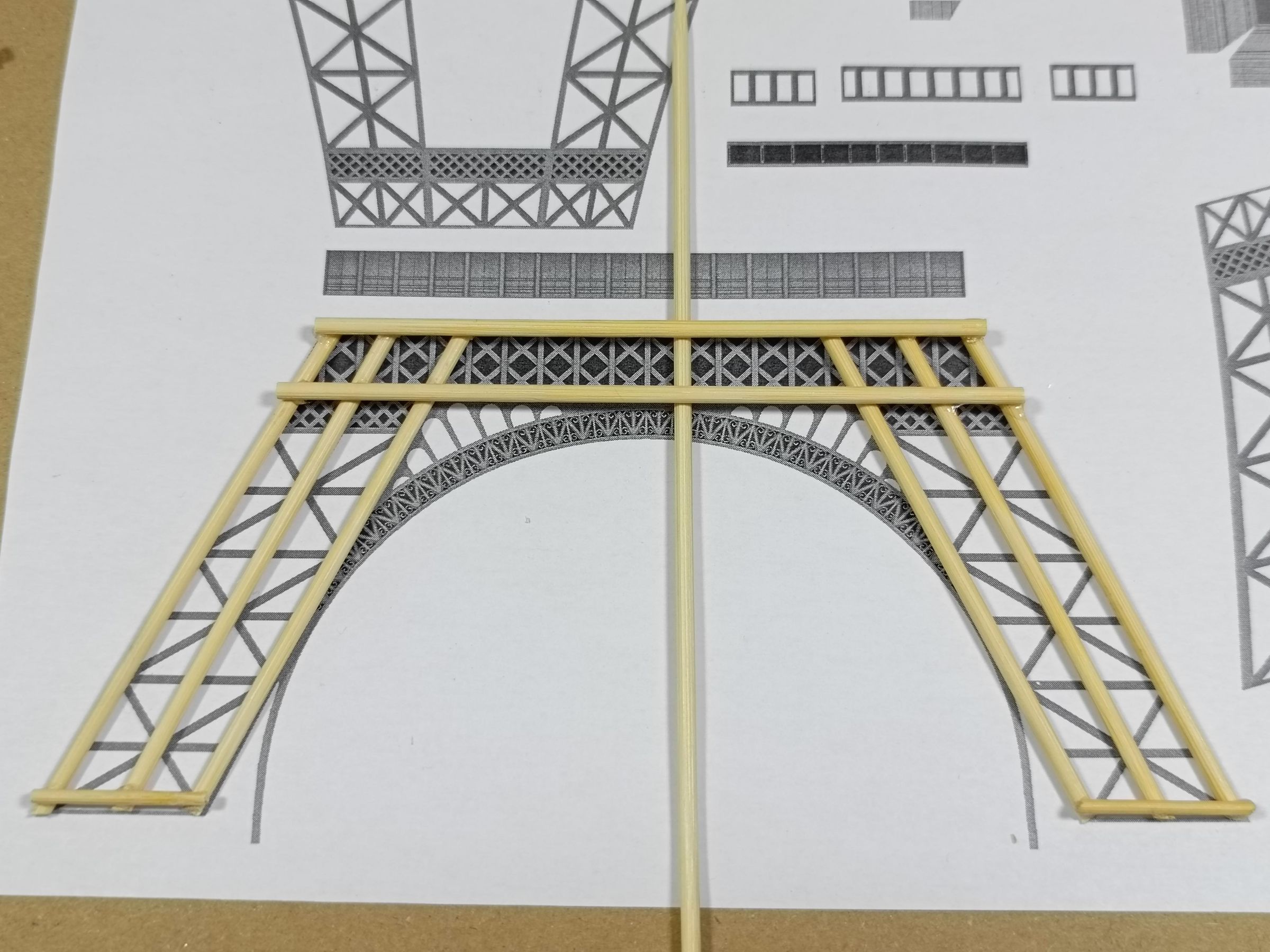

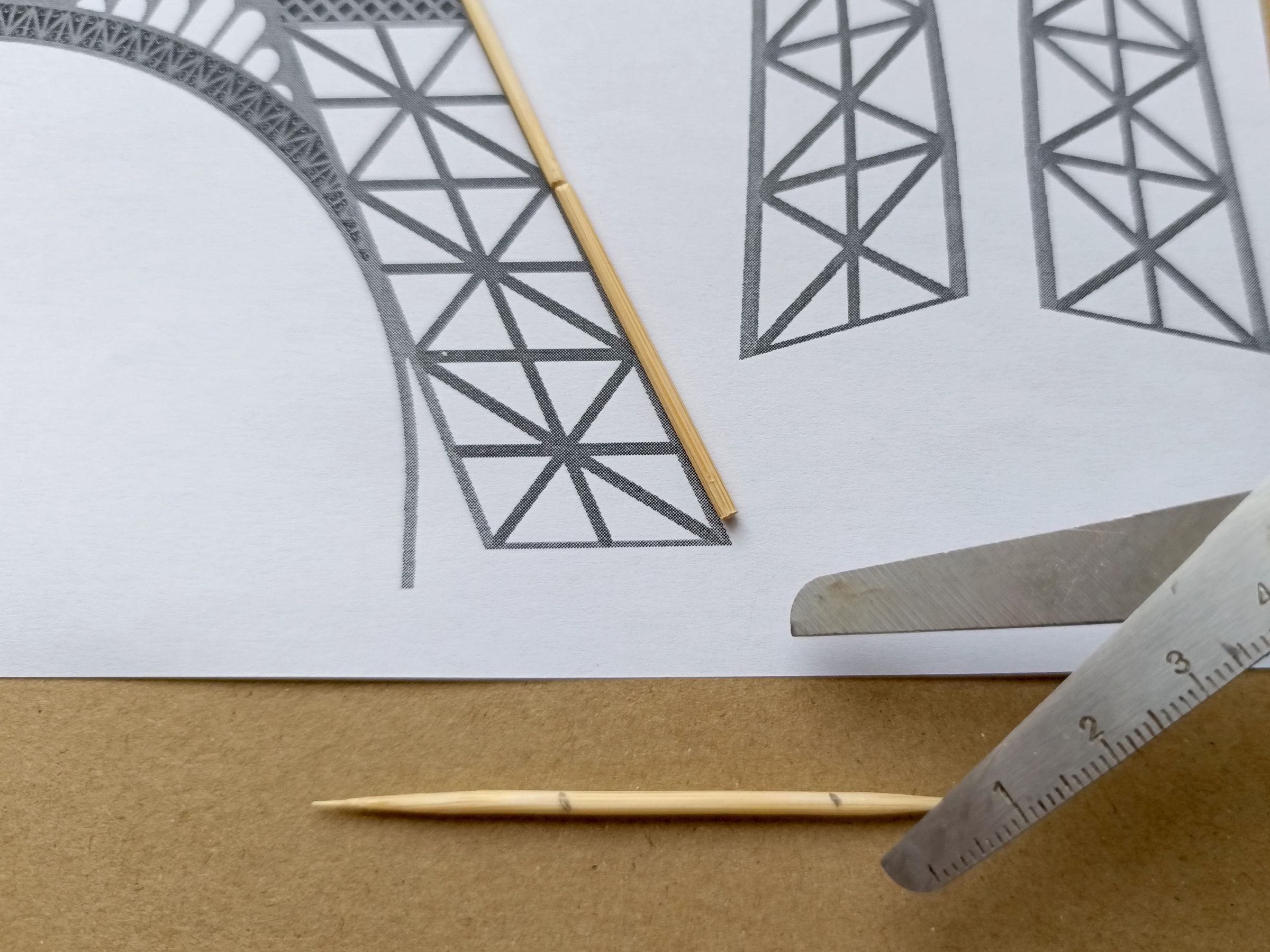

Using the templates as a guide, take each toothpick one by one and mark with a pencil or marker where the respective cuts should be made.

Then, using the cutter or scissors, cut the toothpicks at the exact point. If the toothpicks are very solid, you will need to use a more powerful cutting tool, such as a chisel.

Before gluing any toothpick, always visualize and ensure that the cut lengths are accurate.

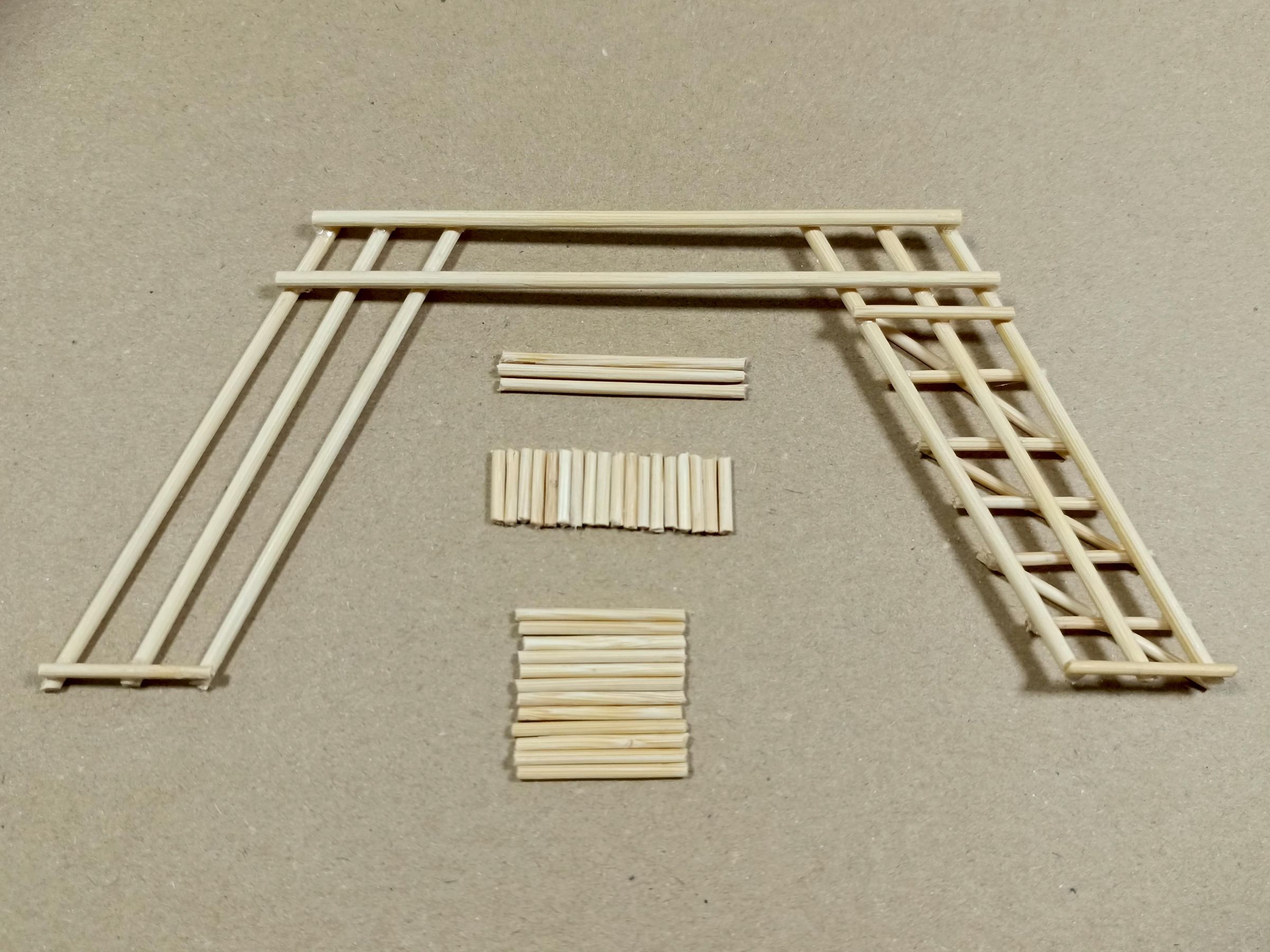

You'll need to prepare a large number of toothpicks for each piece, so I recommend cutting and gluing them or organizing them into packs of similar sizes for later use without problems.

If you are not organized, you will face a problem later having so many pieces jumbled up and not knowing where they belong.

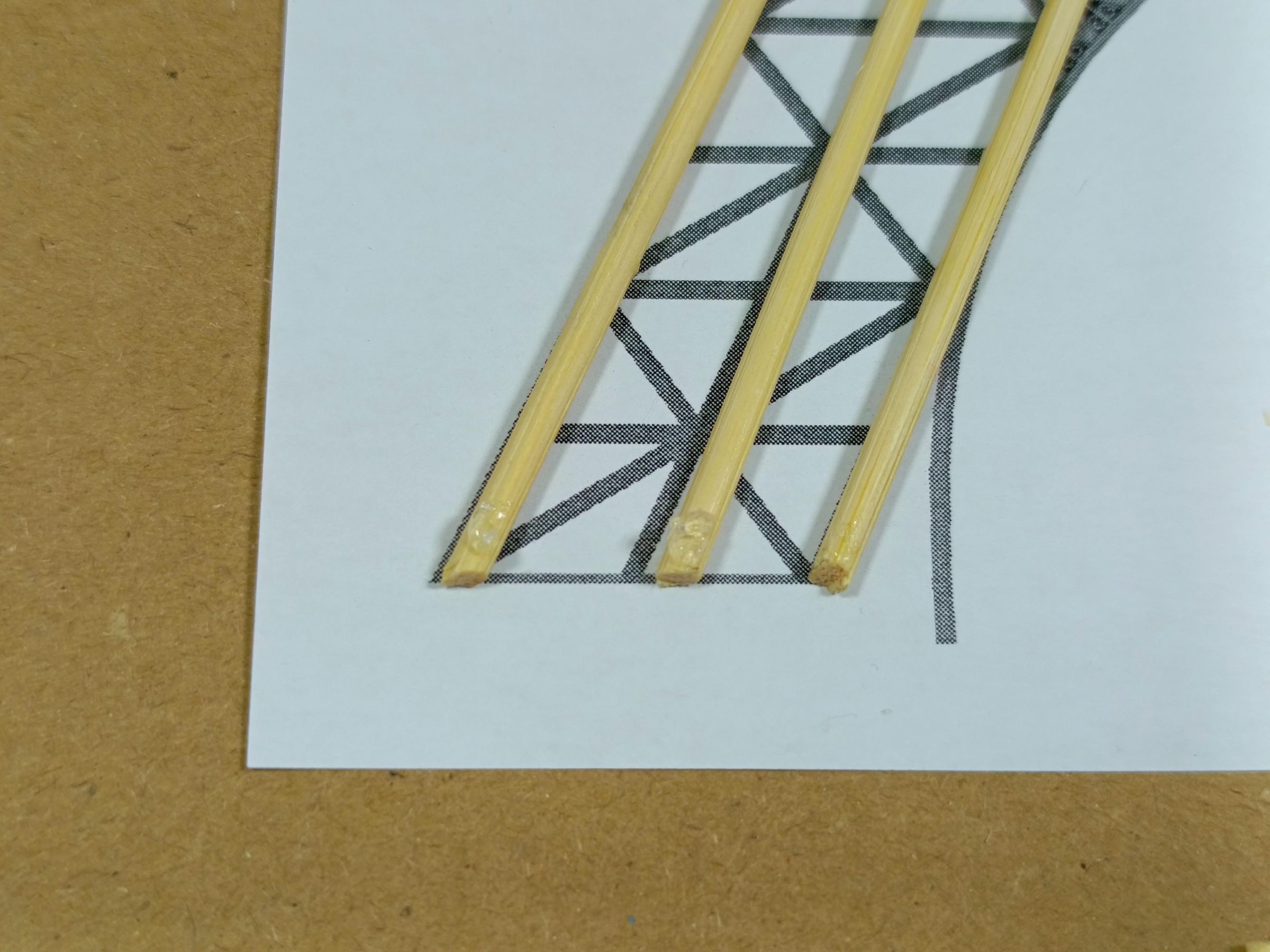

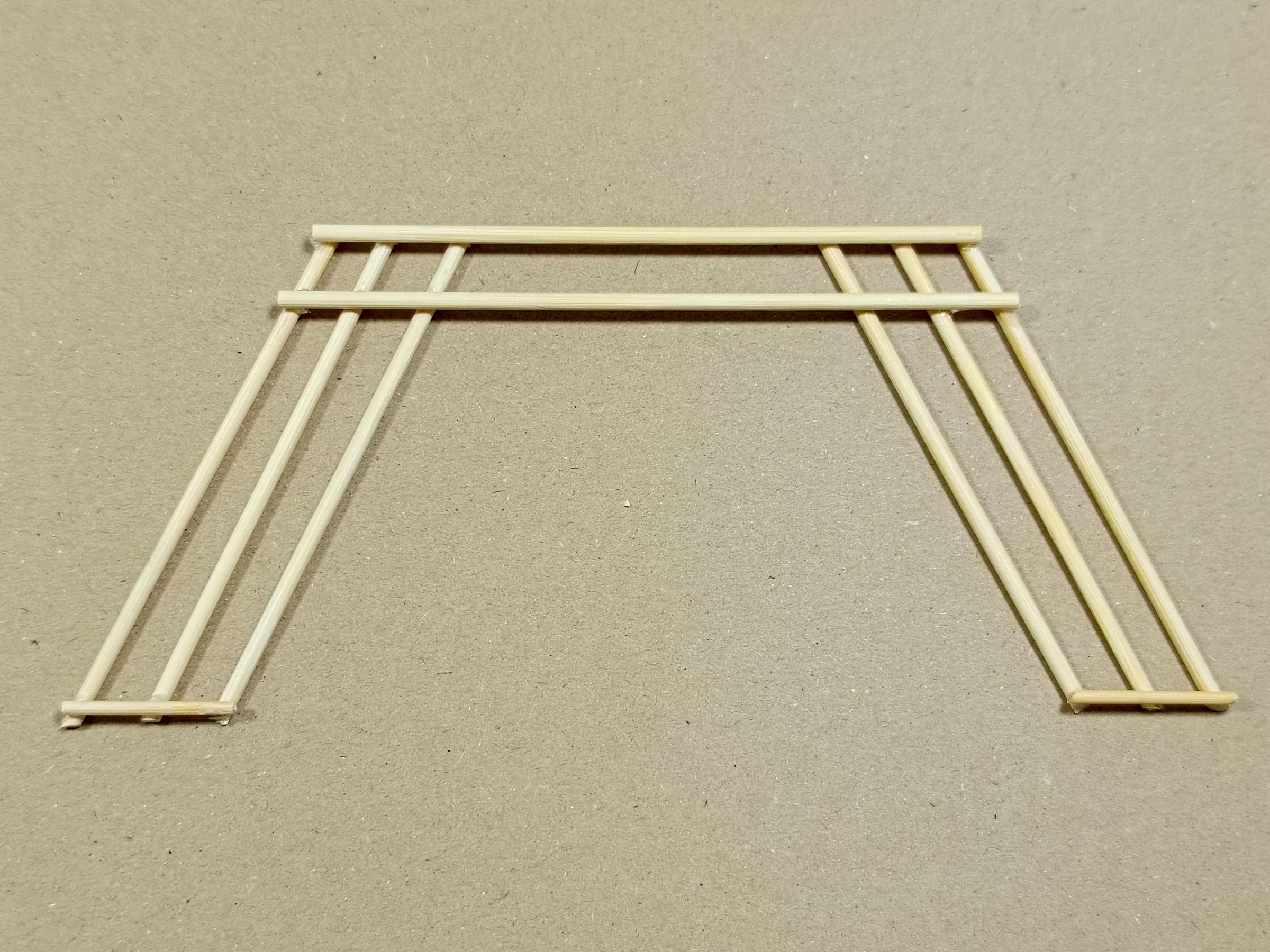

Apply the glue toothpick by toothpick or in linear groups where possible

Remember that after applying the glue between the joints, you must apply the appropriate pressure until the glue dries to avoid separation problems later.

To glue in parallel, use a toothpick of the same thickness as a support.

Complete the pieces by filling in the areas that are necessary according to your judgment.

Fill each space to complement the textures or details of the tower.

In the end, you will have one of the bases, which you will need to repeat the number of times indicated on the template.

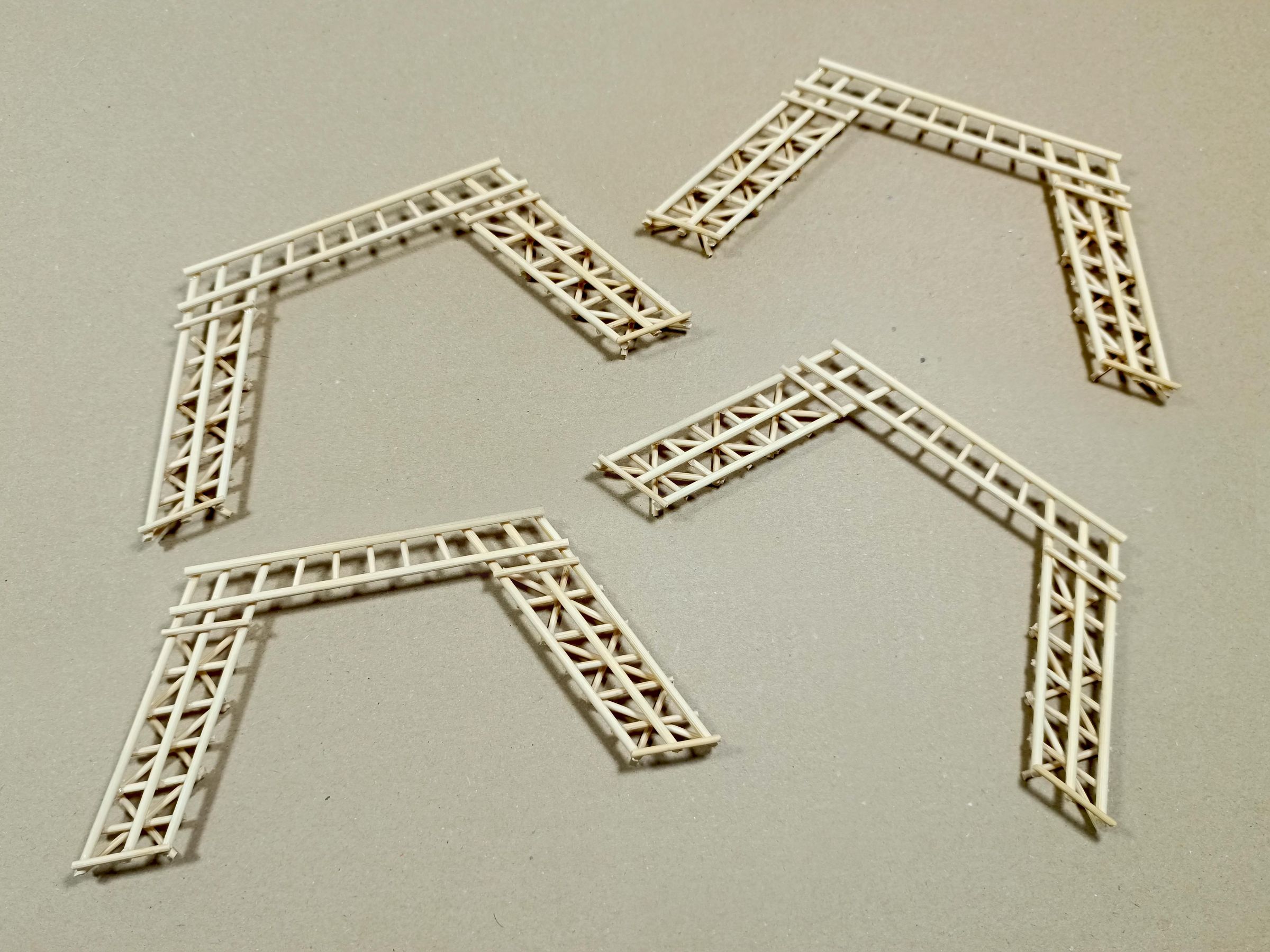

When a piece is complete, repeat the process the number of times indicated on the template; in this case, 4 times for each piece.

Now perform the same process with each front piece of the tower.

and recreate the remaining pieces with toothpicks

Now put all the pieces together to form the tower. Knowing the tower's design well makes assembly very easy, especially with the references from the checkpoint step (step 5).

Conclusion:

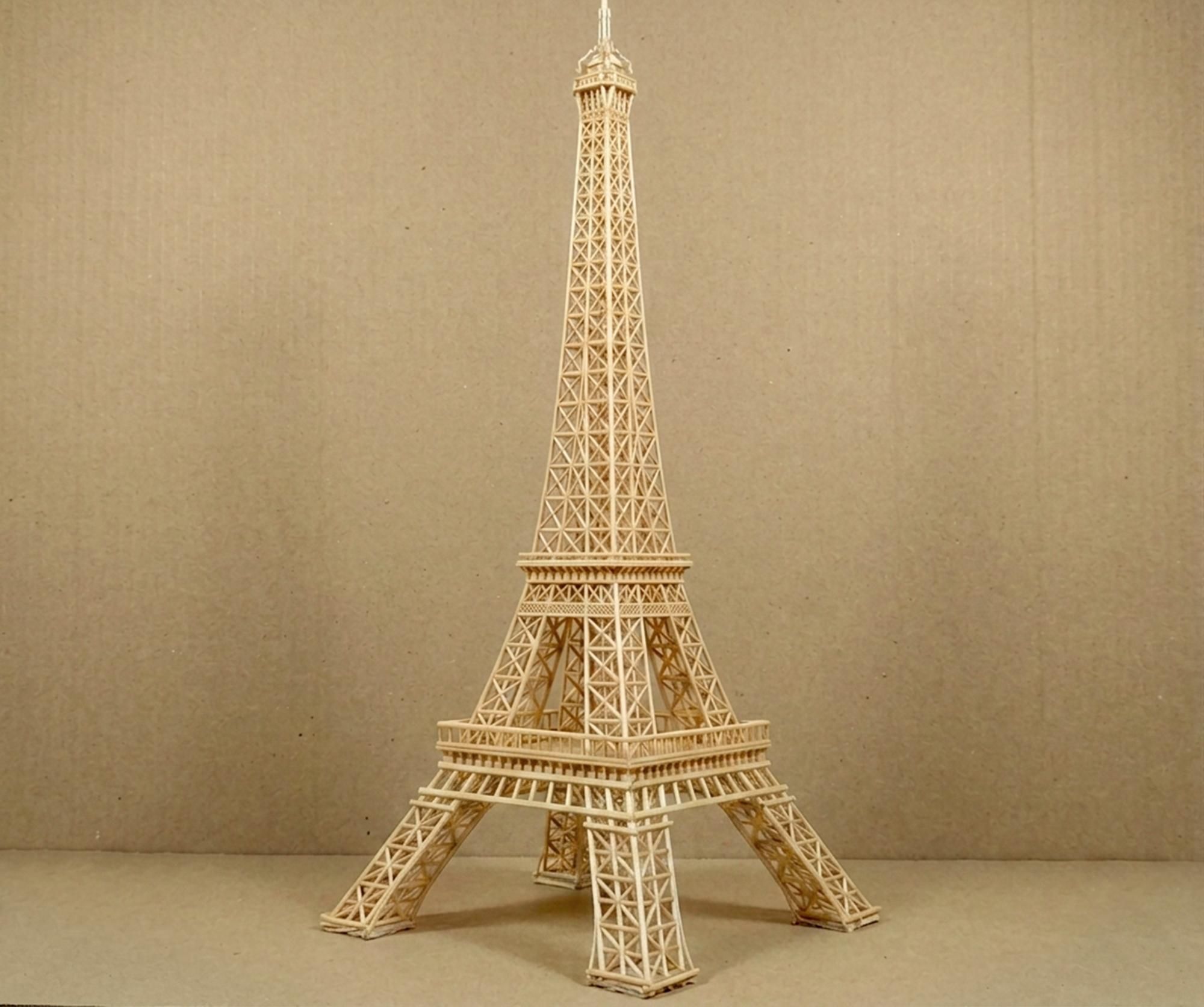

Although it's a tedious process, the results are incredible; every detail counts and it's worth it.

This piece is perfect for decorating your spaces. Besides being elegant, it tells a story and will stand out anywhere.

After assembling it, you can paint it with metallic paint if you prefer. I decided to leave it the natural color of the toothpick wood because I think it makes the piece more visually interesting.

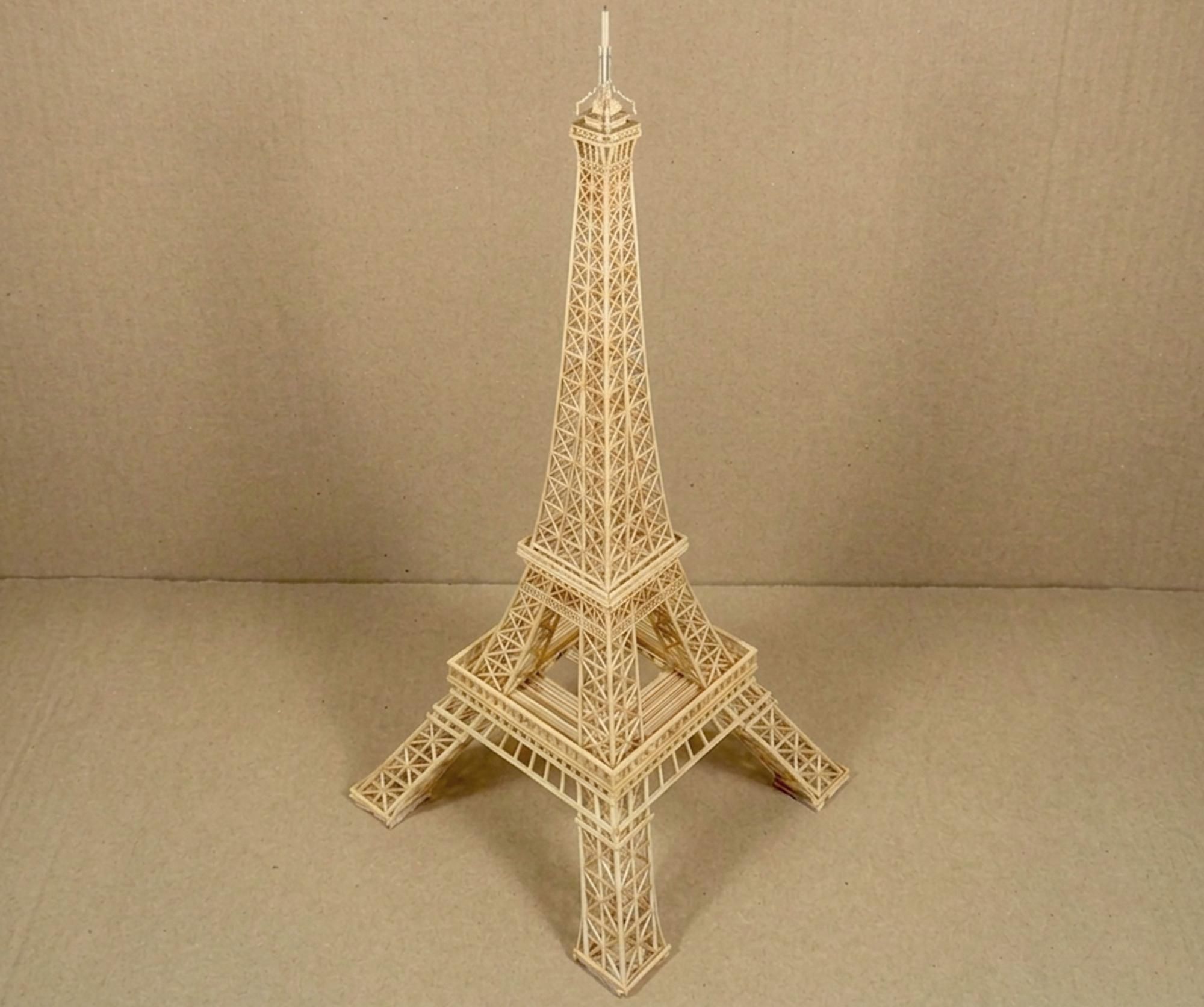

In the end, you'll have a highly detailed, handcrafted piece.

Thanks for checking out my project.
