How to Fuse Crystal-clear Glass Rings in a Microwave Kiln (DIY Custom Molds)

Melting glass in the microwave is an inexpensive and exciting way to melt glass at home without a large industrial kiln. With a small, specially insulated microwave kiln, you can reach temperatures high enough to melt glass in around 10 minutes. This project guides you through the entire process of transforming recycled glass into jewelry. You’ll learn how to prepare your materials and create custom shapes like rings. Melting glass in the microwave requires patience and a willingness to experiment, but the results are incredibly rewarding. Let’s dive into the fascinating world of glass casting and small-scale glass melting.

To get started, you will need a microwave kiln and a microwave dedicated solely to crafting. Don't make the same mistake I did and buy the large Kiln. The small Kiln, with a diameter of 12 cm, is more than enough. For materials, gather glass bottles and safety equipment like heat-resistant gloves. For the custom mold making, you need a 3D-Printer, silicone molding compound, plaster of Paris, and kiln wash. A digital scale is useful for measuring your mold materials. Having all these supplies ready will ensure a smooth and safe crafting process.

1. Microwave Kiln: Link
2. Silicone Mold Making Kit: Link
3. Separator paper: Link
4. Glass bottle cutter: Link
5. Leather Cord Chain: Link
6. Silicone Mold Set: Link
7. Digital Scale: Link

For the first test, a heart-shaped plaster mold was filled with a large number of small glass shards to see how they melt together. After running the microwave kiln, the resulting glass heart turned out completely cloudy and opaque instead of clear. This cloudiness happens because countless tiny air bubbles get trapped between the numerous small glass fragments during the rapid melting process. While the shape of the heart filled out nicely, the lack of transparency proved that using too many small pieces ruins the clarity of the glass. This test showed that the quantity and size of the glass pieces drastically affect the visual quality of the final object.

In the second test, the experiment was repeated but this time using only a few, much larger pieces of glass inside the heart mold. The result was a dramatic improvement, yielding a heart that was more clear and transparent that in the previous test. The result of these inital tests led to the conclusion that it would be the best to choose solid rings directly from the necks of bottles to achieve maximum clarity and strength. Using a single pre-shaped piece of glass eliminates trapped air completely and ensures a professional, crystal-clear finish for your jewelry.

To get these solid rings the neck of a colored bottle is cut. A standard commercial bottle cutter was purchased first, but it quickly became clear that it was completely unsuited for the narrow, tapered neck of a bottle. To solve this problem, the commercial tool was completely disassembled to extract the essential cutting wheel mechanism. A custom cutting jig was then built by mounting these disassembled parts onto a flat wooden board tailored specifically to fit the dimensions of a bottle neck. Using this modified setup, a single, continuous score line can now be cleanly made around the narrow neck area. Thermal shock is then applied by alternating between boiling water and cold water until the perfect glass ring snaps off cleanly. This custom modification is the key to sourcing the seamless, whole pieces of glass needed for crystal-clear results.

To create completely custom shapes for your glass, you can use 3D printing to make precise master patterns. I design the silicon mold in Fusion and then 3D print the main design in PLA with a surrounding barrier, like a small garden fence. I wrap this barrier with tape to seal it before pouring in the liquid silicone. Since the exposed sticky side of the tape can react with the silicone and prevent it from curing properly, I dust it with powdered sugar to cover the adhesive. Once the silicone is fully cured, I simply remove the tape and peel the finished mold out of the PLA frame.

Sure, you could just place a ring on kiln paper and put a piece of chalk in the center. But after the melting process, the bottom of the ring would end up completely flat and take on the texture of the separator paper.

Once your 3D-printed master pattern is ready, you need to create a flexible silicone negative of it. Mix your two-part silicone molding compound thoroughly according to the manufacturer’s instructions. Pour the liquid silicone slowly into the master pattern to minimize the formation of air bubbles. Let the silicone cure completely at room temperature before demolding. Once the silicone is fully cured, remove the tape and peel the finished mold out of the PLA frame. You now have a reusable, highly detailed mold ready for casting your heat-resistant material.

Since silicone can’t withstand the extreme heat of the kiln, we use it to cast a heat-resistant plaster mold. Plaster can withstand about two to three firing cycles in a microwave kiln before it starts to crumble. But since we have a silicone mold, casting additional plaster molds is a breeze!

Mix your plaster with water until it has a smooth consistency. Pour the plaster mixture directly into your silicone mold, gently tapping the sides to remove any trapped air. I use a toothpick to remove air bubbles from the liquid plaster. I also hold an electric razor against the side of the silicone mold. The vibrations really help the bubbles rise to the surface. Let the plaster harden completely until it feels firm and cool to the touch. Carefully remove the plaster cast from the silicone mold and let it dry thoroughly for several days. Any remaining moisture in the plaster will turn into steam in the microwave and destroy the mold. You can also heat the mold in the oven at a low temperature to ensure it’s completely bone-dry.

Now comes a step that absolutely cannot be skipped. This is not the place to skimp — you must buy a proper separator or release agent, otherwise the glass will permanently fuse to the base. In the beginning, when you're just practicing, you can get away with using separator paper. But as soon as you start making your own plaster molds, switching to a high-quality kiln wash is a must.

So apply a layer of kiln wash separator to your dry plaster mold. Let the layer dry completely so it forms a solid protective barrier. This coating ensures that your fused glass piece pops out of the mold effortlessly after firing.

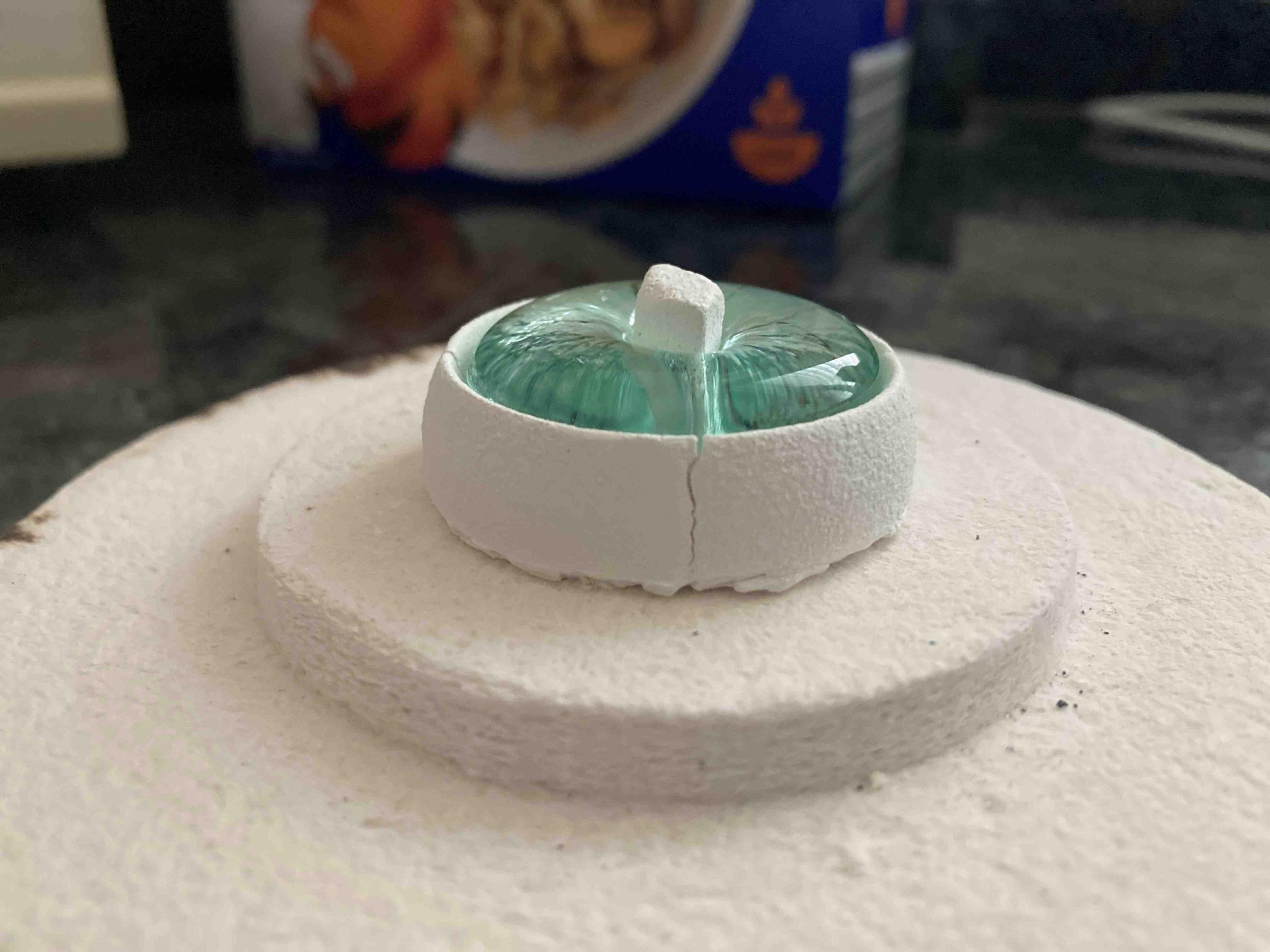

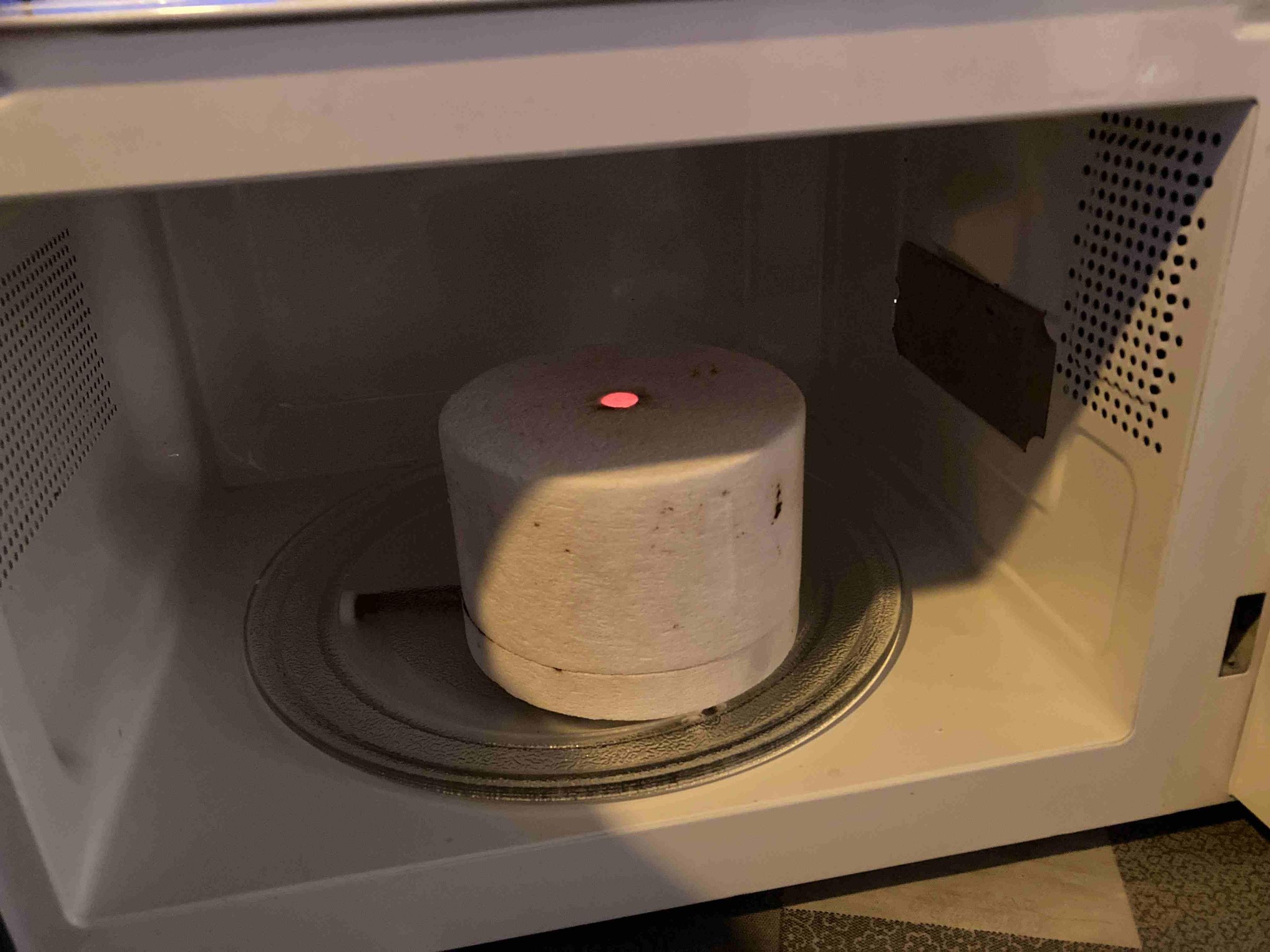

Now comes the exciting part where we assemble and fire the glass inside the microwave kiln. Place your prepared plaster mold onto the base of the kiln. Arrange your glass ring carefully inside the mold cavity. Put the middle piece on, place the entire setup into the microwave, and start the heating process. Monitor the process closely by watching the glow from the vent hole change from dull red to bright orange. Once the target fusion level is reached, immediately turn off the microwave to stop the heating. Depending on the weight of the glass you are melting it takes from 8 to 13 minutes using 700 Watt. Leave the kiln completely undisturbed until it cools back down to room temperature.

After your fused glass pieces have cooled down completely, you can transform them into wearable jewelry. Wash the glass fragments thoroughly to remove any leftover kiln wash. In the end, I simply attached the finished glass rings to store-bought leather cords to wear them as pendants.

Durability of the Plaster Molds

Plaster molds generally withstand only 2 to 3 firing cycles in the kiln before breaking down. I tried several modifications found online — such as adding silica flour or sand — but none of them helped extend their lifespan. However, I found a trick that actually works: instead of running the microwave continuously, I stop the process after 2 minutes, wait for 1 minute to let the mold adapt to the heat, and then resume. This thermal break significantly reduces cracking.

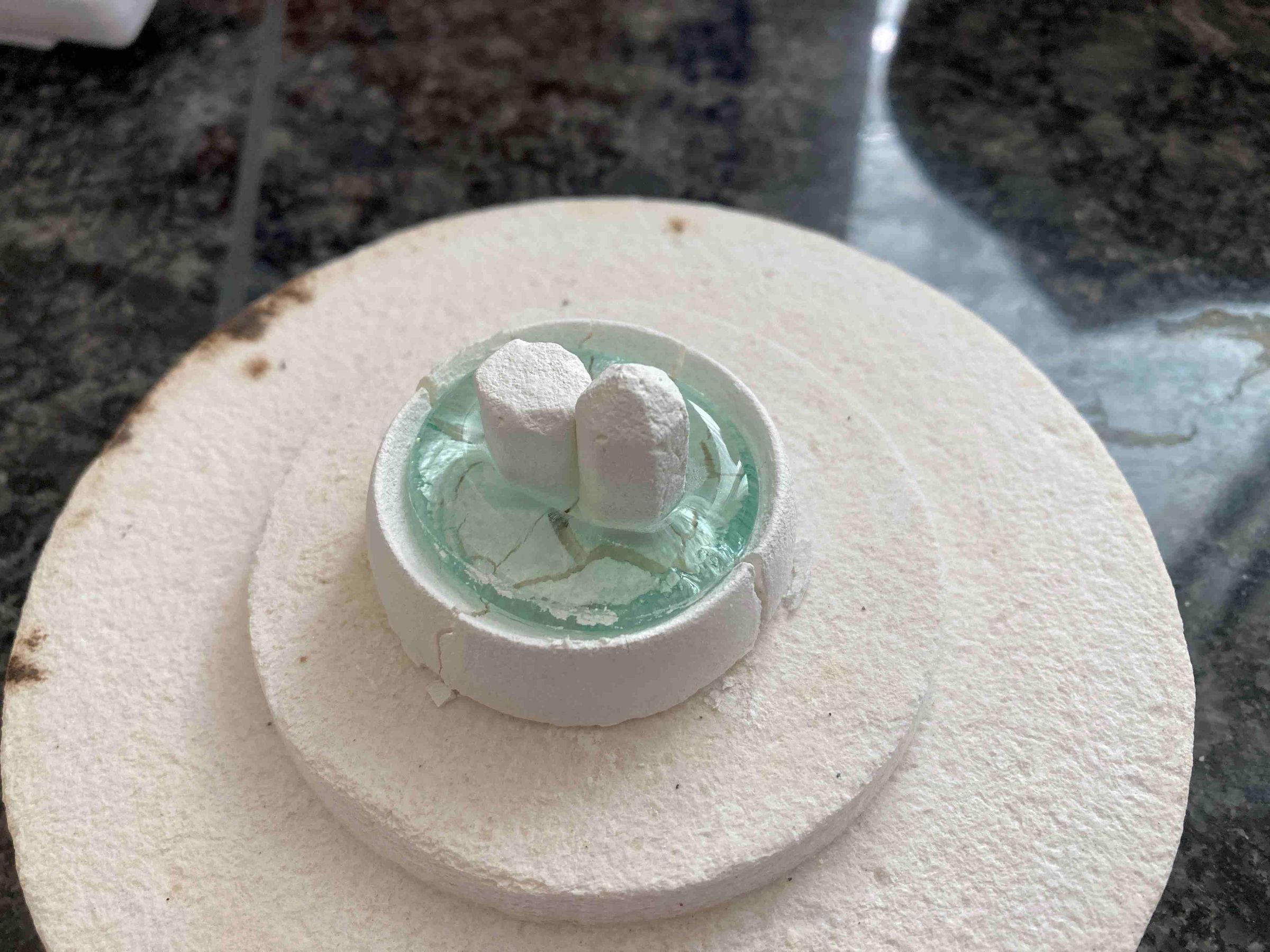

Even if a mold obtains cracks during the firing process the final result can be okay. As an example look at the cracks in the picture having two middle pieces. The molten glass can be see in step number 9 on the jewelry bust.

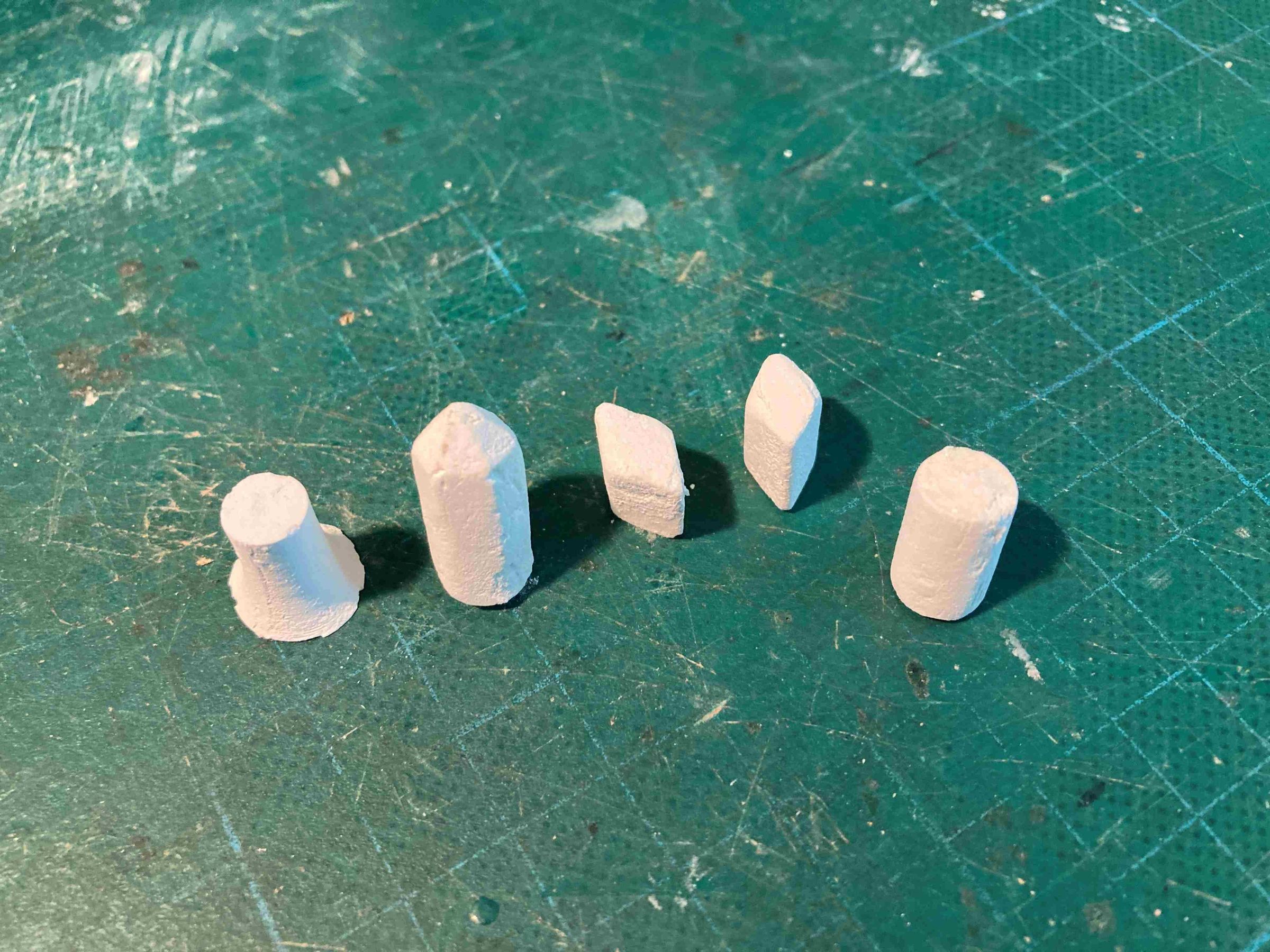

The Floating Core Issue

Sometimes, the inner piece that serves as a placeholder for the ring's center hole floats up onto the molten glass. When this happens, you end up with a solid round disc instead of a ring. If anyone has a solution to keep the core in place, please let me know in the comments!

Opening the Kiln During Firing

It is incredibly tempting to constantly peek inside the kiln to check on the progress. While this can be useful during your very first tests to gauge the optimal timing for a specific glass weight, it is highly detrimental to the final result. Opening the hot kiln creates sudden temperature drops, which can cause devitrification and lead to a cloudy, hazy glass surface.

Testing Clay Molds

I also experimented with clay molds to see if they would outlast the plaster ones. Unfortunately, this attempt was unsuccessful. To my astonishment, the glass completely fused with the clay, ruining the piece entirely.
