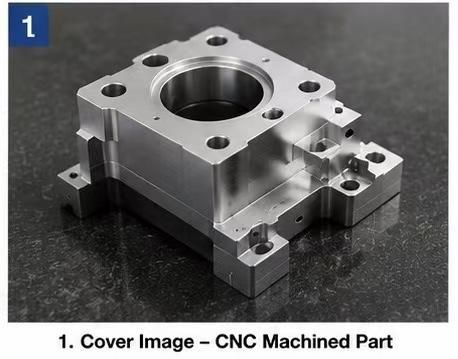

How to Inspect a CNC Machined Part Before Assembly

A CNC machined part can look clean and still cause problems during assembly.

The outside dimensions may be correct, but a mounting hole can be slightly out of position. A bore may have the correct diameter but still be misaligned. A mating surface may appear smooth but not be flat enough for reliable contact.

This guide shows a practical inspection workflow for checking the features that affect fit, function, and assembly.

You do not need every inspection tool for every part. Choose the tools that match the tolerance level and functional features of your component.

Useful tools may include:

1. Digital caliper
2. Micrometer
3. Bore gauge
4. Pin gauges
5. Height gauge
6. Dial indicator
7. Surface plate
8. Engineering drawing
9. CMM inspection report, if available
10. CNC machined sample part

Before measuring anything, identify which features actually affect assembly and performance.

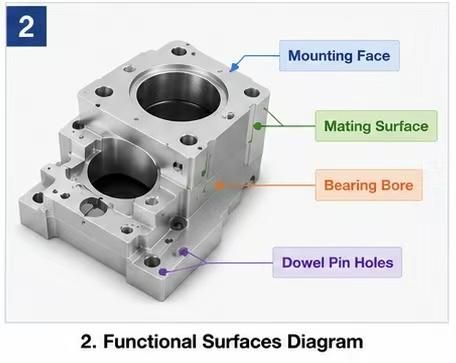

Typical functional features include:

1. Mounting faces
2. Mating surfaces
3. Bearing bores
4. Dowel pin holes
5. Threaded holes
6. Sealing faces
7. Locating features

Not every cosmetic edge needs the same level of attention. Focus first on the surfaces and features that connect the part to the final assembly.

For example, a small scratch on a non-functional outer surface may not matter. A small error on a bearing seat or locating hole may create a serious assembly issue.

The inspection setup should match the way the part is used in the assembly.

If the drawing defines datum A, datum B, and datum C, confirm those references before measuring critical features.

A common mistake is measuring from an edge that is easy to reach but does not represent the real assembly condition.

For example:

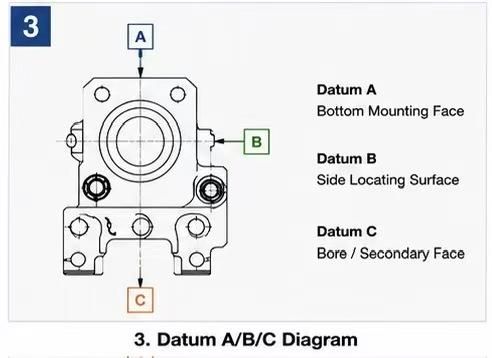

1. Datum A may be the bottom mounting face.
2. Datum B may be a side locating surface.
3. Datum C may be a bore or secondary face.

Using the wrong datum can make an inspection result look acceptable even when the part does not fit properly in the final product.

The same datum logic should be used during machining, inspection, and assembly whenever possible.

Start with the dimensions that directly affect fit and function.

Outside Dimensions

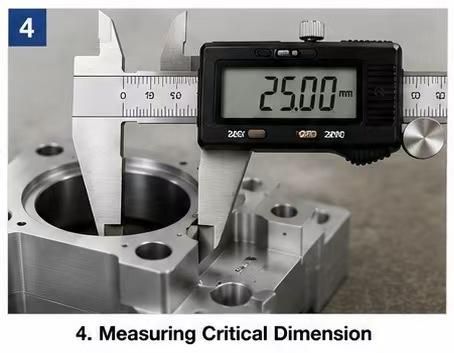

Use a caliper or micrometer for lengths, widths, thicknesses, and simple diameters.

A caliper is useful for quick checks, but it may not be suitable for very tight tolerances. Use a micrometer when higher precision is required.

Bores and Holes

Use a bore gauge, pin gauge, or CMM depending on the feature and tolerance.

A hole can have the correct diameter but still cause assembly problems if its position is wrong.

Feature Location

Check whether holes, slots, and bores are located correctly relative to the functional datums.

This is especially important for:

1. Mounting holes
2. Dowel pin holes
3. Bearing bores
4. Threaded interfaces
5. Multi-part assemblies

Mating surfaces should be flat and clean enough to create reliable contact during assembly.

A surface may look acceptable by eye but still create issues such as:

1. Rocking during assembly
2. Uneven clamping
3. Poor sealing
4. Misalignment
5. Stress on neighboring parts

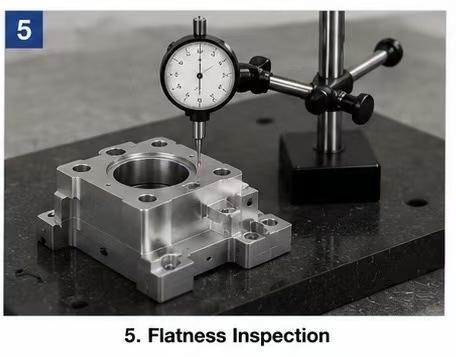

Use a surface plate and dial indicator when flatness matters.

Pay extra attention to:

1. Sealing surfaces
2. Mounting faces
3. Thin-wall parts
4. Large flat plates
5. Components with multiple contact points

Thin-wall parts can change slightly after unclamping, so it is useful to inspect them in a relaxed condition when possible.

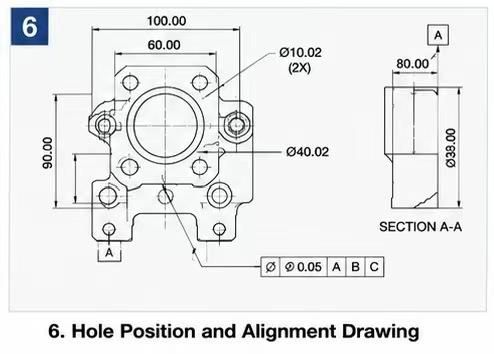

Hole position and bore alignment are common causes of assembly problems.

A part may pass a simple size inspection but still fail when combined with another component.

Check:

1. Mounting hole patterns
2. Dowel pin locations
3. Bore alignment
4. Threaded hole positions
5. Hole spacing
6. Perpendicularity where required
7. True position where specified on the drawing

For a simple part, manual measurement may be enough.

For a part with multiple holes, bores, and datum relationships, a CMM inspection report is usually more useful.

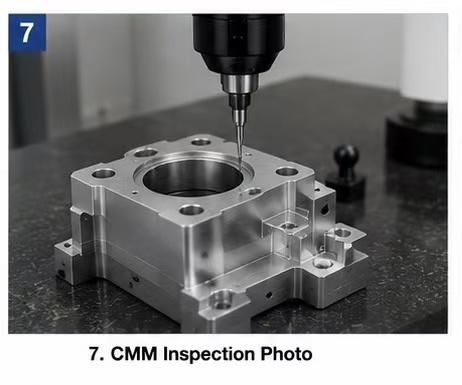

CMM inspection is useful when the part includes tight tolerances, multiple datums, or geometric relationships that are difficult to verify manually.

A CMM can help check:

1. True position
2. Perpendicularity
3. Parallelism
4. Bore alignment
5. Flatness
6. Runout or coaxial alignment, where required
7. Complex profiles
8. Datum relationships

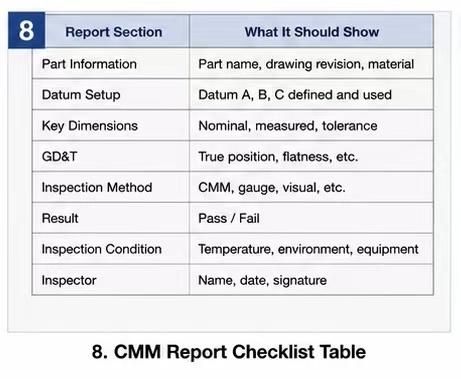

A useful CMM report should clearly show:

1. Part name and drawing revision
2. Material
3. Inspection equipment
4. Datum setup
5. Measured features
6. Nominal values
7. Tolerances
8. Actual measured values
9. Pass or fail results
10. Inspection conditions
11. Inspector information

Do not treat the report as a formality. Review whether the measured features match the functional requirements of the assembly.

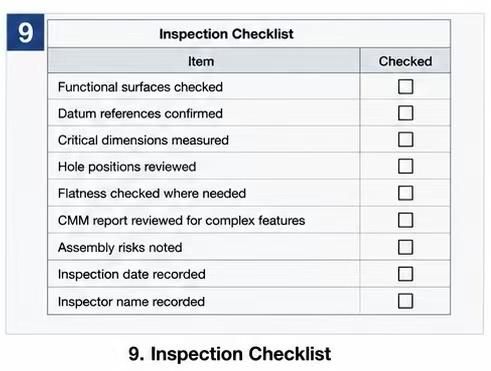

Before sending the part to assembly, document the inspection result.

A simple checklist may include:

1. Functional surfaces checked
2. Datum references confirmed
3. Critical dimensions measured
4. Hole positions reviewed
5. Flatness checked where needed
6. CMM report reviewed for complex features
7. Assembly risks noted
8. Inspection date recorded
9. Inspector name recorded

This helps prevent the same problem from appearing again in later batches.

It also makes it easier to compare prototype results with small-batch production results.

Good inspection is not about measuring every surface.

It is about confirming that the features affecting assembly are controlled consistently.

A practical inspection workflow can reduce rework, shorten lead time, and help production teams identify problems before they reach the final assembly stage.
