How to Make a Energy Saving Device With Utsource Service

by Circuit DIY in Living > Life Hacks

21 Views, 0 Favorites, 0 Comments

How to Make a Energy Saving Device With Utsource Service

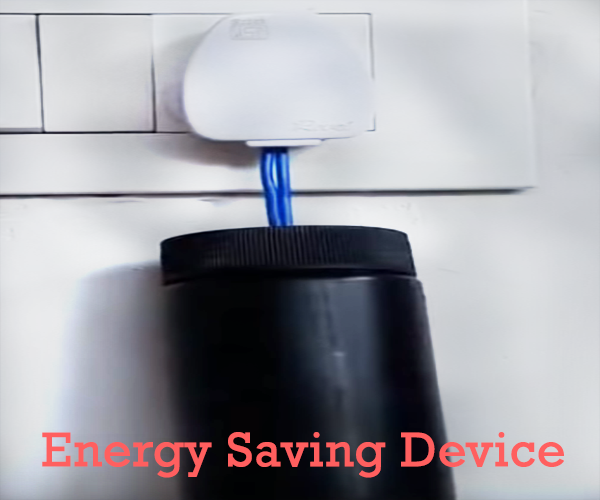

energy saving device.png

A Household power saving device is generally used in residential homes to save energy and to reduce electricity bills. The power saver is a small device that is to be plugged in any of the AC sockets in the house. Moreover, power savers save up to 40% of the energy.

The main advantage of power savers is not that they provide a backup system in times of low current, but that it protects the household appliances. Thus, the power saver not only protects the appliance but also increases its life. Moreover, they also reduce energy consumption and thus the electricity bills.

Components List

Let’s see what are the components required for this

  1. 3-pin Top shoe
  2. Insulated copper wire (1.5 mm)
  3. Small plastic bottle with lid (hard)
  4. UTSOURCE 15µF, 440V Capacitor

Devices Required

  1. Soldering Iron
  2. Screw Driver
  3. Pliar
  4. Nose pliers

Circuit Diagram

image 1.png
  • This is a basic circuit diagram of the energy-saving devices. Simply connect two insulated wires (around 10 inches each) with 3 pin top and then connect other sides of both wires with a capacitor.
  • Then enclose this capacitor in a plastic bottle and extract both shoe side wires through the bottle lid.
  • Then insert shoe in the socket and ON the button.
  • The device is ready to save energy.

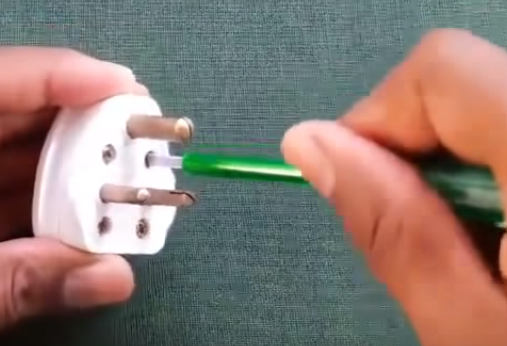

Open the 3-pin Top Plug

image 2.png

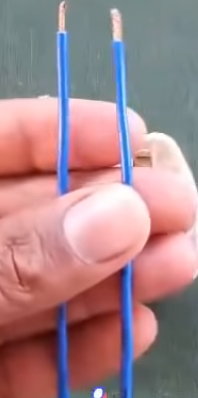

Take 2 Insulated Wires of 1.5 Mm Size (length Around 10 Cm Each)

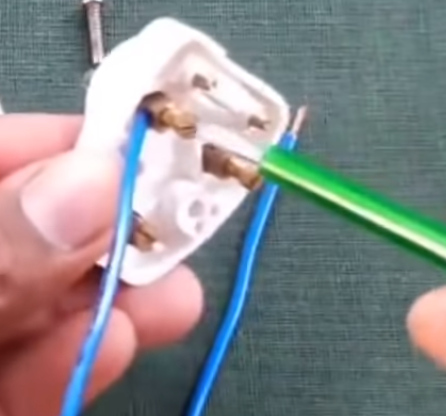

Insert the Copper of Wires in the Hole of Plug and Tight the Screw With Screw Driver

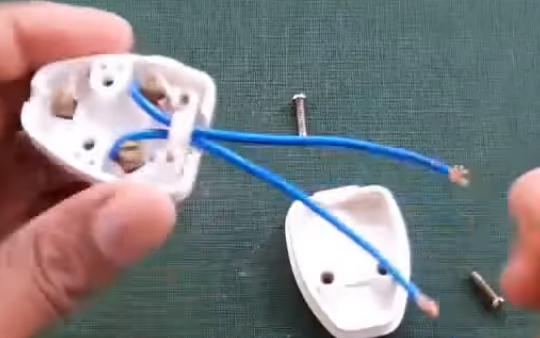

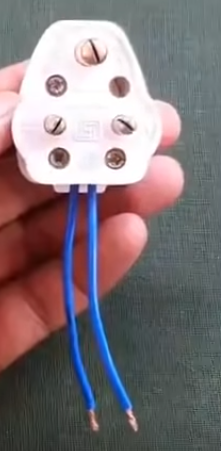

Pull Off Both Wires From Plug Properly As Shown Below


Cover the Plug and Tight It, Now It Looks Like As Below

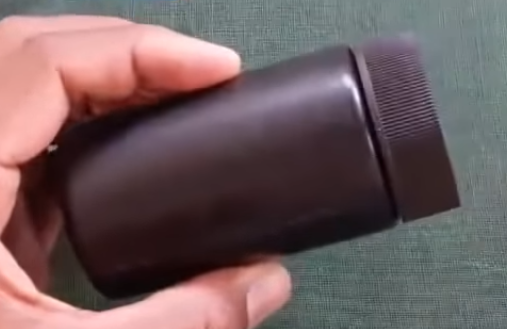

Take Plastic Bottle As Shown Below

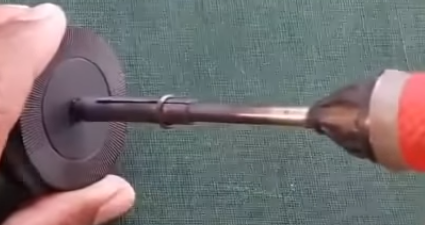

Make Hole in the Lid of Bottle With Solder

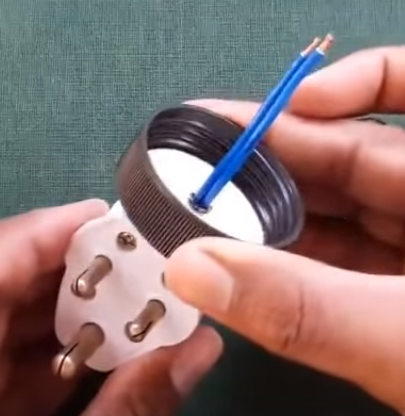

Insert Wires of Plug Into the Hole of Lid

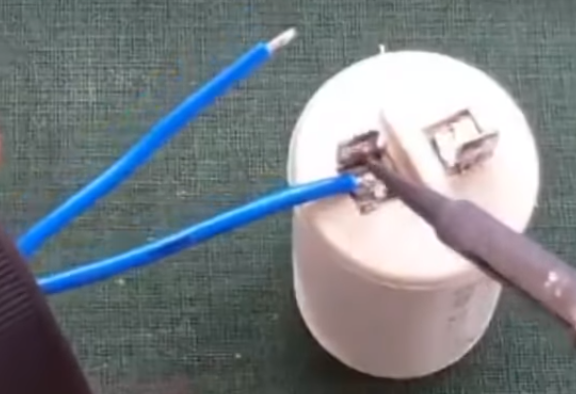

Now Solder Both Wires With Capacitor Connections

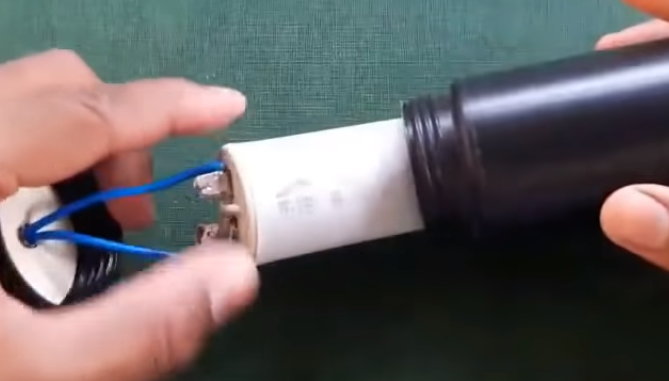

Insert Capacitor Into the Bottle Properly

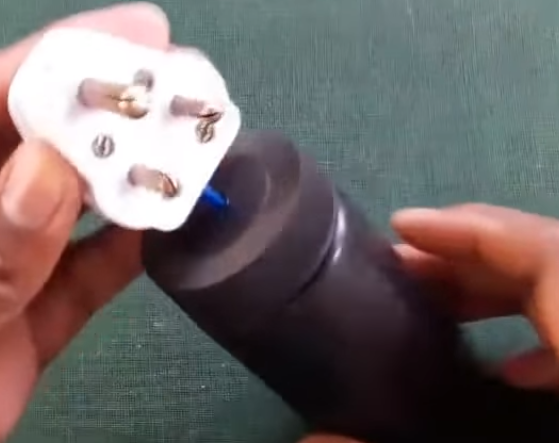

Close the Lid of Bottle Properly

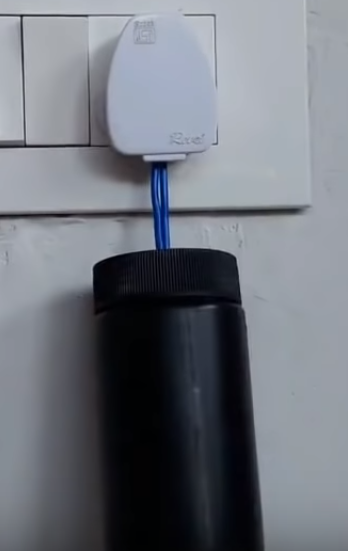

Now Connect Plug With Socket and Turn on the Device


How It Works:

  1. Power saver works on surge protection technology.
  2. Power Saver stores the electric energy (electricity) inside it using capacitor.
  3. Capacitor release it in a smoother way to normal without the spikes.
  4. The power savor also remove carbon from the circuit which also encourages a smoother electrical flow without losses.
  5. We now have less dissipative power spikes, so that we have more electricity in circuits to be used to power appliances than before.

Conclusion

Energy-saving devices are used for saving energy and also reduce electricity bills

They also, protect electrical appliances from surges

They also, remove carbon from circuit to reduce losses
