How to Make a Japanese Wooden Cup?

This Instructables tutorial will guide you through crafting a Japanese wooden cup, also known as a Kuksa or Guksi. Although originally from Scandinavia, this distinctive style of carved, single-piece cup with a built-in handle is highly appreciated within Japanese woodworking circles for its elegant functionality and natural aesthetic.

This project offers a wonderful mix of traditional woodturning techniques and precise machining, ultimately producing a lovely, food-safe cup perfect for your morning coffee or tea. Aimed at beginners to intermediates, this project will provide valuable experience with a lathe, bandsaw, and drill press. Let's dive in and discover how a simple block of wood was transformed into the beautiful cup you see here.

Based on the photos of my build, you will need the following to complete this project.

Tools:

1. Lathe: For turning the main bowl of the cup.
2. Lathe Chuck: To hold the wood block securely.
3. Drill Press: For drilling the handle finger-hole and rough-hollowing the cup interior.
4. Forstner Bits: Various sizes for handle and initial hollowing.
5. Bandsaw: (or a hand-held coping saw) to cut out the initial shape.
6. Woodturning Chisels: Roughing gouge, bowl gouge, scraper.
7. Drill Chuck: For the drill press.
8. Caliper or Depth Gauge: Optional, to check wall thickness.
9. Pencil

Supplies:

1. Wood Blank: A solid, defect-free block of wood, approximately 3 inches thick (as seen in image_1.png). Maple, Birch, and Walnut are excellent choices.
2. Plywood (Thin): A small piece to make a template.
3. Sandpaper: Various grits, from 120 up to 320 or 400.
4. Food-Safe Finish: Examples include mineral oil, walnut oil, or a specialized butcher block finish.

Choosing the right materials is the first crucial step for any successful woodworking project. For this particular cup, you'll want a solid piece of high-quality wood. It should be free of cracks and large knots, as these could potentially split during the turning process or when the cup is in use.

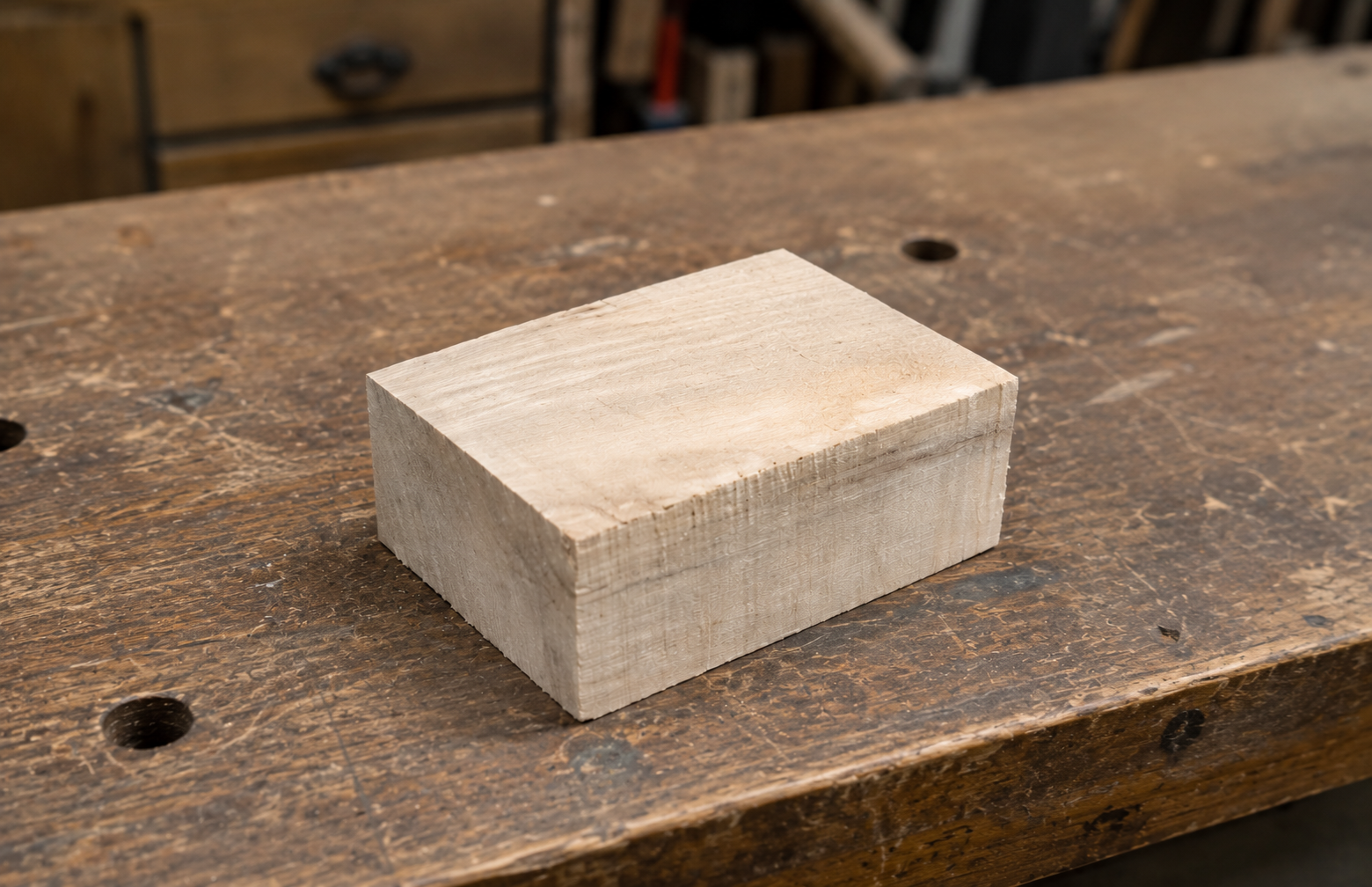

I began with this lovely, square block of light-colored wood, which appears to be maple. It's important to ensure your block is thick enough to allow for a cup with a decent capacity, while also leaving sufficient material to create a sturdy handle.

After you've got your wood block ready, it's time to mark out the shape of your cup. To do this smoothly and make sure the handle is symmetrical, I'd suggest quickly creating a template.

I used a small piece of thin plywood for my template, just like you can see in the picture. This template shows the entire shape of the cup, covering both the round bowl part and the particular, comfortable design of the handle. Having a template like this is a really good idea because it allows you to experiment with different handle styles without having to permanently mark your main piece of wood.

Now, use your template to transfer the shape onto the final wood blank.

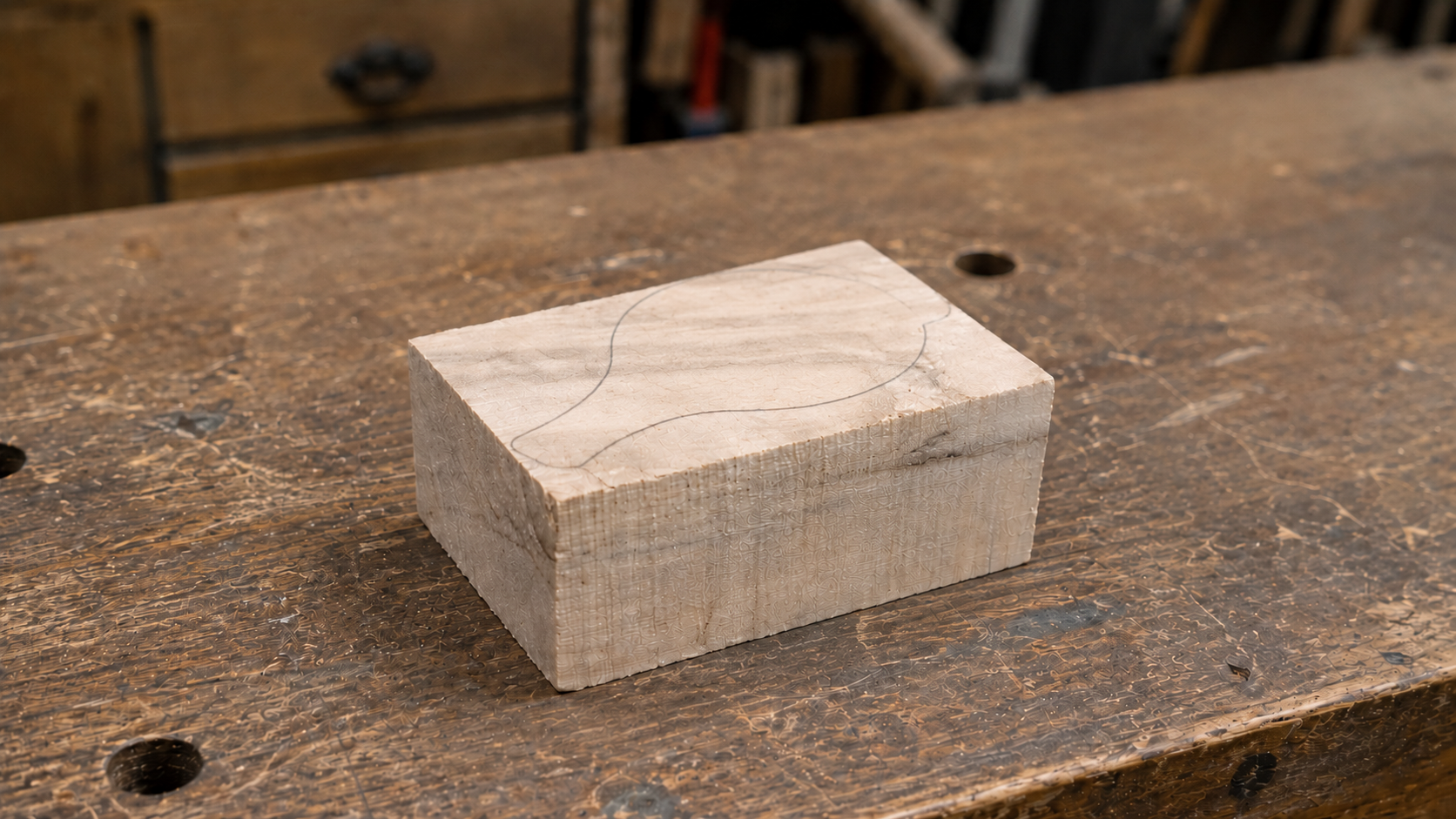

Position the template on the most attractive surface of your block. With a sharp pencil, trace the entire outline of the template onto the wood, just like in the image. This image shows the unique teardrop shape, where the rounded cup connects to the built-in handle. For added strength, I like to align the handle with the grain.

Now that the shape is marked, it's time to cut it out. A bandsaw is ideal for making these curved cuts accurately and safely.

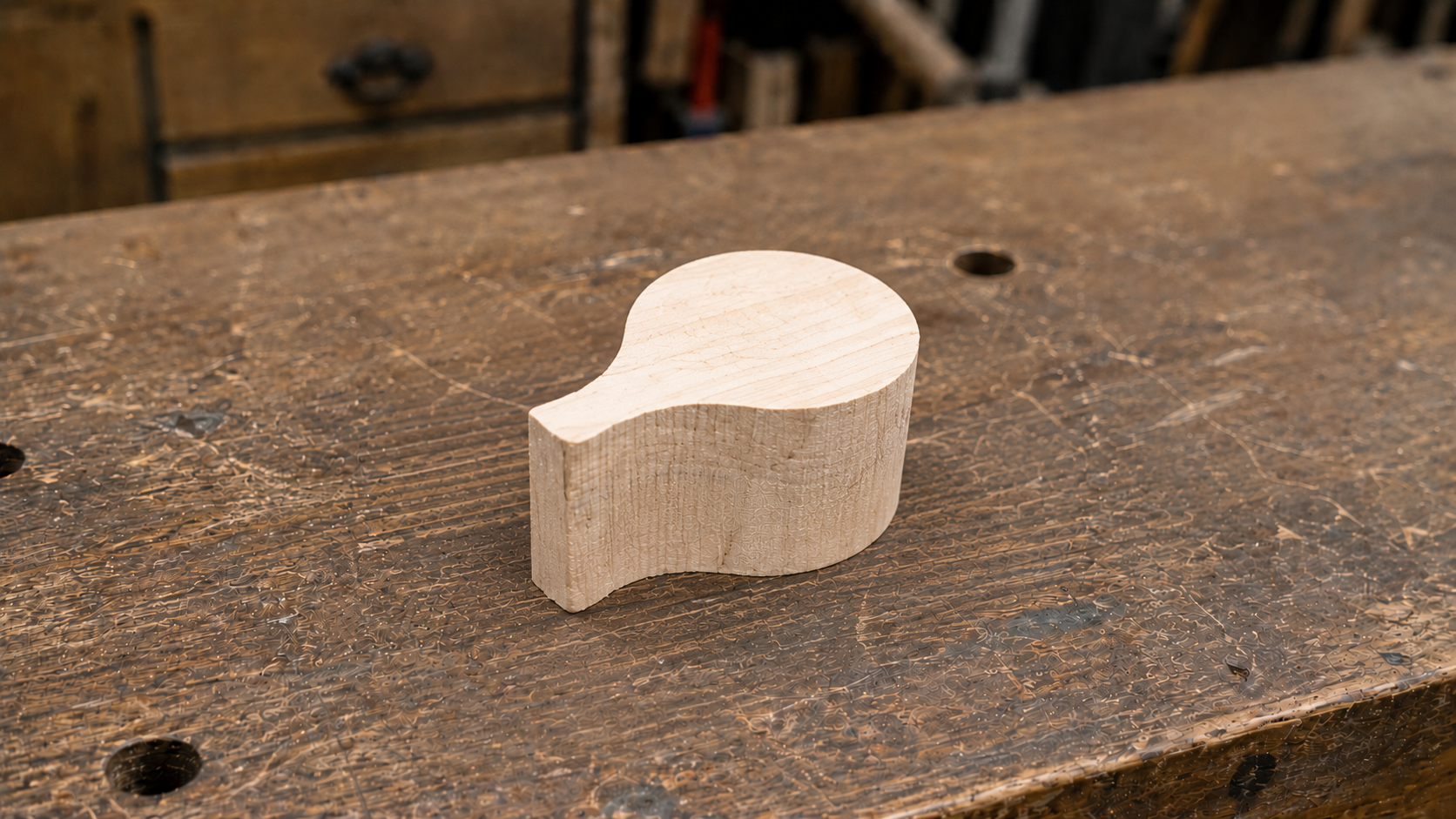

Carefully use the bandsaw to remove the excess wood, following the pencil line you just traced. Always keep safety in mind and ensure your hands stay clear of the blade.

To begin turning, you'll need a way to secure this irregularly shaped piece of wood on your lathe. Since it isn't a perfect cylinder, we'll be using a chuck.

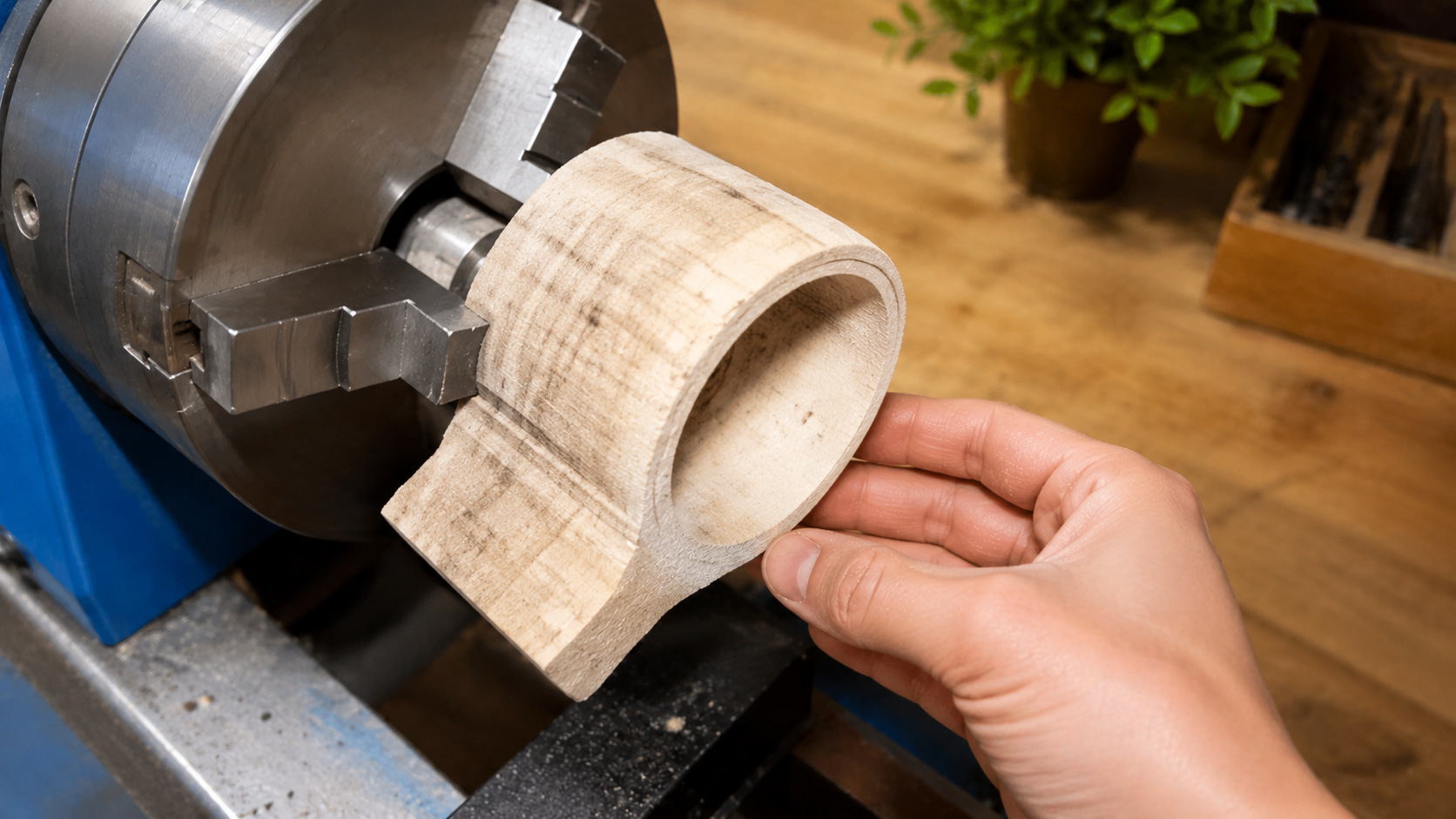

We'll turn the main body of the cup and then hollow it out. As you can see in the image, I've mounted the largest, roundest part of the wood—which will become the cup's bottom—into the lathe chuck. Make sure to position it so that the center of the circle you've drawn on the top face is as aligned as possible with the lathe's axis of rotation. At this point, the part that will become the handle should be extending outward from the chuck, which is the correct and safe way to proceed.

Once you've finished roughing out the center, head back to the lathe. This is where you'll really shape the inside of the cup.

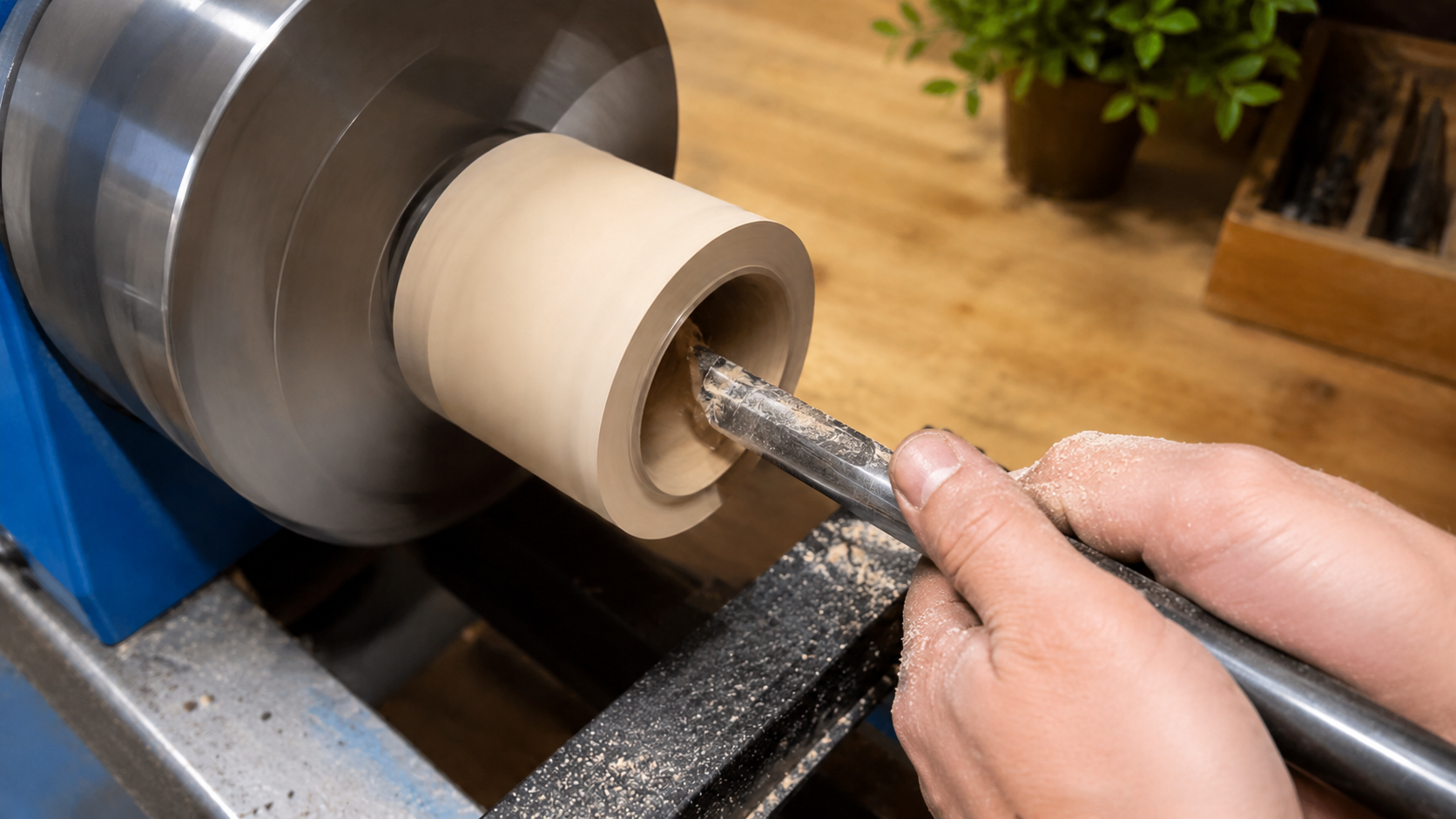

With the core material removed, use your bowl gouges and scrapers on the spinning lathe to smooth and refine the inner walls. In the photo, you can see my turning tool smoothing the curve at the bottom of the bowl and setting the wall thickness. The most important thing is to achieve a smooth, consistent curve. Make sure to stop the lathe often to check your work and prevent making the walls too thin or going too deep into the rough-drilled section.

Although you could hollow out the piece entirely with turning tools, it's quicker and more stable to start with a drill press and a large drill bit.

A drill press lets you rapidly remove most of the wood from the inside of the cup without applying sideways force to the piece. Use a large bit, such as a Forstner or a standard twist drill depending on what you have, and drill a series of holes that overlap. Be sure to set your depth stop carefully to avoid drilling through the bottom of your cup!

Once you're satisfied with the shape, and while the cup is still on the lathe, it's the ideal moment to sand the interior. The lathe takes care of the heavy lifting, ensuring a smooth, consistent finish.

Using sandpaper that progresses from coarser to finer grits (starting with 120-180 grit and moving down to 320 or 400 grit), sand the inside of the cup, just like in the picture. Be sure to apply gentle pressure and keep the sandpaper moving to prevent any heat buildup. A small piece of wood or a sanding pad can assist in applying even pressure. Remember to pause often to check how smooth it feels.

Now, I'll shape the rough handle so it blends seamlessly with the cup. To get that signature finger-hole and comfortable grip found on classic designs, I'll be using the drill press.

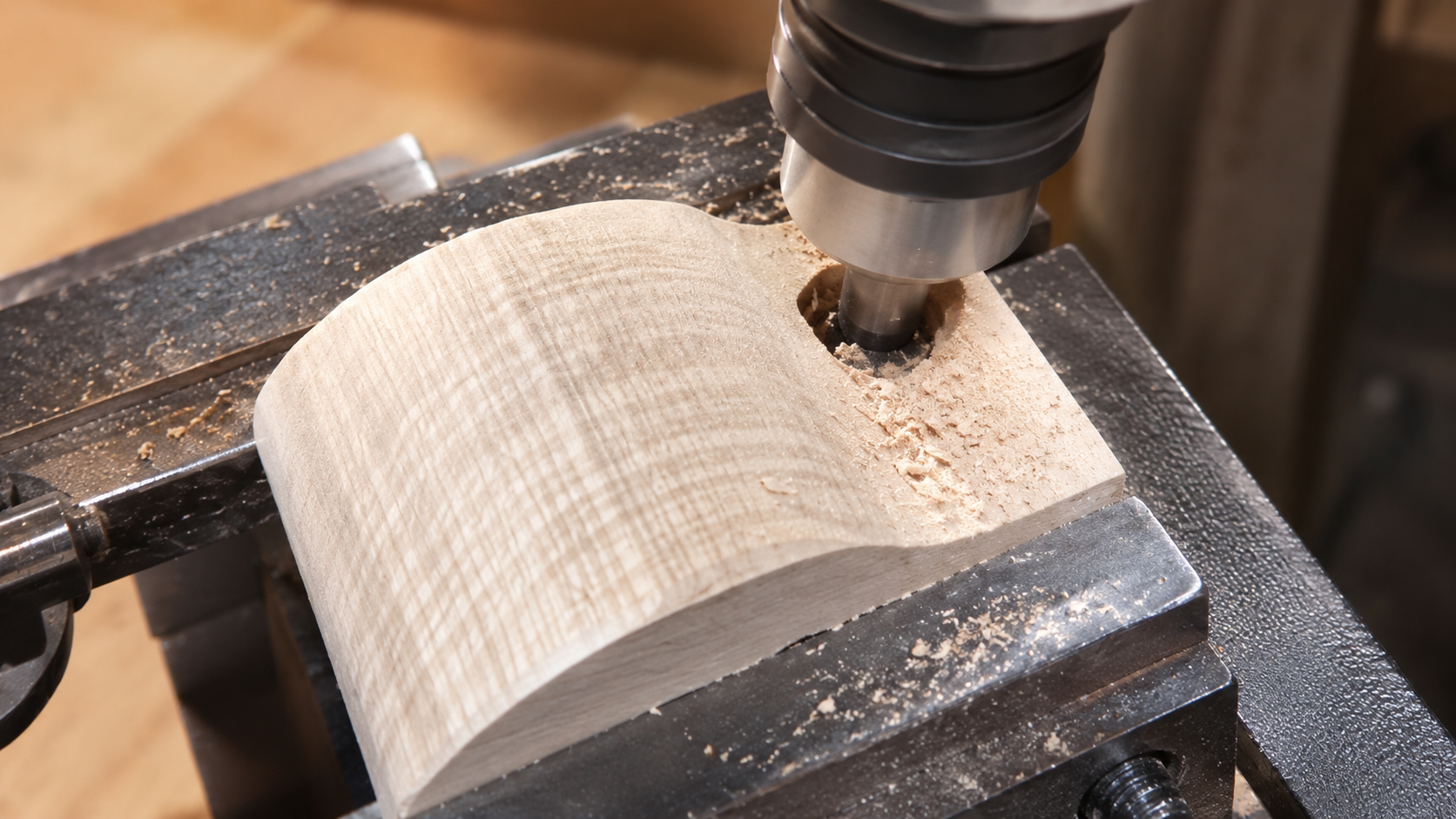

Here, you can see me using the drill press once more, this time to create the finger hole. I'll place the handle flat on the drill press table. Then, I'll select a large Forstner bit – these make clean, flat-bottomed holes – that feels good in the hand. With care, I'll drill straight down through the handle where I've marked the spot.

Now that we've roughly shaped our wooden cup, it's time to refine its form and make sure all the outside curves and edges are smooth before we start the detailed carving.

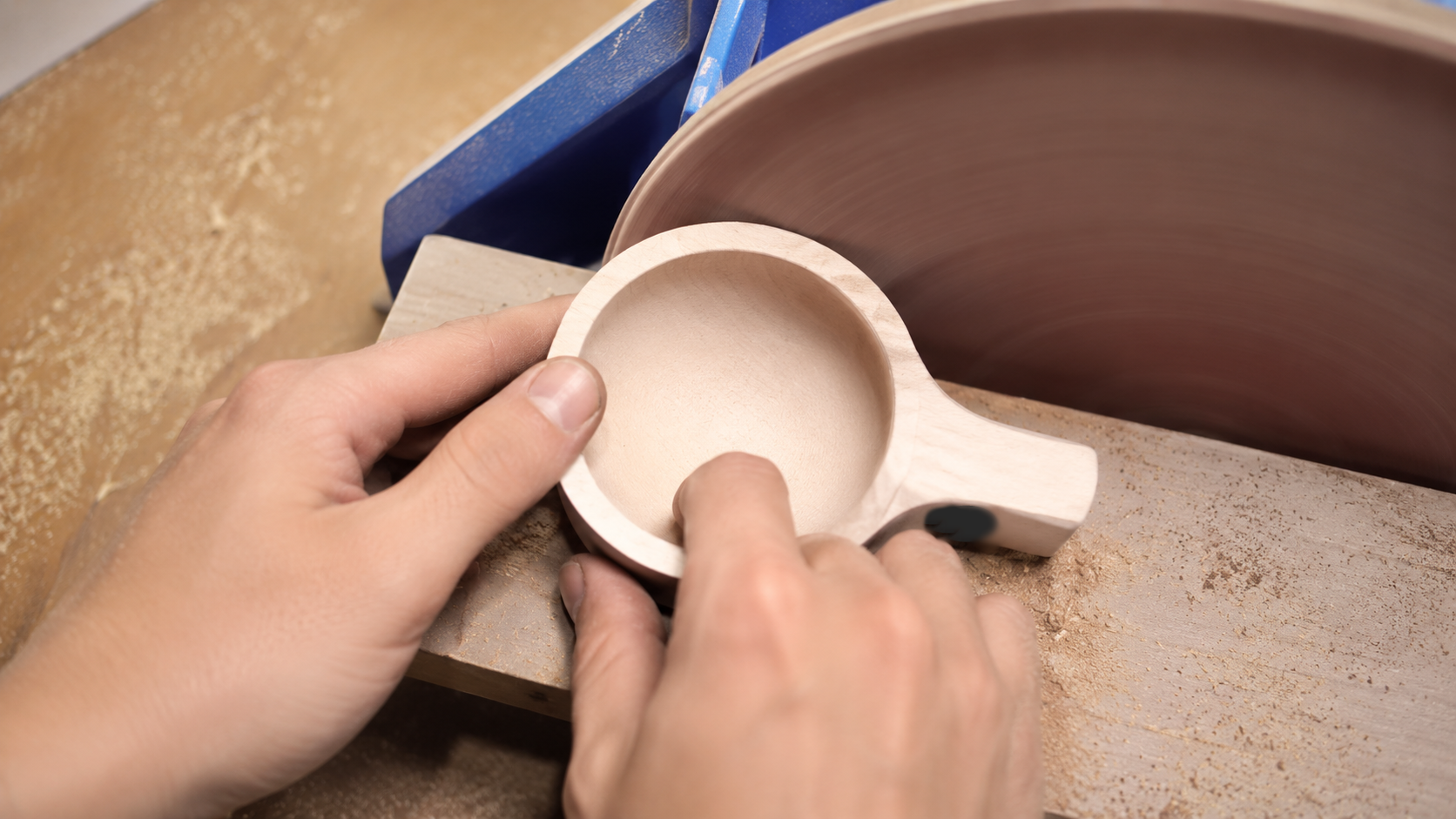

In the picture, you can see hands holding the rough-carved cup blank against a stationary disk sander. This powerful tool will quickly smooth out any high spots or rough edges left from the bandsaw. We're concentrating on making the main body of the cup perfectly round and ensuring a smooth transition where the handle meets the bowl.

Now that the overall exterior shape is set, we'll move on to the detailed, precise interior work that makes this cup so nice to hold.

The chisel is used carefully to clean up and perfect the subtle, curved shape of the finger groove within the main handle opening. This is painstaking work, but taking the time to refine these inner curves with smooth, controlled cuts will make the cup look better and feel much more comfortable to grip.

Once you've finished carving the inside curves of the handle, it's time to make them perfectly smooth so they feel comfortable in your hand. This step might seem straightforward, but it's really key to learning how to make a Japanese wooden cup.

You'll use a strip of medium-grit sandpaper to get inside the finger hole. Just move the sandpaper back and forth, like you're sawing, to smooth away any rough chisel marks or uneven areas that might be left over from drilling and carving.

Now that you've finished the inside and blocked out the basic shape of the handle, it's time to get ready for the final detailed work. This is a really important step when you're learning to make a Japanese wooden cup, as it's what will make the cup feel good in your hand.

See those blue pencil lines on the handle and the top of the cup? They're guides that will show you exactly where to carve and sand next. These lines mark the areas where you need to remove more wood to create smooth, comfortable curves and a sleek, stylish look.

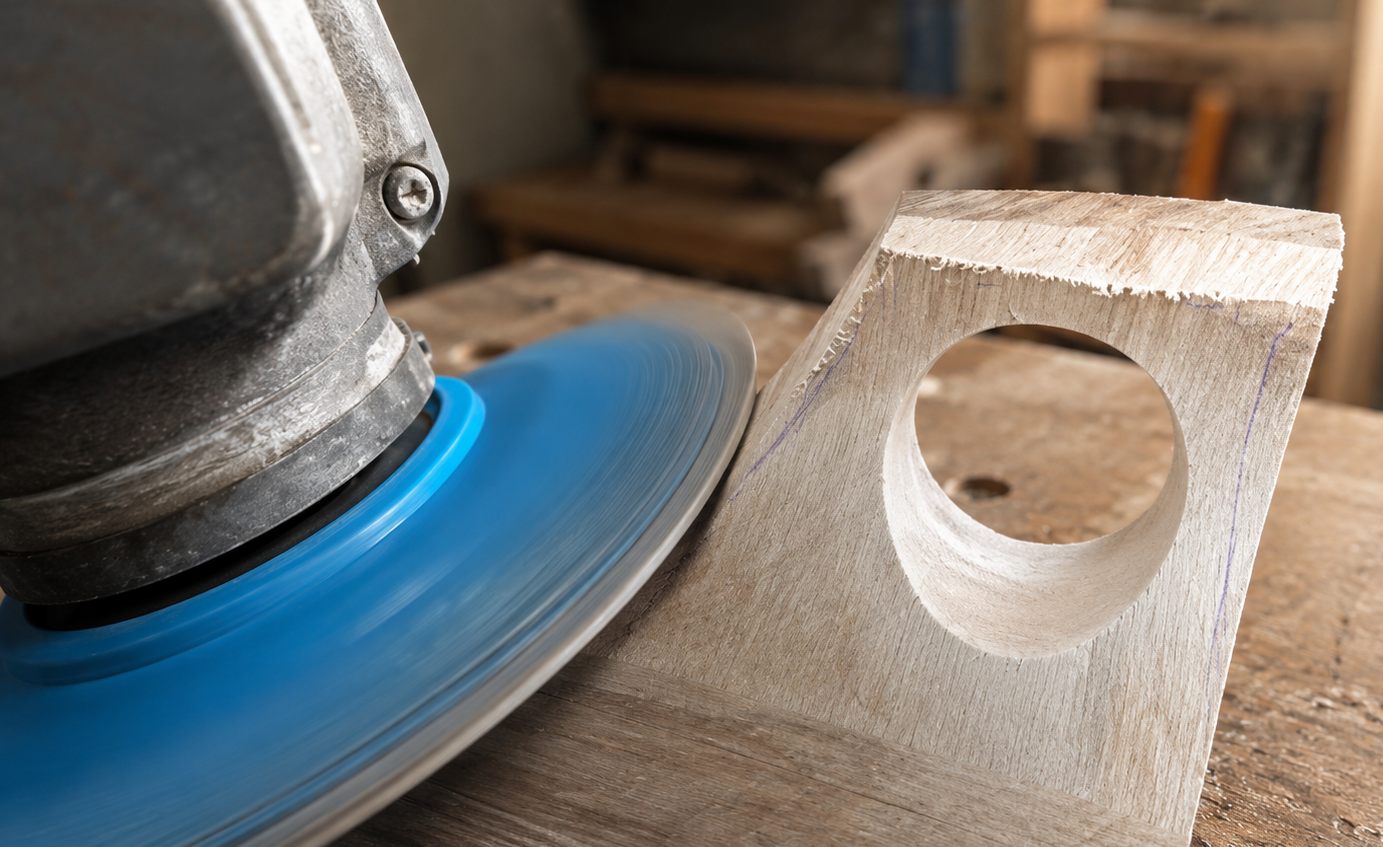

Now that your layout lines are drawn, it's time for the final shaping that really brings the piece to life. Using power tools at this stage is a great way to achieve those smooth, sweeping curves that are so hard to get just right by hand.

You'll hold the tool at an angle, following those blue pencil lines we marked earlier. This step gets rid of the sharp, "boxy" corners and replaces them with nice, rounded edges that will feel comfortable in your hand.

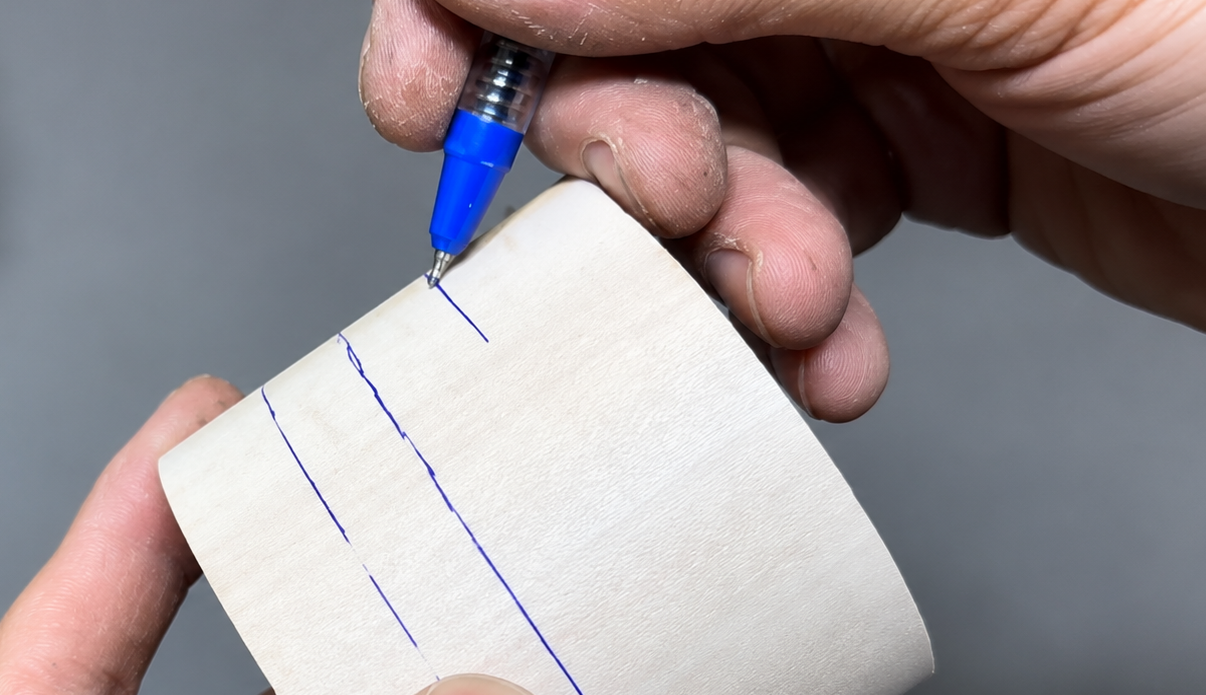

Here, a blue pen is being used to carefully mark guide lines on the smooth wooden blank for the next part of the project. These lines will guide where the wood needs to be cut, shaped, or carved, ensuring more precise work and better control.

For this step, hold the wood steady with one hand and use a ruler or a very steady hand to draw straight lines across its surface. Make sure the lines are clear and easy to see, as they'll be your reference points throughout the shaping process.

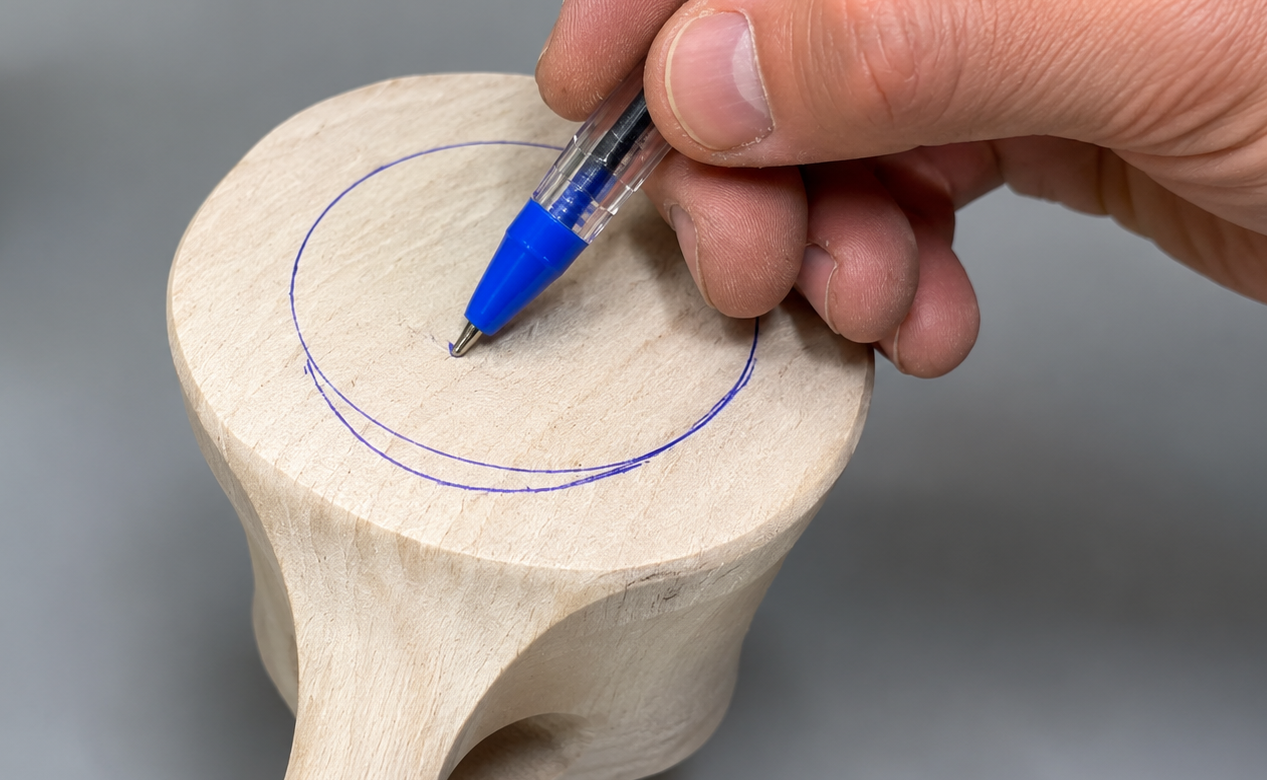

In this step, a blue pen is used to draw a circular guide line on the bottom of the wooden cup. This marked circle helps define the base area that will remain after shaping and sanding the outside of the cup. The line serves as a visual guide to ensure the bottom is kept even, centered, and the correct size during later carving or trimming of the wood.

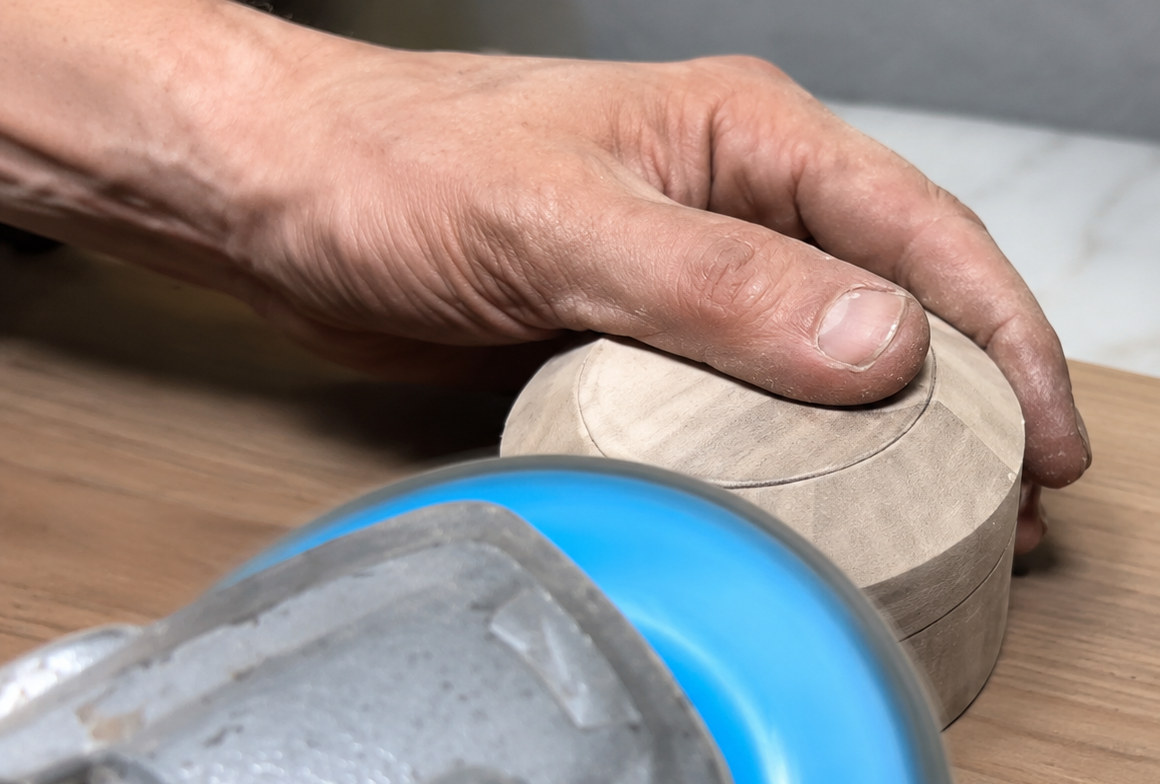

In this step, the bottom of the wooden cup is being carefully shaped using a spinning sanding or grinding wheel. The wood is gently pressed against the moving wheel to smooth the surface and refine the circular base that was marked earlier. This process helps remove rough edges, improve the overall shape, and create a clean, even bottom that will allow the cup to sit flat and stable.

In this step, the outside surface of the wooden cup is being shaped with a spinning sanding wheel to create a smoother and more rounded form. The previously drawn guide lines help show how much wood should be removed and keep the shape even on all sides. Hold the cup securely and slowly rotate it against the sanding wheel while applying light, steady pressure. This process removes rough areas, softens sharp edges, and improves the overall contour of the cup body. Continue sanding carefully until the outer surface feels smooth and the shape looks balanced and symmetrical.

Here, the wooden cup is held securely in a vise. A spinning sanding disc is then used to smooth and shape the curved handle and the sides of the cup. This sanding process removes any rough wood and helps to perfect the cup's flowing form, particularly around the handle's opening and its outer curves.

It's important to guide the sanding disc gently over the surface with light pressure, concentrating on achieving smooth transitions and well-rounded edges. Keeping the cup firmly clamped in the vise ensures stability, making the shaping process both safer and more precise.

Here, we're using an electric finishing sander to smooth out the whole wooden cup, getting it ready for a protective finish or oil. This sanding step gets rid of any little scratches, bumpy spots, or rough bits that might have been left from when the cup was shaped.

Just hold the cup steady and carefully guide the sander over its surface, making sure you get the rim, the body, and the handle all evenly. It’s best to move slowly and consistently so you don't accidentally flatten any areas or sand too much in one place.

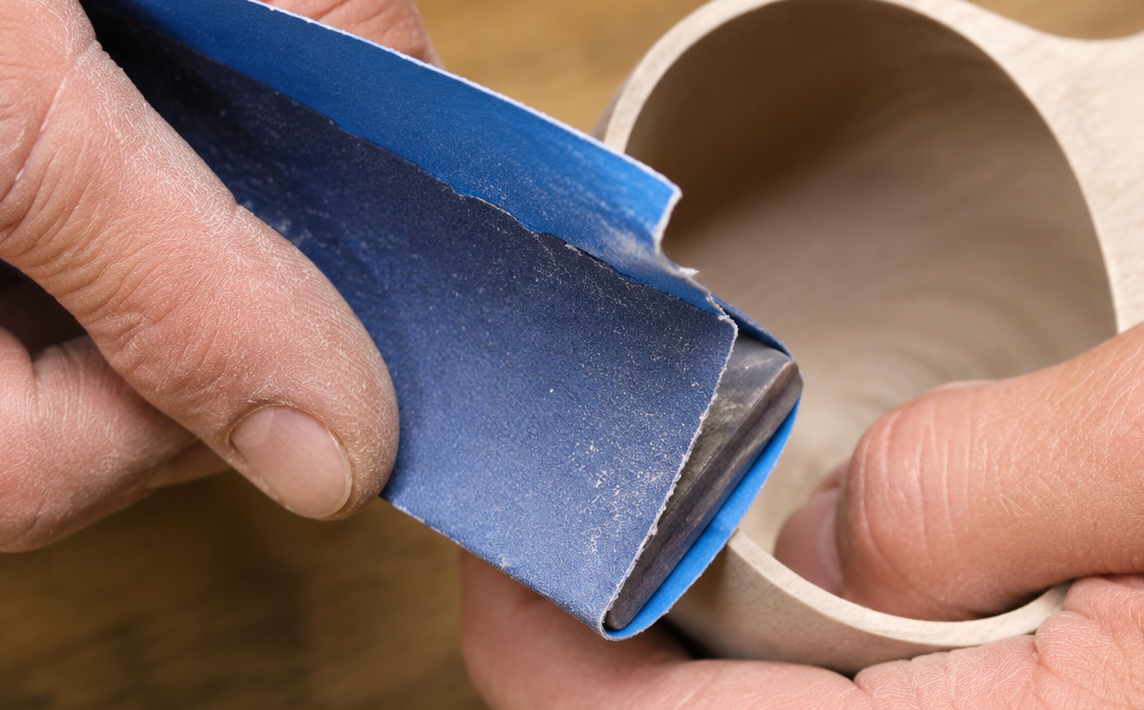

Here, we're using folded sandpaper by hand to smooth the rim and any tricky spots on the wooden cup. Hand sanding is great for perfecting those smaller details that power sanders might miss, especially inside the rim and on the curved bits near the handle.

Just gently rub the sandpaper along the edge with light, even strokes to get rid of any little rough patches and soften the edges. This really makes the cup more comfortable to hold and drink from, and it gives the wood a nicer, more finished look.

Next, you'll apply a protective finish or food-safe oil to the inside of the wooden cup. Use your fingertip to spread it evenly over the entire surface. This finish will protect the wood from moisture, bring out its natural grain, and give the cup a warmer, richer look. Just rub a little oil or finish all around the inside, making sure to get the sides and bottom evenly.

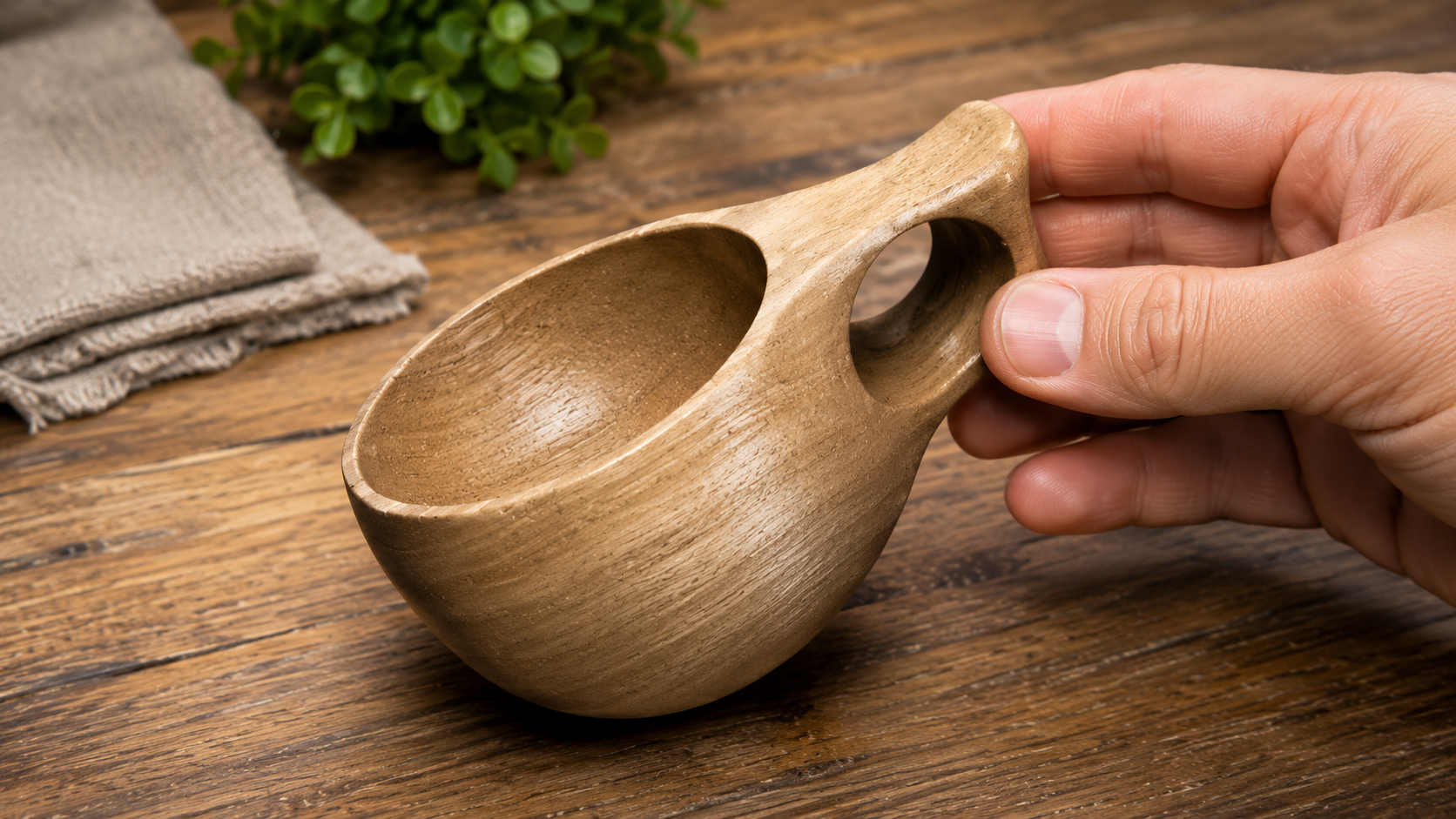

Now that the wooden cup is finished and sanded, it's time for a final inspection. It should have a smooth surface, a lovely natural color, and a handle that feels good in your hand. Just give it a once-over to make sure there aren't any rough spots, sharp bits, or areas where the finish isn't quite even, and give those a light buff if you find any.

Now that your wooden cup is finished, take a moment to appreciate your handiwork. Thinking about your next woodworking project might be fun, too. Smaller projects like this are excellent for honing your skills in shaping, sanding, and finishing, all while deepening your understanding of working with wood.
