How to Plan Drywall for a Room: Measure, Count Sheets and Lay Out Every Board

Most drywall estimates go wrong in one of two ways. Either you divide the square footage by 32 and come home short, because real walls don't break down into whole sheets, or you guess high and end up with a stack of board in the garage.

This Instructable walks through the way a careful hanger plans a room: measure it, work out the real area, then place every sheet on every wall on paper before you buy anything. It takes about 30 minutes with a pencil and a calculator, and it tells you exactly which sheet size to buy, how many, and how much mud, tape and screws go with them.

We'll use one room the whole way through so you can check your math against ours: a 12 x 12 ft bedroom with 8 ft walls, one door and one window, walls and ceiling both getting new drywall.

For the planning

1. 25 ft tape measure
2. Pencil and graph paper (one square = 1 ft works well)
3. Calculator, or a phone

Materials for the example room (12 x 12 ft, 8 ft walls, walls and ceiling)

1. 13 sheets of 1/2 in drywall, 4 x 12 ft (or 19 sheets of 4 x 8 ft if 12 ft board won't fit through your door)
2. 2 boxes of ready-mixed all-purpose joint compound, 4.5 gal size
3. 1 roll of paper joint tape, 250 ft
4. 3 lb of #6 x 1-1/4 in coarse-thread drywall screws
5. Drywall primer for the finished surface

Tools for hanging and finishing

1. 4 ft drywall T-square
2. Utility knife with spare blades
3. Jab saw (keyhole saw) for outlet and switch boxes
4. Drywall rasp for trimming cut edges
5. Drill/driver or drywall screw gun with a dimpler bit
6. Foot lifter (rocker bar) for the bottom row
7. Drywall lift (rental) or two T-braces for the ceiling
8. 6 in taping knife, 10 or 12 in finishing knife, mud pan
9. Sanding sponge or pole sander
10. Step ladder, safety glasses, dust mask

Before you measure, settle three things, because each one changes the count.

1. Walls, ceiling, or both. A ceiling is a big flat rectangle with no openings, so it adds a lot of board fast. In our 12 x 12 room it is 144 sq ft, more than a third of the wall area.


2. Board thickness. 1/2 in is the standard for walls and most ceilings in houses. 5/8 in Type X is for fire-rated assemblies such as a garage ceiling with living space above, and some people use it on ceilings with 24 in framing because it sags less. Your count stays the same; the weight and price per sheet go up.


3. Sheet length. You'll decide this properly in Step 5, but know now whether a 12 ft sheet can physically get into the room. Measure the tightest turn on the way in: the front door, a hallway corner, the stairs.

For the example we're doing walls and ceiling in 1/2 in board.

Measure each wall at the floor and at the ceiling, wall to wall on the framing (or on the old board if you're re-covering). Write down the longer number. Rooms are rarely square, and the longer reading is the one that has to be covered.

Measure the height from the subfloor to the underside of the ceiling joists at a couple of spots.

Two rules of thumb keep the numbers honest:

• Round up to the next inch, not the next foot. Rounding 11 ft 7 in up to 12 ft is fine for the area but can mislead you on the layout.


• An inch or less over a sheet multiple doesn't need another row. A wall that is 8 ft 1 in tall still takes two 4 ft rows. The leftover inch hides behind the baseboard or under the ceiling board. Anything more than that and you need a strip.

Example room: length 12 ft, width 12 ft, wall height 8 ft.

Wall area is perimeter times height:

Perimeter = 2 x (length + width) = 2 x (12 + 12) = 48 ft

Gross wall area = 48 ft x 8 ft = 384 sq ft

Now take out the doors and windows. If you know their rough-opening sizes, multiply width by height for each. If not, these standard deductions are close enough for planning:

• Interior door, 3 x 7 ft: 21 sq ft


• Window, 3 x 5 ft: 15 sq ft


• Single garage door, 16 x 7 ft: 112 sq ft

Example: one door and one window = 21 + 15 = 36 sq ft.

Net wall area = 384 - 36 = 348 sq ft

Don't subtract outlets, switches or small vents. The board goes over them and you cut the holes later.

Ceiling area is length times width:

12 x 12 = 144 sq ft

So the room needs:

348 sq ft of wall + 144 sq ft of ceiling = 492 sq ft of drywall surface

For an L-shaped room, split the ceiling into two rectangles and add them.

Board comes 4 ft wide in lengths of 8, 9, 10 and 12 ft (a 54 in wide board also exists for 9 ft walls, see Step 8). The two you'll weigh up for most rooms:

• Area per sheet: 4 x 8 ft: 32 sq ft; 4 x 12 ft: 48 sq ft
• Weight, 1/2 in regular board (about 1.6 lb per sq ft): 4 x 8 ft: about 51 lb; 4 x 12 ft: about 77 lb
• Fits a car, a stairway, one person carrying it: 4 x 8 ft: Usually; 4 x 12 ft: Rarely
• Butt joints on a 12 ft wall: 4 x 8 ft: One per row if hung sideways; 4 x 12 ft: None

Butt joints, where two untapered sheet ends meet, are the hard joints to finish flat. Long sheets mean fewer of them. If 12 ft board fits into the room and you have a helper, it usually makes a better wall with less taping. If it doesn't fit, 4 x 8 is the right answer and the walls will still come out fine.

In our 12 x 12 room every wall is exactly 12 ft long, so a 4 x 12 sheet covers a full row with no butt joint at all. That's the best case for long board.

The quick method is area plus a waste allowance, divided by the area of one sheet. Ten percent is the usual allowance for offcuts and mistakes.

492 sq ft x 1.10 = 541.2 sq ft

4 x 8: 541.2 / 32 = 16.9, round up to 17 sheets

4 x 12: 541.2 / 48 = 11.3, round up to 12 sheets

This gets you in the right range, and for a quick budget it's fine. But it assumes every scrap of board gets used somewhere, which isn't how a room hangs. The next step is the one that tells you what you'll actually cut.

Draw each wall and the ceiling to scale on graph paper and place real sheets on them. A few rules that match how hangers work:

• Hang the ceiling first, so the wall sheets hold up its edges.


• Hang walls horizontally (long edge parallel to the floor) in most houses. Start the top row tight to the ceiling, so any ripped strip ends up at the floor where the baseboard hides it.


• Leave about 1/2 in at the floor. It keeps board off any moisture and gives your foot lifter room.


• An opening that fills a whole row leaves a gap in that row. A 7 ft door fills the bottom 4 ft row on its section of wall, so you hang pieces either side of it. A window that only fills part of a row gets boarded over and cut out.


• Reuse offcuts before opening a new sheet, but skip offcuts shorter than about 4 ft for wall rows. They add a butt joint for very little board.

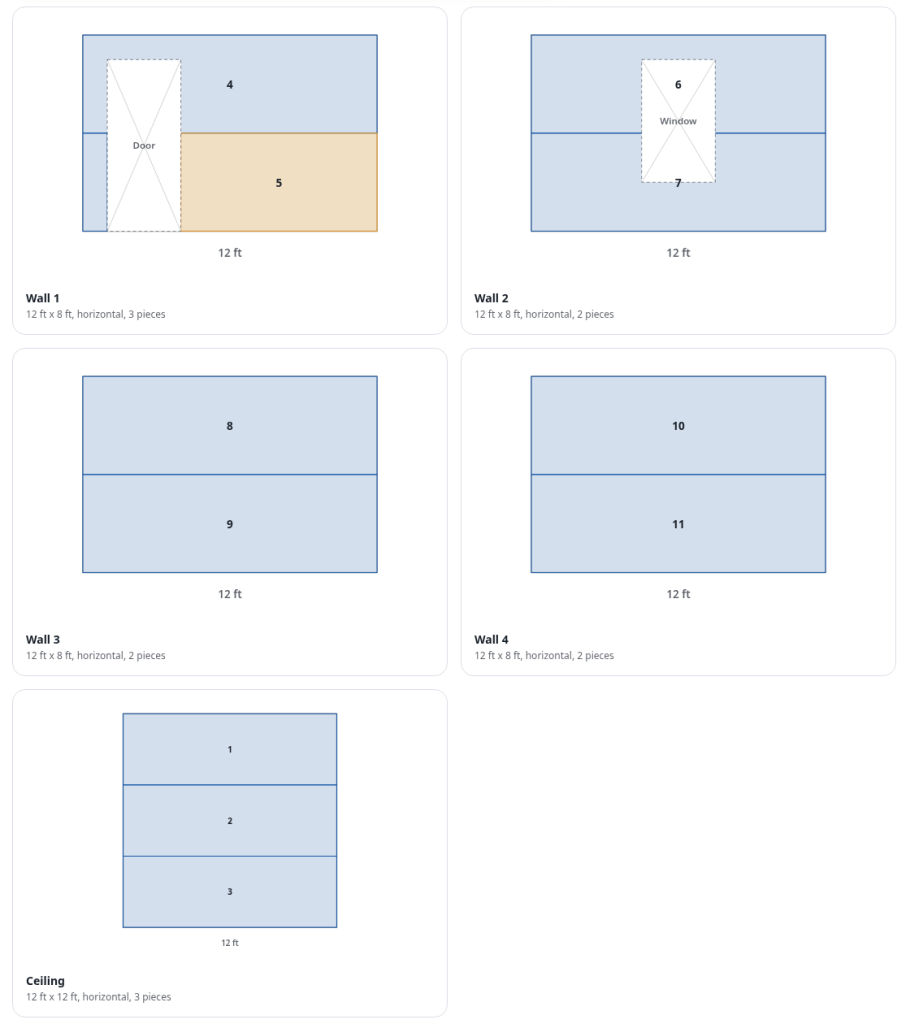

Here's how the example room lays out in each size:

4 x 12 sheets:

• Ceiling: three 12 ft sheets side by side. 3 sheets, no butt joints.


• Walls 2, 3 and 4: two full 12 ft rows each. 6 sheets.


• Wall 1 (the door wall): one full sheet for the top row. In the bottom row, the door sits 1 ft from the corner, so you need a 1 ft piece left of the door and an 8 ft piece right of it. Both come from one sheet. 2 sheets.

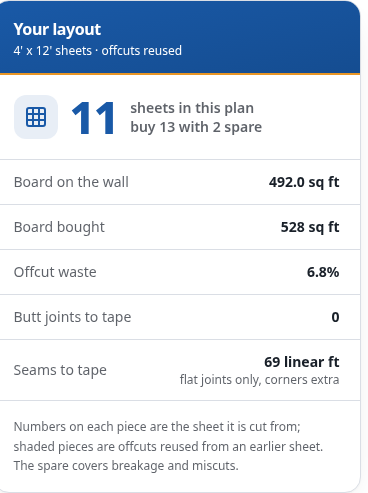

• Total: 11 sheets, zero butt joints, about 69 ft of taped seams.

4 x 8 sheets:

• On a 12 ft wall, 8 ft sheets hung sideways leave a butt joint in every row. Standing them up vertically (three 4 ft wide sheets per wall, floor to ceiling on 8 ft walls) gives the same count with no butt joints. 12 sheets for the walls.


• Ceiling: each 4 ft row is an 8 ft sheet plus a 4 ft piece. Cutting a sheet in half gives you two 4 ft pieces, so the first row's leftover finishes the next row. 5 sheets, 3 butt joints.


• Total: 17 sheets, 3 butt joints, about 100 ft of taped seams.

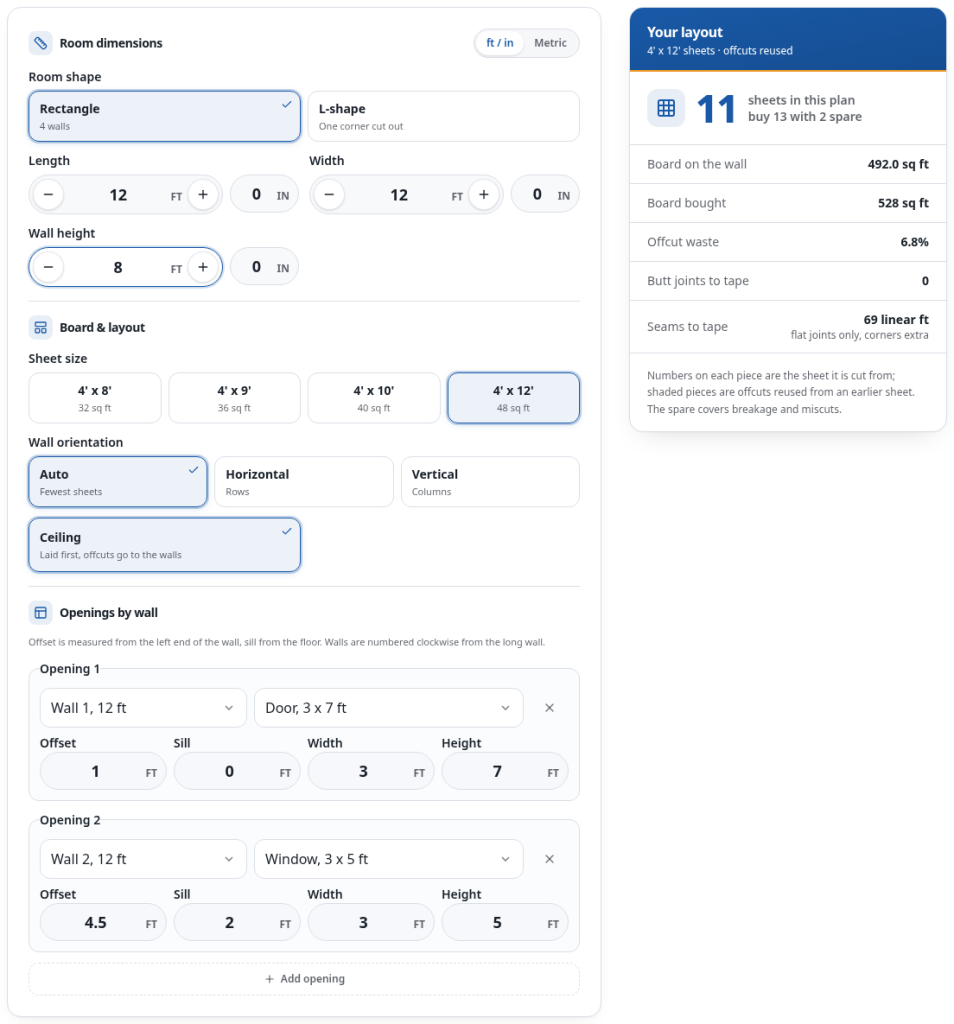

This is the tedious part by hand. If you'd rather not draw it, Drywall Planner's layout planner does the same thing: you enter each wall and opening, and it places every sheet, reuses the offcuts, and numbers which sheet each piece comes from.

Taller walls are where the area method and the real count part ways, because 4 ft sheets don't divide 9 or 10 ft evenly.

On a 9 ft wall in horizontal 4 ft board, you have two full rows and a 1 ft gap at the bottom. You fill it with a strip ripped lengthwise from another sheet. The good news is that one 12 ft sheet ripped into 1 ft strips covers the bottom of several walls, so the extra cost is smaller than it looks. For a 12 x 12 room with 9 ft walls and no openings, the walls come to:

• 4 x 12, horizontal, two rows plus strips: 9 sheets, and all four 1 ft strips come from a single sheet


• 54 in x 12 ft board, horizontal: 8 sheets, two rows of 4.5 ft fill 9 ft exactly, no strips and half the seams


• 4 x 9, vertical: 12 sheets, no butt joints and no strips


• 4 x 8, horizontal: 14 sheets and 12 butt joints

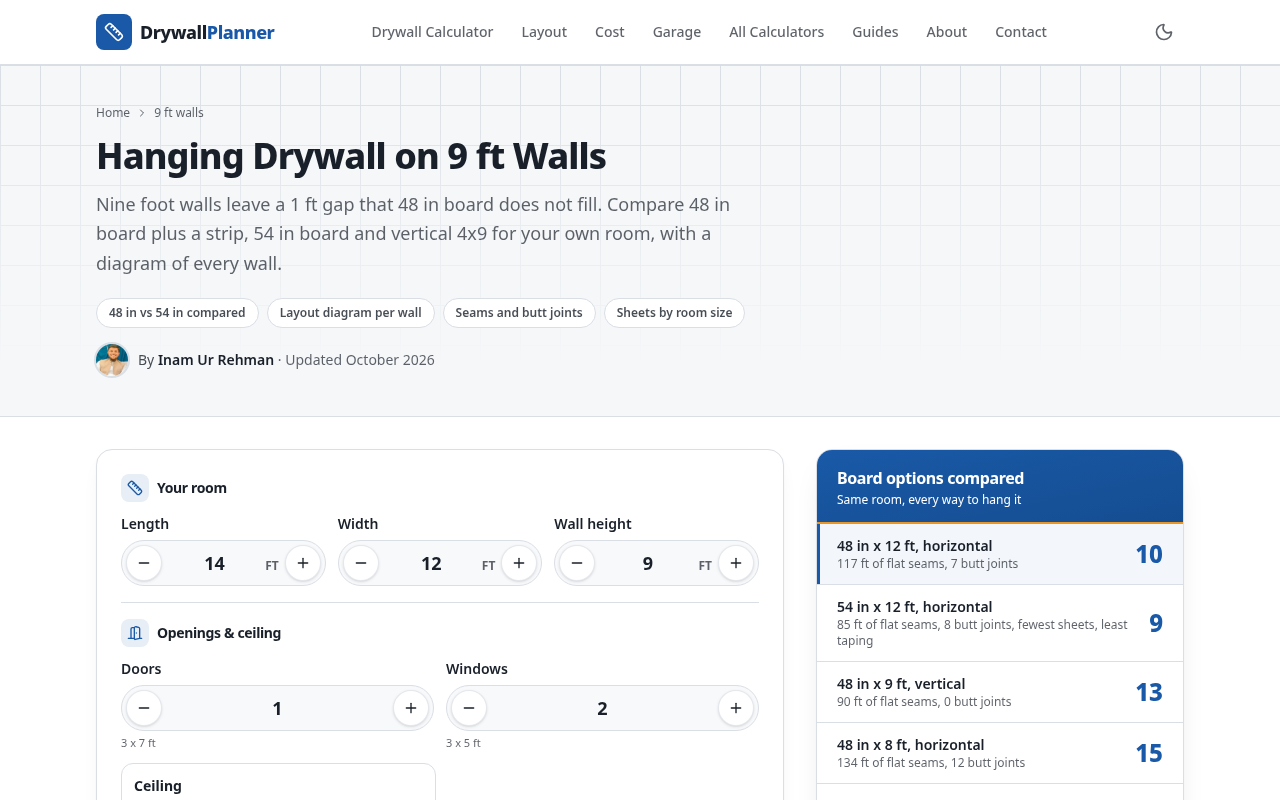

The 54 in board is the neat answer if your supplier stocks it. Drywall Planner's 9 ft wall comparison runs all four options for your own room size side by side.

For 10 ft walls, the same logic applies: horizontal 4 ft board leaves a 2 ft strip, and 4 x 10 hung vertically is a strip-free option.

Your layout count assumes every cut goes right. Add the same 10% back as spare sheets, rounded up, for a crushed corner on the way in, a miscut outlet hole, or a sheet that snaps:

4 x 12: 11 sheets laid out + 2 spares = 13 sheets

4 x 8: 17 sheets laid out + 2 spares = 19 sheets

Notice that both numbers are higher than the quick area count from Step 6 (12 and 17). That gap is the reason to do the layout. An uncut spare sheet can usually go back to the store; a missing one costs you a trip in the middle of a ceiling.

Compare the two options on board bought: 13 x 48 = 624 sq ft of 4 x 12 versus 19 x 32 = 608 sq ft of 4 x 8. Nearly the same amount of gypsum, but the 4 x 12 room has no butt joints to finish.

Finishing materials follow the board you hang, not the spares. Base them on the larger of the area count and the layout count, before spares. For 4 x 12 that's 12 sheets x 48 = 576 sq ft of board.

These planning rates are widely used and line up with manufacturer coverage figures:

• Joint compound: about 140 lb per 1,000 sq ft of board. 576 x 0.14 = 80.6 lb. A 4.5 gal box of all-purpose ready-mix holds about 61.7 lb, so buy 2 boxes. (USG rates its all-purpose compound at roughly 10 gal per 1,000 sq ft for taping plus two finish coats, which lands in the same place.)


• Paper tape: about 370 ft per 1,000 sq ft. 576 x 0.37 = 214 ft, so 1 roll of 250 ft.


• Screws: budget 1 per sq ft on walls and 1.25 per sq ft on ceilings. 348 + (144 x 1.25) = 528 screws. #6 x 1-1/4 in coarse screws run about 258 to the pound, so 3 lb.

Screw spacing matters more than screw count. The 2024 IRC (Table R702.3.5) allows up to 12 in apart on ceilings and 16 in on walls framed 16 in on center, with screws about 3/8 in in from the sheet edge.

If you'd like to check the whole list in one go, the free drywall calculator at Drywall Planner returns the same sheets, compound, tape and screws for any room as you type.

With a materials list in hand, pricing is simple multiplication. Use your local store's shelf prices. As a rough guide, a 4 x 8 sheet of 1/2 in board commonly runs $12 to $20 in the US. At $16 a sheet, 19 sheets is $304, and the compound, tape and screws add roughly $65, so the DIY materials for this room are about $370.

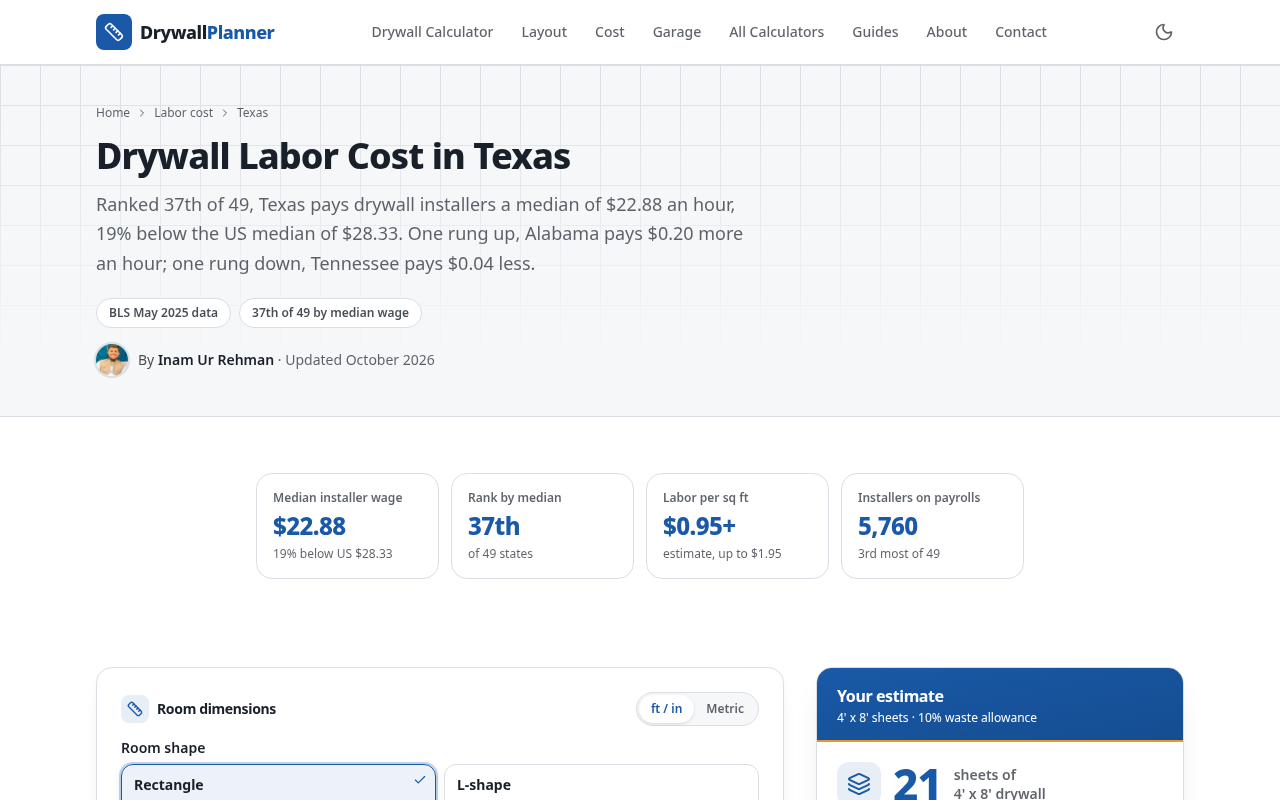

Labor is the big unknown if you hire it out. U.S. Bureau of Labor Statistics wage data (May 2025) puts the national median for drywall installers at $28.33 an hour, but among the 49 states where BLS publishes the figure it ranges from $17.94 in Mississippi to $50.40 in Hawaii, so a national per-square-foot price can be far off for your area. Get two or three quotes, convert each to dollars per square foot of drywall (492 sq ft in our room), and the outliers stand out.

Last step before the board arrives:

• Mark stud and joist centers on the floor and on the top plate with a pencil, so you can find them once the sheet covers them.


• Stagger the butt joints if you have any, so they don't line up from one row to the next.


• Keep joints off the corners of openings. A seam that lands right at the corner of a door or window is the classic spot for a crack. Run the sheet past the opening and cut it out instead.


• Put boxes and blocking on your sketch: outlets, switches, light boxes, the bathroom fan. Measure their positions to the box edges before you hang over them.


• Stage the sheets in the room in the order you'll hang them: ceiling sheets on top of the stack.

Your graph-paper layout now doubles as a cut list. Hang the ceiling, then the top row of each wall, then the bottom row, and you'll use the offcuts in the order you planned them.

The numbers for the example room, in one place:

• Drywall surface: 4 x 12 sheets: 492 sq ft; 4 x 8 sheets: 492 sq ft
• Quick area count (with 10%): 4 x 12 sheets: 12; 4 x 8 sheets: 17
• Sheet-by-sheet layout: 4 x 12 sheets: 11; 4 x 8 sheets: 17
• Buy (layout + 10% spare): 4 x 12 sheets: 13; 4 x 8 sheets: 19
• Butt joints: 4 x 12 sheets: 0; 4 x 8 sheets: 3
• Joint compound: 4 x 12 sheets: 2 boxes (4.5 gal); 4 x 8 sheets: 2 boxes (4.5 gal)
• Paper tape: 4 x 12 sheets: 1 roll (250 ft); 4 x 8 sheets: 1 roll (250 ft)
• Screws: 4 x 12 sheets: 3 lb; 4 x 8 sheets: 3 lb

Measure carefully, lay out every sheet, and buy the layout number plus a couple of spares. It's the cheapest 30 minutes of the whole drywall job.
