How to Rotate Mounting Holes of Mini Actuators

by Progressive Automations in Workshop > Repair

27 Views, 0 Favorites, 0 Comments

How to Rotate Mounting Holes of Mini Actuators

How to Rotate Mounting Holes of Mini Actuators (2) (1).png

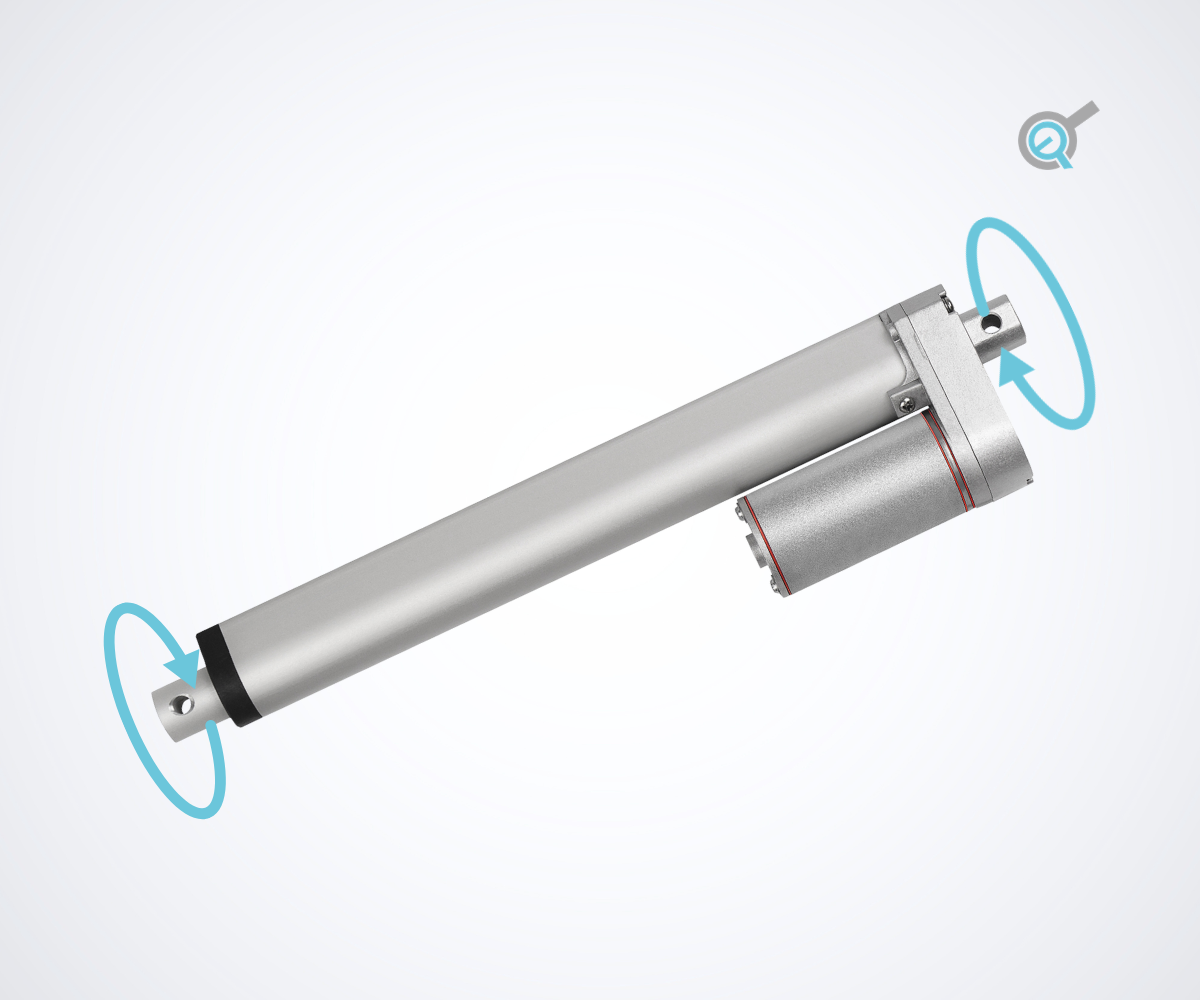

In some electric actuator installations, the position of the motor housing, cable exit, or mounting holes can affect how easily the actuator fits into a project. This is especially common in compact assemblies where side-mounted motors or cables may interfere with surrounding frames, brackets, or enclosure walls. If your project requires a stock actuator and you are comfortable making this adjustment yourself, this step-by-step guide explains how to rotate the mounting holes on our select models. Please note that rotating the actuator mounting holes may affect its ingress protection rating and should only be done when environmental sealing is not critical to the application.

Supplies

-Actuators

-Vice

-Phillips screwdriver

Defining Your Model

Front Mounting Hole

The standard procedure generally used for rotating the front mounting holes of most of our actuators can be followed for the following models of micro actuators:

  1. PA-01
  2. PA-09
  3. PA-10
  4. PA-14

The models PA-01, PA-09, and PA-10 have no method available for rotating the rear mounting holes.

Securing Into a Vice

Using a piece of leather or something similar to protect the shaft housing from the vice plates, clamp the shaft housing with just enough pressure to prevent it from slipping during the following steps.

Screwdriver Insertion

Place a screwdriver into the stroke mounting hole.

Rotational Torque

PA-14 ROTATION.gif

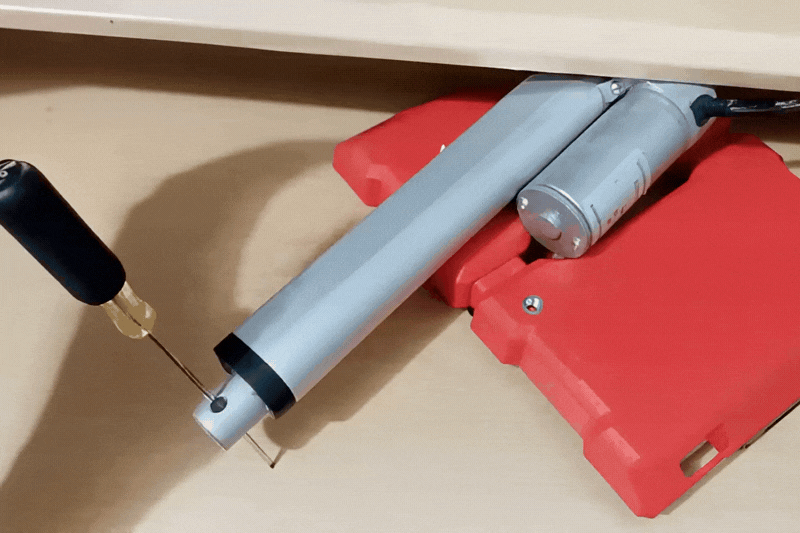

Rotate the screwdriver counterclockwise to the 90° position. If this is the first-time rotating the mounting hole, some extra torque may be required.

Warning: Do not rotate mounting holes counterclockwise more than 1 turn.

Screwdriver Removal

Remove the screwdriver, and your stroke mounting hole rotation is complete.

Rear Mounting Hole Rotation for PA-14 Models

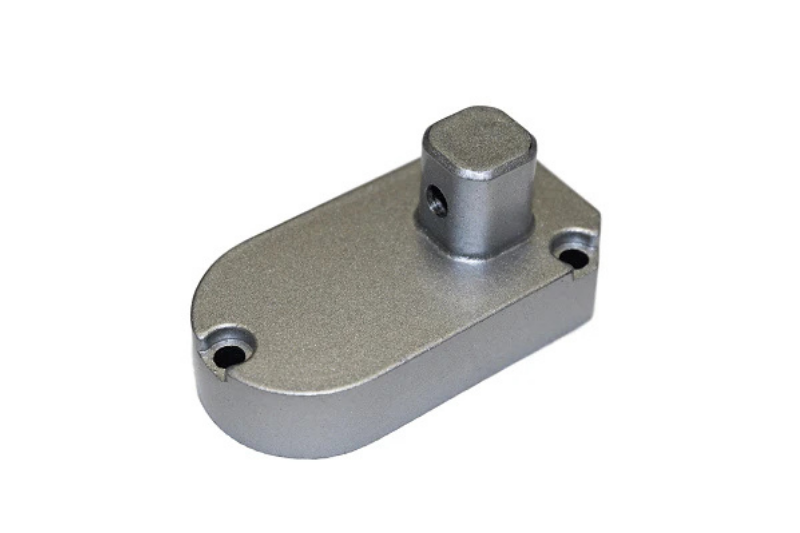

To have the rear mounting holes rotated for either the PA-14 or PA-14P, a separate base cover piece with the mounting hole rotated will be required. We offer the PRT-14-8B, which has the mounting point rotated 90°.

Removing Bottom Case Screws

Bottom Case Screws.png

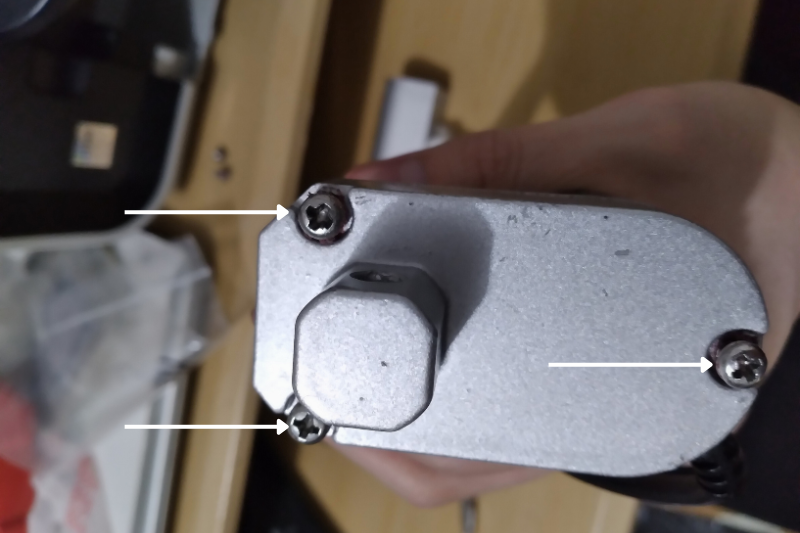

Completely remove the three base cover screws and washers by rotating them counterclockwise using a Phillips screwdriver.

Detaching Bottom Case

Bottom Case Loosened.png
Bottom Case Removed.png

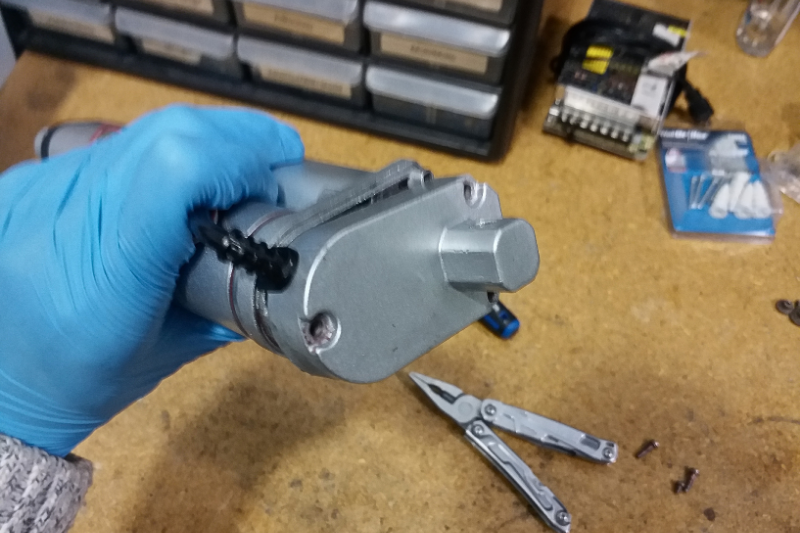

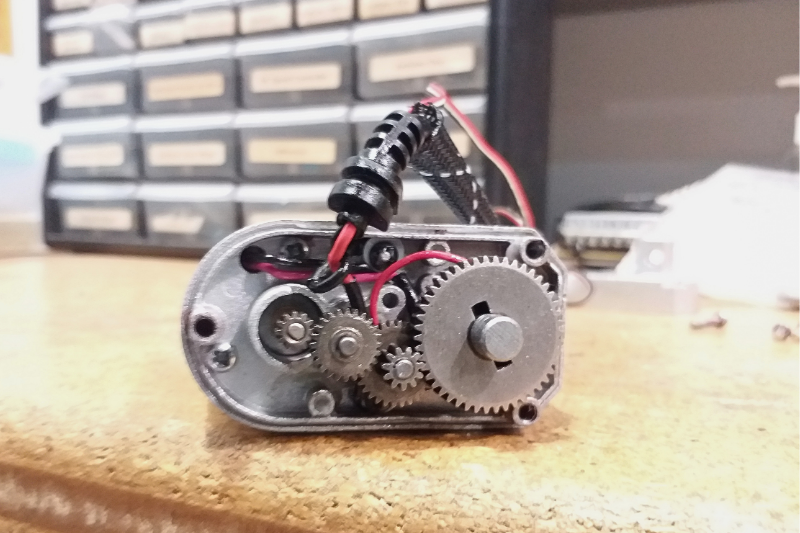

Remove the old base cover by pulling it in the direction away from the rest of the actuator’s body.

Installing the New PRT-14-8B Bottom Case

Bottom Case Screws.png

Place the new replacement base cover into position and secure it with the three base cover screws and washers below by rotating them clockwise using a Phillips screwdriver. Rotation complete.

In Summary

To summarize, many actuators may need their mounting holes rotated for certain installation conditions and space requirements. By using a few tools and spending some time to follow our step-by-step guides, you too can rotate the mounting holes of an actuator to the required positions.

If you required further assistance or had more questions on how to rotate actuator mounting holes, you may call us at 1-800-676-6123 or email us at sales@progressiveautomations.com.
