I Made a Led Blink With the Help of a Ic555 Timer. Its Sk Easy Even Kids Can Make It .

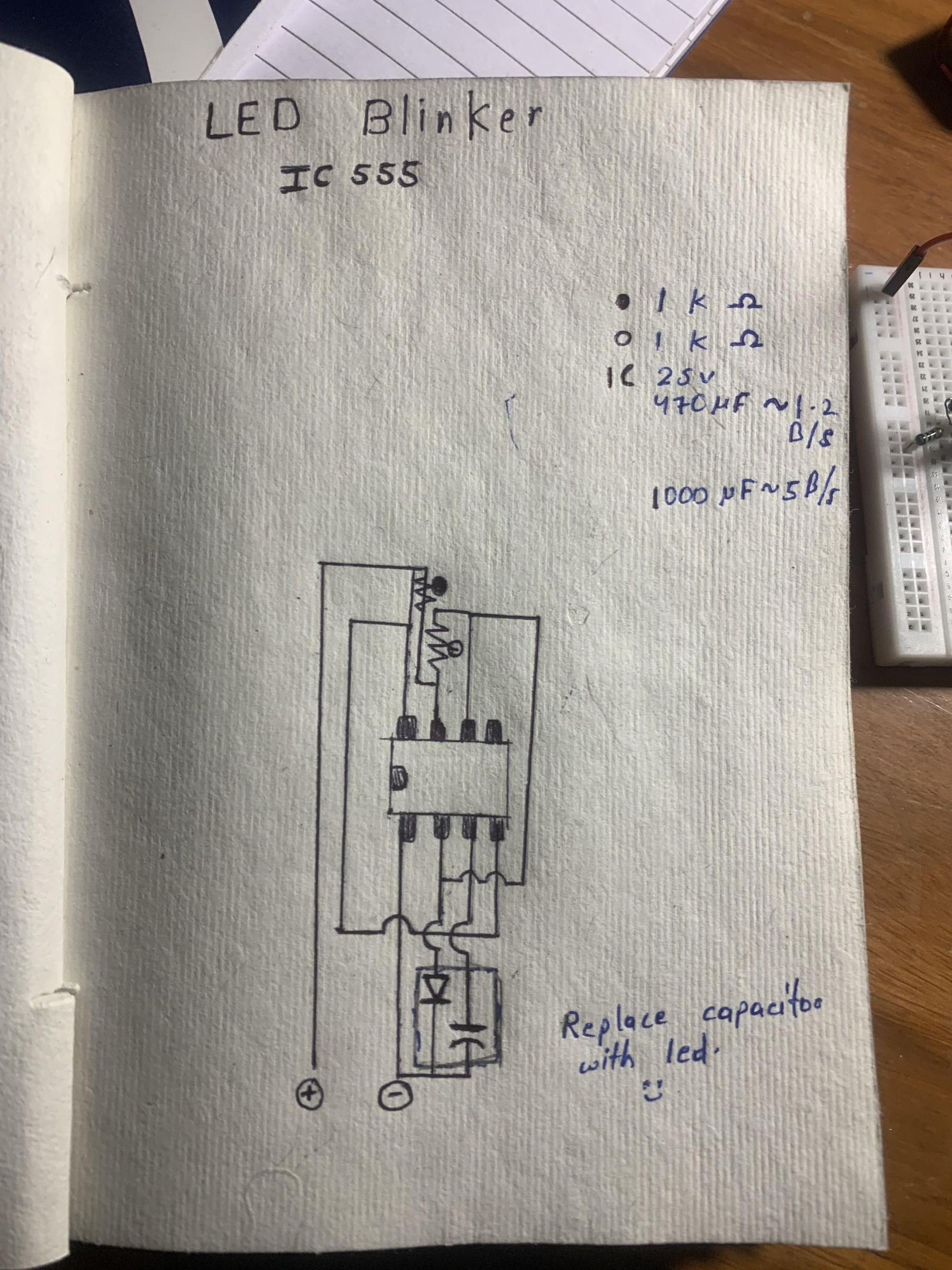

I made this led blinker using a ic555 timer

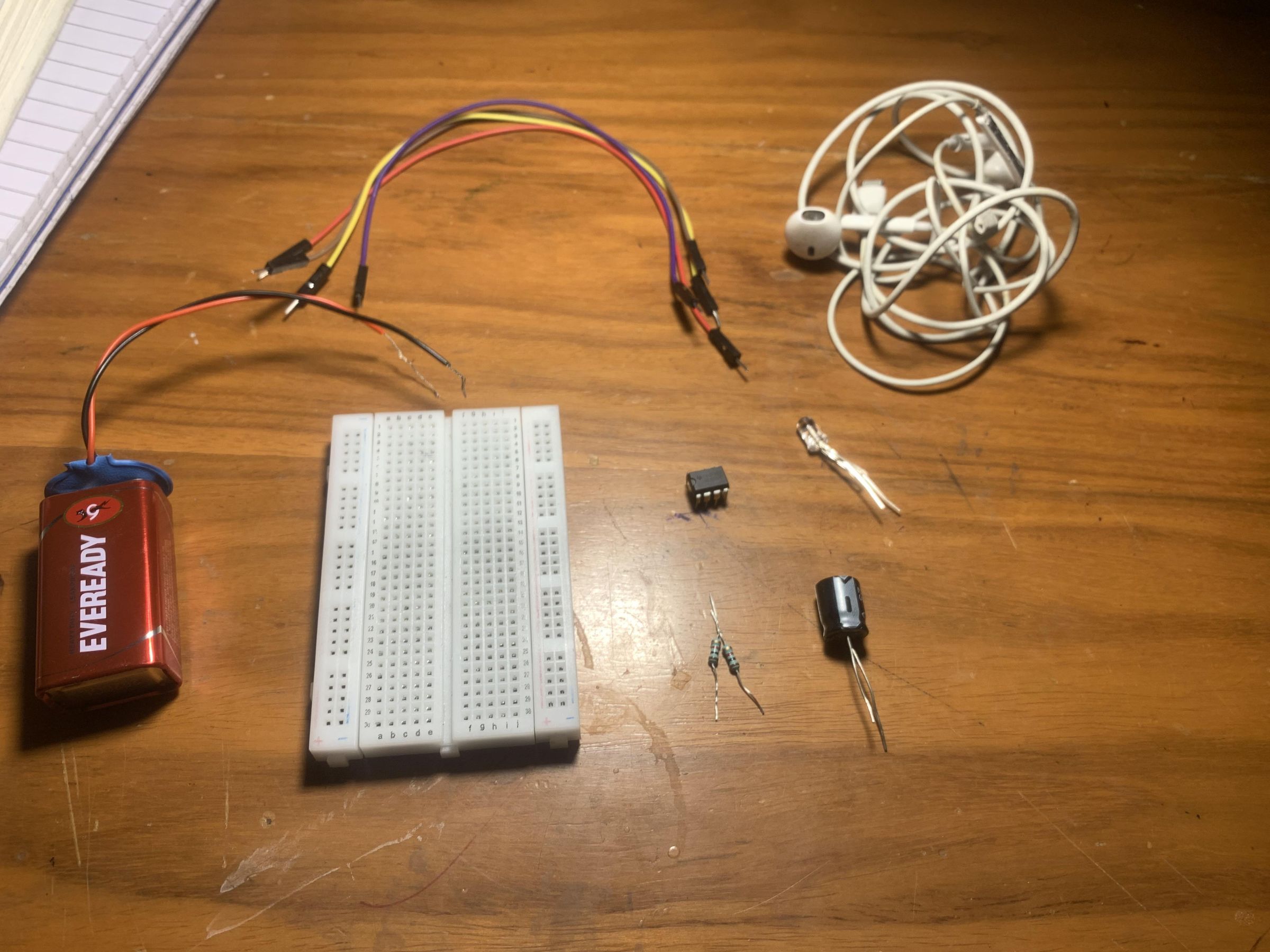

1 ic555 timer

1 led 5v

1 capacitor (according to blinking speed)(~470 uf would be cool)

~ 4 male to male jumper wires

1 breadboard

2 resistors 1 k ohm each

1 9v battery (or any power supply you have)

• your earphones for music :)

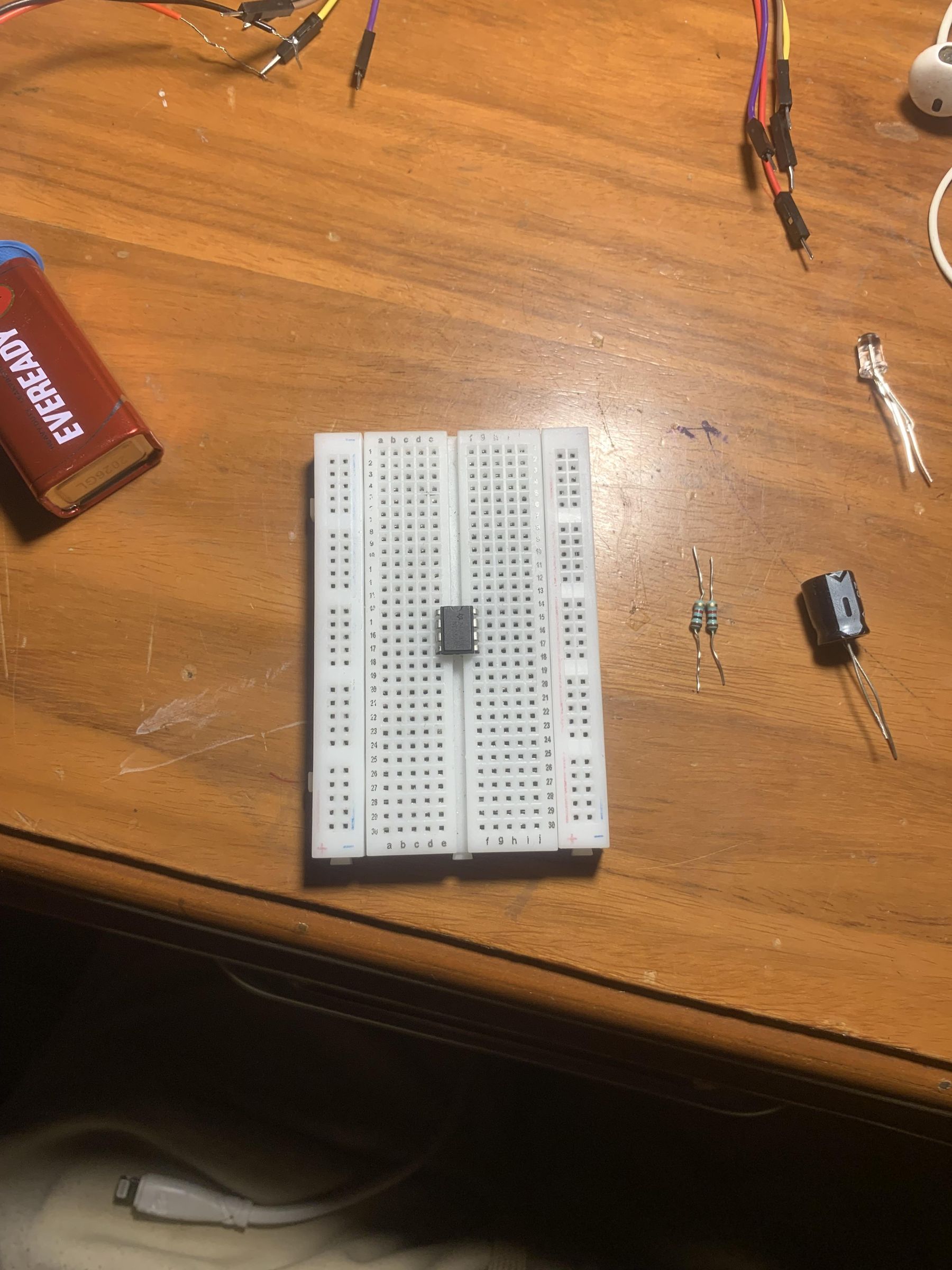

First attch ic55 on your breadboard

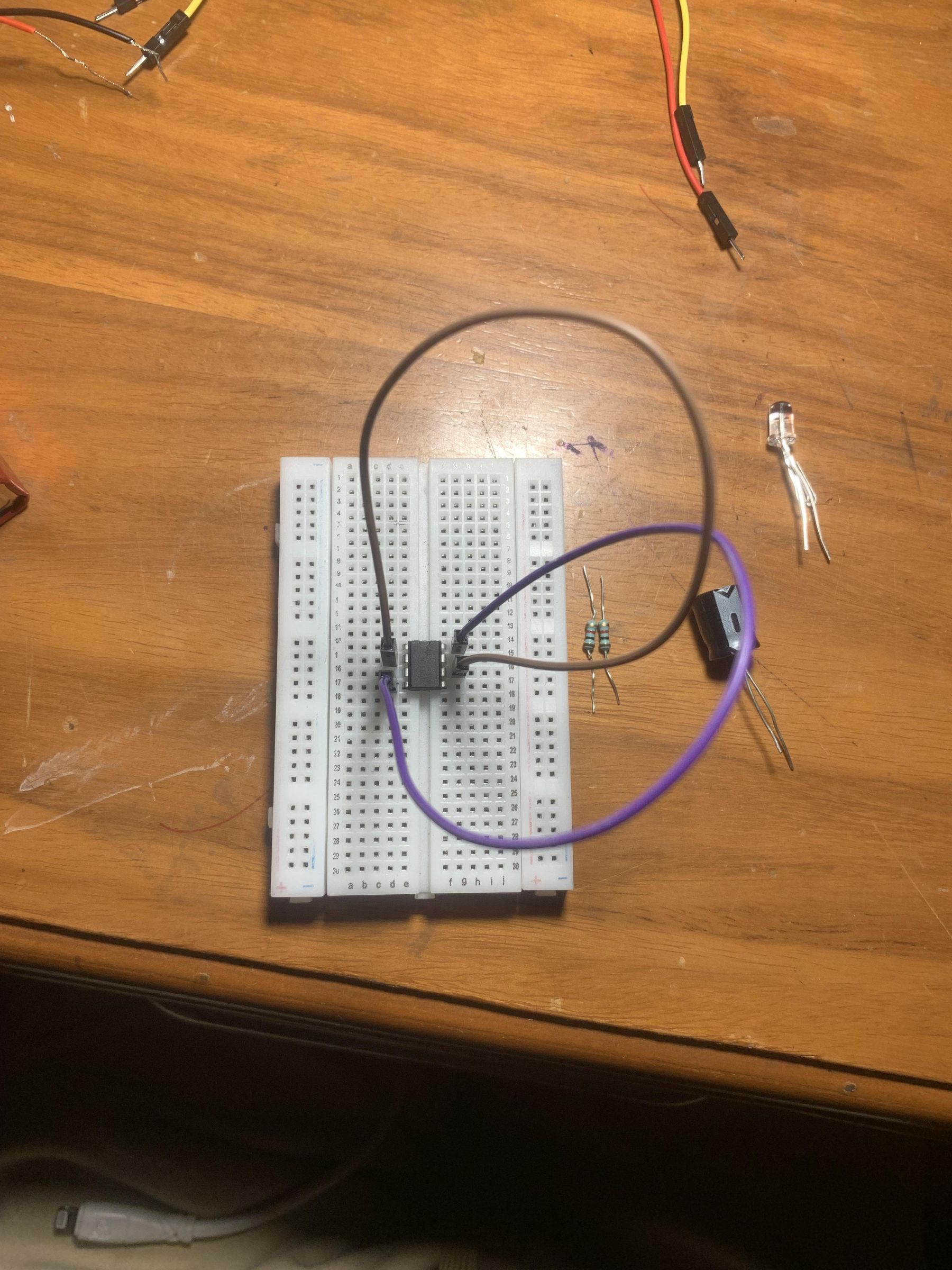

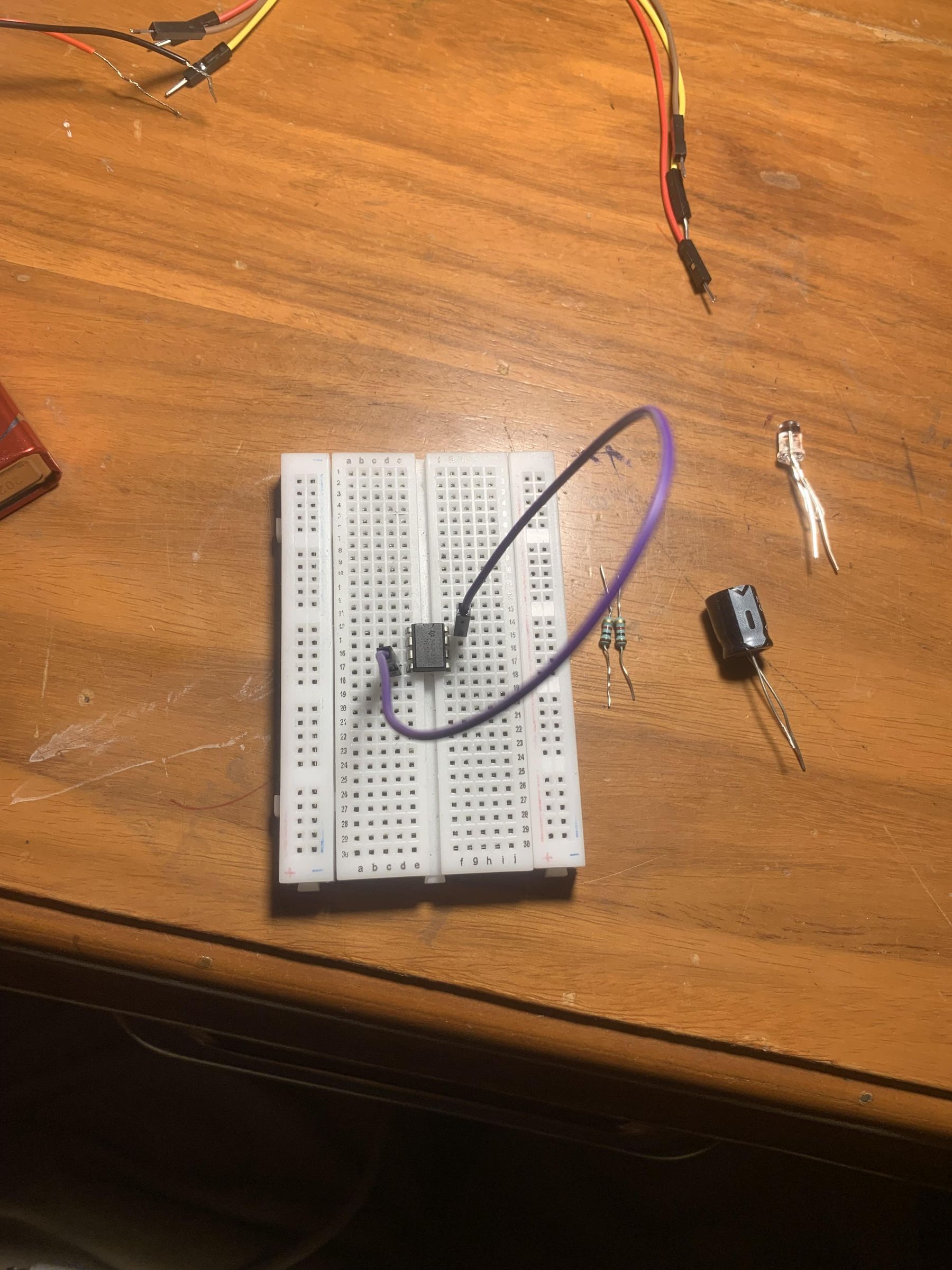

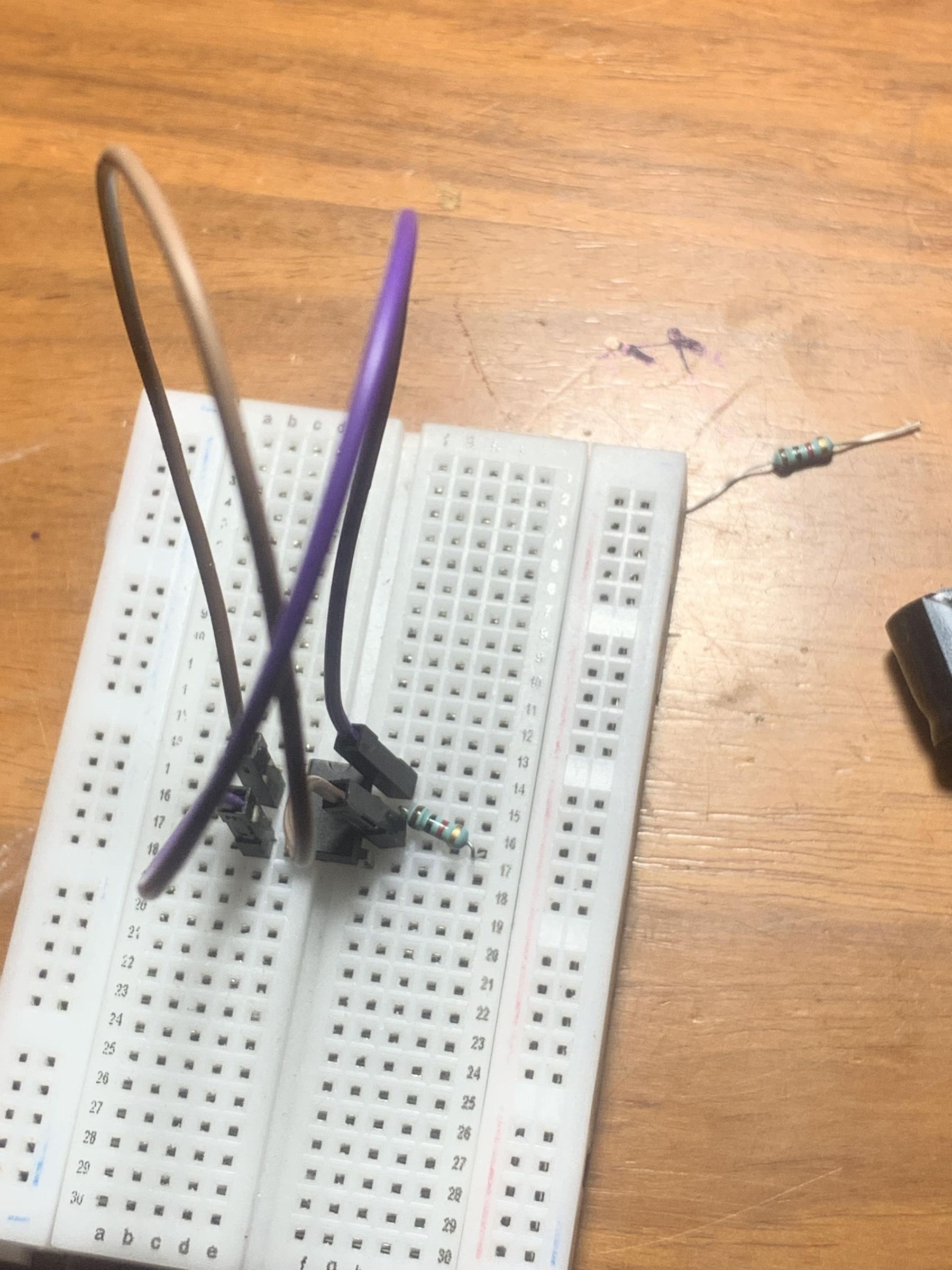

its important to connect it through the resistor.

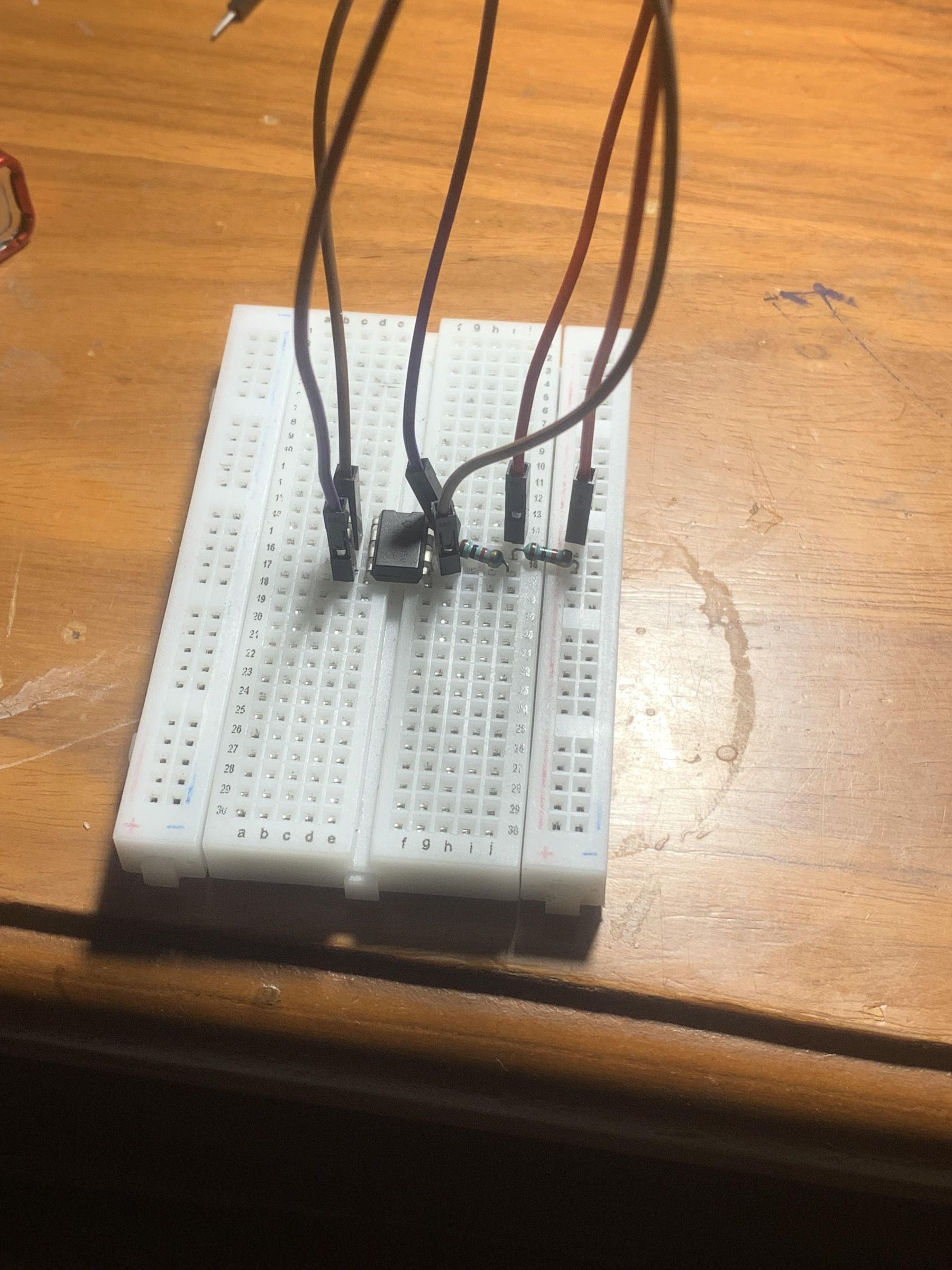

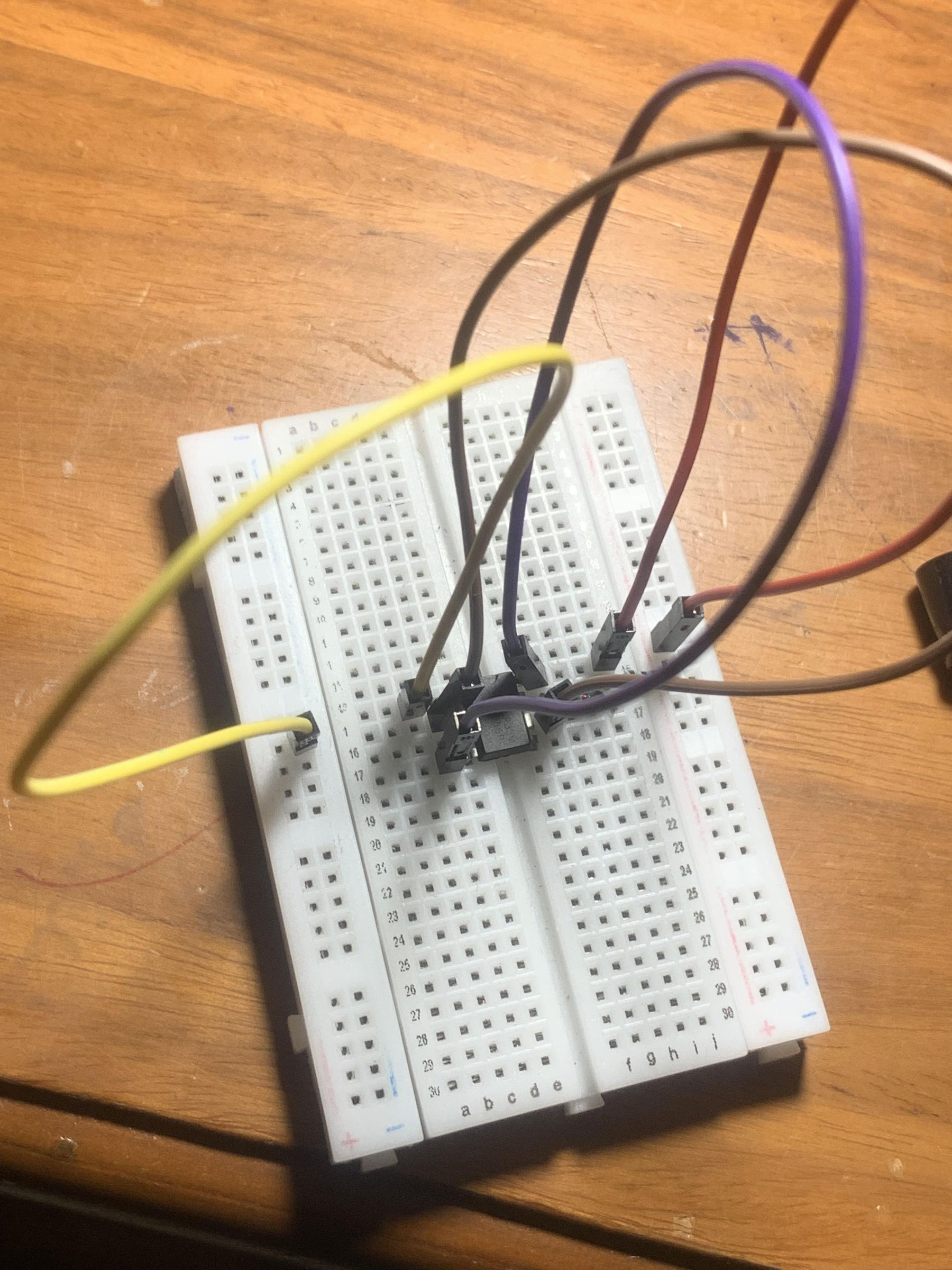

its also important to connect it through a resistor.

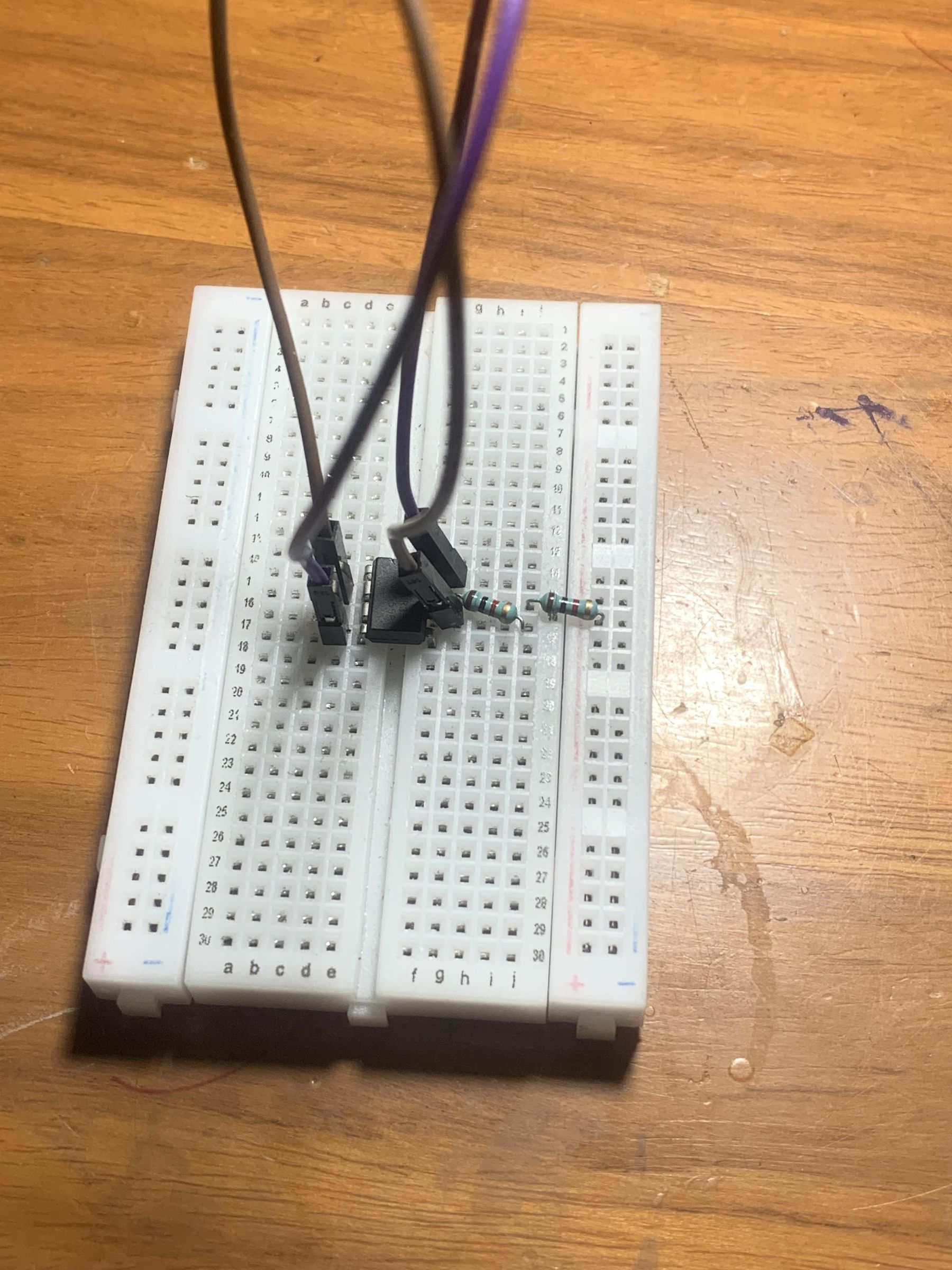

1 k ohm

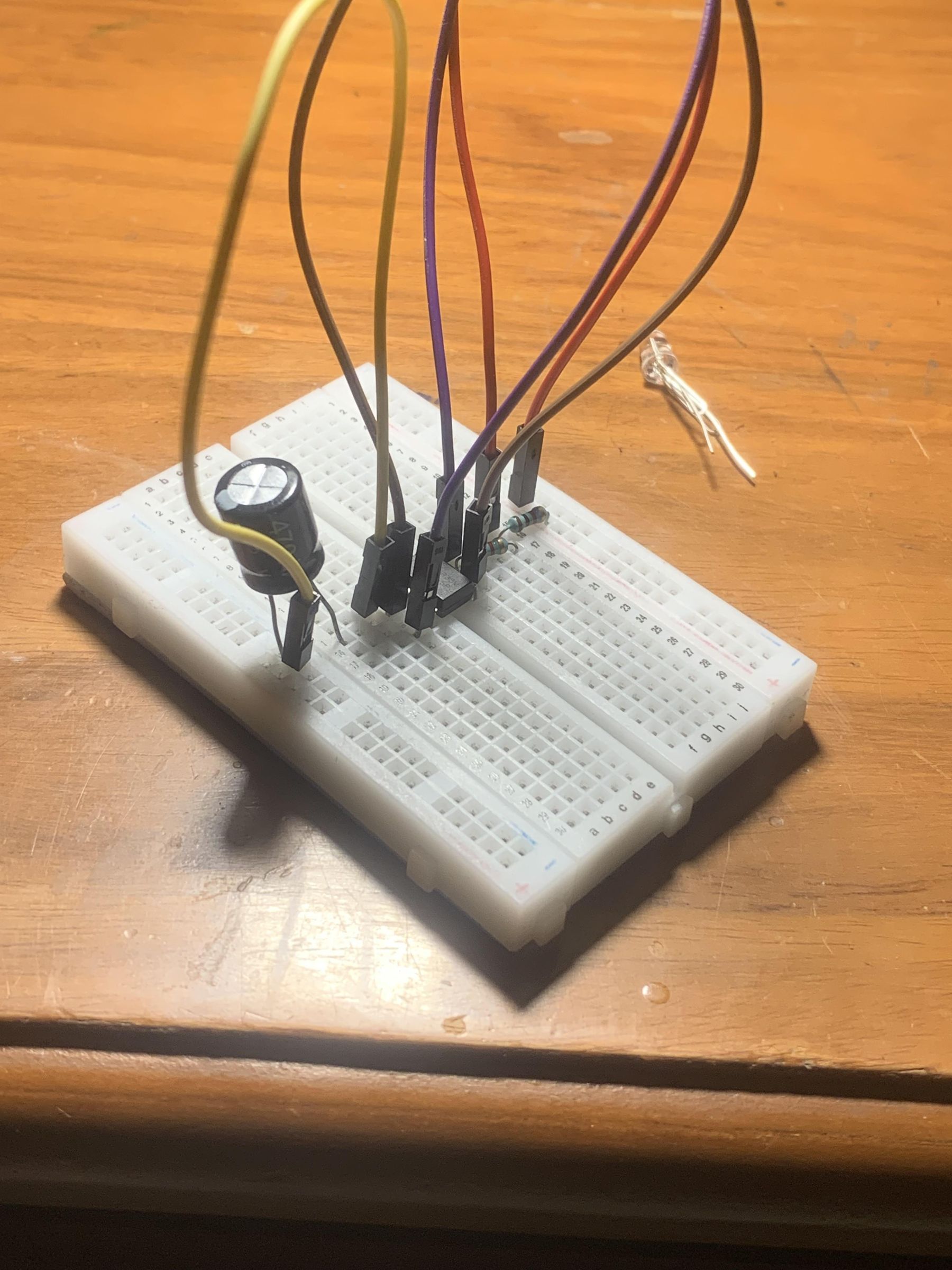

Connect capacitor with positive side on. Trigger and negative side on negative rail of the ground.

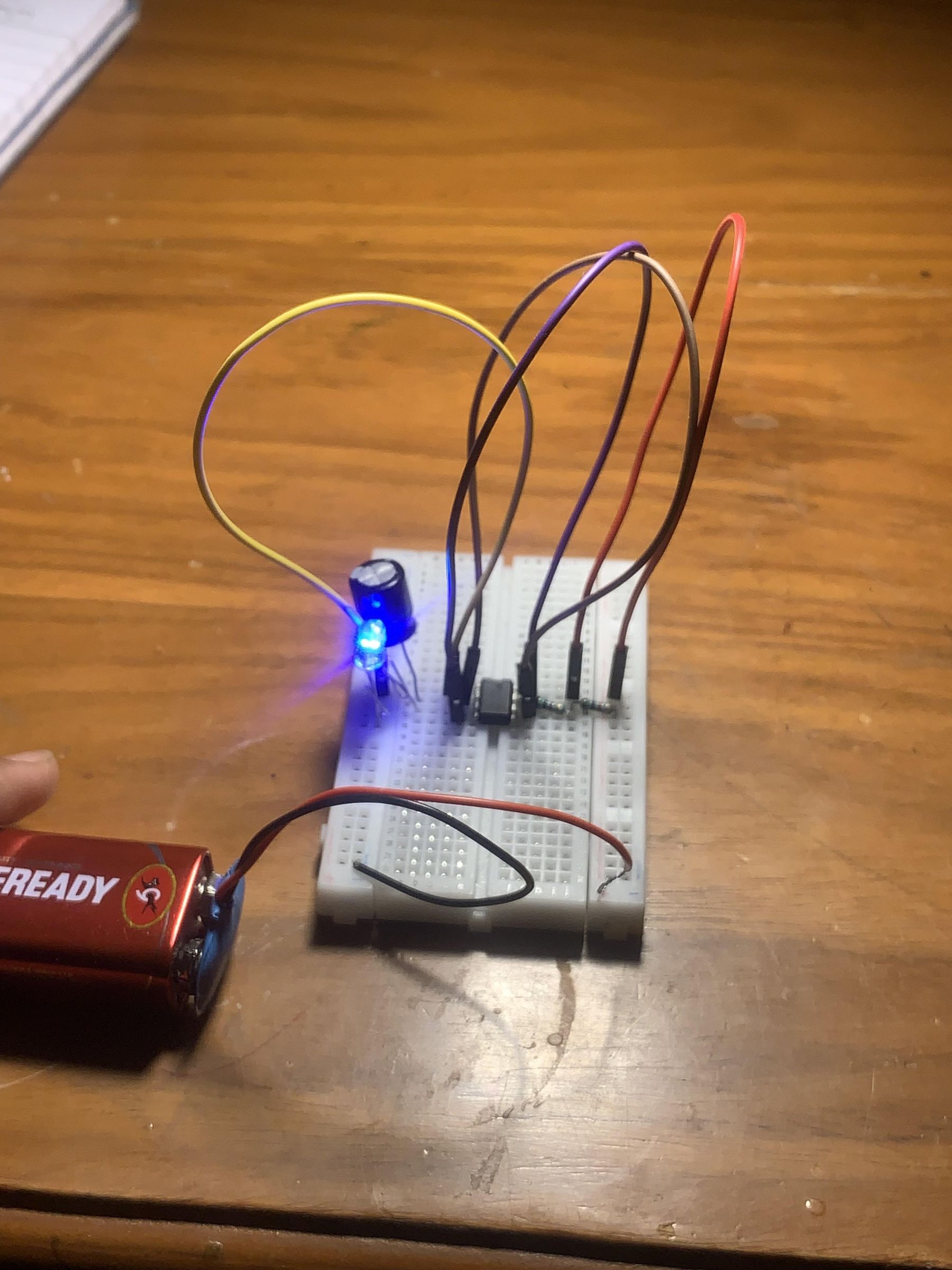

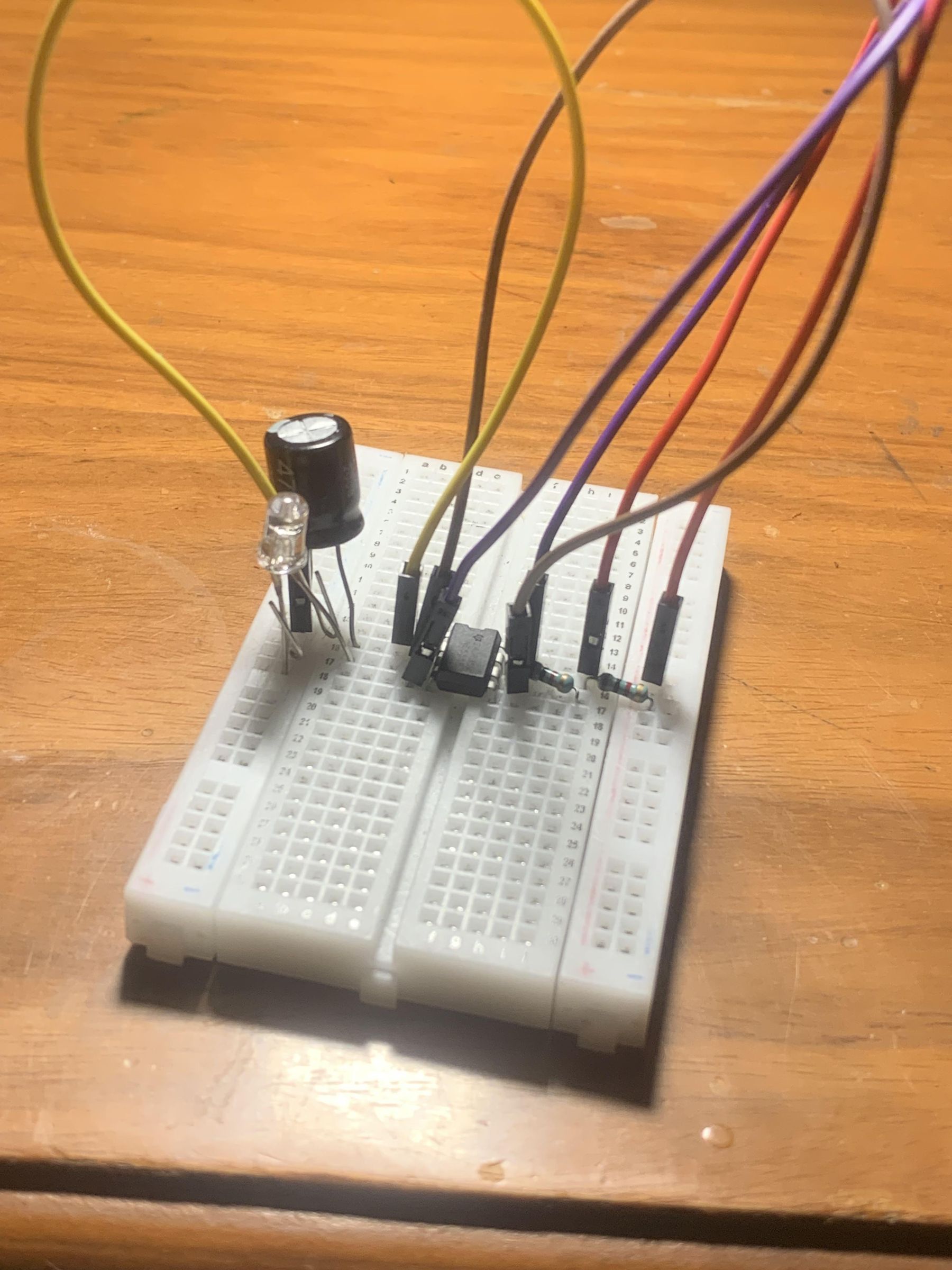

Connect negative end of the led with negative rail on the breadboard and positive with output.
