Teaching microcontrollers to beginners can be hard. When students use standard Arduino commands like pinMode(13, INPUT_PULLUP);, the hardware remains a "black box". They memorize the command but do not understand what happens inside the chip.

This instructable introduces a visual hardware-mapping quiz designed specifically for the ATmega328P (Arduino Nano/Uno). Students use a marker to physically trace internal logic connections, fill out register bit tables, and then test their code directly inside a web browser with zero installation required thanks to the CostyCNC Web Compiler and uploader!

ATmega328P: The Perfect Gateway to Universal MCU Architecture

While this specific quiz uses the ATmega328P (Arduino Nano) layout, the core concepts taught here are universal. Whether your students later program an STM32, an ESP32, or a PIC, they will always need to understand Data Direction, Input, and Output states.

The ATmega328P is simply the best educational tool to learn this because its clean 8-bit structure removes the clutter of modern 32-bit chips, letting students focus on pure, fundamental logic.

* Printed Quiz Sheets (one per student)

* Colored markers or pens (Carioca)

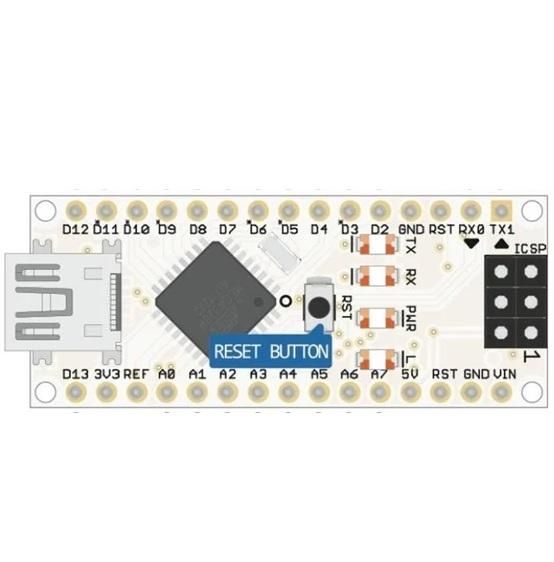

* Arduino Nano board (ATmega328P)

* USB cable to connect the board to a computer

* Computer with a modern web browser (Chrome, Edge, or Opera)

* CostyCNC / AVR1 Web Compiler and uploader (Accessible online, no installation required)

With so many powerful chips on the market (like ESP32, STM32, or ARM), why should schools and universities still focus on the ATmega328P?

The answer is simple: It is the best educational bridge between software and real silicon physics.

1. Perfect 8-Bit Architecture: Modern 32-bit or 64-bit processors are too complex for beginners. Their registers are massive, and tracking individual bits is confusing. The ATmega328P uses clean, easy-to-understand 8-bit registers (1 byte).
2. True RISC Simplicity: The AVR architecture has a very clean instruction set. Commands like SBI (Set Bit in I/O Register) and CBI (Clear Bit) allow students to see a direct 1-to-1 relationship between a line of Assembly code and a physical transistor moving inside the chip.
3. No Hidden Layers: Unlike complex operating systems or high-level abstractions, programming the ATmega328P in Assembly gives students total, raw control over the hardware. It teaches them how computers actually work at the lowest level.

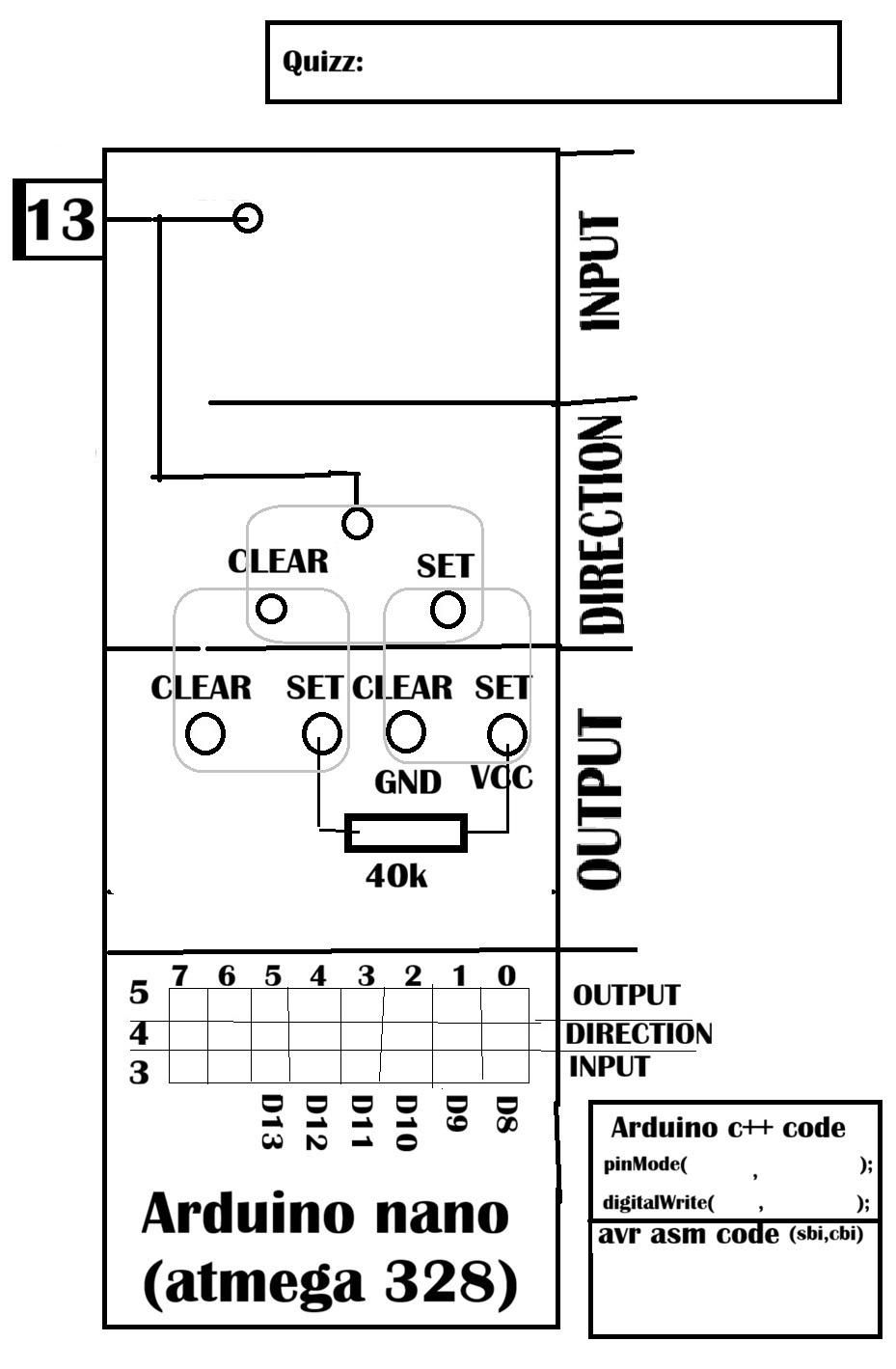

This specific quiz focuses entirely on the internal register layout of the ATmega328P. Instead of looking at abstract text, this test treats the internal structure of a pin (like digital pin 13, which is hardware pin PB5) as a physical patch panel with jumpers.

The quiz sheet is divided into three main hardware logic sections:

1. INPUT: Represents the PINB register state.
2. DIRECTION: Represents the DDRB register (deciding between INPUT and OUTPUT).
3. OUTPUT: Represents the PORTB register (handling HIGH/LOW states or activating pull-up resistors).

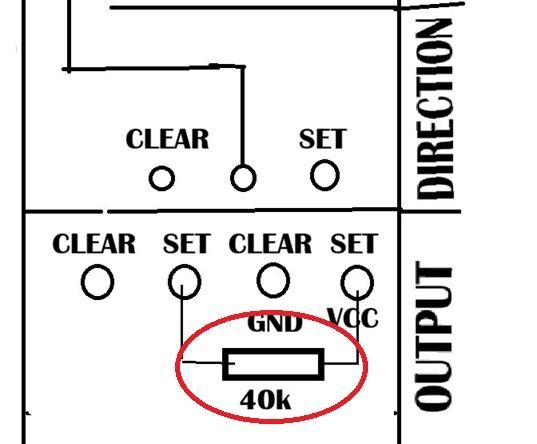

By drawing lines to "close" the connections, students visually see how internal 40kΩ pull-up resistors physically route electrical currents inside the chip.

Print the blank template sheet and hand it out to your students.

The Question: Configure digital pin 13 (PB5) to act as an Input with the Internal Pull-Up Resistor active.

To successfully pass the quiz, the student must complete 3 visual steps using a marker (carioca):

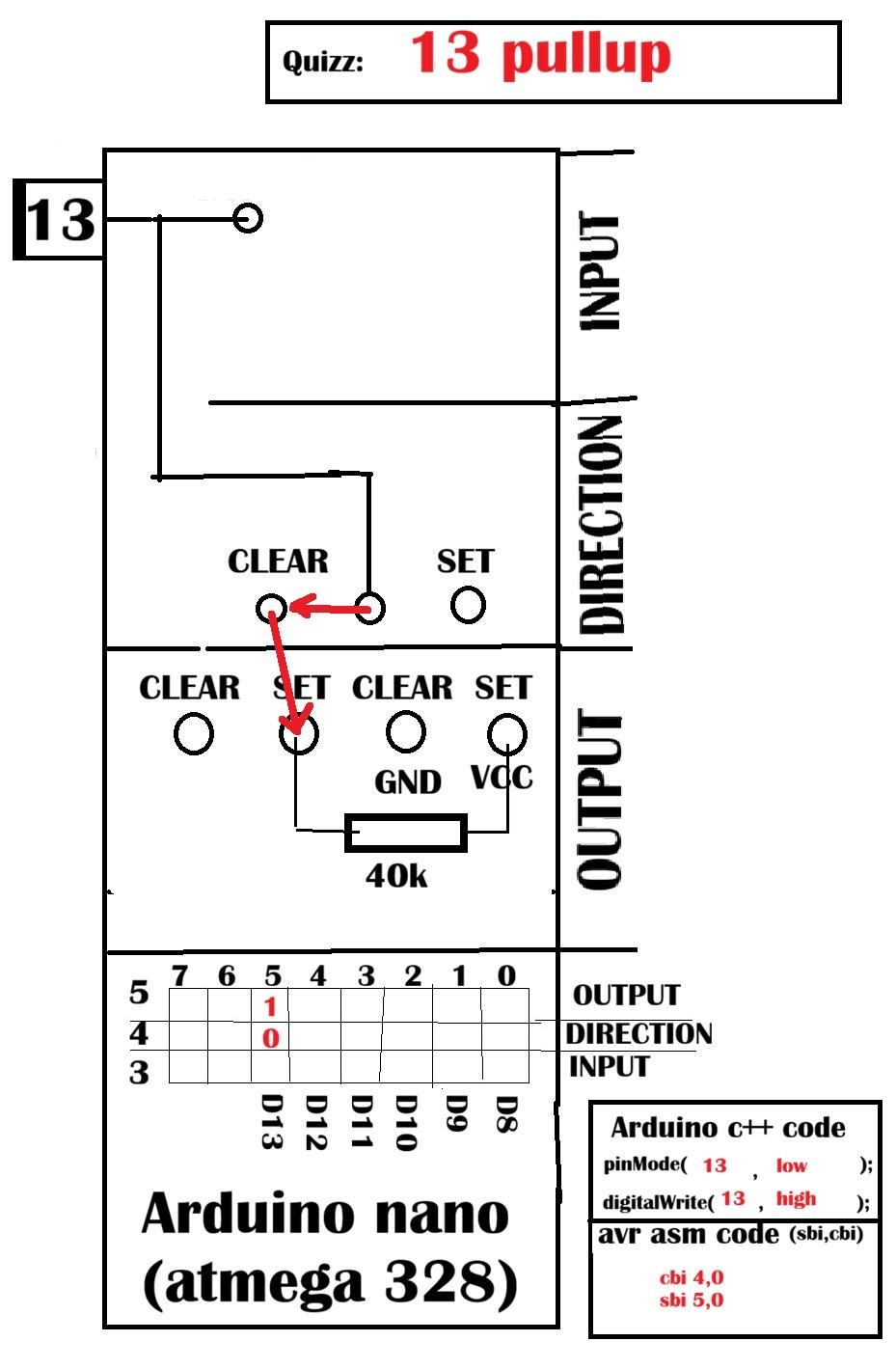

1. Route the Connections (The Red Lines):
2. Connect the central line in DIRECTION to CLEAR (this configures the pin as an INPUT by clearing the DDR bit).
3. Connect the central line in OUTPUT to SET VCC (this routes the internal 40k resistor to the positive power rail).
4. Write the Registers Bit-Map (The Table):
5. Fill the vertical column under Bit 5 (D13) for the Port registers (Registers 3, 4, 5).
6. OUTPUT (PORTB) row = 1 (Activates pull-up).
7. DIRECTION (DDRB) row = 0 (Sets input).
8. INPUT (PINB) row = 1 (Default high state due to pull-up).
9. Write the Equivalence Code:
10. Arduino Language: pinMode(13, INPUT_PULLUP);
11. AVR Assembly Language (ASM):

Understanding pull-up and pull-down resistors is one of the biggest roadblocks in electronics education.

The Hard Data on Student Confusion

Educational research shows that a massive number of students struggle with basic circuit logic. In peer-reviewed physics and electronics education studies (like the DIRECT conceptual assessment tool), over 28% of students constantly confuse voltage and current when analyzing active networks.

When it comes to microcontrollers, nearly 40% of beginners do not truly understand why a pin cannot just stay disconnected. They suffer from floating pin confusion. When a teacher asks them to use pinMode(13, INPUT_PULLUP);, students simply memorize the line of code. They treat it like a magic spell without understanding what it actually does to the circuit.

Why This Visual Method Makes It Easy

Memorizing text code is hard because human brains prefer visual spatial relationships.

This quiz solves the learning crisis by mapping code to moving physical parts:

1. Instead of text, it's a map: The student sees the 40kΩ resistor sitting inside the chip.
2. Logical cause and effect: By drawing the marker lines to SET VCC, the student connects the resistor to the power rail with their own hand.
3. Universal comprehension: The student instantly understands why the input defaults to 1 (HIGH) when no button is pressed. They can visualize the tiny current flowing safely through the weak internal connection.

By replacing boring memorization with physical logic, concepts that usually take weeks to master are understood in less than 5 minutes.

The best part of this method is the instant verification phase. School computer labs often block software installations or drivers. With the CostyCNC / AVR1 Web Compiler, you don't need to install anything!

1. Connect the Arduino Nano to the computer via a USB cable.
2. Open the CostyCNC/AVR1 web uploader in any modern web browser.

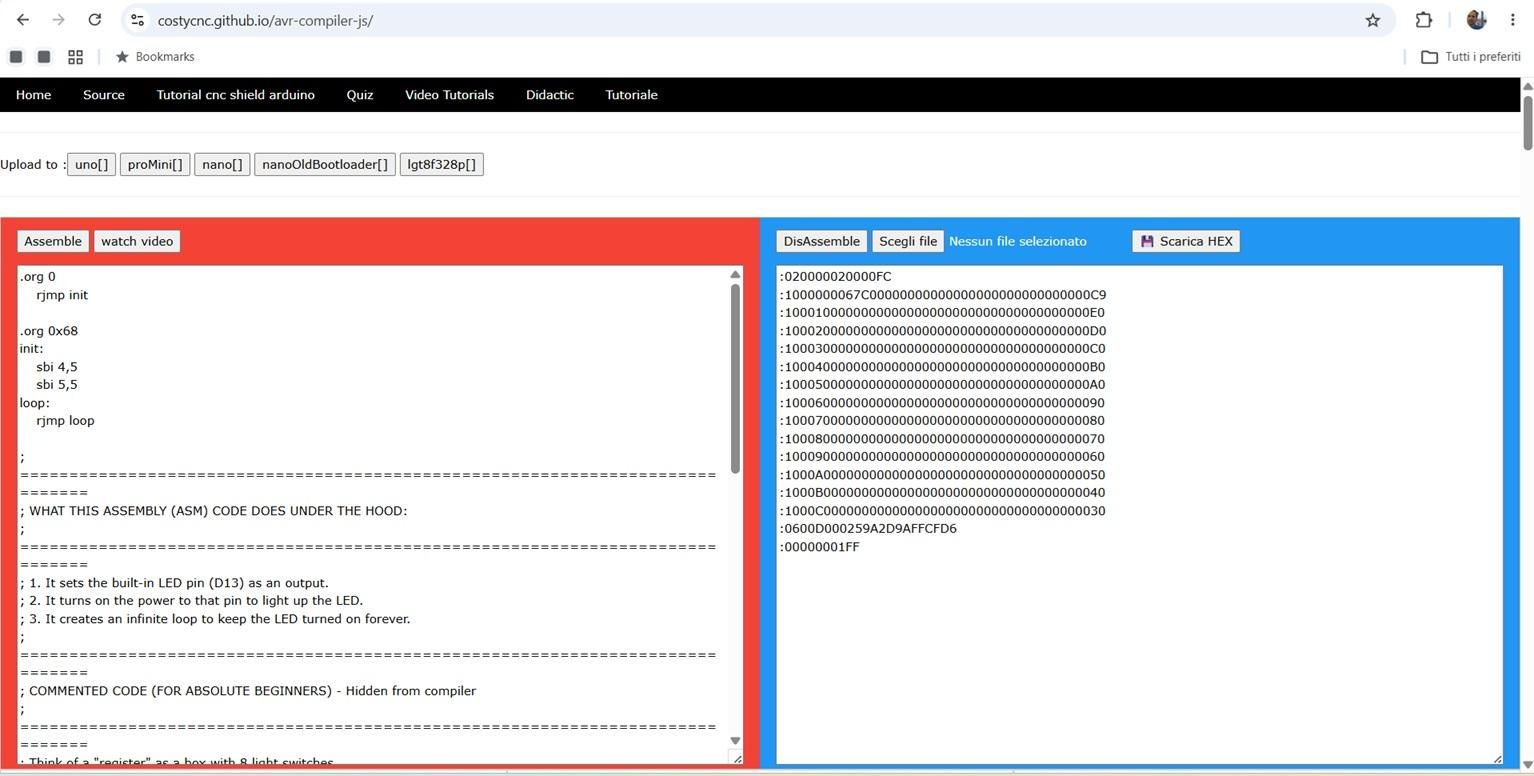

3. Type the written Assembly code (cbi and sbi instructions) directly into the browser text field.
4. Click Compile & Upload.

Using the browser's native Web Serial API, the web page compiles the ASM code instantly and flashes it straight into the ATmega328P hardware. Students can immediately verify their paper quiz directly on the physical board in seconds!
