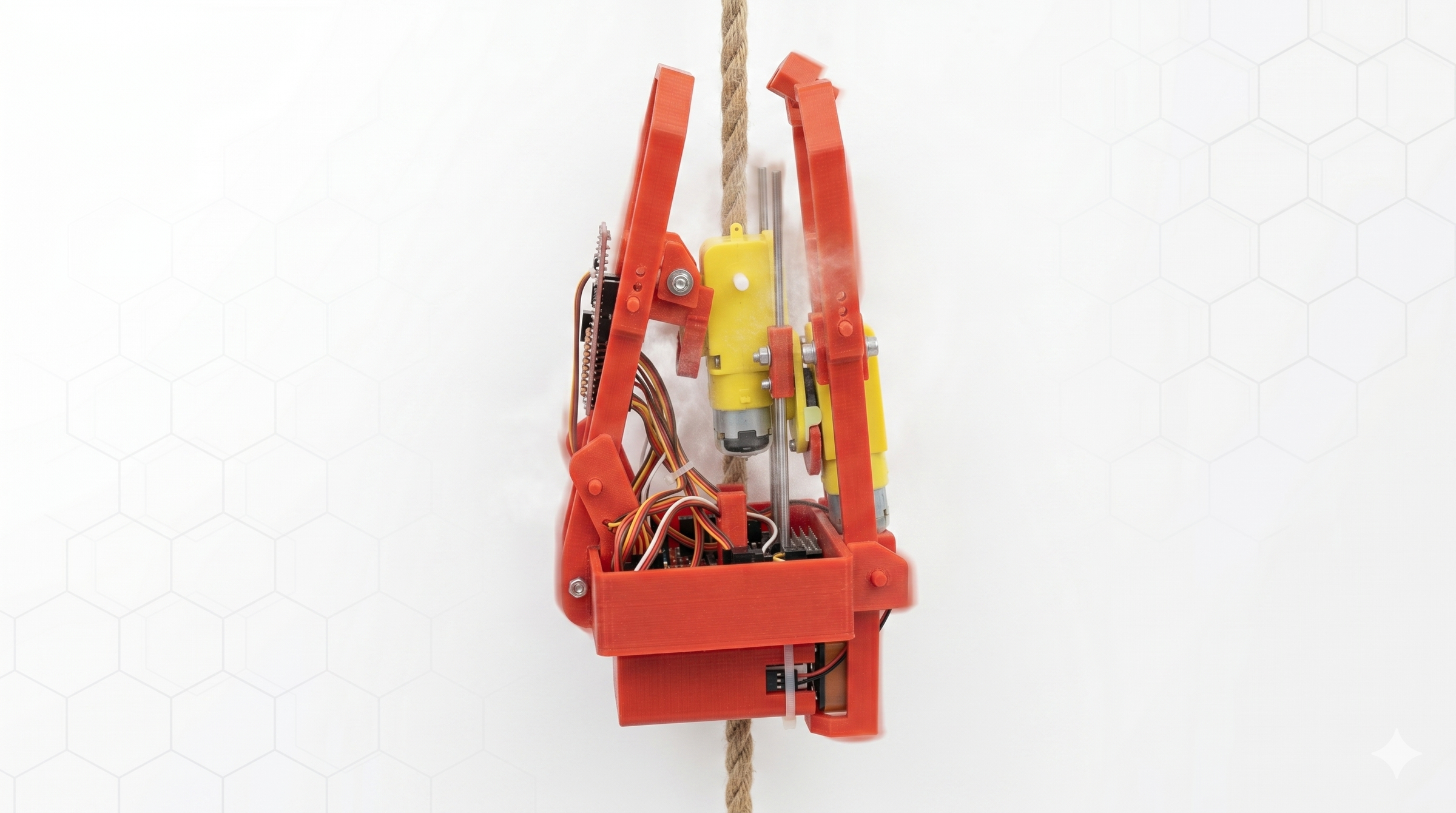

IoT-Based Rope Climbing Bot Using Arduino UNO R4 WiFi and Blynk

The Rope Climbing Bot is an IoT-based wireless robot designed to move along a suspended rope using a motor-driven climbing mechanism. The robot combines embedded systems, wireless communication, and mechanical design into a compact robotic platform.

The system is controlled using the Blynk IoT mobile application through WiFi communication. Users can control forward movement, reverse movement, stop operation, and motor speed directly from a smartphone.

The project uses an Arduino UNO R4 WiFi as the main controller, an L298N motor driver for motor control, BO motors for climbing movement, and a Li-ion battery for portable power. The robot demonstrates practical implementation of IoT robotics, embedded programming, motor control, and CAD-based mechanical design.

This project is suitable for students, robotics enthusiasts, and makers interested in learning wireless robot control, IoT integration, and mechanical system development.

ItemQuantity

Arduino UNO R4 WiFi - 1

L298N Motor Driver Module - 1

BO Motors - 2

Li-ion Battery - 1

3D Printed Frame - 1

Rope Gripping Mechanism

Jumper Wires - Multiple

Mobile Phone with Blynk App - 1

Motor Mounting Hardware

The Rope Climbing Bot is an IoT-based wireless robot designed to move along a suspended rope using a motor-driven climbing mechanism. The robot combines mechanical design, embedded systems, wireless communication, and mobile-based control into a single compact robotic platform.

The system is controlled using the Blynk IoT mobile application through WiFi communication. Users can remotely control the robot's movement and adjust its climbing speed using a smartphone. The robot supports forward movement, reverse movement, stop operation, and PWM-based speed control.

The main objective of this project is to demonstrate the practical implementation of robotics, embedded systems, motor control, IoT communication, and CAD-based mechanical design. This project can be used as an educational robotics platform and can be further developed for industrial inspection and automation applications.

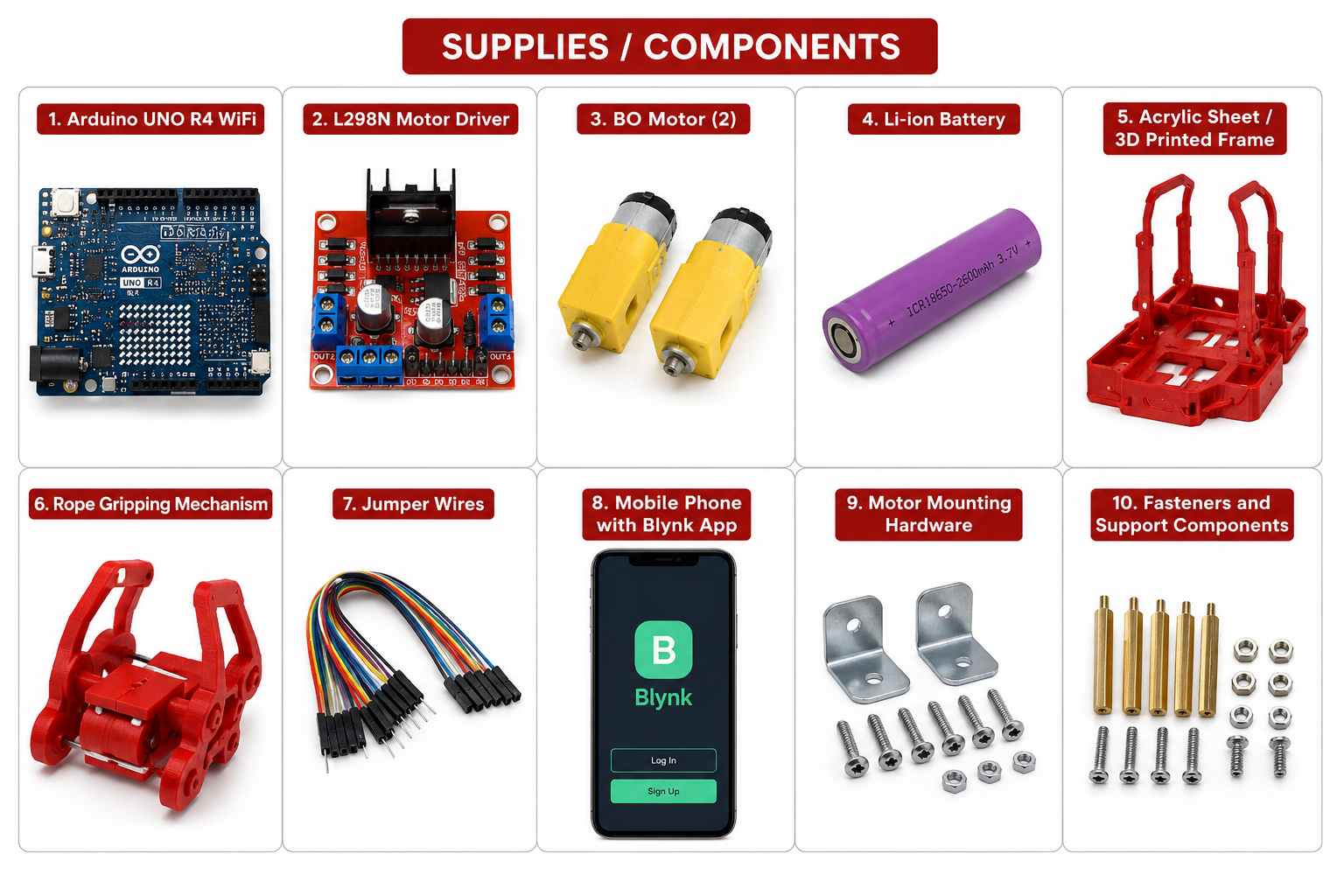

Before starting the project, gather all the required components and tools.

Components Used

1. Arduino UNO R4 WiFi
2. L298N Motor Driver Module
3. BO Motors (2)
4. Li-ion Battery
5. Rope Gripping Mechanism
6. Acrylic Sheet / 3D Printed Chassis
7. Jumper Wires
8. Mobile Phone with Blynk App
9. Fasteners and Support Components

Tools Used

1. Arduino IDE
2. Onshape CAD Software
3. Screwdriver Set
4. USB Type-C Cable
5. 3D Printer (Optional)
6. Wire Cutter and Pliers

These components are used to create a wireless rope climbing robot capable of remote operation through a smartphone.

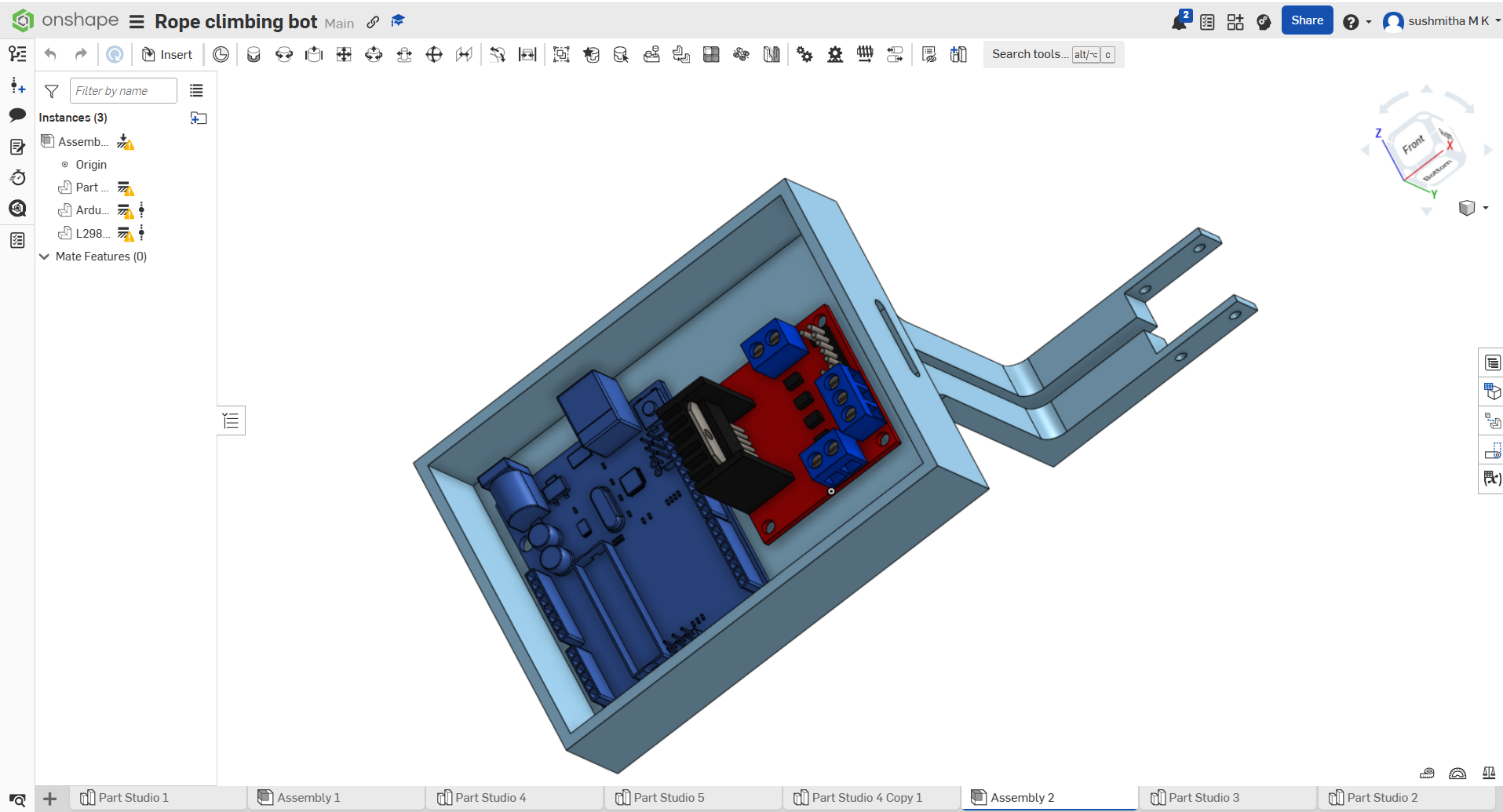

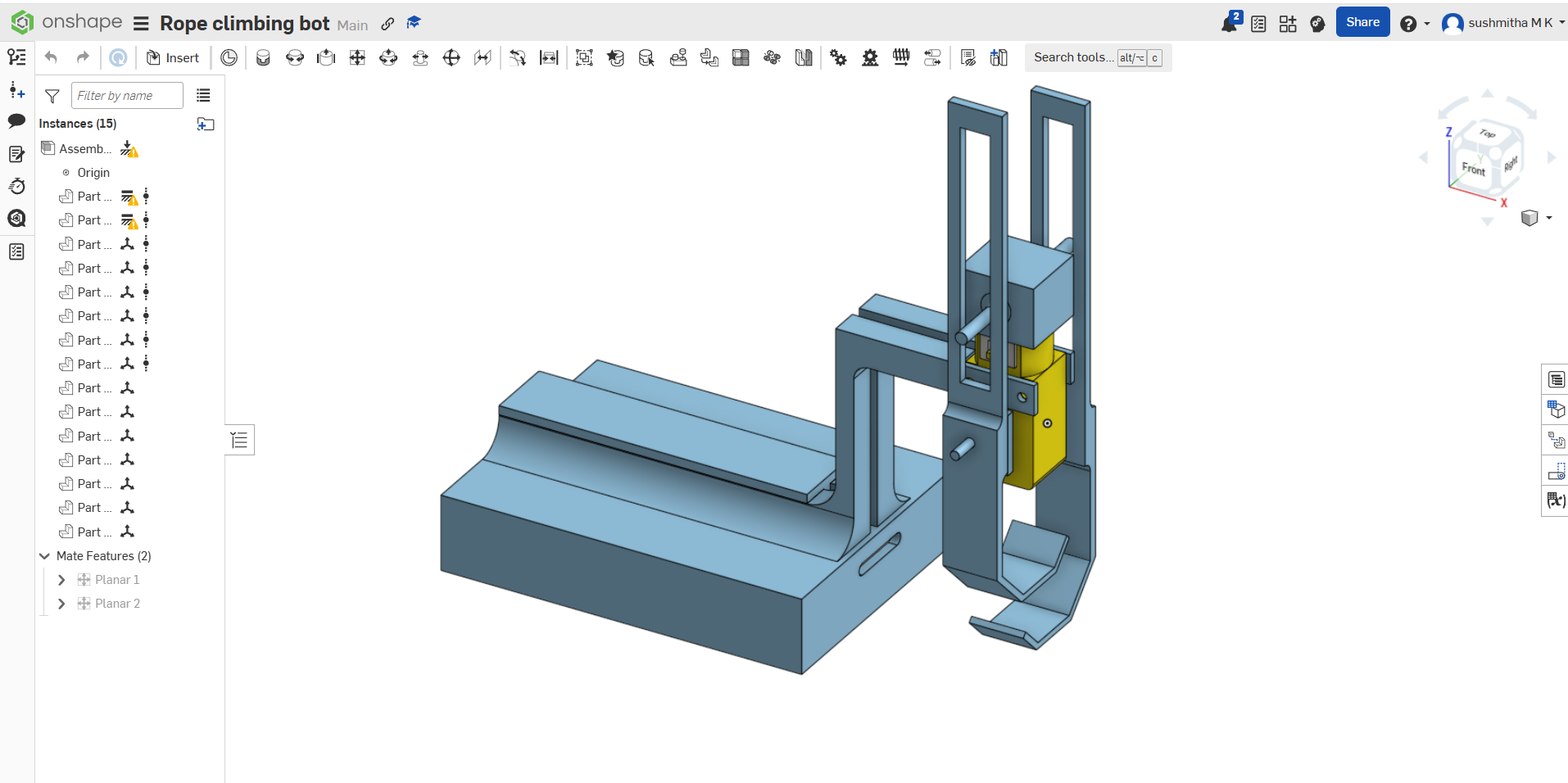

The complete mechanical structure of the Rope Climbing Bot was designed using Onshape CAD Software.

The design process began by creating a base chassis structure capable of supporting the Arduino board, motor driver, battery, and climbing mechanism. Support arms were added to maintain stability while climbing.

The rope gripping section was designed carefully to ensure proper contact with the rope and prevent slipping during movement. All mounting holes for the electronic components were included in the CAD model before fabrication.

The final design was verified for:

1. Component spacing
2. Weight distribution
3. Structural stability
4. Ease of fabrication
5. Rope alignment

After completing the CAD design, the mechanical parts were fabricated.

The chassis, support arms, motor mounts, and rope gripping components were prepared according to the dimensions created in Onshape.

During fabrication, attention was given to:

1. Proper alignment
2. Structural strength
3. Lightweight construction
4. Accurate hole positioning

All fabricated parts were inspected before assembly to ensure smooth operation of the climbing mechanism.

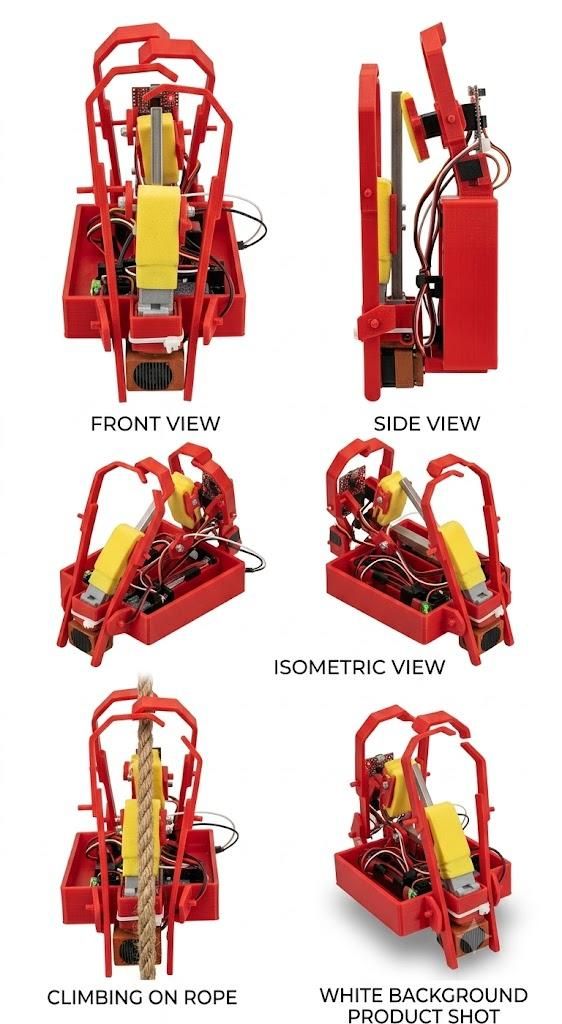

The fabricated parts were assembled to create the main robot structure.

The chassis serves as the base frame that supports all electronic and mechanical components. The support arms were attached first, followed by the motor mounting brackets and battery holder.

The assembly process focused on:

1. Maintaining balance
2. Ensuring structural rigidity
3. Providing sufficient space for wiring
4. Supporting the rope gripping mechanism

A properly assembled chassis improves climbing stability and overall robot performance.

The rope gripping mechanism is one of the most important parts of the robot.

This mechanism ensures continuous contact between the robot and the rope while climbing. The gripping structure was installed at the center of the robot and aligned carefully to prevent slippage.

Functions of the gripping mechanism:

1. Maintain stable contact with the rope
2. Support upward and downward movement
3. Improve climbing stability
4. Reduce vibration during operation

Proper alignment is essential for smooth climbing performance.

Two BO motors were installed on the robot to provide climbing motion.

The motors were mounted securely using motor brackets and connected to the climbing mechanism. The motor shafts were aligned carefully to ensure efficient power transfer.

The motors are responsible for:

1. Forward climbing movement
2. Reverse climbing movement
3. Speed variation through PWM control

Motor alignment directly affects climbing efficiency and stability

The Arduino UNO R4 WiFi and L298N Motor Driver were mounted on the chassis.

The Arduino board acts as the main controller and receives commands from the Blynk IoT mobile application. The L298N motor driver receives signals from the Arduino and controls motor direction and speed.

The mounting process included:

1. Securing the Arduino board
2. Fixing the motor driver
3. Organizing wiring paths
4. Ensuring proper ventilation

Both modules were positioned for easy access and maintenance.

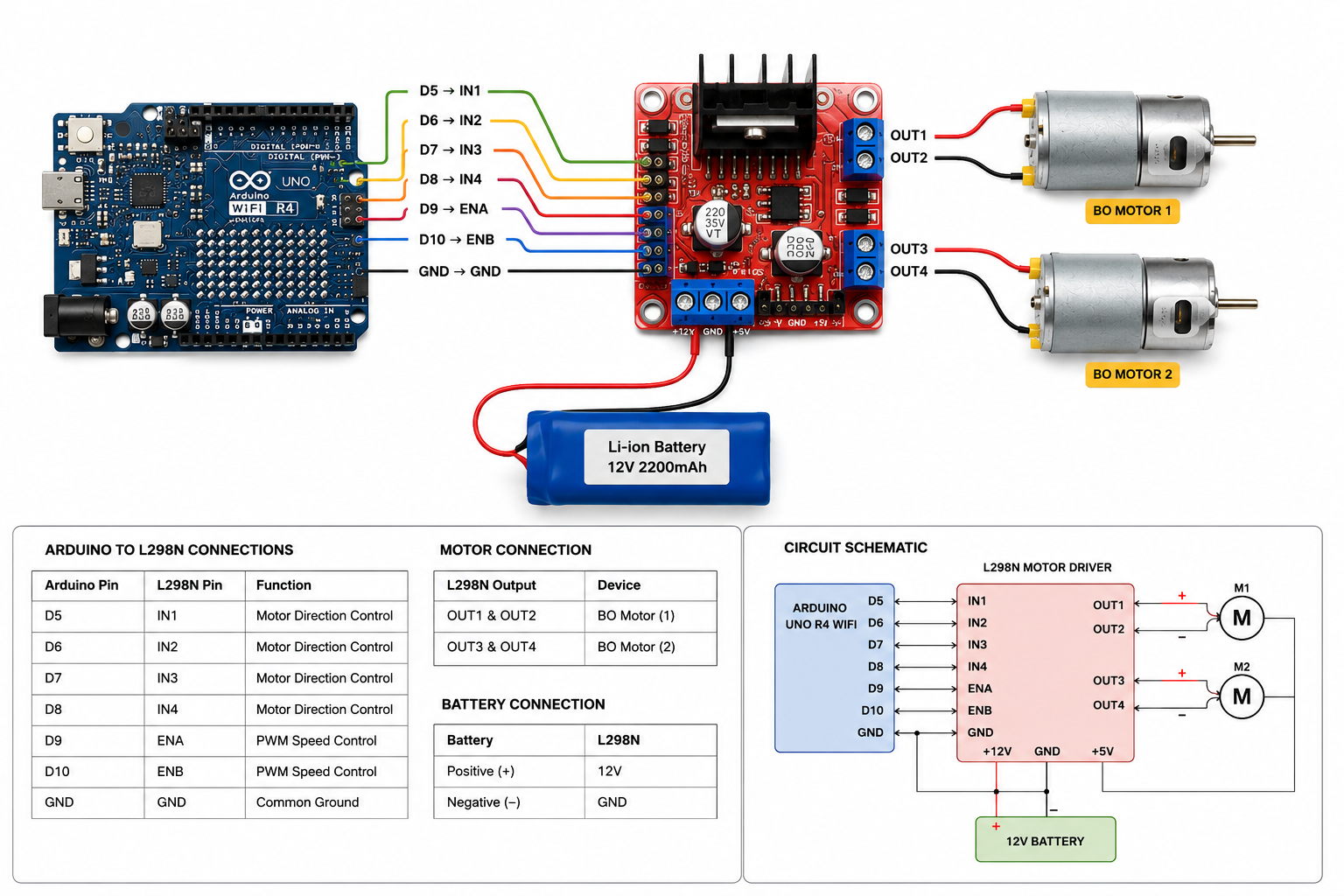

After mounting all components, the electrical wiring was completed.

Arduino to L298N Connections

1. D5 → IN1
2. D6 → IN2
3. D7 → IN3
4. D8 → IN4
5. D9 → ENA
6. D10 → ENB
7. GND → GND

Motor Connections

1. OUT1 & OUT2 → Motor 1
2. OUT3 & OUT4 → Motor 2

Battery Connection

1. Positive Terminal → 12V
2. Negative Terminal → GND

After completing the wiring, all connections were checked carefully before powering the system.

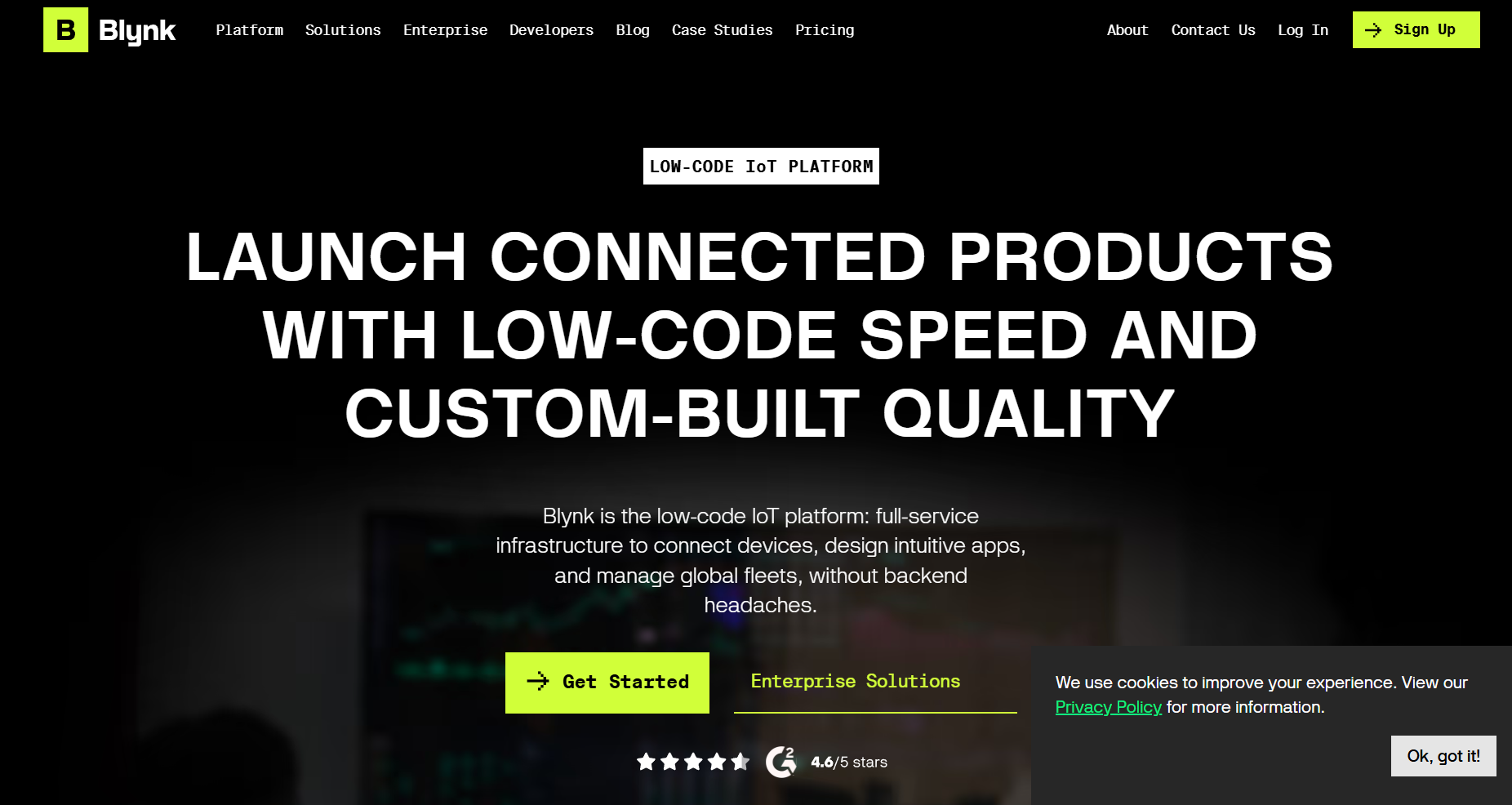

The robot uses the Blynk IoT platform for wireless control.

A new Blynk template was created and configured for Arduino UNO R4 WiFi.

Virtual Pins Used

1. V0 → Forward Movement
2. V1 → Reverse Movement
3. V2 → Stop Operation
4. V3 → Fast Speed
5. V4 → Slow Speed

Buttons were added to the dashboard and linked to their respective virtual pins.

The dashboard provides a simple interface for controlling the robot from a smartphone.

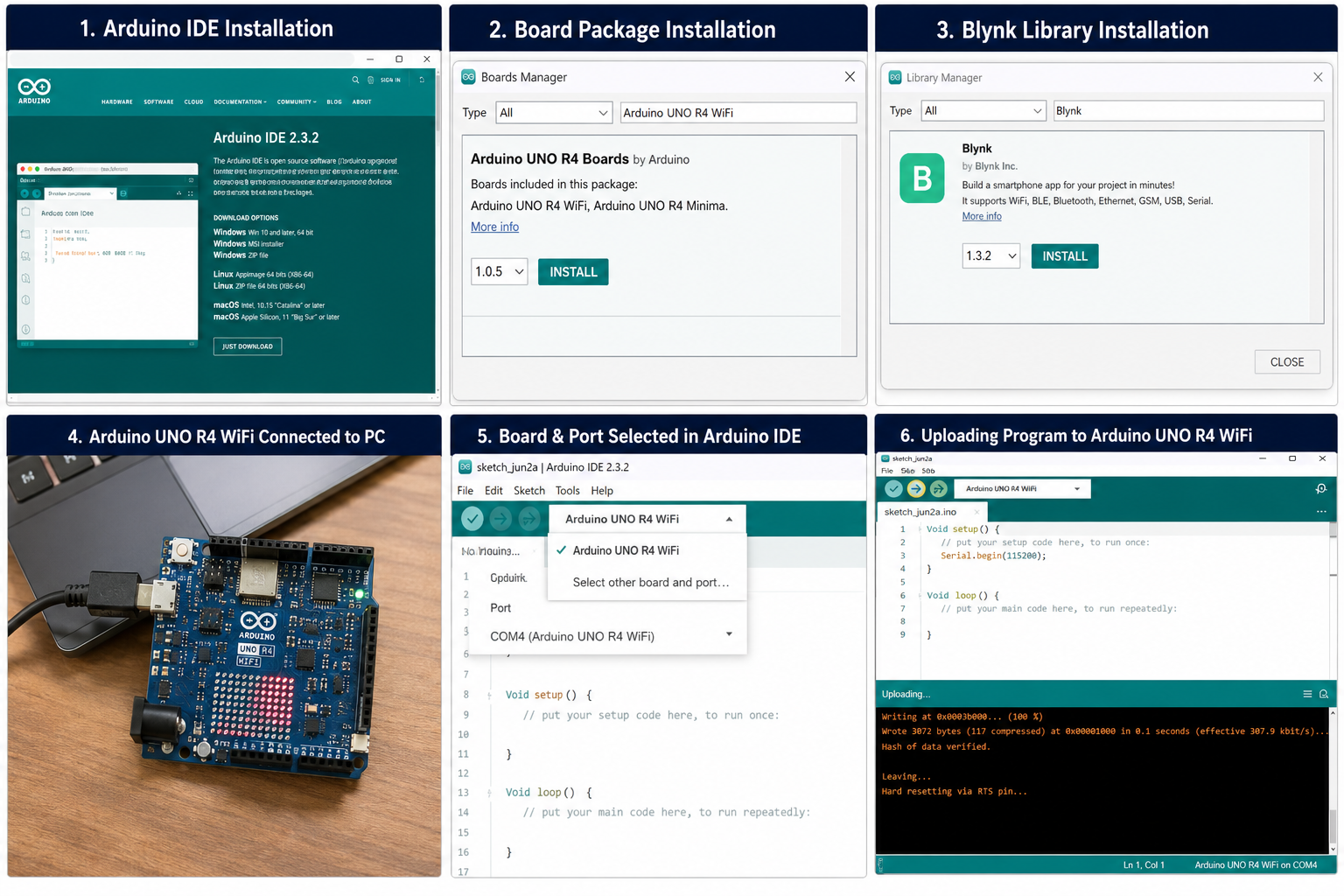

The Arduino IDE was installed to program the controller.

Software Setup

1. Install Arduino IDE
2. Install Arduino UNO R4 Board Package
3. Install Blynk Library
4. Select Arduino UNO R4 WiFi Board
5. Select Correct COM Port

This setup allows the Arduino board to communicate with the Blynk platform and control the motors.

In this step, upload the Arduino program to the Arduino UNO R4 WiFi board. The code establishes WiFi communication with the Blynk IoT platform and controls the rope climbing robot through the L298N motor driver.

Before uploading, update the following parameters:

1. WiFi SSID
2. WiFi Password
3. Blynk Template ID
4. Blynk Auth Token

After updating these values, connect the Arduino UNO R4 WiFi board using a USB Type-C cable, select the correct board and COM port, and click Upload in Arduino IDE.

The program supports:

1. Forward Movement
2. Reverse Movement
3. Stop Operation
4. Fast Speed Mode
5. Slow Speed Mode
6. Real-Time Blynk IoT Communication

After successful upload, open the Serial Monitor and verify that the board connects to WiFi and the Blynk Cloud successfully.

Several tests were performed to validate system operation.

Forward Movement Test

The robot successfully climbed forward when the Forward button was pressed.

Reverse Movement Test

The robot moved downward smoothly when the Reverse button was pressed.

Stop Test

The robot stopped immediately when the Stop button was activated.

Speed Control Test

Motor speed changed successfully between slow and fast modes.

WiFi Communication Test

The robot responded correctly to commands received from the Blynk application.

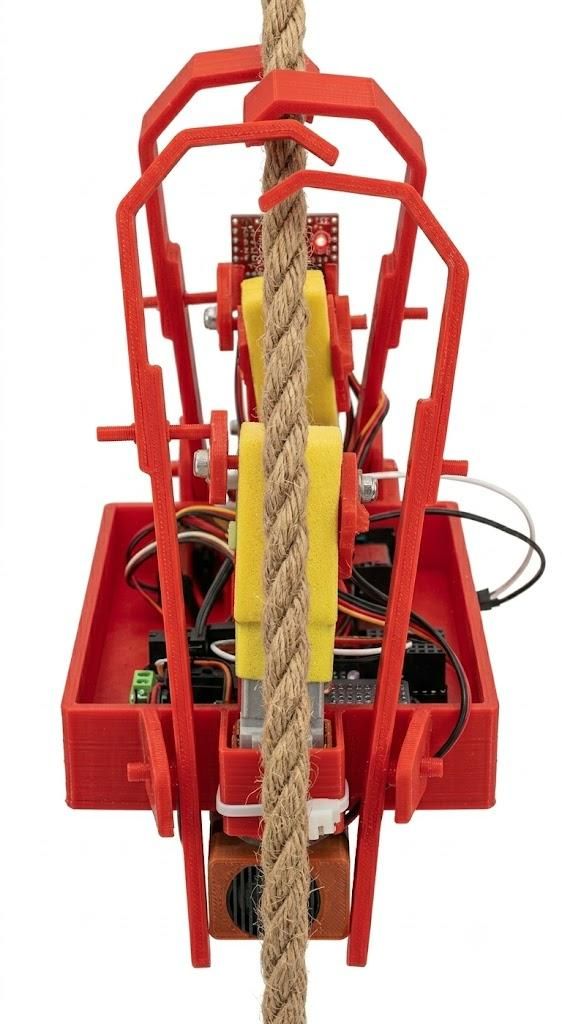

The robot was placed on a suspended rope and tested under actual operating conditions.

The climbing mechanism maintained stable contact with the rope and successfully moved in both directions.

Observations:

1. Stable climbing movement
2. Reliable rope grip
3. Smooth motor operation
4. Minimal vibration
5. Good balance throughout operation

The robot successfully demonstrated practical rope climbing capability.

The Rope Climbing Bot successfully demonstrates the integration of embedded systems, IoT communication, robotics, motor control, and mechanical design.

Achievements

1. Wireless mobile control
2. Rope climbing movement
3. Forward and reverse operation
4. Adjustable speed control
5. Stable mechanical performance

Future Improvements

1. Obstacle Detection Sensors
2. Camera Integration
3. Autonomous Navigation
4. Higher Torque Motors
5. AI-Based Control
6. Real-Time Monitoring System
7. Advanced Battery Management

This project provides valuable practical experience in robotics, IoT systems, electronics, CAD design, and wireless automation technologies.
