"Mastering STM32CubeIDE: a Step-by-Step Guide to Activating the On-Board LED of the STM32 Black Pill"
"Step-by-Step Guide: Mastering STM32CubeIDE - How to Light Up the On-Board LED of the STM32 Black Pill"
"Hello and welcome to our technical tutorial on how to use STM32CubeIDE to control the LED on the STM32 Black Pill microcontroller. This tutorial is carefully crafted to provide professionals with a clear and easy-to-follow guide on controlling the LED, demonstrating the capabilities of the STM32 Black Pill and STM32CubeIDE. We will cover the basics of embedded development, including setting up your environment, understanding the hardware of the Black Pill, and writing efficient code for LED management. This foundational exercise is crucial for mastering embedded systems and will set the stage for more complex projects. Come join us as we explore the principles."
Downloads
Supplies
"Before you start learning embedded programming, make sure you have the necessary equipment and software set up:
1. A laptop or desktop computer with STM32CubeIDE and STM32CubeProgrammer installed.

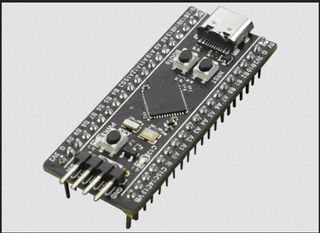

2. An STM32 Black Pill development board.
3. A USB cable that is compatible for both connecting and programming. It is important to have these items ready before beginning the tutorial for a smooth and successful programming experience."
Creating a New Project File in STM32CubeIDE
GOTO---->> File>New>STM32 Project
Adding Configurations for Your STM Board
Look for Component - STM32F401CEY6TR and then click on "Next".
Board Configuration
configure the board
Configuration of the Clock
configure the clock as shown
Open Main.c File
GOTO Project and find main.c file
Goto While(1) in Main() and Add Your Code
HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, 1);
HAL_Delay(500);
HAL_GPIO_WritePin(GPIOC, GPIO_PIN_13, 0);
HAL_Delay(500);
Debug
choose the debug option
Copy the Path of the .elf File Generated.
Right-click on the project and select "Show in System Explorer," then copy the path.
Launch STM32CubeProgrammer and Establish a USB Connection With the STM Board.
Select "Open File" and Then Paste the Copied Path.
Navigate to the Download Options, Located in the Toolbar on the Left Side.
Adjust the Download Options Accordingly, Then Proceed to Click on "Start Automatic Mode."
Now Its Done
now you can see led is blinking
