Metal Thread Portrait: Mapping a Face With Wire

I decided to challenge myself to recreate a complex photographic portrait using over 2,000 continuous lines of ultra-fine stainless steel wire, mapped to a precisely numbered grid, and all with supplies almost every house will have lying around!

The concept combines algorithmic data with manual fabrication. A software script processes an image and generates a path, connecting specific numbered points. By following this sequence with thin metal wire, I could create a tangible, physical representation of the digital data, bringing a portrait to life in metal.

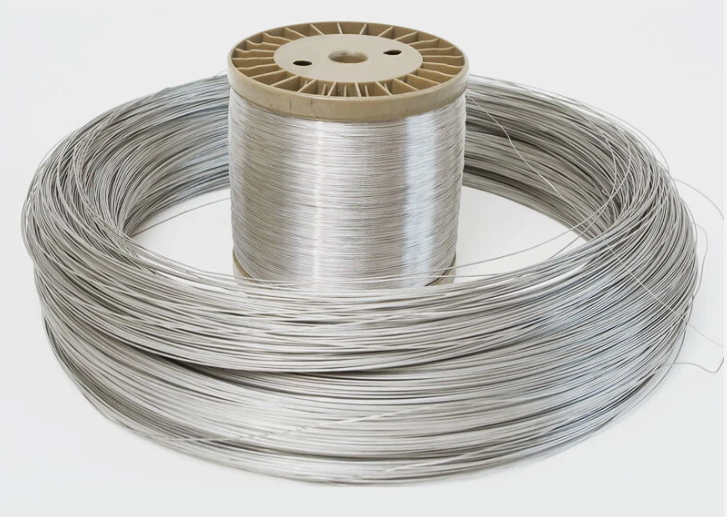

The metal wire: 0.1mm to 0.5mm Stainless Steel Wire A2 (the thinner, the better)

Cardboard

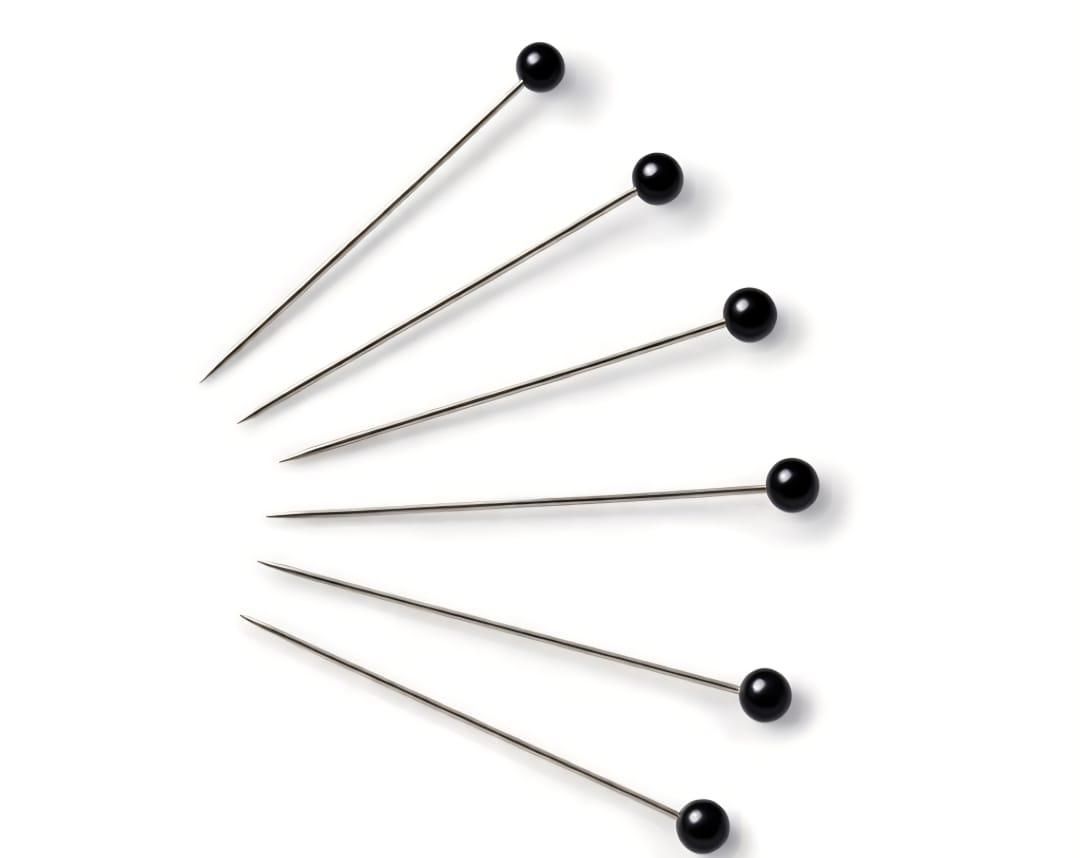

180 pins or nails

A straw or an empty pen (optional)

The foundation of this portrait relies on translating a standard digital image into an optimized vector path. To achieve this, I used an open-source web-based string art generator to calculate the interlocking lines.

1. Selecting and Preparing the Source Portrait Not every photo translates well into wire. I selected a portrait from Pinterest with strong, dramatic lighting and clear facial features. The algorithm relies on dark areas to calculate density, so defined shadows around the eyes, nose, and jawline are essential for a recognizable final piece.

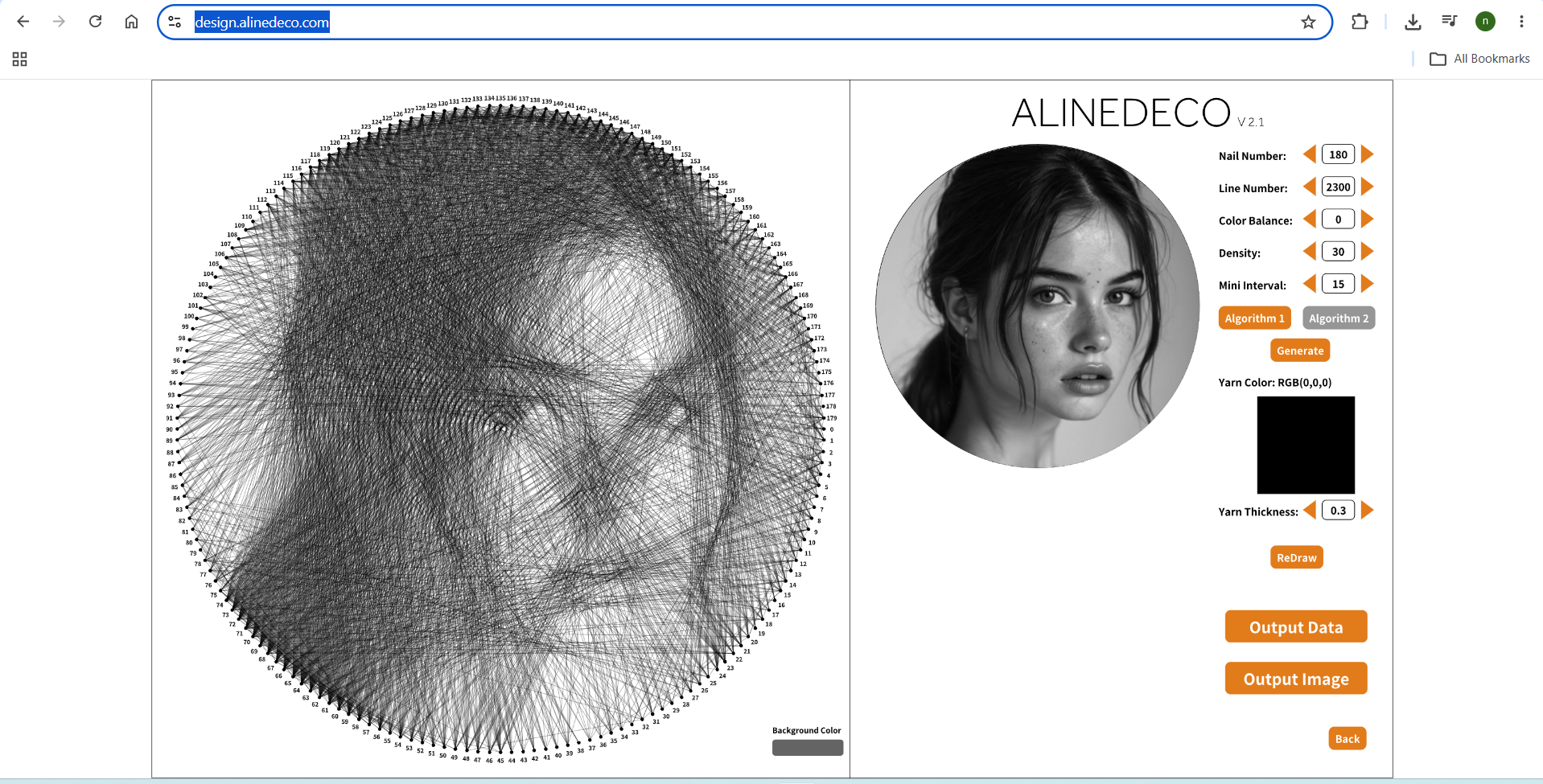

2. Configuring the Algorithm Parameters Once the image was uploaded to the generator, I input my specific hardware constraints to balance detail with physical feasibility:

1. Number of Nails (Pegs): Set to 180. This determines the resolution of the perimeter. 180 pegs offer a highly detailed field without crowding the rim of the board.
2. Number of Connections (Lines): Set to 2300. This is the magic number for transparency. Too few lines, and the image looks faint; too many, and the center turns into a solid, solid block of black wire. At 2,300 lines, the algorithm creates rich gradients and smooth shading.

3. Interpreting the Data Output After hitting generate, the website produces two outputs:

1. A visual preview image (which serves as a great reference for what the final piece should look like).

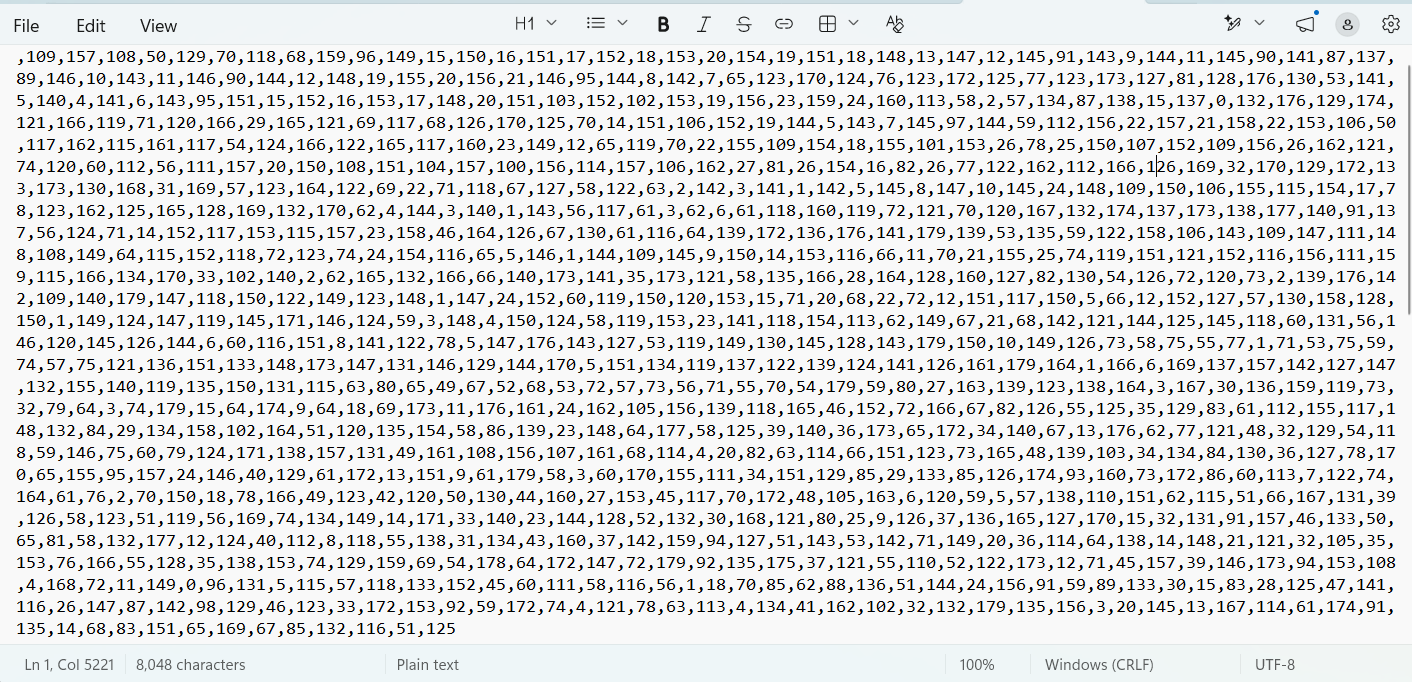

2. The String Sequence Text File: This is the actual DNA of the project. It is a long, continuous string of raw numbers (e.g., 0, 94, 23, 115, 6...).

Each number represents a specific peg on the physical board. The order of the numbers tells you exactly how to route the wire. For instance, the sequence instructs you to go from Peg 0, pull the wire straight to Peg 94, loop it, head to Peg 23, loop it, and continue for all 2,300 steps.

With the calculation sequence ready, the next phase is transforming that digital data into a physical canvas. Precision during this step is what guarantees the geometry of the final piece matches the algorithm's calculation.

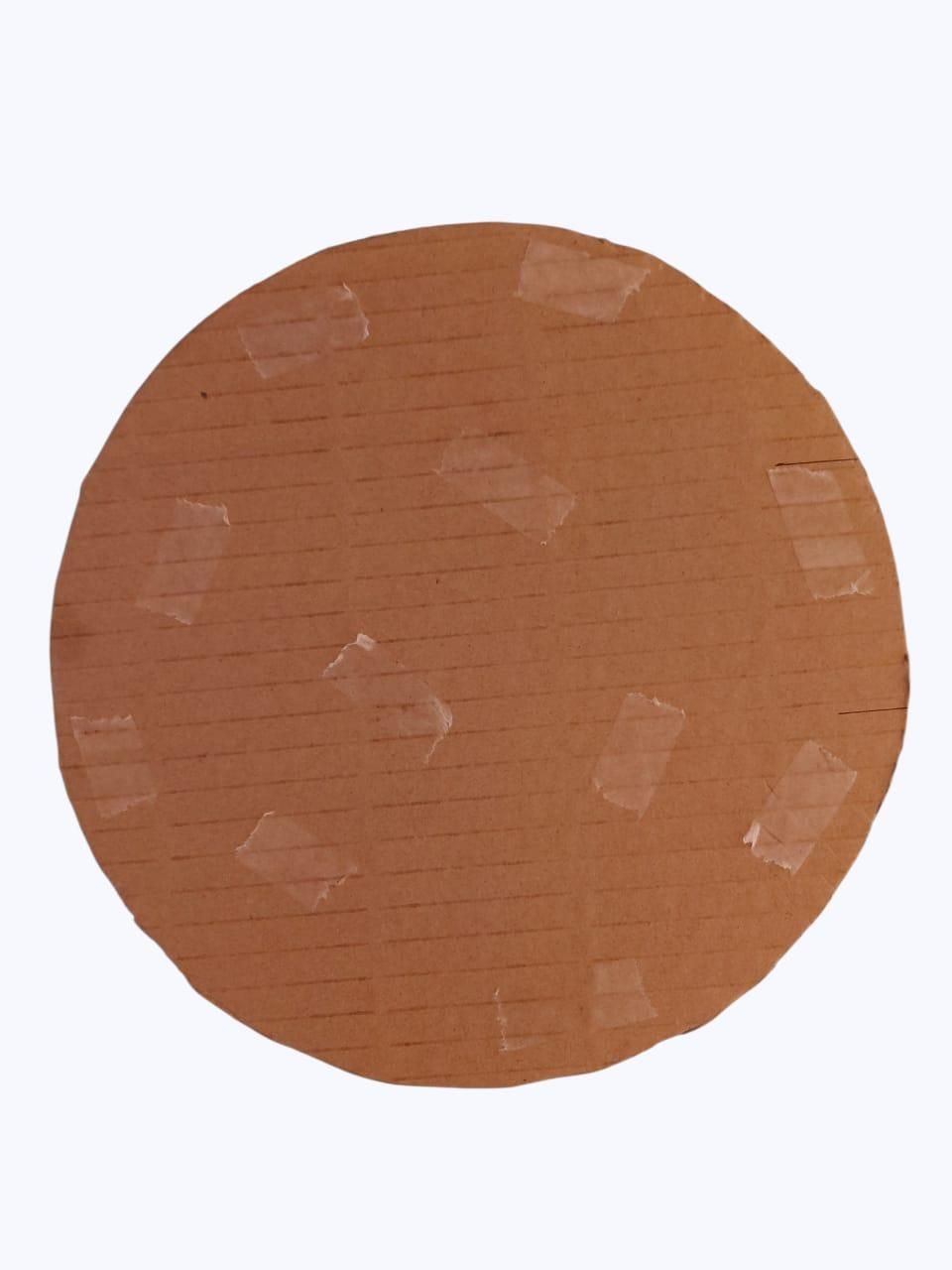

1. Preparing the Physical Worksurface I cut a piece of sturdy, dense cardboard to the exact dimensions of the generated image template. Cardboard provides an excellent, lightweight base that holds pins securely while remaining easy to work with during manual assembly, but if you will use nails instead of pins i recommend using wood.

2. Formatting the Data for the Workbench Working through 2,300 consecutive numbers requires high visibility to prevent eye strain and mistakes.

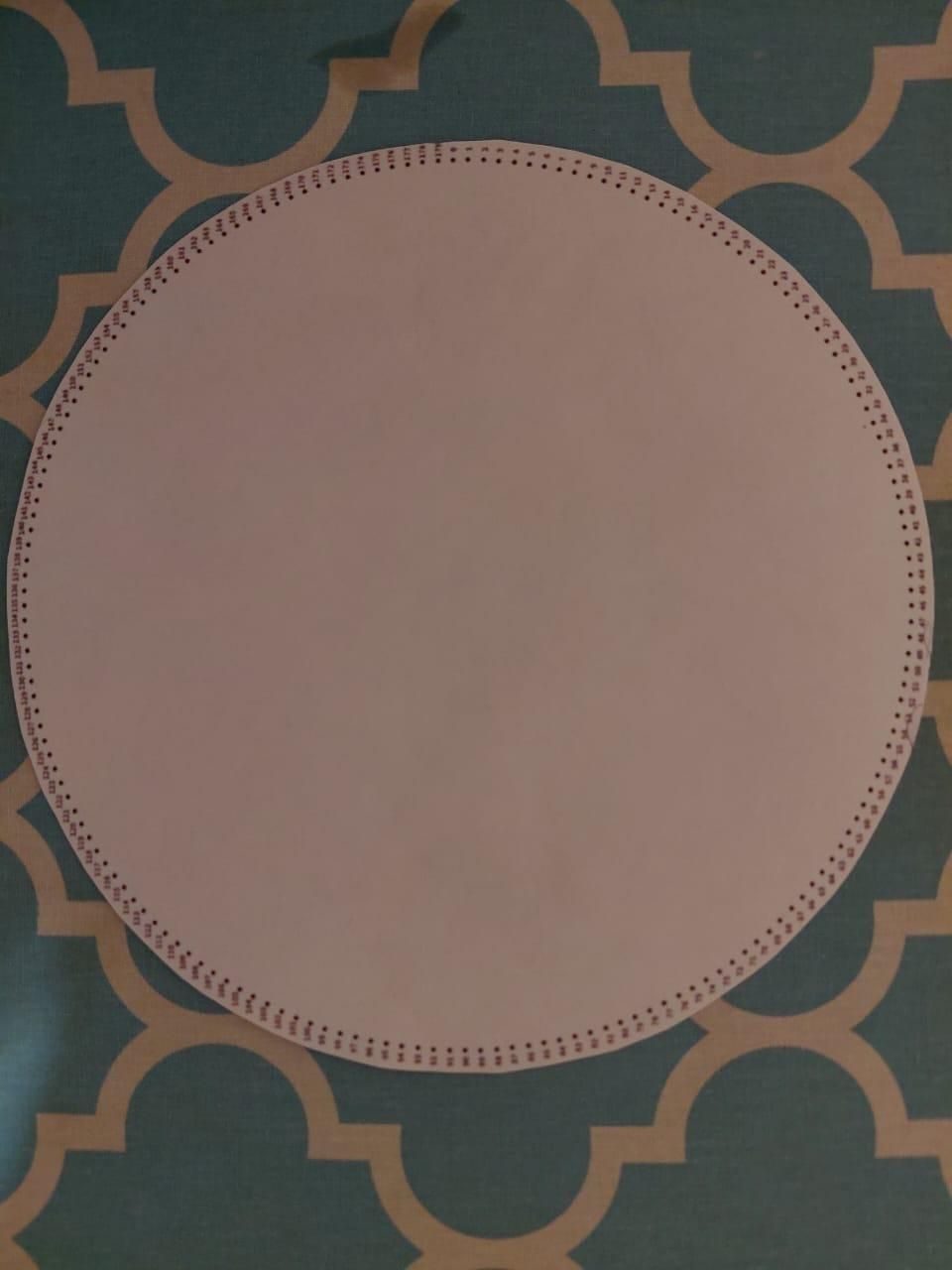

1. The Visual Guide: I printed the full-scale generated layout image which includes the perfect circular boundary and all 180 nail numbers and securely glued it flat across the cardboard base.
2. The Sequence Log: Following a massive block of text on a standard screen can cause you to lose your place. I copied the raw text sequence from the website, pasted it into a word document, increased the font size significantly, and printed it out. This physical checklist allowed me to physically cross off blocks of numbers as I went, keeping my place secure over long working sessions.

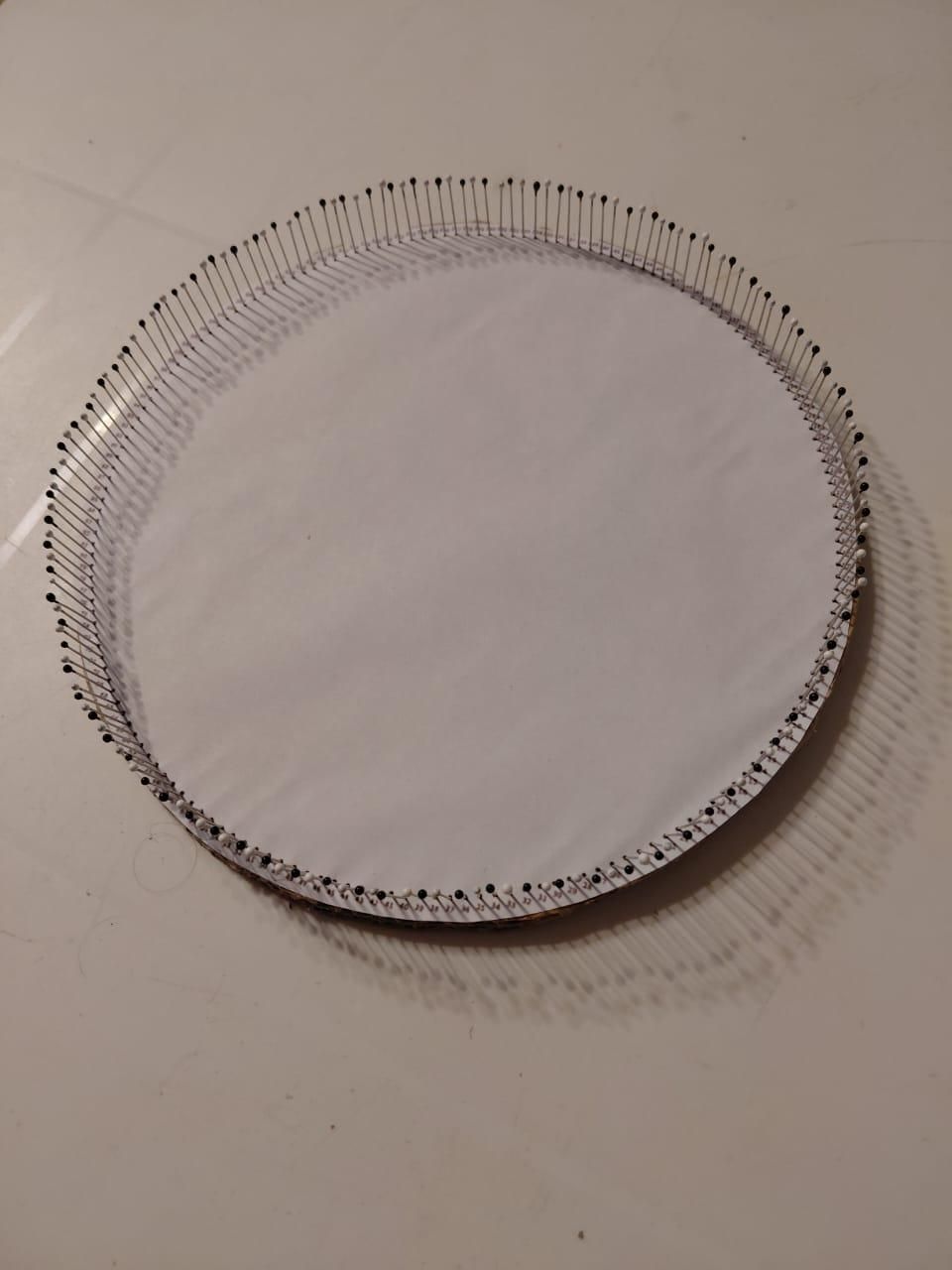

3. Installing the 180 Perimeter Pins Using the printed numbers on the glued template as an exact positioning guide, I began installing the pins.

1. Alignment: I placed a pin directly into the marked dot for each number from 0 to 179.
2. Depth Control: It is vital that every pin is driven perfectly straight (perpendicular to the board) and to a uniform height. Leaving roughly half the pin exposed gives you enough vertical clearance to stack multiple layers of wire as the mesh grows denser toward the center, without the loops slipping off the top.

Once all 180 pins are firmly anchored, your physical workspace perfectly mirrors the digital coordinate system, and you are ready to begin weaving.

Now comes the most rewarding and meditative part of the project: turning 2,300 lines of raw data into a stunning physical portrait. Because we are using fine metal wire instead of traditional sewing thread, tension management and focus are everything.

1. Anchoring the Starting Point Look at the first number in your printed sequence. Tie 2-3 secure loops around that specific pin.

2. The Winding Technique With the anchor secure, begin following your printed word document step-by-step. For example, if your sequence reads 0 -> 94 -> 23, pull the wire firmly from Pin 0 straight across to Pin 94.

1. The "Loop-and-Lock": Instead of just letting the wire rest against the pin, loop it completely around the neck of the pin once. This locks the tension of that specific segment so that if you accidentally let go of the wire spool, the whole piece won't unravel!
2. Keep it Low: As you wrap each pin, gently push the wire loop down to the base of the pin. This leaves room at the top for future layers, as many pins will be visited multiple times.

3. Staying on Track With 2,300 connections, it is remarkably easy to get distracted and skip a number.

1. Keep a ruler or a highlighter on your printed word document.
2. Cross off every line as you complete them.
3. If you make a mistake and realize the wire path looks completely wrong compared to the digital preview, don't panic. Gently unwind back to your last verified pin and restart from that step.

4. The Final Tie-Off As you approach the 2,300th connection, you will notice the center of the image has become incredibly dense, perfectly capturing the deep shadows and details of the original portrait. Once you reach the very last number in your document, wrap it around the final pin several times, tie a tight knot, and secure it with another drop of superglue before clipping the excess wire.

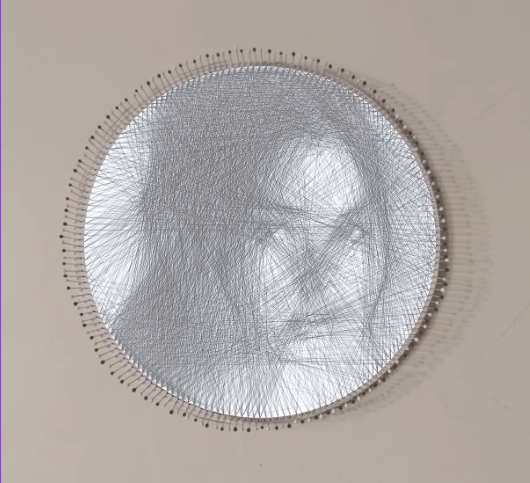

Once the final knot is tied and the excess wire is clipped, step back and admire the result. What started as a digital portrait from Pinterest has been completely transformed through mathematics and manual patience into a tangible, striking piece of industrial-style art.
