P1 Meter Readout With Exp32/c3 MQTT/WebUi/Domoticz/Ap/Static Ip

by spike318 in Circuits > Arduino

62 Views, 1 Favorites, 0 Comments

P1 Meter Readout With Exp32/c3 MQTT/WebUi/Domoticz/Ap/Static Ip


P1 Meter Readout (Dongle) with ESp32/C3 mini support for Mqtt/HomeAssitant/Domoticz/UI/Static IP/Life Chart/View all your counters. Electricity/Gas/Wat

Supplies


What You Need

1 * ESP32/C3 mini

1 * BC547B

2* 10k resistor

1* 1k resistor

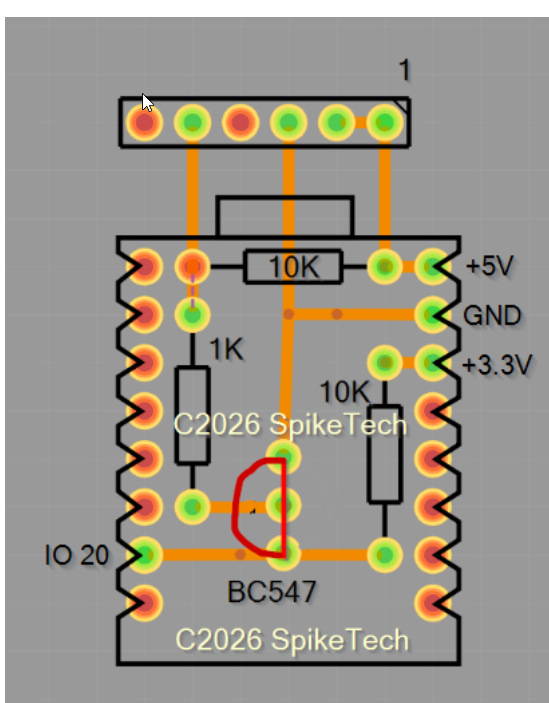

PCB Layout

print af.png

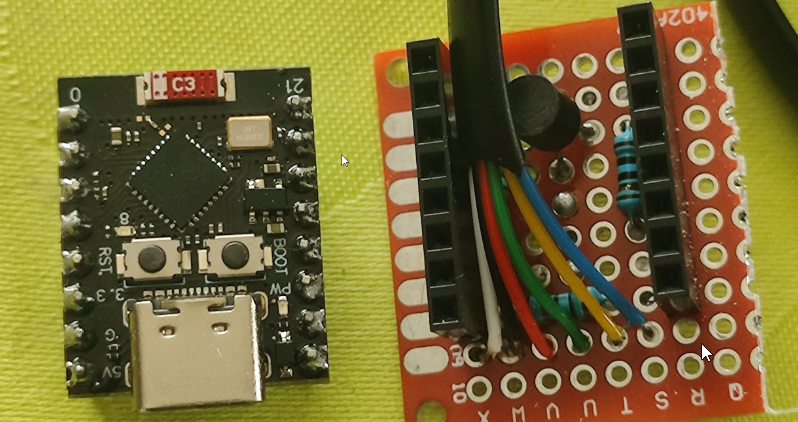

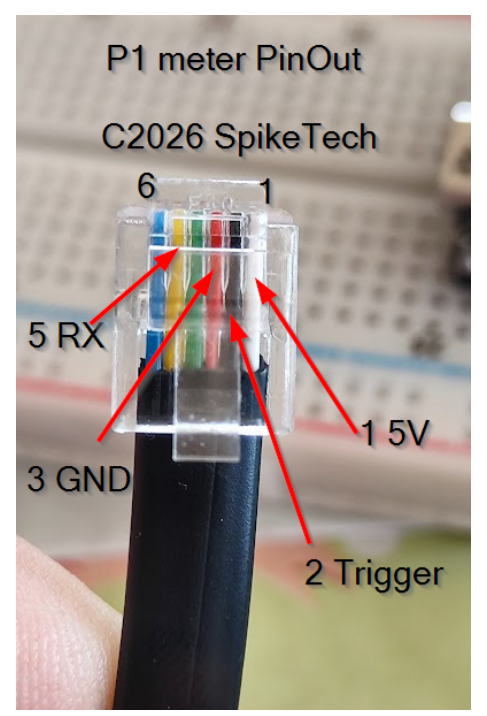

How to solder you PCB board and the connection of the P1 port

Firmware

SpikeTech P1 meter firmware updaten !

Here you can see how to use my firmware all info on www.spiketech.be and a link to my google drive



First Connection


When connect to your meter sear in you wifi for SpikeTechP1 use pasword 12345678 to connect to the dongle.

When connected go in you browser to 192.168.4.1 and select your network and setup !

Sceenshot From Userinterface

2026-05-11 18_03_08-NVIDIA GeForce Overlay.png
2026-05-14 20_32_35-NVIDIA GeForce Overlay.png
2026-05-14 20_32_46-NVIDIA GeForce Overlay.png
2026-05-14 20_33_01-NVIDIA GeForce Overlay.png
2026-05-14 20_33_13-NVIDIA GeForce Overlay.png

Actual screens from the User interface
