Painting+Physics: Aniline Dye on Wood

Welcome to an exploration of treating raw timber not just as a structural material, but as a dynamic, illuminated canvas for the full spectrum of color. While mass-market stains sit on top of wood like a muddy film, water-based aniline dyes sink directly into the wood’s cellular walls, acting as an optical amplifier that brings out an organic, prismatic vibrancy you cannot achieve with paint. This Instructable walks through the hands-on process of mastering a multicolored palette—from the volatile chemistry of mixing primary blues and sensitive yellows to navigating molecular "under-bleed" across different wood species. By adapting traditional fabric batik resist techniques using clear wax boundaries, this method exploits the surface tension of water to paint sharp geometric patterns, reveal hidden color details via laser engraving, and clean up bleeding edges with a card scraper. If you are looking to elevate your next woodworking project into a rich, multicolored piece while embracing the minor imperfections of a truly handmade process, this guide will show you how to get started.

Woods for testing

Water-Based Aniline Dye Powders: Lee Valley Tools. The primary palette includes:

1. Ruby (Cool, blue-leaning red)
2. Crimson (Warm, yellow-leaning red)
3. Brite Blue (True primary blue with violet undertone)
4. Peacock Blue (Deep, green-leaning cyan/teal)
5. Lemon Yellow (High-solubility, hyper-sensitive yellow)
6. Forest Green (Pre-mixed secondary green)

Distilled Water: Essential for preventing mineral discoloration or bacterial growth over time.

Clear Glass Spice Jars (2 oz): IKEA (GULDFISK series). Must feature stainless steel lids to prevent rust reactions with the dye solutions.

Measuring Spoon Set:Crate & Barrel. Featuring "Smidgen, Pinch, and Dash" increments for maintaining small, repeatable powder ratios.

Masking Tape & Marker: For immediate labeling of custom color blends and saturation ratios.

Sandpaper: Grits of 100, 120, 180, and 220.

Soft Layout Pencil: For drawing patterns without denting the delicate wood fibers.

White Polymer/Vinyl Eraser: For lifting graphite haze without leaving greasy, finish-ruining residues.

Clear Wax Crayons / Resist Sticks: Unpigmented wax used to draw hydrophobic boundary lines on the wood surface.

Bench Brush: For sweeping away eraser crumbs and loose wax shavings before dyeing.

High-Quality Watercolor Brushes: Including a dedicated, "virgin" brush reserved strictly for the hyper-sensitive Lemon Yellow dye.

Cabinet Card Scraper: A razor-sharp scraper used to shear away surface fiber fuzz and raised wax ridges post-dyeing.

Spray-On Lacquer: The only recommended clear finish for multicolored patterns, chosen for its quick-flashing solvents that trap dyes without smearing.

Before I began any color testing I prepared materials to get the best results. I have chosen to use Maple, Poplar, and Baltic birch ply because of their naturally light color. These materials have less of an influence over the final dyed color you will produce. All sample materials have been sanded through courses of 100, 120, 180, and 220 grits. I am using a water based aniline dye. Aniline dyes will raise the grain of the wood it is applied to and contribute to color bleed. Once the materials are completely scratch free, raise the grain of your materials with water and let dry completely before performing a final sanding with 220 sandpaper. While much more forgiving than stains, having a substrate that is as prepared as possible will help with applying a consistent color. It is possible to repair spots or scratches, but equalizing a color across a surface once it has dried is difficult.

Tips for Applying Aniline Dye to These Samples

1. Manage Poplar’s Porosity: Poplar can be highly absorbent and prone to blotching. Apply your dye quickly and evenly, or consider a highly diluted wash coat if the color takes too intensely.
2. Birch Ply Absorption: The face veneer on Baltic birch is often very thin. Be mindful not to sand through it during your final light 220-grit touch-up after raising the grain.
3. Keep Samples Wet-to-Wet: When applying the dye to your test squares, work fast across the surface to avoid "lapping marks" (dark lines where a wet brush overlaps an area that has already begun to dry).

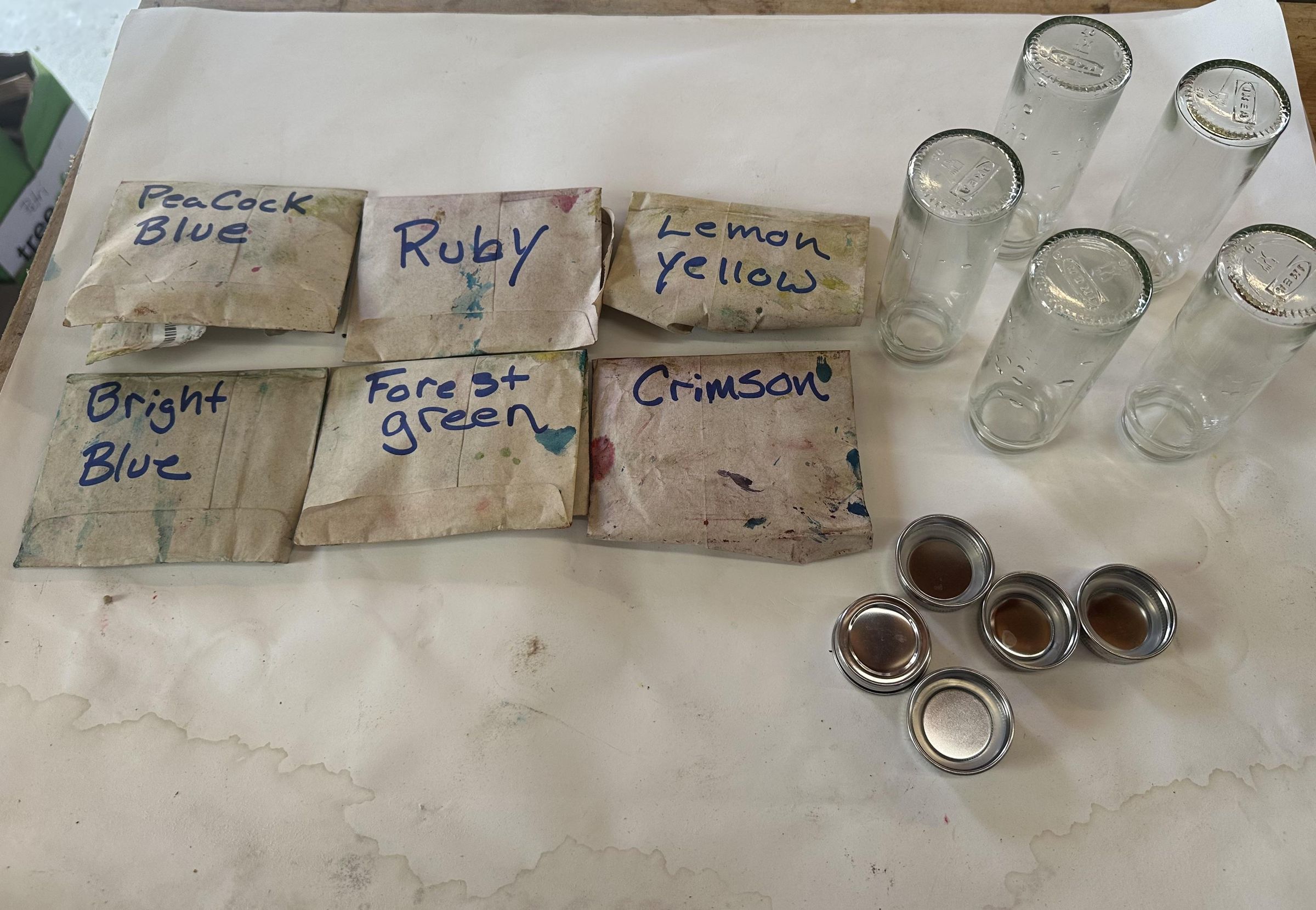

Water based Aniline dye comes as a powder. For best results, mix dyes in a very clean environment. The dye powder is incredibly potent. A small amount of powder can contaminate everything. For measuring purposes I use a small measuring spoon. I have a set of measuring spoons that works well for me, it measures smidgen, pinch, dash. Feels like those are not official units, but given the color density of the dye powder, small and consistent is best. A small amount will go a long way, both dry and in liquid. If you plan on storing your dye for any length of time make sure you use glass containers with stainless steel lids. Seems pretty specific, but they are easily available online, I got mine from the biggest of big-box-stores for about a dollar each. For best results mix in warm distilled water. Warming the water will allow for the dye to more easily saturate the water. Cold water may have a hard time accepting the dye and it can settle to the bottom without fully mixing. Using distilled water will give you a truer, more easily replicated color as it has no minerals to discolor the dye over time. Distilled water will also not grow bacteria or algae when stored the way tap water may. Keep your mixed dyes out of direct light and covered when storing. Aniline Dye may lose intensity of color while stored, but is very colorfast once applied. Add dye powder to water rather than the other way round. I am using a measured “Pinch” for a 2oz jar. You can adjust the intensity of color by adding more or less, but I find that there is a ceiling of how intense the dye can become before supersaturating. It is functionally easier to cut and mix dye from a known saturation rather than eyeballing it with such strong powders. Mix well until powders are fully absorbed, and keep capped when not using so evaporation and spilling are not issues.

tips on storing dyes

Stainless Steel Lids: Aniline dyes can react chemically with plain iron or aluminum lids over time, causing rust or shifting the liquid color. Stainless steel prevents this corrosion.

Airtight Glass: Glass avoids the chemical degradation or plastic staining common with polyethylene bottles, keeping the dye shelf-stable.

Distilled Water Advantage: Using distilled water avoids the chlorine, iron, and minerals found in tap water, which can prematurely cause the dye particles to drop out of solution or shift in hue.

The "Ceiling" (Supersaturation): If you notice grain sediment forming at the bottom of a cooled jar, the liquid has reached its maximum absorption capacity. Simply filter it out through a standard paper coffee filter to keep the solution clean.

Labeling Matters: Label your jars to avoid confusion, colors are close in concentration If you begin blending colors document the exact ratio immediately.

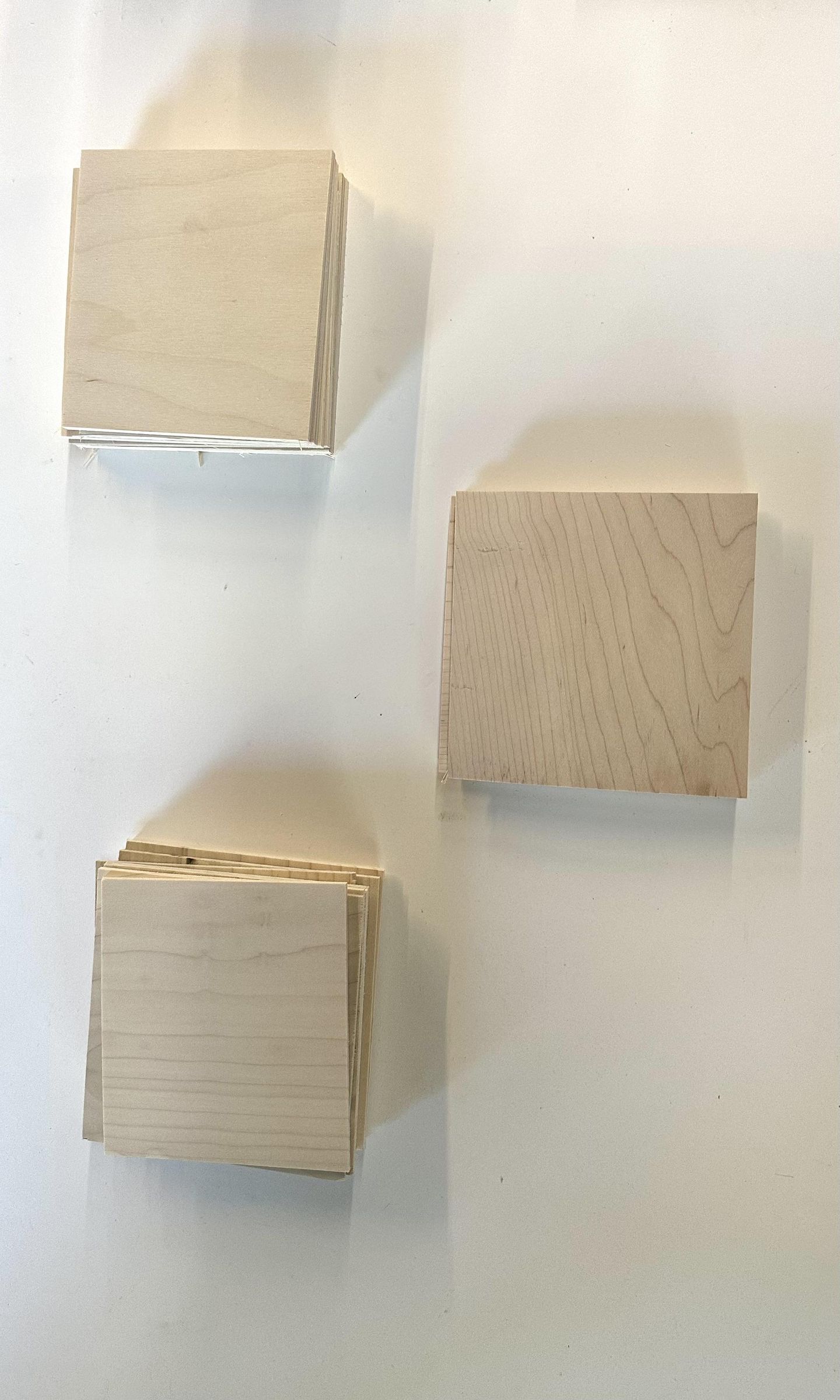

I have prepared samples of Maple, Poplar, and Baltic Birch plywood. The color samples are presented in that order. I have chosen these materials for their color as a neutral base, but they also have slightly different qualities of absorption, bleed, and texture to be aware of. The specific colors I am using are Ruby, Crimson, Brite Blue, Peacock Blue, and Lemon Yellow. These are the unaltered colors available from lee valley.com. They have a range of wood-brown colors also.

Baltic Birch plywood is a good material for dyeing because it is such a consistent material and great for making small products. It can be easily cut with saws or lasers, and is good for its overall stability. Baltic birch takes the color very well, but due to the rotary cut nature of the veneers. There is a slight fuzz in the color when dyed. Upon close inspection one can see that there are grains that don't accept the dye. The density between the summer and spring woods is less noticeable in plane sliced materials because it shows up as the grain structure, while the grain direction has been unwound in a different way with the rotary plywood. Because of the difference in grain structure Baltic Birch is more susceptible to bleeding between colors. Baltic Birch is the sample at the bottom in my sample pictures.

Poplar is a very good choice for dyeing as it is considered unattractive on its own but is such a versatile material for building. The natural color of Poplar can be all over the place. It varies from white to green with streaks of purple or black at times. As with all woods its color fades to a medium brownish and mellows between shades. The Aniline Dye does a remarkably good job of leveling color out between the greens and whites. The extremes in the dark range show up as black for the most part when dyed. The color absorbed by poplar is much more consistent in the grain than Baltic Birch.

I have been experimenting with dyes on wood for a while, and I have found Maple to be the best for color retention and control of bleed. The natural color of the material is light and accepts the material consistently. The density allows for a polished surface, and the tight grain structure allows for color separation within the same piece with minimal bleed. With Poplar and Baltic Birch I am normally changing the color of the entire object then altering those surfaces to needs. With Maple it is possible to create patterns or images with the color directly on the material.

Other woods can be used to great effect, but as with all finish processes my suggestion is practicing with the dye, make sure you treat your sample materials exactly as you plan to prepare your project surfaces, and keep everything clean as you go. Mistakes with the dye are fairly indelible. It can be sanded or scraped through, but blending that back in with existing dye on the surface can be challenging.

tips on samples

Maple: yields the crispest, sharpest paint-line down the center with absolutely zero feathering or color bleeding. The color across the dyed right half is uniform and deeply saturated, showing off Maple's superior color control.

Poplar: Absorbs color very deeply and uniformly, completely leveling out the background wood variations. The center line is relatively straight, though it shows slightly more micro-texture along the edge than the maple.

Baltic Birch: You can clearly see the "fuzz" and micro-gaps where certain cross-grain fibers refused the dye. Furthermore, the center line is noticeably more jagged and feathered, confirming its high susceptibility to color bleed.

Peacock Blue: has a green/yellow bias, making it ideal for mixing vibrant greens but muddy purples. On Poplar, its green undertone amplifies into a distinct turquoise.

Brite Blue: has a red/violet bias, making it ideal for mixing clean purples but muted olive greens. Its deep primary tone successfully neutralizes and levels out Poplar's natural green cast.

Crimson: This is a warm, orange-leaning red (tomato red). Its yellow undertone makes it the perfect base to mix vibrant oranges and warm ambers when blended with Lemon Yellow. On Poplar's natural green cast, this yellow bias pushes the final color slightly toward a brick-red or muted rust tone.

Ruby: This is a cool, blue-leaning red (berry/magenta red). Its violet undertone makes it the ideal partner for Brite Blue to mix rich, pure purples. On Poplar, its blue bias helps neutralize the wood's natural green streaks, keeping the hue a truer, deeper red.

Lemon Yellow: This sample shows just how vital a neutral base is. The Lemon Yellow remains incredibly vibrant on the white Maple (top) and Baltic Birch (bottom), but takes on a warmer, slightly chartreuse/olive undertone on the Poplar (middle) due to the wood's natural green cast.

Secondary colors and mixing colors have some eccentricities. Green is the only secondary color available with the dyes I am using so oranges and purples need to be mixed. Mixing colors can be challenging. My suggestion is to start with the lighter color and slowly add very small amounts of your darker color. So, for an orange I started by mixing a Pinch of yellow, and slowly added a Dash of Crimson. Don't trust what the mixture looks like in the bottle, test color on the material you plan on using for your project and work in bright sunlight if possible to determine the true color you are creating. Color separation can be a problem. As you can see in the image the secondary colors bleed out with a color separation. Both the Green that is available and the orange I mixed bled yellow at the edges. Mixed colors can also be unstable. Purple has been a challenge, as I have had the dye separate into a blotchy blue and red once dried. Mixing and blending color directly on the surface is also possible. Working with the Dye wet as one would do with watercolors is very effective. Similar rules apply, however the grain structure of your material will affect the amount of bleed. When choosing colors to mix I have found that the slight differences in the reds and blues pair best. Crimson and Ruby have slightly different qualities and I have found that crimson pairs better with yellow for making oranges, and ruby makes a better purple mixed with bright blue. When it comes to mixing secondary colors take notes, test, and let your samples completely dry before committing to using a color on your project

Tips on secondary colors

Forest Green: This showcases the pre-mixed Forest Green powder. Note the brilliant yellow bleed line framing the entire left border of the green section.

Orange: This shows a custom mix,(Lemon Yellow + Crimson dash). Just like the green, a distinct yellow halo separates early and migrates further left along the boundary line.

Crimson-to-Yellow Gradient: to the left is solid Crimson Red, blends at the center to a vibrant, fiery Tangerine Orange. Because Crimson is a warm, yellow-leaning red, it fuses perfectly with the yellow to create a intense, classic safety-orange mid-tone. At the right is Lemon Yellow.

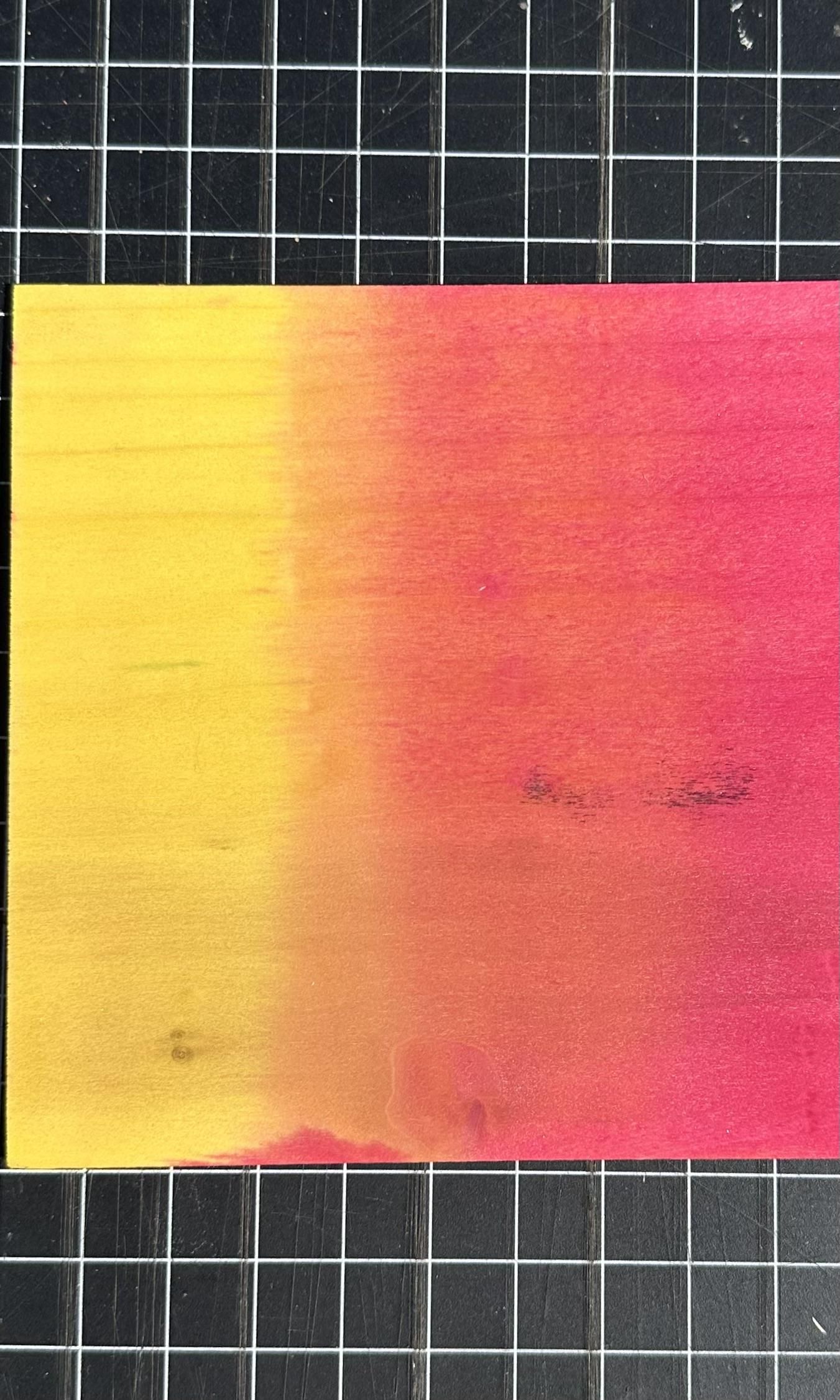

Yellow-to-Ruby Gradient: to the left is Pure Lemon Yellow. at the Center, a Soft, glowing coral-orange blend. Because Ruby is a cool red, the mix creates a soft apricot tone rather than a fiery orange bleeding into deep, berry-toned Ruby Redon the right.

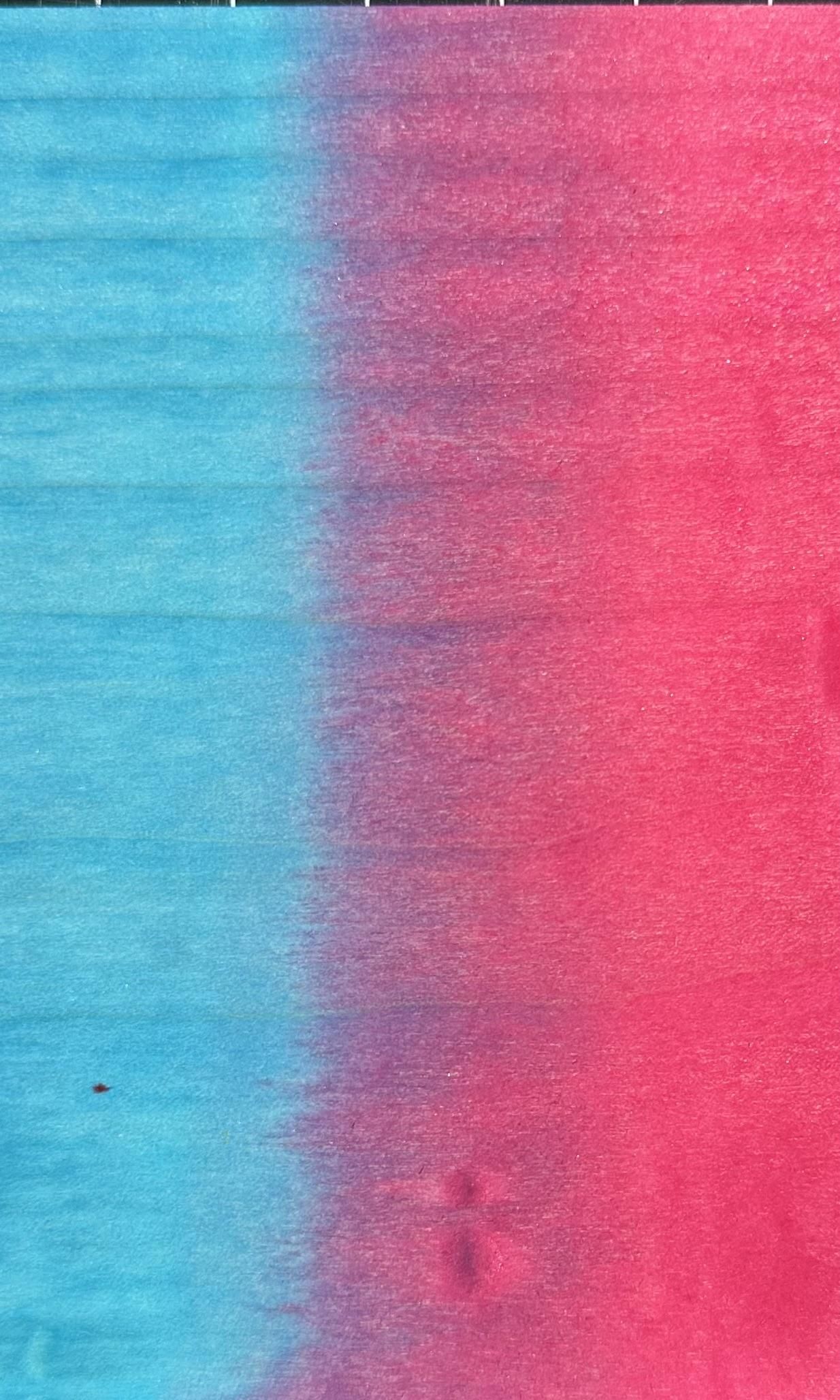

Purple Gradient: This image highlights the visual friction of the most challenging mix. At the Left is Peacock Blue, and the right is Ruby red. at the center is a highly feathered, slightly muddy Plum Purple. The green bias in the Peacock introduces yellow into the mix, which desaturates the violet and causes the red and blue particles to visibly separate into a jagged, micro-blotchy line.

Why the Yellow Bleeds Out

What you are witnessing at the edges of your green and orange samples is essentially paper chromatography happening inside wood pores. Different color dye molecules (pigment ions) have different molecular weights, particle sizes, and affinities for cellulose fibers. Lemon Yellow aniline dye molecules are exceptionally small and highly water-soluble. When the wet dye hits the wood, the water wicks outward into the dry fibers via capillary action. Because the yellow molecules are small and agile, they travel fast and far with the water front, leaving the larger green or red molecules lagging behind. This creates that distinct yellow margin.

Why Purple is Hard

To stop your mixed purple from separating into a blotchy red and blue, you need to address the fact that your red (Ruby) and blue (Brite Blue) dye molecules have different weights, solubilities, and drying rates. As the water evaporates, one color settles faster than the other, causing them to part ways. there are a few ways to keep this from happening. the easiest is make it with an alcohol base, this is going to flash off quicker and the colors won’t separate. I am trying to keep with a water base so just add a drop of liquid soap to the mix. Soap acts as a surfactant (surface-active agent). It breaks the surface tension of the water, allowing the red and blue molecules to blend more cohesively and penetrate the dense maple or poplar pores at the exact same rate while the water evaporates.

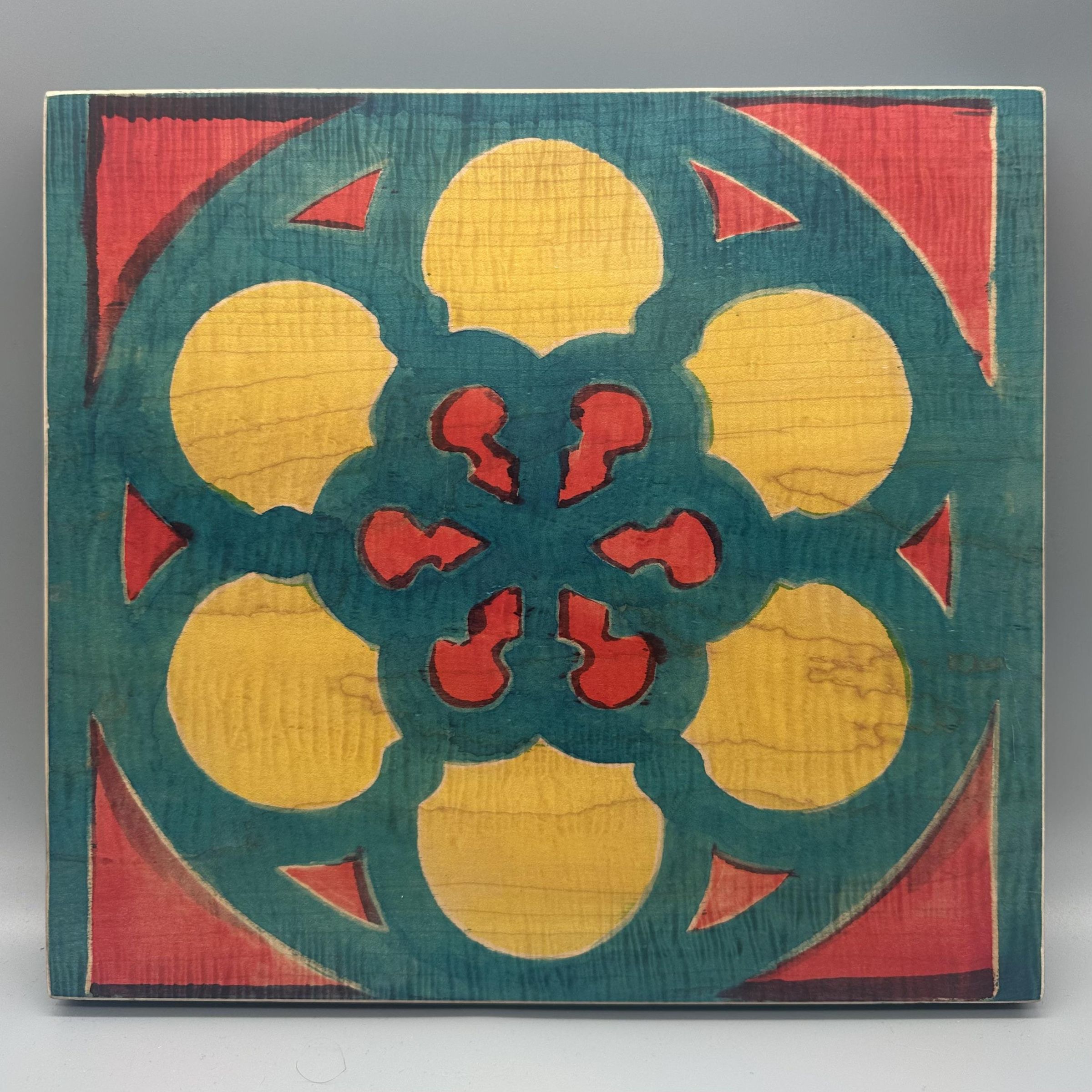

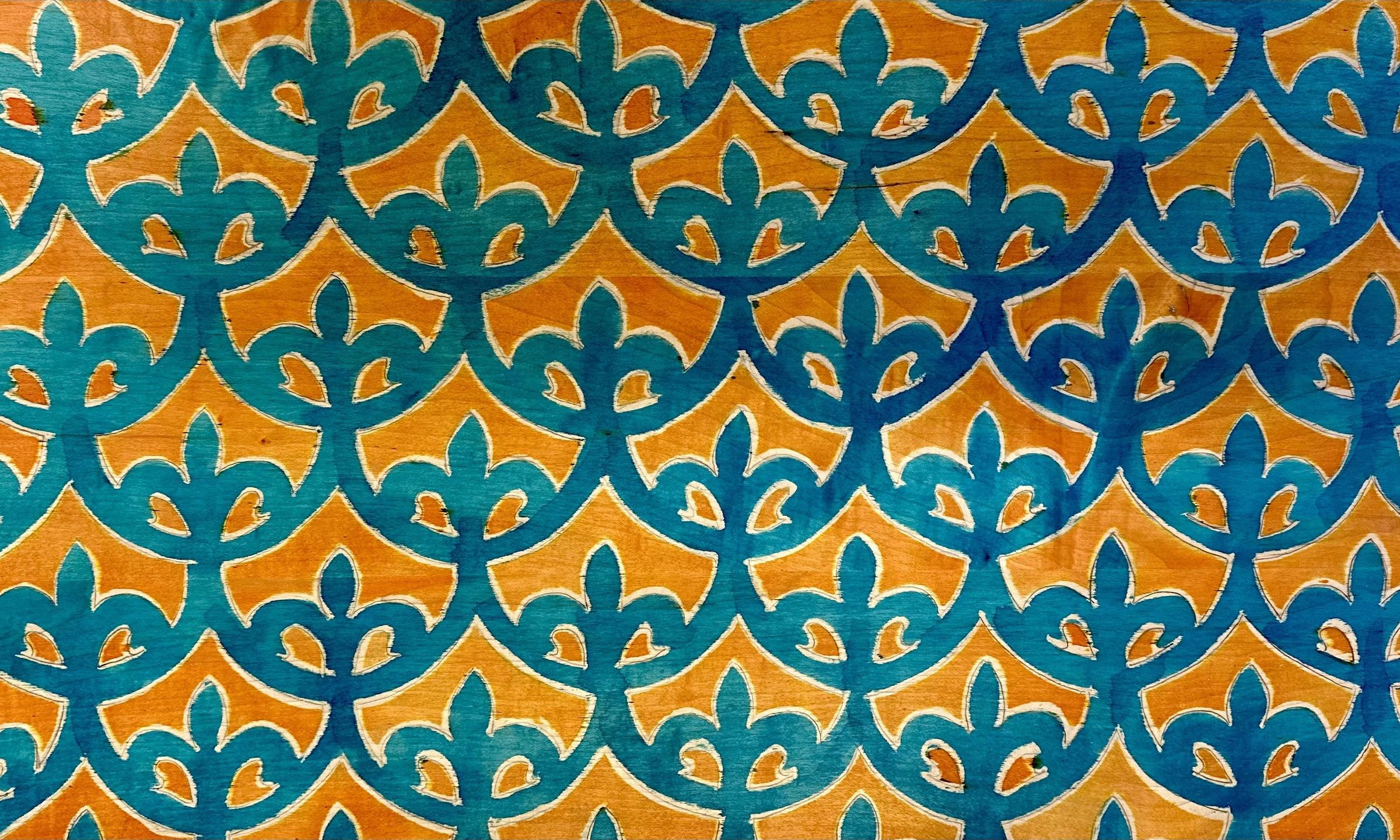

To create patterns and images on wood I have been experimenting with using a wax resist. The choice of material is important if you want to minimize bleeding between colors. I have found that using Maple as a substrate gives the best results for this technique. I began by preparing the surface of my materials as described earlier. Sanding to 220 grit, raising the grain with water, and gently sanding to remove the tooth. Using a soft pencil (3B) draw your pattern on your material. To create a repeating pattern I used tracing paper to draw a section and worked out from the center. Once my pattern was complete I used a white eraser and lightly erased the entire surface. Using a soft pencil will prevent it from denting the wood as you draw, but it will cause a dirty haze that you will want to remove before beginning to dye. Keeping the surface clean will prevent contamination of color and a dingy look to the finished product. In the image you can see how much brighter the surface is where I had already erased. After the entire surface was complete I brushed the surface clean. For the resistance between colors I am using a wax crayon that has no pigment. You may have done this on eggs at easter. The basic idea is that the dye won't want to soak into the grain that is protected with wax and the surface tension of the water used in the dye helps to control where the dye absorbs. Bleed between colors can still happen if the dye can absorb into the wood and bleed through under the waxed surface. With practice one can get good at controlling the flow and not over saturating the material while working. As the dye is water based it is very thin, avoid dripping as repairs in the pattern are difficult.

Tips on wax patterns

Erase and Sweep: The dramatic contrast between the bright, clean wood and the dingy graphite haze highlights why this step is mandatory. If left on the wood, loose graphite dust gets trapped by the water-based dye, permanently sealing a gray, muddy film into your final colors. A polymer or vinyl white eraser is perfect here because it lifts graphite cleanly without leaving behind greasy chemical residues that could accidentally act as a secondary, unwanted resist.

Mastering the Crayon Barrier: Clear wax crayons rely on hydrophobic resistance. Because the wax repels water, the dye solution balls up on top of the line due to surface tension, keeping the liquid pinned inside your desired boundary. You must press firmly enough to embed the wax deep into the wood pores, but lightly enough that you don't compress or dent the soft springwood fibers of the maple. If you dent the wood, the dye will pool in the trough and eventually soak past the wax. The wax crayon is very soft and prone to breaking. I have since made a 3D printed mold to create a sharper more resilient crayon.

I am preparing two sections of a pattern, one on baltic birch and the other on maple to highlight the issue with underbleed in softer materials. Like most finishes on wood, the tighter the grain structure the crisper, more prismatic the grain appears when finished. When dying wood the effect is similar. Dye on soft maple or poplar absorbs differently than Maple or Ash and the finish quality reflects this. As the resist sits primarily on the surface absorption effects bleed between color regions. While the Yellow applies similarly to both materials, the bleed once a second color is applied is obvious even given time to dry between colors. I am starting with Yellow because Yellow is the most difficult to control color. It is more prone to bleed due to its molecular size so I want to fill areas from the center, using the surface tension to allow for a slow migration into the pattern. Other than that, yellow is the most sensitive color. Everything contaminates yellow. Yellow should only be mixed in a new or boiled clean, glass bottle. I am using clean distilled water to rinse my brush, and if I am working on a finished piece, that yellow dye is the first time that brush has ever been used. The slightest amount of stray dye will turn yellow, green or orange, and not in a good way. Once my yellows are dry I filled in the reds on these samples, crimson on maple and Ruby on birch. You can see the bleed inherent with the birch sample. I am expecting flaws and some bleed in my finished product. If I wanted perfection in my image I would do all this in a different way. I am looking for a hand-made, analog experience in the process and the object. When approaching a finished piece there are millions of things that can go wrong along the way. At the point where I am applying a pattern to a piece of furniture so much effort has already been applied. I normally make at least one extra part, per part, just-in-case. Everything needs to be treated to the same surface before the ink is applied, so make a bunch of extra and do all of the sanding, sanding, wetting, and sanding at the same time. If you skip a step you will see it in the finish. If you have just ruined a part 83% in you will be glad you have one 52% ready, believe me. Once the yellow was completely dry I added crimson to the maple sample and ruby to the birch. Clearly the absorption into the birch was so great that it moved under the wax resist. This phenomenon is also true where glue is present. Whereas stain will be resisted by wood glue, the dye will absorb into the wood grain, under and through the glue. My errors with the wax on the maple are evident, illustrating the effectiveness of the wax as a resist.

Tips on pattern dying:

GO SLOW, the surface tension of water is the only thing between you and disaster at this point in your project.

The Golden Rules of Handling Yellow

A meticulous protocol for handling Lemon Yellow is worth highlighting for anyone attempting this process:

1. Contamination Sensitivity: Because yellow has zero hiding power, any microscopic trace of Crimson or Peacock Blue on a brush or container will instantly spoil it into an muddy orange or olive green.
2. The "Virgin Brush" Rule: Dedicating a brand-new or completely sterilized brush specifically for the yellow layer is the only definitive way to keep the color pure.
3. Strategic Priming: Applying yellow first across the center allows its small, fast-moving molecules to claim the wood fibers before heavier pigments arrive, reducing the risk of a darker color bleeding outward into a bare zone.

The Reality of Wood Glue and Dyes

Stains, which rely on large pigment chunks wrapped in a binder, get completely blocked by dried wood glue squeeze-out, Aniline Dyes bypass it entirely. Because the dye is completely dissolved in water, the wood fibers around and underneath the translucent glue joint will vacuum up the colored liquid via capillary action. The dye travels right through the porous cell walls beneath the glue surface, leaving a messy colored patch that cannot easily be scraped away.

The Baltic Birch Plywood Sample:

The Ruby segments show severe, massive under-bleed. The color did not just slightly leak; it aggressively wicked across the boundaries, turning the edges into frayed, jagged, paint-brush-like fringes pointing inward toward the yellow. Rotary-cut birch veneer has micro-fractures from the peeling process and open, loosely packed grains. The wood fibers acted like tiny straws, siphoning the Ruby dye deeply underneath the surface wax barrier and flooding the yellow zones from within the wood itself.

The Hard Maple Sample

The Crimson segments are crisp, vibrant, and well-contained. Because hard maple has tiny, tightly packed closed pores, the liquid cannot easily travel laterally. the wax lines stood as highly effective boundary walls. The errors are minimal and localized strictly to areas where the physical wax layer was lightly applied or scratched, rather than structural material failure.

Finishing surfaces that have been dyed is recommended as the dye will bleed out if wet if the surface is not sealed. For finishing solid colors on a material a variety of finishes can be used. Water based finishes will pick up color no matter how long the ink has dried. For a clear finish over a solid color this isn't much of an issue. After the first coat of water based finish the surface is sealed enough to not bleed upon further coats. Finish can be brushed or sprayed on materials with a single color. For patterns or areas where colors are blended I only use a spray on Lacquer. Polyurethane and oils will discolor the surface over time, and polyacrylic will cause the surface to run. Lacquer can be applied in thin coats, flashing away fast enough not to spoil the color, but sealing the surface to be worked for further coats. Do not sand, but very lightly scrape your surface. Sanding will spread color that has migrated into the finish layer and blur your surface. Scraping and brushing away the curls is the best way I have found to keep my surfaces pure between coats. Be gentle, and as with anything, practice on your samples prior to committing to anything on a finished product. The ink will penetrate between 1/64-1/16 depending on the species of wood it is applied to. You can easily ruin your work if not scraped gently with a sharp card scraper. Additional coats of finish can be sanded with 220 or higher sand paper once the fibers have been sealed. 2-3 coats of finish will seal the surface.

Tips on not ruining your dyed surface

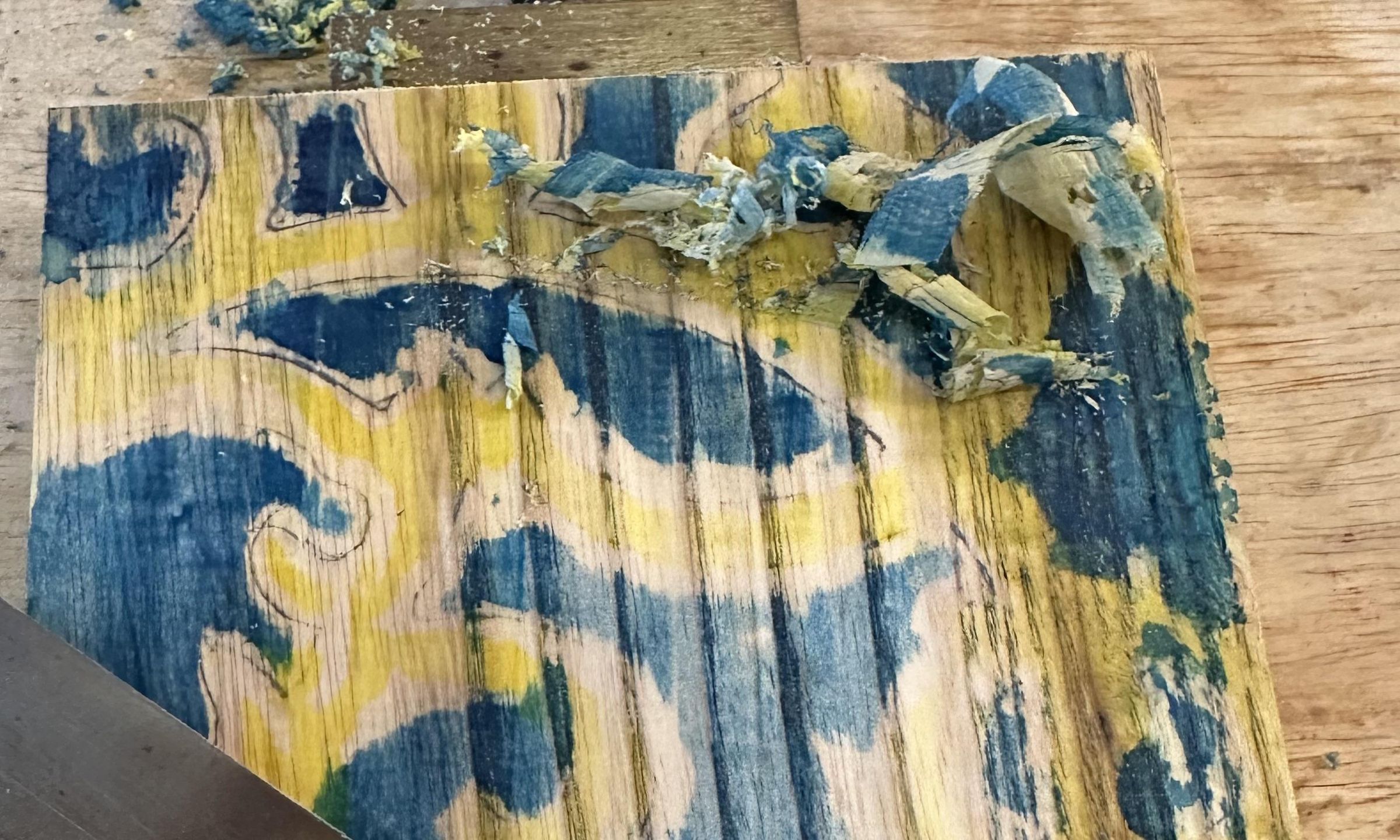

The Magic of the Card Scraper: The cabinet scraper, in the bottom-left corner, has peeled away the top micro-layer of wood and wax. The curly wood shavings in the upper-right corner are physically stained blue and yellow on one side, proving that you are cleanly slicing off the fuzzy surface grain and the raised wax wall simultaneously. Once scraped, the results are stunning. The surface does not look like modern plywood or poplar anymore; the heavy vertical grain lines paired with the flowing, ornate yellow and blue scrolls give the wood a rich, historical, hand-blocked textile or medieval manuscript aesthetic. Sanding creates microscopic colored dust particles. If you sand the first thin sealer coat, you will create a highly potent powder that gets rubbed directly into the clean wood grain gaps, permanently blurring your crisp layout lines. A razor-sharp card scraper shears away wood fibers cleanly. It lifts any remaining wax residue or minor surface-level dye bleeding up and out of the project, keeping the boundaries pristine.

The Death of the Brush and Why Polycrylic and Oils Fail

Water-based brushed finishes (like polyacrylic) re-liquefy the water-soluble aniline dye instantly upon contact. The mechanical shearing action of a paintbrush dragging across the wood will turn your crisp colors into a smeared muddy mess. Oil-based polyurethanes and wiping oils have a natural amber tint that darkens over time. This amber cast would permanently tarnish your pristine Lemon Yellow sections, turning them a dull, muddy chartreuse. Lacquer relies on highly volatile solvents (like acetone) that evaporate (flash off) in seconds. Because the mist lands softly on the surface and dries almost instantly, it traps the dye molecules exactly where they sit. It seals the wood without giving the pigments liquid volume or time to dissolve and migrate into adjacent zones.

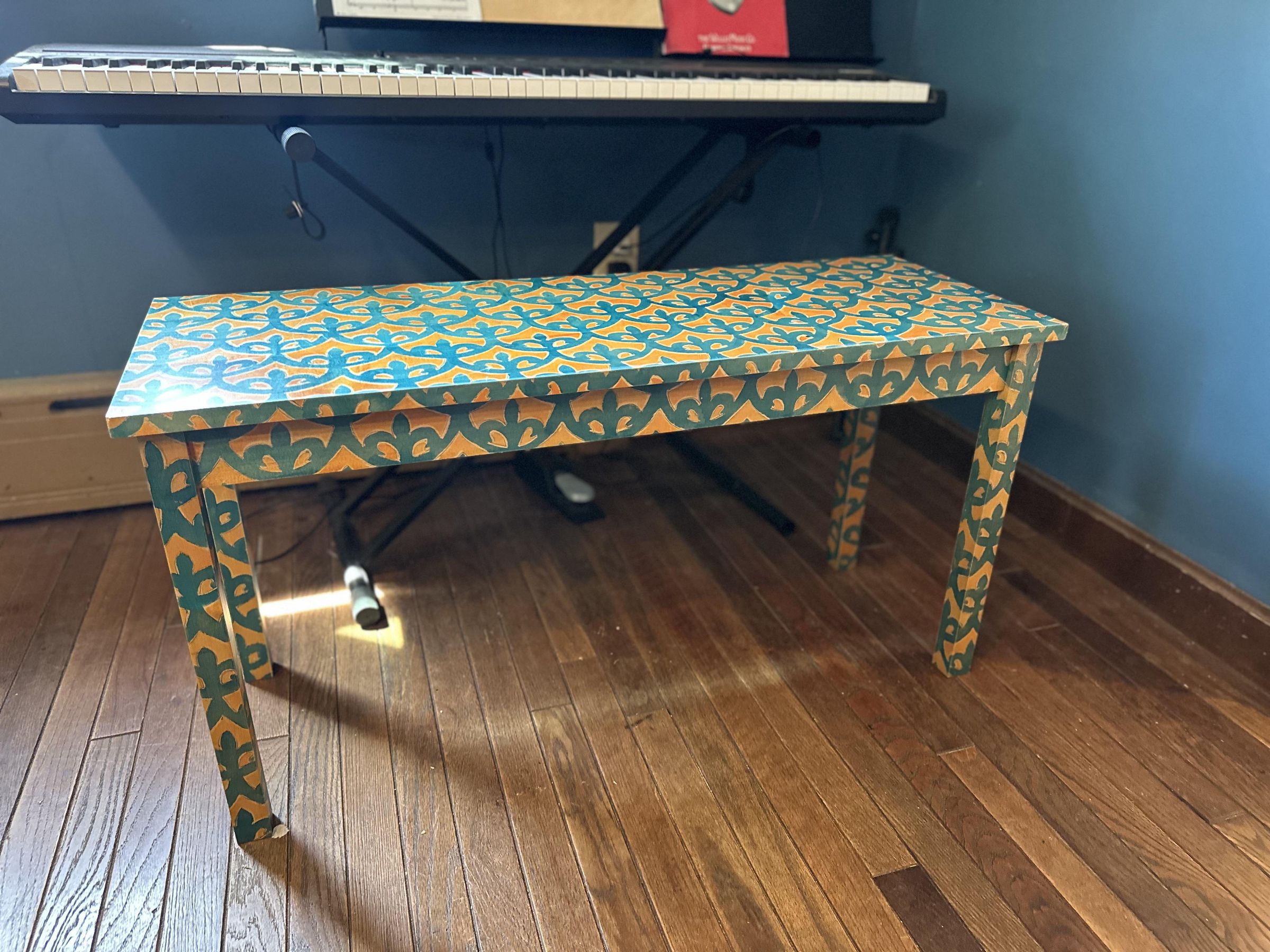

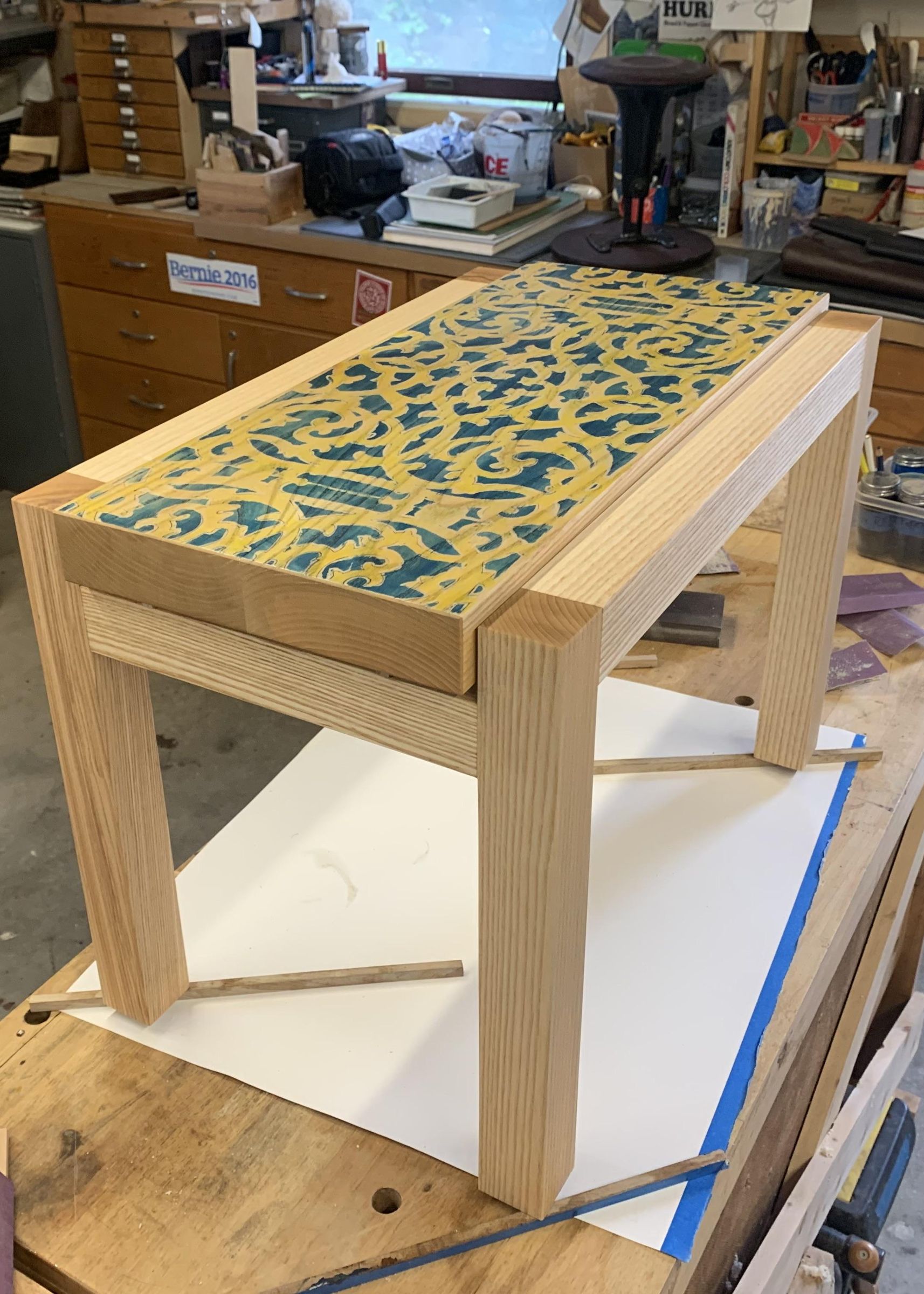

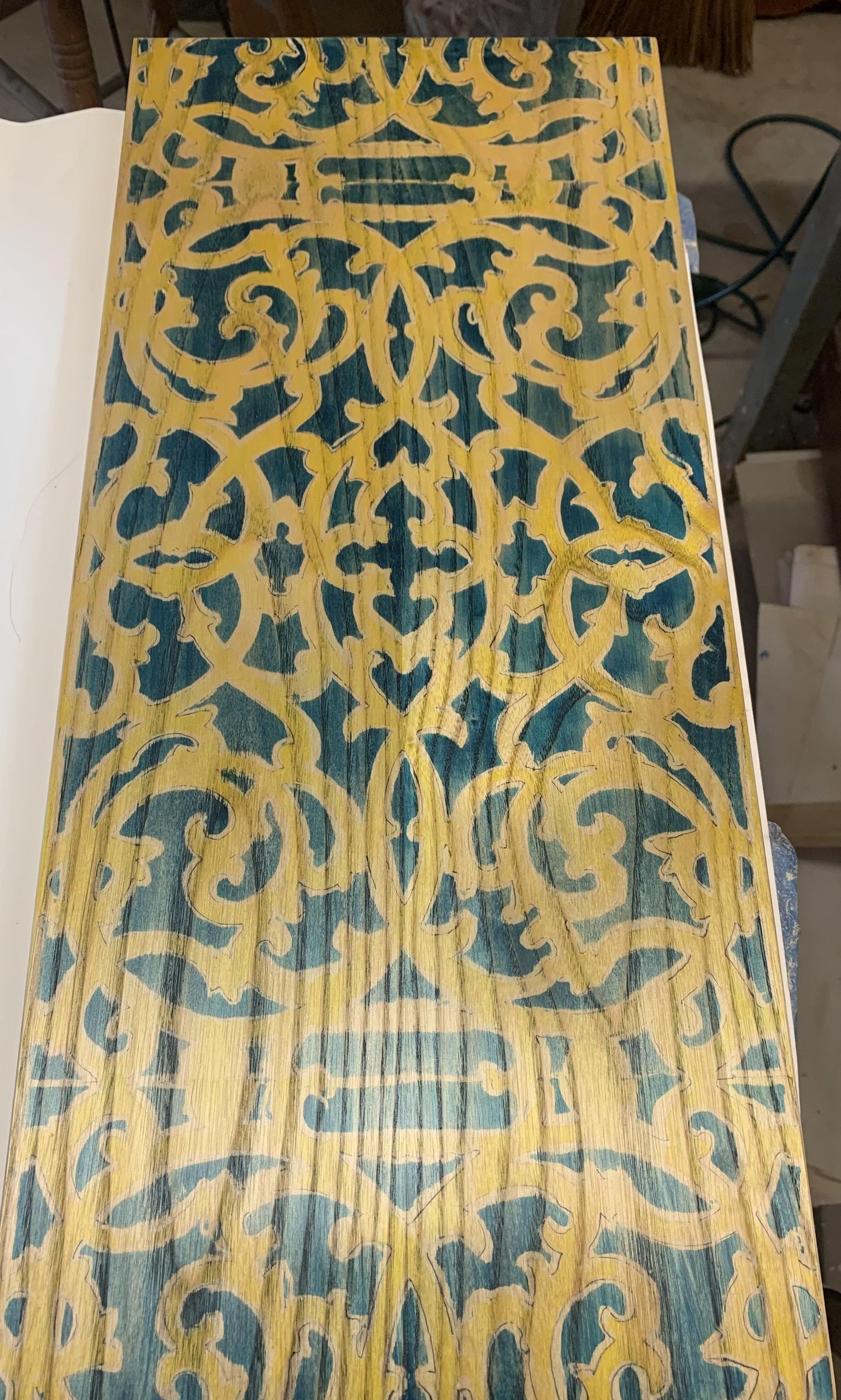

I have been experimenting with aniline dye on a wide variety of projects over the past few years. I have used it with many of the techniques described, a few still in my pocket, and there are still a bunch of areas I would like to expand my experimentation. Wax resistance has been interesting, and a colleague recently provided me with a jug of liquid wax intended for pottery. I will have to test to see how well that works with wood, and especially with finishes. Scraping the surface after dyeing removes fiber fuzz but also the wax resist. How a product like lacquer sits on wax soaked wood remains to be seen. Laser cutting through color at varying intensities produces a positive/negtive effect depending on color of dye and substrate. Engraving through dye works great but using a laser cut as a resistance, or to create images and patterns is an area I have yet to fully investigate. I imagine that I could replace the drawing of the pattern with subtly engraving and use that as a guide for the wax crayon. A wide line would perhaps work well as a waxfilled barrier. I do prefer the pencil outline and imperfect waxlines as an aesthetic part of my final product, but there is a lot of work that could be done in that direction. I have experimented with applying dye to a turned object while it is spinning on the lathe. The speed of the lathe reduces the spread of ink, blending color is possible but it will all take further investigation.

Finishing an object with this technique takes some commitment. I am meticulously testing with materials that will be exactly the same as my substrate. As part of my process of prepping parts for the object I am making sample pieces for finishes. I try to leave nothing to chance when I start on the final product. While the finished object is the goal, the catalog of samples is actually more valuable to me personally. Everything I experiment with is cataloged and when I am trying something new I make a control sample to make sure I am not misinterpreting what I am seeing. I retain all my samples and information so that I can refer back to how I built an object, created a color, or treated a surface.

Ultimately, working with aniline dyes is about stepping away from mass-market perfection and embracing a deeply rewarding, tactile process. When you apply a complex pattern to a piece of furniture, you are navigating millions of variables, from the cellular straw-structure of the wood cells to the molecular weight of the pigments themselves. Expect errors, plan for minor bleeds, and safeguard your hard work by preparing plenty of backup parts in identical batches. The beauty of this technique lies in those subtle, analog imperfections—the slight feather of a wax line or the vivid, glowing depth of a custom-blended gradient that paint can never replicate. Grab some test blocks, embrace the messy learning curve, and let the wood fibers speak for themselves. If you have any questions about mixing ratios or want to share your own resist experiments, let me know in the comments below, and please vote for this project in the Colors of the Rainbow Contest!
