Pateo-electricity: DIY Energy Harvester

We get power from flowing water, that is called hydroelectricity. Pateo-electricity is similar, it is a way to make electricity from people walking. The word Pateo-electricity comes from the Greek word patéō which means to step on something. So Pateo-electricity is basically making electricity from footsteps.

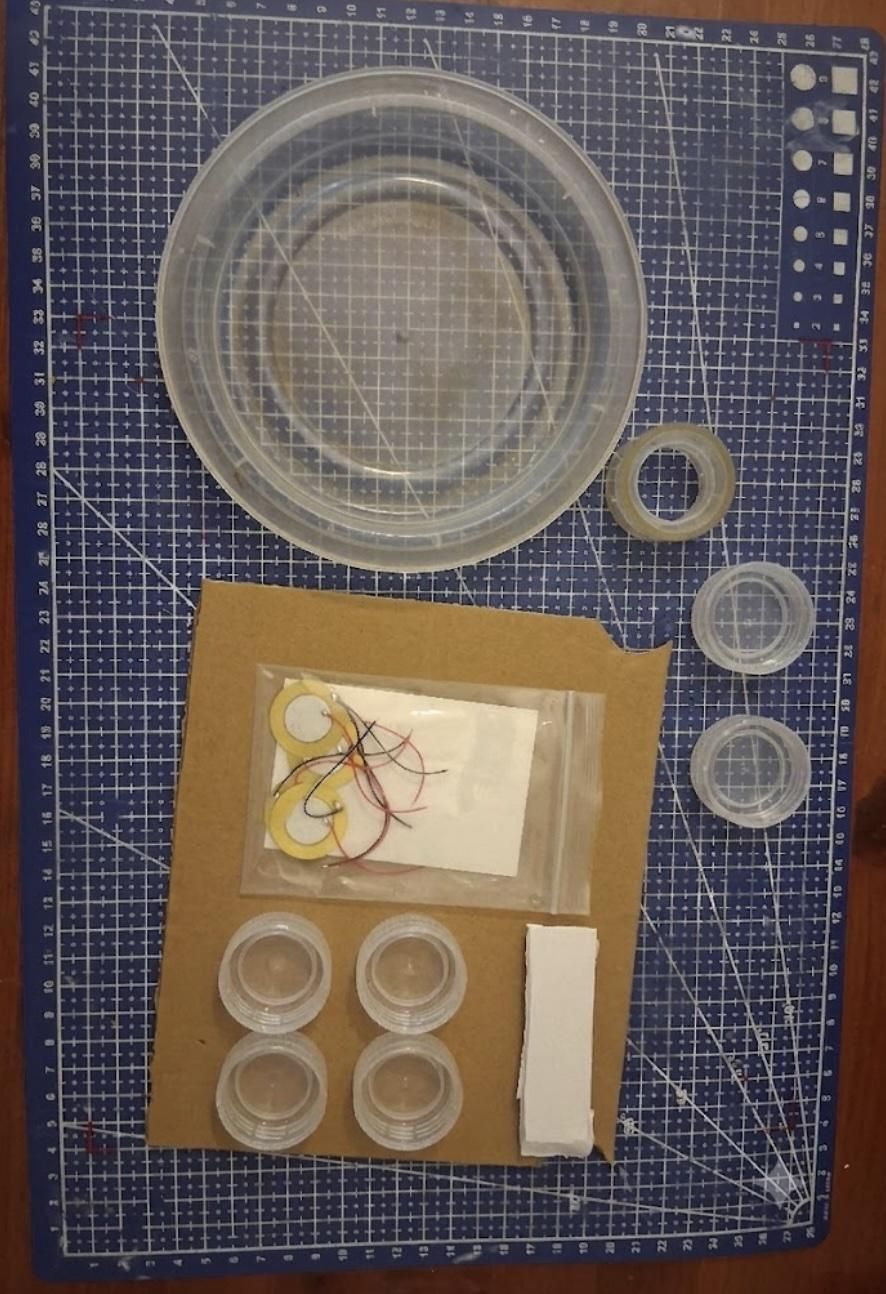

Supplies:

1. 27mm Piezoelectric Disc
2. Thick cardboard
3. 1x Foam Board
4. Alligator Clips (electrical wires with clips on opposite ends)
5. water bottle caps

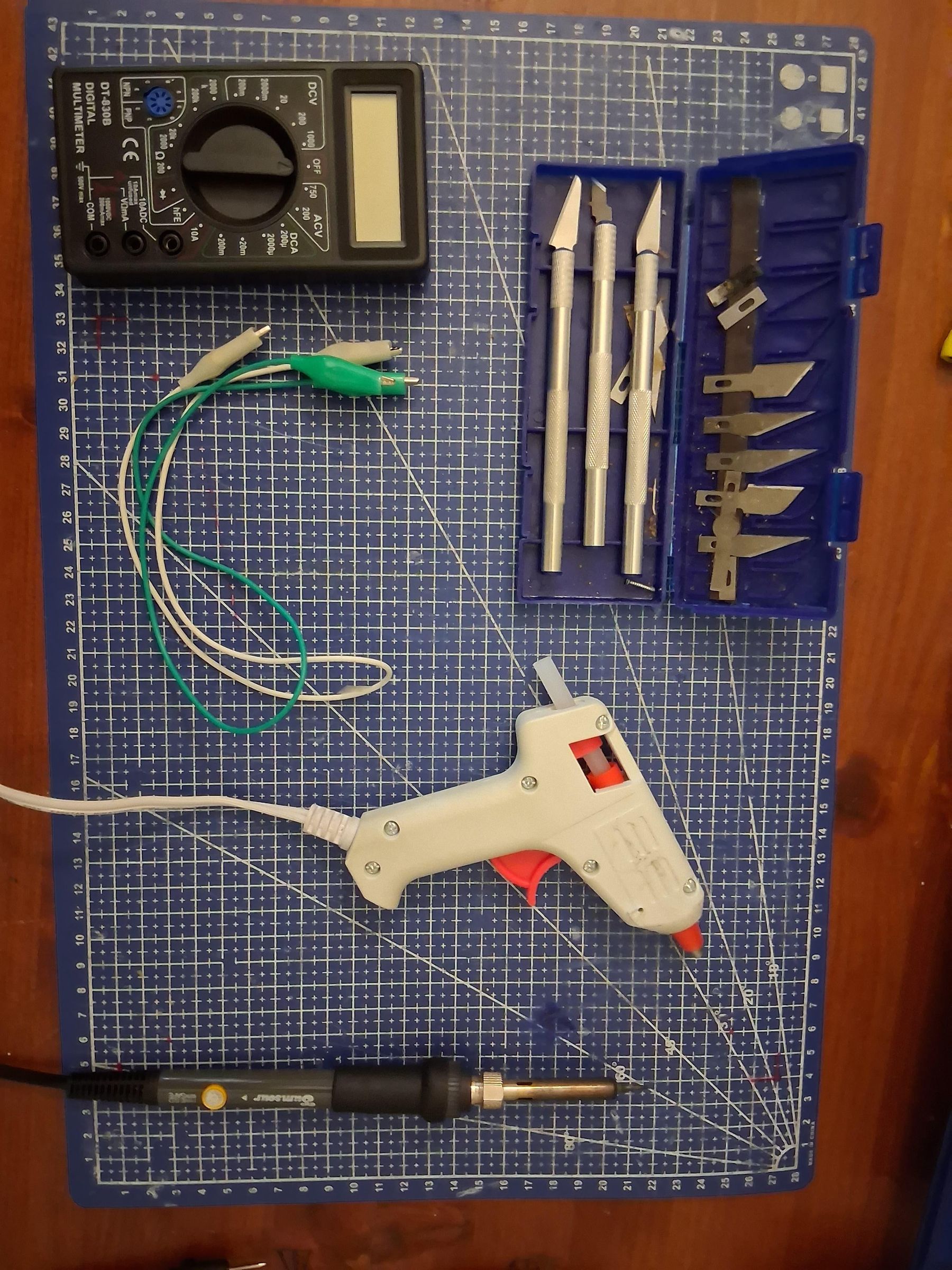

Tools:

1. Hot glue gun
2. exacto knife
3. soldering iron
4. digital multimeter

MORE SUPPLIES ARE NEEDED FOR THE UPGRADE AT STEP 7 !!

The first step is creating the physical base of the tile.

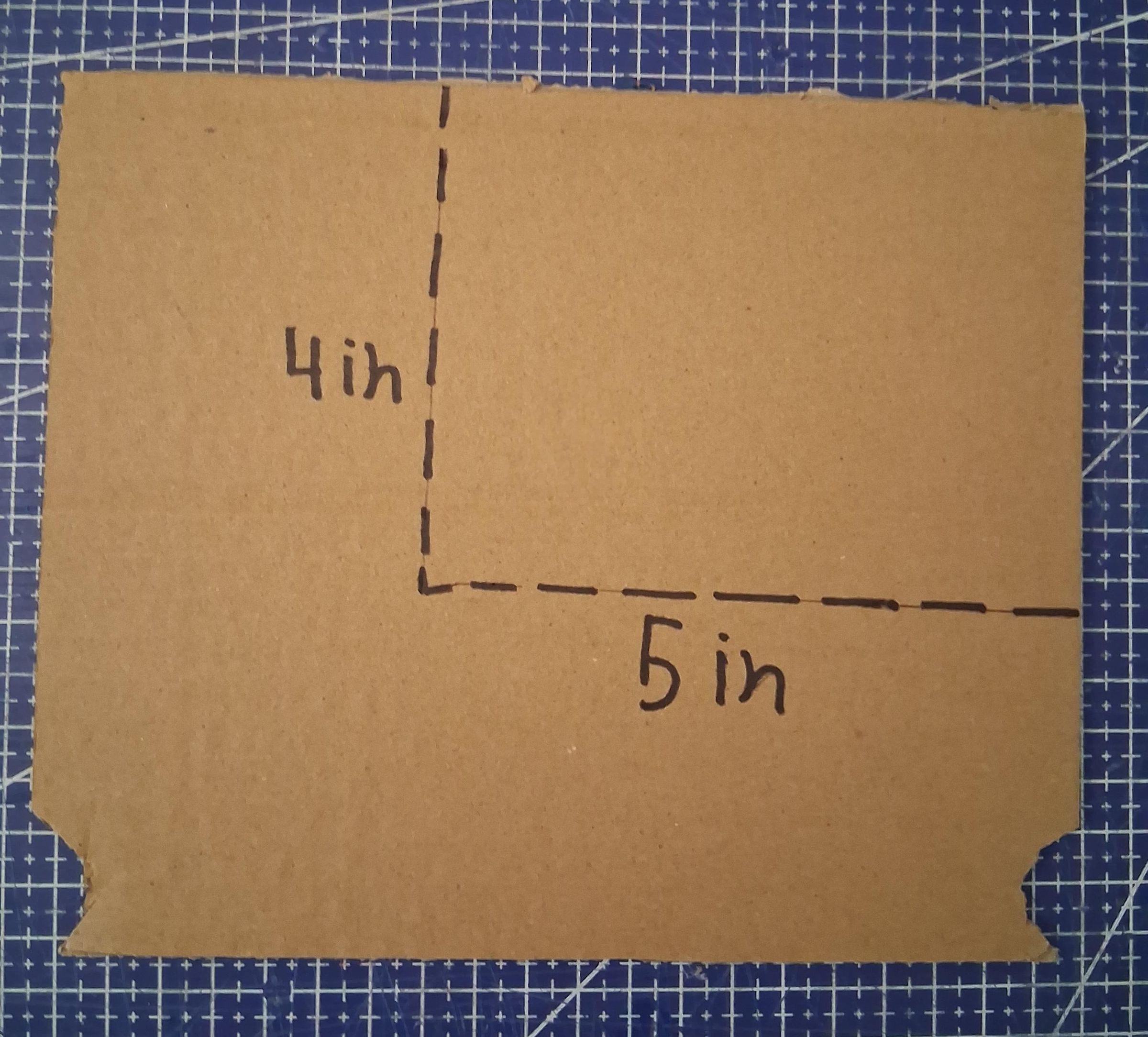

1. Cut one 4-inch by 5-inch rectangle out of thick, rigid cardboard.

The cardboard base needs to withstand impacts without losing its shape over time.

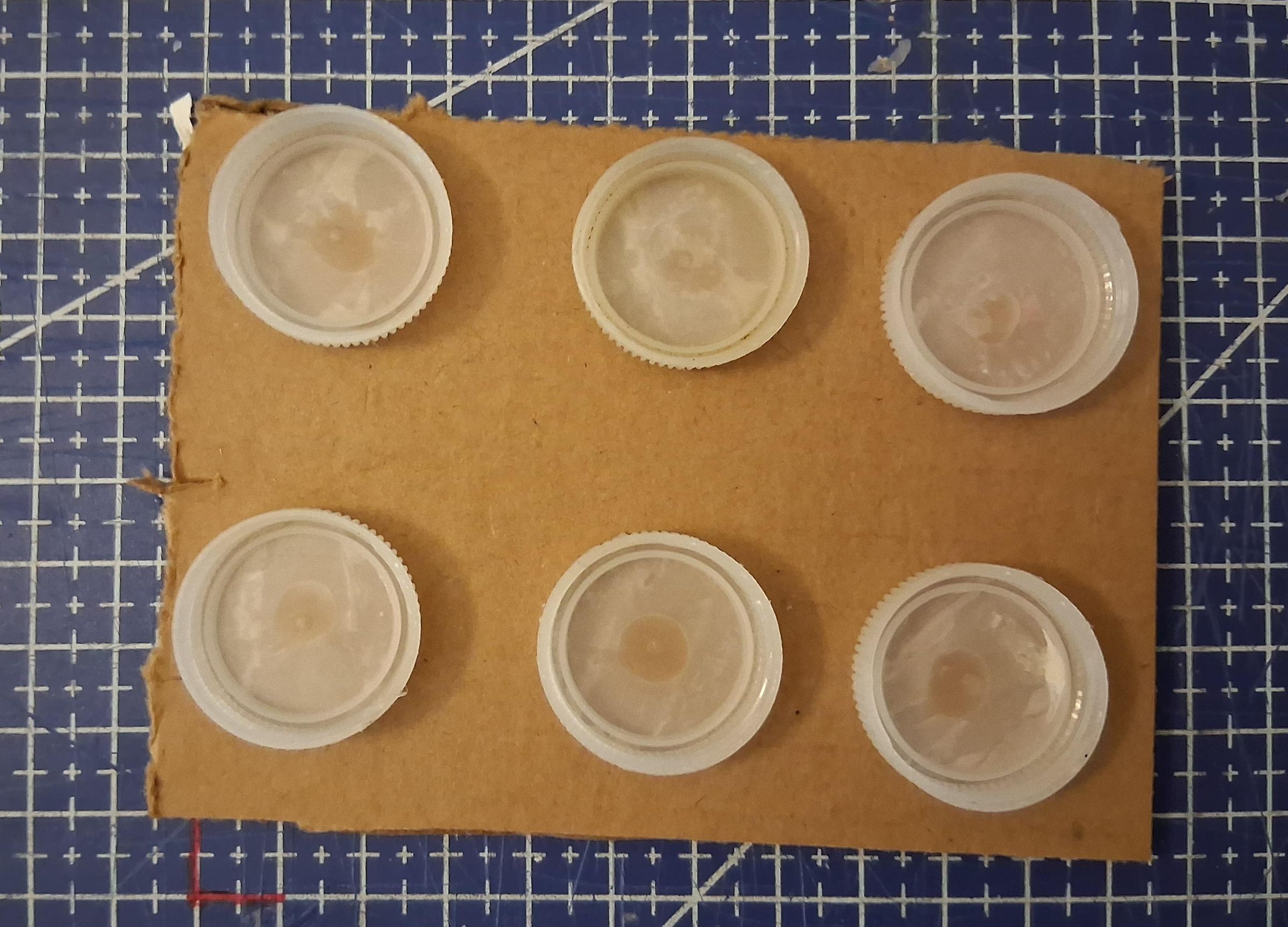

1. Collect some plastic water bottle caps. Ensure they are identical in height.
2. Turn your BASE PLATE right-side up. Apply a generous ring of hot glue to the BOTTOM of each bottle cap.
3. Securely press one bottle cap into six places as shown of the cardboard base.

Reason: The material used for the base of the harvester is cardboard, which is quite flexible and deforms due to external impact. To avoid such deformation, we put plastic bottle caps in order to create rigid structures that will ensure maximum efficiency of the harvester.

To maximize energy , the tile must first reset its position and snap back after a footstep is lifted.

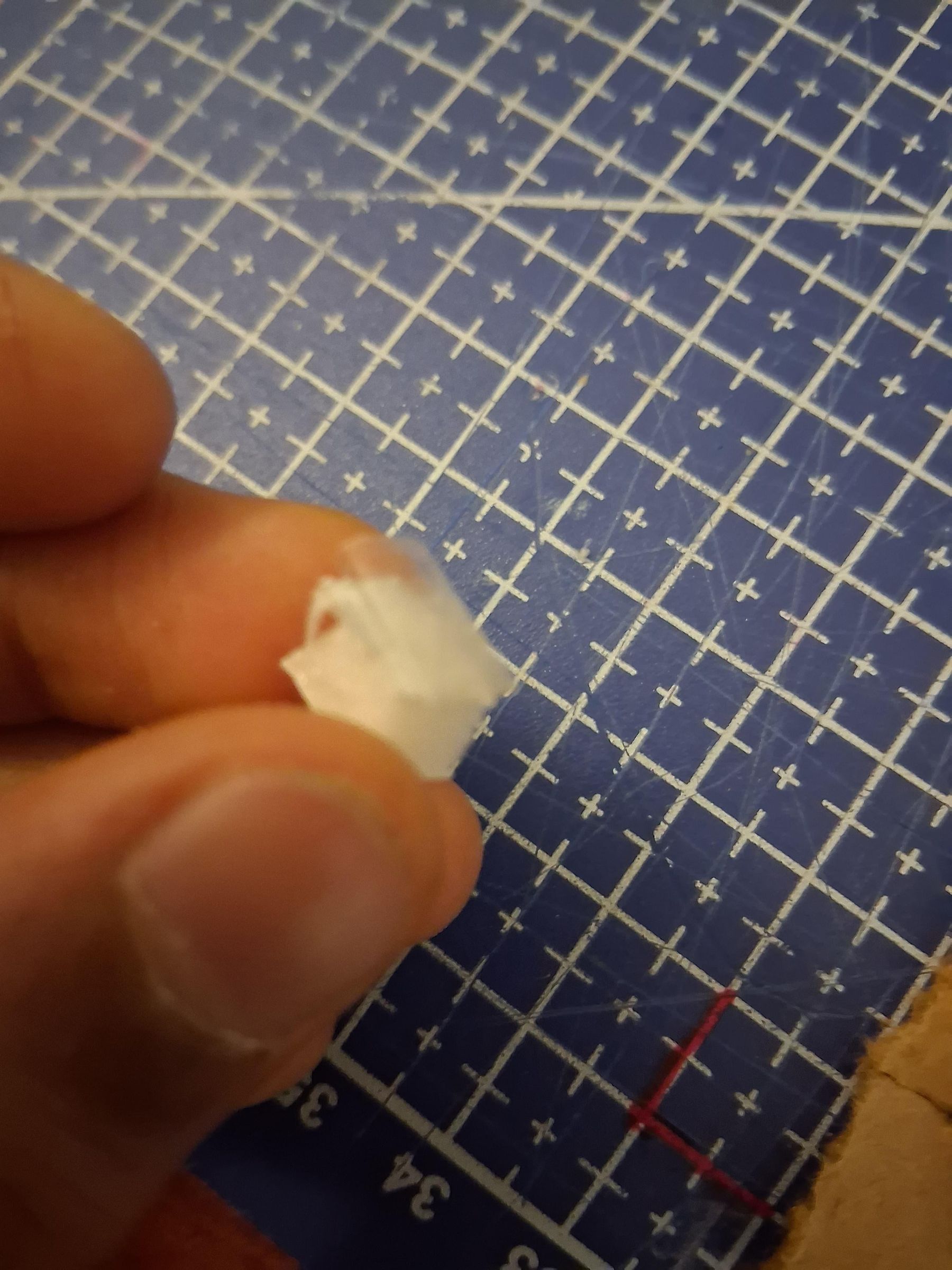

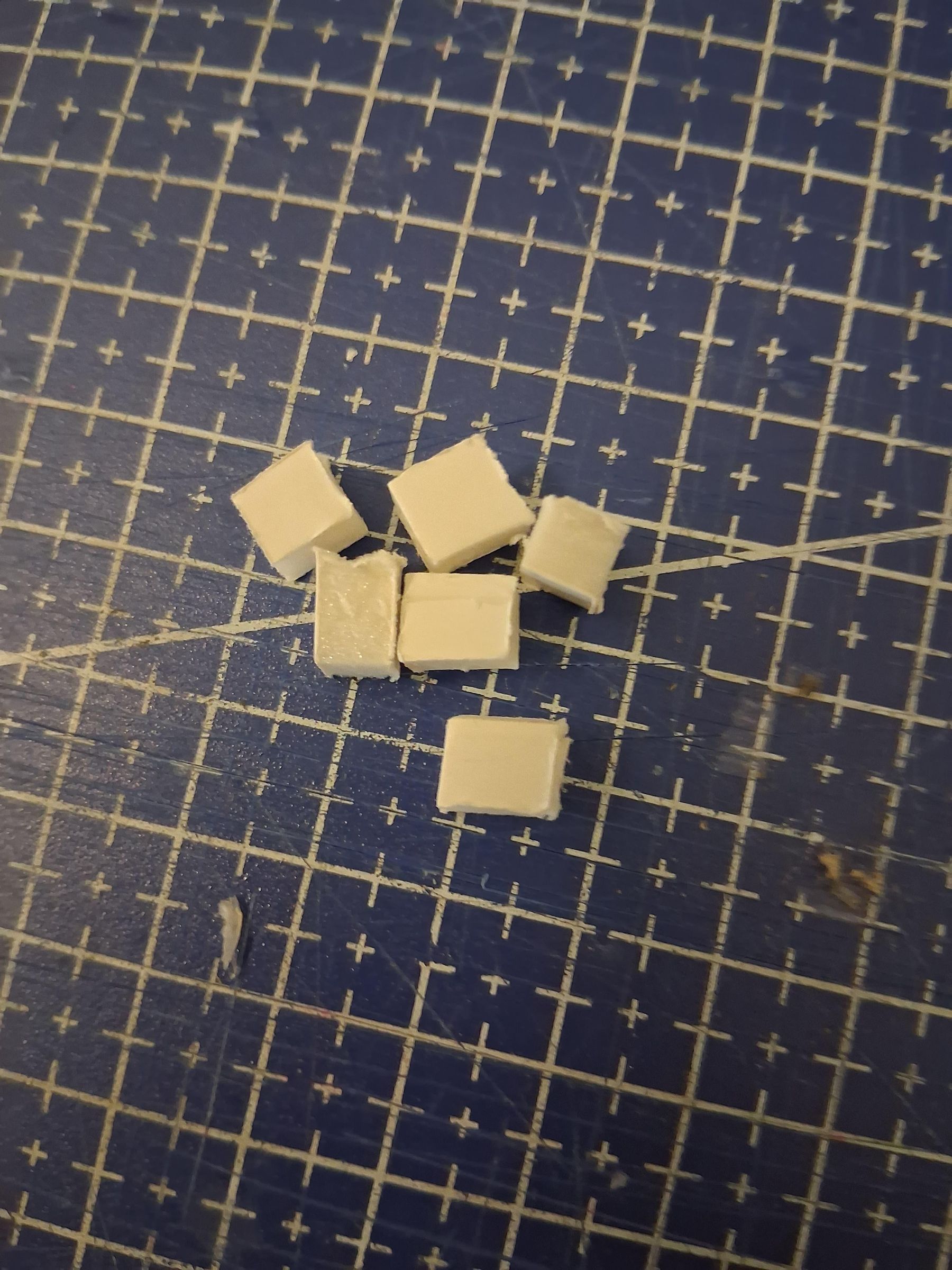

1. Take a standard sponge and carefully cut 6 small, identical cubes (smaller than you T-shirt button).

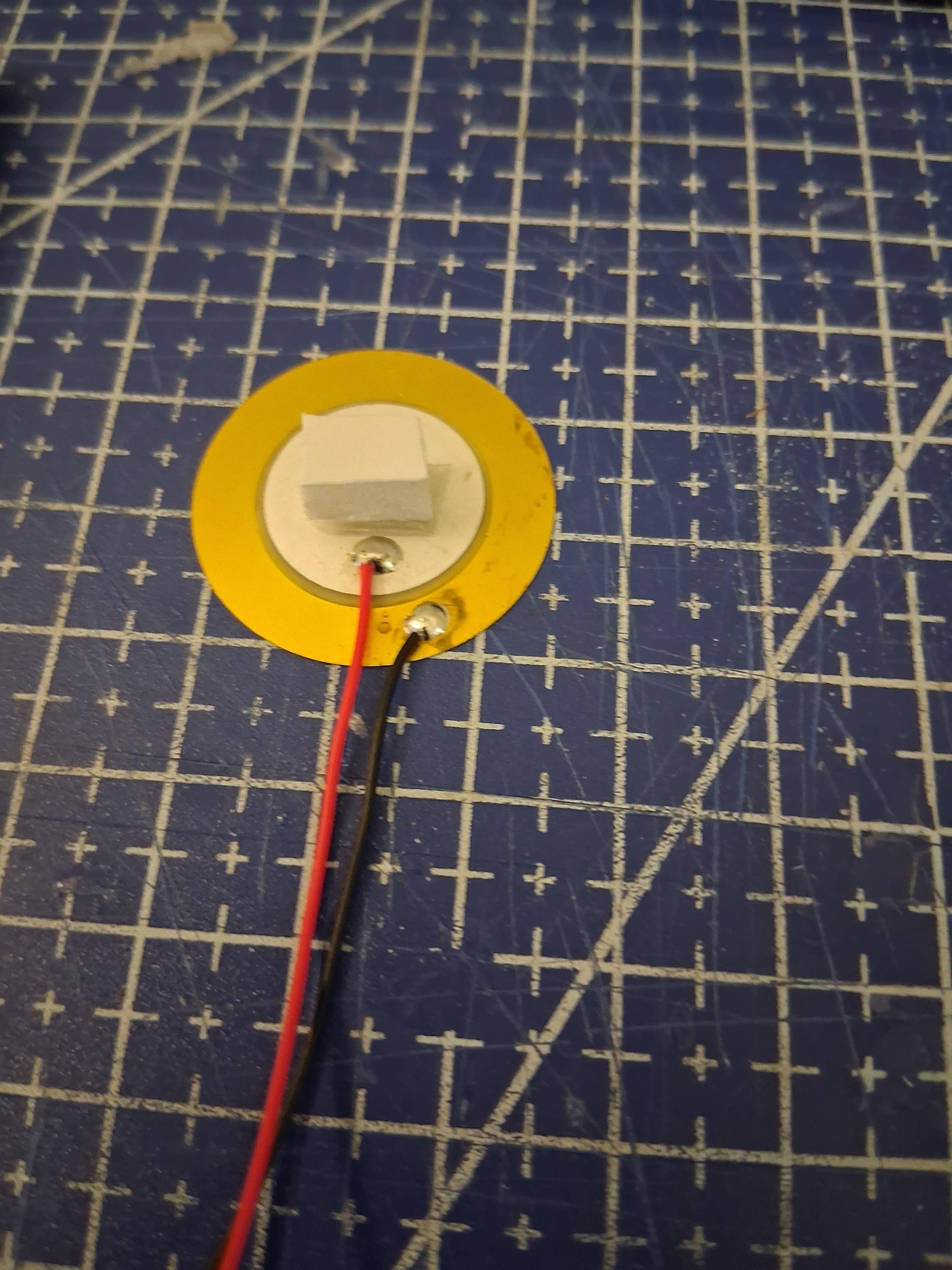

2. Apply a bit of double-sided tape to each of the sponges and press the sponge cubes firmly to the piezo discs.

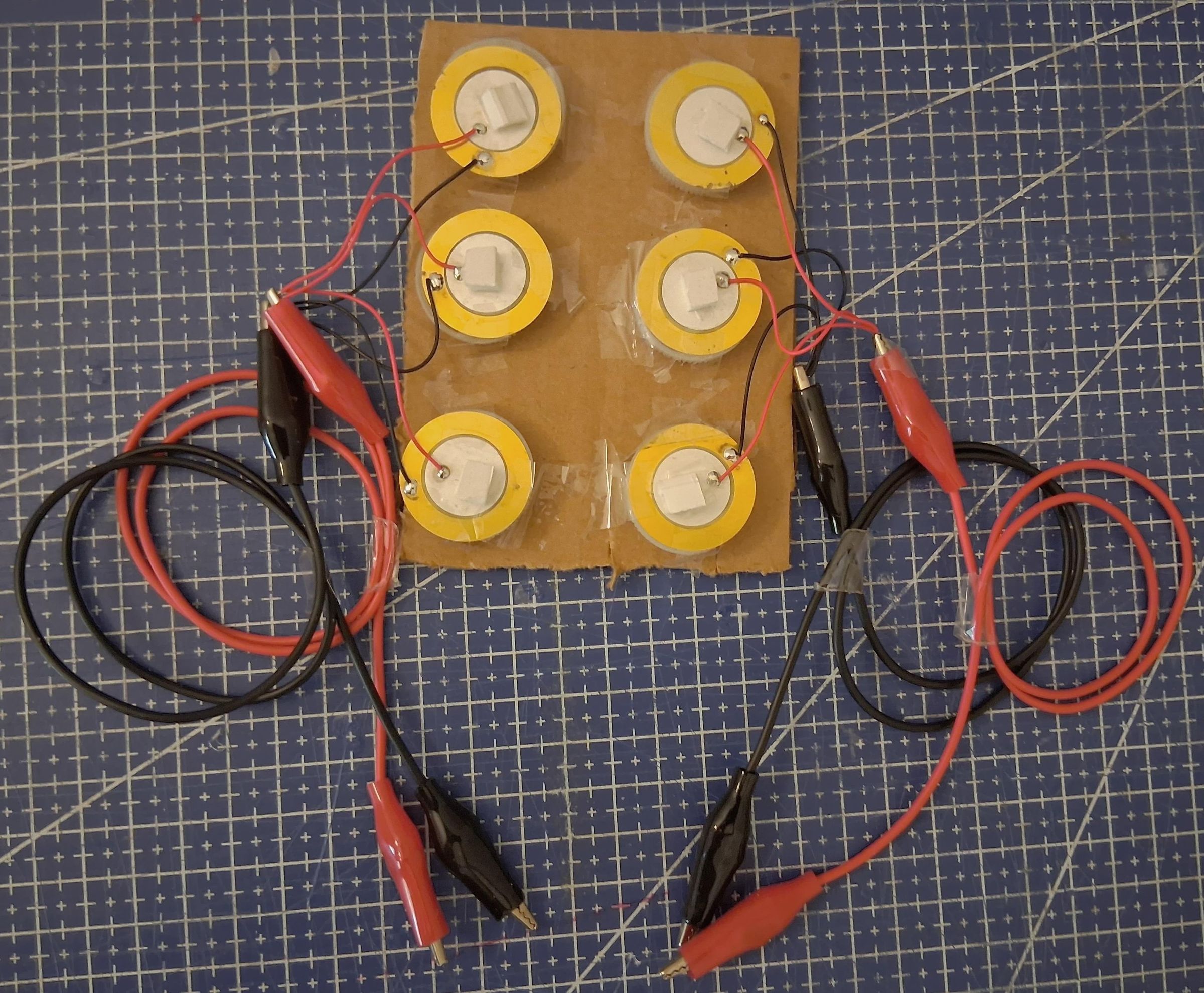

Tape an 6-piezo disc array as shown in the image.

1. By tying all the red positive wires together and all the black negative wires together, the discs form a single parallel circuit.
2. This combines the surface area of all six ceramic crystals, allowing the tile to catch steps and harvest maximum energy no matter where you step on the surface.

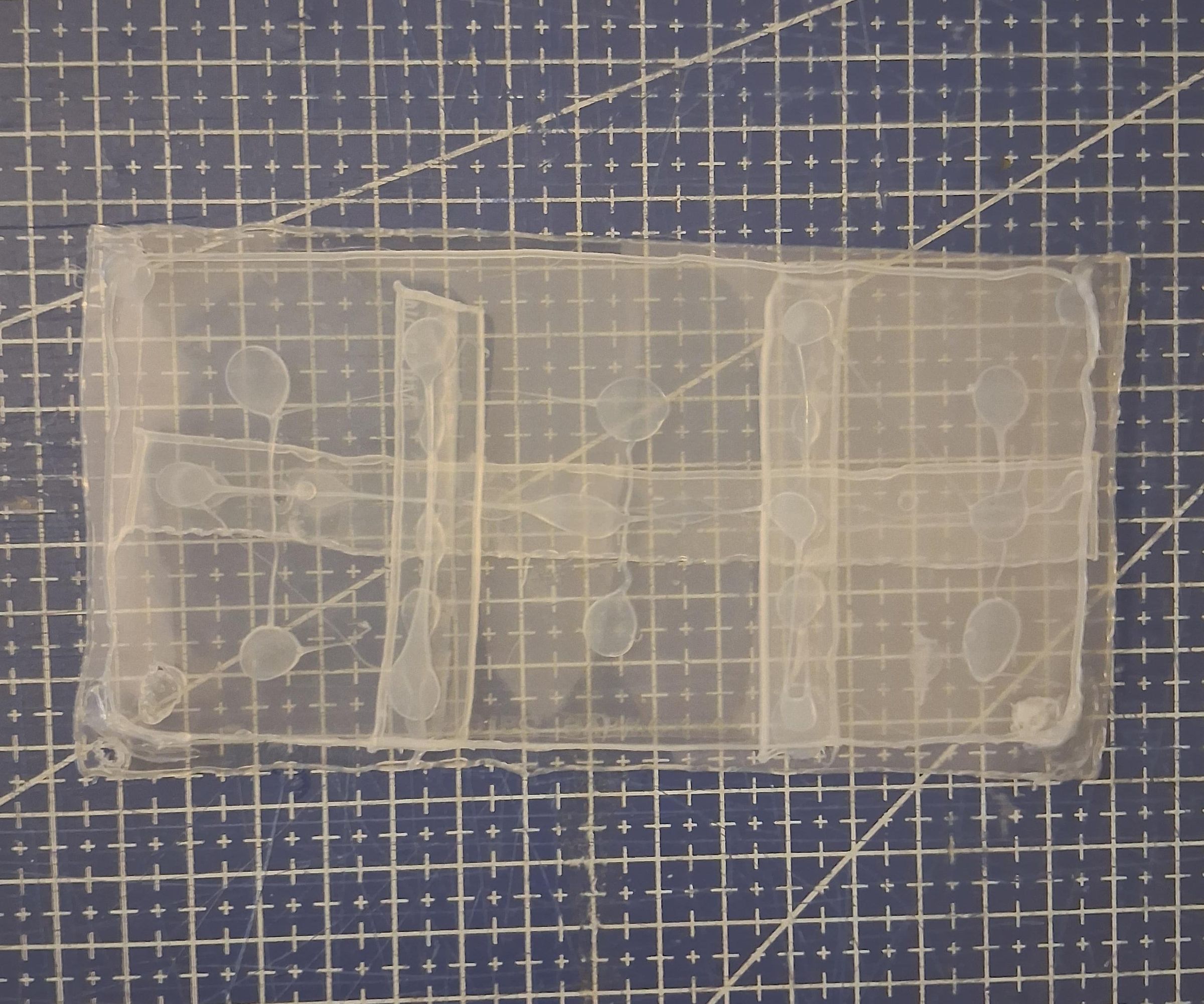

Next, we need a mechanism that distributes the downward footstep force into the piezo discs.

1. Cut off two similar strips of hard plastic from the plastic lid (approximately as long as the cardboard base).
2. Glue them together to form a compact and strong strip and glue in some additional strips to provide further stability.
3. Then, place the TILE upside-down onto the sponges.

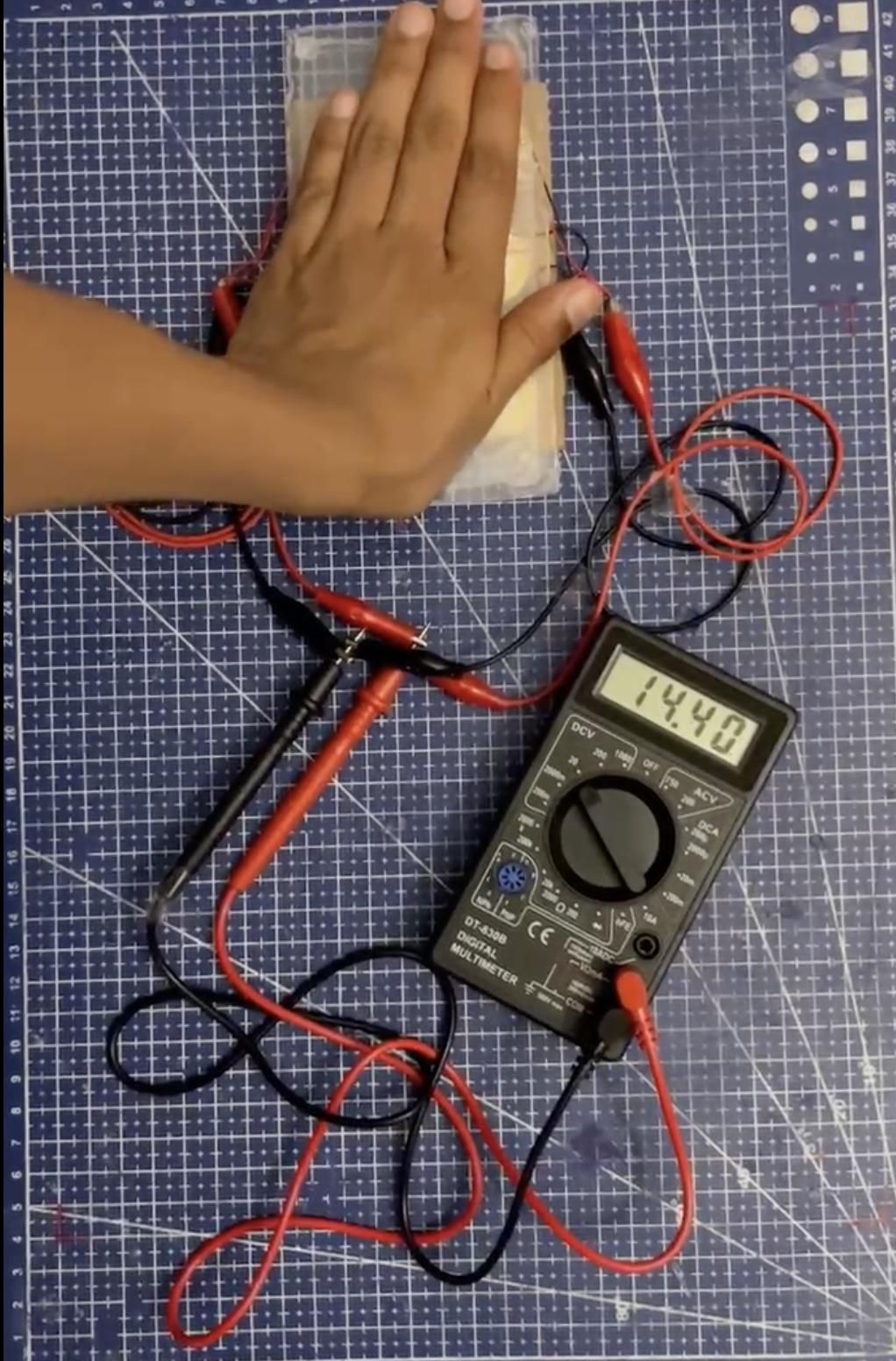

To test the baseline model, the pre-wired leads of the single 27mm piezo disc were connected directly to a digital multimeter.

1. The Result: When struck directly, the multimeter showed high-voltage spikes, up to 14.40V.
2. The Problem: Since piezos generate alternating current (AC), pressing the tile generates a positive voltage pulse, while when the tile rebounds, a negative voltage pulse is generated. This, of course, results in their mutual cancellation and causes the needle to quickly revert to 0.00V.

To turn those unusable AC spikes into stored power and to maximize the energy collected from every footstep I re-engineered the system with two massive upgrades:

Upgrade A: The 6x 35mm Array

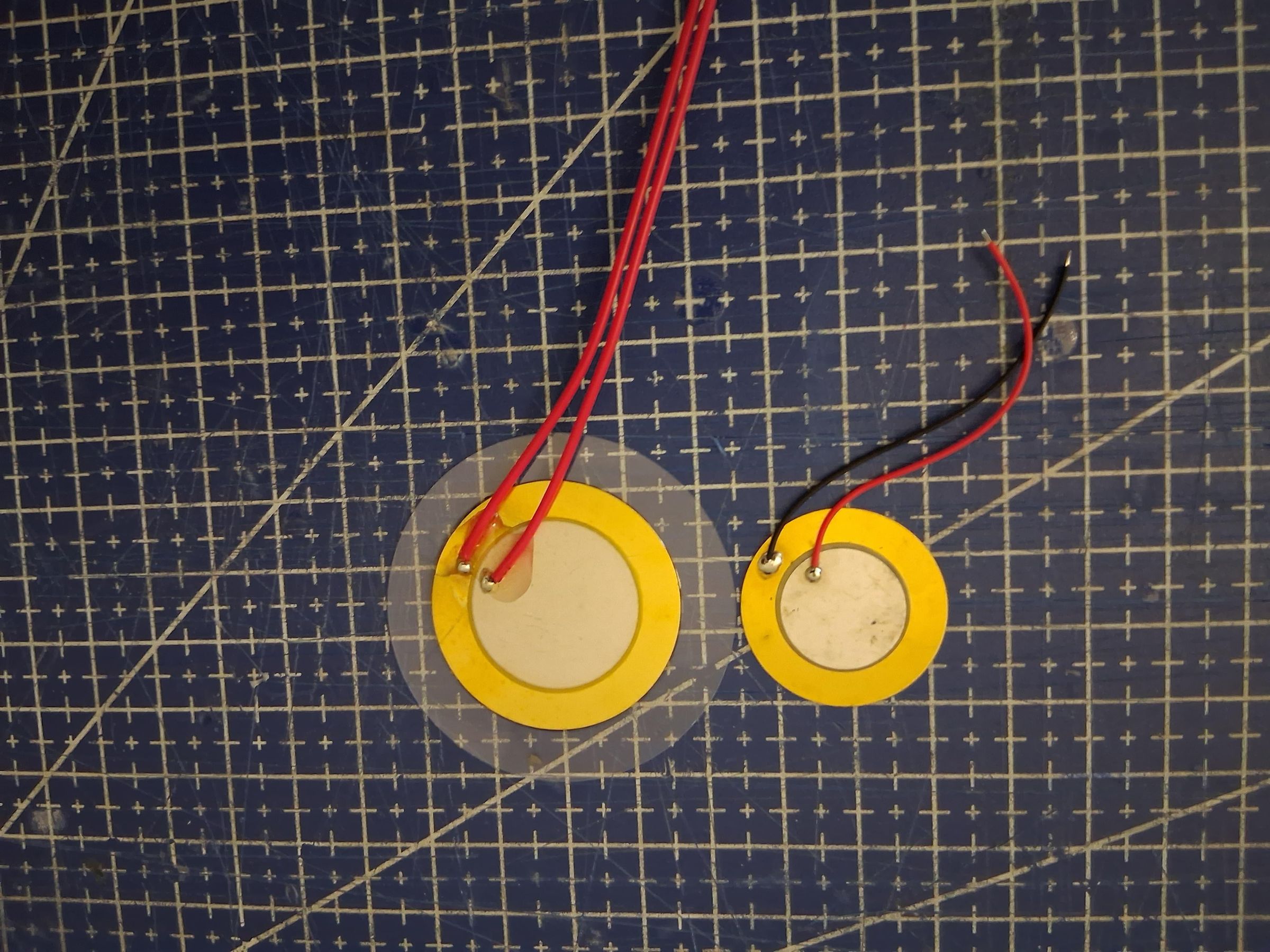

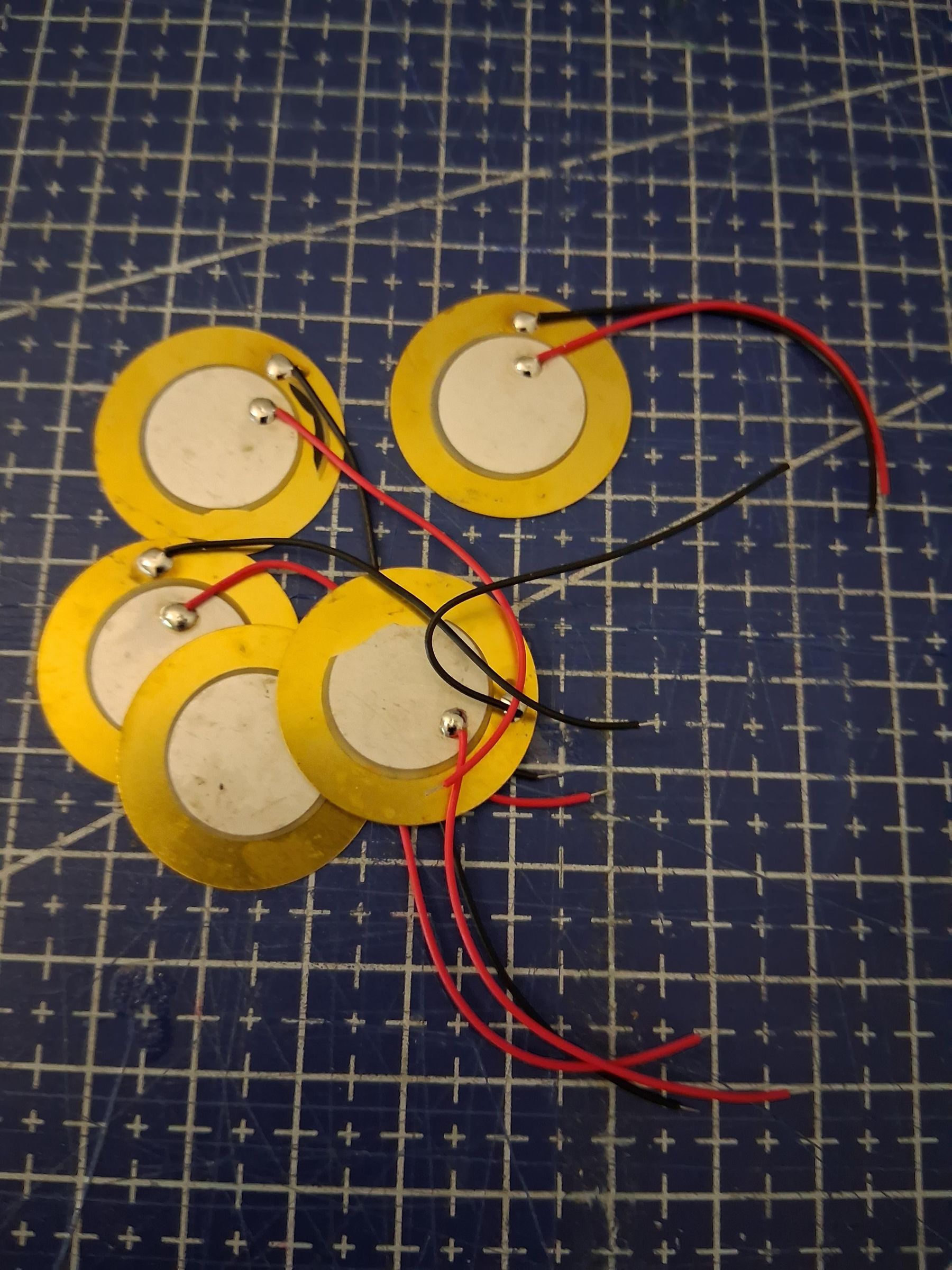

I removed the 27mm sensor and scaled up to an advanced array of six 35mm piezo discs arranged symmetrically across the base plate.

1. The larger 35mm size provides a greater amount of active crystals compared to the standard 27mm baseline disc.
2. These six sensors are wired together in parallel (all red positive leads connected together, and all black negative leads connected together).
3. This setup gives the tile a lot more surface area to catch steps , allowing the tile to capture significant electrical current no matter where a foot steps.

Upgrade B: Engineering the Dual-Diode Rectifier Network

To prevent the positive and negative pulses from fighting each other, I took apart an old RC car to harvest two diodes and a 10V, 220µF capacitors. I configured them on a breadboard to build a customized rectifier network that traps the electricity inside the storage tank.(this circuit can be seen in the image above)

Circuit from : link

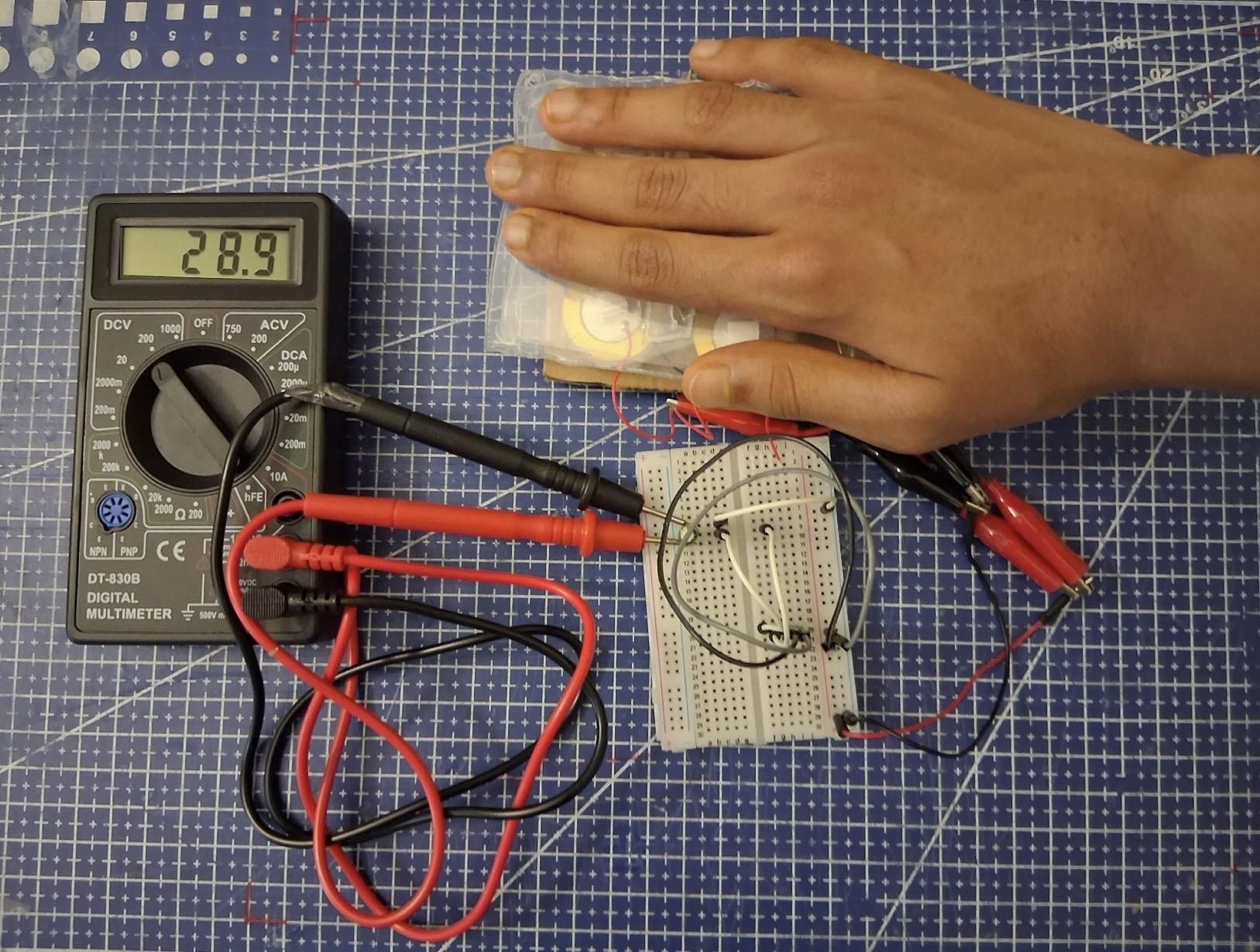

With the advanced hardware upgrades , the digital multimeter was set across the legs of the 220µF storage capacitor :

1. Final Performance : With the 6-piezo array and the dual-diode circuit, the system achieved a massive charge of 25.00V to 30.00V DC under continuous foot steps!

Analysis: Moving from an unstable 14.40V AC open-circuit spike and finally to a projected 25V+ shows how circuit design can maximize green energy harvesting.

Ultimately, this project proves that you can actually capture human footsteps and turn them into stored, clean energy using simple, everyday materials. Building the dual-diode circuit was the key step because it took those unstable AC spikes and trapped them as steady DC power, turning a cool idea into a physical reality. Upgrading to the six 35mm piezo discs shows that footstep harvesting isn't just a concept—it's a real, functional way we could power small electronics or smart sidewalks down the road.

It was an amazing experience making the Pateo-electricity Tile, and I hope you enjoy looking at my project as much as I enjoyed making it!

-Ved Rode
