Plan a Bird Box Camera Setup Before You Buy Anything

The camera looks small enough. The box looks roomy enough. Then the bracket catches the lid, or the picture is blurry because the lens is too close.

Make a one-page plan first. These six steps help you spot missing information before spending money. You can do the whole exercise with paper and a pen.

By Marcin, founder of HedgeLens. I built the optional planner shown below. This is a planning tutorial, not a report of a physical installation or hands-on camera testing.

You need: the printable sheet or plain paper, exact-model equipment instructions and guidance for your intended birds and box. Use a ruler only on a confirmed unused box.

If birds use the box, show nesting interest, or you are unsure, do not open, measure or adjust it. Plan a separate future setup instead. A quiet moment or a date on the calendar does not establish that it is unused.

Use the RSPB's nesting and nestbox guidance and a suitable species-specific box plan. Then write what you want: a live picture on your phone, saved clips, or both.

No box yet, or unsure whether yours is unused?

Start on paper with a new, not-yet-used box design suitable for the intended birds. Ask its maker for internal dimensions rather than opening an existing box for this exercise. Birds may also use boxes for winter roosting; do not assume a box is unused because nesting season has ended.

Your result: record the intended birds, viewing goal and what information you still need. If box status is uncertain, physical box work stays paused.

See how the optional planner handles an unknown box status

Actual tool screenshot. Do not open the box just to answer its questions.

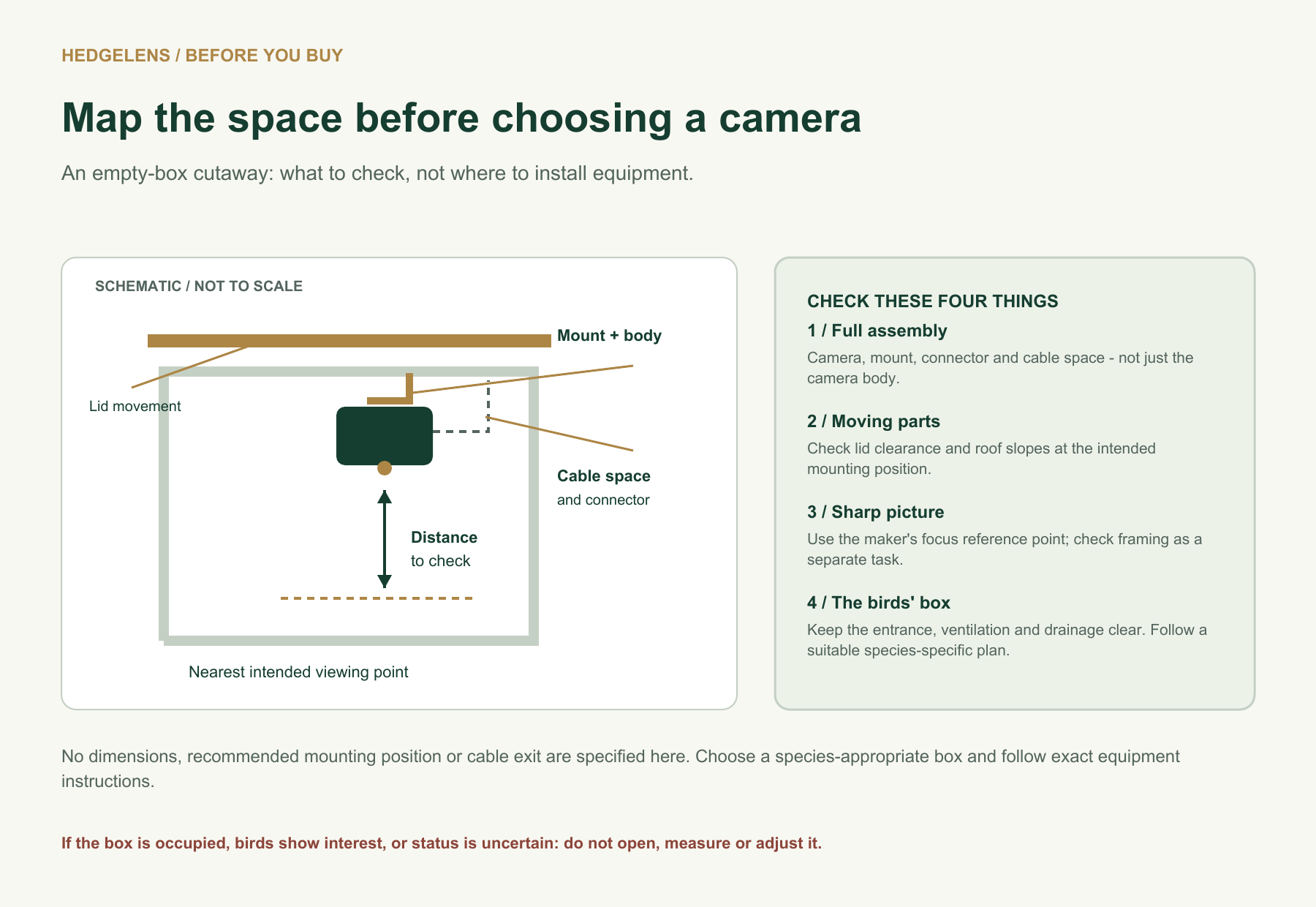

Record usable internal width, depth and height at the intended mounting position. Compare these with the full camera assembly, including its bracket, connector and cable space in that position. Note roof slopes and lid movement; keep the entrance, ventilation and drainage clear.

A schematic, not to scale: use it to identify questions, not as a mounting or nest-box construction plan. The entrance, ventilation and drainage are not drawn; follow a suitable species-specific plan.

Worked example - fictional teaching numbers

Available width at the intended mount: 60 mm. Camera body: 45 mm. Complete installed assembly: 78 mm.

The body looks small enough, but the assembly is 18 mm too wide for that space. Recheck the arrangement or equipment, not the birds' box design. These are not recommended nest-box dimensions.

See why the camera body alone can be misleading

Compare the assembly's envelope, not simply the sum of separate component widths. Layout matters.

Write where each number came from. An estimate is a question to resolve, not a confirmed measurement.

Find the closest focusing distance for the exact camera and lens. Compare it with the distance to the nearest thing you want to see, using the maker's measurement instructions. Ask where to measure from if this is unclear. A wide view does not necessarily mean sharp close-up detail.

Include the future view: nest material and birds can be closer to the camera than the empty floor. Record the nearest intended viewing distance, not just the box height. Do not assume one nest height suits every species.

Second fictional example

The planned subject is 100 mm from the lens. Suppose the exact model's instructions state a closest focus of 150 mm. That planned view is too close for the stated limit. Ask about a suitable camera or lens before buying.

Teaching example only, assuming both distances use the same lens reference point. For your equipment, use the manufacturer's stated reference point. These are not specifications for a named camera.

Fixed focus or adjustable - and how will I check the picture?

Find the type: fixed focus, adjustable focus or unknown. With fixed focus, the documented usable range must suit the planned view. Adjust a lens only if the exact-model instructions permit it; do not turn or dismantle every lens.

Plan the test: before birds use the setup, use a removable paper target with clear lettering at the intended viewing distance in a controlled, unused setup. Include the closest expected viewing point. Follow the maker's lighting and focus instructions, check daylight and darkness views, then remove the target before the box is available to birds.

A useful result: the area you want to observe is in frame, and the target detail you need is visibly clear without a dominant reflection. This is a practical check, not a calibrated optical test. If the range is undocumented or the view remains unclear, record it as unresolved and ask the maker.

If close focus is undocumented, ask the maker rather than mark it as checked.

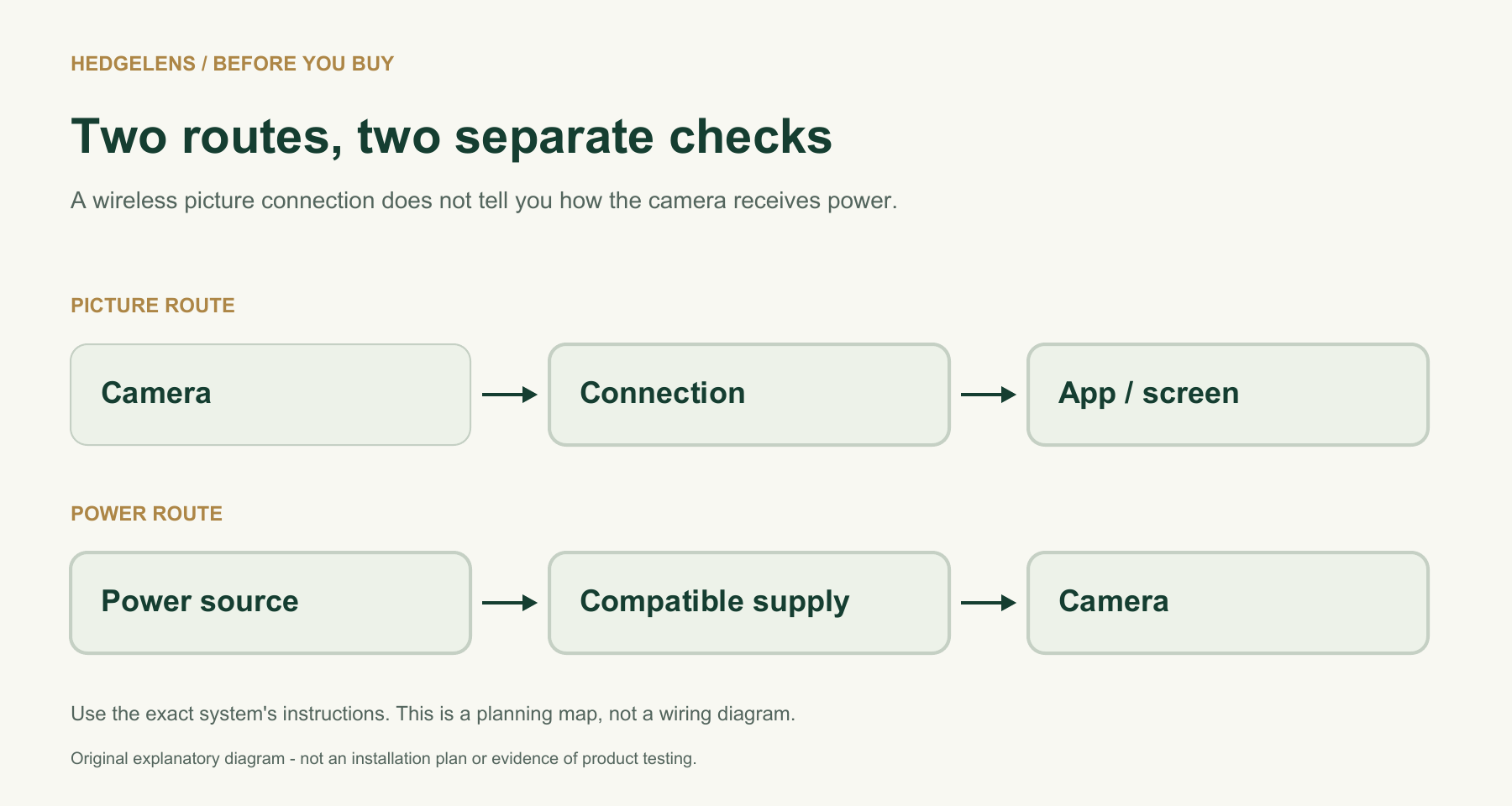

Write how the picture reaches your app or screen, and separately how power reaches the camera. Wi-Fi does not supply electricity.

See a simple picture-and-power map

A planning map, not a wiring diagram.

For cable, record the actual route and the maker's type and length limits. For wireless, plan a test with the actual camera and viewer at the intended location. Record compatible power equipment and outdoor protection; seek qualified electrical help where needed. Electrical Safety First's garden guidance covers outdoor equipment and RCD protection.

What must be in the kit, and how do I check the connection?

For each item, write included / needed separately / unknown, plus the exact model and cost where known:

1. Camera and suitable mounting hardware.
2. Maker-specified power supply and protected connections.
3. Correct cable, required length and compatible extensions.
4. Any required receiver, network equipment or viewing device.
5. Recording storage or recorder, plus the app/service and recurring fees.

Do not assume a camera-only listing includes these items. Resolve unknown compatibility with the maker; this list does not certify a combination.

Connection check: confirm the camera's required network and viewer support in its instructions. Plan a test with the actual camera, compatible power and your viewing device at the intended location before the setup is used by birds. A phone's signal bars are only an initial clue.

Your result: the actual feed opens in the way you intend to use it. If remote viewing matters, check the supported remote method separately; a feed that works on your home network alone does not establish remote access. If the feed fails or drops, leave the connection check unresolved.

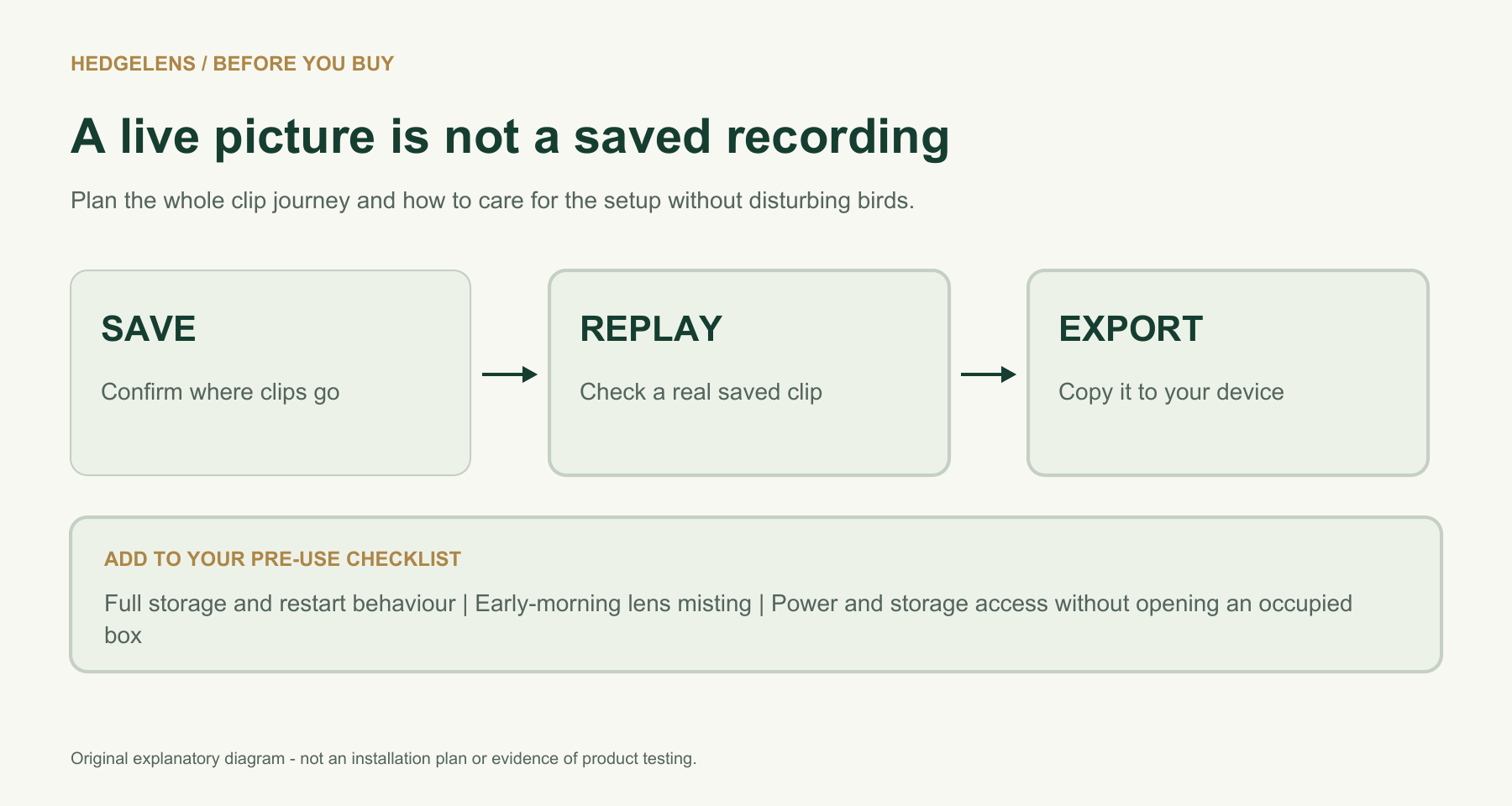

If you want recordings, check where clips go, supported storage, fees and what happens when storage fills. Before birds use the setup, save, replay and copy a test clip. Check restart behaviour only using the maker's safe procedure.

Choose the recording goal: live view only, motion/event clips, or continuous recording. Check that the exact setup supports your choice, how long it keeps footage and whether it needs paid storage or extra equipment.

What counts as a recording check?

1. In a controlled, unused setup, create a test clip using your intended recording mode.
2. Find and replay the saved clip - watching the live feed is not enough.
3. Export or copy it to the device where you want to keep it, then open that copy.
4. Follow the maker's procedure for checking what happens when storage fills and after a controlled restart. Do not improvise a reset or interrupt power during recording if the instructions warn against it.

Your result: the intended recording can be found, replayed and kept as required. Record storage limits, untested restart behaviour and fees separately; one successful clip does not prove long-term reliability.

Live viewing alone does not establish that clips are being saved.

Add an early-morning check for lens misting and follow the equipment's weather limits. Record problems for the maker rather than sealing the box or improvising a heater. Plan access to power and storage without opening an occupied box, and review account access, audio and privacy.

Your sheet should tell you what to resolve next. Here is how our fictional examples become actions:

1. 78 mm assembly; 60 mm space: Obtain exact assembly dimensions and review a suitable mounting arrangement or different equipment.
2. 100 mm subject distance; stated 150 mm close focus: Ask the maker for a model or lens suitable for the planned distance, then test the image before use.
3. Connection and recordings untested: Plan a pre-use location test, save and export a clip, and check restart behaviour.

Write your own three priorities on the downloaded sheet. Missing information is a useful result: it tells you what to ask before buying.

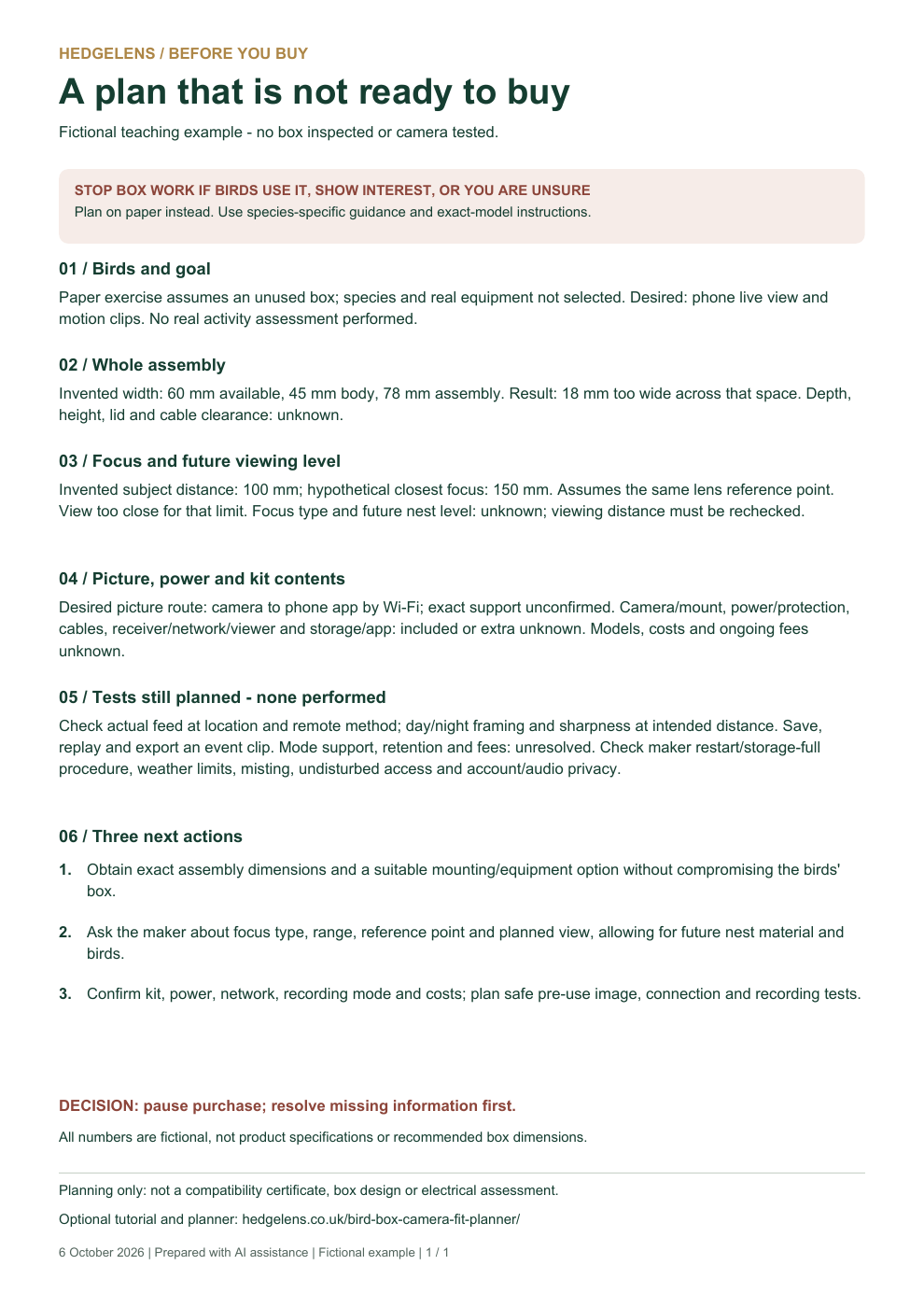

See a completed fictional example: why this plan is not ready to buy

Our example has a body that appears small enough, a complete assembly that is too wide, a planned view below the hypothetical close-focus limit, and untested connection and recording arrangements. Its useful result is to pause purchase and resolve three priorities.

Fictional teaching example - no real box inspected, camera selected or installation tested. Unknown answers and unperformed checks remain unresolved.

If you prefer guided questions, the free HedgeLens Bird Box Camera Fit Planner keeps unknown answers unresolved and produces a printable brief. It is optional; the paper exercise above works without it.

See an actual tool result with missing specifications

Separate demonstration: no camera was selected and no measurements were entered. This screenshot is not the result of the numerical examples above.

This brief is not a compatibility certificate, nest-box construction plan or electrical assessment. Follow species-specific guidance and exact-model instructions. Once birds use the box or show interest, leave it undisturbed.

Prepared with AI assistance; sources are linked throughout.
