Pocket Dynamo Camera

by Aayushman jha in Circuits > Cameras

144 Views, 3 Favorites, 0 Comments

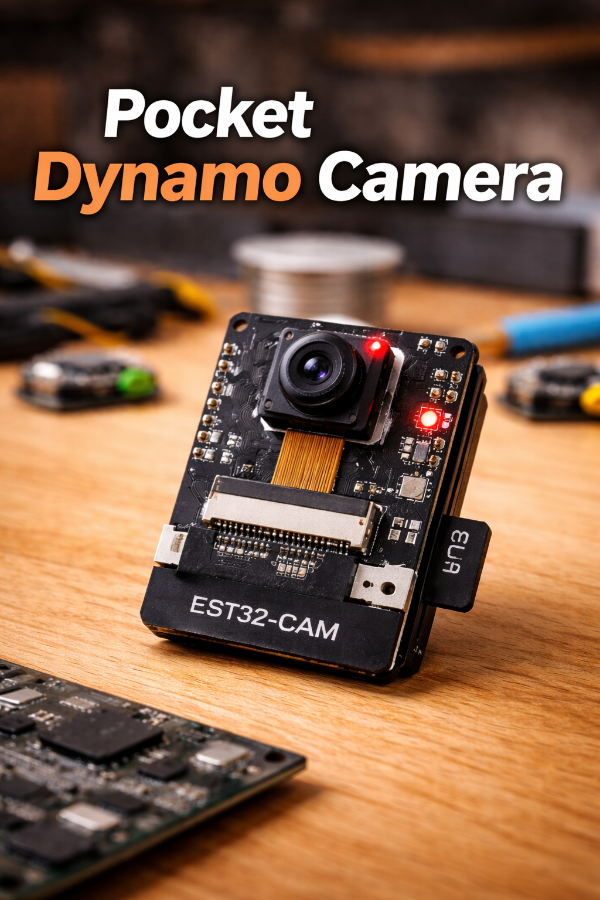

Pocket Dynamo Camera


A compact smart camera that captures and stores images instantly on an SD card with a single action.

Supplies

Components Used

AI Thinker ESP32-CAM

Main camera module used to capture images

X 1

MicroSD Card - 8GB

Stores captured photos

X 1

ESP32-CAM-MB

Used to upload code

X 1

Power Supply (5V) / USB

Powers the system

X 1

D-Type Cable

Used to connect Board with the laptop

X 1

Setup the Hardware :

_8wzcLprhvWYDkYU9e_UKrdn8fsqckdlirC7yaWzxo4xIqv1h0zWOnrkeA3j_akrbA-0vC5lLKy10B4KTTeXW5Cn67DjC2xLfraAQW_o4wN9Gg_C-H2dlOsUcpfPeQGhcU78vbF7ryZ2BUMSeMsXj0CybGF52wc735n5ilDXwnw3GbYpcSyhhk6Lkj-2xSli.jpg
EzO023XadwxHpqvJUU2XeU_JUoaApIUmmItBFmf2C3HMZ-mE_QheloFtXl1ENEVLxmRV_neq8WF9N92Ndk5zt5Q5y9yndxbESDbKnmifsMi20g5V8DZxUbIuF1JYRBkzqLk-RIIWnPYo1fUKA2O-9_QmZdJzES2HZBgiqEkupWofj_7uuPZ5tpnH5qXfrHoq.jpg
  1. Connected ESP32-CAM to the MB board
  2. Inserted MicroSD card
  3. Powered using USB


Configure Arduino IDE :

  1. Install ESP32 board package in the boards manager
  2. Select AI Thinker ESP32-CAM
  3. Chose correct COM port


Upload the Code :

  1. Used camera + SD card code
  2. Uploaded via USB
  3. Pressed RESET to run

Below is the code for your convenience :

#include "esp_camera.h"
#include "Arduino.h"
#include "FS.h" // SD Card ESP32
#include "SD_MMC.h" // SD Card ESP32
#include "soc/soc.h" // Disable brownour problems
#include "soc/rtc_cntl_reg.h" // Disable brownour problems
#include "driver/rtc_io.h"
#include <EEPROM.h> // read and write from flash memory

// define the number of bytes you want to access
#define EEPROM_SIZE 1

// Pin definition for CAMERA_MODEL_AI_THINKER
#define PWDN_GPIO_NUM 32
#define RESET_GPIO_NUM -1
#define XCLK_GPIO_NUM 0
#define SIOD_GPIO_NUM 26
#define SIOC_GPIO_NUM 27

#define Y9_GPIO_NUM 35
#define Y8_GPIO_NUM 34
#define Y7_GPIO_NUM 39
#define Y6_GPIO_NUM 36
#define Y5_GPIO_NUM 21
#define Y4_GPIO_NUM 19
#define Y3_GPIO_NUM 18
#define Y2_GPIO_NUM 5
#define VSYNC_GPIO_NUM 25
#define HREF_GPIO_NUM 23
#define PCLK_GPIO_NUM 22

int pictureNumber = 0;

void setup() {
WRITE_PERI_REG(RTC_CNTL_BROWN_OUT_REG, 0); //disable brownout detector
Serial.begin(115200);
//Serial.setDebugOutput(true);
//Serial.println();
camera_config_t config;
config.ledc_channel = LEDC_CHANNEL_0;
config.ledc_timer = LEDC_TIMER_0;
config.pin_d0 = Y2_GPIO_NUM;
config.pin_d1 = Y3_GPIO_NUM;
config.pin_d2 = Y4_GPIO_NUM;
config.pin_d3 = Y5_GPIO_NUM;
config.pin_d4 = Y6_GPIO_NUM;
config.pin_d5 = Y7_GPIO_NUM;
config.pin_d6 = Y8_GPIO_NUM;
config.pin_d7 = Y9_GPIO_NUM;
config.pin_xclk = XCLK_GPIO_NUM;
config.pin_pclk = PCLK_GPIO_NUM;
config.pin_vsync = VSYNC_GPIO_NUM;
config.pin_href = HREF_GPIO_NUM;
config.pin_sccb_sda = SIOD_GPIO_NUM;
config.pin_sccb_scl = SIOC_GPIO_NUM;
config.pin_pwdn = PWDN_GPIO_NUM;
config.pin_reset = RESET_GPIO_NUM;
config.xclk_freq_hz = 20000000;
config.pixel_format = PIXFORMAT_JPEG;
if(psramFound()){
config.frame_size = FRAMESIZE_UXGA; // FRAMESIZE_ + QVGA|CIF|VGA|SVGA|XGA|SXGA|UXGA
config.jpeg_quality = 10;
config.fb_count = 2;
} else {
config.frame_size = FRAMESIZE_SVGA;
config.jpeg_quality = 12;
config.fb_count = 1;
}
// Init Camera
esp_err_t err = esp_camera_init(&config);
if (err != ESP_OK) {
Serial.printf("Camera init failed with error 0x%x", err);
return;
}
//Serial.println("Starting SD Card");
if(!SD_MMC.begin()){
Serial.println("SD Card Mount Failed");
return;
}
uint8_t cardType = SD_MMC.cardType();
if(cardType == CARD_NONE){
Serial.println("No SD Card attached");
return;
}
camera_fb_t * fb = NULL;
// Take Picture with Camera
fb = esp_camera_fb_get();
if(!fb) {
Serial.println("Camera capture failed");
return;
}
// initialize EEPROM with predefined size
EEPROM.begin(EEPROM_SIZE);
pictureNumber = EEPROM.read(0) + 1;

// Path where new picture will be saved in SD Card
String path = "/picture" + String(pictureNumber) +".jpg";

fs::FS &fs = SD_MMC;
Serial.printf("Picture file name: %s\n", path.c_str());
File file = fs.open(path.c_str(), FILE_WRITE);
if(!file){
Serial.println("Failed to open file in writing mode");
}
else {
file.write(fb->buf, fb->len); // payload (image), payload length
Serial.printf("Saved file to path: %s\n", path.c_str());
EEPROM.write(0, pictureNumber);
EEPROM.commit();
}
file.close();
esp_camera_fb_return(fb);
// Turns off the ESP32-CAM white on-board LED (flash) connected to GPIO 4
pinMode(4, OUTPUT);
digitalWrite(4, LOW);
rtc_gpio_hold_en(GPIO_NUM_4);
delay(2000);
Serial.println("Going to sleep now");
delay(2000);
esp_deep_sleep_start();
Serial.println("This will never be printed");
}

void loop() {
}


Downloads

ESP_Camera.ino

Capture & Save Image :

TahyrixkLeCLz6bz1xXCJYCIoPIR3oK__ZY-3Cq9lylZa4qXCL_Wfg87nlAYuQmdcVnO-cW_kHiJMbNytYyF_wt01_jCCDUAOocPLvRW6PWSeQZabRsiIcbY9zW5wDH_JApe363vu0KAfkhZXTEWYKtA_20dbNZqr4RulVU0Qtg.jpg
  1. Pressed RST button
  2. Camera captured image
  3. Image saved automatically to SD card
  4. How this works (mentioned in the pic )


Final Output :

  1. Compact working camera
  2. Stores multiple images
  3. Works as a standalone device

"Lets SEE the world Differently with Pocket Dynamo"
