Portable Solar Power Station 2500W

by paolobertoncin in Workshop > Energy

28 Views, 0 Favorites, 0 Comments

Portable Solar Power Station 2500W


I need a simple 2500W power station for my garden my pool my workshop, in one case the battery the solar charger MPPT, and 2000W 220V inverter

Supplies


Really simple tools

Need Solid Metal Box for This Project


I chose a server case really solid and durable with a lot of fan to make good ventilation good rain protection and

Too Small for Battery Dimension


I cut it than reassemble at the right dimension for battery not forget space for correct cooling

when i put in battery inverter panel regulator MPPT wiring and fan

https://www.amazon.it/dp/B0D5CVYRG4?ref=ppx_yo2ov_dt_b_fed_asin_title

https://www.amazon.it/dp/B0CG9K5RG5?ref=ppx_yo2ov_dt_b_fed_asin_title&th=1

https://www.amazon.it/dp/B0CHB1Y7M3?ref=ppx_yo2ov_dt_b_fed_asin_title

Wiring

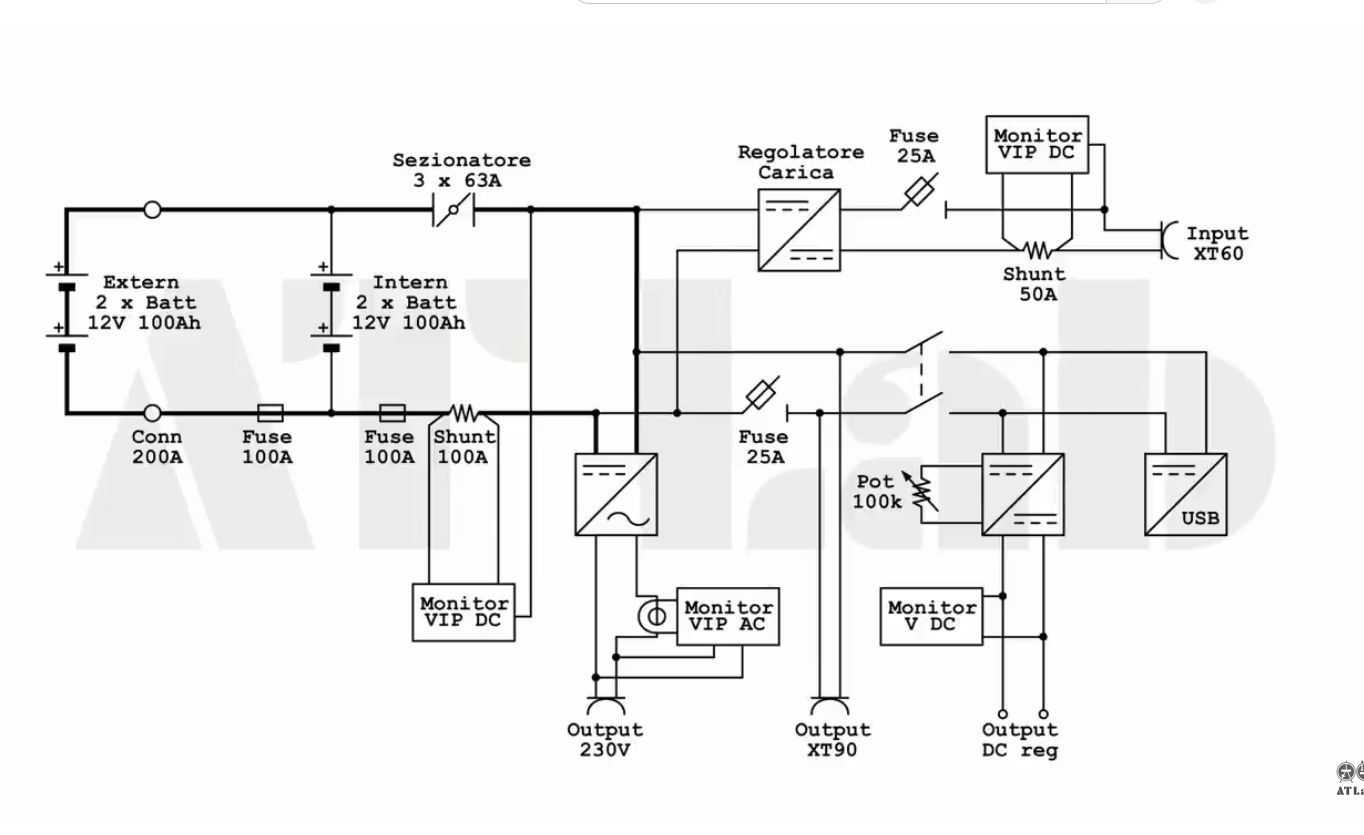

Screenshot 2026-01-06 at 18-25-44 (142) Come Costruire Power Station Portatile con Batteria a Basso Costo e Ricarica Solare - Fai Da Te - YouTube.png

Need voltmeter, fan circuit, breakers 50 A for solar panel in 50 A for regulator in, 100A for inverter, and first 225A fuse to the + terminal of battery the first short connection from battery to fuse to electric panel is solid copper

First Test


make pizza and bread with a pizza oven 1300W 220V 15' of cooking drop the battery low but not dramatically low all the connection in 12V are cold
