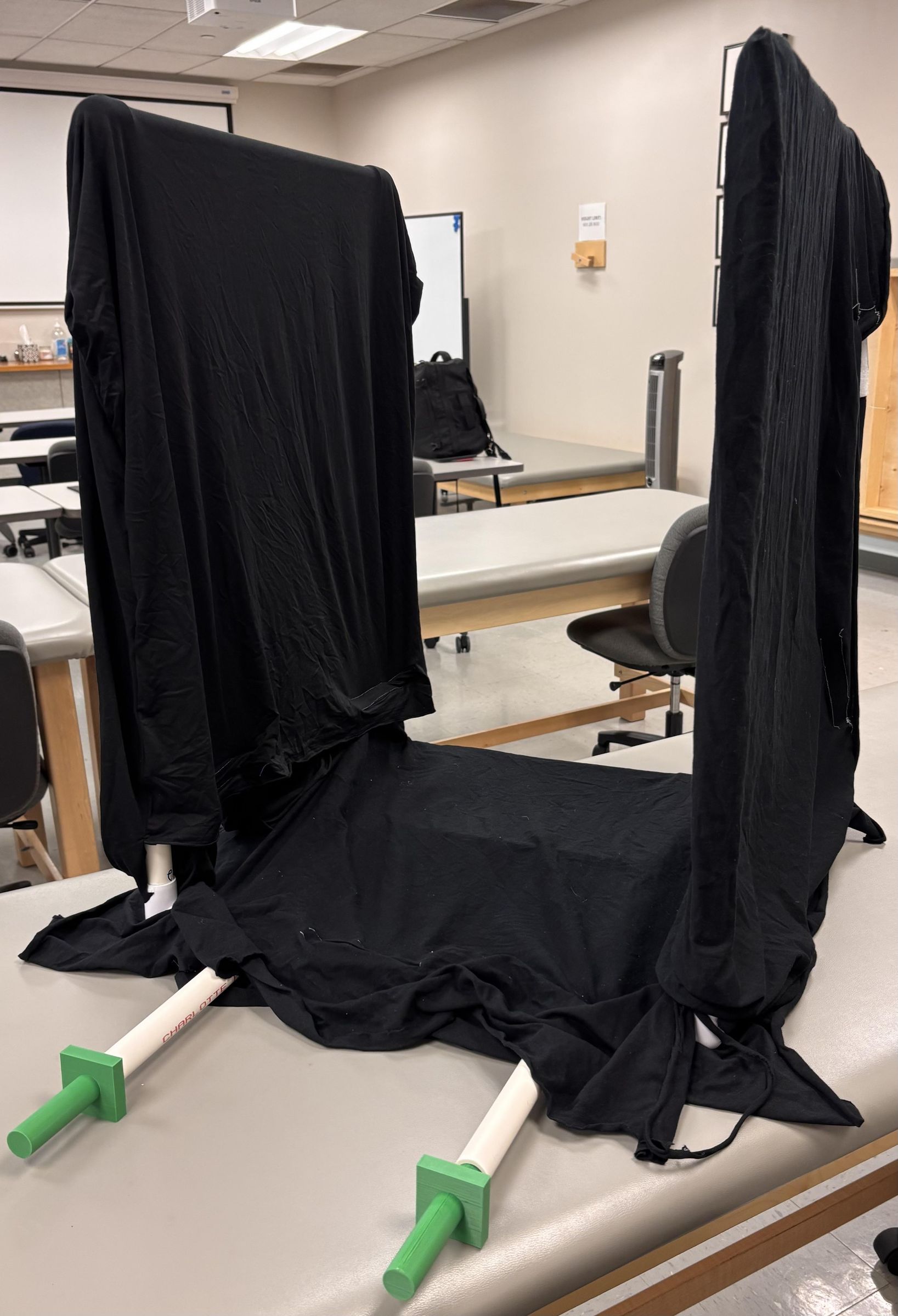

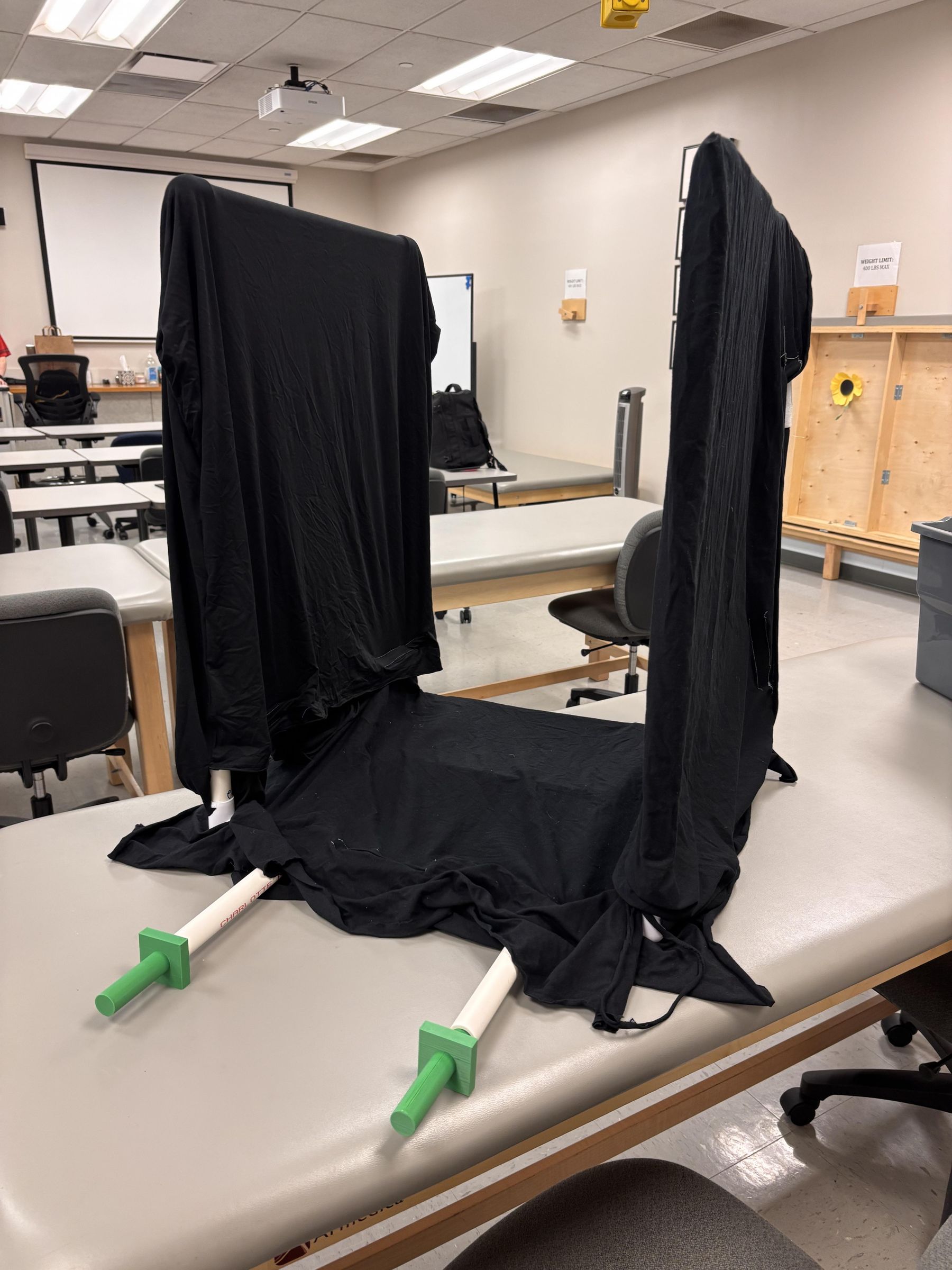

Privacy Screen for Wheelchair

This was made for a wheelchair.

PVC pipe

PVC pipe connectors

Black fabric

Sewing machine

Velcro

3D print material

PVC glue

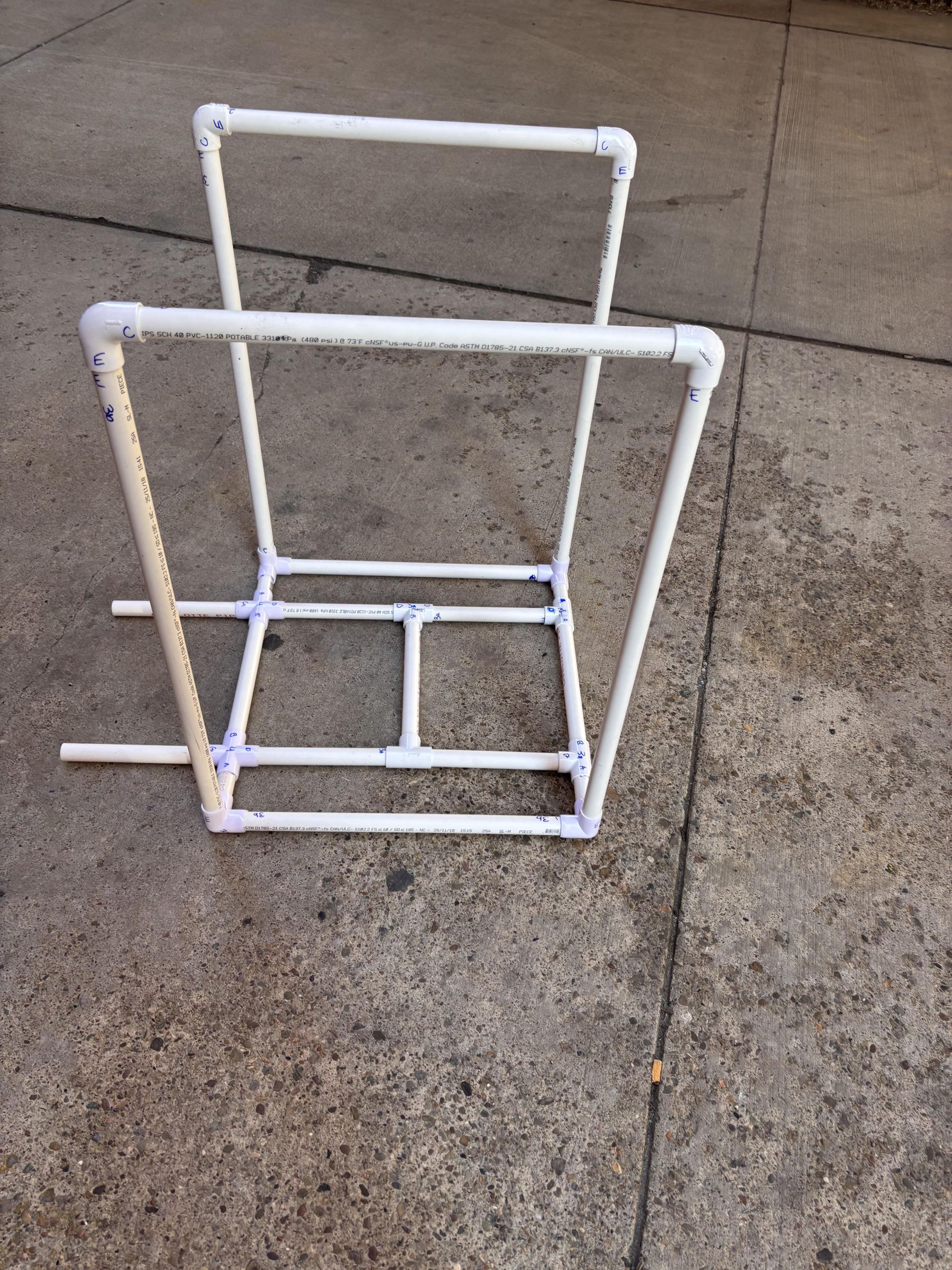

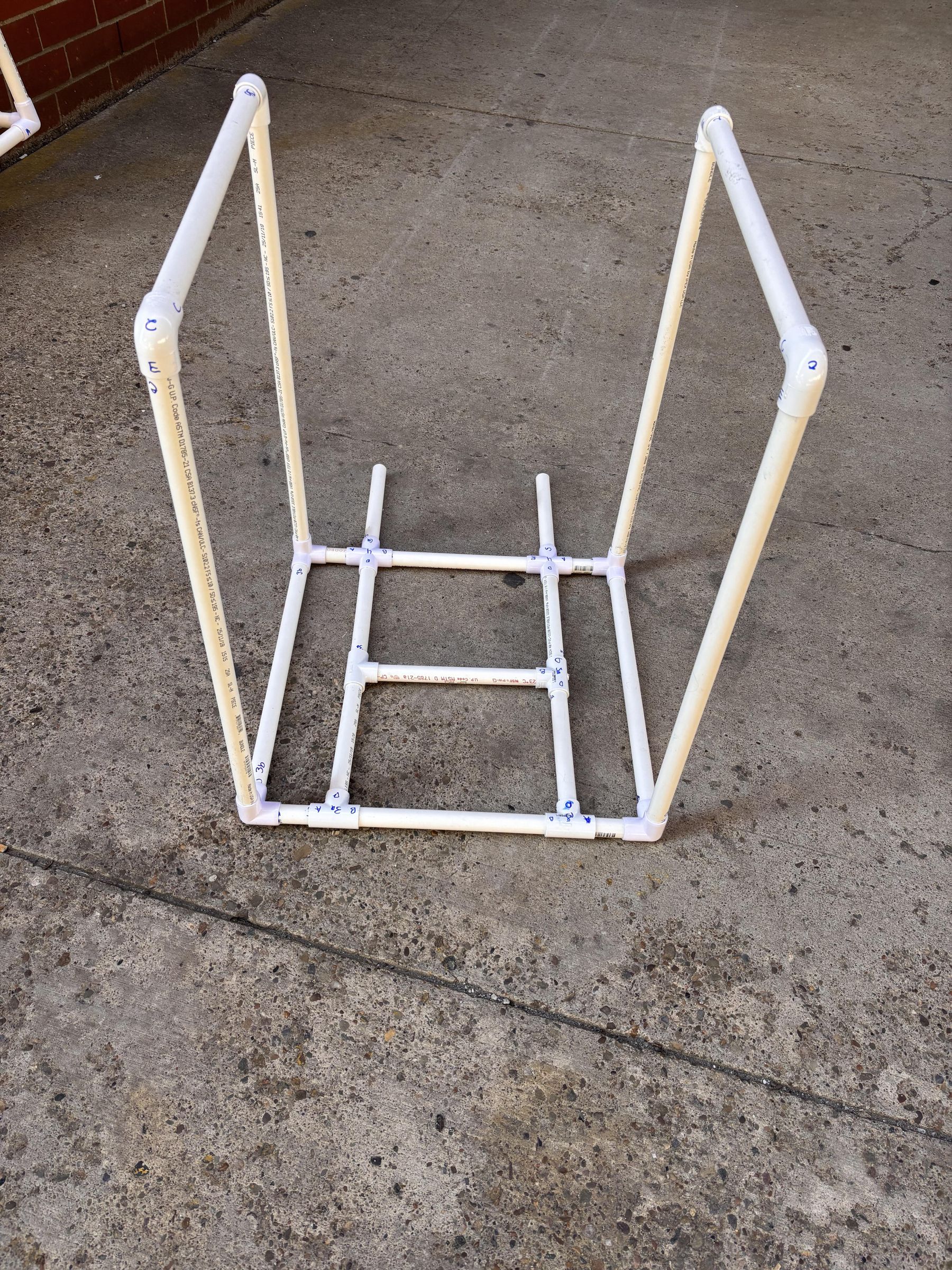

PVC pipe

A: 3" (4 count)

B: 11" (3 count)

C: 20" (4 count)

D: 8" (4 count)

E: 28" (4 count)

PVC Connectors

90 degree elbow connector (2): 4 count

Equal tee (3a): 4 count

Elbow connector (3b): 4 count

Equal cross (4): 2 count

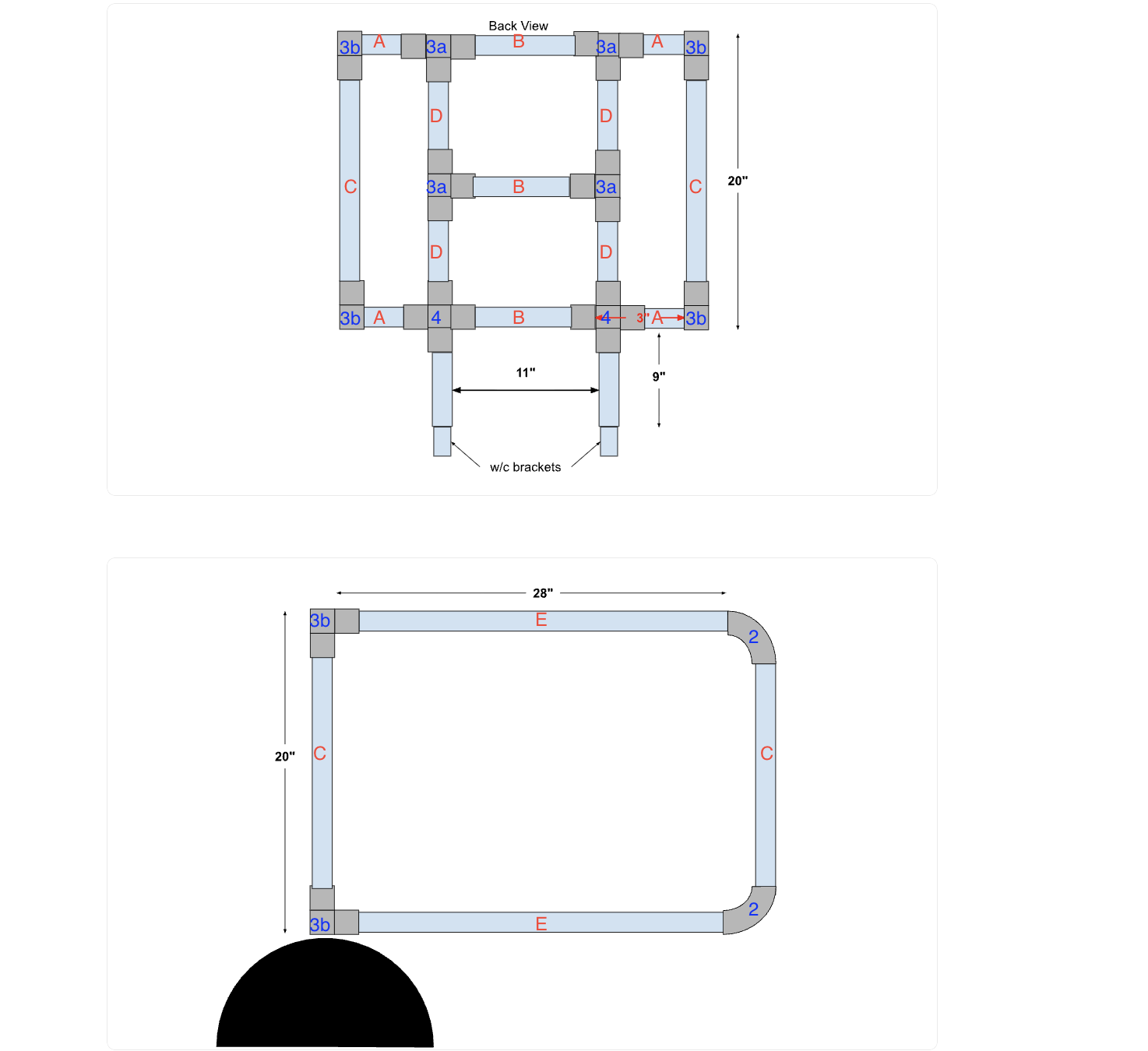

See labeled picture for assembling.

Glue pieces together when finished.

Black Fabric

Side pieces: 35" x 24"

Sew the sides together and place velcro along bottom

Back piece: 54" x 30"

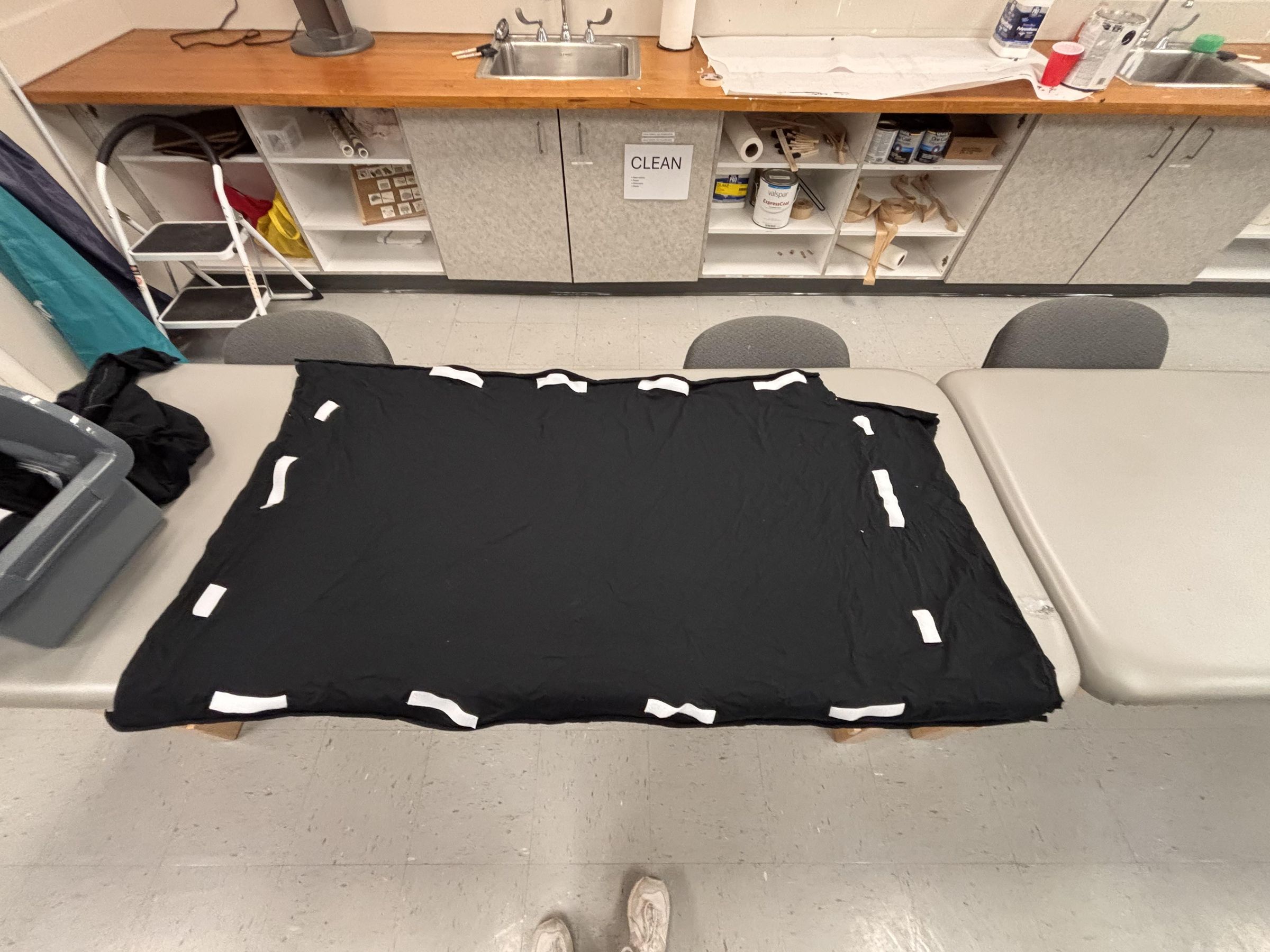

Velcro

Cut 5 5" pieces and 2 2" pieces

Place 2 of the 5" pieces on the unsewed side of each side piece. The placement does not matter, as long as the fabric will stay closed.

Place each of the 2" piece about an inch from each side of the fabric, making sure that they do not go past piece G towards the middle. Then, place 1" in the middle of the fabric, exact placement does not matter. Then, taking the last two velcro pieces, place these along the sides. Just like before, exact placement does not matter, as long as the fabric stays closed.

3D Base (The measurements will depend on the wheelchair. This is a reference point)

Drop one cylinder onto the work plane. Format accordingly.

Length: 1"

Width: 1"

Height: 3"

Drop a square onto the work plane. Format accordingly

Length x Width: 2" x 2"

Height: 0.5"

Drop one cylinder onto the work plane. Format accordingly

Length x Width: 0.75" x 0.75"

Height: 3"

Format so larger cylinder is on the bottom, then place square above, and then smaller cylinder on top. Print two of these.
