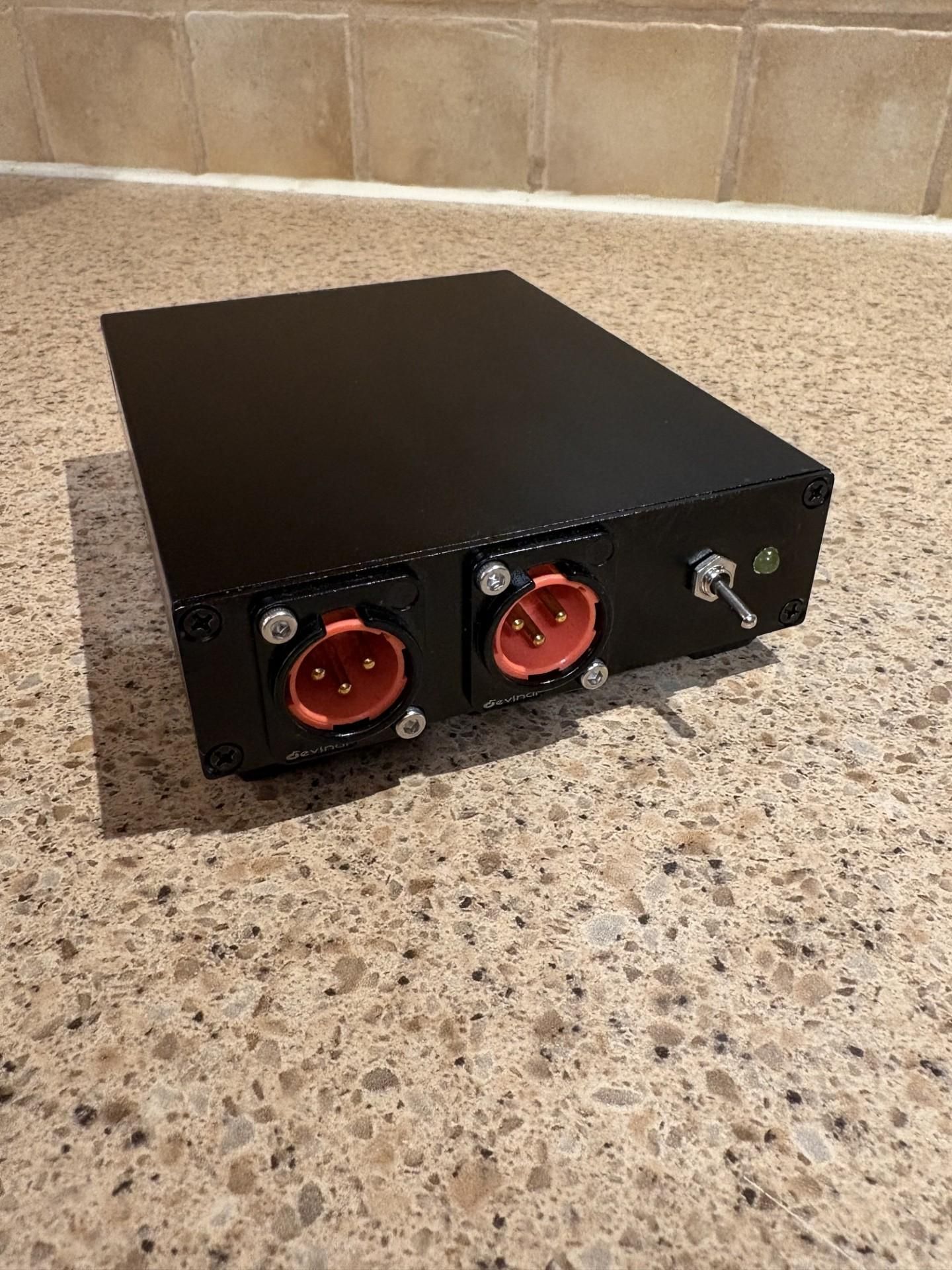

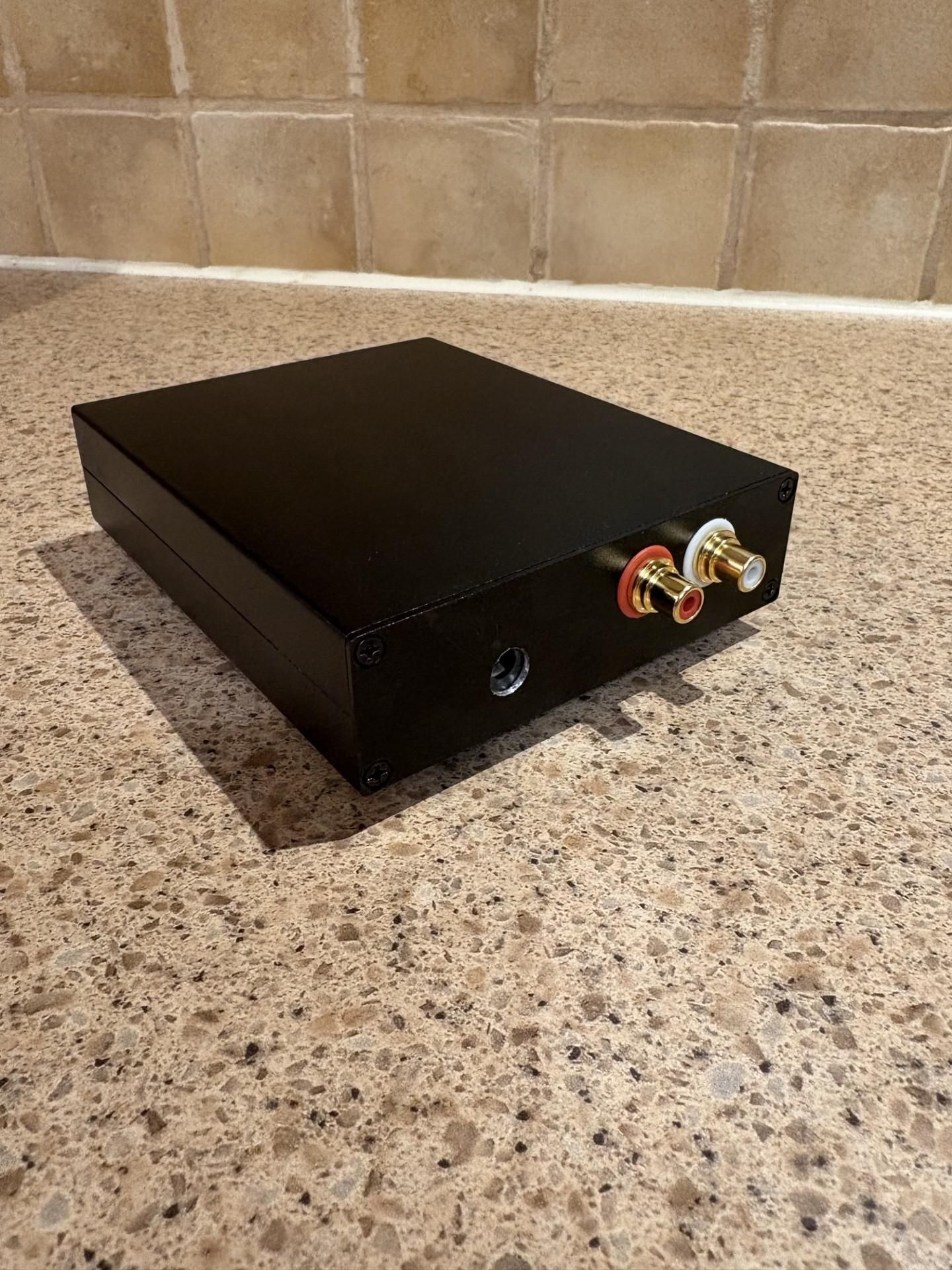

Pro-Grade RCA to Balanced XLR Active Audio Line Converter (±15V)

I wanted to connect the RCA master output of my Numark Mixtrack Pro FX to a professional mixer using balanced XLR inputs.

At first, this may seem like a simple matter of using an RCA-to-XLR adapter. However, RCA and XLR connections are not electrically equivalent. RCA is an unbalanced consumer-level connection, while professional audio equipment commonly uses balanced line-level connections to improve immunity to noise and interference, especially when using longer cables.

Rather than using a passive adapter, I decided to design and build my own active converter.

This project takes an unbalanced RCA audio signal, buffers and amplifies it using OPA1656 audio op-amps, then converts it to a true balanced signal using the DRV134 balanced line driver. The circuit runs from a regulated split power supply and provides approximately 12 dB of total gain.

The standard version uses ±15 V rails, with the option of modifying the power supply for ±18 V when additional output headroom is desired.

The goal was not simply to change an RCA connector into an XLR connector, but to build a proper audio interface between consumer and professional equipment while keeping the circuit clean, low-noise, and relatively simple to reproduce.

In this Instructable, I will document the design, component selection, PCB layout, power supply, assembly, and—once the hardware is built—measurements of the finished converter.

Final Bill of Materials (BOM) Summary

For those looking to replicate this build:

1. Active ICs: 1x OPA1656 (Dual Ultra-Low Noise JFET Op-Amp, SOIC-8), 2x DRV134PA (Balanced Audio Line Drivers, DIP-8).
2. Linear Regulators: 1x LM317T (Positive Adjustable, TO-220), 1x LM337T (Negative Adjustable, TO-220).
3. Capacitors:
4. 2x 2200 µF 35V Radial Electrolytic (Power supply reservoir)
5. 4x 10 µF 100V Non-Polarized / Bipolar Audio-Grade (C1, C2, C26, C27 output coupling)
6. 2x 1 µF 50V/63V Film (C5, C6 input coupling)
7. 0.1 µF 50V Ceramic bypass caps (local IC decoupling)
8. Resistors: 1% Metal Film throughout (low Johnson noise). 47 Ω 1/2W series output resistors for ruggedness.
9. Chassis & Hardware: Extruded aluminum enclosure, insulated panel-mount RCA jacks, panel-mount male Neutrik XLR connectors, SPST toggle switch, and nylon shoulder washers.
10.


Inclosure

XLR connector

Screws kit

22 AWG colored wire

Digikey BOM

Design Overview:

The converter is built around two main stages.

First, the unbalanced RCA signal is buffered and amplified by an OPA1656 op-amp stage with a gain of 2. This provides a high input impedance and raises the signal level by approximately 6 dB.

The amplified signal is then fed to a DRV134 balanced line driver. The DRV134 provides another gain of 2 and generates the complementary output signals required for a balanced XLR connection.

The total voltage gain of the converter is therefore approximately 4, or +12 dB.

Power Supply:

The audio circuitry is powered from regulated bipolar rails. The standard version uses ±15 V, while the power supply can be modified for ±18 V when additional output headroom is desired.

Hardware Updates & Practical Features (PCB Rev 1.1)

1. AC Input Header (JP3) - Power Switch & Fuse Flexibility:

A 2-pin header (JP3) is placed directly in series between the 2.1 mm AC barrel jack and the half-wave rectifier stage. This provides total build flexibility:

1. Always-On Mode: Simply bridge JP3 with a standard 2.54 mm jumper shunt or a short wire link if you prefer the unit to power on automatically when plugged in.
2. External Power Switch / Fuse: Wire JP3 to a front or rear panel SPST toggle switch to control mains power cleanly. A panel-mount inline fuse holder (rated 500 mA slow-blow) can also be wired in series with this switch for additional thermal and short-circuit protection against faulty wall adapters.

2. Dedicated DC Power Breakout Pads:

To avoid cramming multiple wires into a single PCB through-hole, Revision 1.1 features dedicated solder pads for the regulated +15 V, -15 V, and AGND rails. This makes clean point-to-point chassis wiring straightforward and minimizes mechanical strain on solder joints.

3. Dual-Rail Power Indicator LED (Between +15 V and -15 V):

Rather than referencing a front-panel power LED between +15 V and AGND, the LED is wired directly across both supply rails—from the +15 V rail down to the -15 V rail—representing a total potential difference of 30 VDC.

Why wire the LED across ±15 V (30 V total)?

1. Dual-Rail Health Monitoring: If you connect a status LED to only one rail (e.g., +15 V to ground), the LED will glow even if the negative rail regulator fails or drops out. By spanning both the +15 V and -15 V rails, the LED acts as a true dual-rail integrity indicator: if either regulator fails or drops out of regulation, the LED immediately dims or turns off.
2. Zero Audio Ground Pollution: Returning the LED's operating current into the sensitive Analog Ground (AGND) can introduce minute DC imbalances or noise. Powering the LED strictly between the two rails keeps AGND completely unburdened by indicator currents.
3. Current-Limiting Resistor Calculation:
4. With a 30 V rail differential and a typical red/blue panel LED (forward voltage Vf ≈ 2.0 V to 3.0 V):
5. Total voltage drop across resistor: VR = 30 V - 2.5 V ≈ 27.5 V.
6. Using an external 12 kΩ (1/4 W) resistor wired in series:
7. I_LED = 27.5 V / 12,000 Ω ≈ 2.3 mA.
8. A current of ~2.3 mA provides crisp, visible illumination for modern high-efficiency LEDs while keeping total power dissipation under 65 mW, ensuring the 1/4W resistor stays completely cool.

Gerber File

Overview

The input stage is designed to interface with unbalanced consumer-level sources (typically -10 dBV) while providing high input impedance, high-frequency RF filtering, and initial voltage gain.

Input RF Filtering and DC Blocking

The unbalanced signal enters through the RCA jack and immediately encounters a low-pass RC filter formed by R9 (100 ohm) and C8 (100pF capacitor). This configuration yields a high-frequency cutoff frequency:

fc = 1 / (2 * pi * R9 * C8) ≈ 15.9 MHz

This high cutoff frequency effectively attenuates radio frequency interference (RFI) and electromagnetic interference (EMI) before it can reach the active stages, preventing high-frequency demodulation and rectification distortion inside the op-amp.

Following the RF filter, C5 acts as a DC-blocking (AC-coupling) capacitor. This prevents any DC offset from the source device from entering the signal path and being amplified. R11 (47k) references the non-inverting input of the op-amp to analog ground (AGND) and defines the input impedance of the stage.

Active Stage: The OPA1656

The active buffer and gain stage is built around the OPA1656, an ultra-low-noise, low-distortion operational amplifier featuring a JFET input stage. The JFET input ensures an exceptionally low input bias current (10 pA typical), which prevents DC offsets from forming across the high-value input resistor R11. It also boasts an ultra-low voltage noise density of 2.9 nV/rtHz and an ultra-low THD+N (0.000029% at 1 kHz).

Gain Configuration

The OPA1656 is configured as a non-inverting amplifier. The voltage gain (Av) of this stage is defined by the feedback network R5 and R7:

Av = 1 + (R5 / R7)

With both R5 and R7 populated with 1k (1% metal film resistors), the gain is:

Av = 1 + (1k / 1k) = 2 (or +6 dB)

Jumper JP1 (Gain Bypass)

A jumper (JP1) is placed in parallel with the feedback resistor R5.

1. JP1 Open: The stage operates with a gain of 2 (+6 dB).
2. JP1 Closed: The feedback loop is shorted, configuring the OPA1656 as a unity-gain voltage follower (0 dB). This is useful if your RCA source already outputs a high voltage level and you want to prevent clipping downstream.

Power Decoupling

To ensure high-frequency stability and prevent oscillation, local decoupling capacitors C13 and C14 (0.1uF ceramic) are placed as physically close as possible to the power pins of the OPA1656, routing transient currents directly to AGND.

Overview

The output stage converts the amplified single-ended signal into a balanced differential signal capable of driving long cable runs into professional mixers without noise pickup.

Differential Conversion: The DRV134

The heart of this stage is the DRV134PA, a differential line driver. The DRV134 uses on-chip, laser-trimmed resistors to ensure highly matched analog gains and an exceptional Common-Mode Rejection Ratio (CMRR).

The DRV134 has an internal differential gain of 2 (+6 dB). Combined with the +6 dB gain of the OPA1656 stage, the total system voltage gain is:

Total Gain = OPA1656 Gain * DRV134 Gain = 2 * 2 = 4 (or +12 dB)

The DRV134 utilizes a cross-coupled topology. This behaves similarly to a high-quality balancing transformer: if one output is shorted to ground (unbalanced destination), the other output automatically increases its swing by 6 dB to maintain the same overall differential output level.

Output Isolation and Phantom Power Protection

Connecting line-level outputs to mixer inputs exposes the circuit to two major hazards: phantom power (+48V) back-feed and high capacitive cable loads.

1. AC-Coupling Capacitors (C1, C2, C26,C27): Bipolar (non-polar) 10uF 100V electrolytic capacitors are used in series with the outputs. Bipolar caps are mandatory here because phantom power on XLR lines can bias the outputs positively, whereas normal AC signals swing negative. They block any incoming DC voltage from reaching the DRV134.
2. Clamping Diodes (D9, D10, D11, D12): BAV99 dual high-speed switching diodes are connected from the outputs to the +/-15V rails. If phantom power is turned on or if hot-plugging transients occur, these diodes clamp the voltage at the IC pins to V_rail + 0.7V or V_rail - 0.7V, protecting the internal structures of the DRV134 from destruction.
3. Bleeder Resistors (R18, R19, R20, R21): 47k resistors reference the XLR output pins to ground. They continuously discharge the coupling capacitors C2 and C3, preventing loud, speaker-damaging "pops" when plugging or unplugging the XLR cables.
4. Output Series Resistors (R13, R15, R16, R17): 47 ohm (1% 1/2W) resistors are placed in series with the outputs. They decouple the DRV134 from the high shunt capacitance of long cable runs, ensuring stability, preventing oscillation, and limiting output short-circuit current.

XLR Connections (AES48 Compliant)

The output connector uses the industry standard XLR pinout:

1. Pin 1 (Shield): Connected directly to the metal Chassis ground (not AGND) to comply with the AES48 standard (avoiding the "Pin 1 Problem"). This ensures that noise currents caught by the cable shield flow directly to the chassis and earth, bypassing the sensitive analog circuitry.
2. Pin 2 (Hot / Positive): Connected to the positive output of the DRV134.
3. Pin 3 (Cold / Negative): Connected to the inverting output of the DRV134.

Overview

To achieve the maximum dynamic range (headroom) and ultra-low noise performance, the circuit is powered by a regulated, dual-rail linear power supply.

AC Input and Bipolar Rectifier

The power supply is designed to run from a simple and inexpensive 16VAC to 20VAC single-secondary wall adapter. This eliminates the safety hazards of bringing mains voltage (120V/230V) inside the chassis.

Because a single AC winding does not have a center tap, a half-wave voltage doubler / bipolar rectifier topology is used:

1. During the positive half-cycle of the AC input, D1 conducts and charges C15 (2200uF) to the positive peak voltage.
2. During the negative half-cycle, D2 conducts and charges C16 (2200uF) to the negative peak voltage.

This generates raw, unregulated DC rails of approximately +/-22V to +/-28V across the large reservoir capacitors. C21 and C22 (0.1uF 50V ceramic caps) are placed in parallel to bypass high-frequency diode switching noise.

Linear Regulation (LM317 / LM337)

To strip away ripple and noise, high-PSRR linear regulators are used: the LM317 for the positive rail and the LM337 for the negative rail.

The output voltage (Vout) is configured by the ratio of the feedback resistors:

Vout = Vref * (1 + Radj / Rset) + (Iadj * Radj)

Where Vref = 1.25V and Rset = 240 ohm.

Standard +/-15V Setup

With R1/R3 set to 240 ohm and R2/R4 set to 2.7k:

Vout = 1.25 * (1 + 2700 / 240) + (50uA * 2700) ≈ 15.45V

High Headroom +/-18V Setup

If additional headroom is required for professional signals, the regulators can be modified to output +/-18V by swapping R2 and R4 for 3.24k (1% precision resistors):

Vout = 1.25 * (1 + 3240 / 240) + (50uA * 3240) ≈ 18.28V

Note on +/-18V modification: Ensure your AC wall adapter provides at least 18VAC RMS. A 16VAC adapter may not provide enough raw DC headroom under load, causing the regulators to drop out of regulation during high transients.

Ground Lift Network (Ground Loop Breaker)

To prevent ground loops between the source mixer and the destination equipment, a robust, safe Ground Lift circuit is implemented:

1. Switch Closed: AGND is connected directly to the Chassis/Safety Earth.
2. Switch Open (GND Lift active): AGND is isolated from the Chassis at DC via parallel resistors R14/R22 (two 20 ohm resistors in parallel, yielding 10 ohm total) to damp ground currents.
3. High-Frequency Grounding: C24 (0.1uF 100V) keeps AGND and Chassis at the same potential for high-frequency RF signals, preventing the chassis from acting as an antenna.
4. Safety Clamping: High-current, ultra-fast diodes D7 and D8 (CGRB307-G, rated for 3A) are placed back-to-back in parallel with the network. If a severe fault occurs (e.g., a device failure putting mains voltage on the ground), the diodes will conduct as soon as the potential difference exceeds +/-0.7V. This safely routes fault currents to safety earth, tripping the upstream breaker/fuse and preventing the PCB traces from vaporizing or posing an electrocution hazard.

Overview

A well-engineered schematic can easily be ruined by a poor PCB layout or improper enclosure wiring. Audio signals, especially when converted to balanced lines, require strict layout discipline to maintain a low noise floor, prevent ground loops, and reject external EMI/RFI. This step covers the layout architecture, thermal considerations, and final chassis integration.

PCB Layout Strategy

The board is divided into two distinct functional zones to isolate high-current switching currents from sensitive analog signals:

1. Power Supply Zone (Top Half):
2. The AC input, rectification diodes, bulk filter capacitors (C15, C16), and linear regulators are strictly grouped on the upper half of the board. The charging loop between the rectifier and the reservoir capacitors carries high-amplitude 60 Hz / 120 Hz current spikes. By keeping this loop physically tight and short, radiated magnetic hum into the audio path is minimized.
3. Audio Signal Path (Bottom Half):
4. The RCA inputs, input RF filters, OPA1656 pre-buffer stage, and DRV134 drivers are routed along the bottom edge. High-impedance nodes around the op-amp are kept as short as possible to prevent capacitive noise coupling. Ground copper pours fill all unused areas to act as an electrostatic shield and provide a low-impedance return path to AGND.

Thermal Management: Direct PCB Heatsinking

The LM317 and LM337 regulators (TO-220 packages) handle the voltage drop from the raw rectified rails (~22 V to 26 V) down to the regulated ±15 V rails.

To keep the build compact and mechanically rugged without requiring bulky external heatsinks:

1. The regulators are mounted flat against the PCB and bolted directly through the board using hardware into large top-layer copper thermal zones.
2. This direct PCB mounting uses the board's copper planes to dissipate heat efficiently under standard operating currents.
3. Important assembly note: The LM317 tab is connected to its Output pin, while the LM337 tab is connected to its Input pin. Ensure proper electrical isolation or dedicated isolated copper pads on the PCB layout so the tabs never short together or short to ground.

Mechanical Stability & Component Selection

1. Reservoir Capacitors: The large 2200 µF radial capacitors (C15, C16) are secured with adhesive/silicone to prevent mechanical fatigue and cracked solder joints during transport or gig use.
2. Output DC-Blocking Capacitors (C1, C2, C26, C27): 10 µF 100 V non-polarized (bipolar) audio-grade electrolytic capacitors are installed in series with the XLR lines. They guarantee complete blocking of downstream +48 V phantom power without polarity restrictions.
3. Input Capacitors (C5, C6): High-grade film capacitors are used to eliminate the non-linear distortion and microphonics associated with high-dielectric ceramic caps in the direct signal path.

Enclosure Integration & AES48 Chassis Grounding

A fully enclosed, extruded aluminum chassis is used to provide complete Faraday cage shielding against RF interference. Proper wiring to the panel connectors is critical:

1. RCA Inputs:
2. The RCA jacks are mounted to the front panel using insulating nylon shoulder washers. Their return path (shield) connects exclusively to the PCB's Analog Ground (AGND). Isolating them from the aluminum chassis prevents unwanted ground loop paths back to the DJ controller.
3. XLR Outputs (AES48 Compliance):
4. Pin 1 of each XLR chassis connector is tied directly to the metal enclosure using dedicated chassis ground leads and star washers to bite into bare metal. Pin 1 does not connect to the PCB's audio ground plane. In accordance with AES48, cable shield noise currents are dumped directly into the metallic enclosure, shielding the circuit without polluting the internal analog audio ground.
5. Ground Lift Switch:
6. A toggle switch mounted on the rear panel controls the connection between AGND and the metal Chassis.
7. Normal Mode (Closed): AGND is tied directly to Safety Chassis Earth.
8. Lift Mode (Open): The direct link is broken. The ground lift network (R14/R22 10 Ω damping, C24 0.1 µF RF bypass, and D7/D8 antiparallel 3A diodes) maintains full RF suppression and electrical fault safety while breaking audible hum-inducing 60 Hz ground loops.

Step 6: Bench Testing, Scope Measurements & Performance Validation

Overview

To validate the circuit's audio performance, gain accuracy, and stability before connecting it to a live PA system, thorough bench testing was carried out using precision test equipment.

Test Equipment Used:

1. Oscilloscope: Rigol MSO5072 (4-channel, unlocked 350 MHz)
2. Function Generator: Rigol DG1022
3. Precision Multimeter: Rigol DM3068 (6.5-digit DMM)
4. Handheld Multimeter: Fluke 179
5. Dummy Load: 600 Ω metal film terminating load across differential outputs

Test 1: DC Power Rails & Output DC Offset

Under quiescent conditions (no signal applied):

1. Unregulated DC: The voltage measured across the 2200 µF filter capacitors (C15, C16) hovered around ±24 VDC.
2. Regulated DC: The LM317 and LM337 outputs delivered stable, low-ripple ±15.45 VDC rails to the active ICs, confirming proper regulation.
3. Output DC Offset: DC voltage was checked across XLR Pin 2 to Pin 1, Pin 3 to Pin 1, and differentially between Pin 2 and Pin 3. Thanks to the 10 µF bipolar output coupling capacitors (C1, C2, C26, C27) and the 47 kΩ bleeder resistors, DC offset was below 0.3 mV DC. This guarantees zero DC current will flow into downstream console inputs or audio transformers.

Test 2: Sine Wave & System Gain (The 600 Ω Load Behavior)

See image test 2

A 1 kHz sine wave at standard consumer line level (0 dBu = 0.775 Vrms / 2.19 Vpp) was injected into the RCA input.

1. Unloaded / Bridging Load (Typical modern 10 kΩ to 20 kΩ mixer input): The differential output voltage across Pins 2 and 3 measured 3.10 Vrms (8.76 Vpp), confirming an exact +12 dB (x4) overall voltage gain (+6 dB from the OPA1656 and +6 dB from the DRV134).
2. Heavy Pro Load (Standard 600 Ω Line Termination): With a 600 Ω precision resistor placed directly across XLR Pin 2 and Pin 3, the differential output voltage measured 2.6896 Vrms at 1.0008 kHz (see image test2).

Why this voltage drop is completely normal and intended:

The circuit includes 47 Ω series resistors on each output leg (R13 on Pin 2 Hot, R15 on Pin 3 Cold). When terminated into a 600 Ω load, these resistors form a voltage divider with the terminating load:

Total loop resistance = 47 Ω + 600 Ω + 47 Ω = 694 Ω

Theoretical output voltage = 3.10 Vrms * (600 / 694) = 2.680 Vrms.

The measured 2.6896 Vrms on the Rigol MSO5072 matches the theoretical calculation within 0.3%.

Why you should never omit these 47 Ω resistors:

1. Capacitive Load Isolation: Long XLR snake cables (50 to 100 feet) introduce 1 to 5 nF of shunt capacitance. Connecting heavy capacitance directly to an op-amp output erodes phase margin and induces high-frequency oscillation. The 47 Ω resistors decouple the DRV134 feedback loop from cable capacitance, ensuring unconditional stability.
2. Short-Circuit Protection: During hot-plugging or cable wear, lines can momentarily short to ground. The 47 Ω 1/2W resistors limit instantaneous fault current, protecting the internal silicon driver stage.
3. Negligible Insertion Loss: The small 1.25 dB drop into an extreme 600 Ω load is easily compensated by the mixer's input gain. Into modern consoles (10 kΩ input impedance), the drop is less than 0.08 dB, which is entirely imperceptible.
4.


Test 2b: Maximum Output Swing, Clipping Threshold & Headroom Analysis

See image Test 2b.

To establish the maximum clean output headroom before saturation, the input 1 kHz sine wave amplitude was increased until hard clipping occurred on the Rigol MSO5072.

Oscilloscope Setup:

1. Channel 1 (Yellow): XLR Pin 2 (Hot) referenced to AGND (5.00 V/div)
2. Channel 2 (Cyan): XLR Pin 3 (Cold) referenced to AGND (5.00 V/div)
3. Math Trace (Purple): Differential voltage (CH1 - CH2) across the 600 Ω load (5.00 V/div)

1. Maximum Clean Threshold (Onset of Limiting - Test 2a picture):

As shown in Test 2a picture, the converter delivers clean, unclipped audio up to:

1. Single-ended swing (CH1): 20.08 Vpp (6.785 Vrms) per phase. This corresponds to an instantaneous peak of ±10.04 V_peak. (10.6Vpp as per my generator)
2. Differential output (Math CH1 - CH2): Pushing approximately 40.1 Vpp (~13.5 Vrms) directly into the 600 Ω terminating load.
3. At this operating point, the waveform peaks remain smooth and completely free of harmonic flattening or slew-rate distortion.

2. Hard Clipping Saturation Point (test 2a CLipped picture):

Pushing the input just slightly higher triggers saturation, visible in test 2a clipped picture:

1. At 20.48 Vpp (6.985 Vrms) on CH1, (11.1V as per my generator) the positive peak flattens sharply as the internal output stage hits the upper rail dropout limit. Simultaneously, the negative-going peak of CH2 flattens as it approaches the negative rail limit.
2. The differential Math trace (Purple) clearly demonstrates symmetrical top and bottom clipping.
3. On ±15.45 V rails, the DRV134 saturates at approximately ±13.4 V to ±13.5 V internally. Subtracting the voltage drop across the internal 47 Ω series resistors when loaded with 600 Ω, this matches the DRV134 datasheet specifications (~2.0 V to 2.5 V internal headroom loss to the supply rails under heavy load).

Headroom Conclusion:

Standard professional audio operates at a nominal line level of +4 dBu (1.23 Vrms differential, or ~3.47 Vpp).

With this converter delivering up to 40 Vpp unclipped differential output into a 600 Ω load, the circuit provides over 21 dB of dynamic headroom above nominal +4 dBu operating level.

1. For consumer DJ gear (like the Numark Mixtrack Pro FX, which outputs between 1.0 Vrms and 2.0 Vrms at maximum level), it is virtually impossible to overdrive or clip this converter in real-world performance, ensuring transient peaks (such as heavy kick transients and sudden fader drops) remain entirely undistorted.

Test 3: Differential Phase Inversion & CMRR Balance

See image test 3

To verify balanced line symmetry, Channel 1 (Yellow) was connected to XLR Pin 2 (Hot) and Channel 2 (Cyan) to XLR Pin 3 (Cold), both referenced to AGND:

1. Both signals display identical amplitudes of 1.3922 Vrms at 1.0139 kHz.
2. The waveforms are shifted by exactly 180.0° relative to one another.
3. The DRV134's internal laser-trimmed thin-film resistors provide near-perfect amplitude and phase matching, ensuring maximum common-mode rejection (CMRR) and hum cancellation at the receiving mixer.

Test 4: Transient Response & Stability (10 kHz Square Wave Test)

See image test 4

To push the converter's dynamic response and verify stability under reactive conditions:

1. A 10 kHz fast-rise square wave was injected into the RCA input.
2. The differential outputs were loaded with 600 Ω in parallel with a 2.2 nF capacitor to simulate a long shielded cable run.
3. Result: As shown on the scope capture (RigolDS2), both complementary square wave phases (904.72 mVrms each) show razor-sharp transitions and completely flat tops and bottoms.
4. There is zero ringing, zero overshoot, and no parasitic high-frequency burst oscillation, proving the phase margin and dampening networks are functioning properly.
5.


Test 4b: Frequency Response & High-Frequency Bandwidth

The audible frequency spectrum spans from 20 Hz to 20 kHz. However, verifying wideband frequency linearity well beyond 20 kHz is critical in high-end audio engineering. An amplifier with extended ultrasonic bandwidth guarantees zero in-band phase shift, superior transient handling, and complete immunity to high-frequency roll-off.

Using the Rigol DG1022 to sweep sine frequencies and the MSO5072 to monitor output amplitude:

1. Heavy Reactive Load (600 Ω + 2.2 nF):

1. Even when loaded simultaneously with a 600 Ω resistor and a 2.2 nF shunt capacitor (simulating a demanding reactive load of over 75 feet of shielded cable), the frequency response remains completely flat from 20 Hz up to 150 kHz without visible amplitude attenuation.
2. The -3 dB rolloff corner only begins past 150 kHz, demonstrating that the output stage and the 47 Ω isolation resistors effortlessly charge and discharge the cable capacitance without choking the high end.

2. Unloaded / Bridging Load (Typical Console Input):

1. Without the reactive capacitive loading, the converter delivers flat, undistorted output extending all the way up to 300 kHz before high-frequency roll-off occurs.

Why this matters:

1. Phase Linearity: Because the upper corner frequency is situated nearly an entire decade above the human hearing limit (150 kHz vs. 20 kHz), phase rotation across the 20 Hz to 20 kHz audible spectrum is virtually non-existent. Percussive transients and high-hat attacks are reproduced with phase-coherent clarity.
2. Slew-Rate Verification: The high bandwidth confirms that the OPA1656 (24 V/µs slew rate) and DRV134 (15 V/µs slew rate) are operating well within their linear open-loop boundaries without entering slew-induced distortion (SID).

Test 5: Ground Lift & Safety Diode Clamping

1. Normal Mode (Switch Closed): Direct continuity exists between AGND and the aluminum chassis (< 0.05 Ω).
2. Lift Mode (Switch Open): AGND is isolated from the chassis at DC through the 10 Ω damping network (R14 // R22). Testing across AGND and Chassis with the Fluke 179 in diode mode confirms the back-to-back 3A rectifiers (D7, D8) show a 0.65 V forward drop in both polarities, ensuring safety earth fault dissipation while breaking ground hum loops.

Test 6: Phantom Power (+48 V) Stress Test & Clamping Diode Validation

See image Test 6

Connecting line-level audio gear to a live stage console always carries the risk of accidental exposure to +48 V phantom power. While many designs rely solely on AC-coupling capacitors, high-voltage hot-plug transients can easily breach silicon breakdown ratings before the capacitor fully charges.

To demonstrate that the converter’s dual-stage protection network (bipolar blocking capacitors + BAV99 rail clamping diodes) prevents catastrophic IC destruction, a live +48 V injection test was performed.

Test Configuration:

1. DC Power Supply: Rigol DP832 supplying +48.0 VDC through a 6.81 kΩ resistor (matching IEC 61938 professional phantom power feed standards).
2. Oscilloscope: Rigol MSO5072 in single-sweep transient capture mode (100 ms/div, 10.0 V/div per channel).
3. Probing:
4. Channel 1 (Yellow): Probing the outside XLR Pin 2 (Hot) terminal.
5. Channel 2 (Cyan): Probing Pins 1–2 of the DRV134 (the internal silicon output node, right at the anode/cathode junction of the BAV99 clamping diode).

Transient Analysis from RigolDS8:

1. DC Blocking on XLR Side (Yellow Trace - CH1):
2. At the moment of connection, the external side of the 10 µF 100 V non-polarized capacitor charges up toward +48 VDC along a classic RC curve. The capacitor effortlessly holds off the high DC voltage without leakage or dielectric breakdown.
3. Instantaneous Clamping on DRV134 Pins (Cyan Trace - CH2):
4. At the leading edge of the transient, displacement current rushes through the coupling capacitor. As the voltage attempts to surge toward +48 V, the high-speed BAV99 diode turns on immediately and shunts the current into the +15.45 V rail.
5. Notice the sharp ceiling on the cyan trace: it clamps cleanly at ~16.1 VDC (1.6 vertical divisions), which corresponds precisely to:
6. V_clamp = V_rail (+15.45 V) + V_diode (~0.65 V) ≈ 16.1 V.
7. Recovery to Baseline:
8. Once the 10 µF capacitor finishes charging, the current drops to zero, and the 47 kΩ bleeder resistor discharges the node back down toward 0.00 VDC.

Conclusion:

The sensitive output stage of the DRV134 never sees more than a harmless diode drop above its positive supply rail. This visual proof confirms that accidental activation of console phantom power—or hot-plugging into an active snake—will cause zero damage to the converter.

Real-World Integration with the Numark Mixtrack Pro FX

Once bench verification was complete, the converter was deployed in its intended real-world setup:

1. Source Connection: The unbalanced RCA Master Outputs of the Numark Mixtrack Pro FX were connected to the converter's RCA inputs using short, shielded patch cables.
2. Destination Connection: The converter's balanced XLR outputs were connected to the microphone/line balanced XLR inputs of a front-of-house (FOH) professional mixing console over a 50-foot balanced snake.
3. Power Up Sequence: Standard audio best practice was followed: power up the audio source (controller) first, then power the converter, and finally bring up the console faders and master PA amplifiers.

Acoustic & Noise Floor Results

1. Dynamic Range & Headroom: With the Mixtrack Master level pushed to nominal operating levels (+0 dB on the software meters), the OPA1656 and DRV134 stages provided clean, effortless signal boost. The balanced line delivered standard pro-level signal amplitude directly into the mixer, allowing the mixer preamps to operate in their lowest-noise, unity-gain sweet spot without requiring excessive trim gain.
2. Hum & Noise Rejection: Even running parallel to AC mains cables, the balanced differential transmission completely eliminated the audible 60 Hz hum, buzz, and computer processing noise (USB packet hash) that previously affected the unbalanced RCA cable runs.
3. Ground Lift in the Field: In test environments where an audible ground loop occurred due to the DJ laptop power supply sharing a different AC outlet branch from the console, opening the Ground Lift switch completely silenced the loop while maintaining complete RF shielding.

Conclusion

Rather than relying on compromising passive direct boxes with winding saturation or basic unbuffered pin adapters, this active balanced line driver provides a true, low-distortion, professional-grade interface. By respecting the AES48 grounding standard, isolating output stages from cable capacitance, and protecting the silicon from downstream +48 V phantom power, the converter bridges the gap between consumer DJ hardware and professional sound reinforcement equipment reliably.

Photo Gallery

Gerber File
