Proving Theory Wrong: How to Measure Arduino's Internal Pull-Up Resistor (And Why AI Says You Can't)

Learning electronics online has become a giant "copy-paste" loop. We copy code from tutorials without understanding the physics inside the silicon chip. This post breaks that loop.

If you ask Google or an AI chatbot “Can I measure a resistor with a multimeter while the circuit is powered ON?”, the answer is always a strict NO. They will tell you it is impossible, inaccurate, or dangerous for your meter.

Today, we will prove them wrong. This experiment is the real-world,hands-on continuation of my previous project: https://www.instructables.com/Interactive-MCU-Register-Quiz-for-Teachers-Learn-U/. While that quiz teaches you the theory on paper, here we will grab a multimeter and prove that practice beats theory by measuring the exact value of Arduino's internal pull-up resistor while the MCU is running.

Here is everything you need to break the rules and replicate this experiment:

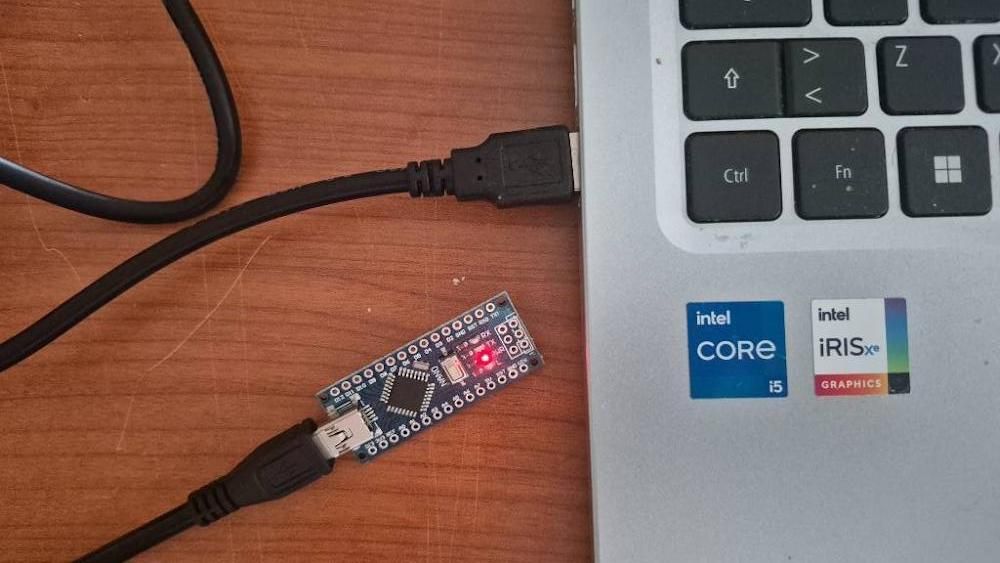

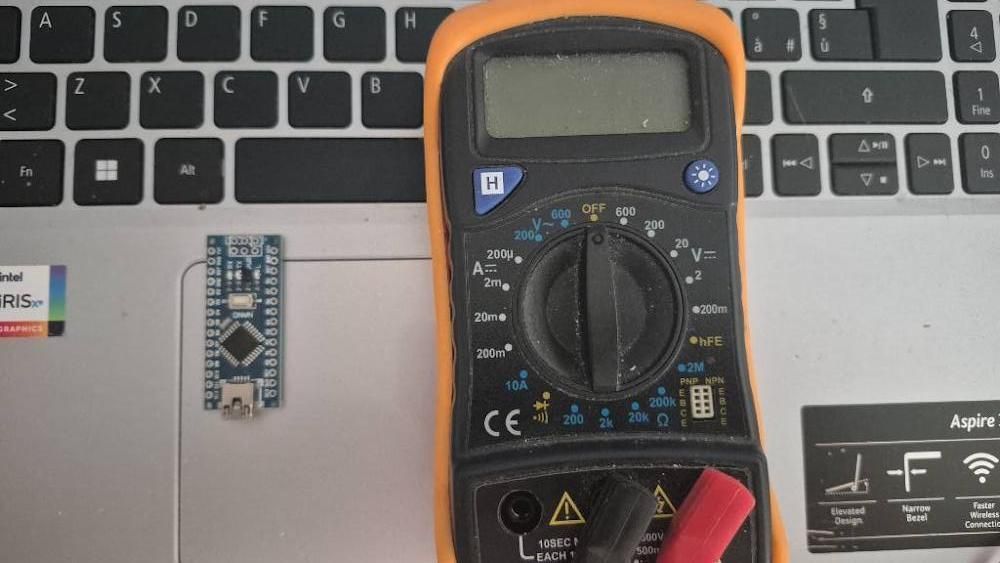

1. 1x Arduino Nano (or any ATmega328P-based microcontroller board).
2. 1x Digital Multimeter (with resistance/Ohm mode, capable of measuring up to 200k Ω).
3. 1x USB Cable (to connect the Arduino to your computer and power it up).
4. 1x Computer with a Web Browser (to access the CostyCNC web environment or the Arduino IDE).
5. No external resistors or breadboards needed! We are measuring the hidden architecture inside the chip itself.

To find the internal resistor, we must create it first. Inside the ATmega328 chip, the pull-up resistor is physically disconnected by default. It only connects to the circuit when a tiny internal transistor (MOSFET) acts as a closed switch.

This means the MCU must be ON to measure it. If the chip is powered off, the resistor does not exist to the outside world.

Upload this simple code to your Arduino Nano to turn on the internal switch on Pin 13:

While the Arduino IDE is great for beginners, it hides the true nature of the microcontroller. To really understand what we are measuring, we should control the hardware registers directly.

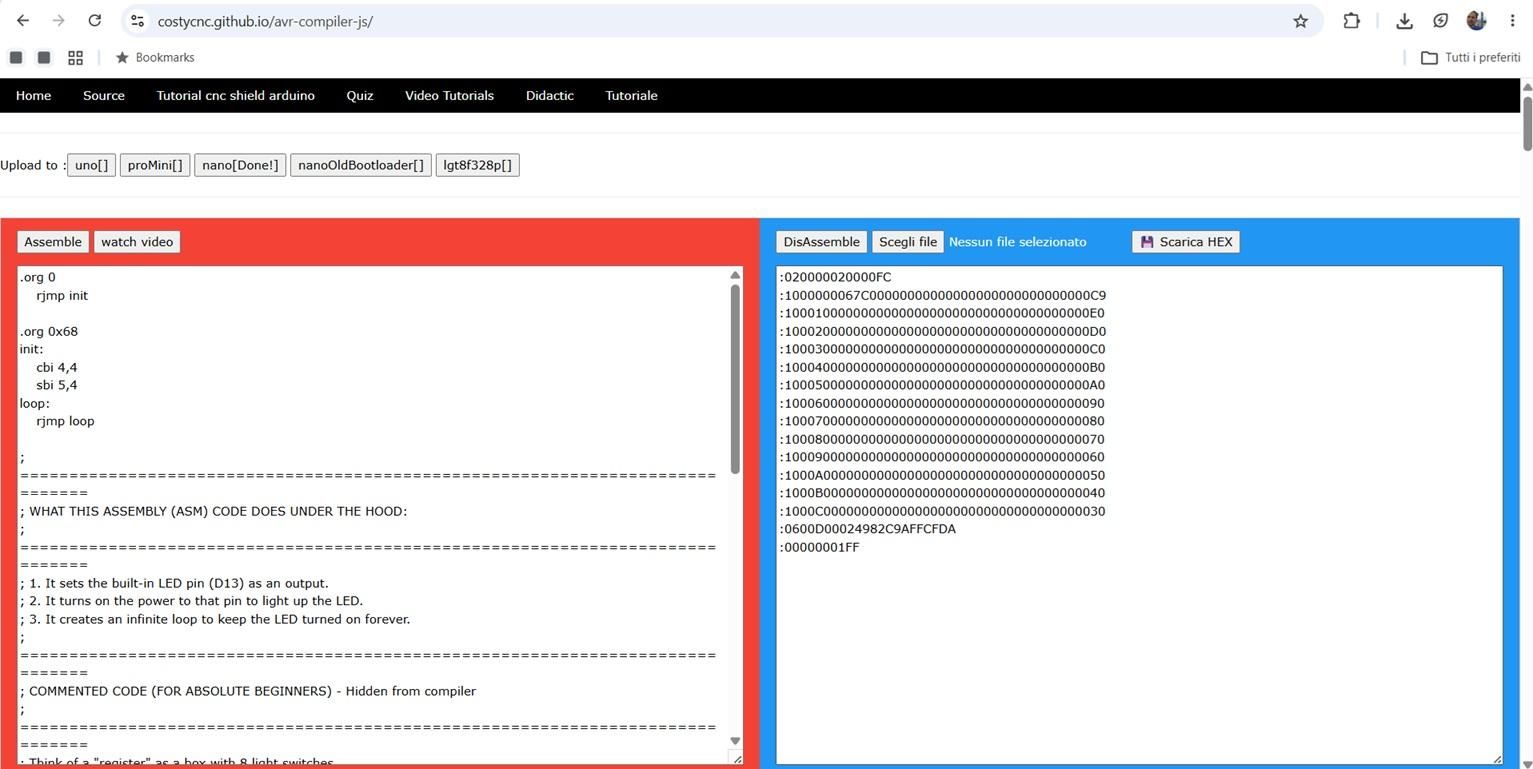

For this project, I used CostyCNC AVR Assembler & Compiler. It is an incredible web tool that lets you write, compile, and upload pure AVR Assembly directly from your browser. You don't need to install heavy software or configure complex toolchains on your computer.

By using pure Assembly, we don't just ask Arduino to turn on a pin; we manually toggle the specific bits inside the chip's internal memory.

Here is the exact code I compiled using CostyCNC to force the chip to enable the internal pull-up resistor on PB5 (Digital Pin 13):

With this code running, we have bypassed all software abstractions. The micro-switch inside the chip is now physically locked into position, ready for our multimeter test.

Why do search engines and AI say this is impossible? They repeat a general textbook rule: Ohmmeters apply a small internal current to measure resistance. If external voltage is present, it ruins the measurement or kills the meter.

This rule is correct for most circuits, but not here. Here is why our method is 100% safe and accurate:

1. Zero Potential Difference : When you activate INPUT_PULLUP, the internal resistor is tied directly to the VCC line (+5V). The pin output becomes exactly +5V.
2. No Parasitic Current: If you place your RED probe on the Arduino Pin and your BLACK probe on the VCC pin, both points are at the exact same electrical potential (+5V). Because there is zero voltage difference between the probes, no external current from the Arduino can flow into your multimeter.
3. Safe Zone: The multimeter's internal battery is completely free to measure the resistance without interference.

Let's switch from theory to practice:

1. Keep the Arduino Nano powered via USB.
2. Set your digital multimeter to the Resistance (Ohms) mode, using the 200k Ω scale.
3. Place the RED probe on Digital Pin 13.
4. Place the BLACK probe on the 5V VCC pin of the Arduino.
5. Look at the screen.

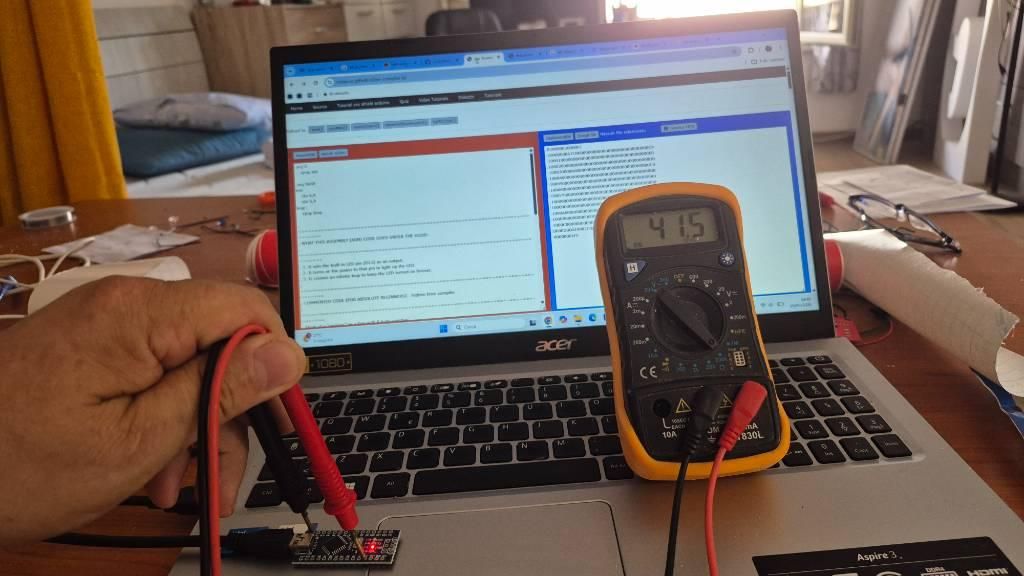

Our real-world test shows exactly 41.5 kΩ. The official Microchip ATmega328 datasheet states that the internal pull-up resistor value is somewhere between 30k Ω and 50k Ω. We just isolated and measured the exact real-world value of that microscopic piece of silicon!

Practice beats copy-paste theory every single time. By understanding how the internal hardware registers work, we safely bypassed a rule that every internet bot calls "impossible."

Next time your code doesn't work, don't just change the lines of text. Grab a multimeter and see what the silicon is actually doing!

You might ask: "Why are we doing this on an old 8-bit ATmega328 (Arduino Nano) instead of a fast, modern 32-bit ARM Cortex or ESP32 chip?"

The answer is simple: Advanced MCUs are too complex to learn the physics of computing. Modern chips have thousands of pages of datasheets, complex clock trees, and layers of hardware abstraction. They make it impossible to see the direct connection between one line of code and a single physical transistor.

The ATmega328 is beautiful because it is transparent. It allows you to use a lightweight tool like the CostyCNC Online AVR Assembler & Compiler to run fast "micro-tests" directly on the hardware silicon without any bloated software in the middle.

If you are a teacher or a student wanting to master this architecture, don't forget to check out my printable https://www.instructables.com/Interactive-MCU-Register-Quiz-for-Teachers-Learn-U/ to practice drawing these internal hardware logic structures before testing them!

What We Can Test Next:

By writing directly to the hardware registers with CostyCNC, we can easily visualize and demystify advanced concepts that confuse most students:

1. Data Types In Action: Watch how int, char, and unsigned types actually fit into 8-bit memory cells.
2. The Serial Port (UART): See how bytes move bit-by-bit into the shift registers instead of just calling Serial.print().
3. Hardware Flags: Observe how the MCU hardware alters specific register status bits automatically during math operations.

Don't let the internet search bots or high-level copy-paste guides tell you how hardware works. Grab your multimeter, load up https://costycnc.github.io/avr-compiler-js/, and test the silicon yourself.

What micro-test should we run next? Let me know in the comments below!
