Quarky Board Protective Case With Quarky Expansion Board Holder

by theSTEMpedia in Workshop > 3D Printing

30 Views, 0 Favorites, 0 Comments

Quarky Board Protective Case With Quarky Expansion Board Holder


This project focuses on designing a compact and functional 3D-printed enclosure for the Quarky board along with its expansion board. Created using Fusion 360, the design ensures that both components are securely housed in a single unit while maintaining accessibility to essential features. The enclosure is uniquely designed such that the Quarky and expansion board themselves act as the top cover, allowing easy interaction with pins, LED matrix, and push buttons.

Supplies

  1. 3D Printer
  2. 3D Design Software

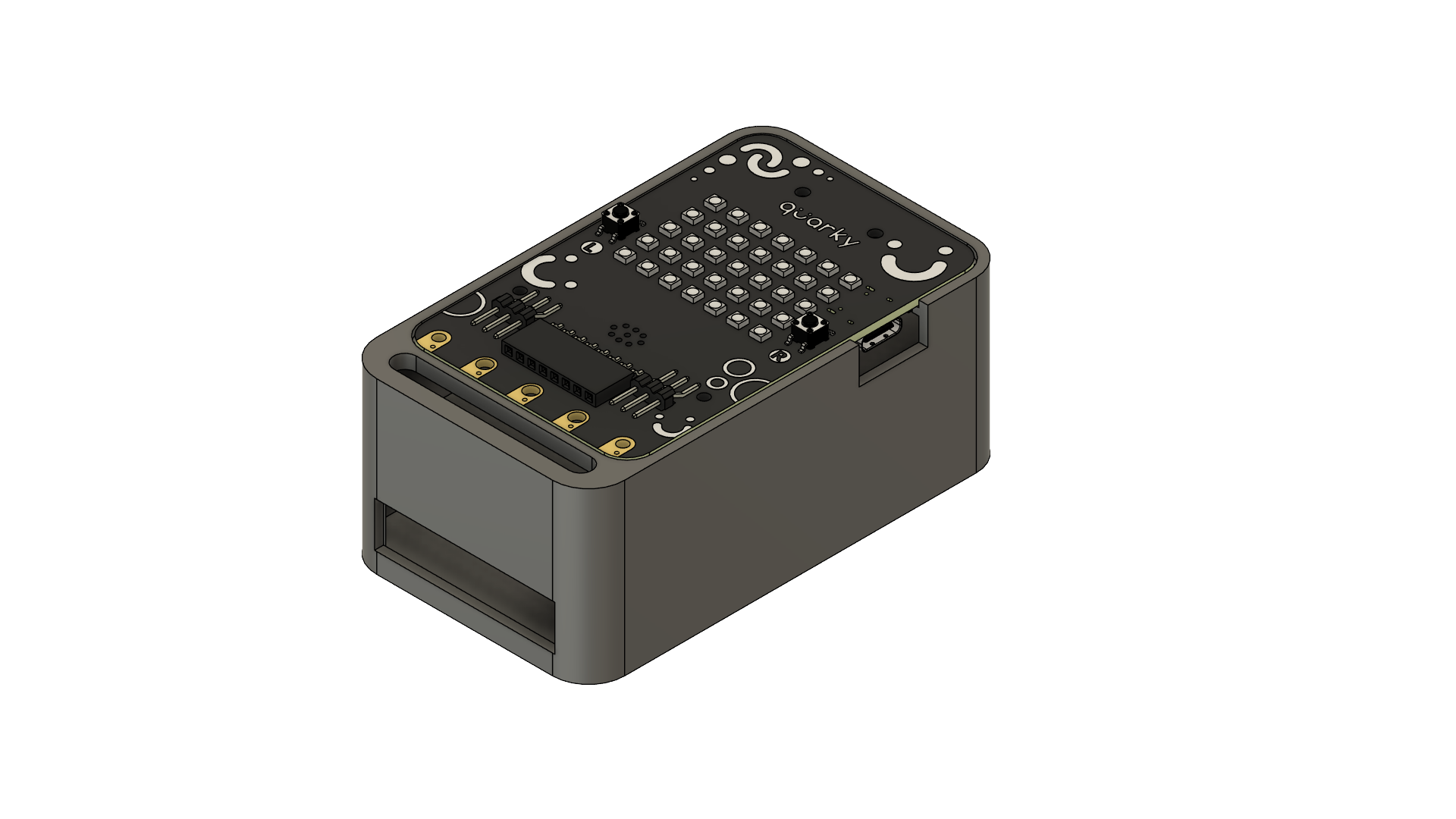

Design the Enclosure Model in Fusion 360 With Accurate Dimensions of Quarky and Its Expansion Board.


*Similar steps can be performed in any 3D design software.

Create Dedicated Slots to Securely Fit Both Boards in Alignment.


Include Space Between the Boards for Battery Placement and Wiring Connections.


Export the Model and Slice It Using Compatible Slicing Software.

Screenshot 2026-05-05 014926.png

3D Print the Model Using PLA Filament on 3D Printer.

Screenshot 2026-05-05 015003.png

Assemble the Quarky and Expansion Board Into the Printed Enclosure.


To edit the model as per your need, download the STEP file from here

To 3D print the model as it is, download the STL file of this project from here

Conclusion

This project successfully demonstrates how 3D design and printing can be used to create a functional and user-friendly enclosure for electronic components. The innovative approach of using the Quarky and expansion board as the enclosure cap enhances usability while maintaining a compact structure. It provides an effective solution for organizing hardware, protecting components, and improving the overall user experience.
